Universal Turbo for GT45 T4 V-BAND 600+HPS Boost with Oil Return Line kits

Application

Perfect for all 3.0L-6.0L engine

Specification

Exhaust (Turbo Manifold) Flange    T4 4 Bolt Flange
Exhaust (Downpipe) Flange    V-Band Flange
Wastegate     External Wastegate
Horse Power    Boost Horse Power up to 600+ BHP
Turbo Height    243cm
Turbo Width    273cm
Compressor:
Trim:50
Inducer Diamter:69mm
Exducer Diamter:98 mm
A/R:0.66
Turbine:
Trim:78
Inducer Diamter:88mm
Exducer Diamter:77.5 mm
A/R:1.05

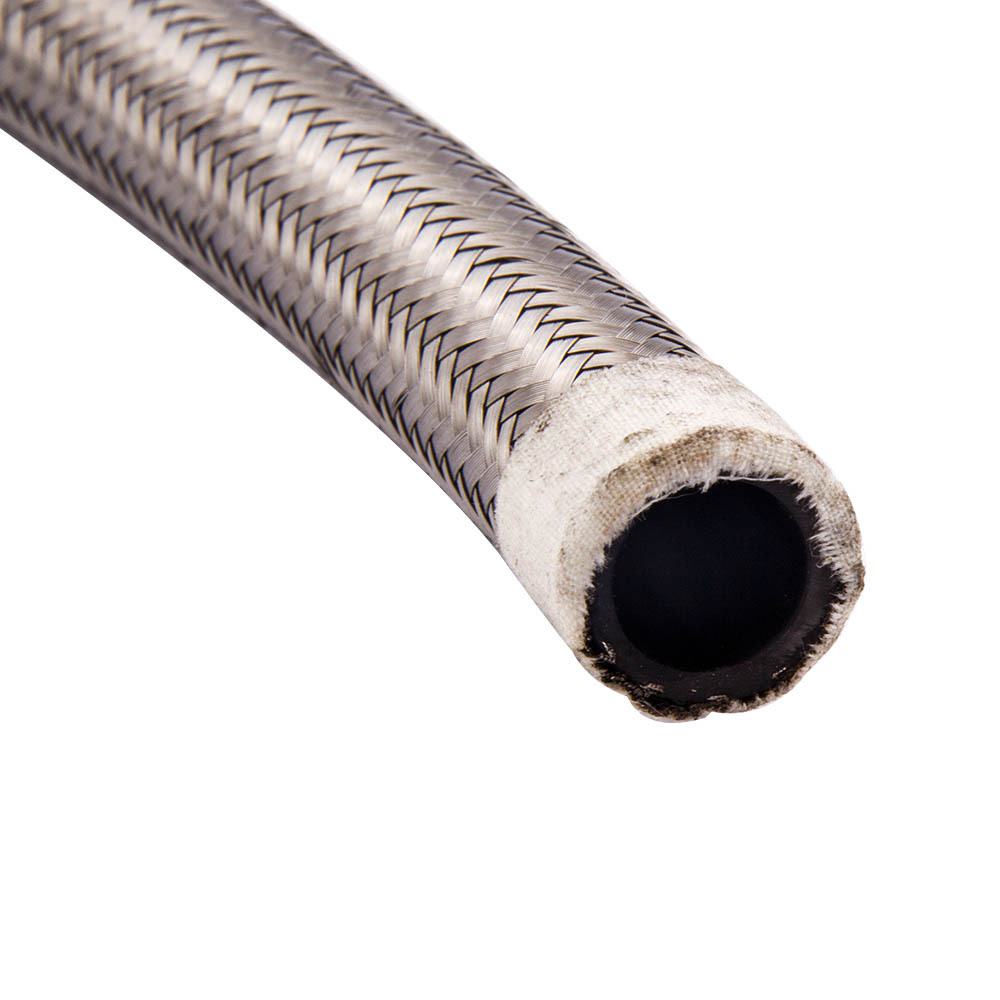

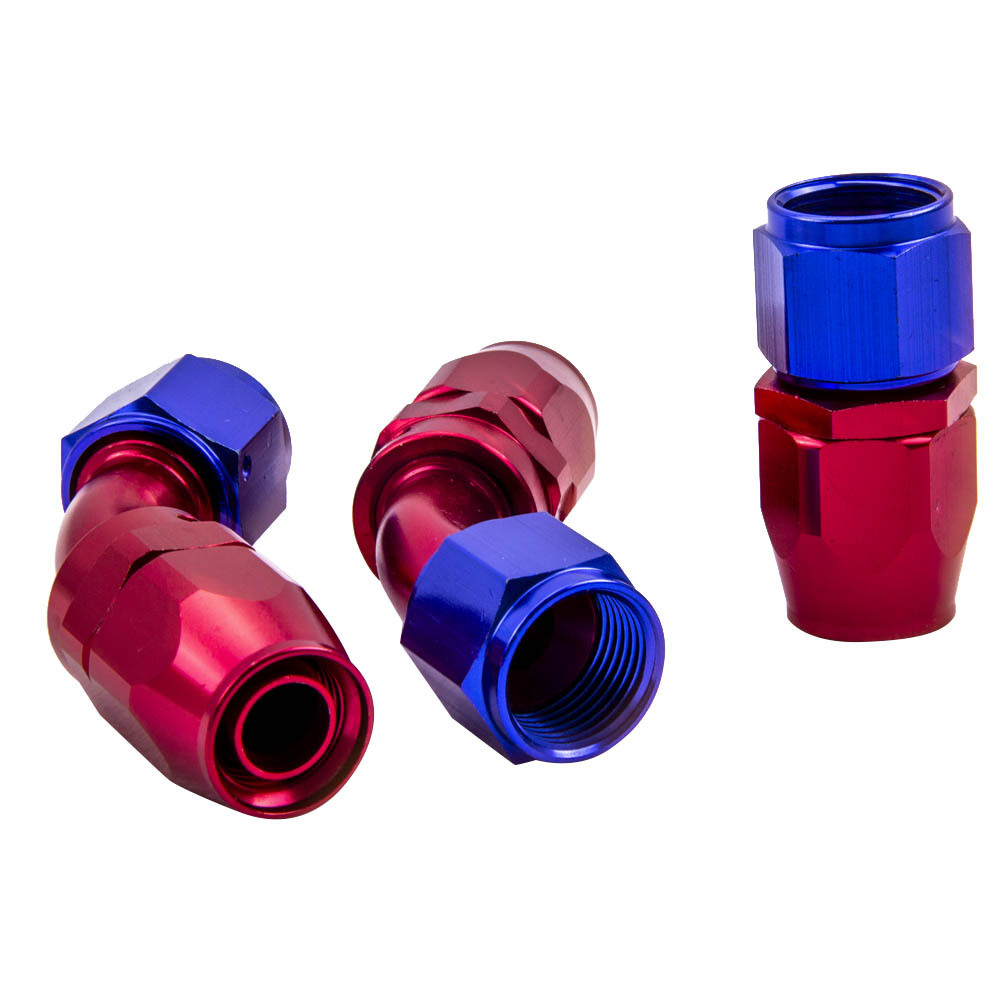

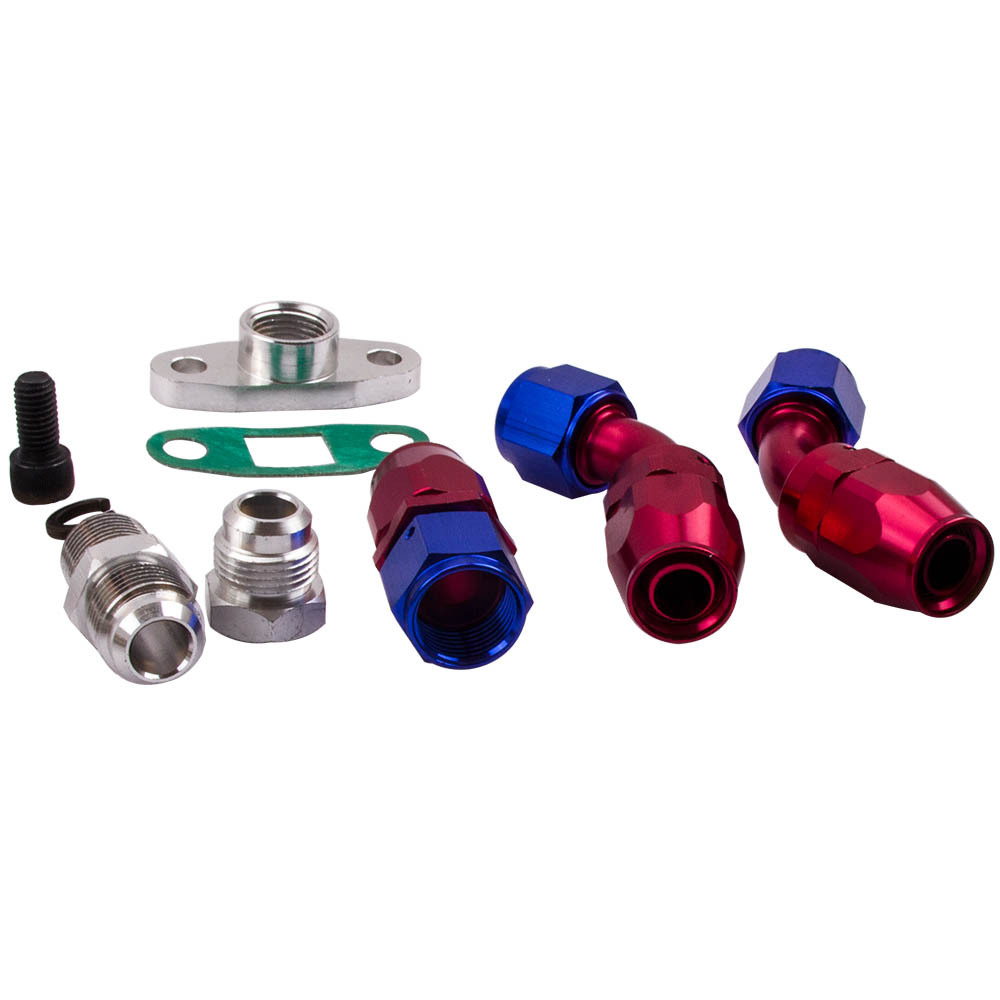

Oil Line: 10AN 550mm Turbo Oil Return Line Kit

Oil Inlet: M9 & 2*M8*1.25

Oil Outlet: M19 & 2*M8*1.25

Condition: New
Bearing Type: Floating Bearing
Warranty: one year for any manufacture defects
Accessories: You will get exactly as shown in the picture above ( Turbo + oil return line kit )

Note

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
* This is universal application turbo, so modification might be required for some vehicles.
