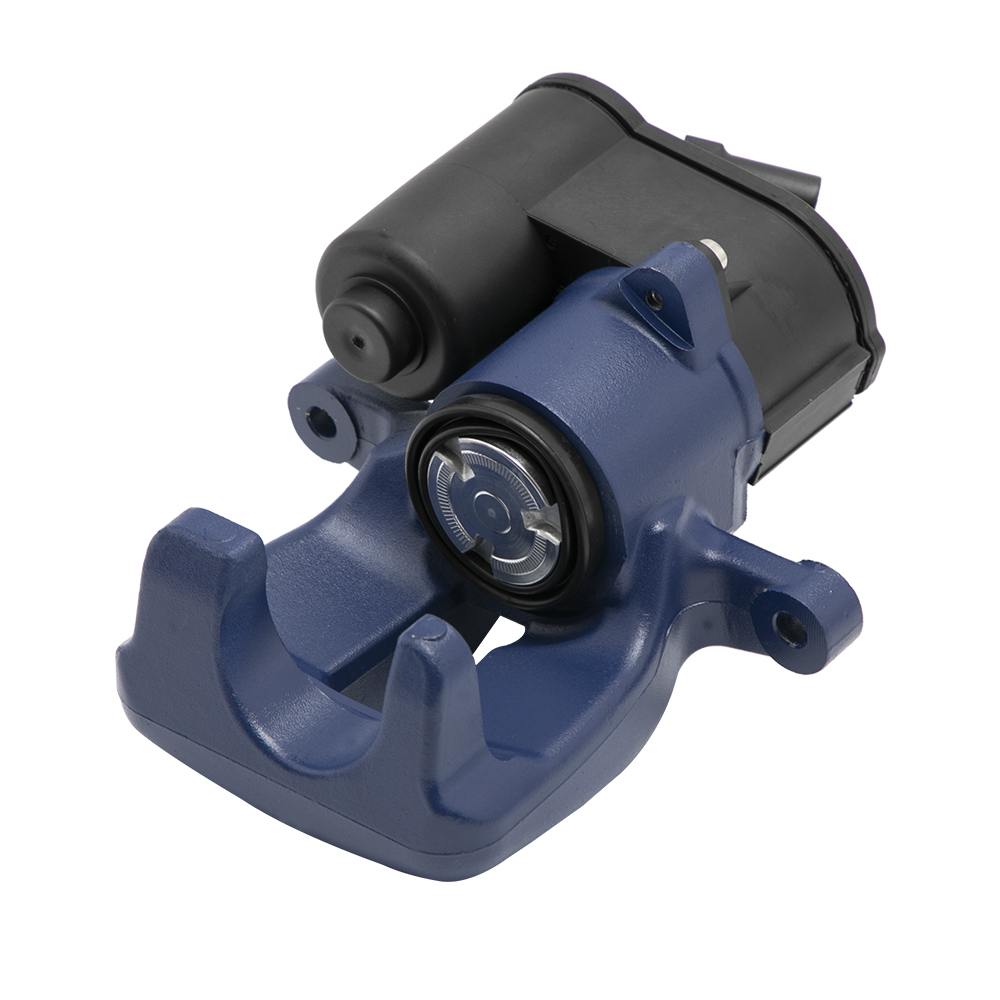

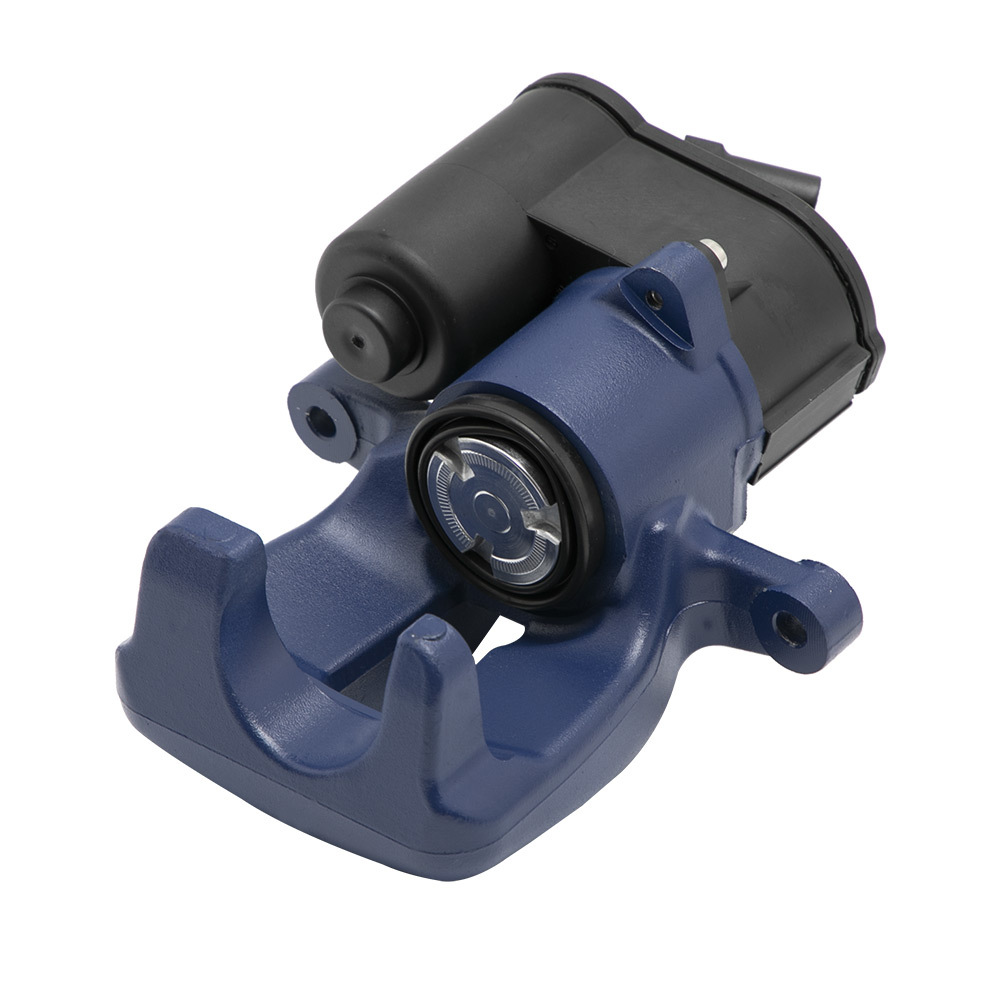

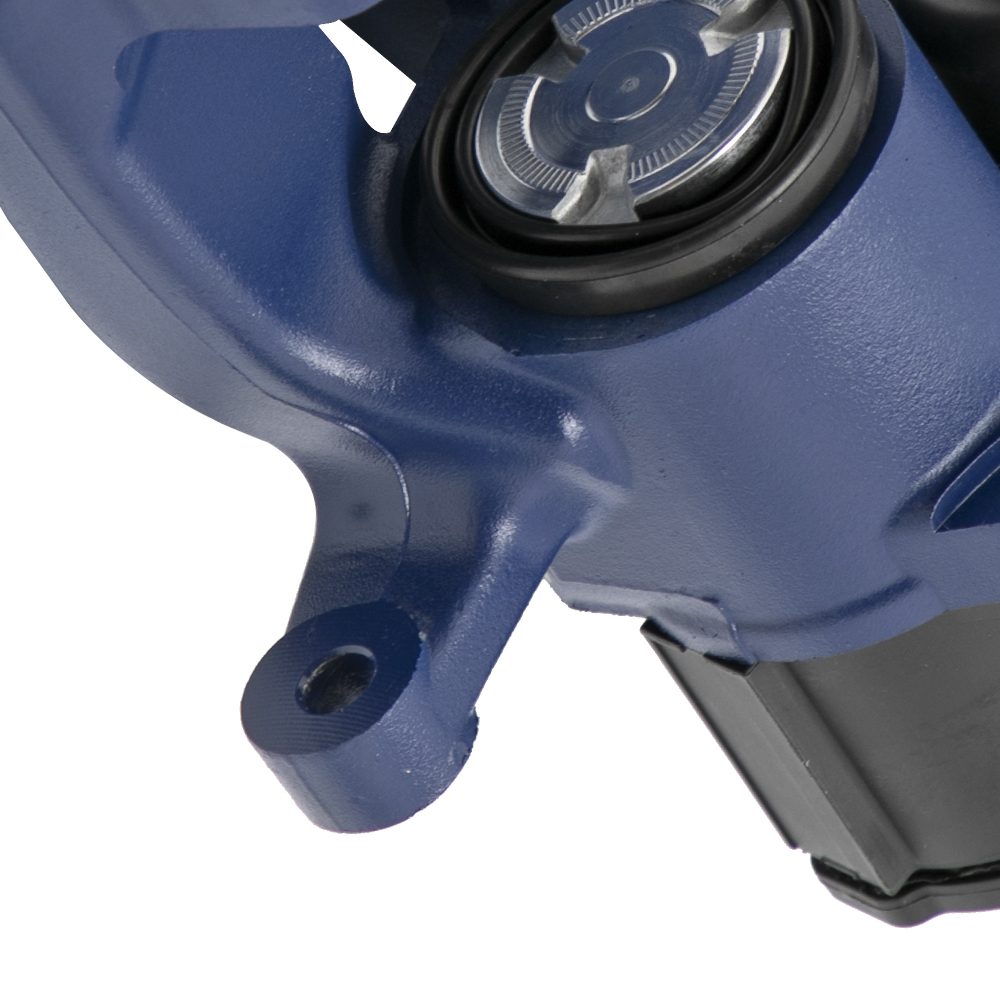

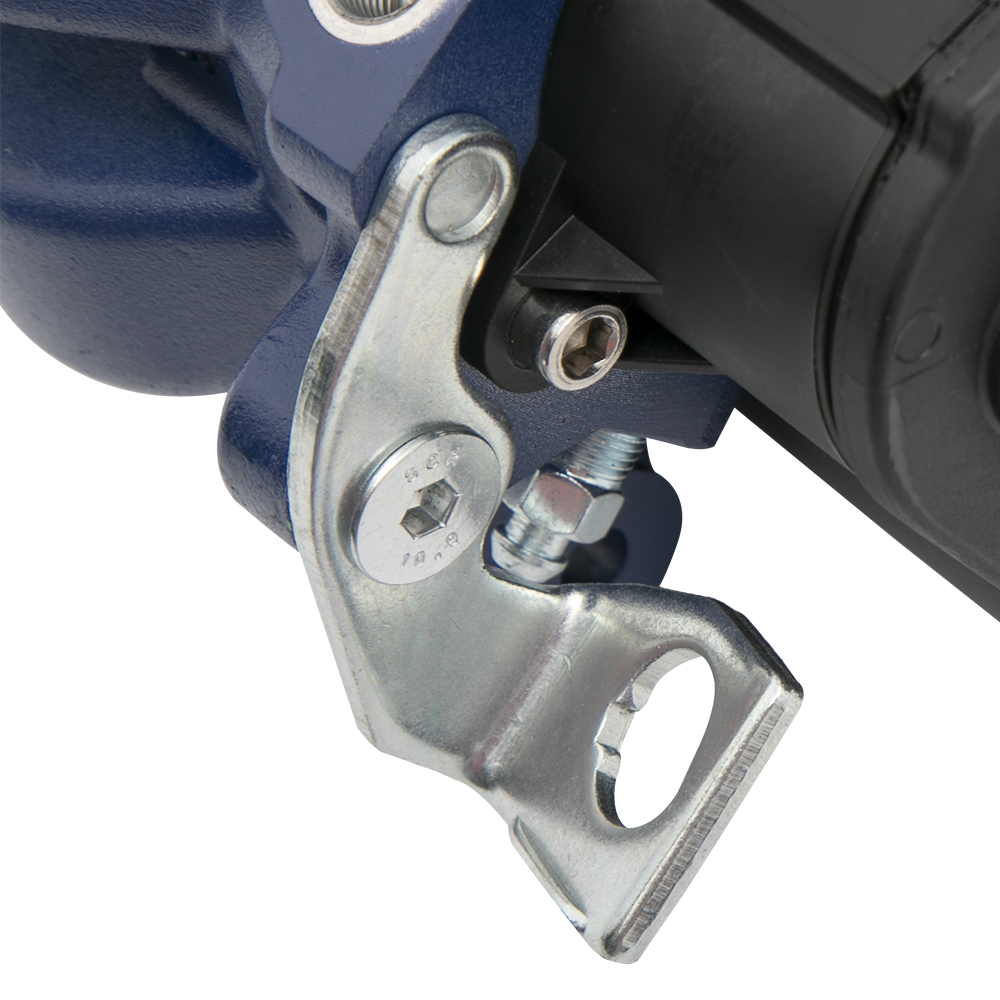

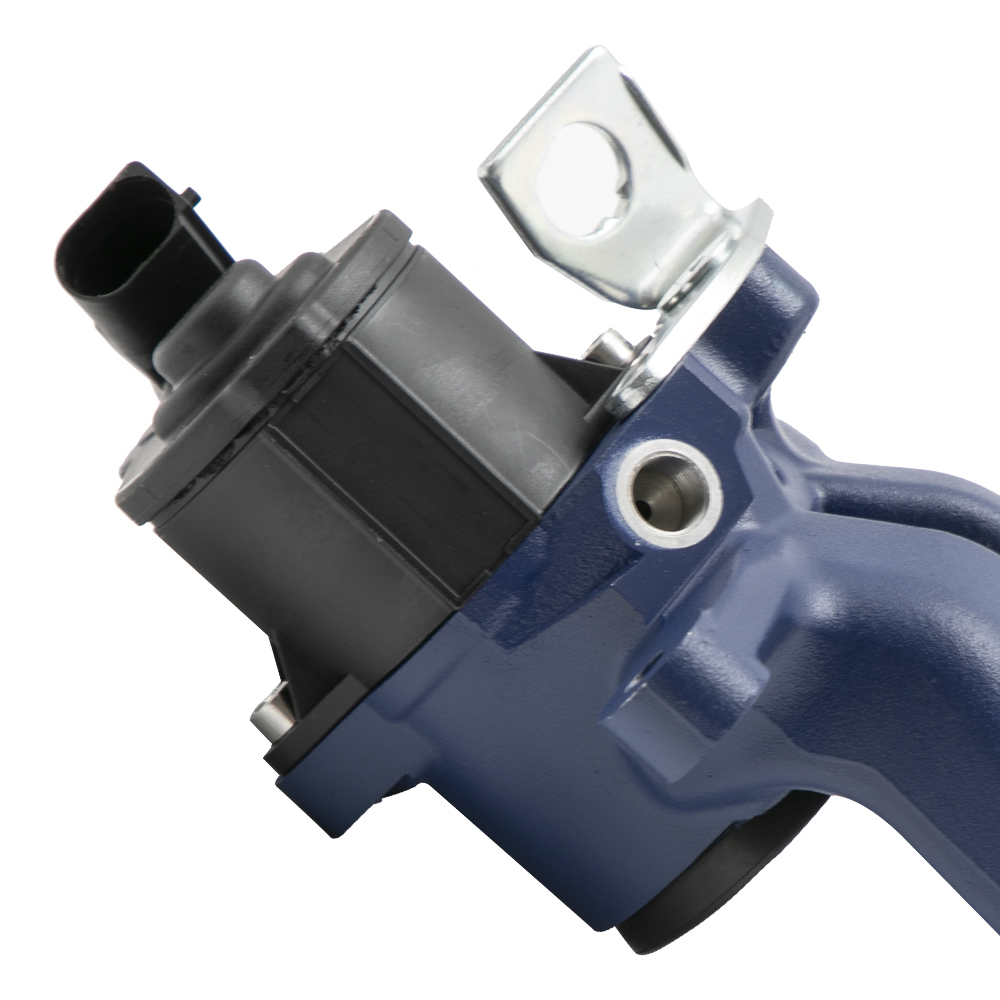

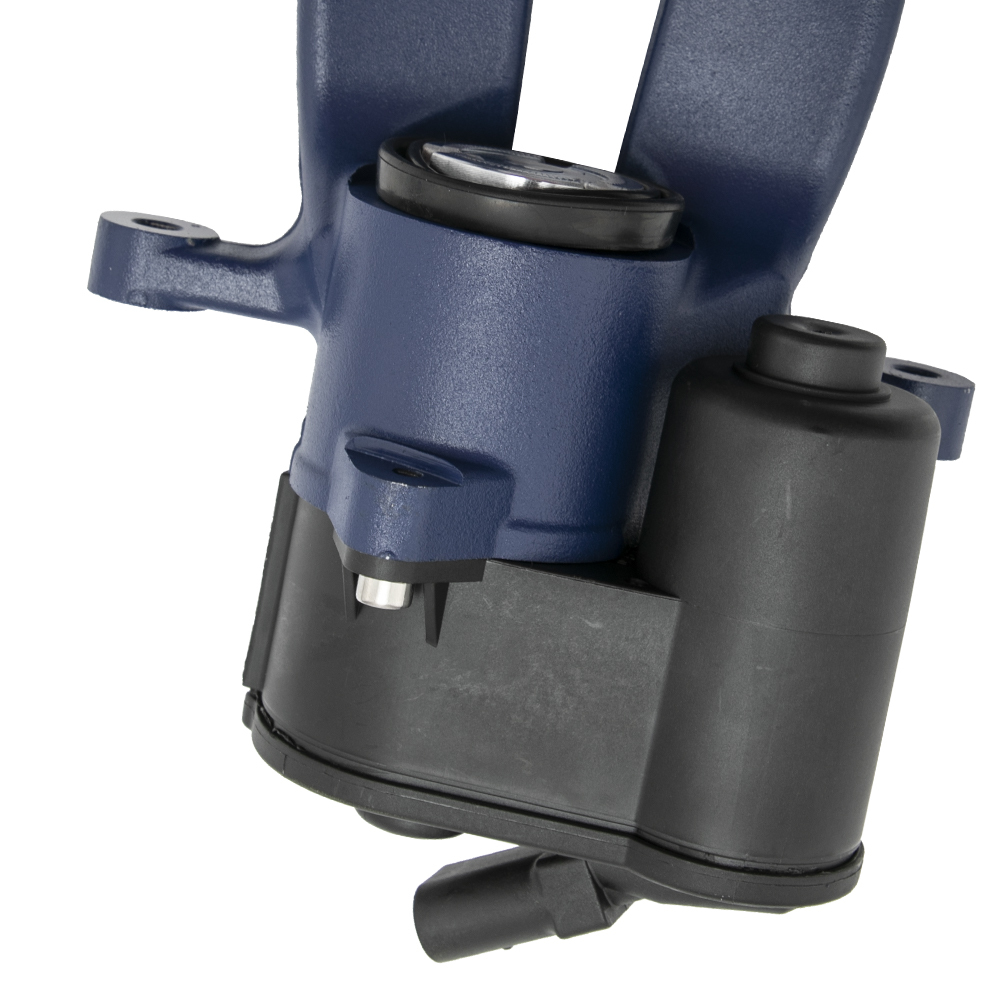

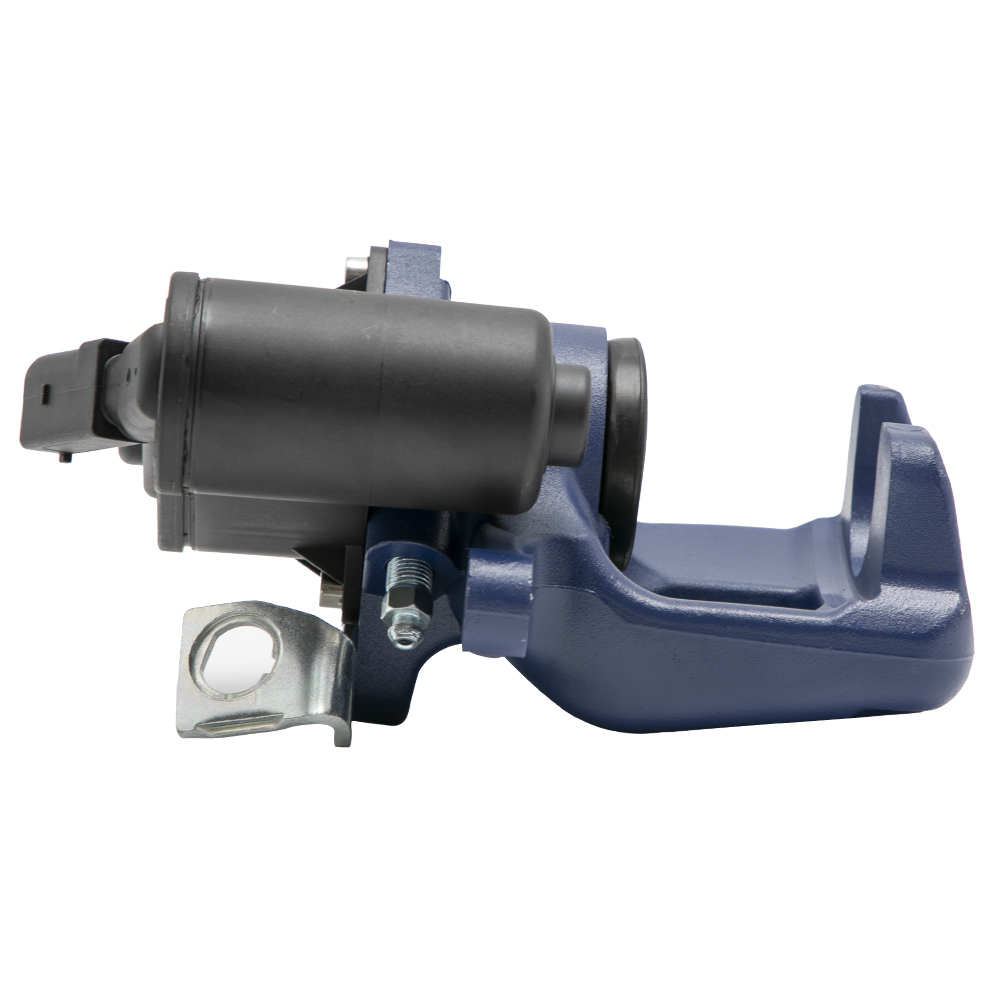

Rear Left LH Brake Caliper compatible for VW Passatwith Electric Parking 3C0615403 Blue

Description

* please confirm the cylinder Piston Ø is 38mm;Please make sure your Part Number and PR Number （PR Number applies only compatible for Volkswagen Group's brands）are consistent with the description to avoid buying mistakes

* PR number found in the boot or servicemanual

Application:
Compatible for VW Passat 3C 05-07 1.9 TDI Rear Left Brake Caliper with Electric Parking Brake .
Compatible for VW Passat 3C2, 3C5
This item is not for OEM number 5N0615403

 Reference OEM number:
3C0615403E, 3C0615403G, 3C0615403 ，3C0615403B，3C0615403H，3C0615403C ,For 986473455
986473455
24623817017
522791
BHN357
F85218



Specification:
- Mounting position: left rear
- Brake caliper design: Fist caliper
- Material: Aluminum
- Diameter: 38mm
- Vehicle equipment: For vehicles with parking brake -Only for vehicles with electronic parking brake, PR No. 1KU and build year      before April 2007 -No bracket -Thread size M12X1
-For brake disc: thickness 12 mm/diameter 282 mm
-Distance between fastening bolts 134 mm
- Electronic brake caliper motor parameters: 12 teeth
-condition: 100% brand new, ready to install

-Color：Blue
-warranty: one year


Easy to confuse
NOT FOR:oe5N0615403， brake disc thickness 12 mm
NOT FOR:Brake caliper piston diameter [mm] 41.0 mm
NOT FOR:Thread dimension M10X1.5
NOT FOR: PR NUMBER 1KW                    ONLY FOR:PR No. 1KU


Note:

* Please make sure your old part number matches one of the above part numbers, please make sure your KBA code and PR code and main parameters are appropriate.
* Professional installation is highly recommended (ourproduct manual can be used as reference).                               * Due to different installed brake systems and to avoid incorrect deliveries, we ask you to send us the 17-digit vehicle identification number (VIN, chassis number) to check the accuracy of fit. Dispatch takes place only after inspection
* For any needs please contact us.
