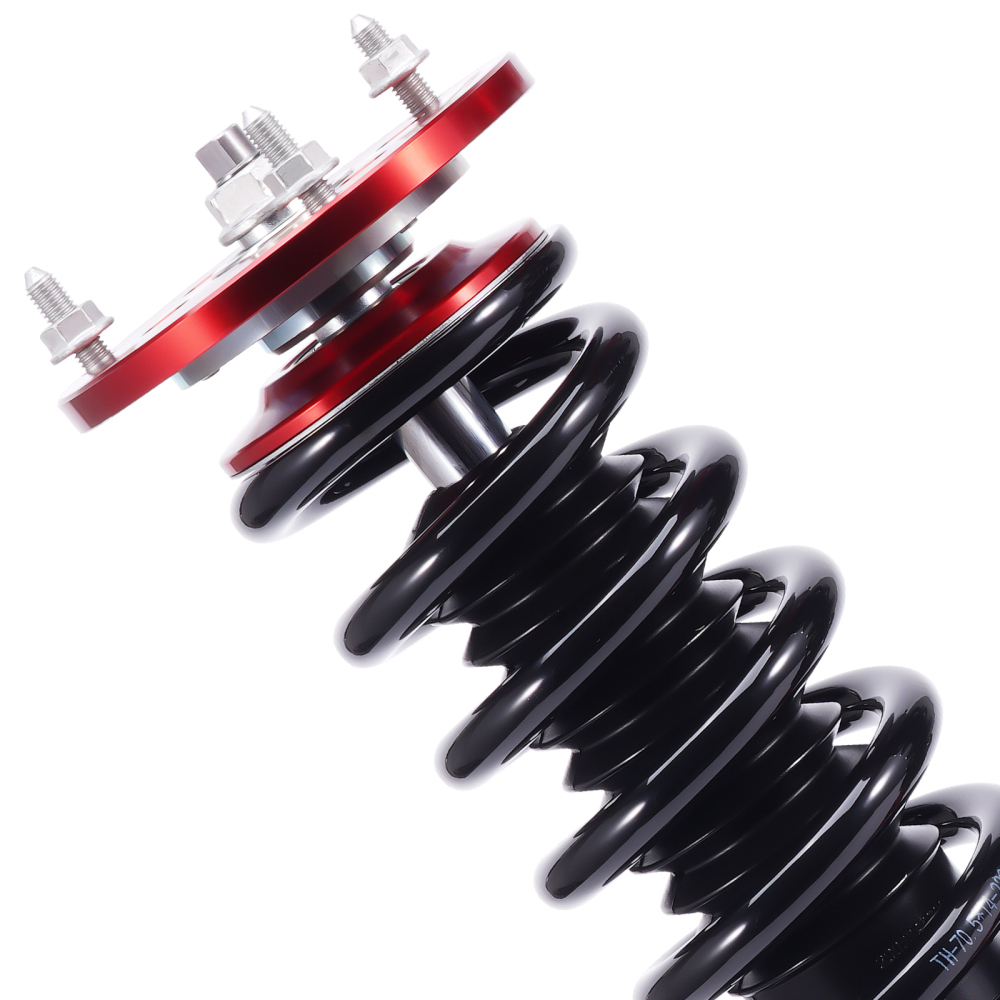

Compatible for BMW 5 Series E60 Sedan Coilovers Suspension Kits 2004-2010 Adjustable Height Red Lowering Kit

Introduction

Application

compatible For BMW 5 series E60 2004-2010 Sedan RWD

model: 525i,528i,530i,535i,545i,550i,520d,525d,530d,535d

will not  M models

Specification

Top mounts: front - pillow ball top mounts

rear - rubber top mounts

Damping: not available

Spring rate:  front 10kg/mm

rear 7 kg/mm

Adjustable height: Yes lowering 1" to 3"

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: red

Warranty: one year warranty for any manufacturing defect

Package included:

complete coilovers for 2 front and 2 rear

a pair wrench for height adjustment

Dimension:

weight: 25420g

size: 71*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

2. Twin-Tube structure allows sufficient stroke within the shock absorber

3. Separate height adjustment does not affect damper stroke

4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.

5. Height Adjustment tools included

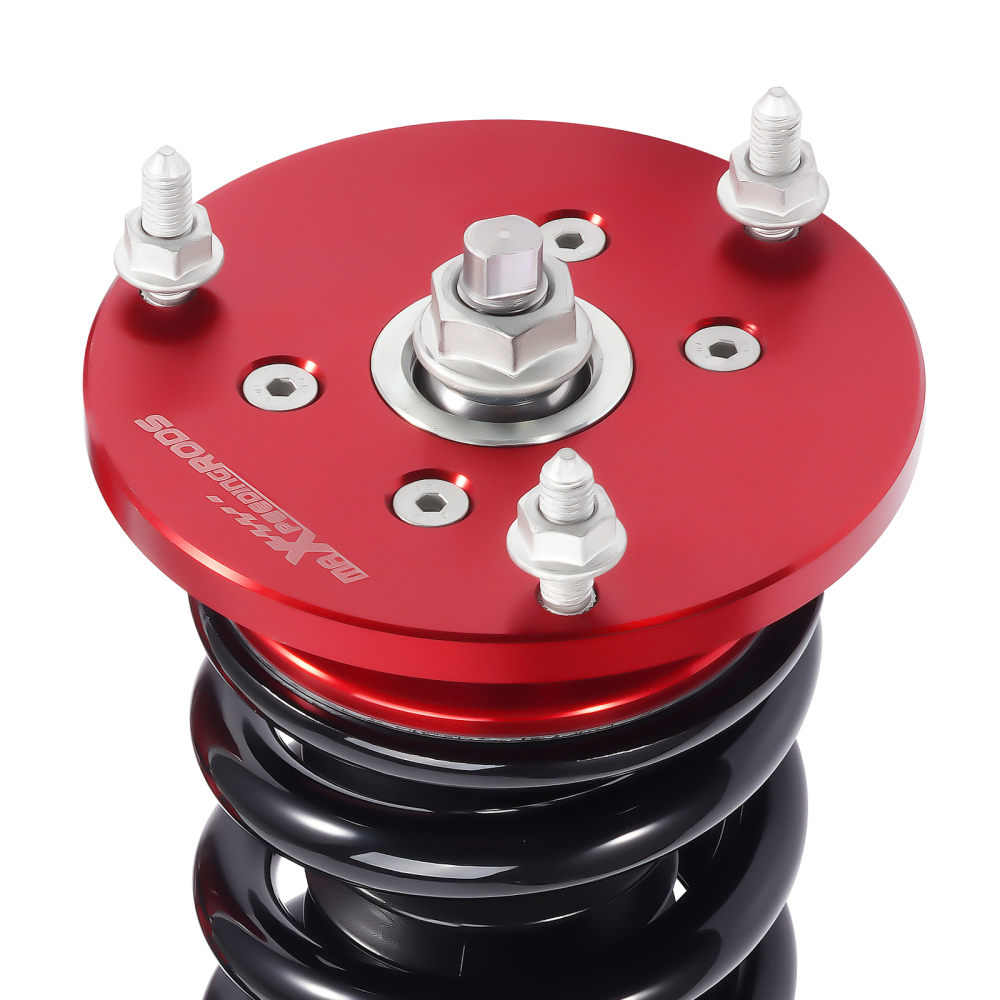

6. Pillow ball top mount - It improves the steering feel and response

7. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

8. Full rebuildable
