Compatible for Renault Clio 1998ccm 147HP 108KW 1997ccm 139HP 102KW Conrods Connecting Rods with ARP 2000 bolts

lncl. 20% VAT
  • * H-Beam con rods compatible for Renault Clio 172 182 Sport 2.0 16V
  • * Advertised Horsepower Rating: 800HP
  • * Material: Forged 4340 aircraft chrome moly quality steel
  • * Dimensions: Center to center length: 144mm; Big end diameter: 51.59mm; Small end diameter: 21mm; Big end width: 25mm; Small end width: 25mm
  • * Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * Performance Con Rods
  • * Advertised RPM Rating: 7000-9000 rpm
  • * Fastener Tensile Strength (psi):200,000 - 220,000 psi
  • * Balanced to within +/- 1 gram per end
  • * The big end bores are honed to a +/-.01mm tolerance
  • * Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock
Item Number 3002032812

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-REN-144
CR-REN-144
High Quality Components
High Quality Components
With Standard ARP 2000 Bolts (Upgradable ARP L19)
Precision Machining Manufacturing
Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels
Professional H-Beam Design
Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight
High Performance Material
High Performance Material
Forged 4340 aircraft chrome moly quality steel for racing.Advertised Horsepower Rating:800HP

Application

Compatible for Renault Clio Williams RS F7R 4340 Forged Steel H-Beam Connecting Rod
Compatible for Renault Clio Williams RS F7R F4R:
Compatible for Renault Clio Williams 1993–1996
Compatible for Renault Megane 1996–1999
Compatible for Renault Sport Spider 1995–1999
For Moskvitch 214242 “Ivan Kalita” (Russia only) 1999–
Compatible for Renault Laguna IV 1993–2000
Compatible for Renault Mégane 2003–
Compatible for Renault Scenic 2003–
Compatible for Renault Espace1996–2014
Compatible for Renault Clio Sport 172 182 ,2000–

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size:28CM*21CM*10CM

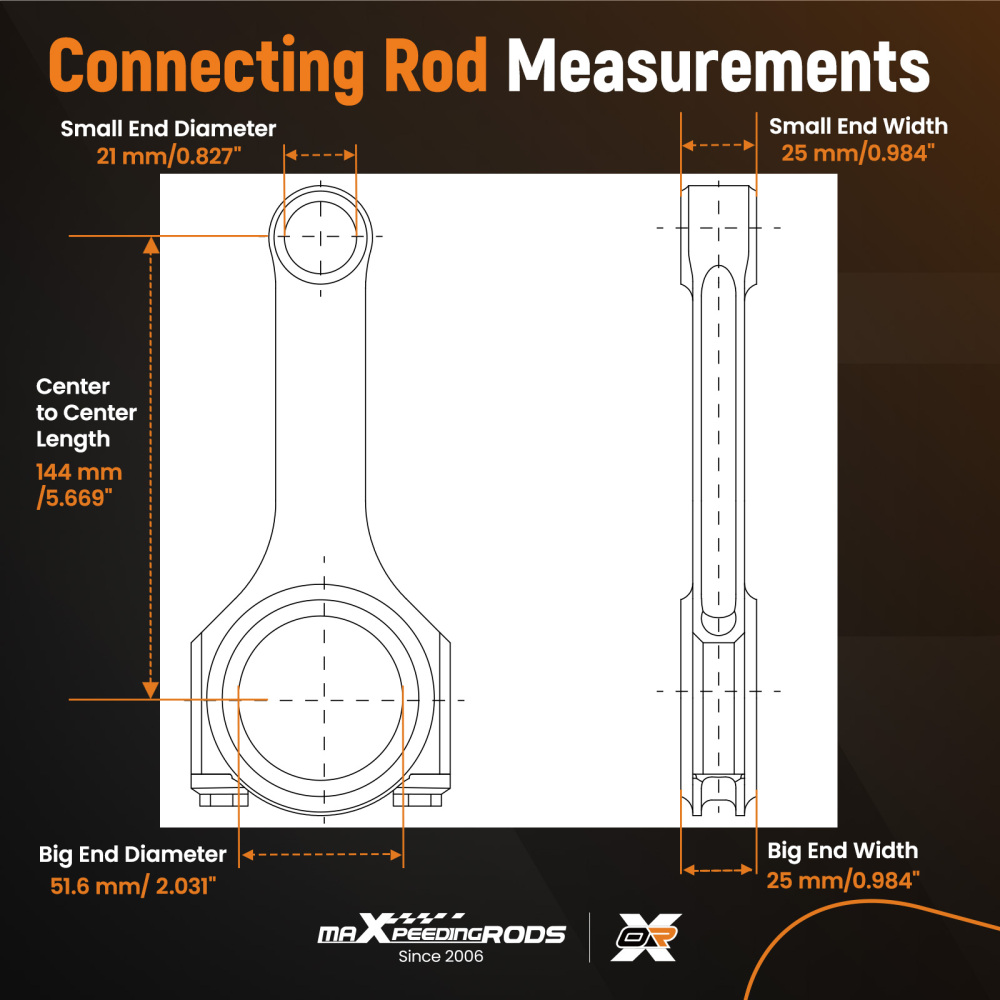

Dimension

Center to center length:144mm/5.669"
Big end diameter:51.6mm/2.031"
Small end diameter:21mm/0.827"
Big end width:25mm/0.984"
Small end width:25mm/0.984"

Feature

1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing;
2. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade;
3. H-Beam design reduces weight without compromising strength;
4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers;
5.High precision CNC machined,Precision rod cap alignment dowels;
6.Bores finished to +/- .01 mm;
7.Balanced to within +/- 1 g per rod;
8. Each rod is magnetic particle tested to ensure free of flaws;
9.Use X-rayed, sonic tested;
10.Custom Service.

Note

*Professional installation is highly recommended ;
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.


Warranty: one year warranty for any manufacturing defect
