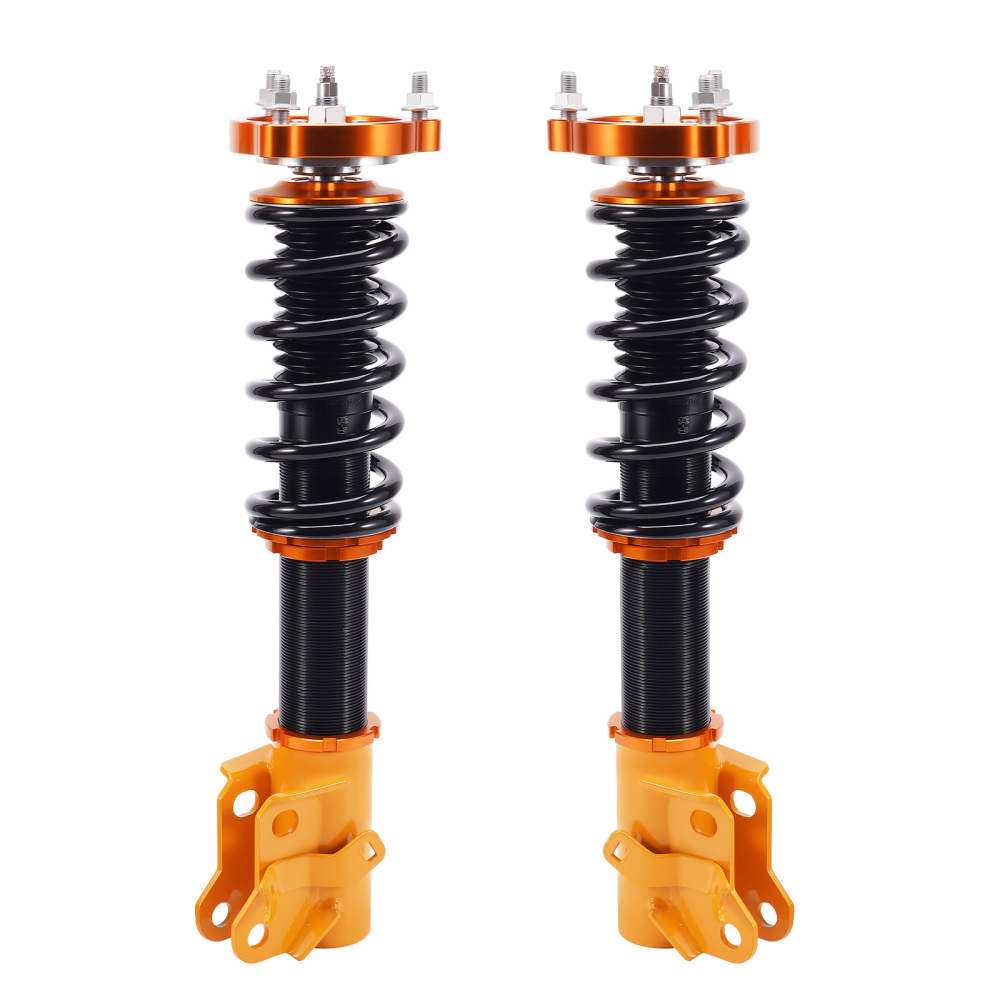

Coilovers Kit compatible for Honda Civic 2006-2011 FA5 FG2 FG1 Adj. Damper Height Lowering Kit

Introduction

MaXpeedingRods-B3 series(also called MaXpeedingRods-SLC) based on MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011
Compatible for HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
Compatible for HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
Compatible for Acura CSX 4-door sedan（Canada）2006-2011
Note: not for the Mugen trim level

Specification

Top mounts: pillow ball top mount with camber plate front

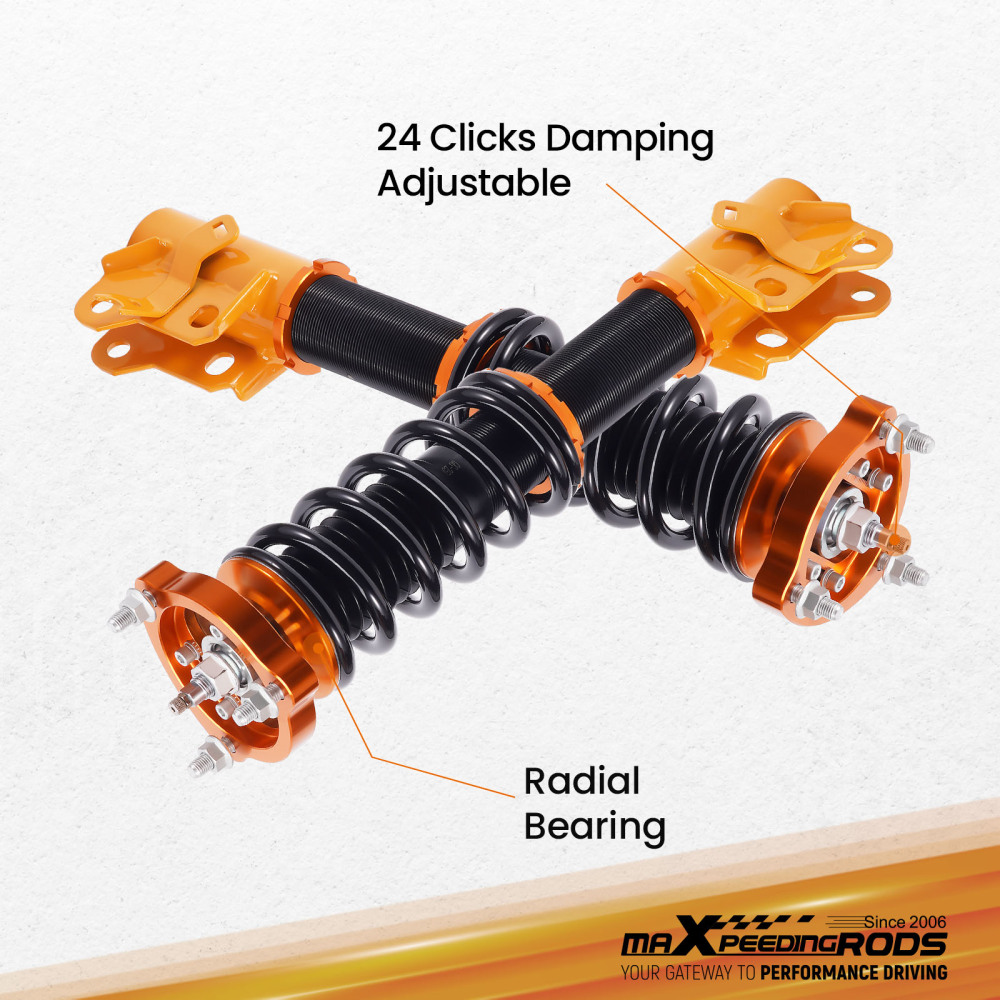

Damping: 24 levels rebound damping adjustable

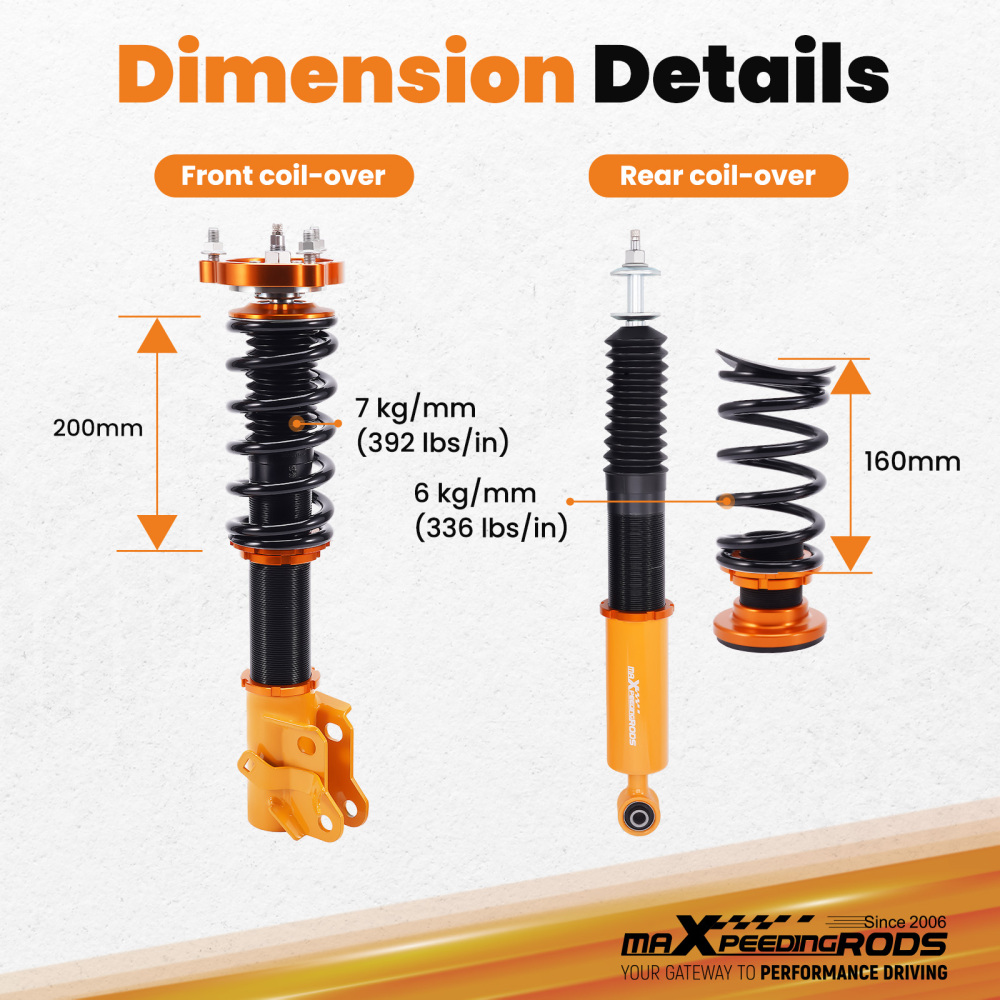

Front Spring Rate: 7 kg/mm (392 in/lbs)
Rear Spring Rate: 6 kg/mm (336 in/lbs)
Adjustable Height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

Package included

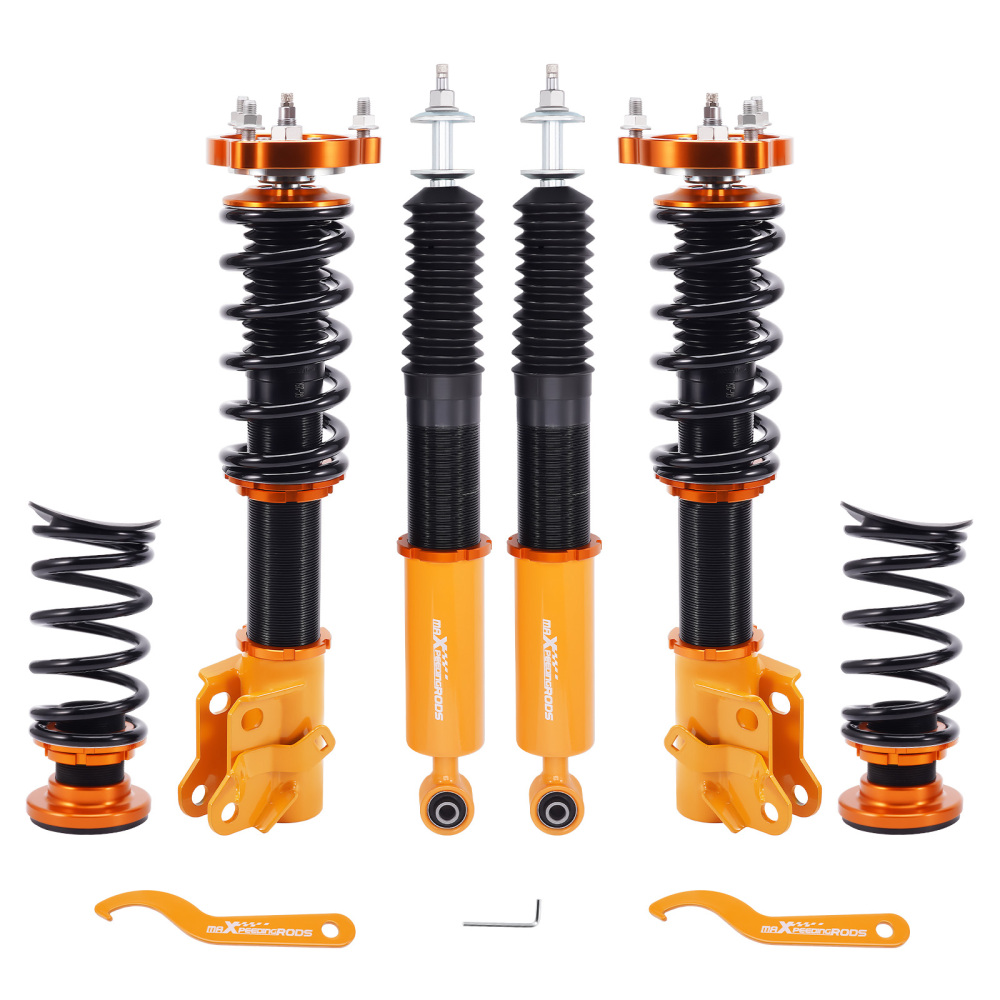

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 24.78kg
Package size: 63*51*21cm

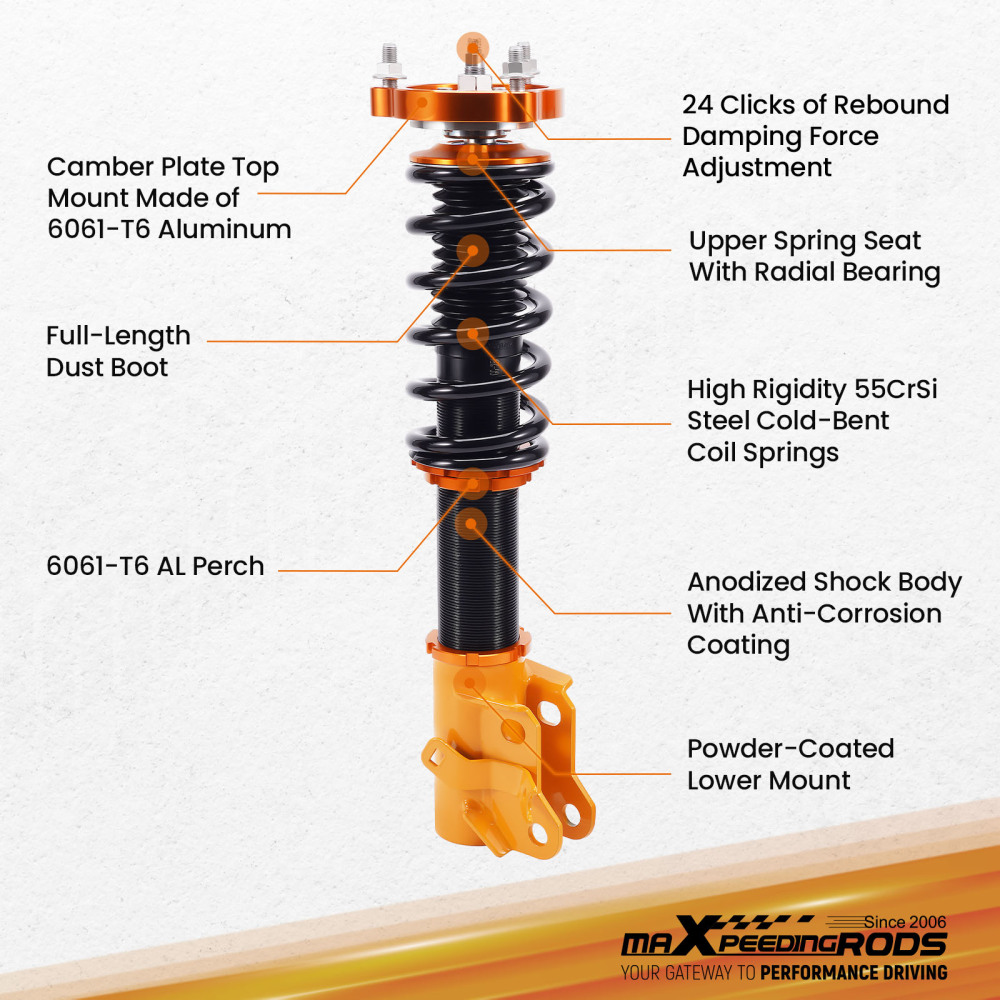

Feature

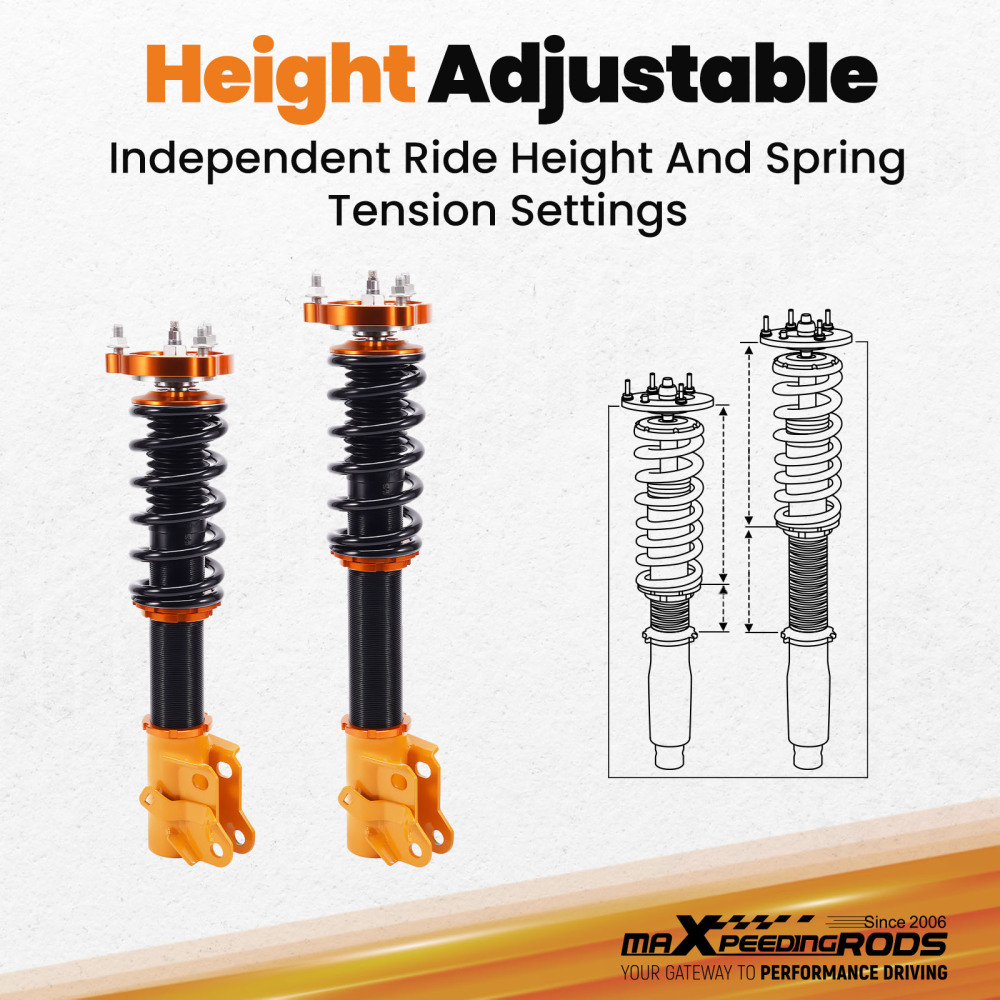

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

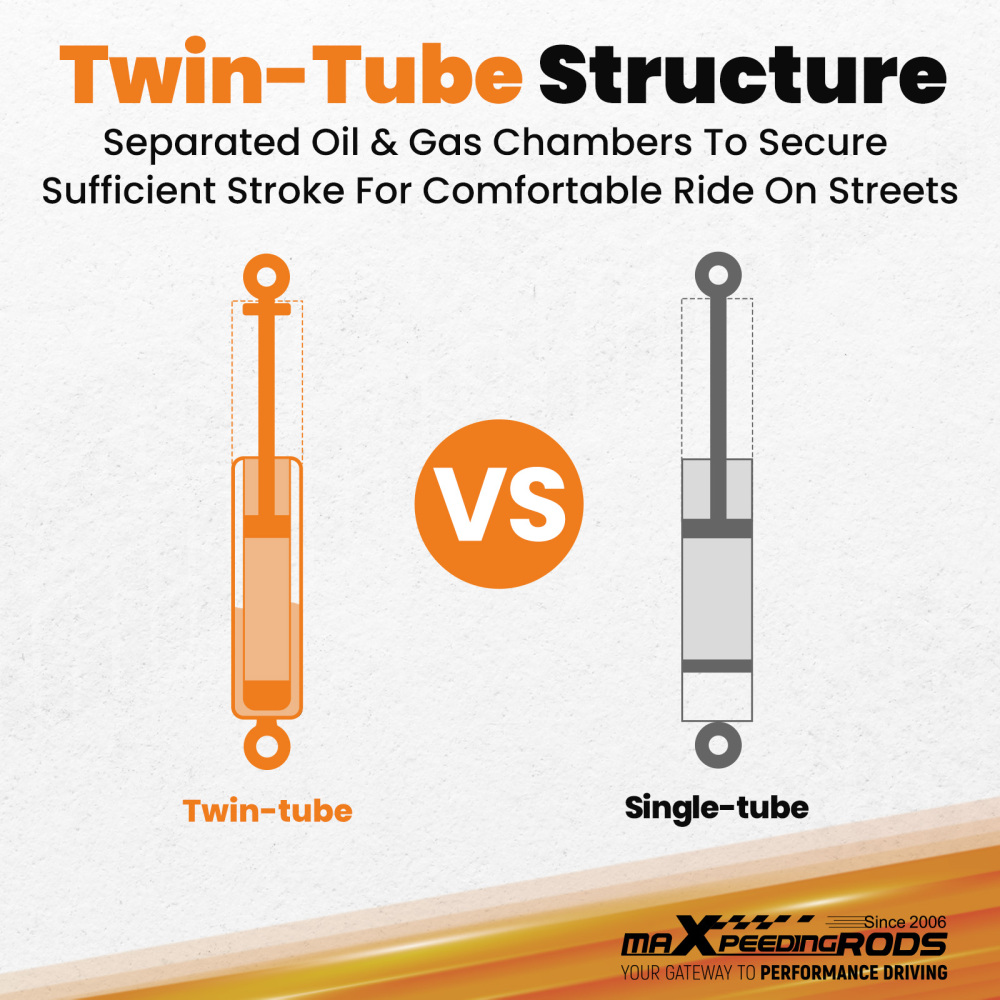

3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
5. Separate height adjustment does not affect damper stroke.
6. Height can be adjusted with coilovers installed on the vehicle.

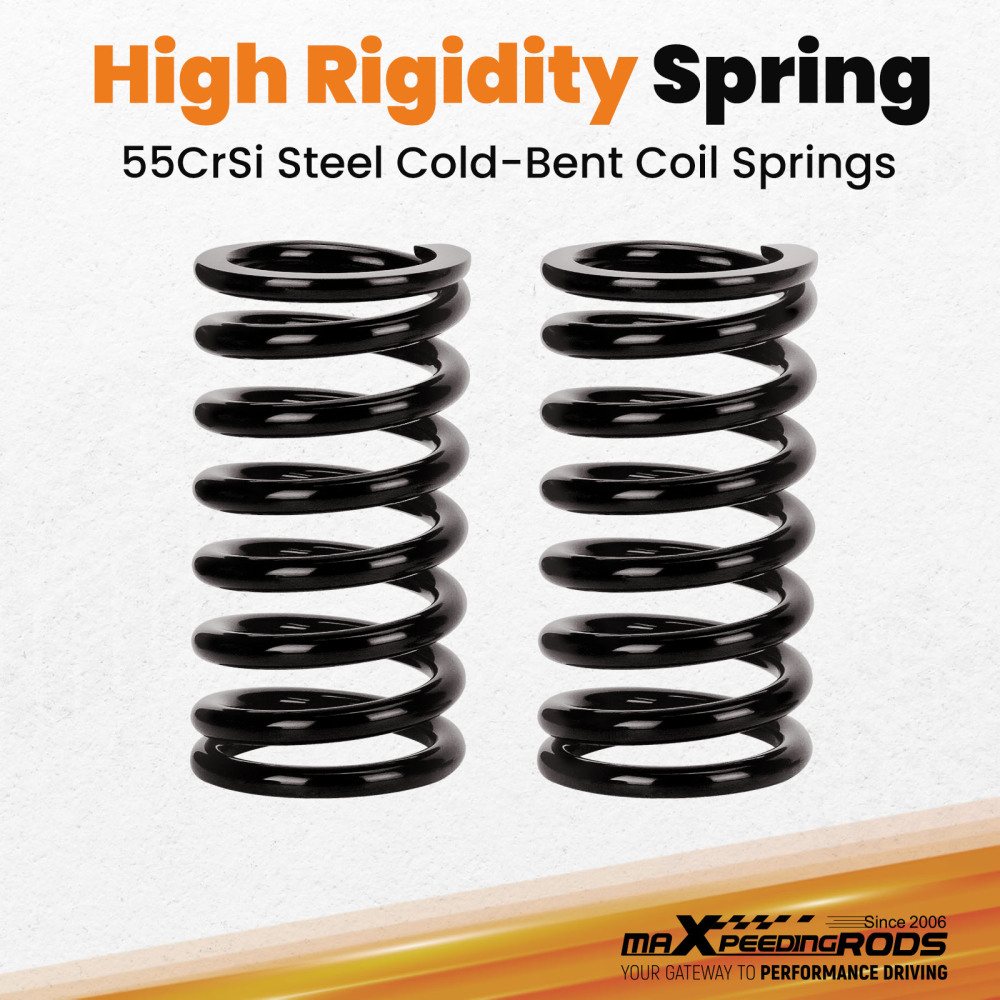

7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.

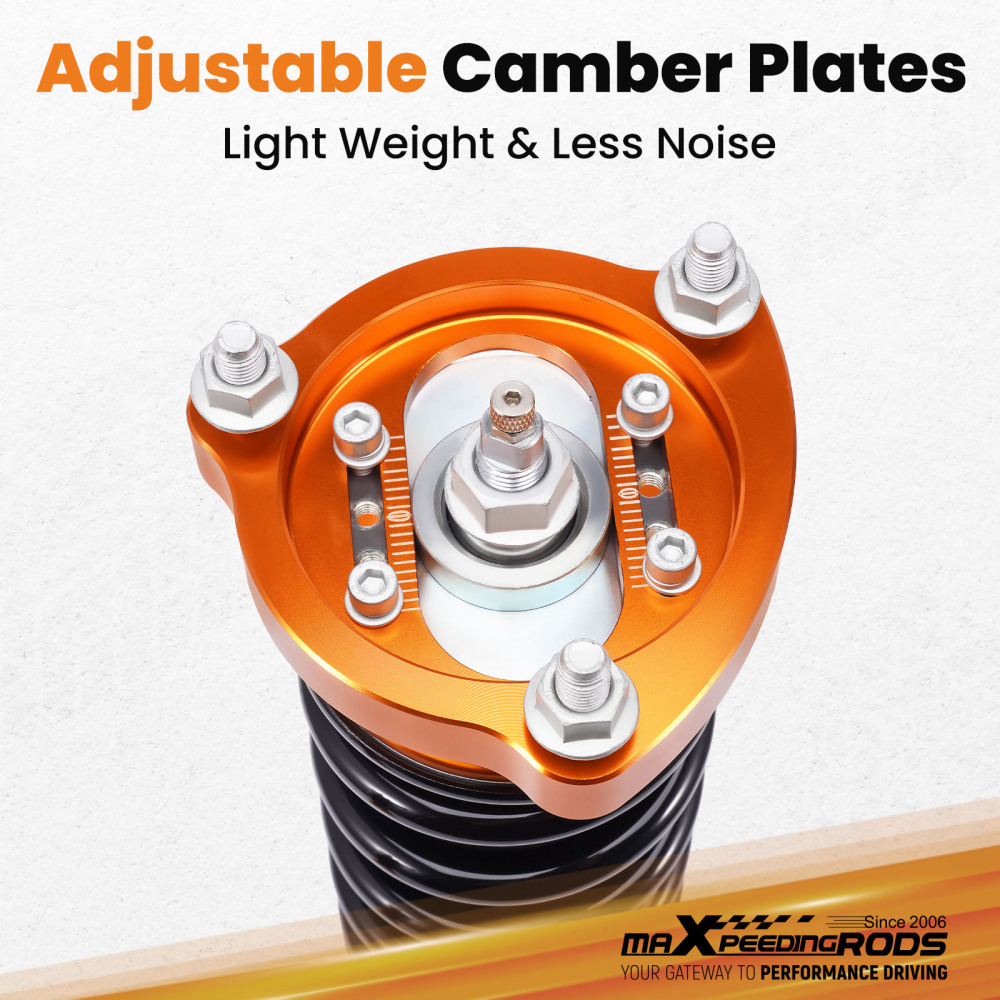

9. Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)
10. Pillow ball top mount - It improves the steering feel and response.
11. Full rebuildable.
