MXR-B2 series(also called MXR-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Compatible For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
Compatible For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
Compatible For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)
Compatible For Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only
Compatible For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)
Compatible For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only
Compatible For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only
Note: for some vehicles, you will need sleeves and washers that are already included in our package.

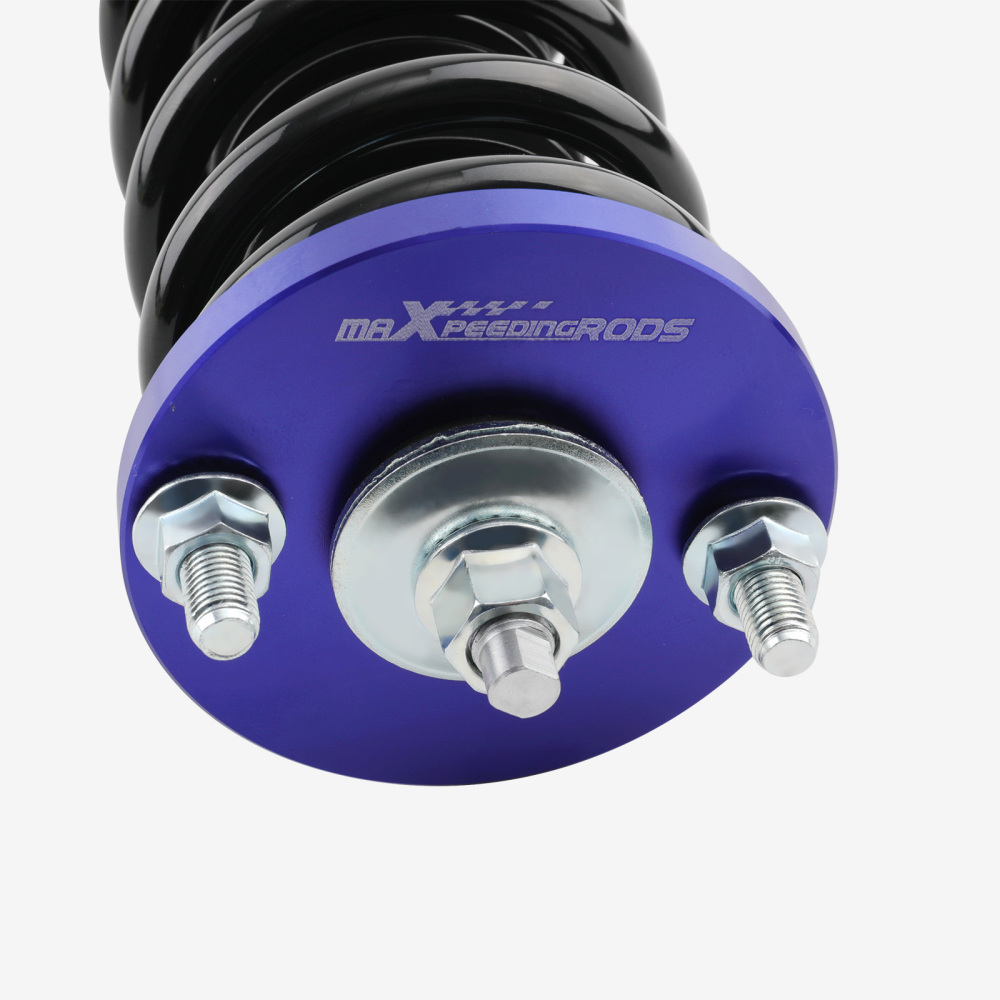

Frant and Rear top mount: rubber
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480m
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: blue body with black spring
Complete coilovers assembly 2 front and 2 rear
A pair wrench for height adjustment
Package dimension : 71*51*21
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
5. Separate height adjustment does not affect damper stroke.
6. Height can be adjusted with coilovers installed on the vehicle.

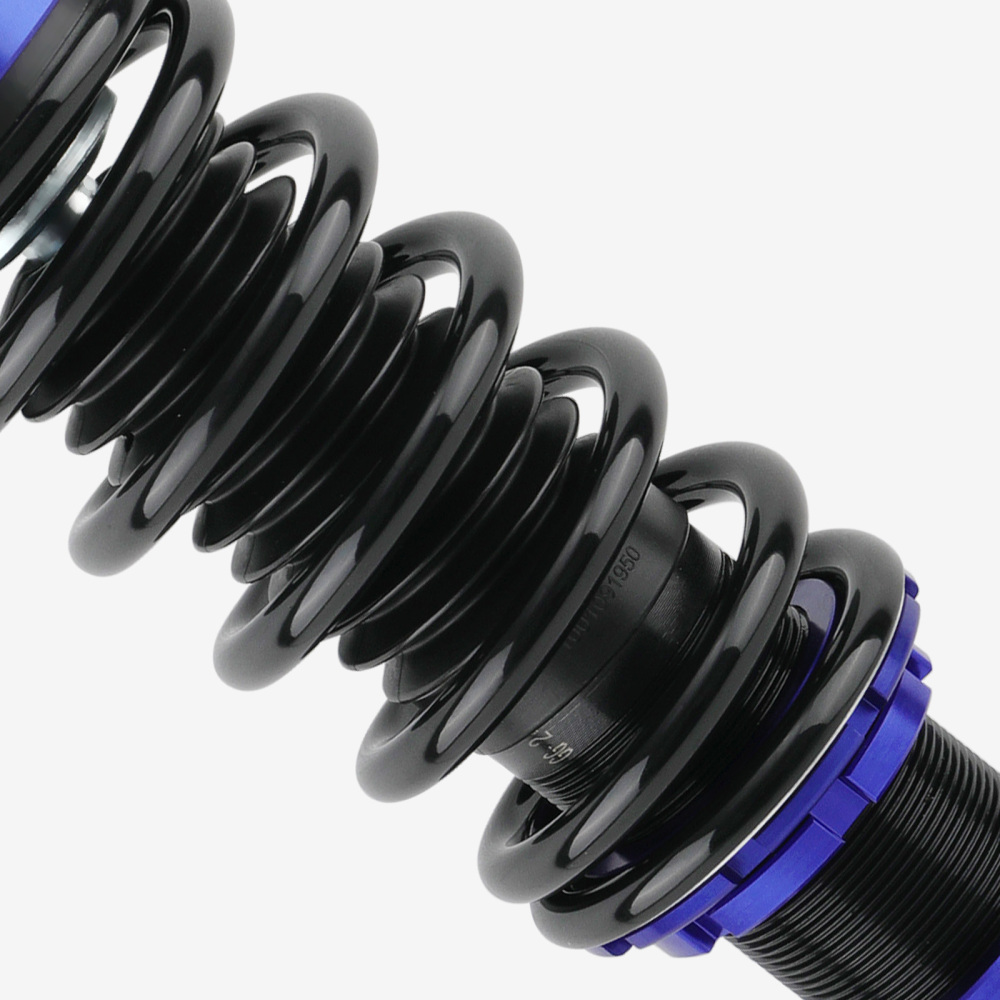

7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8. Height Adjustment tools included.
9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Steel shock bodies with special surface treatment to improve the durability.
11. Full rebuildable.
For some vehicles, you will need sleeves and
washers that already included in our package.
Warranty: one year warranty for any manufacturing defect
