Turbo Turbocharger compatible for Vw Volksvagen Passat 1.9 TDI 130HP 96KW AWX AFV 717858

GT1749V  Turbo compatible for Audi Compatible for Skoda Compatible for VW 1.9TDI  2.0TD

Application :

Compatible for Audi A4 1.9TDI 130HP 96KW  2000-2004  AVF, AWF, AWX, BPW, 8E2, 8E5, B6, for TDI, 16V, for Quattro
Compatible for Audi A4 2.0TDI  136-140HP  2004-2009  BLB, BPW, 8EC, 8ED, 8H7, 8HE, B6, B7, for TDI, 16V, for Quattro
Compatible for Audi A6 1.9TDI  130HP  96KW 2000-2004  AVF, AWX, 4B, C5, for TDI
Compatible for Audi A6 2.0TDI 136-140HP  2004-2008  BLB, BPW, 4F2, C6, for TDI
Compatible for VW Passat 1.9TDI  130HP  96KW 2000-2008  AVF, AWX, 3B3, 3B6, for TDI,for 4motion
Compatible for VW Passat 2.0TDI  136HP  100KW 2000-2005  BLB, BPW, 3B3, 3B6, for TDI
Compatible for Skoda Superb 1.9TDI  130HP  96KW 2001-2008  AVF, AWX, 3U4, for TDI
Compatible for Skoda Superb 2.0TDI  140HP  2001-2008  AVF, AWX, 3U4, for TDI


Turbo Part Number & OEM Number:

038145702G 038145702J 038145702N
717858-0001 717858-5008S 717858-0002
717858-5009S 717858-0003  717858-0004
717858-0005  717858-0006 717858-0007  038145702E  717858

Specification

Turbo Model: GT1749V
Engine Code: BLB/BPW/BHW/AVF/AWX
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Horsepower: Up to 130HP
Turbo Type: Individual/ VNT
Universal Fitment: No
Finish: Matte
Condition: Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:26*24*23cm
Package Weight: 5750g

Package included

1xTurbocharger
2xFlange gaskets
2xOil feed/drain gaskets
6x bolts
6x nuts
2x washers
1xManual
1xBrochure
1xSticker

Features

1. OEM-quality and size with little modification
2. Turbine housing uses cast iron withstand temperatures up to 700

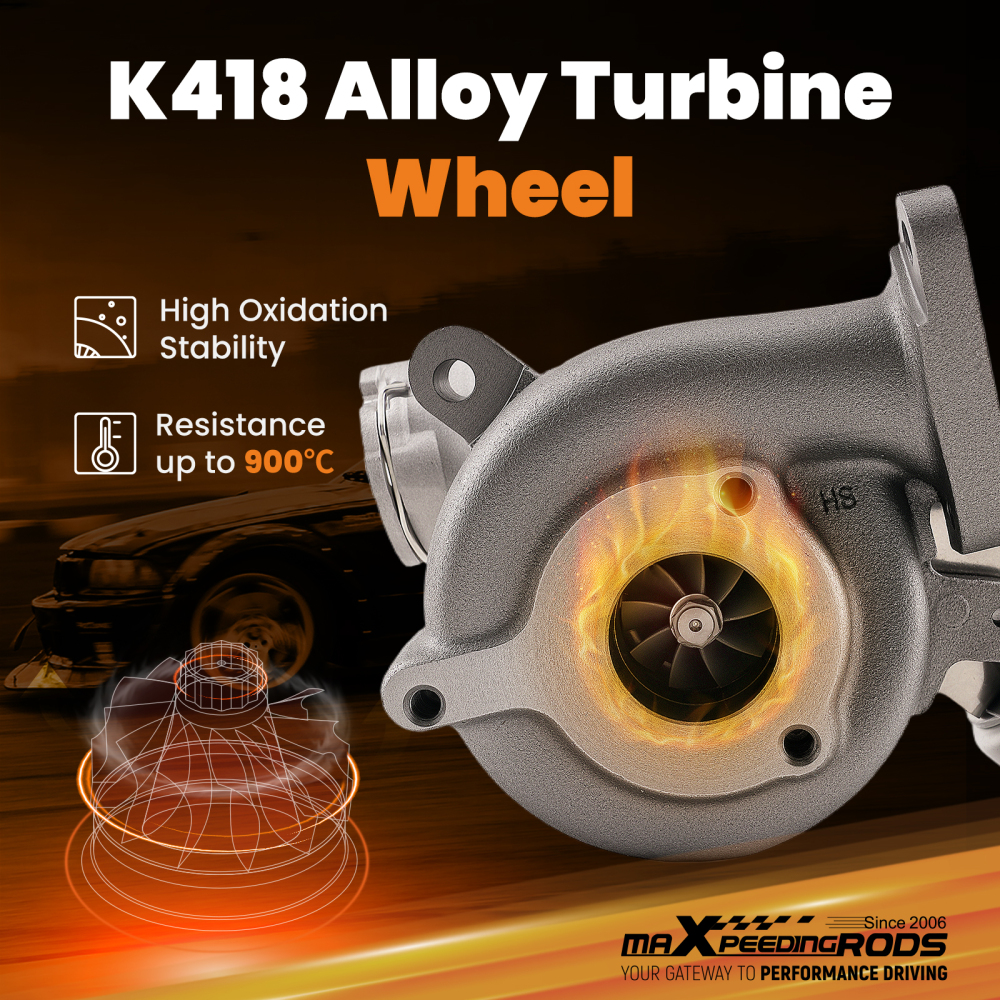

3. Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900
4. Cast aluminium blades with good gas tightness and corrosion resistance

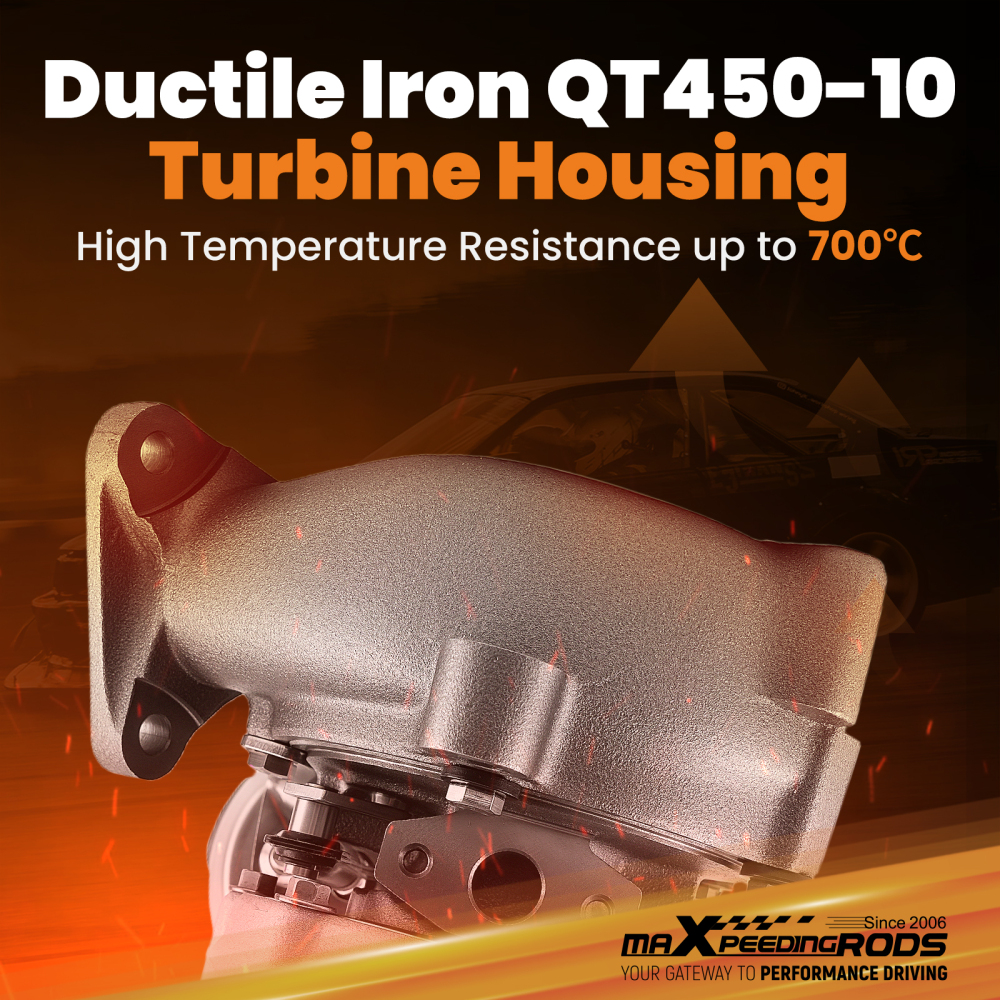

5. The volute is made of nodular cast iron, which can withstand 700 degrees high temperature, and its tensile strength is as high as 450MPa.
6. 100% BALANCING TEST:
This Turbocharger you will receive has been balanced using the VSR machine technology.

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
