Turbo Turbolader compatible for Audi A3VW Passat compatible for Golf MK5 2.0 TDI BKD AZV Billet Wheel

Application

Compatible for Audi A3 2.0 TDI 103Kw 140HP BKD AZV 2003-2008
compatible for Seat Altea 2.0 TDI 100Kw 136HP BKD AZV 2004-2007
compatible for Seat Leon 2.0 TDI 100Kw 136HP BKD AZV 2005-2007
compatible for Seat Toledo III 2.0 TDI 100Kw 136HP BKD AZV 2004-2007
compatible for Seat Altea XL 2.0 TDI AZV 100Kw 2006-2009
compatible for Seat Altea XL 2.0 TDI 16V BKD 103Kw 2006-2015
compatible for Skoda Octavia II 2.0 TDI 100Kw 136HP BKD AZV 2004-2010
compatible for Skoda Superb II 2.0 TDI 16V BKD 103Kw 2009-2015
compatible for Skoda Superb II Estate 2.0 TDI 16V BKD 103Kw 2009-2015
compatible for VW Golf V 2.0 TDI 100Kw 136HP BKD AZV 2003-2009
compatible for VW Golf Plus V 2.0 TDI AZV 100Kw 2005-2013
compatible for VW Golf Plus V 2.0 TDI 16V BKD 103Kw 2005-2013
compatible for VW Jetta III (1K2) 2.0 TDI AZV 100KW 2005-2010
compatible for VW Passat B6 2.0 TDI 100Kw 136HP BKD AZV 2005-2008
compatible for VW Passat B6 2.0 TDI 103Kw 140HP BKP 2005-2008
compatible for VW Touran 2.0 TDI 100Kw 136HP AZV 2003-2010
compatible for VW Touran 2.0 TDI 103Kw 140HP BKD 2003-2010

Notice:
Don't compatible for Audi A3 2.0L TDI (8P/PA) with Engine CBAA, CBAB
Don't compatible for Audi A3 TDI AUY/AJM PD UI Euro-4
Don't compatible for VW Golf V, VI 2.0L TDI Engine CBAB, CBDA, CBDB, CFFB, CJAA
Dont't compatible for VW Golf V 2.0 TDI Engine BMP, BMM
Don't compatible for VW Passat with DPF PQ35/46 engine
Don't compatible for VW Passat B6 2.0L TDI with Engine BMP, BVD, BMM
Don't compatible for VW Passat B6 2.0L TDI Engine CBAB, CBDA, CBDB

In short : Don't compatible for AUDI A3、 Compatible for VW passat/ Compatible for golf with engine CBAB, CBDA, CBDB, CFFB, CJAA, BMP, BVD, BMM, AUY, AJM, DPF

OE/Part number

724930 ,
724930-1,724930-0001,724930-5001S,724930-2,724930-0002,724930-5002S,
724930-4,724930-0004 ,724930-5004S,724930-6,724930-0006,724930-5006S,
724930-8,724930-0008,724930-5008S,724930-9,724930-0009,724930-5009S,
724930-10,724930-0010,724930-5010S,724930-12,724930-0012,724930-5012S,

03G253019A,03G253019AV,03G253019AX,03G253019AV550,
03G253010J,03G253010JV,03G253010JX,
03G253014H,03G253014HX,03G253014HV

Specification

Turbo Model：GT1749V，Not for BV43 Type
Engine Code：BKD/AZV/ BKP
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: 136hp,140hp
Turbo Type:Individual/VNT
Universal Fitment:No
Finish:Matte
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:40x33x 23.5 cm
Package Weight: 8880g

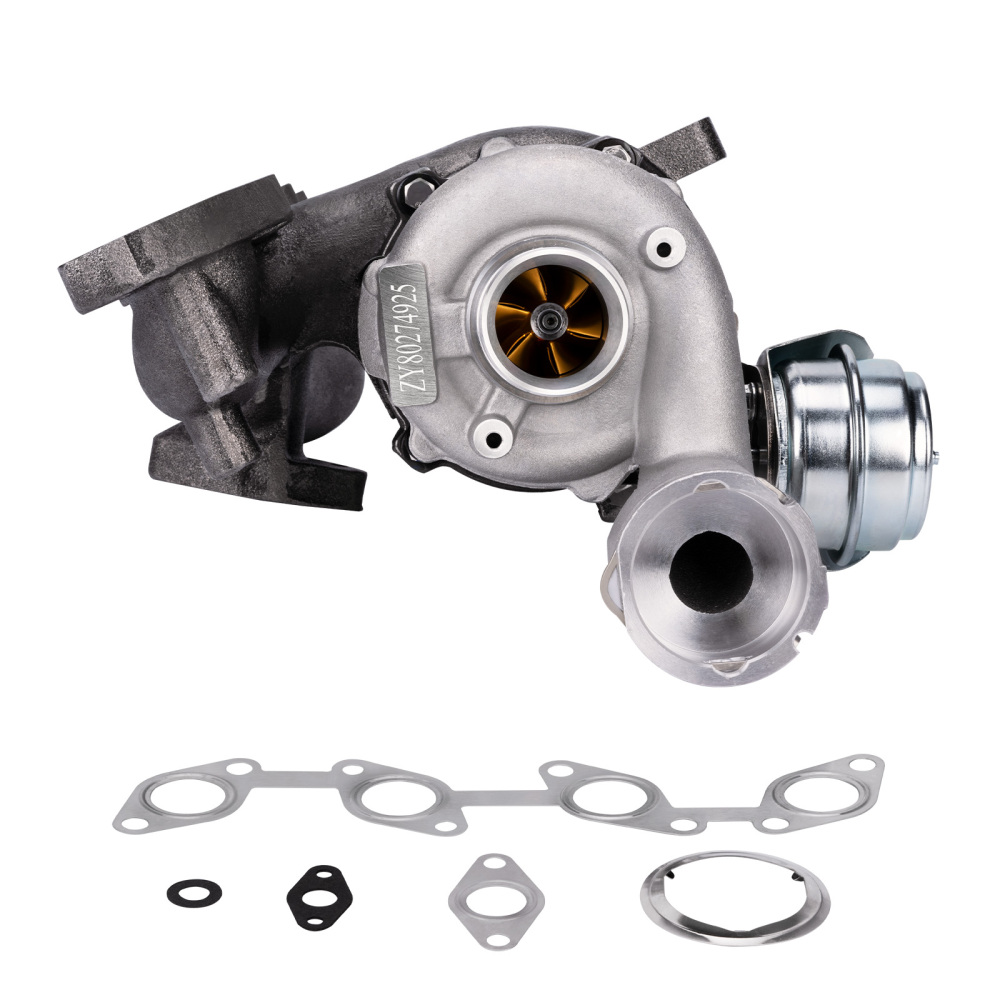

Package included

1xTurbocharger
1xAdapter
2xFlange gaskets
5xBolts&Nuts
2xScrews
2xWashers
1xManual
1xBrochure
1xSticker

Feature

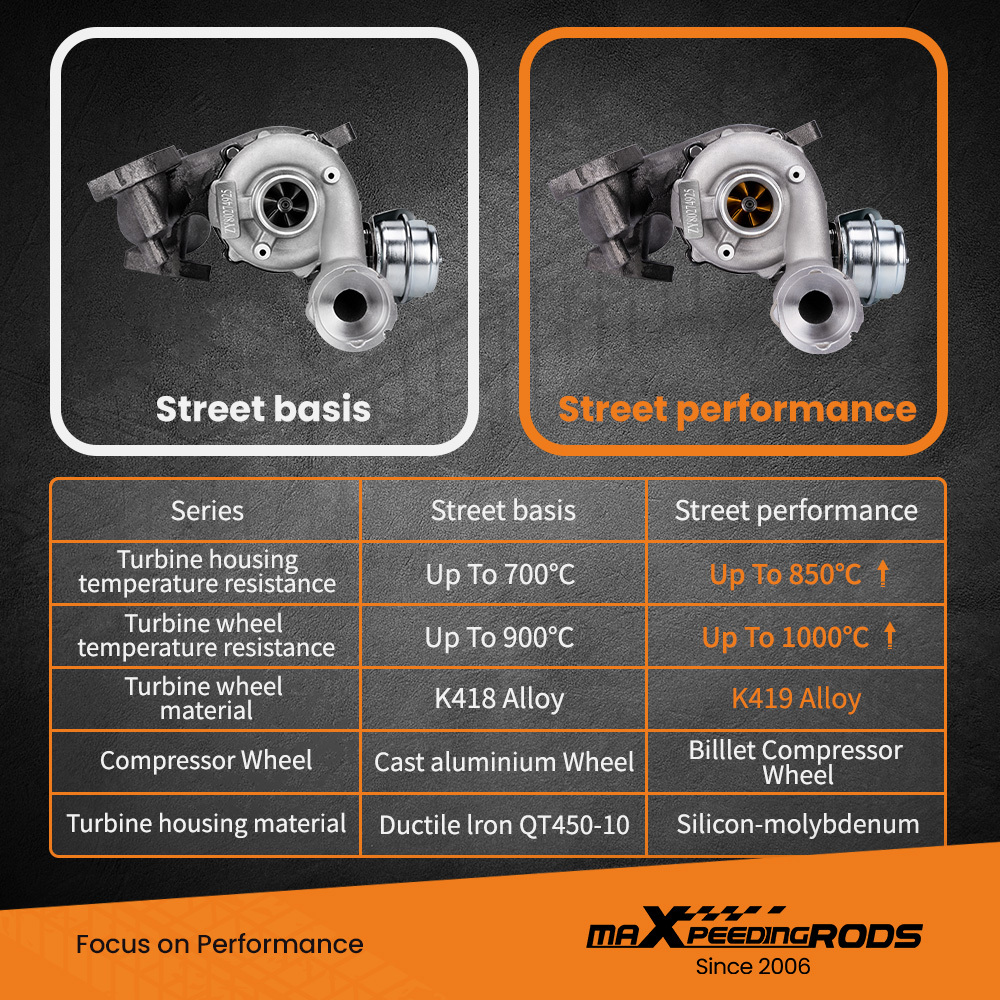

*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory

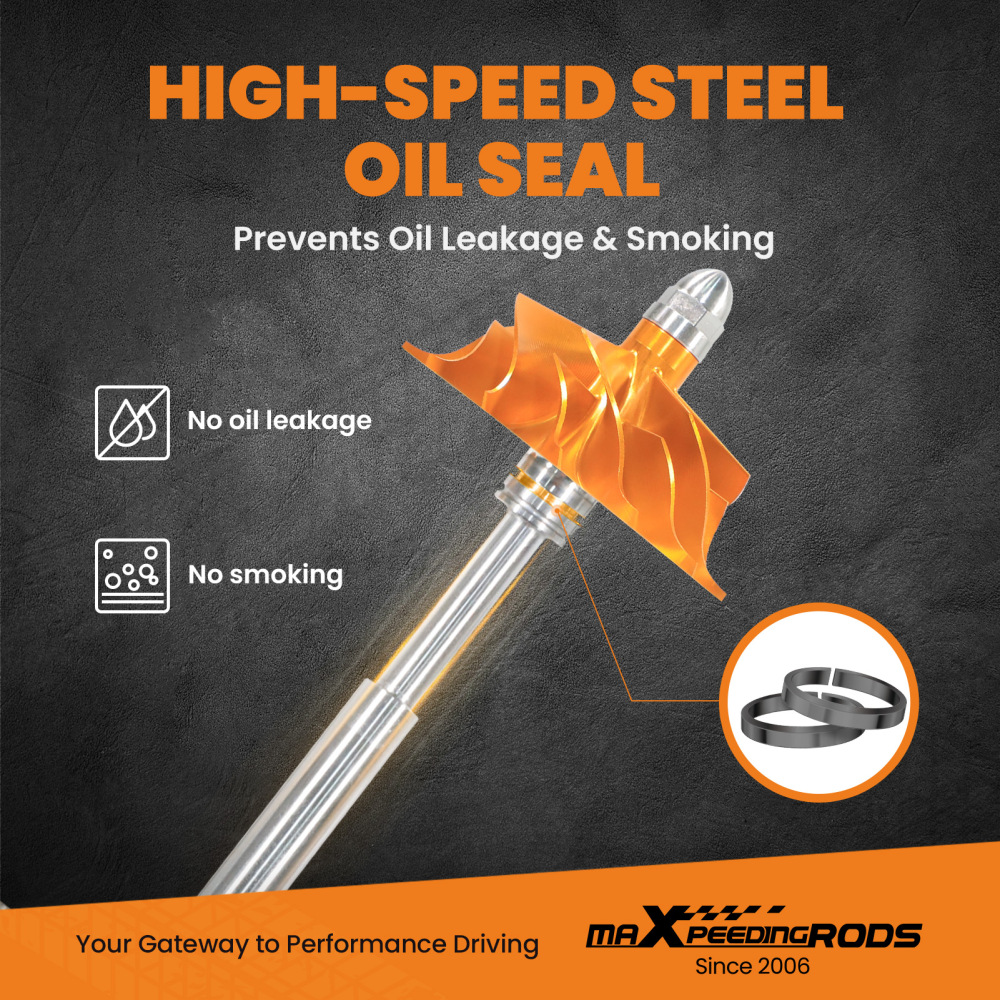

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Note

Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)

Notice：

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
