Turbo for GT30 GT3076 GT3037 Intercooler Turbo Piping pipe Kit Aluminum Hose Pipe

Application

Perfect for all 6 / 8 cyl 3.0L-5.0L engines

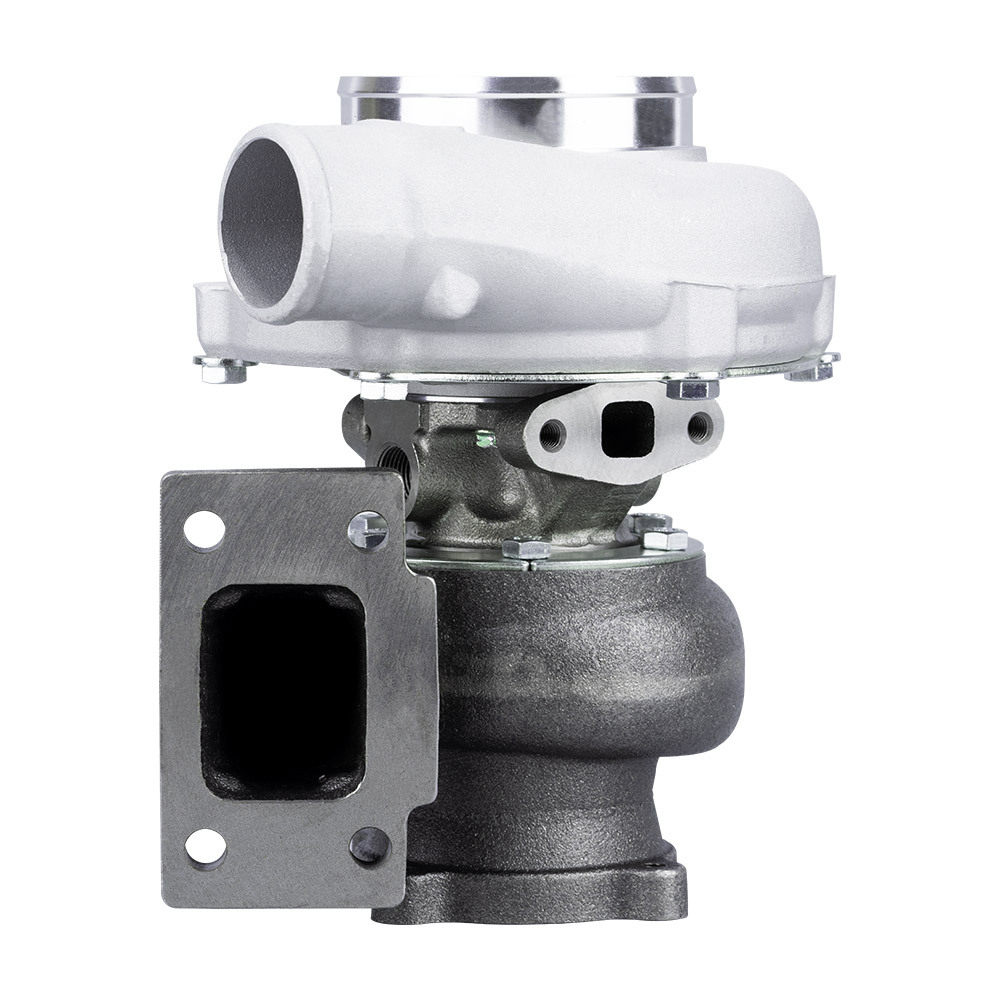

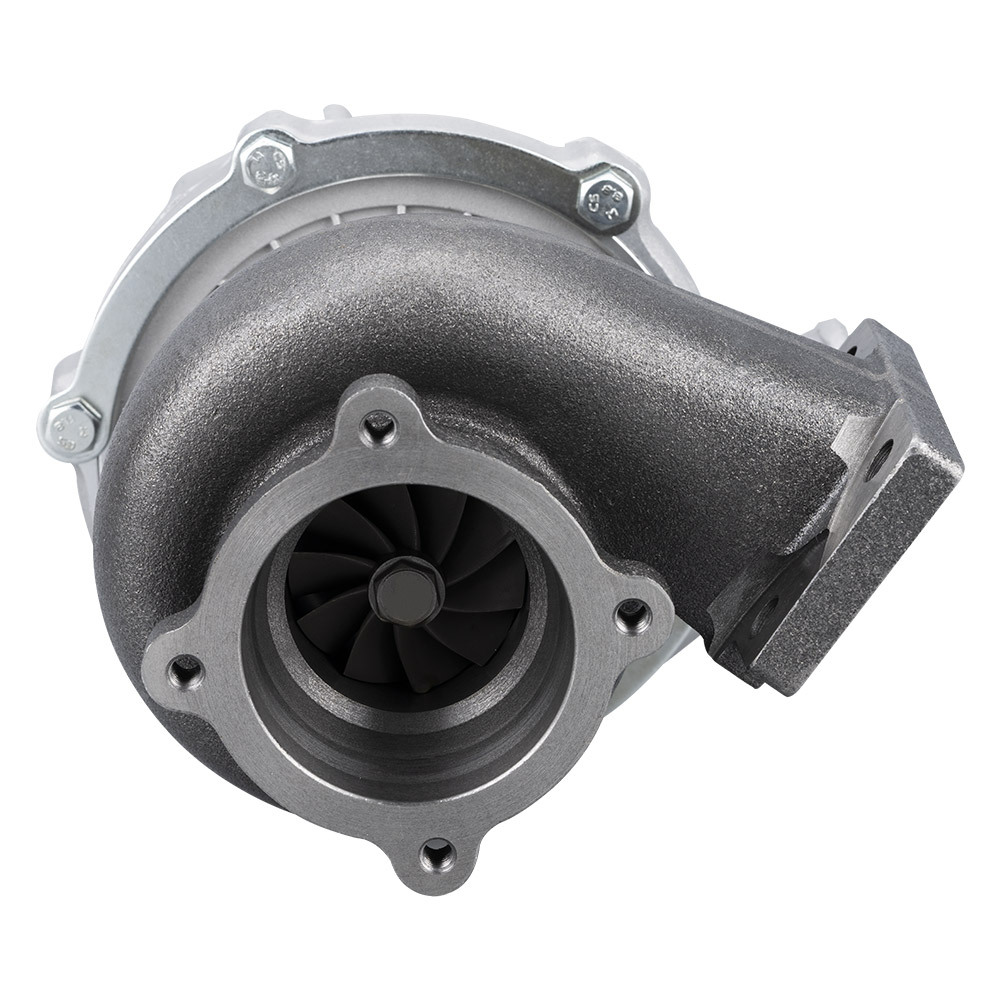

Specification

TurboHorse Power: Capable of Boosting Horse Power up to 500BHP

Cooling Type: Water + Oil

Turbine Trim: 74.2

Turbine Inducer Diameter:  64.8mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.82

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.6

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Water: M18*1.5

Bearing: Journal Bearing

Warranty: one year warranty for any manufacturing defect

Internal Wastegate: No

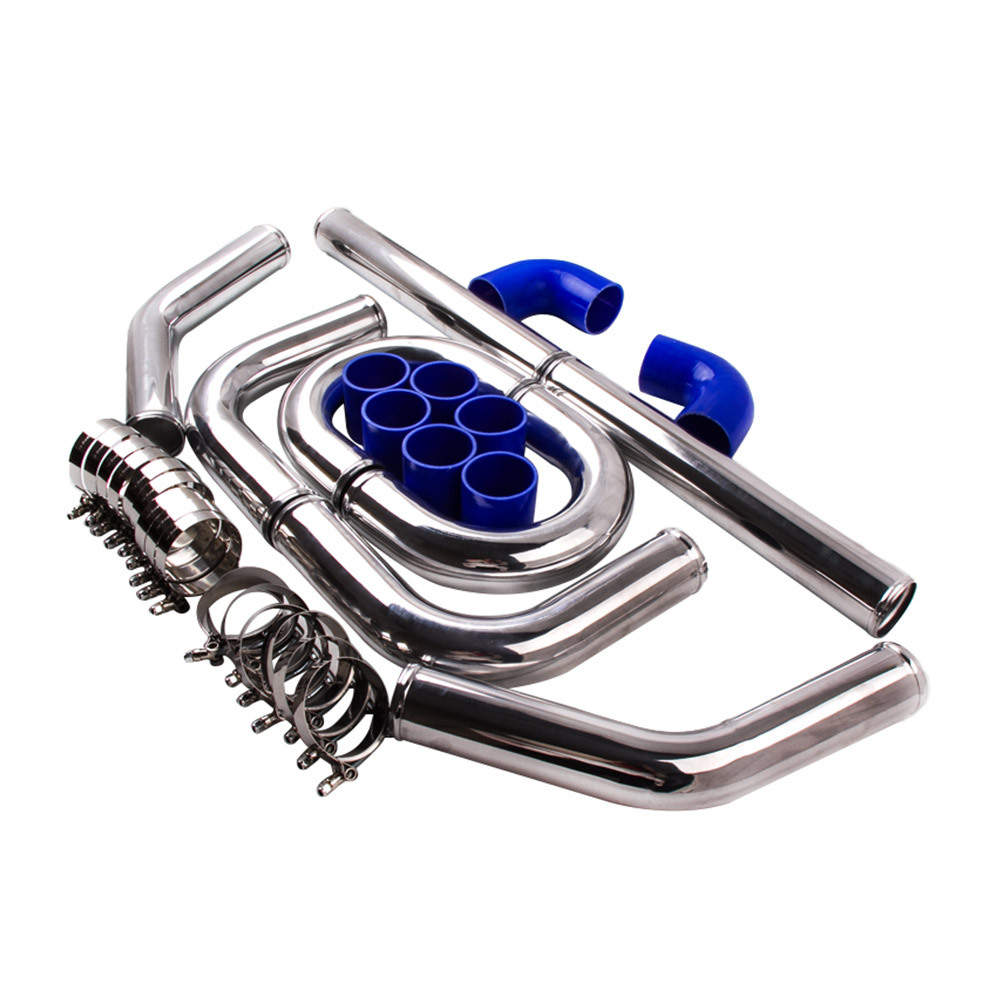

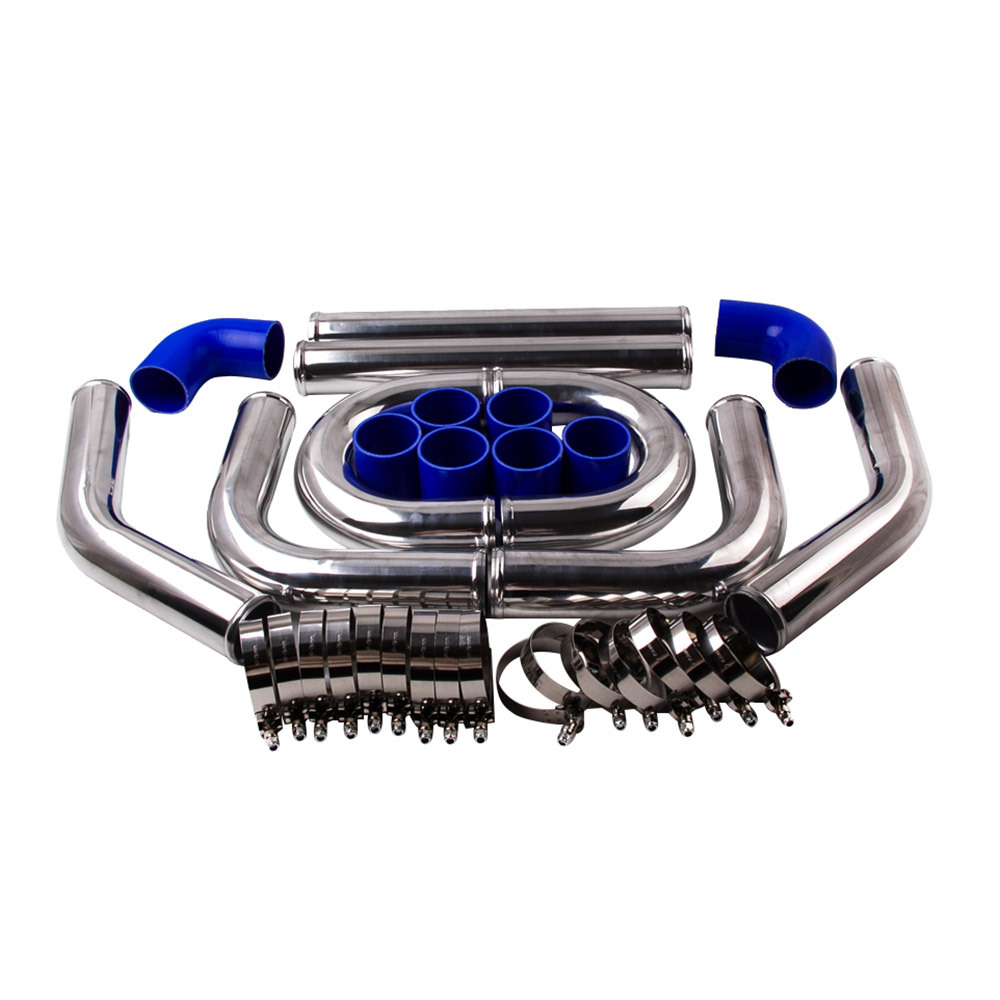

Piping Pipe Kit

Pipe Thickness: 1.8mm

Pipe length: 18''

New  Never been tried or installed.

100% quality assurance tested

Made out of high quality of 6061 aluminum Manual polishing finished

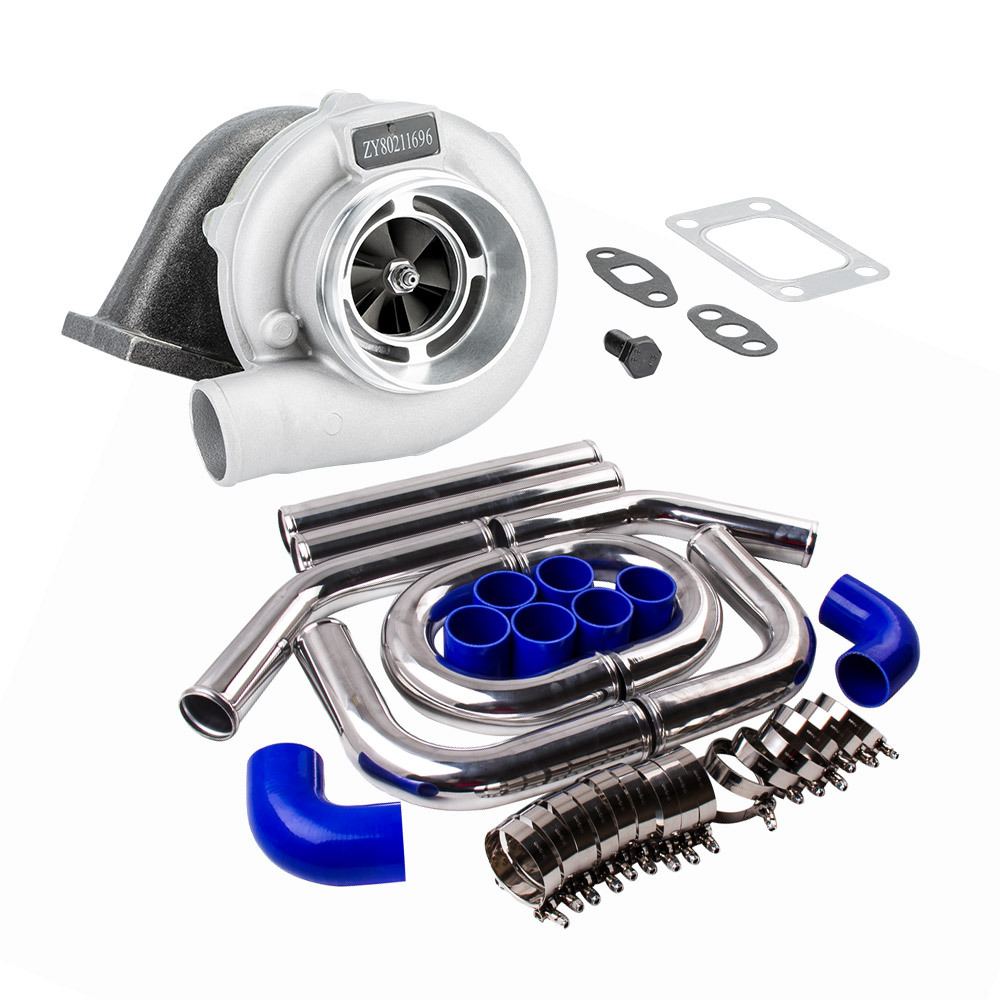

Package Including

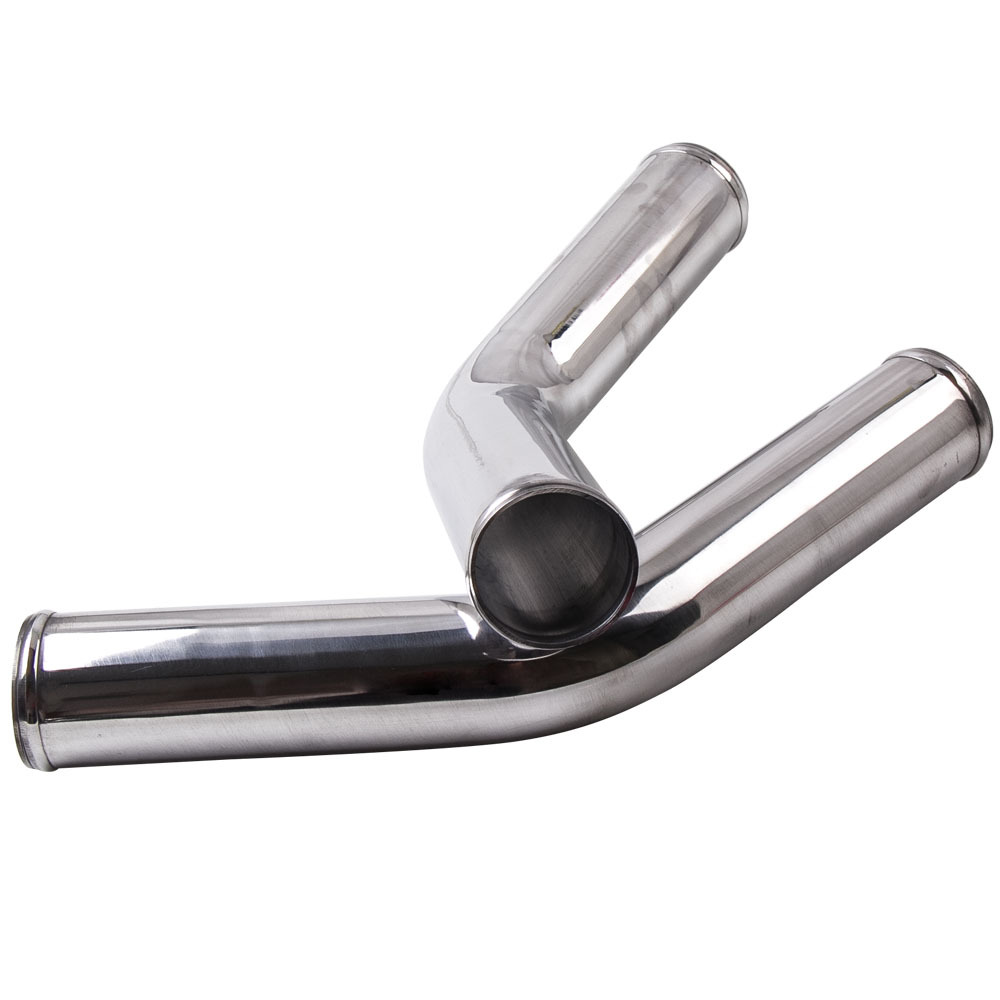

2x 90 Degree Aluminum Pipe 2.5"

2x Straight aluminum pipe 2.5"

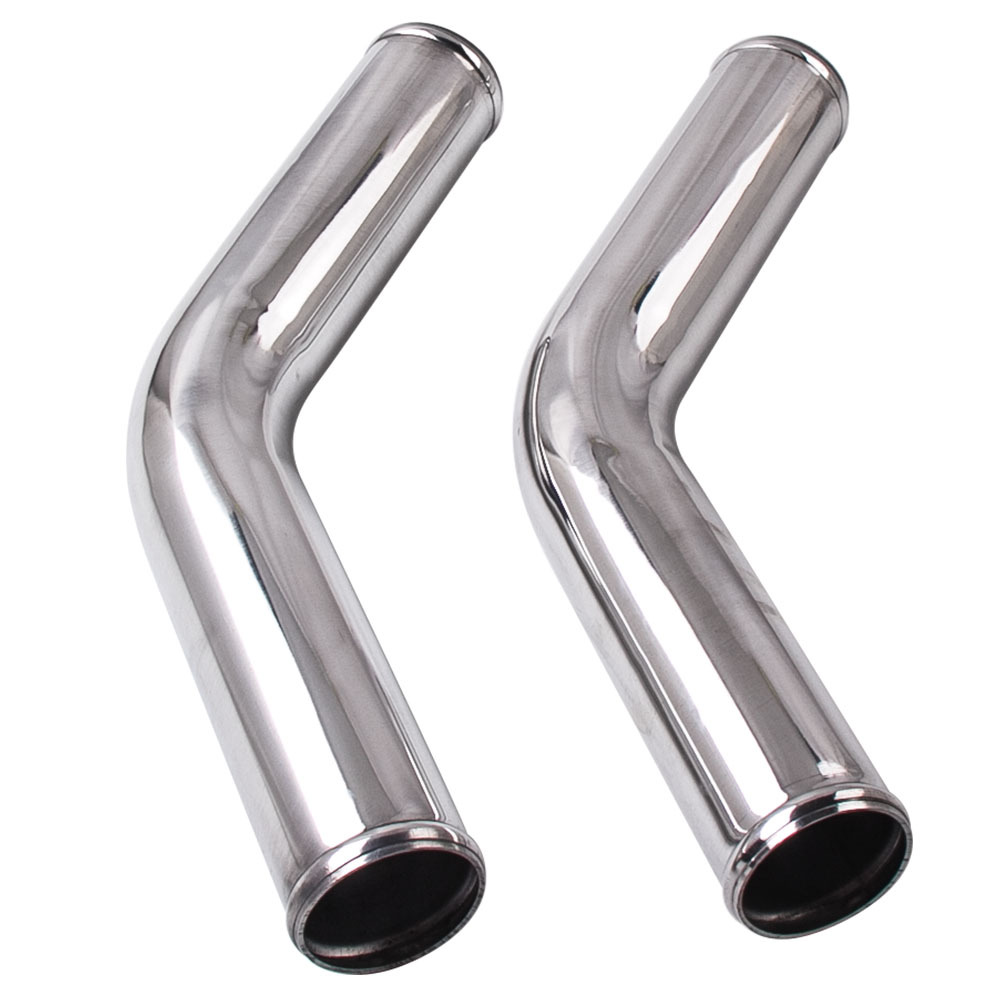

2x 135 Degree Aluminum Pipe×2 2.5"

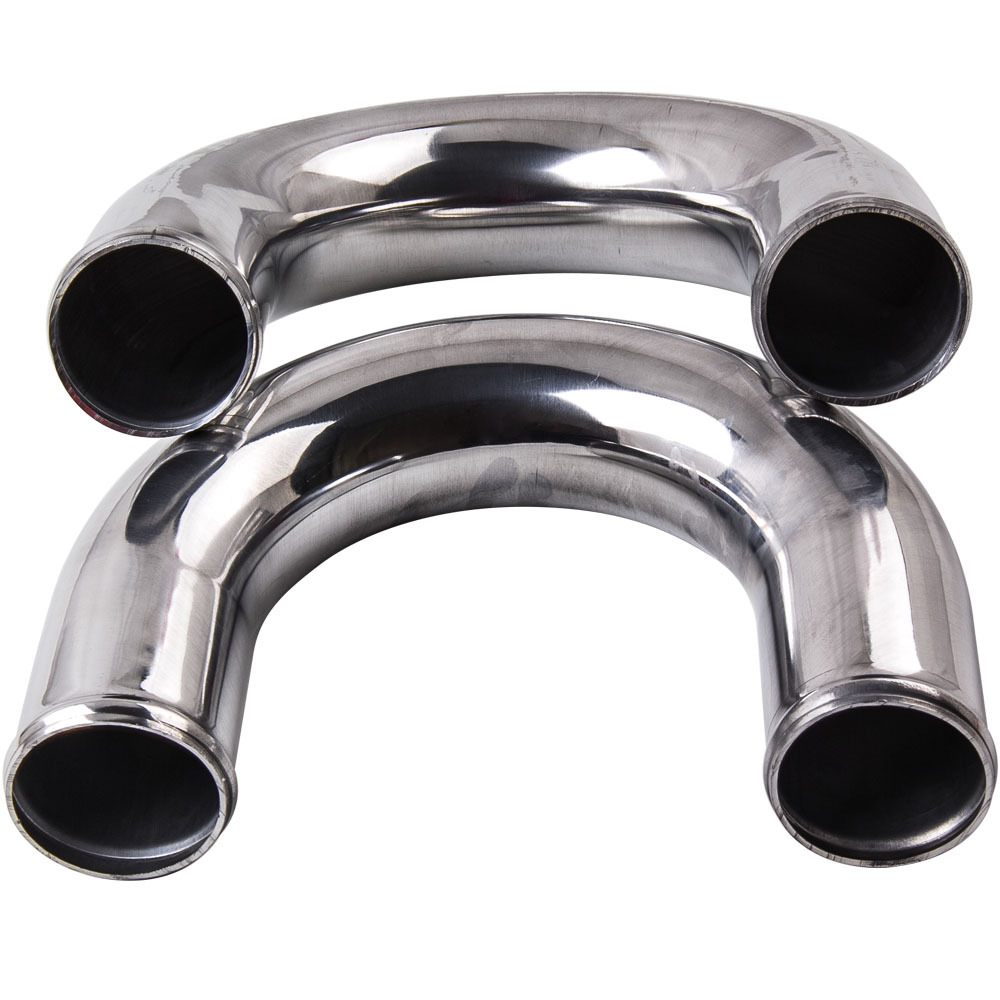

2x U Aluminum Pipe×2 2.5"

6x Straight Silicon Hose 2.5" (Blue )

2x 90 Degree Silicone Hose×2 2.5"(Blue )

16x Clamps 2.5"

1x Turbo and gaskets

Notice

* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles

* Professional installation is highly recommended (No Instruction Included)
