t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal and 76mm 3inch intercooler piping Kits")
lncl. 20% VAT
Combination offer
- A
- B
- C
- D
- E
- F
- G
Application
Perfect for all 4 or 6 CYL, 1.5L-2.5L engines
Specification
Turbo
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Warranty: one year for any manufacture defects
Internal Wastegate: Yes
Piping Pipe Kit
Pipe length: 19.68''(500mm)
New Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

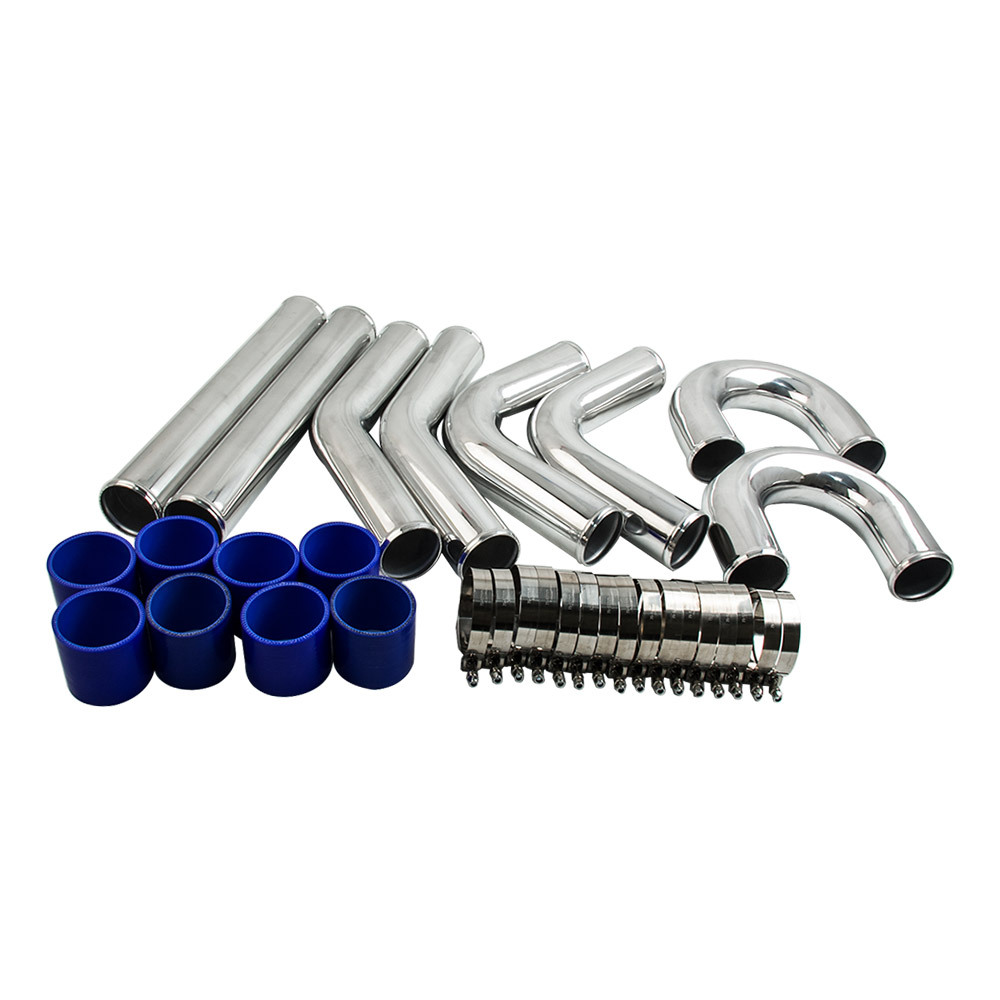

Package Including

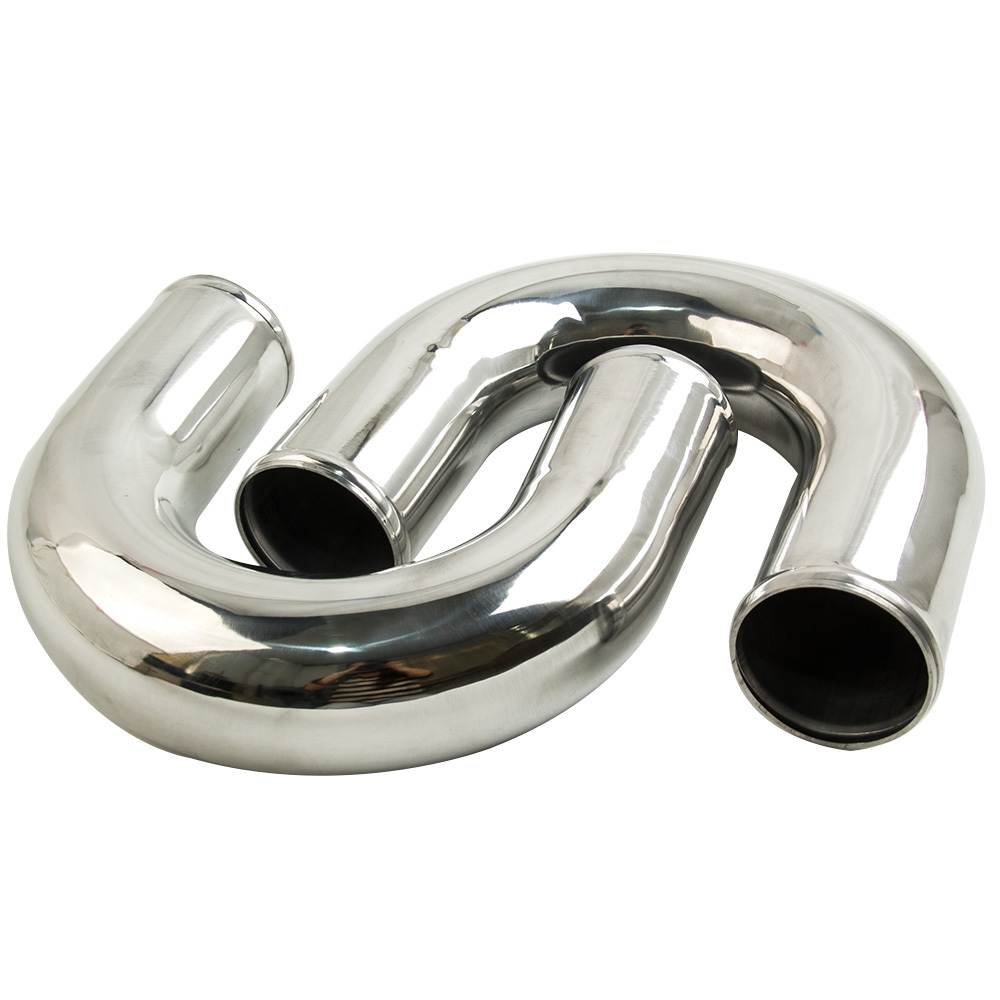

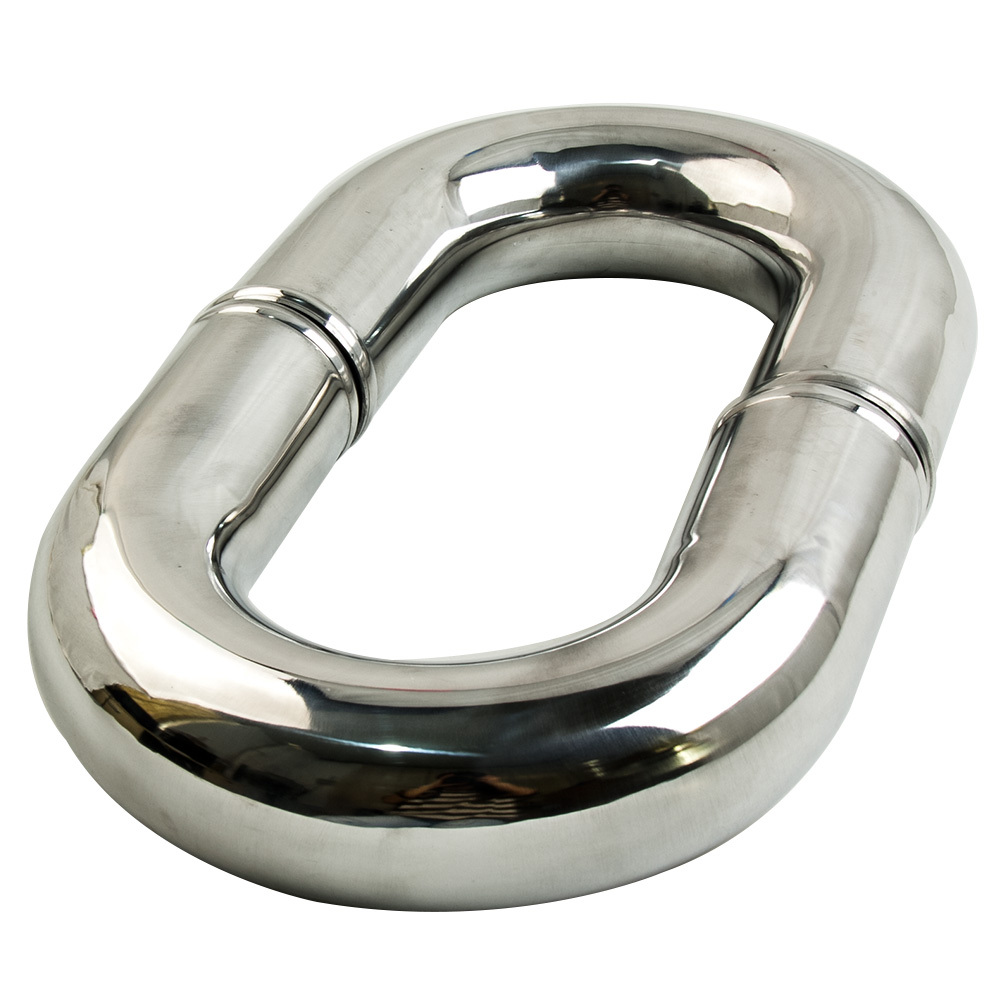

2x 180 degrees Pipes
2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes

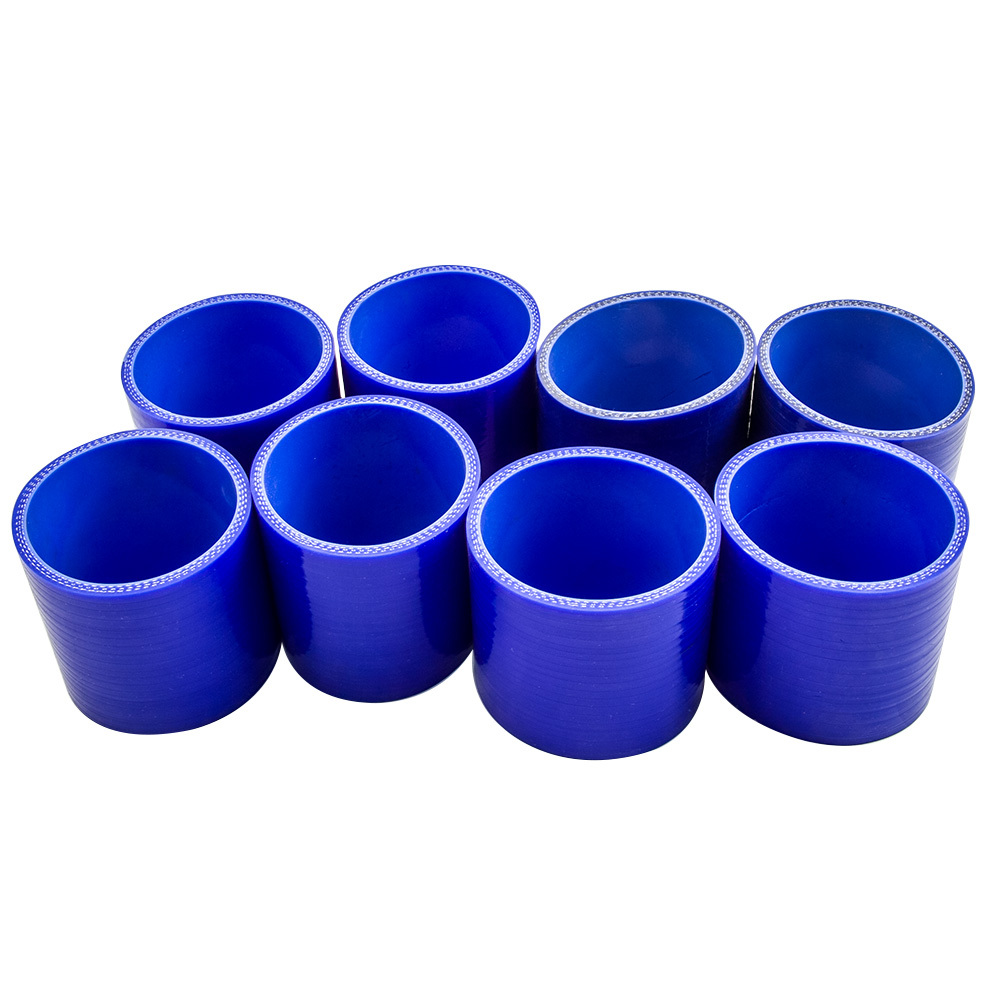

8x 3" inch Straight Couplers
16x T-bolt Clamps
2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes
8x 3" inch Straight Couplers
16x T-bolt Clamps
Turbo and gaskets
Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
