For GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV and 64mm Pipe Kits and Intercooler 76mm

For GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV and 64mm Pipe Kits and Intercooler 76mm

( 0 reviews )
lncl. 20% VAT
Item Number 3002202332
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
Application

Perfect for all 4/6 cylinder and 3.0L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil

Specification

Turbo
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Bearing: Wet Float
Warranty: one year for any manufacture defects
Internal Wastegate: No
Intercooler Turbo Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
-New  Never been tried or installed.
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finished

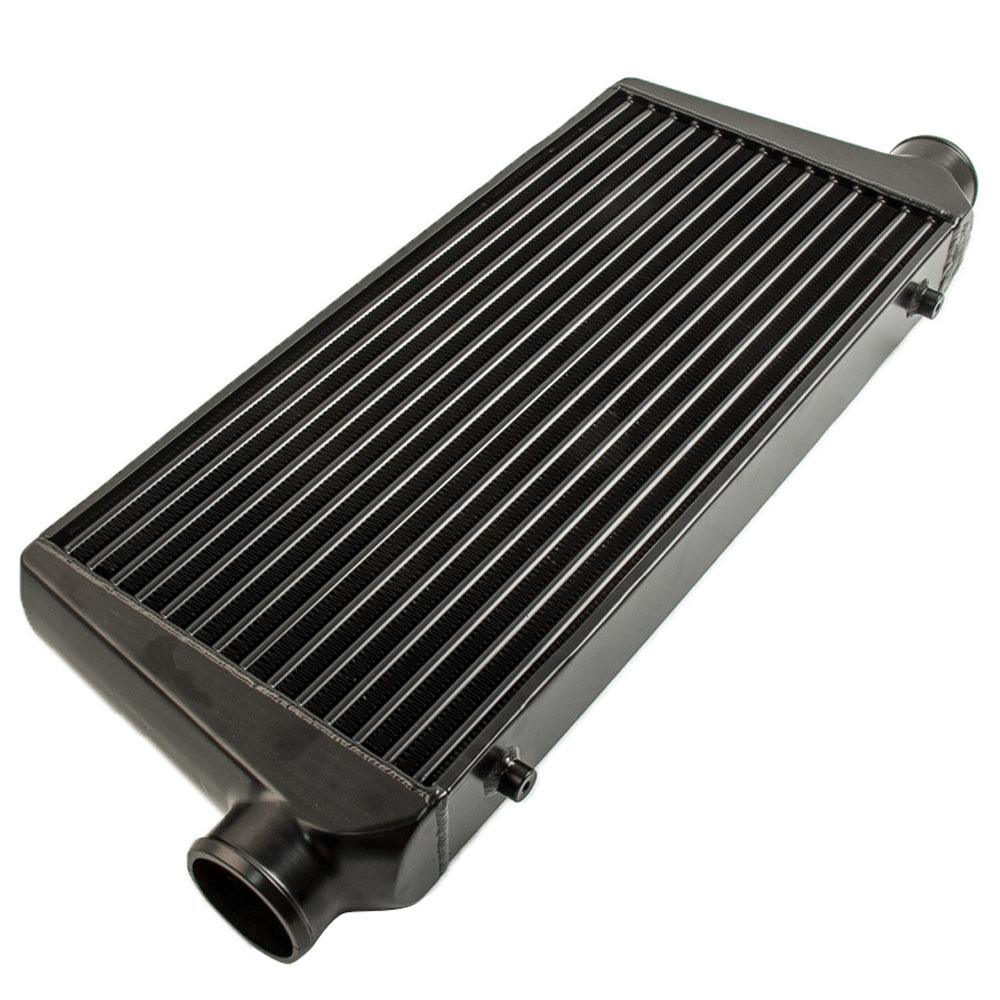

Intercooler
Core Dimension: 600 X 300 X 76 MM
Inlet / outlet size:  3" inch
Thickness: 3" (76mm)
Pipe length: 18''
Pipe Thickness: 1.8mm
Oil Inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water: M14*1.5
Core design:  Tube & Fin
Color:  Black

Intercoolers are designed with a tube and fin core which has the highest thermodynamic dissipative process.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

Package Including

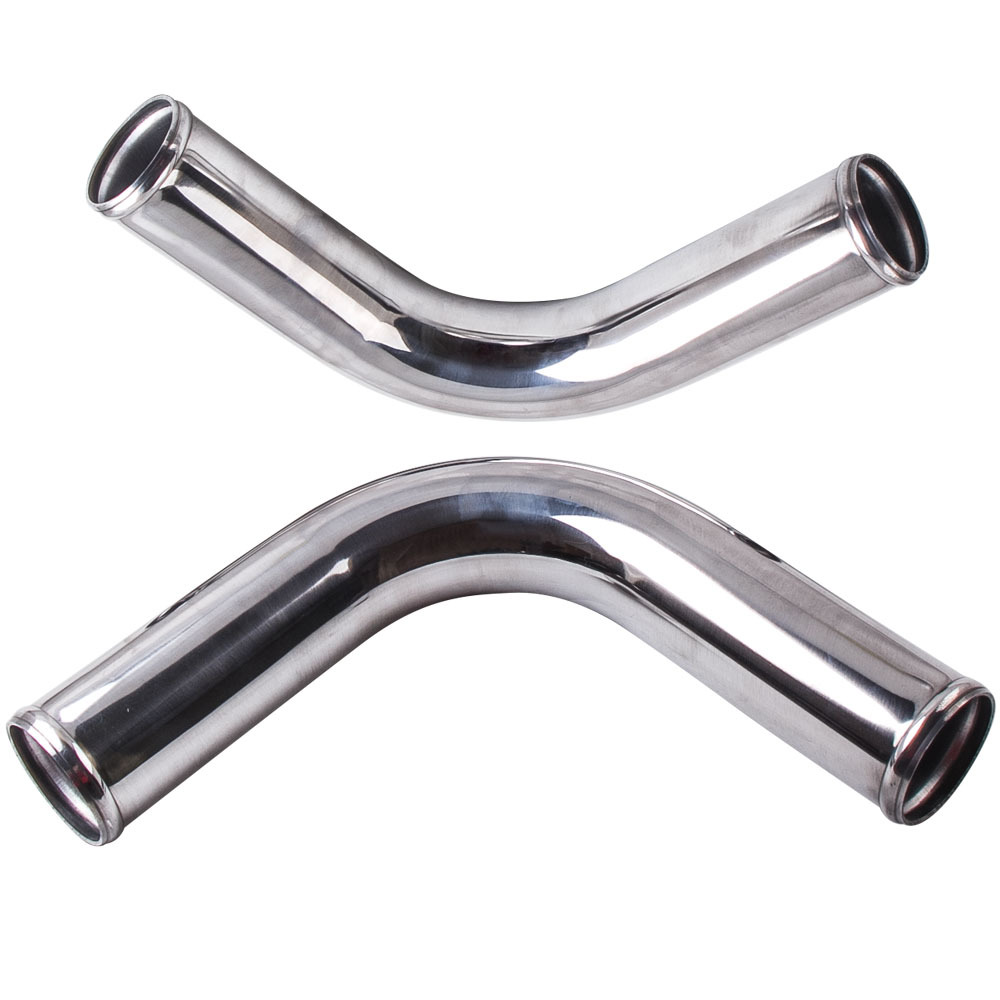

2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"

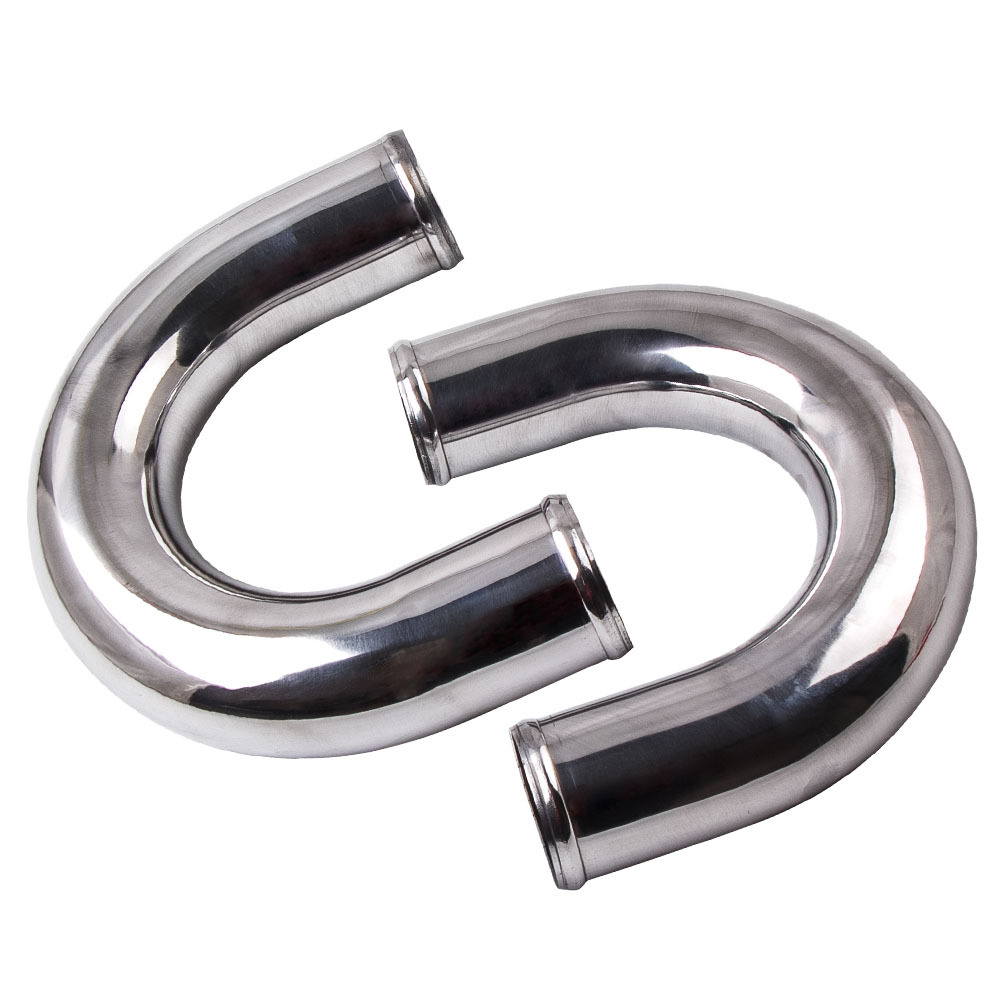

2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets
600x300x76mm Intercooler

Features
1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing：ZL104 aluminum
4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance
5.The impeller is colored by five-axis CNC milling, the shape of the blade is more perfect, and the precision is higher.
6.Water-cooled/oil-cooled structure extends turbine service life.
7.100% BALANCING TEST：This Turbocharger you will receive has been balanced using the VSR machine technology.
8.Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance.
9. Max HP： UP to 600hp.

Notice

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
