T04E T3 Universal Turbo Turbocharger V-Band 2.5Intercooler Pipe Piping Kit

* This is universal application turbo, so modification might be required for some vehicles.

Application :

Perfect for all 4 or 6 CYL, 1.5L to 2.5L engines

T04E Turbocharger with Internal Wastegate

Exhaust (Turbo Manifold) Flange: Standard T3 4-Bolt
Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
Intake Inlet/ Outlet:  3.00"/ 2.00"

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)

Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/  Wastegate
Thrust Bearings: 270 Degrees
Hosepower: Up to 420 HP

2.5" Universal Aluminum Intercooler Pipe

-Made out of high quality of 6061 aluminum Manual polishing finished
-Manufactured from high quality aluminum for durable use:
-Straight Layout and Appropriate Pipes' Radius lead to less pressure loss
-High Pressure Resistant Hoses bring out high of intercooler
-All pipes are well externally polished
-All intercoolers are bar & plate design for better cooling efficiency
-Professional Installation Is Highly Recommended
-Pipe Thickness: 1.8mm
-Pipe length: 18"

27x7x2.5 2.5" Universal Intercooler

-Inlet/outlet size: 2.5"
-Core size: 21"x 7"x 2.5"
-Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)
-Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP
-Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi
-Material:  Aluminum alloy
-Core design: Tube & Fin

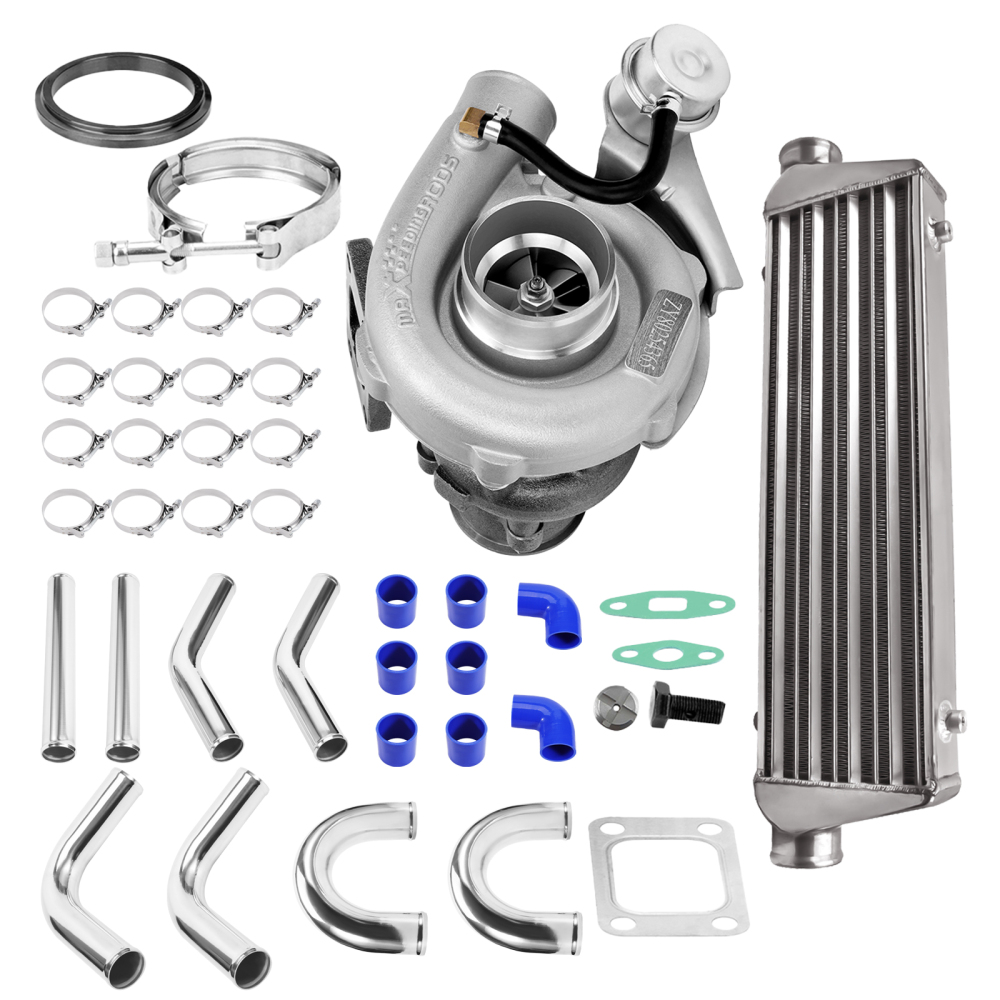

Package include

1x T04E V-Band Turbocharger
1x 27x7x2.5 2.5" Universal Intercooler
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year
Accessories: You will get exactly as shown in the picture above

NOTE:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
