Tuning Coilover Kits compatible for Mazda 3 2004-2013 Adjustable Height Struts Shocks Lowering Kit

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Mazda 3 BK 2004-2009
compatible for Mazda 3 BL 2009-2013
(includes Mazdaspeed 3)

Specification

Top mounts: Front pillow ball top mounts
Damping: Not available
Shock type: Twin tube
Adjustable height: Yes lowering 1'' to 3''
Adjustable camber plate: No
Spring preload: 7-10 mm

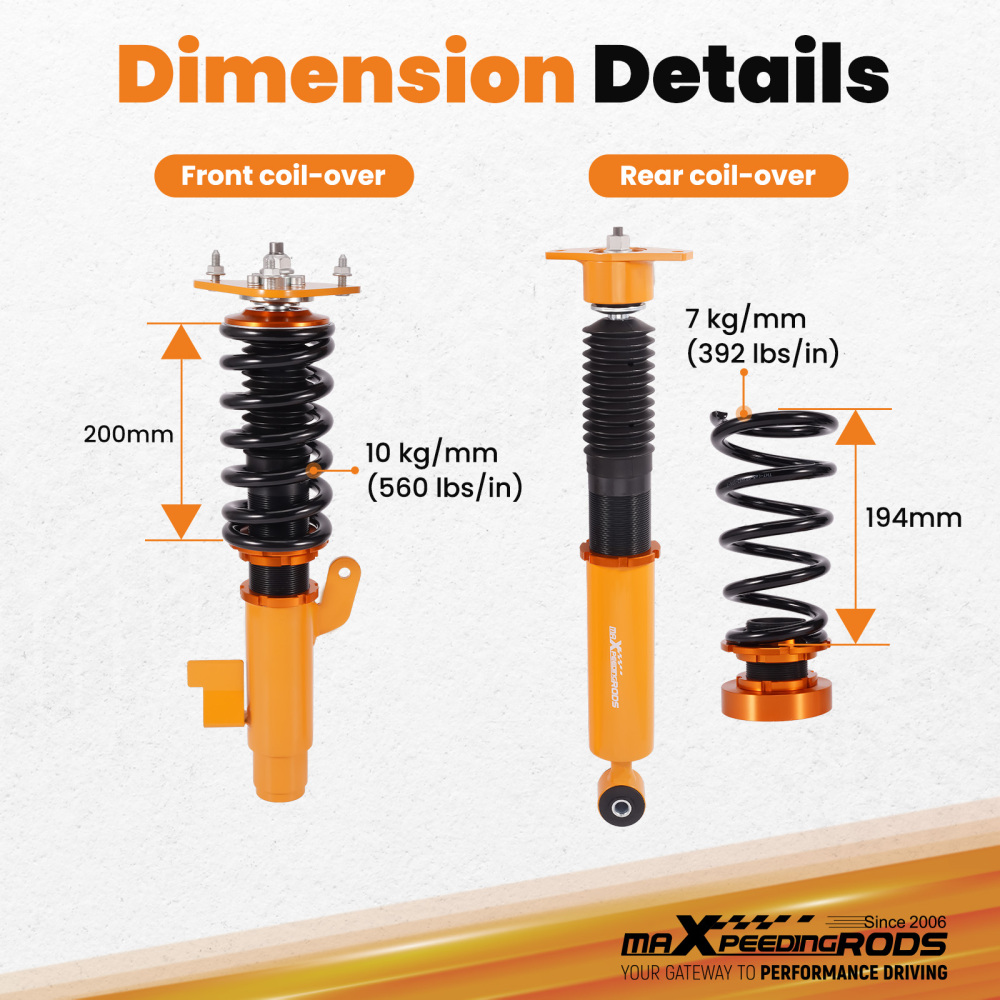

Spring rate Front: 10kg/mm (560 lbs/in)
Spring rate Rear: 7kg/mm (392 lbs/in)
color: Golden

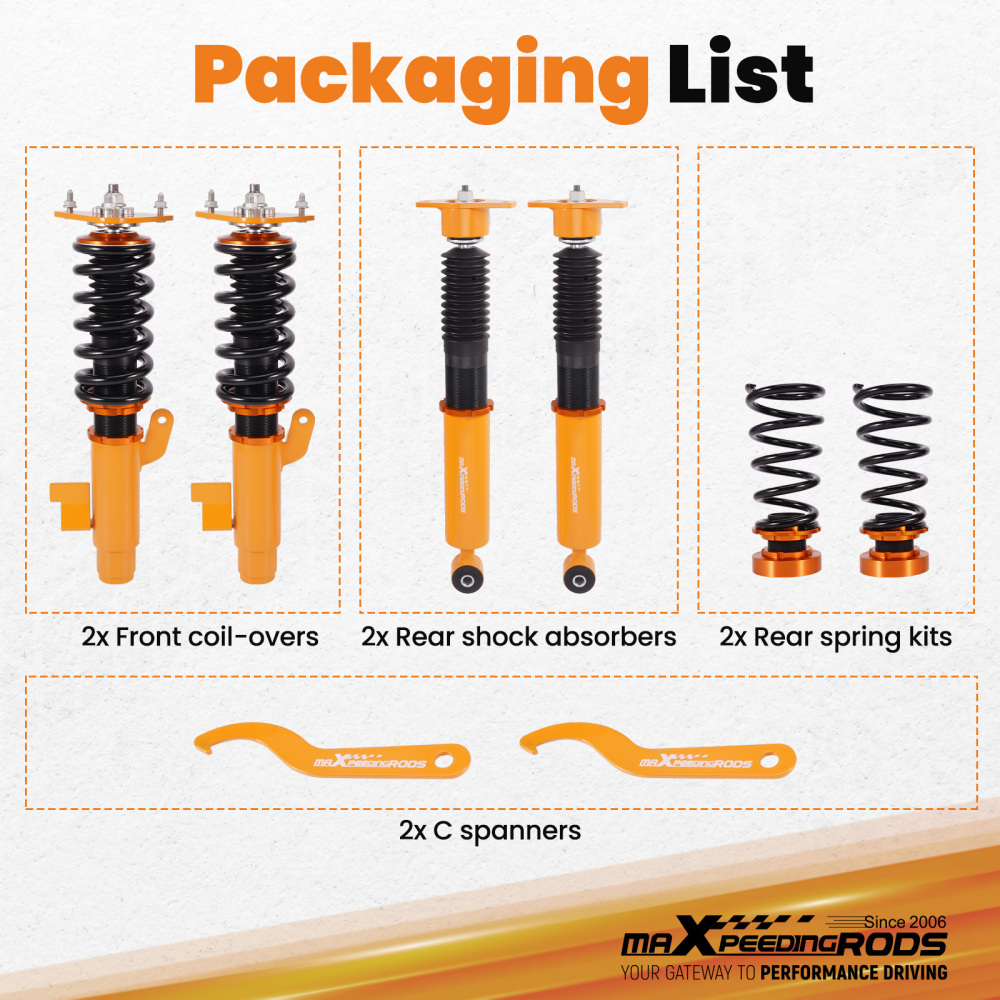

Package included

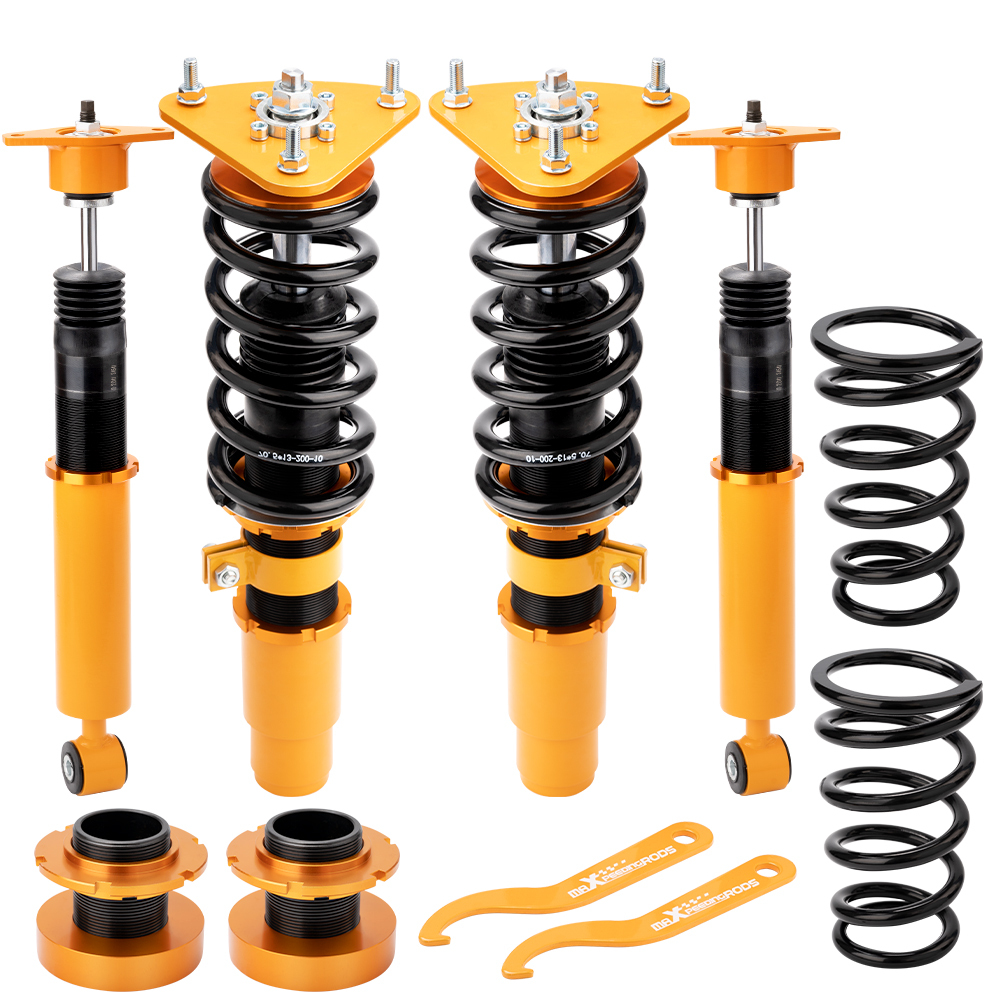

complete coilovers 2 front and 2 rear as shown in the picture

Dimension

Size: 63*51*21 cm
Weight: 27.14 kg

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

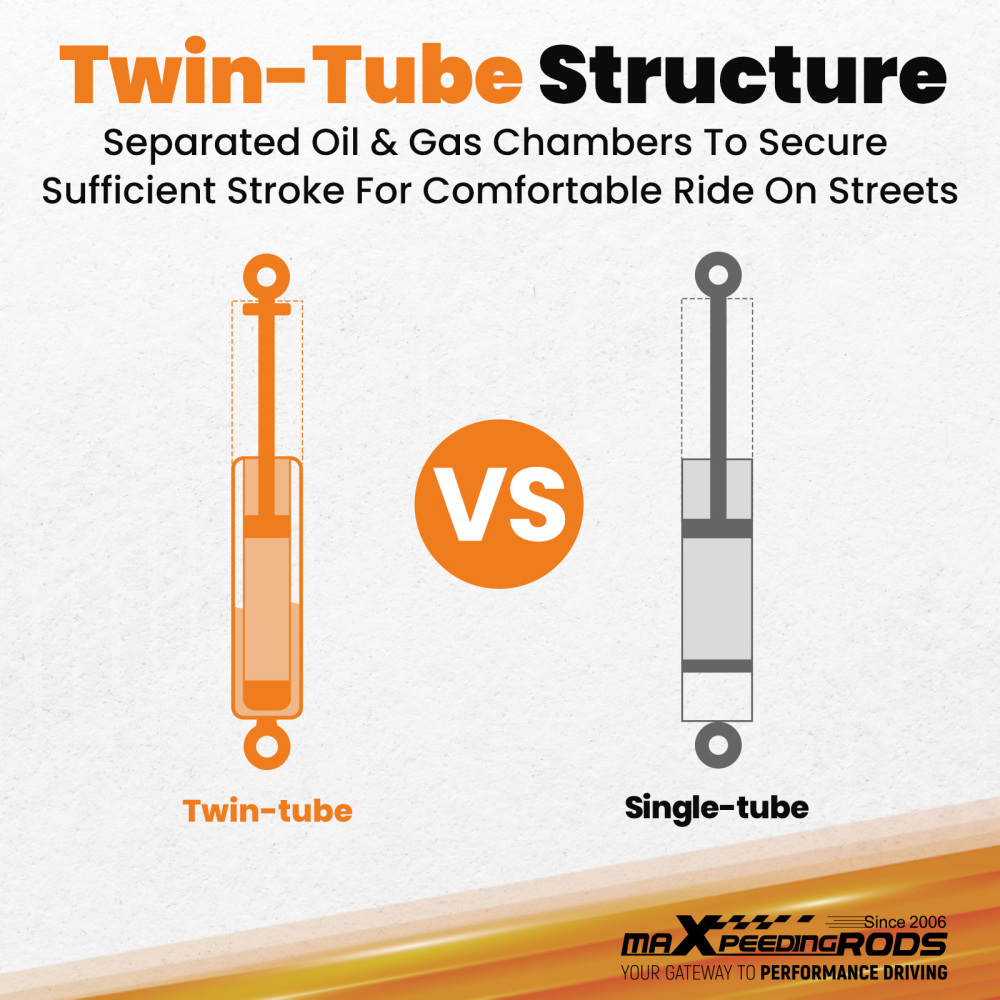

Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

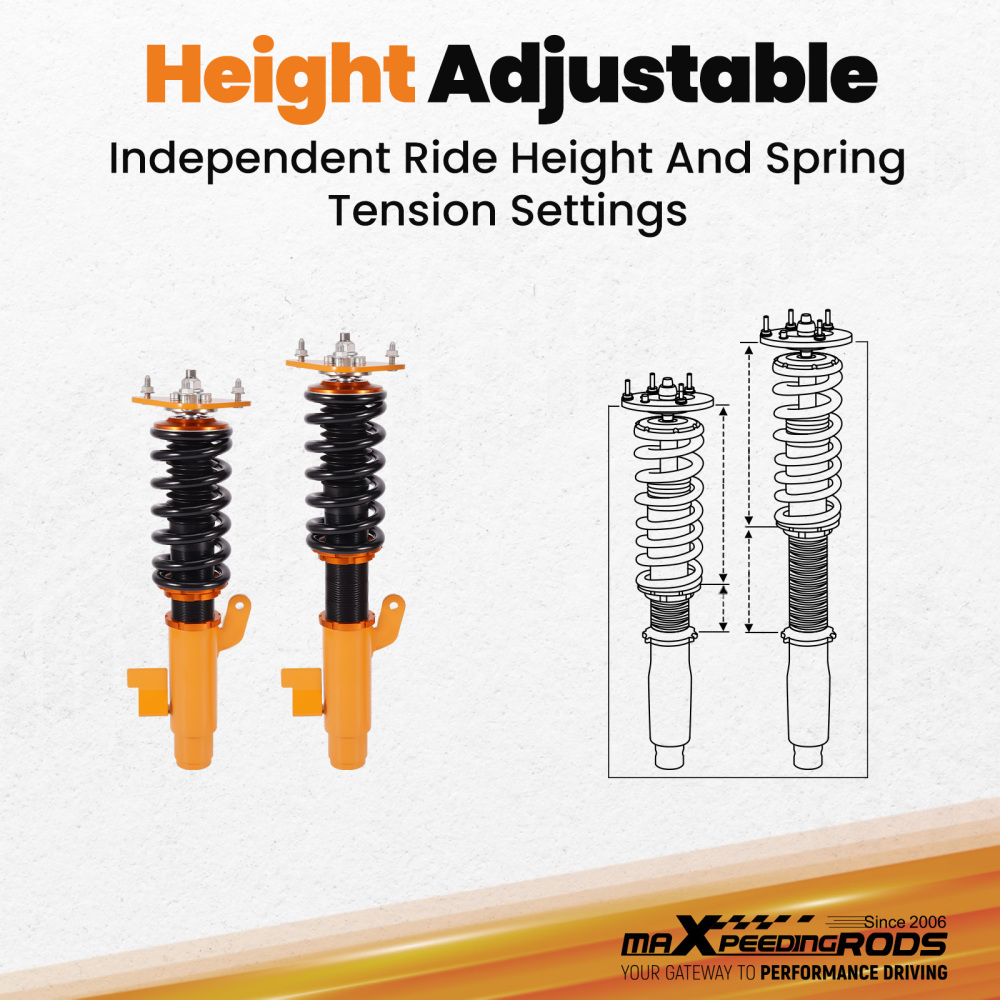

Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.

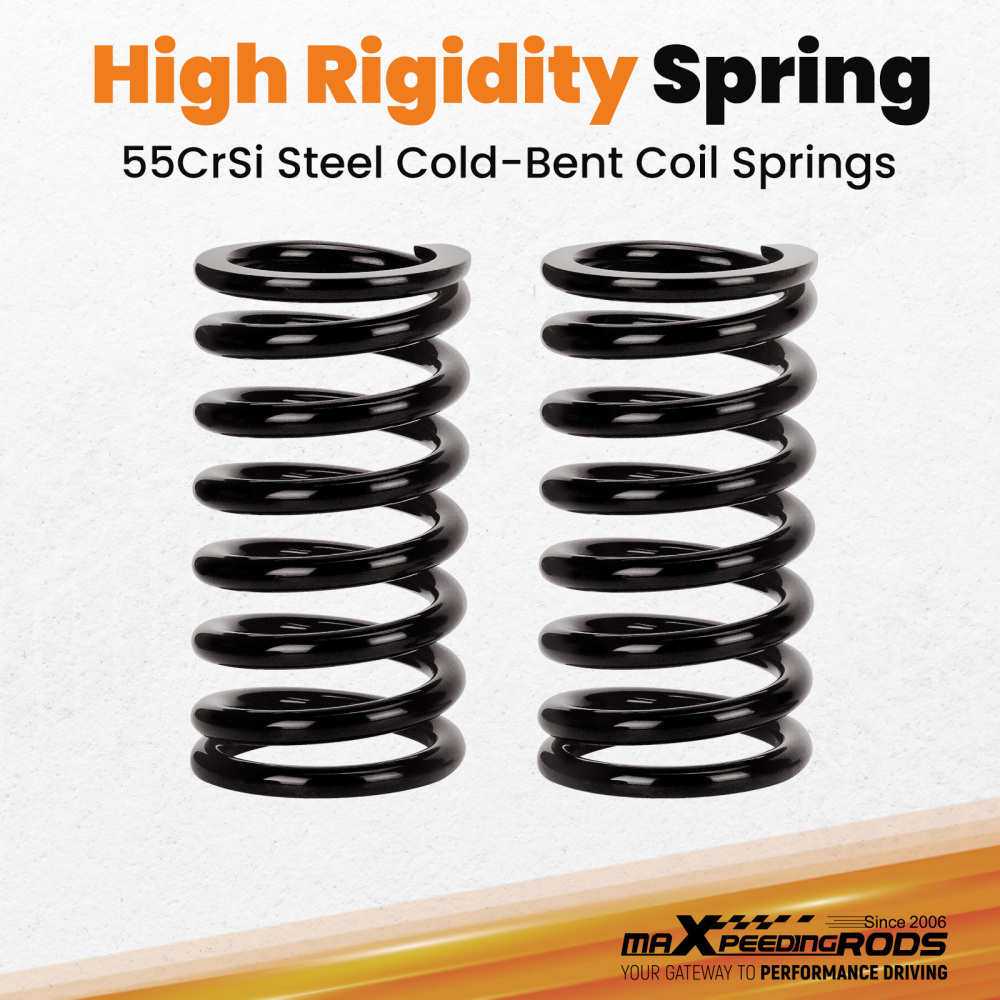

High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.

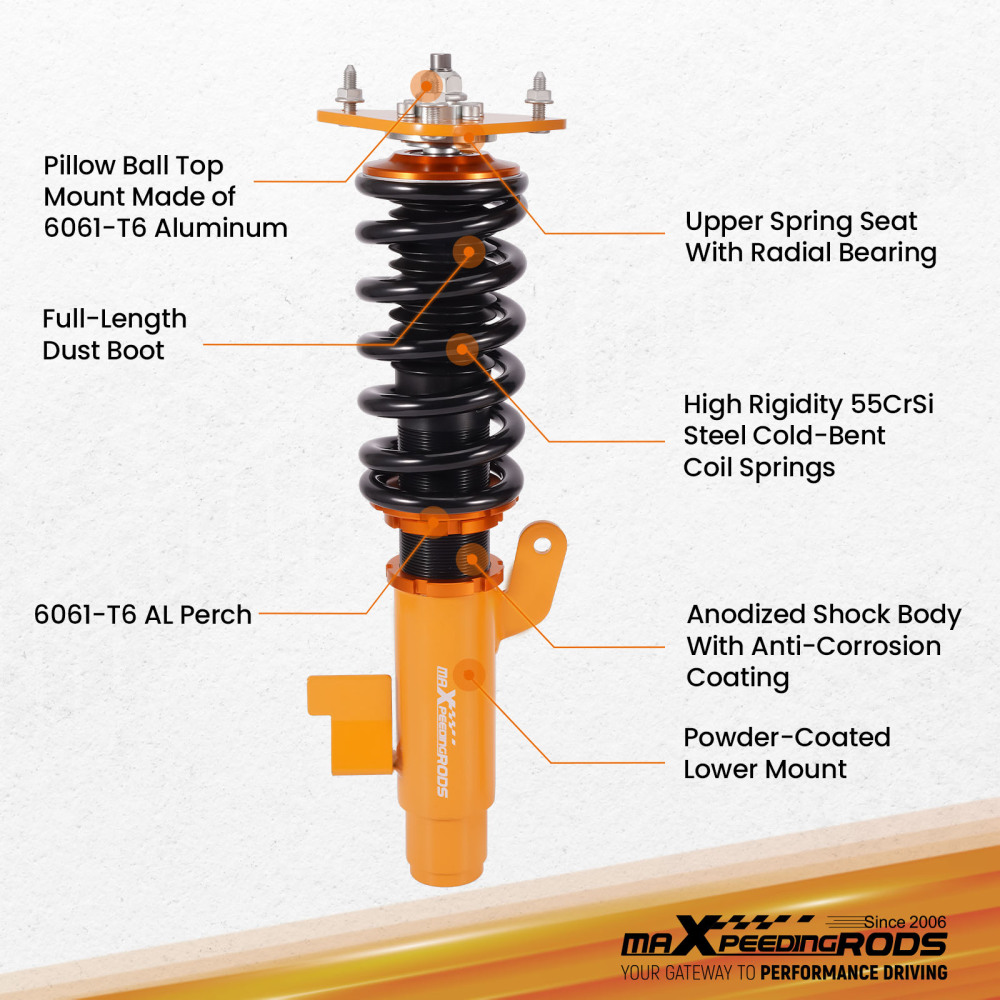

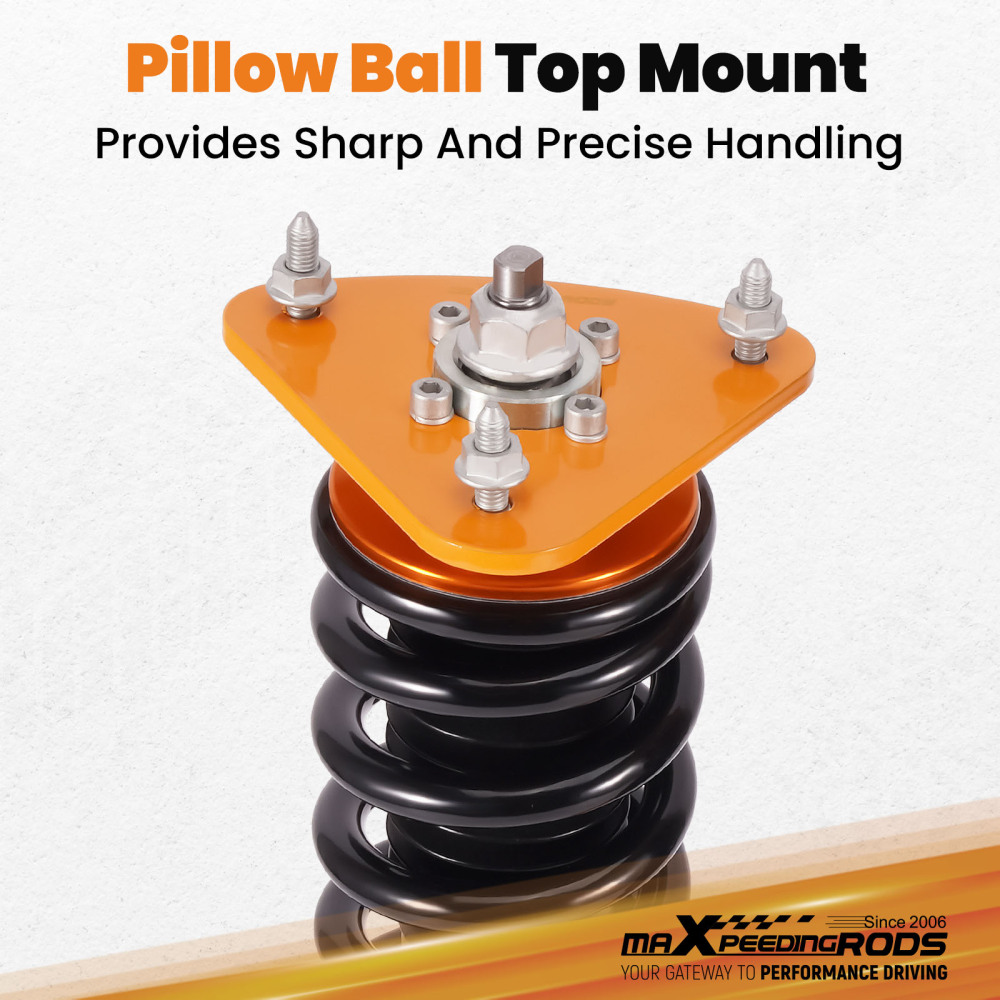

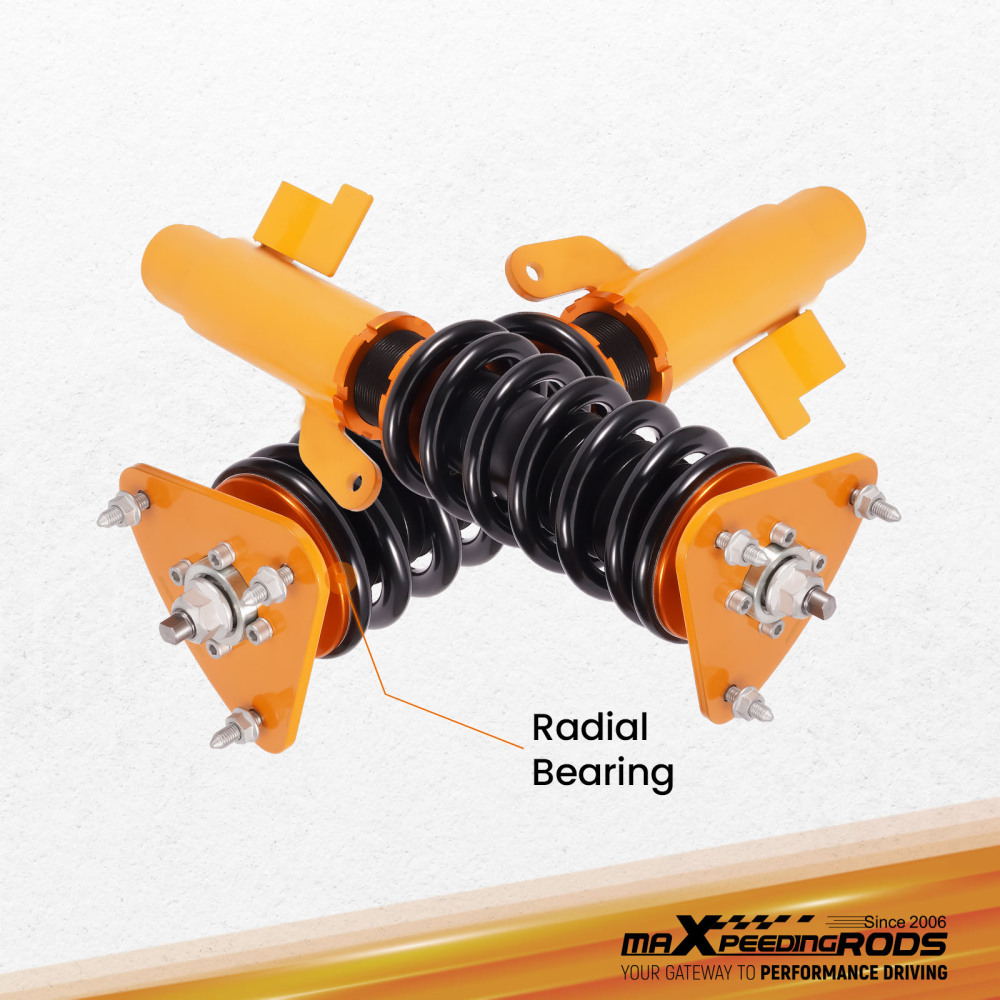

Pillow ball top mount - It improves the steering feel and response.

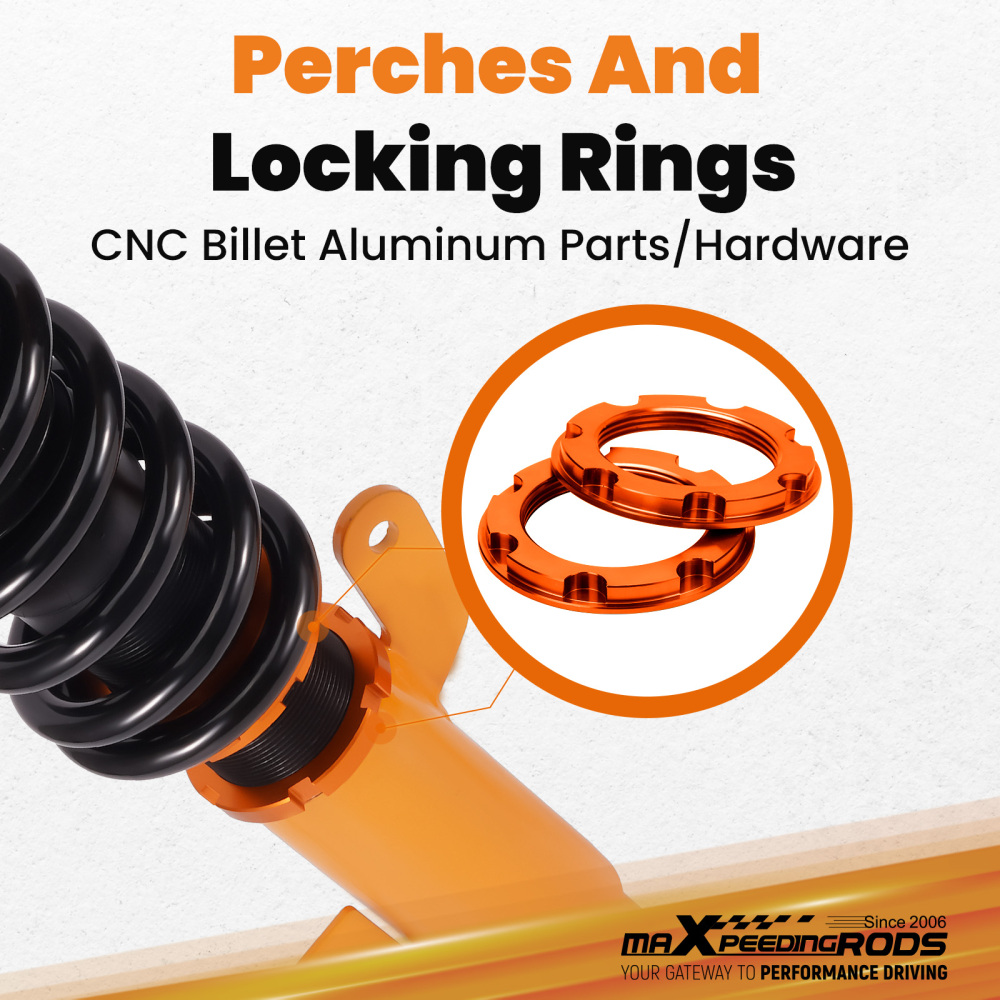

Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
