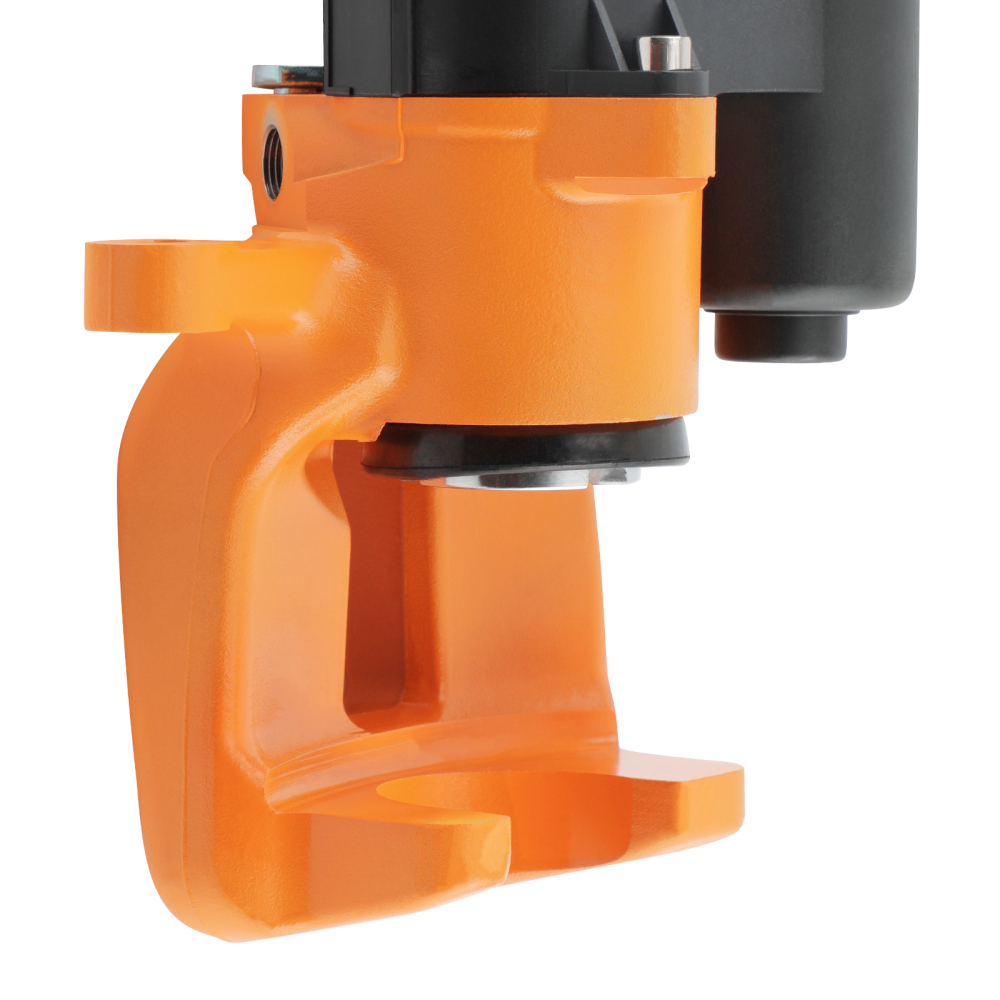

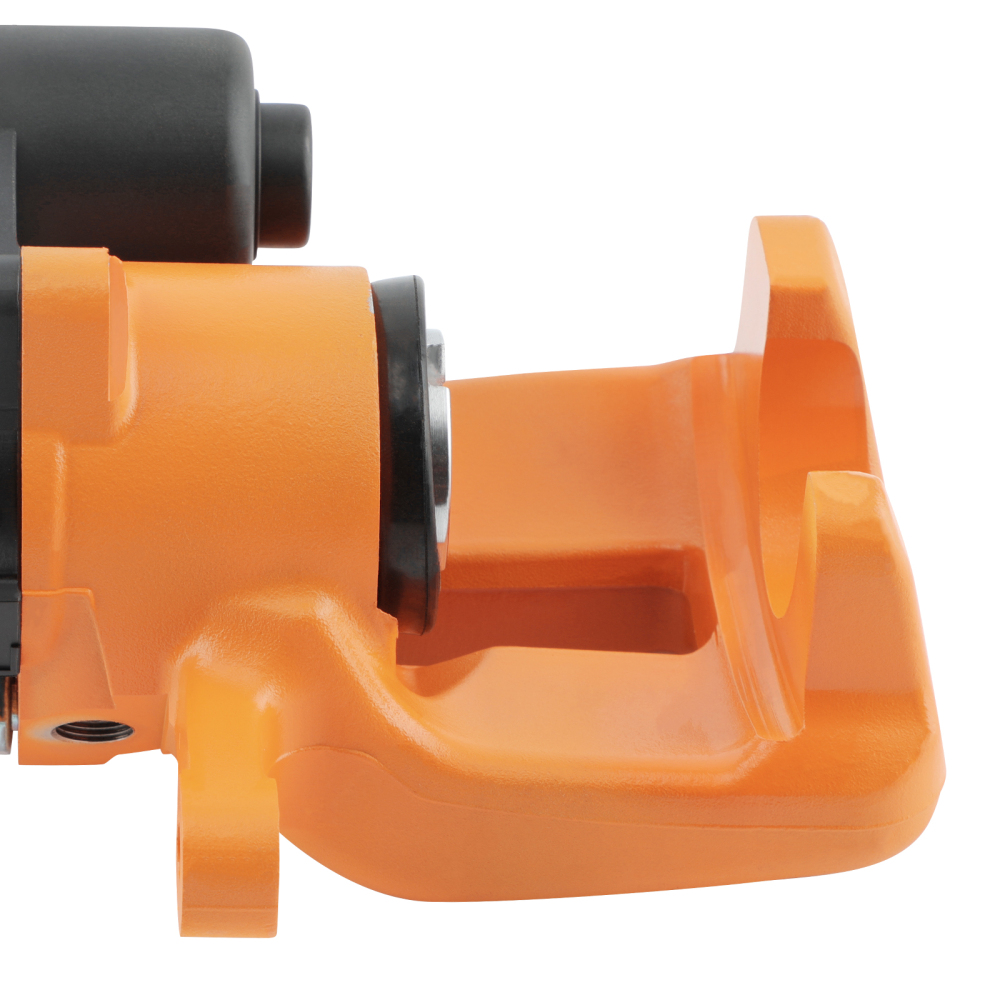

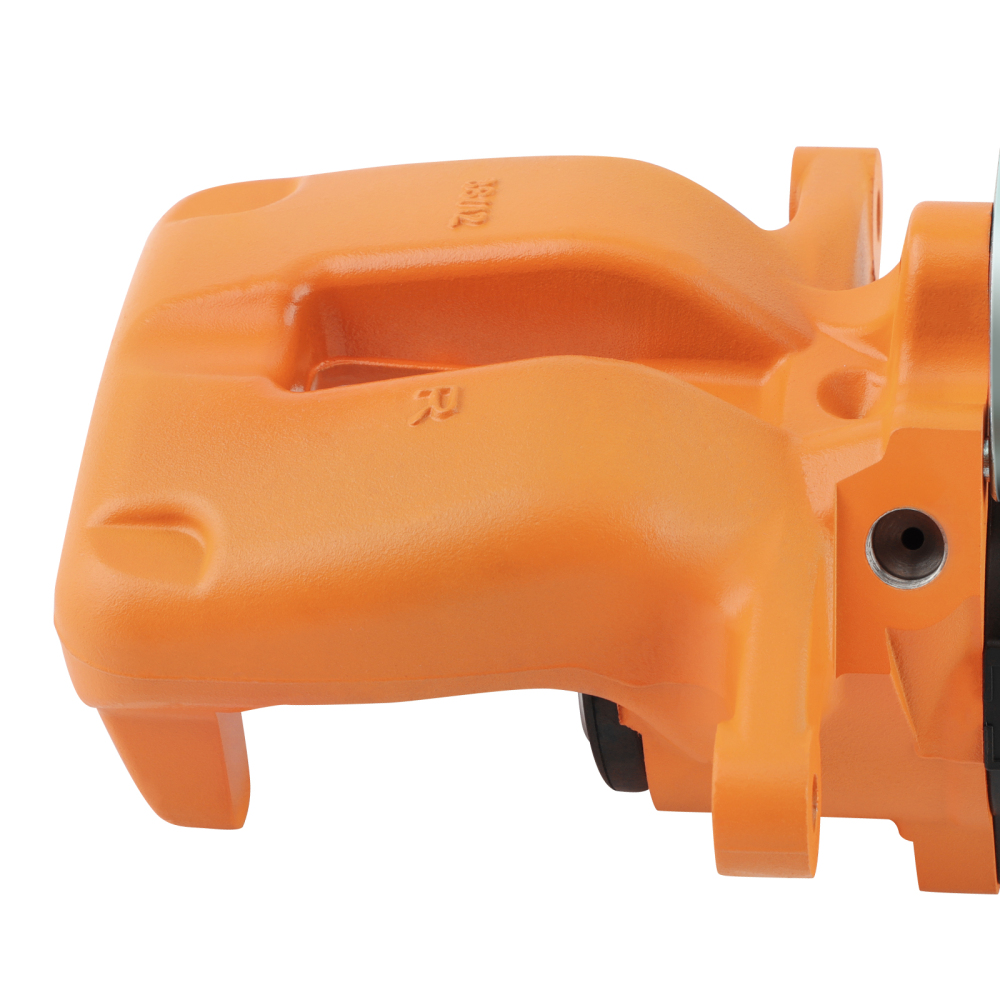

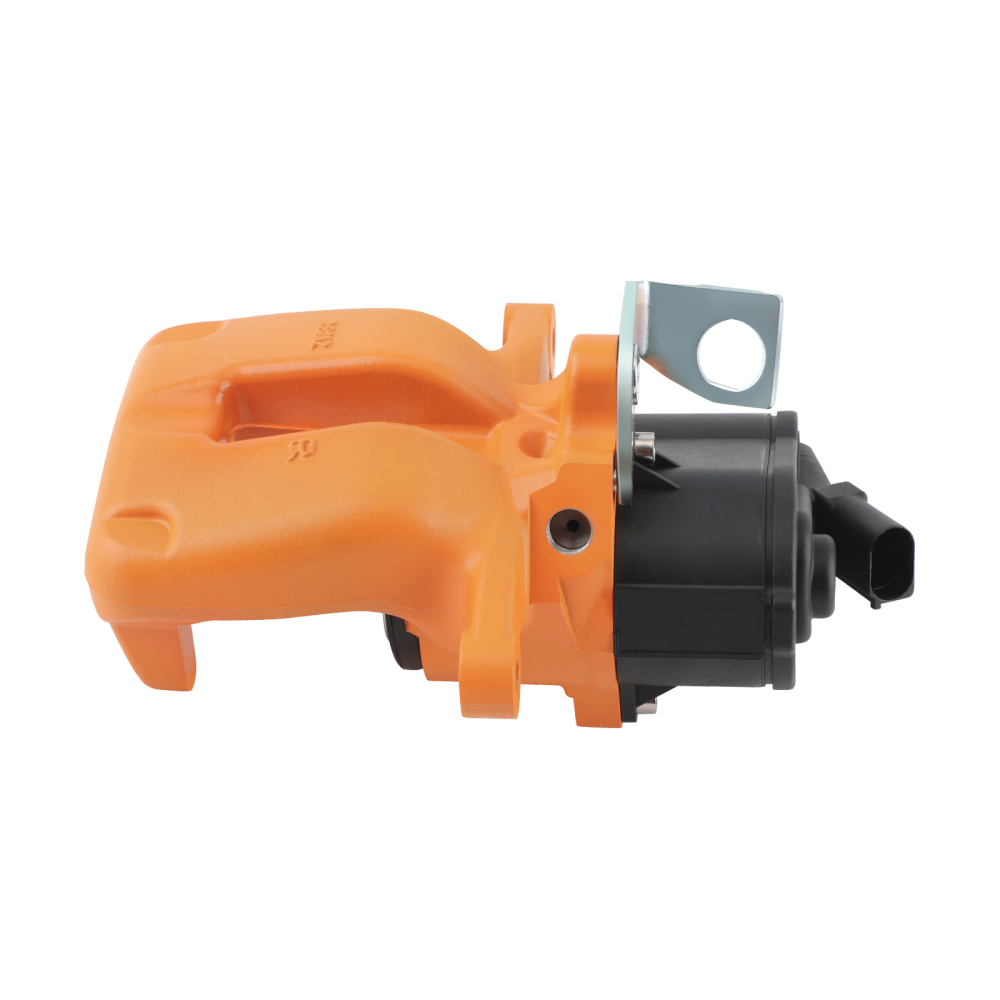

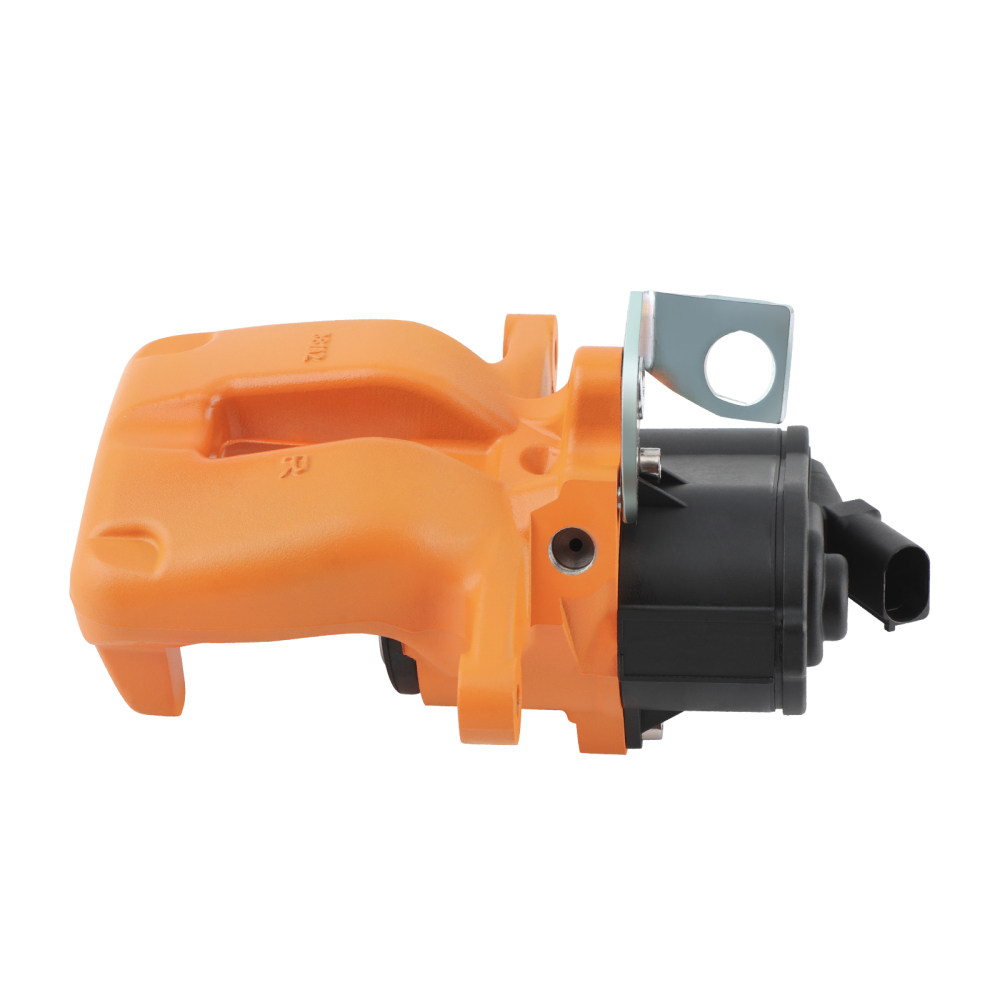

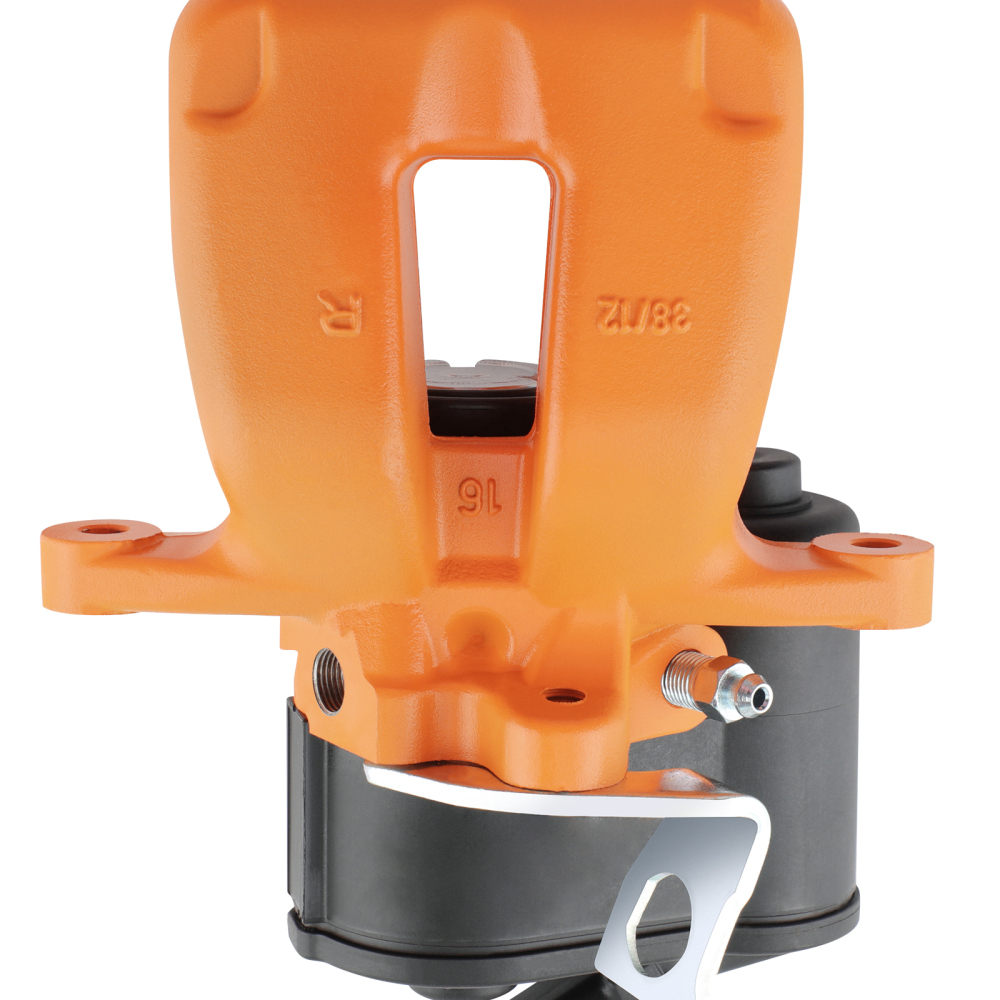

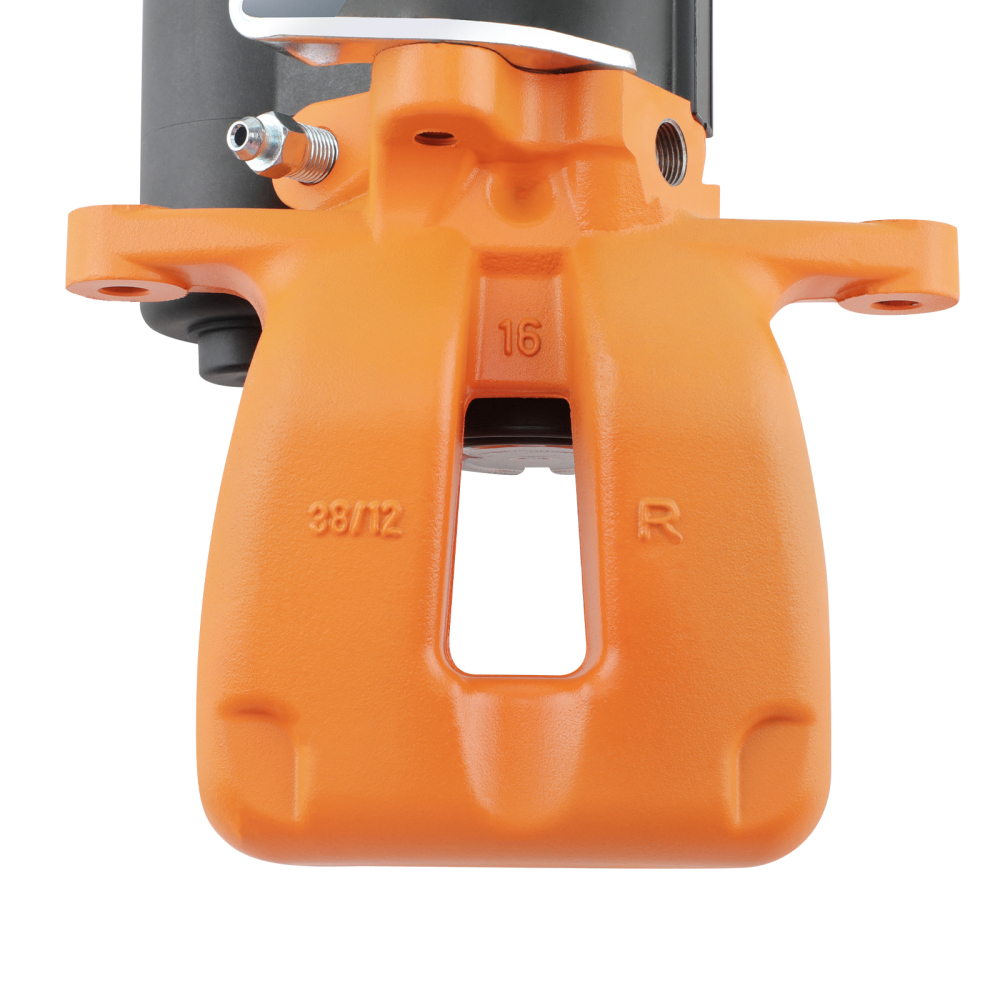

1xRear Right Brake Caliper compatible for VW Passat + Electric Parking 3C0615404 Orange

Application

Compatible for VW Passat 3C 05-07 1.9 TDI Rear Right Electric Brake Caliper 3C0615404E

Compatible for VW Passat 3C2, 3C5

Notice: This item is not for OEM number 5N0615404

Reference OEM number

3C0615404, 3C0615404E, 3C0615404G，3C0615404D,3C0615404K,3C0615404C
BHS1217E
F 85 299
24.6241-1712.5
530112

Specification

- Mounting position: right rear
- Brake caliper design: Fist caliper
- Material: Aluminum
- Diameter: 38mm
- Vehicle equipment: For vehicles with parking brake -Only for vehicles with electronic parking brake, PR No. 1KU and build year before April 2007 -No bracket -Thread size M12X1
-For brake disc: thickness 12 mm/diameter 282 mm
-Distance between fastening bolts 134 mm
- Electronic brake caliper motor parameters: 12 teeth
-condition: 100% brand new, ready to install
-Color：Orange
-warranty: one year

Easy to confuse

NOT FOR:oe5N0615403， brake disc thickness 12 mm
NOT FOR:Brake caliper piston diameter [mm] 41.0 mm
NOT FOR:Thread dimension M10X1.5
NOT FOR:Distance mounting bolt 134 mm   NOT FOR: PR NUMBER 1KW

ONLY FOR:PR No. 1KU

Note

* Please make sure your old part number matches one of the above part numbers, please make sure your KBA code and PR code and main parameters are appropriate.

* Professional installation is highly recommended (ourproduct manual can be used as reference).                                                      * Due to different installed brake systems and to avoid incorrect deliveries, we ask you to send us the 17-digit vehicle identification number (VIN, chassis number) to check the accuracy of fit. Dispatch takes place only after inspection

* For any needs please contact us.
