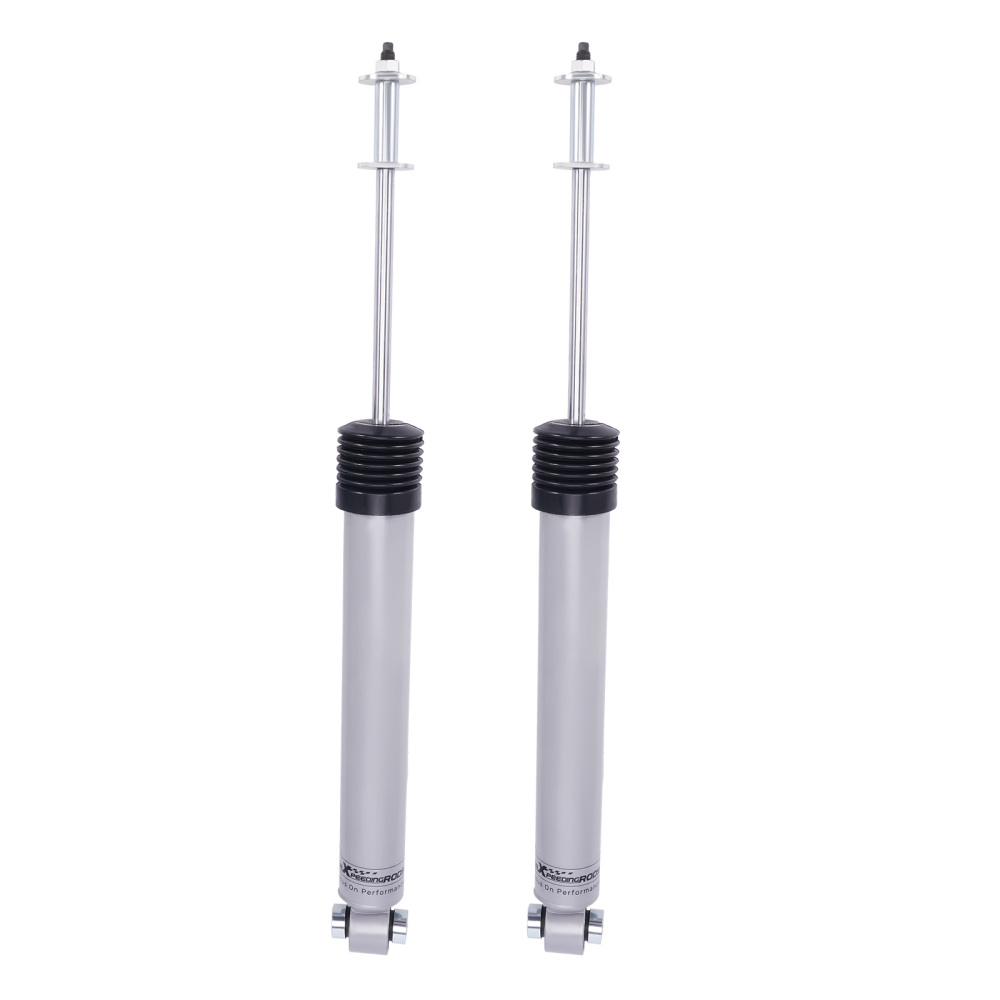

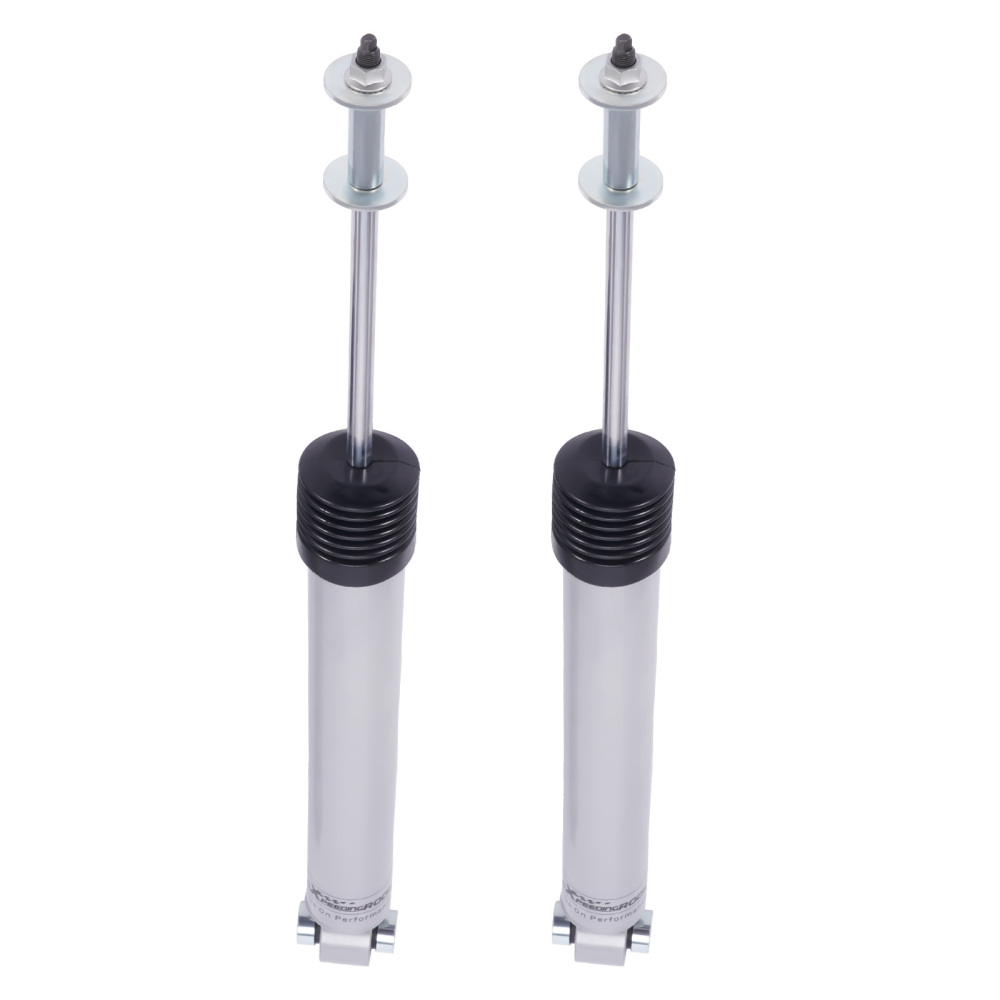

Rear Coilovers Lowering Kit compatible for VW Golf MK7 5G compatible for Audi A3 8V S3 2013-2020

Introduction

maXpeedingrods' maXpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for Volkswagen Golf MK7 2015-2019（include models with DCC system), with TORSION Rear Suspension only
Note: not fit for MULTILINK Rear Suspension
compatible for Audi A3/S3 (8V) Mk3 2015-2019
compatible for SEAT Leon Mk3 2012-2019
compatible for Skoda Octavia Mk3 2012-2019

Specification

Rear top mount: OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

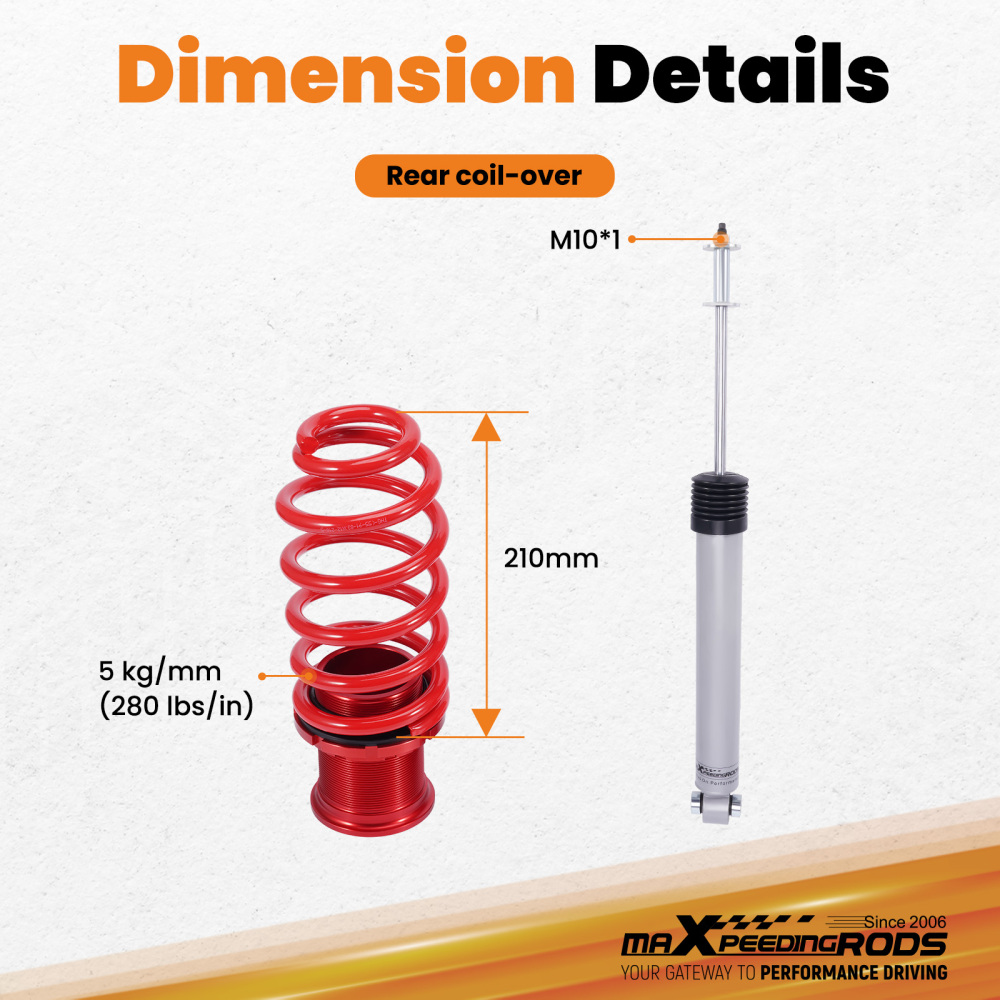

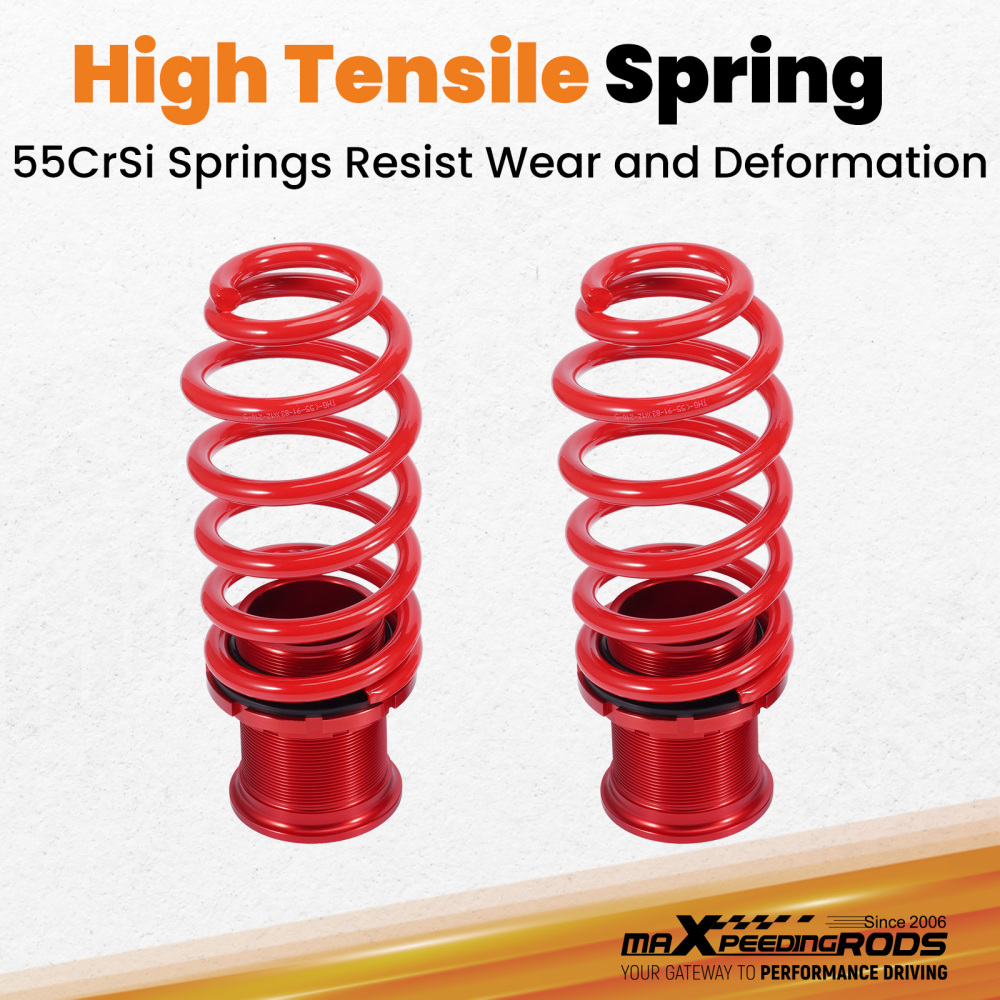

Spring Rate Rear: 5 kg/mm (280 lbs/in)
Spring length Rear: 210 mm
Spring Preload advised: 7-10 mm
Color: Red body with red spring

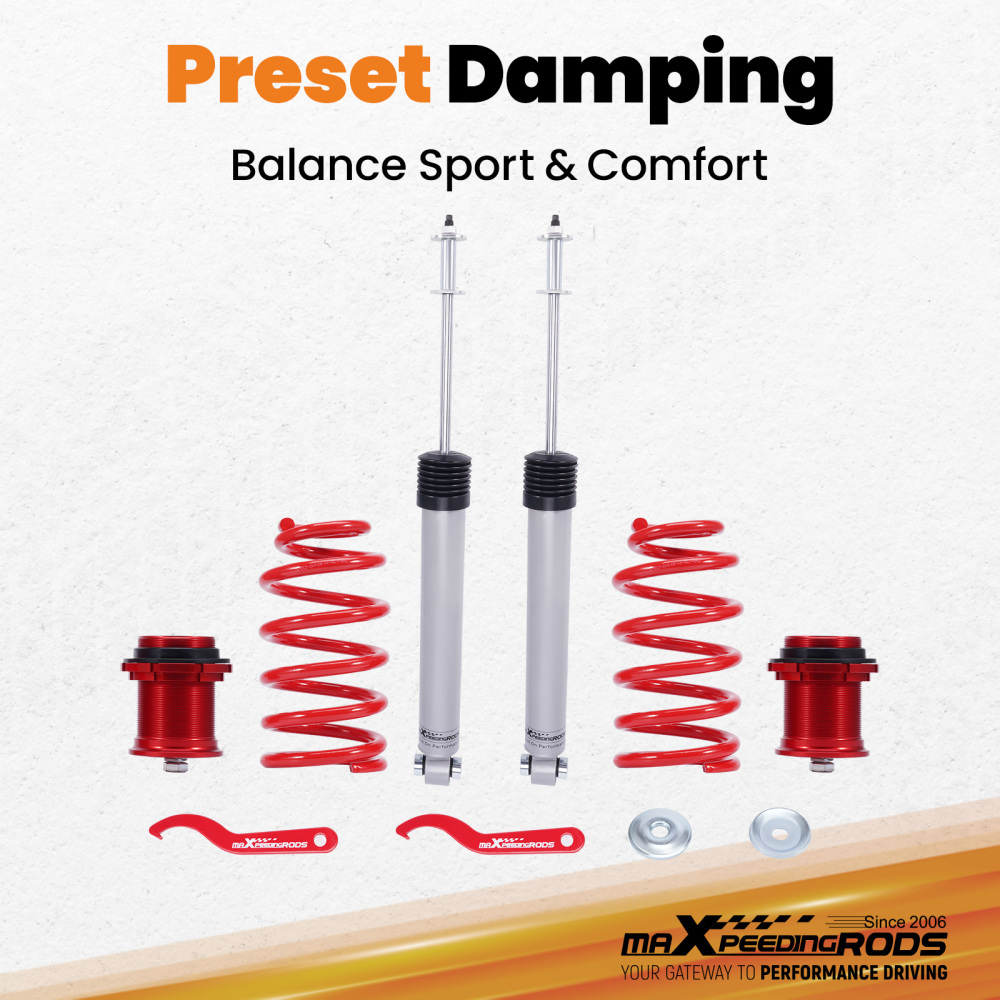

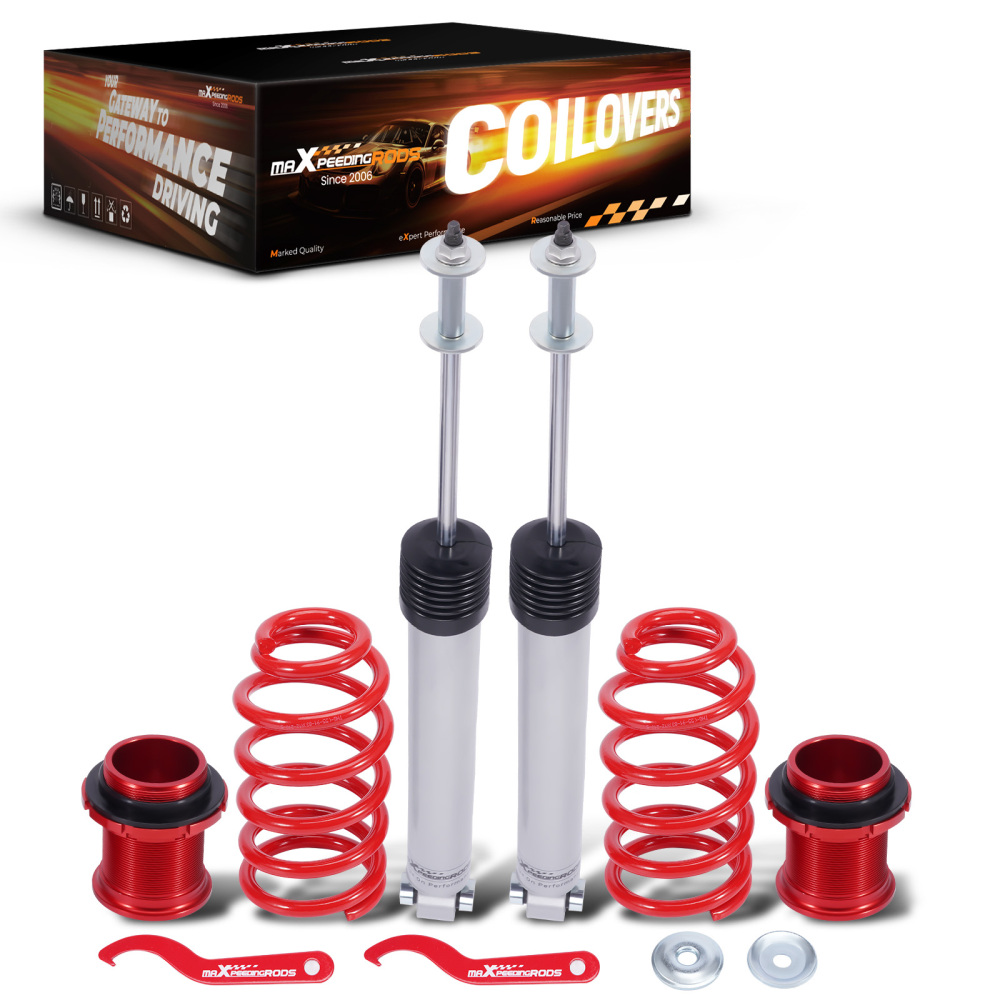

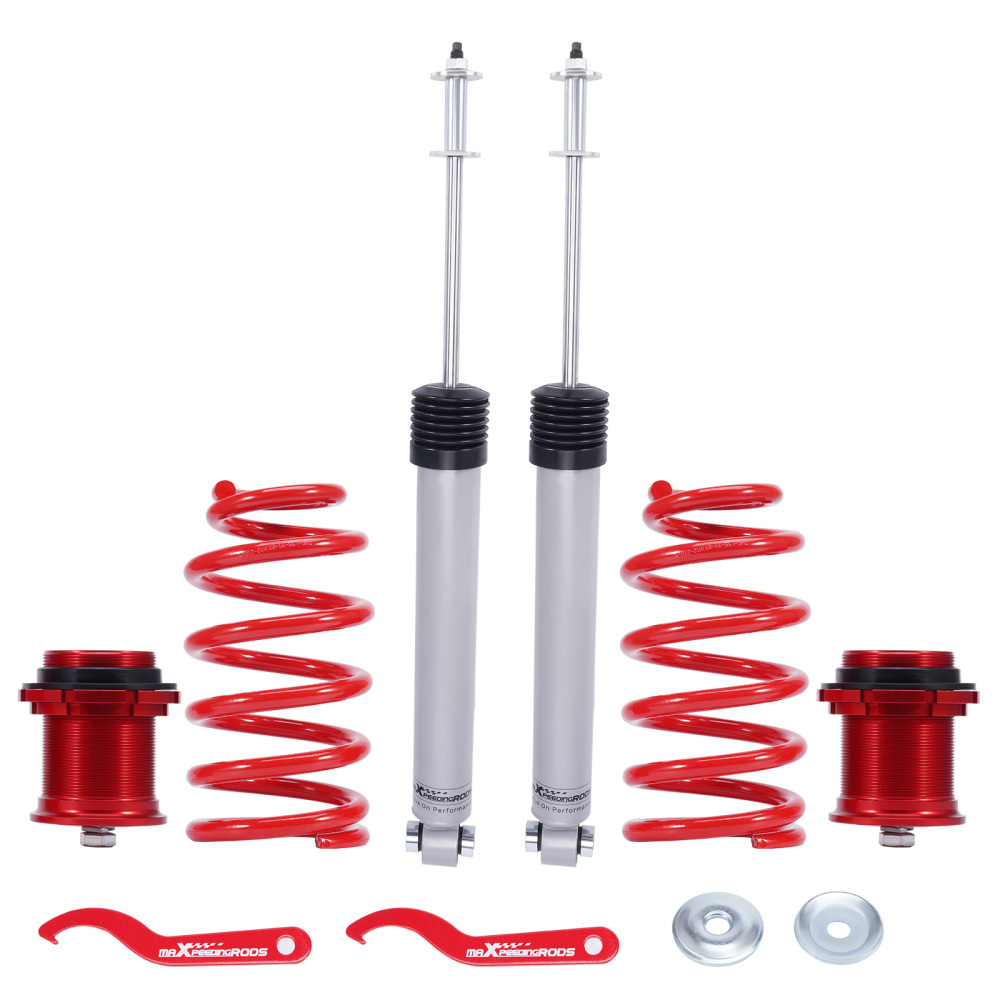

Package included

Package included：

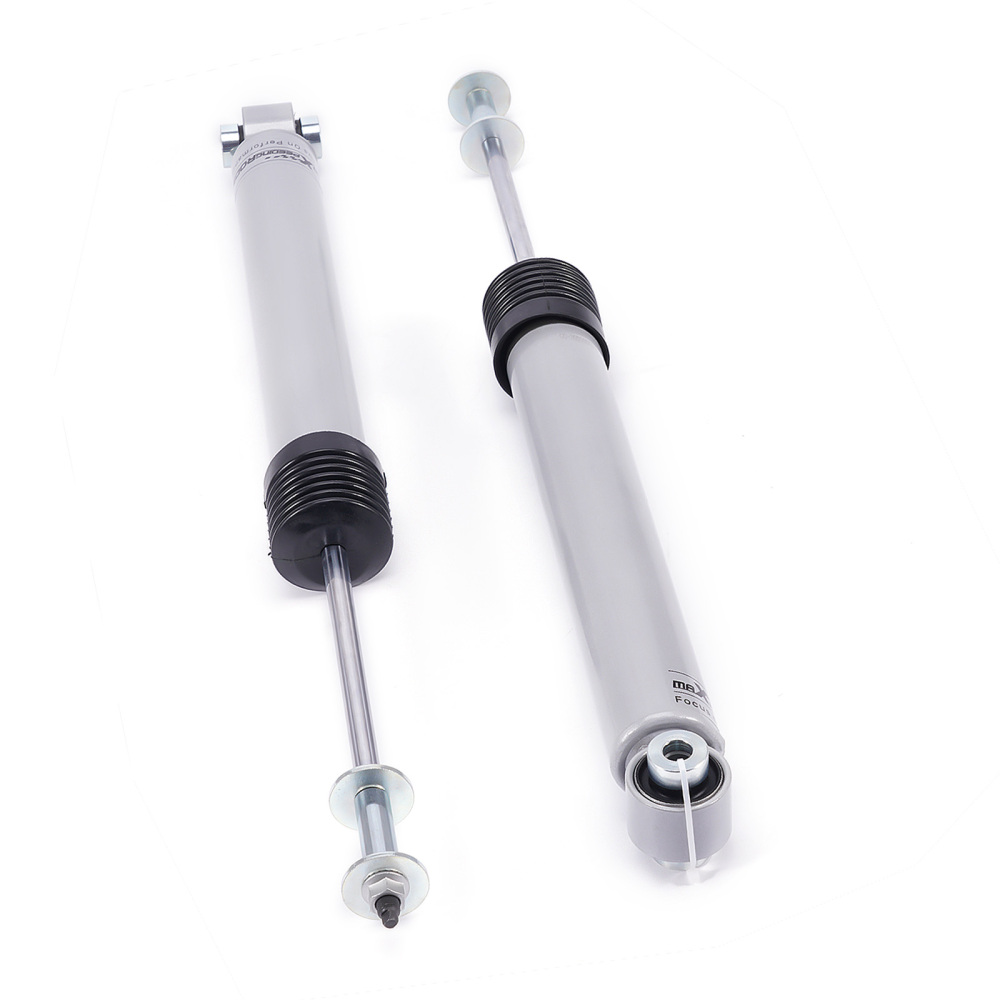

2x Rear coil-overs
2x C spanners

Dimension

Package size : 73*27.1*21 cm
Weight: 13100 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops

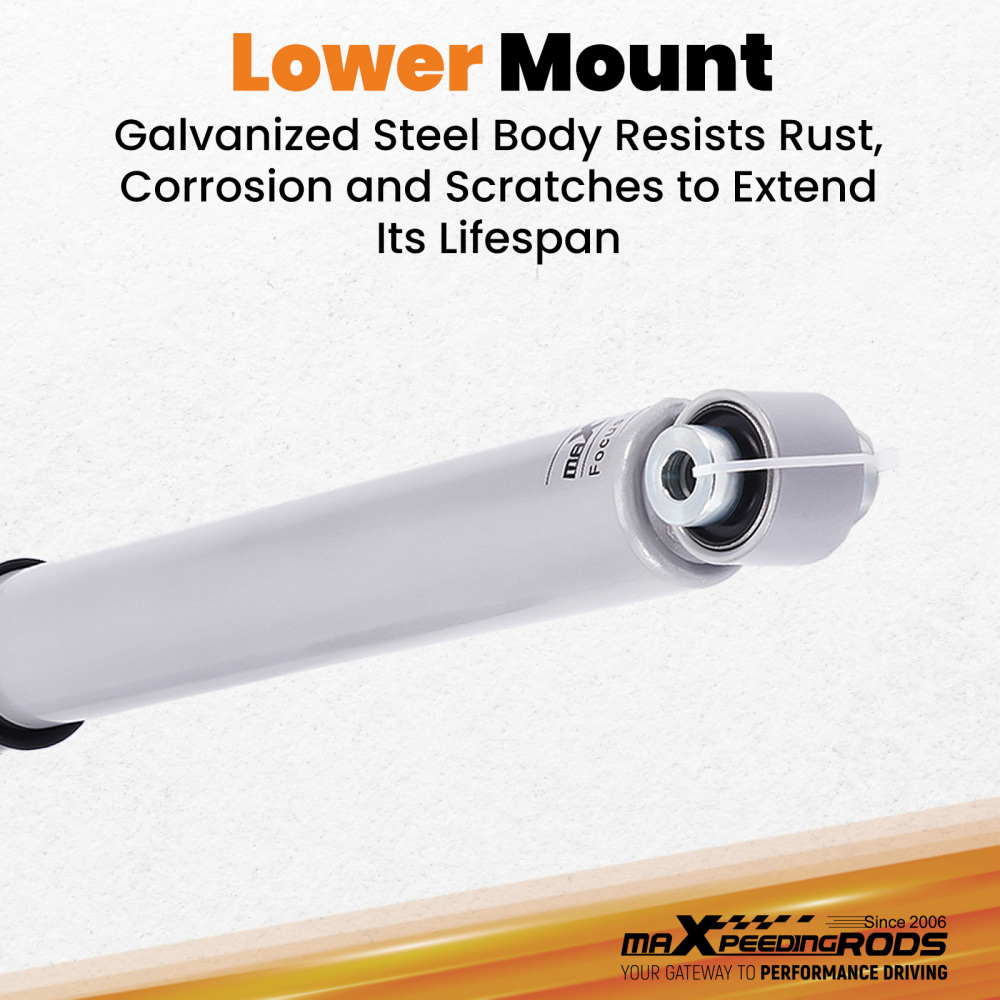

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
