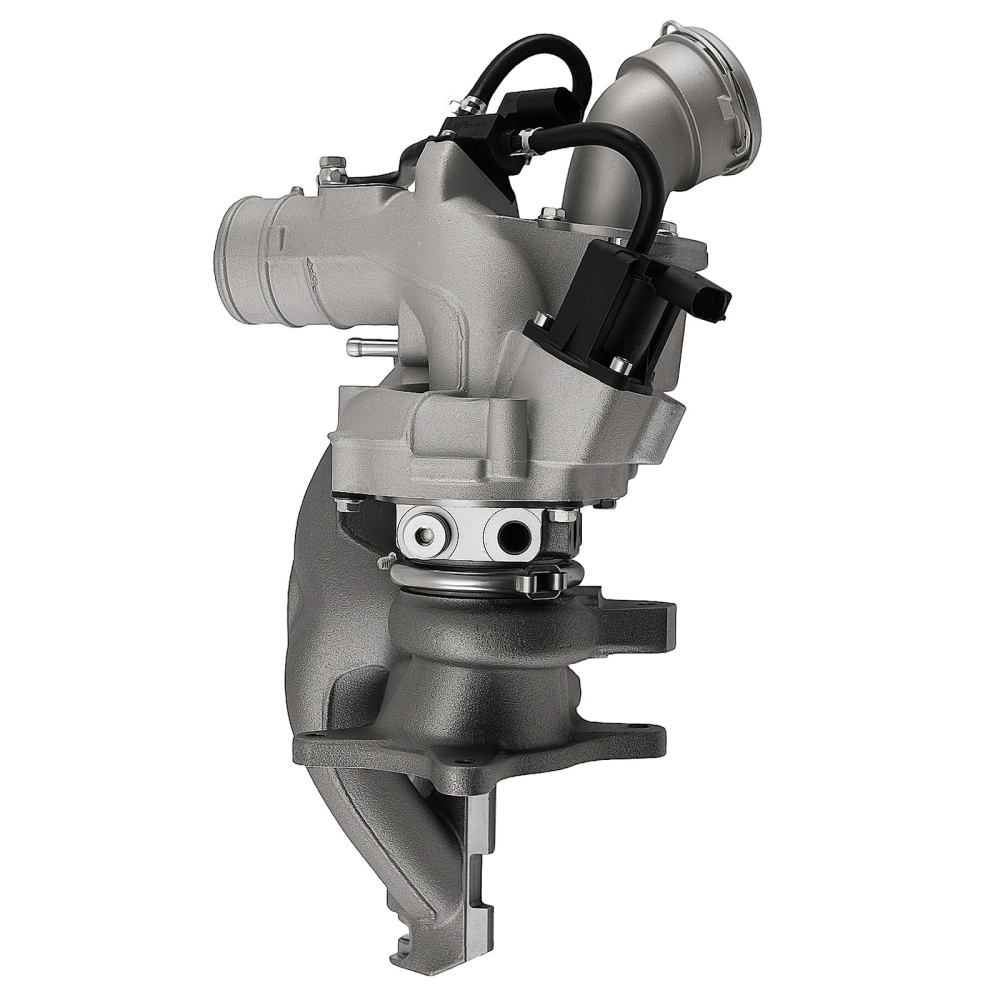

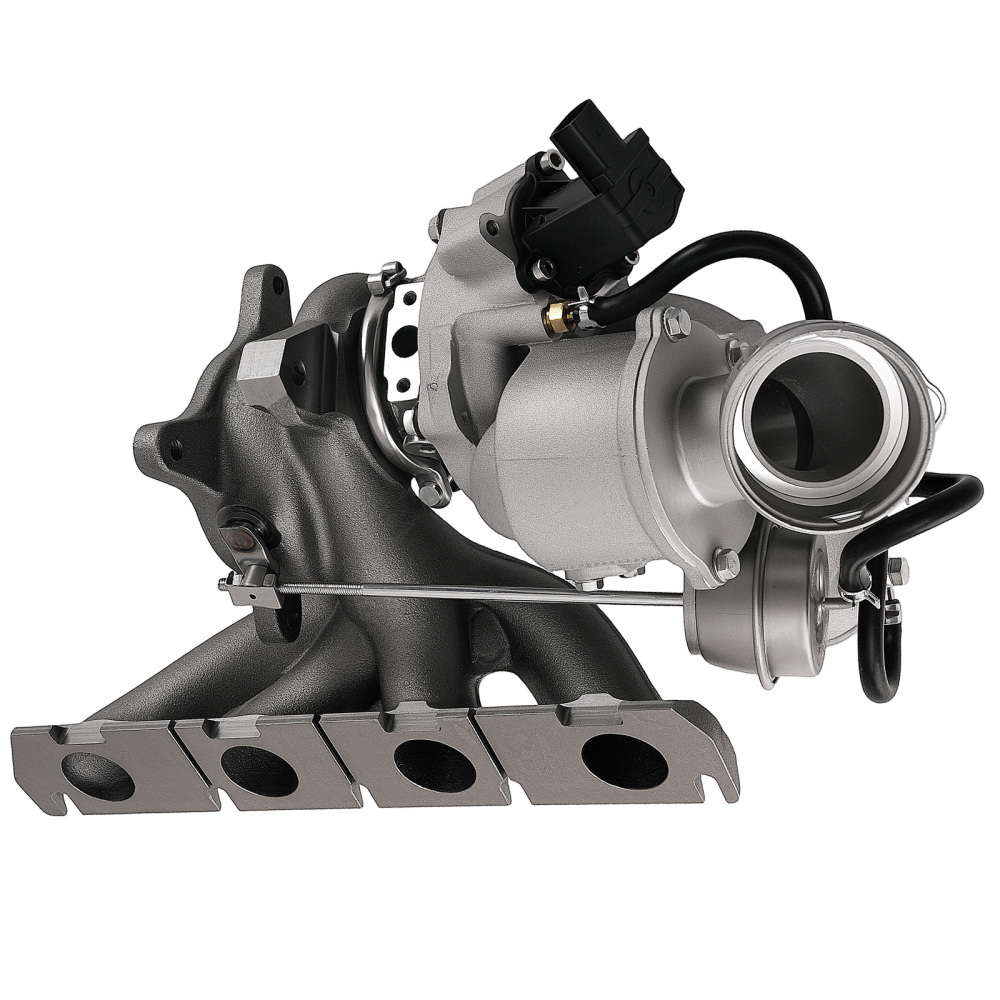

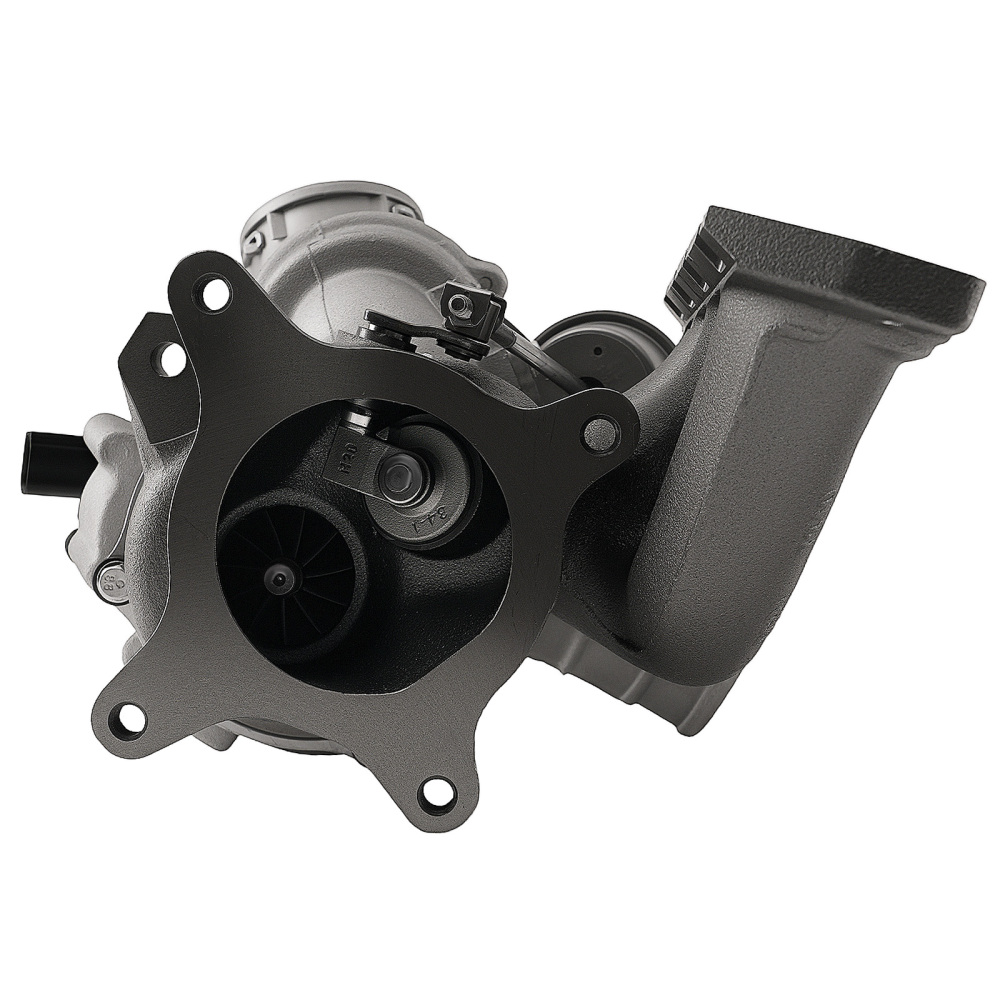

New Turbocharger BYT CDAA compatible for Audi Seat Skoda VW 1.8 TFSI TSI 5303-970-0134

Application

Compatible for Audi A3 Cabriolet 8P7 1.8 TFSI 118 KW 2008
compatible for Audi A3 Sportback 8PA 1.8 TFSI 118 KW 2006
compatible for Audi A3 Sportback 8PA 1.8 TFSI quattro 118 KW 2008
compatible for Audi TT 8J3 1.8 TFSI 118 KW 2008
compatible for Audi TT Roadster 8J9 1.8 TFSI 118 KW 2008
compatible for Seat Alhambra 710, 711 1.8 TSI 118 KW 2012-2017
compatible for Seat Altea 5P1 1.8 TFSI 118 KW 2007
compatible for Seat Altea XL 5P5, 5P8 1.8 TFSI 118 KW 2007
compatible for Seat Leon 1P1 1.8 TSI 118 KW 2007
compatible for Seat Toledo III 5P2 1.8 TFSI 118 KW2 007-2009
compatible for Skoda Octavia 1Z3 1.8 TSI 118 KW 2007
compatible for Skoda Octavia Combi 1Z5 1.8 TSI 118 KW 2007
compatible for Skoda Octavia Combi 1Z5 1.8 TSI 4x4 112 KW 2009
compatible for Skoda Octavia Combi 1Z5 1.8 TSI 4x4 118 KW 2008
compatible for Skoda Superb 3T4 1.8 TSI112 KW 2009
compatible for Skoda Superb 3T4 1.8 TSI 118 KW 2008
compatible for Skoda Superb 3T4 1.8 TSI 4x4 118 KW 2008
compatible for Skoda Superb Kombi 3T5 1.8 TSI 118 KW 2009
compatible for Skoda Superb Kombi 3T5 1.8 TSI 4x4 118 KW 2009
compatible for Skoda Superb Kombi 3T5 1.8 TSI 4x4 112 KW 2009
compatible for Skoda Yeti 5L 1.8 TSI 4x4 118 KW 2009
compatible for Skoda Yeti 5L 1.8 TSI 4x4 112 KW 2009
compatible for VW Golf VI 5K1 1.8 TSI 118 KW 2009-2011
compatible for VW Passat 362 1.8 TSI 118 KW 2010
compatible for VW Passat 3C2 1.8 TSI 118 KW 2007-2010
compatible for VW Passat Alltrack 365 1.8 TSI 118 KW 2012
compatible for VW Passat CC 357 1.8 TSI 118 KW 2008-2010
compatible for VW Passat Variant 3C5 1.8 TSI 118 KW 2007-2011
compatible for VW Sharan 7N 1.8 TSI 118 KW 2011

OE/Part number

06J145701B, 06J145701BV, 06J145701BX, 06J145701G, 06J145701GV, 06J145701GX, 06J145701H, 06J145701HV, 06J145701HX, 06J145701J, 06J145701JV, 06J145701JX, 06J145701L, 06J145701LV, 06J145701LX, 06J145701P, 06J145701PV, 06J145701PX, 06J145701R, 06J145701RV, 06J145701RX, 06J145702C, 06J145702CV, 06J145702CX, 06J145702F, 06J145702FV, 06J145702FX, 06J145702G, 06J145702GV, 06J145702GX, 06J145713R,
5303-970-0123, 5303-970-0134, 5303-970-0136, 5303-970-0160, 5303-971-0123, 5303-971-0134, 5303-971-0136, 5303-971-0160, 5303-980-0123, 5303-980-0134, 5303-980-0136, 5303-980-0160, 5303-988-0123, 5303-988-0134, 5303-988-0136, 5303-988-0160, 5303-990-0123, 5303-990-0136

Specification

Engine Code: BYT, BZB, CDAA, CDAB
Cooling Type: Water+Oil Cooling
Actuator Type: Vacuum Actuator
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New

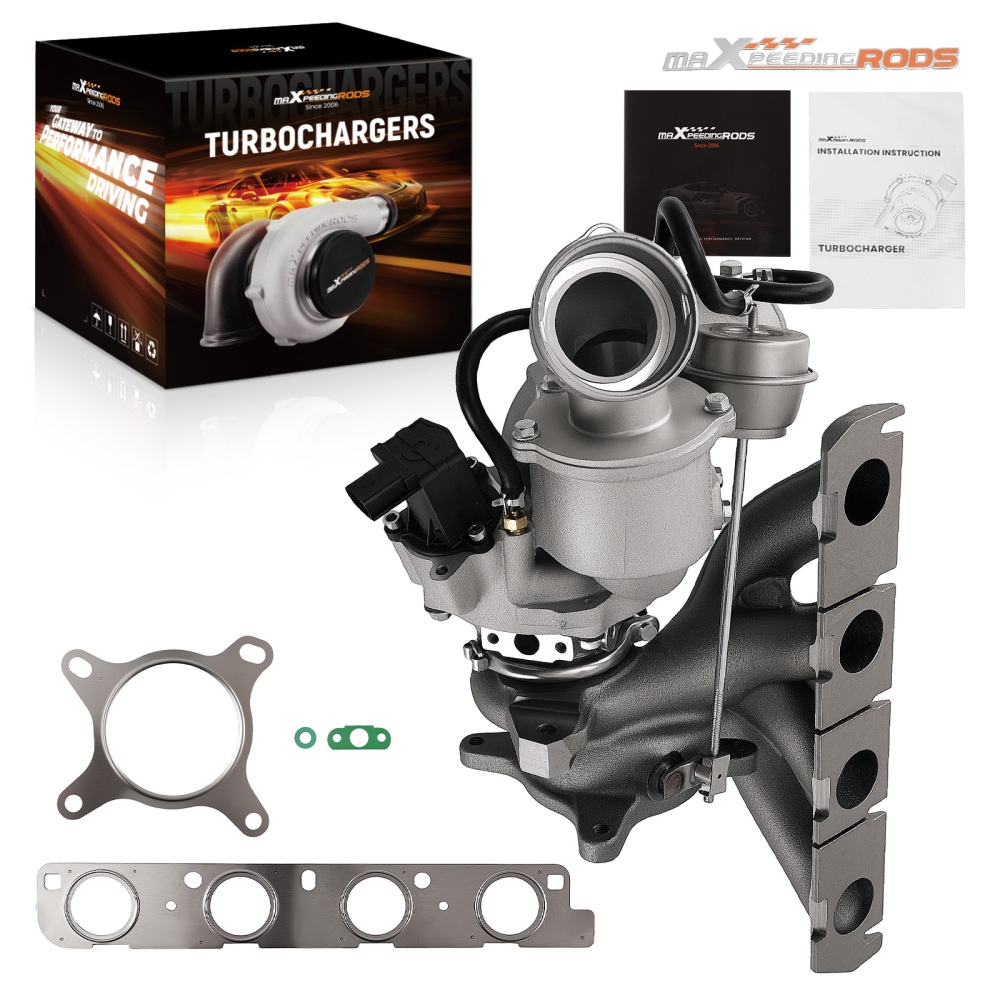

Accessories: You will get what you can see in the pictures exactly

Feature

* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
