In Tank Fuel Pump Sender Unit compatible for VW Golf III/Passat/Polo/Vento 1.4 1.6 2.0

Application

Compatible for VW Golf III 1H1 1.4 1390 compatible for ccm, 44 KW, 60 PS 1991/10-1997/08
compatible for VW Golf III 1H1 1.4 1390 compatible for ccm, 40 KW, 55 PS 1991/11-1997/08
compatible for VW Golf III 1H1 1.6 1598 compatible for ccm, 55 KW, 75 PS 1992/09-1997/08
compatible for VW Golf III 1H1 1.6 1595 compatible for ccm, 74 KW, 101 PS 1995/07-1997/08
compatible for VW Golf III 1H1 2.0 1984 compatible for ccm, 85 KW, 115 PS 1991/11-1997/08
compatible for VW Golf III 1H1 2.8 VR6 2792 compatible for ccm, 128 KW, 174 PS 1992/01-1997/08
compatible for VW Golf III 1H1 2.0 GTI 16V 1984 compatible for ccm, 110 KW, 150 PS 1992/08-1997/08
compatible for VW Golf III Cabriolet 1E7 1.6 1595 compatible for ccm, 74 KW, 101 PS 1994/10-1998/05
compatible for VW Golf III Cabriolet 1E7 2.0 1984 compatible for ccm, 85 KW, 115 PS 1993/07-1998/05
compatible for VW Golf III Variant 1H5 1.4 1390 compatible for ccm, 44 KW, 60 PS 1993/07-1999/04
compatible for VW Golf III Variant 1H5 1.6 1595 compatible for ccm, 74 KW, 101 PS 1994/07-1999/04
compatible for VW Golf III Variant 1H5 2.0 1984 compatible for ccm, 85 KW, 115 PS 1993/07-1999/04
compatible for VW Golf IV Cabriolet 1E7 1.6 1595 compatible for ccm, 74 KW, 100 PS 1998/06-2002/06
compatible for VW Golf IV Cabriolet 1E7 2.0 1984 compatible for ccm, 85 KW, 115 PS 1998/06-2002/06
compatible for VW Passat 3A2, 35I 1.6 1595 compatible for ccm, 74 KW, 101 PS 1994/10-1996/08
compatible for VW Passat 3A2, 35I 2.0 1984 compatible for ccm, 85 KW, 115 PS 1990/02-1996/08
compatible for VW Passat 3A2, 35I 2.0 16V 1984 compatible for ccm, 110 KW, 150 PS 1994/01-1996/08
compatible for VW Passat 3A2, 35I 2.0 Syncro 1984 compatible for ccm, 85 KW, 115 PS 1990/10-1996/0
compatible for VW Passat Variant 3A5, 35I 1.6 1595 compatible for ccm, 74 KW, 101 PS 1994/07-1995/12
compatible for VW Passat Variant 3A5, 35I 2.0 1984 compatible for ccm, 85 KW, 115 PS 1990/02-1997/05
compatible for VW Passat Variant 3A5, 35I 2.0 16V 1984 compatible for ccm, 110 KW, 150 PS 1994/01-1997/05
compatible for VW Polo 6N1 50 1.0 999 compatible for ccm, 37 KW, 50 PS 1996/09-1999/10
compatible for VW Polo 6N1 75 1.6 1598 compatible for ccm, 55 KW, 75 PS 1994/10-1999/10
compatible for VW Polo 6N1 100 1.4 16V 1390 compatible for ccm, 74 KW, 100 PS 1996/04-1999/10
compatible for VW Polo Classic 6KV2 60 1.4 1390 compatible for ccm, 44 KW, 60 PS 1995/12-2001/09
Compatible for VW Polo Classic 6KV2 100 1.6 1595 compatible for ccm, 74 KW, 100 PS 1995/12-2001/09
compatible for VW Sharan 7M8, 7M9, 7M6 1.8 T 20V 1781 compatible for ccm, 110 KW, 150 PS 1997/09-2010/03
compatible for VW Sharan 7M8, 7M9, 7M6 2.0 1984 compatible for ccm, 85 KW, 115 PS 1995/09-2010/03
compatible for VW Sharan 7M8, 7M9, 7M6 2.8 VR6 2792 compatible for ccm, 128 KW, 174 PS 1995/09-2000/04
compatible for VW Sharan 7M8, 7M9, 7M6 2.8 VR6 Syncro 2792 compatible for ccm, 128 KW, 174 PS 1996/11-2000/04
compatible for VW Transporter IV Bus 70XB, 70XC, 7DB, 7DW 2.0 1968 compatible for ccm, 62 KW, 84 PS 1990/09-2003/04
compatible for VW Transporter IV Bus 70XB, 70XC, 7DB, 7DW 2.5 2461 compatible for ccm, 81 KW, 110 PS 1990/11-2003/04
compatible for VW Transporter IV Bus 70XB, 70XC, 7DB, 7DW 2.5 2461 compatible for ccm, 85 KW, 115 PS 1996/08-2003/04
compatible for VW Transporter IV Bus 70XB, 70XC, 7DB, 7DW 2.5 Syncro 2461 compatible for ccm, 81 KW, 110 PS 1992/11-2003/04
compatible for VW Transporter IV Bus 70XB, 70XC, 7DB, 7DW 2.5 Syncro 2461 compatible for ccm, 85 KW, 115 PS 1996/07-2003/04
compatible for VW Transporter IV Bus 70XB, 70XC, 7DB, 7DW 2.8 VR6 2792 compatible for ccm, 103 KW, 140 PS 1995/11-2000/04
compatible for VW Transporter IV Kasten 70XA 2.0 1968 compatible for ccm, 62 KW, 84 PS 1990/07-2003/04
compatible for VW Transporter IV Kasten 70XA 2.5 2461 compatible for ccm, 81 KW, 110 PS 1990/11-2003/04
compatible for VW Transporter IV Kasten 70XA 2.5 2461 compatible for ccm, 85 KW, 115 PS 1996/08-2003/04
compatible for VW Transporter IV Kasten 70XA 2.5 Syncro 2461 compatible for ccm, 81 KW, 110 PS 1992/10-2003/04
compatible for VW Transporter IV Kasten 70XA 2.5 Syncro 2461 compatible for ccm, 85 KW, 115 PS 1996/08-2003/04
compatible for VW Transporter IV Pritsche/Fahrgestell 70XD 2.0 1968 compatible for ccm, 62 KW, 84 PS 1990/07-2003/04
compatible for VW Transporter IV Pritsche/Fahrgestell 70XD 2.5 2461 compatible for ccm, 81 KW, 110 PS 1990/11-2003/04
compatible for VW Transporter IV Pritsche/Fahrgestell 70XD 2.5 2461 compatible for ccm, 85 KW, 115 PS 1996/08-2003/04
compatible for VW Transporter IV Pritsche/Fahrgestell 70XD 2.5 Syncro 2461 compatible for ccm, 81 KW, 110 PS 1992/10-2003/04
compatible for VW Transporter IV Pritsche/Fahrgestell 70XD 2.5 Syncro 2461 compatible for ccm, 85 KW, 115 PS 1996/08-2003/04
compatible for VW Vento 1H2 1.4 1390 compatible for ccm, 40 KW, 55 PS 1991/11-1998/09
compatible for VW Vento 1H2 1.4 1390 compatible for ccm, 44 KW, 60 PS 1991/11-1998/09
compatible for VW Vento 1H2 1.6 1598 compatible for ccm, 55 KW, 75 PS 1992/09-1998/09
compatible for VW Vento 1H2 1.6 1595 compatible for ccm, 74 KW, 101 PS 1994/10-1998/09
compatible for VW Vento 1H2 2.0 1984 compatible for ccm, 85 KW, 115 PS 1991/11-1998/09
compatible for VW Vento 1H2 2.8 VR6 2792 compatible for ccm, 128 KW, 174 PS 1992/01-1998/09

OE/Part number

1H0919051L,1H0919051AK,1115201700,1115201709

Specification

Condition: Brand New
Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥33.02G/H
Pressure(MPa): 0.3MPa
Weight(kg): 0.65-0.7
Inlet Type: SAE J2044 2009
Inlet Quantity: 1
Outlet Type: SAE J2044 2009
Outlet Quantity: 1
Material: Plastic
Housing Material: POM
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes

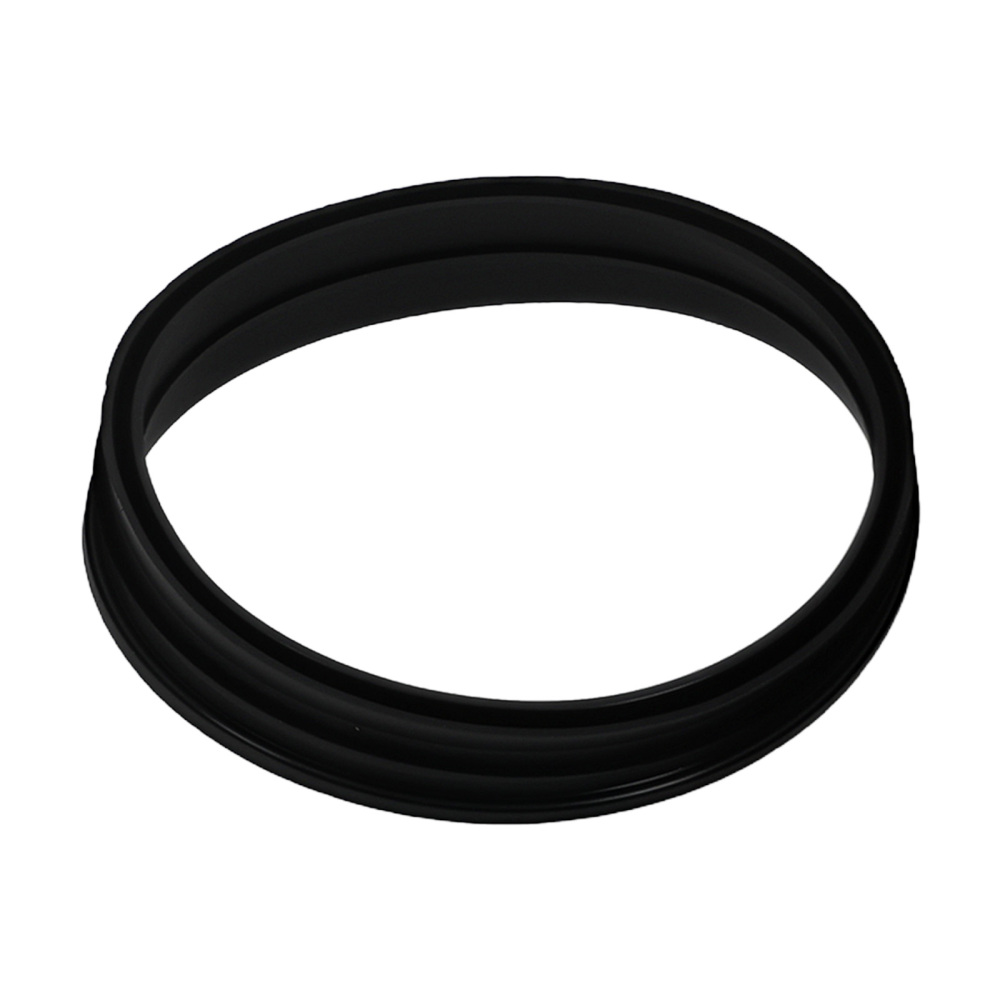

Seal Ring Included : Yes
Placement on Vehicle: Rear

Package included

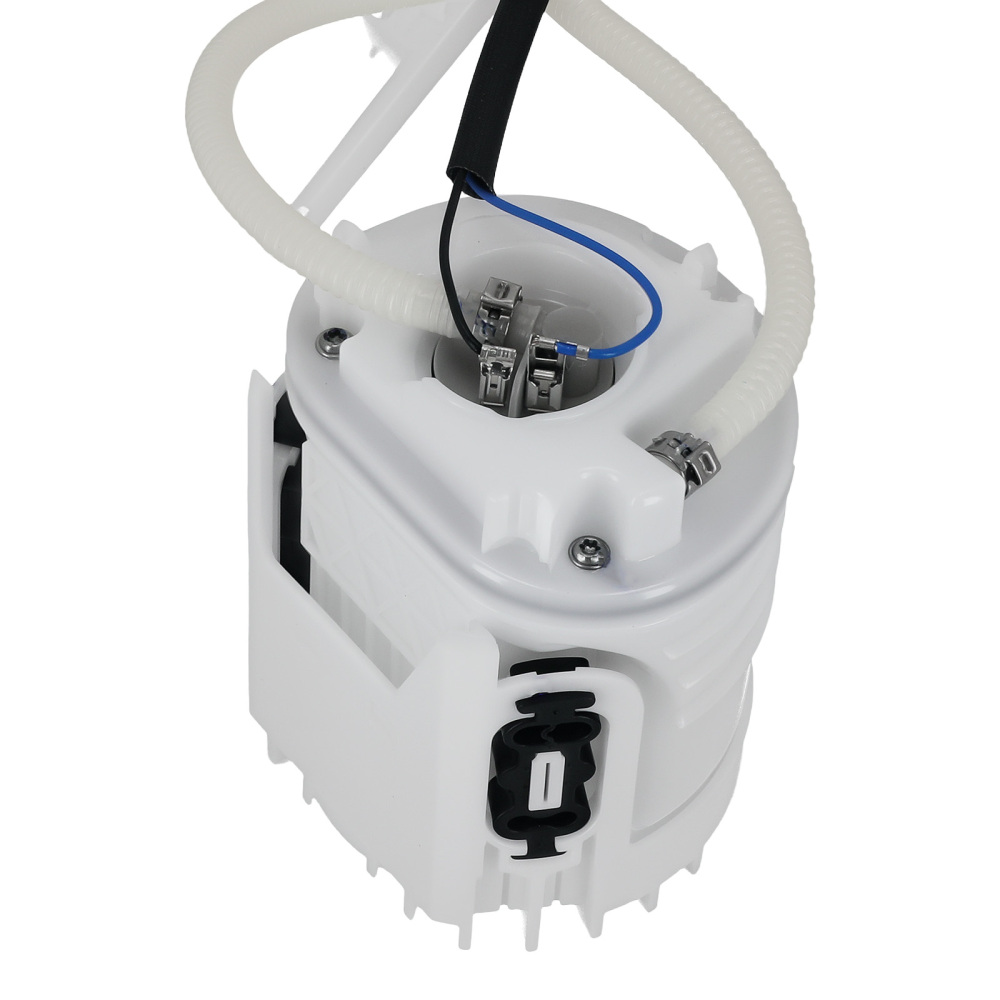

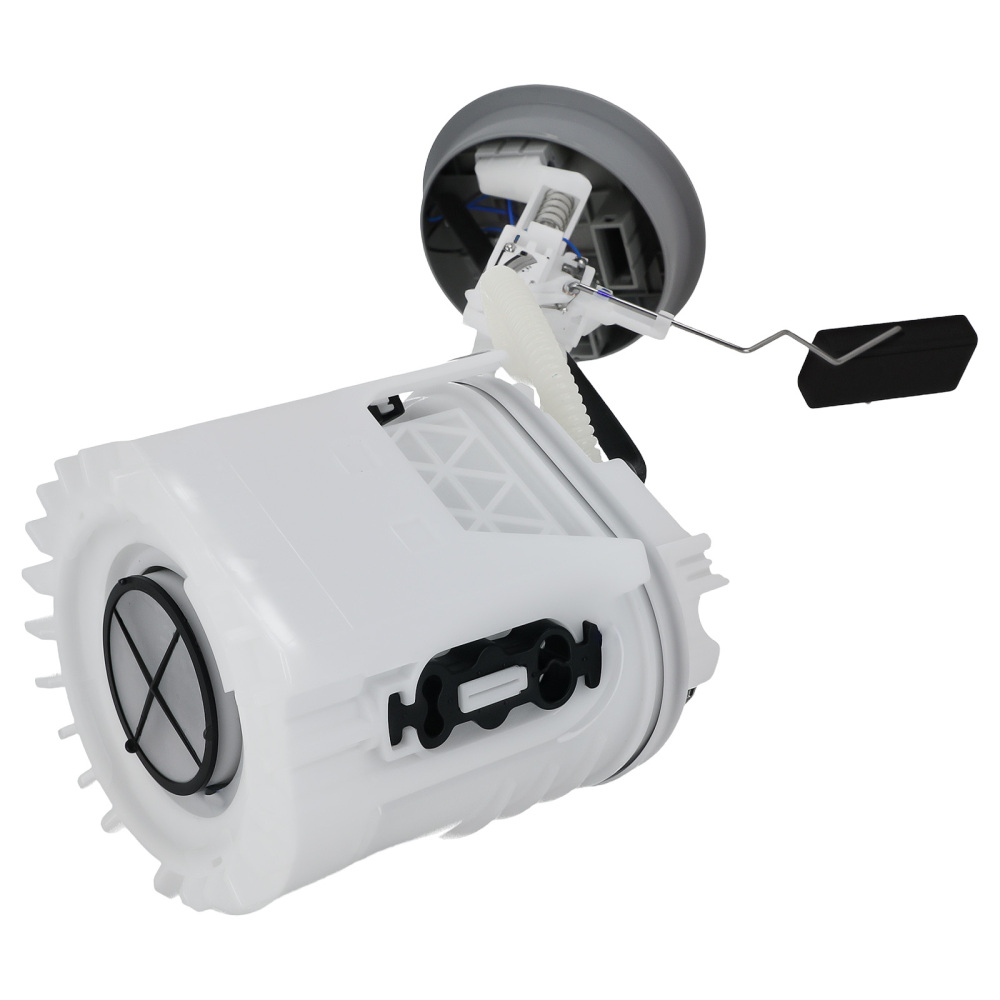

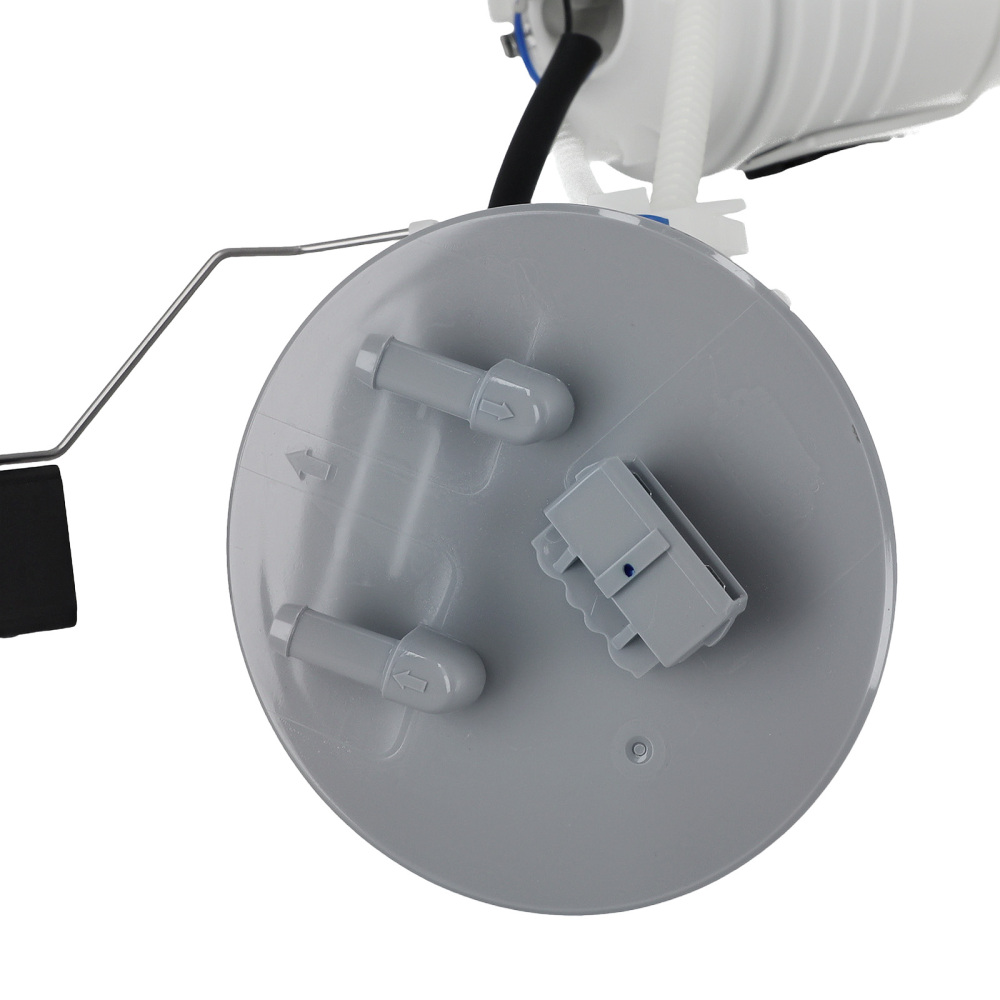

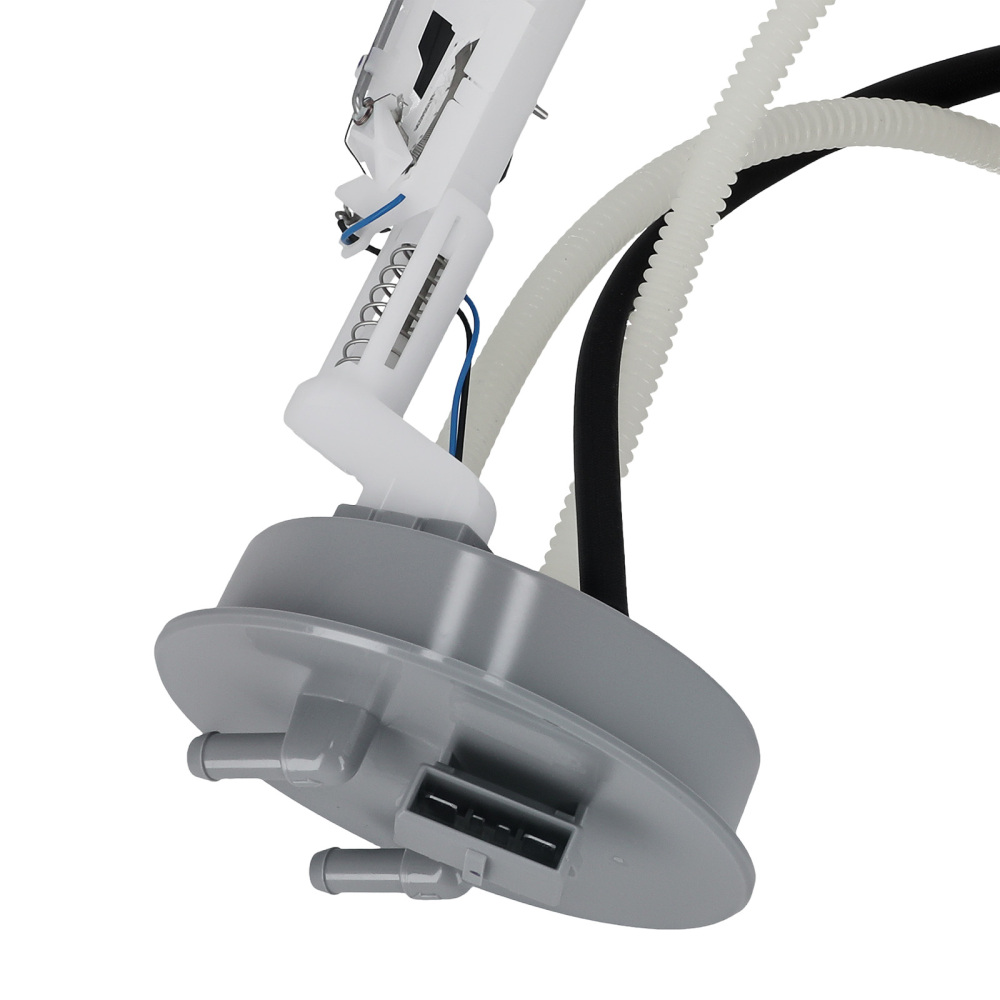

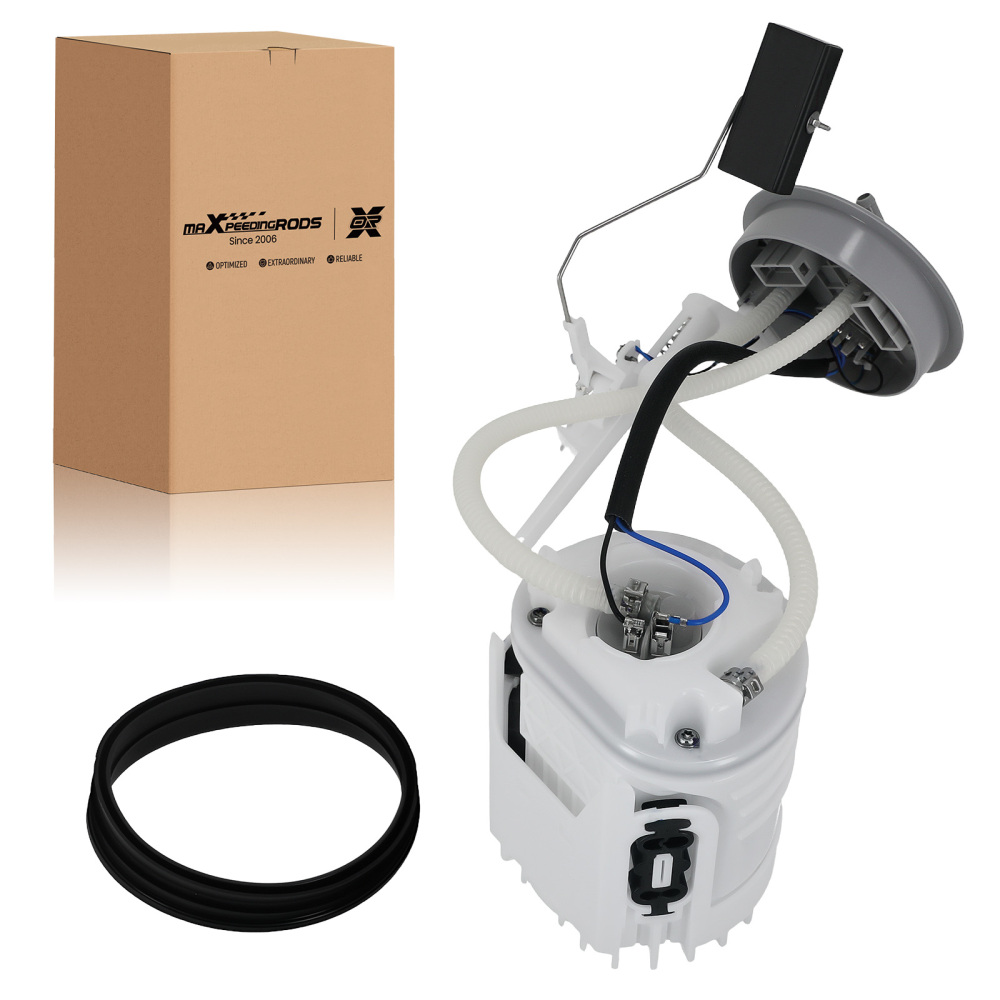

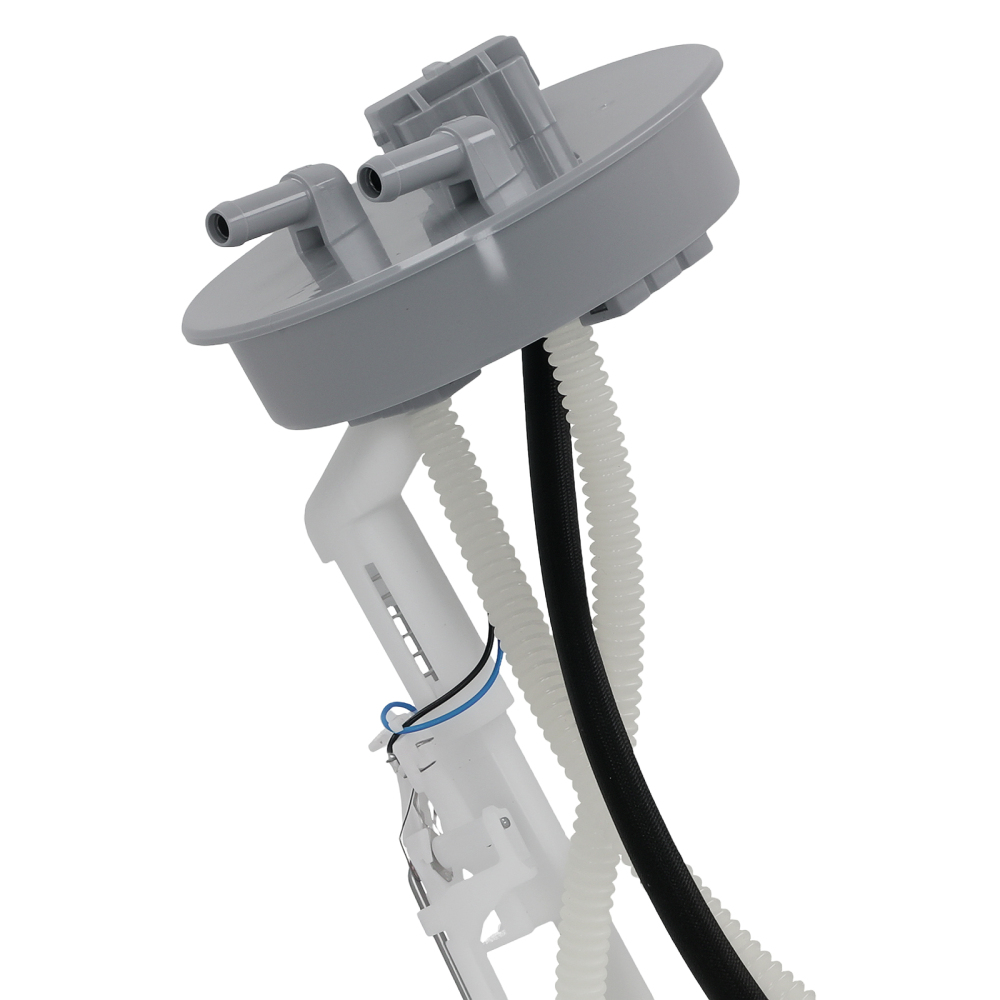

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

Common problems and solutions of fuel pump assembly:
1) Gasoline pump aging: Over time, the internal components of the gasoline pump will gradually wear out, leading to a decrease in pump performance and ultimately resulting in the inability to start.
Solution: Replace the gasoline pump with a new one, ensure to choose a gasoline pump that matches the original vehicle model, and follow the correct installation steps.
2) Circuit malfunction: The operation of the gasoline pump relies on a stable voltage supply. If there are short circuits, open circuits, or poor contacts in the circuit, it may cause the gasoline pump to malfunction.
Solution: Check if the circuit connections are secure and reliable, repair or replace damaged circuit components.
3) Fuel quality issues: Using inferior fuel or fuel containing impurities may cause gasoline pump blockage or increased wear.
Solution: Use high-quality fuel, choose regular gas stations to purchase fuel, and avoid using inferior fuel or fuel containing impurities.
4) Oil level sensor malfunction: The sliding resistor of the oil level sensor is contaminated and corroded, resulting in poor contact between the resistor and the sliding elastic contact.
Solution: Replace the gasoline sensor component.
5) Gas blockage in the gasoline system pipeline: When the fuel tank is running low on fuel or when the temperature is too high in summer, the oil vapor in the pipeline forms a gas blockage. Solution: Wait for the car to cool down for a period of time before restarting, or go to a flat road for a test drive or refueling check.
6) Insufficient pressure: If it is difficult to start the car in the morning or after parking for 1 hour, it may require multiple ignitions to start, which may be due to insufficient pressure in the gasoline pump.
Solution: Check the pressure regulating valve of the gasoline pump. If the pressure is released, the gasoline pump needs to be replaced.
7) Motor malfunction: The most common issue is when the car is parked properly, but it fails to start when driving again. This may be caused by the carbon brush of the gasoline pump motor getting stuck.
Solution: Try tapping and shaking the fuel tank with a wooden stick while starting the car. If successful, it is recommended to check and replace the gasoline pump in a timely manner to avoid breaking down on the road.
