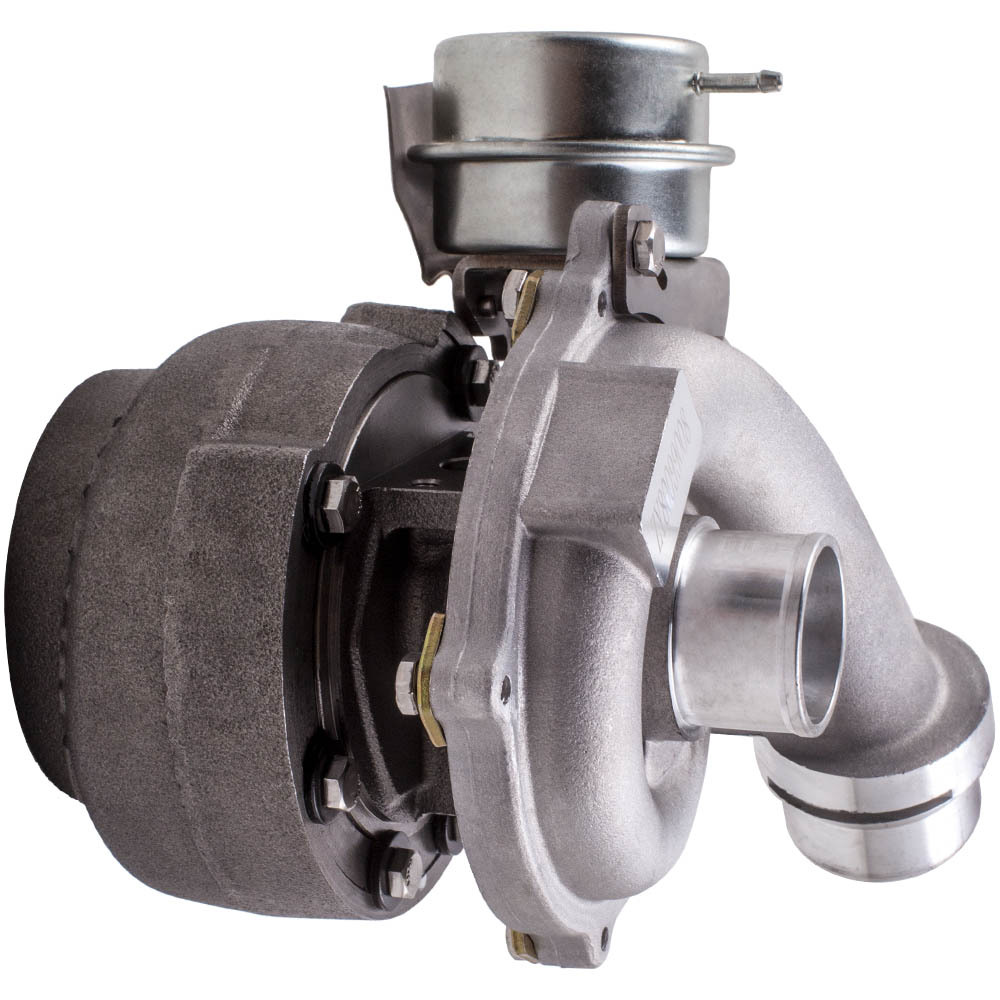

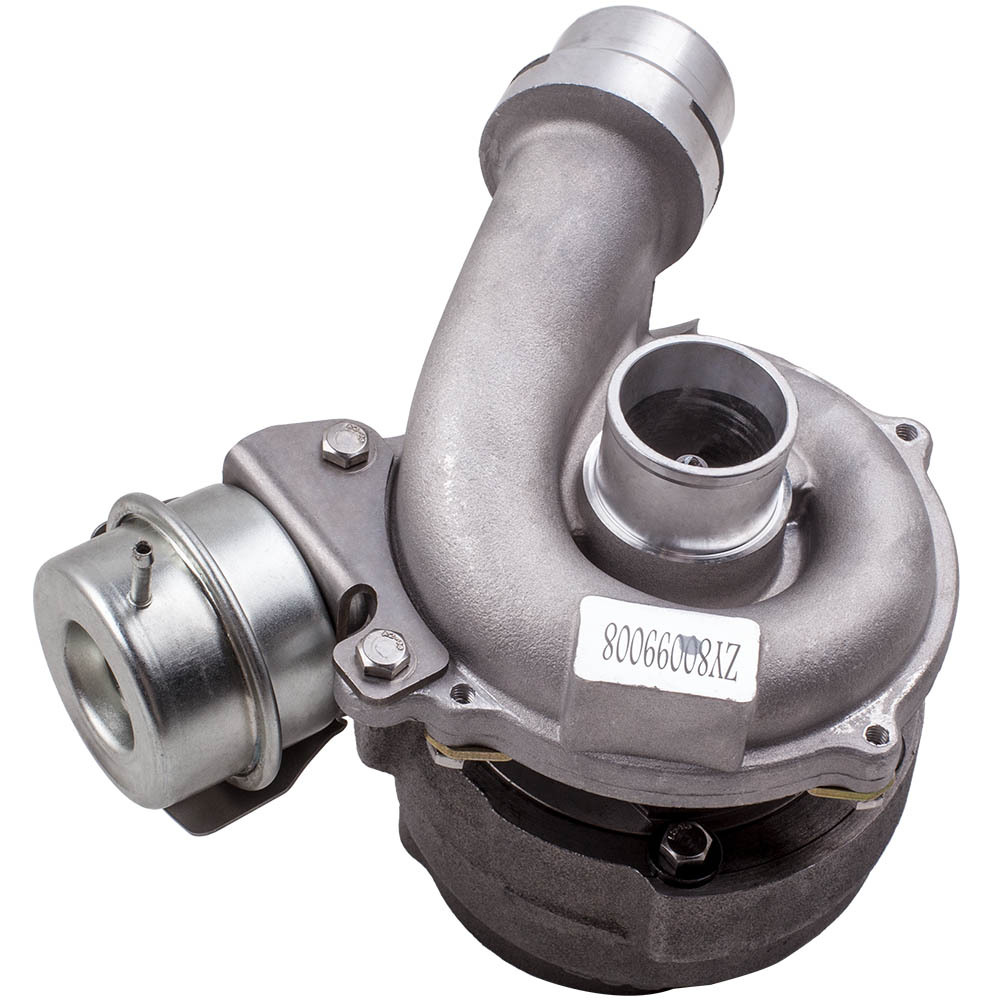

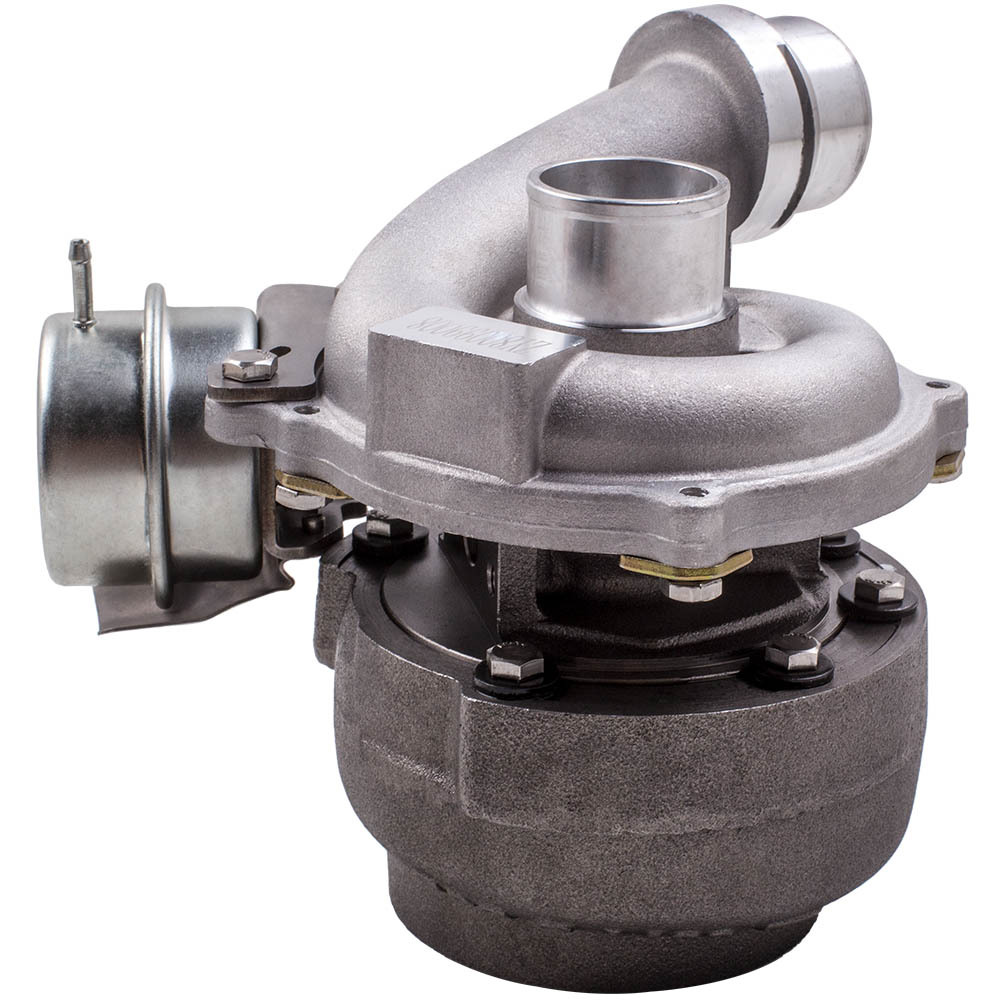

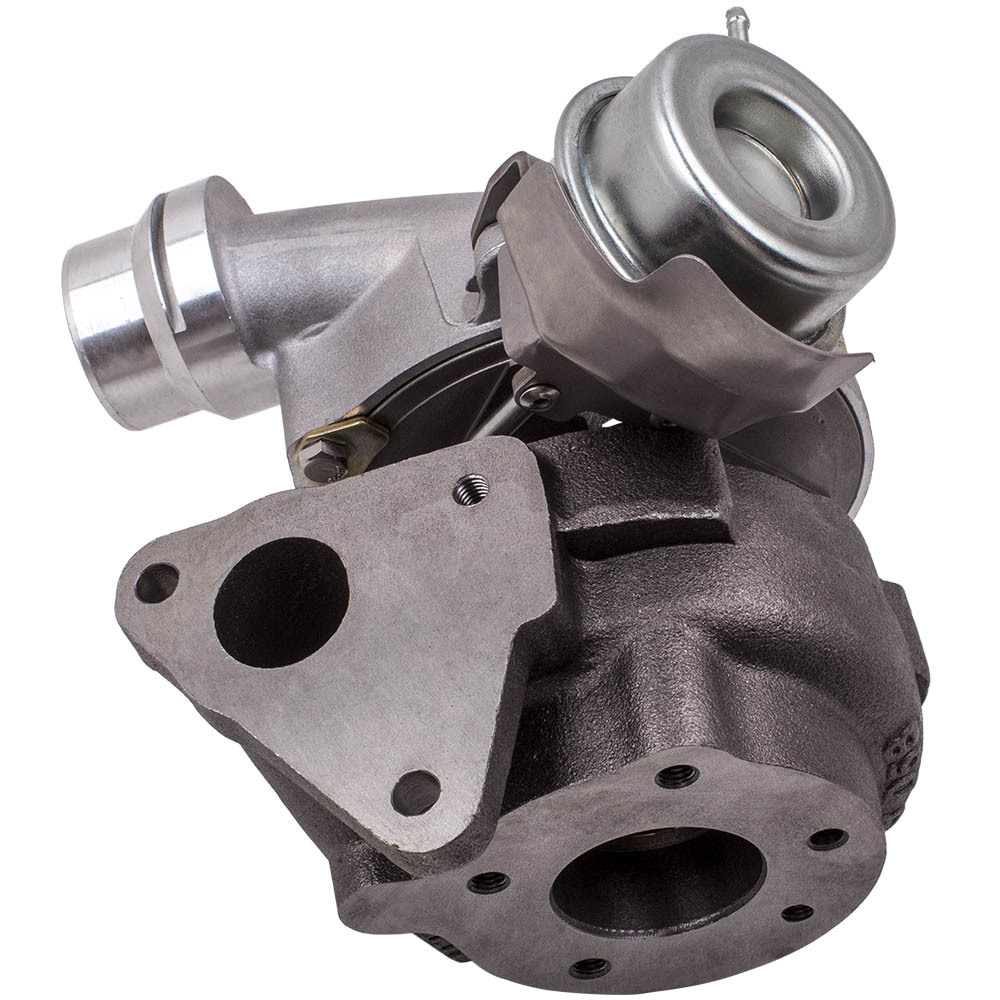

Turbo compatible for Nissan Qashqai K9K-Euro 4 compatible for Renault Grand Scenic 1.5DCI 54399700030/70 Turbocharger

Application

Compatible for Nissan Qashqai/Tiida 1.5L dCi 106HP/78KW Engine K9K Euro-4 2007-2010
compatible for Renault Clio III 1.5L dCi 106HP/78KW Engine K9K Euro-4 2005-2011
compatible for Renault Modus 1.5L dCi 106HP/78KW Engine K9K Euro-4 2005-2011
compatible for Renault Scenic II 1.5L dCi 106HP/78KW Engine K9K Euro-4 2004-2011
compatible for Renault Megane II 1.5 dCi 106 HP/78 KW Engine K9K Euro-4 2005-2010
compatible for Renault Laguna III 1.5 dCi 110 HP / 81 kW Engine K9K Euro-4 2007-2015

Note：Compatible for Nissan Qashqai k9k 1.5 dCi 106hp-110hp 2007-2015 there are a few type turbos, please 100% confirm the oem number or part number and compare your turbo's air inlet side with ours to ensure fitment

OE/Part number

5439-970-0070, 54399700070, 5439 970 0070,
5439-998-0070, 54399880070, 5439 988 0070,
5439-970-0030, 54399700030, 5439 970 0030,
5439-988-0030, 54399980030, 5439 988 0030,
8200405203, 8200507856, 8200578381, 8200625683,
7701476183, 7701476883, 7711368560,
14411-00Q0F, 14411 00Q0F,

Don't fit for the OE number as below: 54399700076/ 54399700127/54399700080

Specification

Turbo Model：BV39
Engine：K9K-Euro 4
Cooled Type：Oil Cooled
Bearing Type: Floating Bearing
Thrust Bearing：270 Degrees
Hosepower:  Up to 107HP
Actuator Type: Vacuum Actuator
Turbo Type: Individual/VNT
Universal Fitment: No
Finish: Matte
Condition: Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size: 25x 23 x 26 cm
Package Weight: 6750g

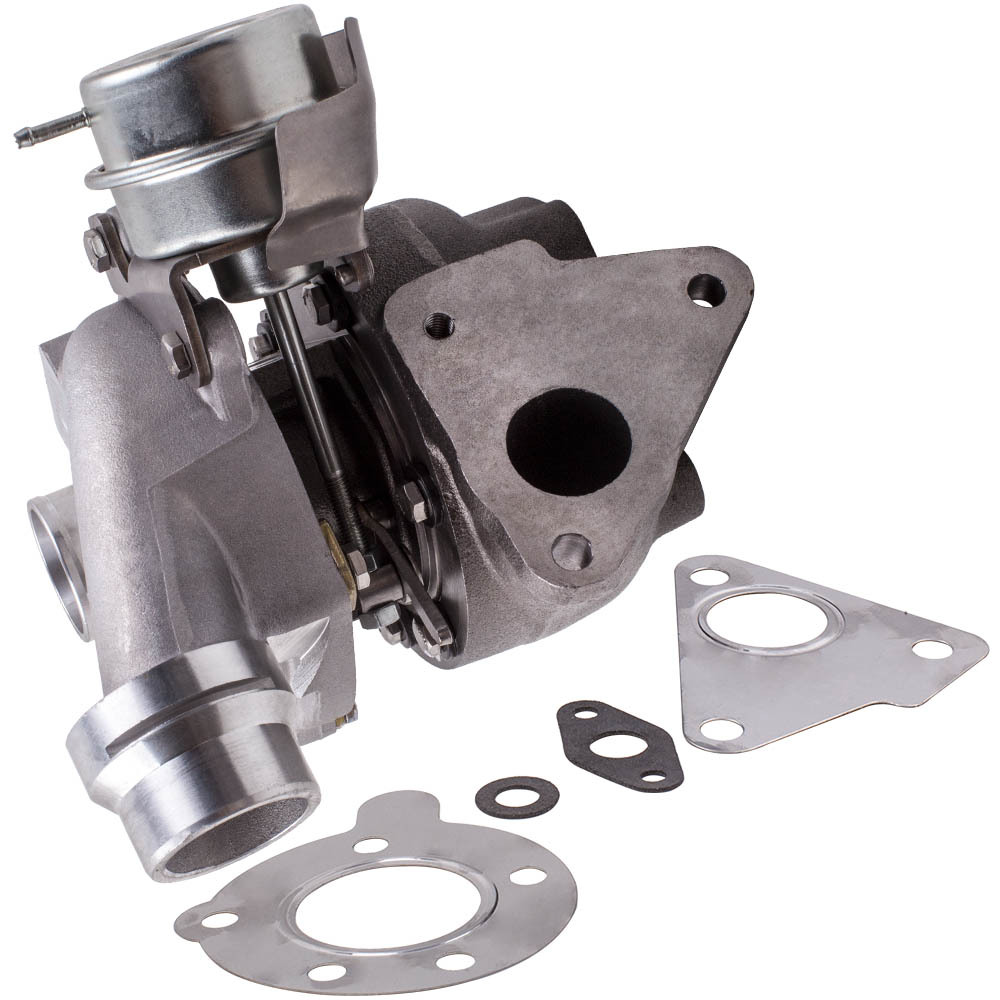

Package included

1 x Turbocharger
2 x Flange Gaskets
2 x Oil/water Port Gaskets

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
