ENGINE REBUILD KIT compatible for FORD TRANSIT 2.0 2.2 2.4 TDCI 00-2006 FULL GASKET SET

Application

ENGINE CODE:
FOR CITROËN: 4HG (P22DTE), 4HG (PUMA C), 4HH (P22DTE), 4HJ (P22DTE), 4HJ (PUMA C), 4HU (P22DTE), 4HV (P22DTE)

Compatible for FIAT: 4HU (P22DTE)

Compatible for FORD: CVFF, CVR5, CVRA, CVRB, CVRC, CY24, CYF5, CYFA, CYFB, CYFF, CYR5, CYRA, CYRB, DRF4, DRF5, DRFA, DRFB, DRFC, DRFD, DRFE, DRFF, DRFG, DRR5, DRRA, DRRB, DRRC, ENSA, GBVAJPF, GBVAJQJ, H9FB, H9FD, JXFA, JXFC, P5-AT, P8FA, P8FB, PGFA, PGFB, PHFA, PHFC, QVFA, QWFA, SA2R, SA2S, SA2W, SAFA, SAFB, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA, UHFB, UHFC, USRA

compatible for JAGUAR: 224DT

compatible for PEUGEOT: 4HG (P22DTE), 4HG (PUMA C), 4HH (P22DTE), 4HJ (P22DTE), 4HJ (PUMA C), 4HU (P22DTE), 4HV (P22DTE)

Compatible for FORD AUSTRALIA: CVR5, CVRA, CVRB, CVRC, CYFA, CYFF, SAFA

compatible for LAND ROVER: 224DT, DT224, DT244

For CITROËN RELAY Bus 2.2 HDi 100 2198cc 74 KW 101 HP 2006-2012
For CITROËN RELAY Bus 2.2 HDi 110 2198cc 81 KW 110 HP 2011-2012
For CITROËN RELAY Bus 2.2 HDi 120 2198cc 88 KW 120 HP 2006-2012
For CITROËN RELAY Bus 2.2 HDi 130 2198cc 96 KW 130 HP 2011-2012
For CITROËN RELAY Bus 2.2 HDi 150 2198cc 110 KW 150 HP 2011-2012
For CITROËN RELAY Van 2.2 HDi 100 2198cc 74 KW 101 HP 2006-2012
For CITROËN RELAY Van 2.2 HDi 110 2198cc 81 KW 110 HP 2011-2012
For CITROËN RELAY Van 2.2 HDi 120 2198cc 88 KW 120 HP 2006-2012
For CITROËN RELAY Van 2.2 HDi 130 2198cc 96 KW 130 HP 2011-2012
For CITROËN RELAY Van 2.2 HDi 150 2198cc 110 KW 150 HP 2011-2012
For CITROËN RELAY Platform/Chassis 2.2 HDi 100 2198cc 74 KW 101 HP 2006-2012
For CITROËN RELAY Platform/Chassis 2.2 HDi 110 2198cc 81 KW 110 HP 2011-2012
For CITROËN RELAY Platform/Chassis 2.2 HDi 120 2198cc 88 KW 120 HP 2006-2012
For CITROËN RELAY Platform/Chassis 2.2 HDi 130 2198cc 96 KW 130 HP 2011-2012
For CITROËN RELAY Platform/Chassis 2.2 HDi 150 2198cc 110 KW 150 HP 2011-2012
compatible for FORD RANGER (TKE) 2.2 TDCi 2198cc 88 KW 120 HP 2011-2015
compatible for FORD RANGER (TKE) 2.2 TDCi 2198cc 110 KW 150 HP 2011-2015
compatible for FORD RANGER (TKE) 2.2 TDCi 4x4 2198cc 110 KW 150 HP 2011-2015
compatible for FORD RANGER (TKE) 2.2 TDCi 4x4 2198cc 118 KW 160 HP 2015-2015
compatible for FORD RANGER (TKE) 3.2 TDCi 4x4 3198cc 147 KW 200 HP 2011-2015
compatible for JAGUAR XF (X250) 2.2 D 2179cc 120 KW 163 HP 2011-2015
compatible for JAGUAR XF (X250) 2.2 D 2179cc 140 KW 190 HP 2011-2015
compatible for JAGUAR XF (X250) 2.2 D 2179cc 147 KW 200 HP 2012-2015
compatible for JAGUAR XF SPORTBRAKE (X250) 2.2 D 2179cc 120 KW 163 HP 2012-2014
compatible for JAGUAR XF SPORTBRAKE (X250) 2.2 D 2179cc 147 KW 200 HP 2012-2014
compatible for PEUGEOT BOXER Bus 2.2 HDi 100 2198cc 74 KW 101 HP 2006-2012
compatible for PEUGEOT BOXER Bus 2.2 HDi 110 2198cc 81 KW 110 HP 2011-2012
compatible for PEUGEOT BOXER Bus 2.2 HDi 120 2198cc 88 KW 120 HP 2006-2012
compatible for PEUGEOT BOXER Bus 2.2 HDi 130 2198cc 96 KW 131 HP 2011-2012
compatible for PEUGEOT BOXER Bus 2.2 HDi 150 2198cc 110 KW 150 HP 2011-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 100 2198cc 74 KW 101 HP 2006-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 110 2198cc 81 KW 110 HP 2011-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 120 2198cc 88 KW 120 HP 2006-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 130 2198cc 96 KW 131 HP 2011-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 130 4x4 2198cc 96 KW 131 HP 2011-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 150 2198cc 110 KW 150 HP 2011-2012
compatible for PEUGEOT BOXER Box 2.2 HDi 150 4x4 2198cc 110 KW 150 HP 2011-2012
compatible for PEUGEOT BOXER Platform/Chassis 2.2 HDi 100 2198cc 74 KW 101 HP 2006-2012
compatible for PEUGEOT BOXER Platform/Chassis 2.2 HDi 110 2198cc 81 KW 110 HP 2011-2012
compatible for PEUGEOT BOXER Platform/Chassis 2.2 HDi 120 2198cc 88 KW 120 HP 2006-2012
compatible for PEUGEOT BOXER Platform/Chassis 2.2 HDi 130 2198cc 96 KW 131 HP 2011-2012
compatible for PEUGEOT BOXER Platform/Chassis 2.2 HDi 150 2198cc 110 KW 150 HP 2011-2012
compatible for LAND ROVER DEFENDER Station Wagon (L316) 2.2 Td4 4x4 (L317) 2198cc 90 KW 122 HP 2011-2016
compatible for LAND ROVER DEFENDER Station Wagon (L316) 2.2 Td4 4x4 (L317) 2198cc 110 KW 150 HP 2015-2016
compatible for LAND ROVER DEFENDER Station Wagon (L316) 2.4 Td4 4x4 (L316) 2402cc 90 KW 122 HP 2006-2016
compatible for LAND ROVER DEFENDER Cabrio (L316) 2.2 Td4 4x4 (L317) 2198cc 90 KW 122 HP 2011-2016
compatible for LAND ROVER DEFENDER Cabrio (L316) 2.4 Td4 4x4 (L317) 2402cc 90 KW 122 HP 2007-2016
compatible for LAND ROVER DEFENDER Pickup (L316) 2.2 Td4 4x4 (L317) 2198cc 90 KW 122 HP 2011-2016
compatible for LAND ROVER DEFENDER Pickup (L316) 2.4 Td4 4x4 (L317) 2402cc 90 KW 122 HP 2007-2016
compatible for LAND ROVER DEFENDER Platform/Chassis (L316) 2.2 Td4 4x4 (L317) 2198cc 90 KW 122 HP 2011-2016
compatible for LAND ROVER DISCOVERY SPORT (L550) 2.2 D 4x4 2179cc 110 KW 150 HP 2014-2014
compatible for LAND ROVER DISCOVERY SPORT (L550) 2.2 D 4x4 2179cc 140 KW 190 HP 2014-2014
compatible for LAND ROVER FREELANDER 2 (L359) 2.2 eD4 2179cc 110 KW 150 HP 2010-2014
compatible for LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x4 2179cc 110 KW 150 HP 2006-2014
compatible for LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x4 2179cc 112 KW 152 HP 2007-2014
compatible for LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x4 2179cc 115 KW 156 HP 2006-2014
compatible for LAND ROVER FREELANDER 2 (L359) 2.2 TD4 4x4 2179cc 118 KW 160 HP 2006-2014
compatible for LAND ROVER FREELANDER 2 (L359) 2.2 SD4 4x4 2179cc 140 KW 190 HP 2010-2014
compatible for LAND ROVER FREELANDER 2 VAN (L359) 2.2 TD4 4x4 2179cc 118 KW 160 HP 2006-2014
compatible for LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 2179cc 110 KW 150 HP 2011-2014
compatible for LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 2179cc 110 KW 150 HP 2011-2014
compatible for LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 2179cc 140 KW 190 HP 2011-2014
For MONDEO Mk III (B5Y) 2.0 16V DI / TDDi / TDCi 2000-2007
For MONDEO Mk III Saloon (B4Y) 2.0 16V TDDi / TDCi 2000-2007
For MONDEO Mk III (B5Y) 2.2 TDCi 2004-2007
For MONDEO Mk III Saloon (B4Y) 2.2 TDCi 2004-2007
For MONDEO Mk III Turnier (BWY) 2.0 16V TDDi / TDCi 2000-2007
For MONDEO Mk III Turnier (BWY) 2.2 TDCi 2004-2007
For TRANSIT Bus 2.4 TDE 2001-2006
For TRANSIT Bus 2.4 TDCi 2004-2006
For TRANSIT Bus 2.4 DI [RWD]2000-2006
For TRANSIT Bus 2.0 DI/TDCi 2000-2006
For TRANSIT Platform/Chassis 2.4 DI/TDCi/TDE 2000-2006
For TRANSIT Platform/Chassis 2.4 Tddi 2000-2003
For TRANSIT Platform/Chassis 2.0 DI/TDCi 2000-2006
For TRANSIT Van 2.4 TD 2000-2003
For TRANSIT Van 2.4 TDCi 2004-2006
For TRANSIT Van 2.4 TDE/DI 2001-2006
For TRANSIT Van 2.4 DI [RWD] 2000-2006
For TRANSIT Van 2.0 TDCi 2002-2006
For TRANSIT Van 2.0 DI 2000-2006

OE/Part number

Timing Chain:YC1Q6268AA, XS7Q6268AD
Timing Gear：YC1Q6306CA
Tensioner：2S7Q6K261BA
Guide Rail：XS7Q6K254AK, 1099794, XS7Q6M256AD, XS7Q6M256BE
Timing Cover Gasket: 1754585
Exhaust Manifold Gasket: 2C1Q9448A1B
Oil Pan Gasket: 3S7Q6710BB
Coolant Pipe Gasket:1107599,1322526
Oil Cooler Gasket:6C1Q6L710
Water Pump Gasket:1096559
VCompatible for ACuum Pump Gasket:1103683
Rear Oil Seal:3S7Q-6701-AA
Front Oil Seal:0514C6,1096260,1103468
Oil Pump:9808634180
Connecting Rod:1096238
Engine Bearings:1716882
011348,011350,011393,0113H7,9400113938,9602320180,9602320480,9635300980,9635301280,0606.Q5,0606.W6,0606.W7,101.E9,9677428680,9808634180,96600667080,1099772,1099876,1143673,1143842,1214454,2S7Q6333AA,2S7Q6A338AA,2S7Q6W332AA,XS7Q6333AB,XS7Q6337AB,XS7Q6A338Compatible for AC,XS7Q6W331AB,XS7Q6W332AB,9569148180,1719368,1717570,1738483,1839456,BK2Q-6600-Compatible for AC,BK2Q-6600-BA,BK2Q-6600-BB,BK2Q-6600-CA,BK2Q-6L630-AA,1096255,1112956,1117948,1134856,1146956,1355193,1456884,1C1Q-6600-CD,1C1Q-6600-CE,1C1Q-6600-CF,1C1Q-6600-CG,1C1Q-6600-CC,YC1Q-6600-CB,YC1Q-6600-CD,BK2Q6600AC,BK2Q6600BA,BK2Q6600BB,BK2Q6600CA,1704089,T207512,BK3Q6268AA,6C1Q6M256BB,6C1Q6K261AB,CK3Q6M256BA,BK2Q6K254AB,BK3Q6M256AA,6C1Q6306AB,6C1Q6256AC,BK3Q9P919AD,1753161,CK3Q6M256AA,1753155,1704049,1372438,1704066,1372434,1465148,1682478,1576366,1717658,1372438S1,1704049S1,1704066S1,1704089S1,1753155S1,1753161S1,BK2Q-6K254-AB,BK2Q-6K254-ABS1,BK2Q-6K261-AA,BK2Q-6K261-AAS1,BK3Q-6268-AA,BK3Q-6268-AAS1,CK3Q-6M256-AA,CK3Q-6M256-AAS1,CK3Q-6M256-BA,CK3Q-6M256-BAS1,6C1Q-6M256-BB,6C1Q-6M256-BBS1,JD61081,JD61082,JD61130,JD61170,JD61171,XR858317,CS246786,LR022090,LR022514,LR022517,LR022518,LR022519,LR022520,LR031632,LR031633,LR031634,LR069028,LR069029,LR069030,LR134885,LR134886,LR134887,LR004392,LR004868,LR029912,LR036454,LR055351,LR058095,9677507180,1001.E9,ERP-DT224-7,573.370,RS0054,HS1468NH,BM1020-STD,BM1038-STD,BB2025-STD,BB2069-STD,FP315,OP243,OP315,TCK130RWD,PR68-000,107154,172446,D38705-00,H1018/5STD,08-427700-00,2D7451,33101335,50107154,02-42374-02,WG1240932,WG1703731,WG1754719,WG1093841,WG1307229,WG1475267,WG1938619,WG2112095,0606Q5,0606W6,0606W7,101E9,1001E9,ERPDT2247,573370,PR68000,D3870500,0842770000,024237402,BM1020STD,BM1038STD,BB2025STD,BB2069STD

Specification

Condition：Brand New
Type: Engine Rebuild Kit
Fitment Type: Direct Replacement
Placement on Vehicle：Front
Cylinder Number:4

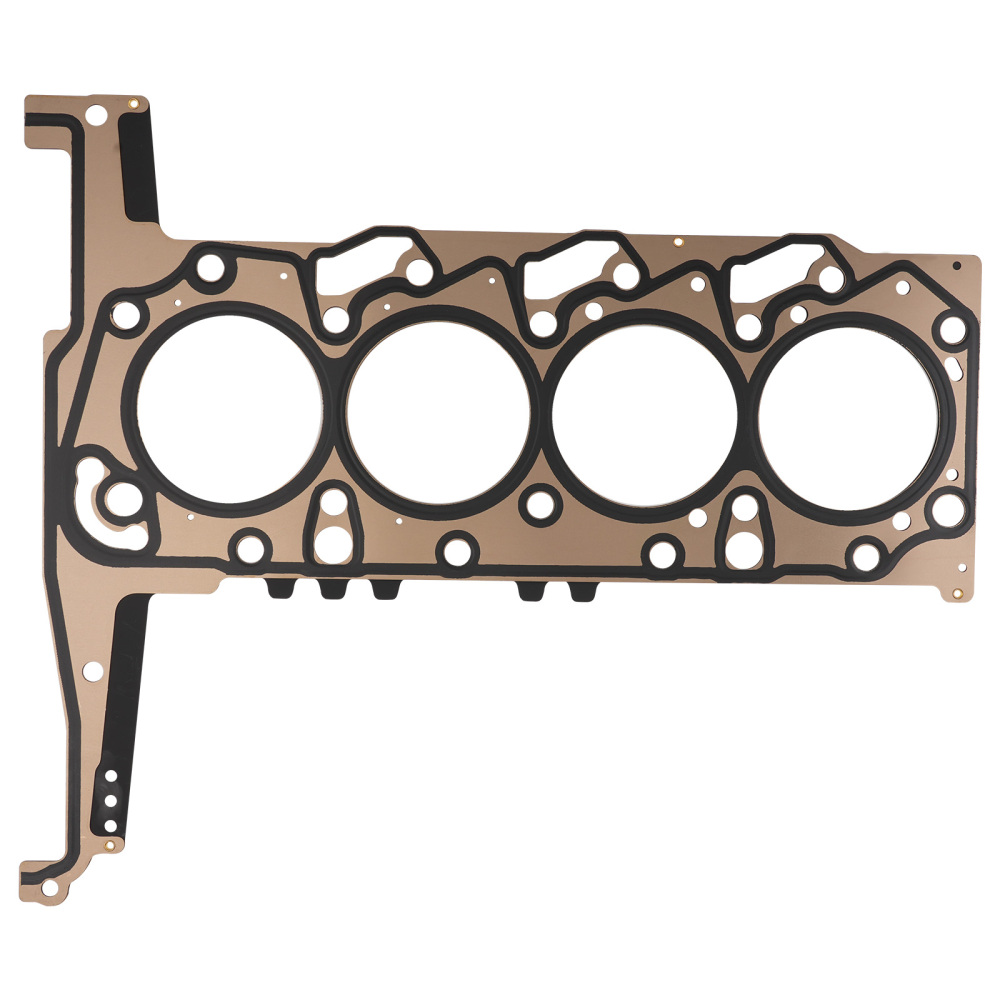

Material: Metal，Multiple Layers Steel (MLS) Head Gasket
Engine Size: 2.0, 2.2, 2.4
Piston Size: STD
Oil Pump: YES
Timing Chain Links: 132
Timing Chain Type: Double Row Timing Chain, Dimplex (2 wide)
Note: NOT Simplex Timing Chain!!!

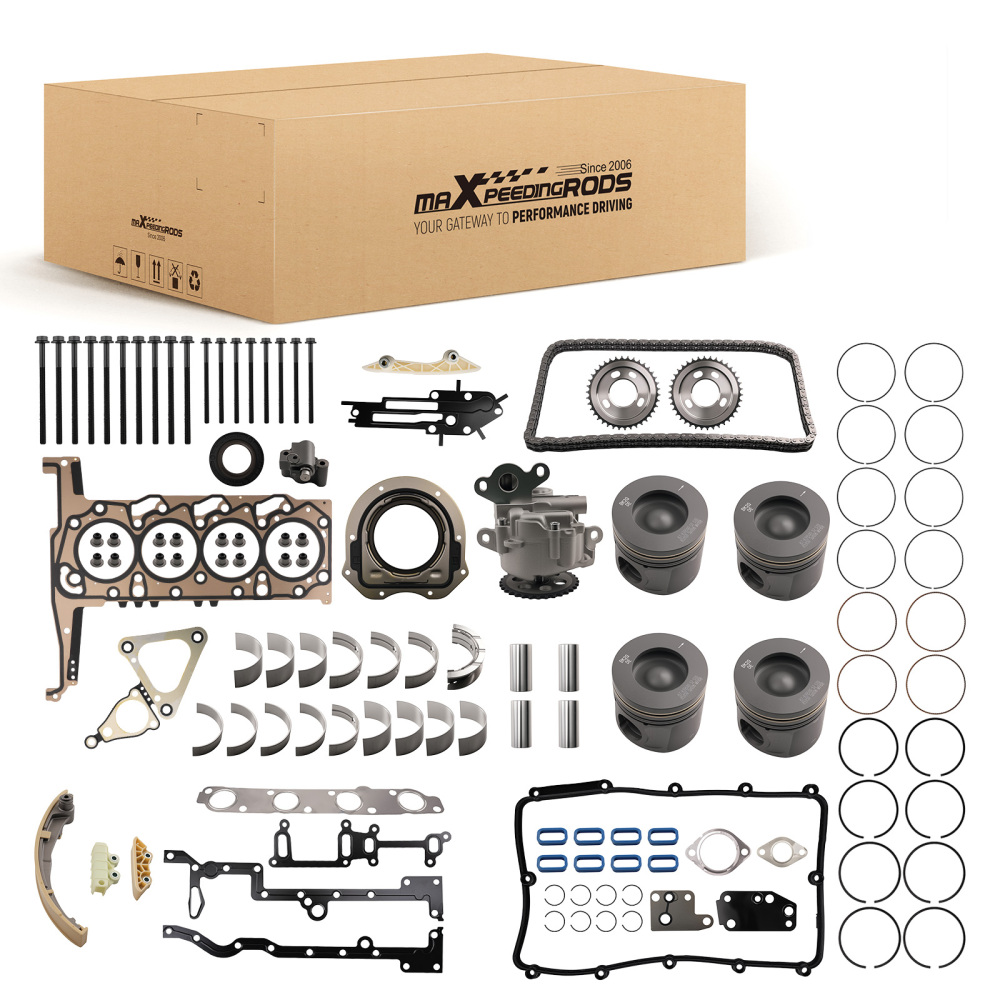

Package included

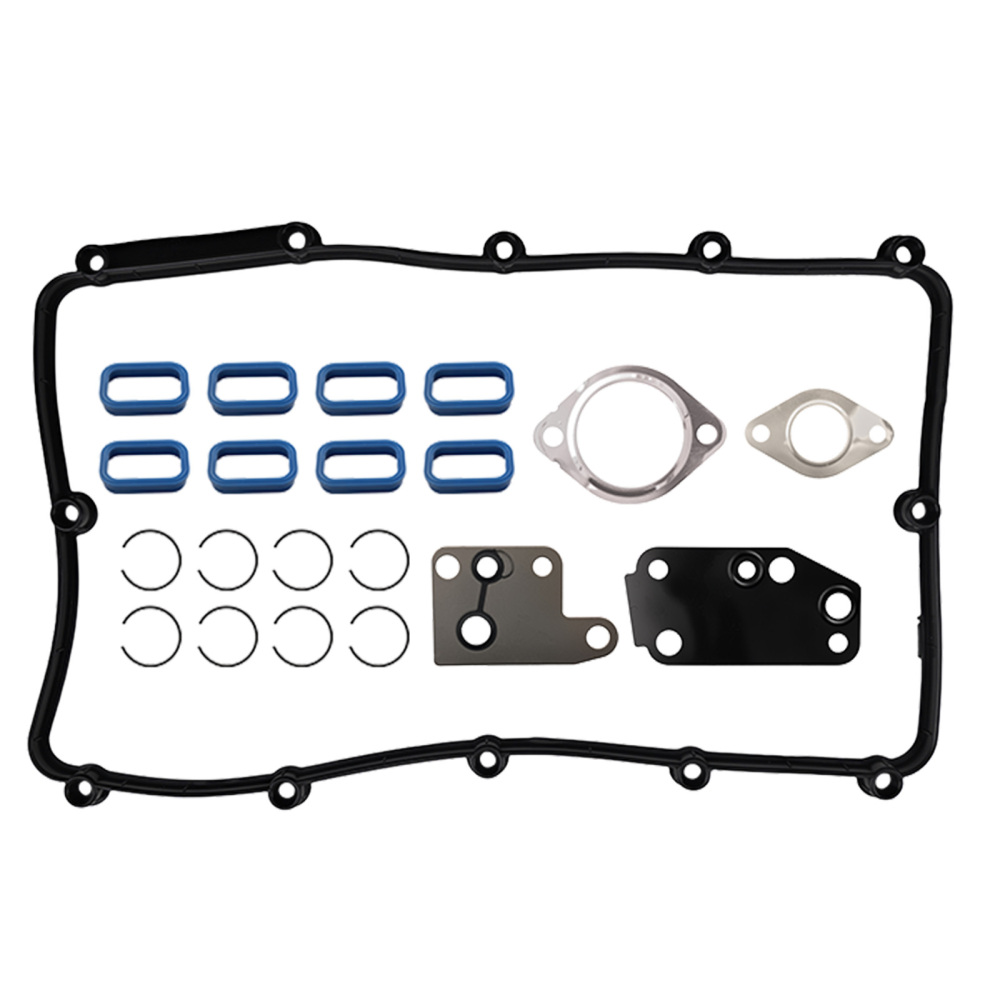

1 x Engine Full Gasket Set
1 x Main Crankshaft Bearings Set (Std Size)
1 x Big End Bearings Set (Std Size)
1 x Oil Pump
1 x Timing Chain Kit

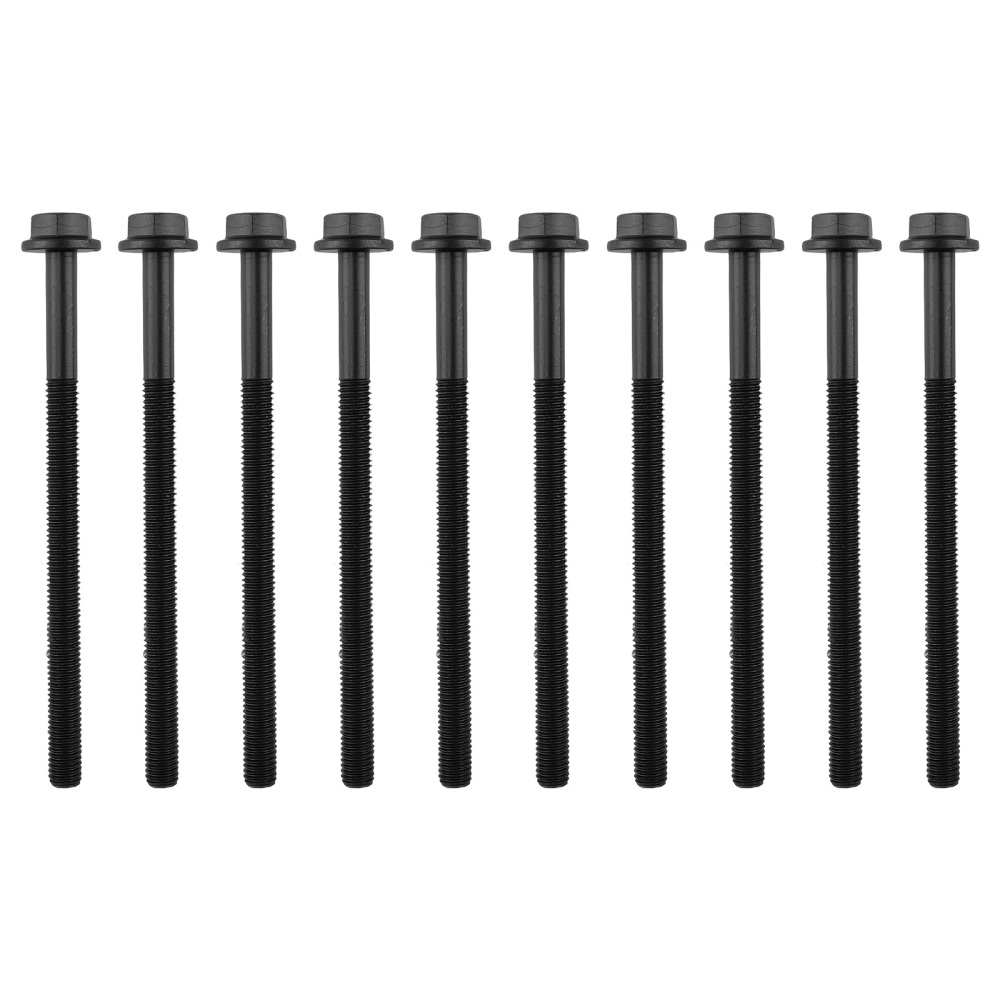

1 x Head Bolts Set

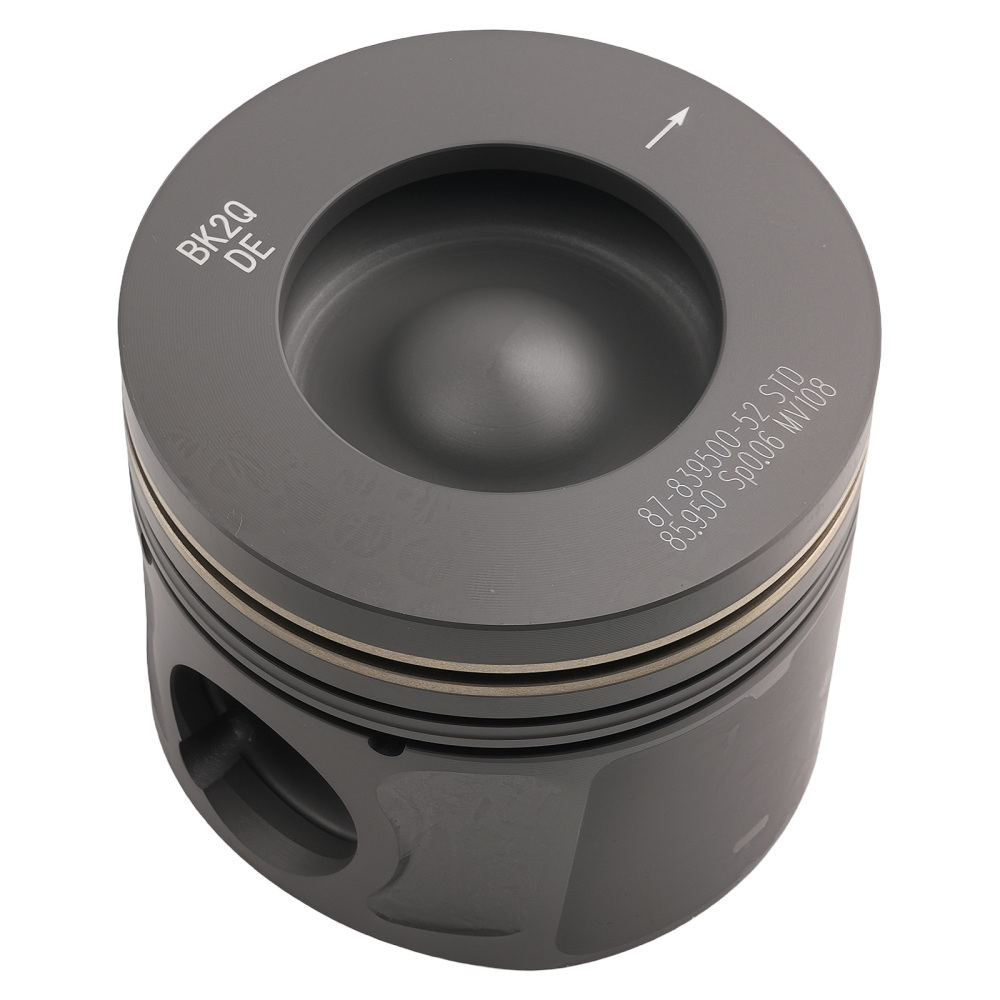

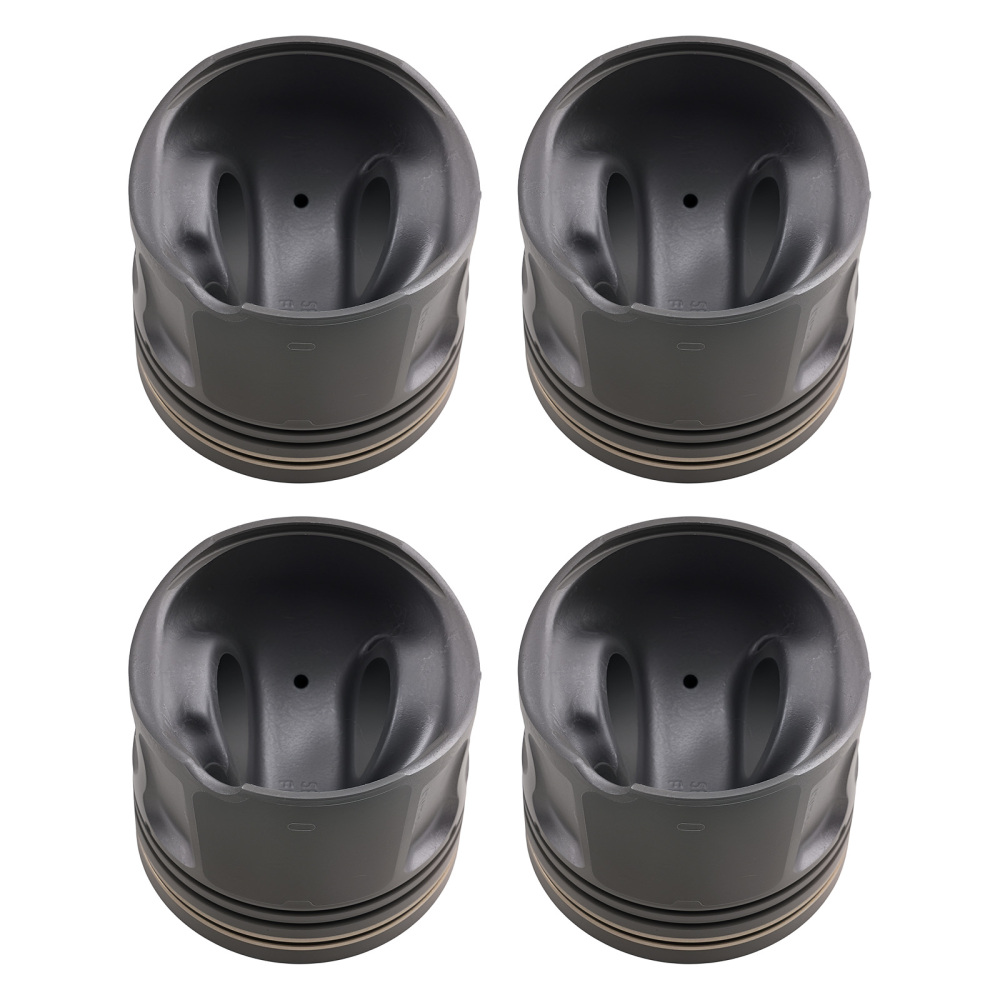

1 x Piston & Rings Set
(As shown in the picture）

Feature

1. Brand New Engine Rebuild Kit
2. Built To Strict High Quality Control Standards
3. Direct Replacement
4. Highest Level
5. Superior Quality Parts
6. Made Of Premium Material And With Delicate Workmanship
7. Easy To Operate And Convenient To Carry
8. Good Or Ensuring The Normal Performance Of Your Car
9.With High Transmission Power, Good Reliability, Compact Structure And Lifelong Maintenance-Free

Note

1.Professional installation is highly recommended (No Instruction Included)
2.If you are unsure if this is the correct part for your vehicle, Please submit your VIN# and we will be happy to check compatibility
3.Please refer to compatibility chart above for specified vehicle information and make sure your original part# matches one of the numbers listed here before purchasing to ensure fitment.
