Complete Steering Rack compatible for VW Transporter 1.9 2.0 2.5 TDI 7E2422055J 7E2422055K

Application

Compatible for VW Transporter 1.9 TDI 1896cc 63KW 85HP AXC 2003-2006
compatible for VW Transporter 1.9 TDI 1896cc 77KW 105HP AXB 2003-2006
compatible for VW Transporter 2.5 TDI 2461cc 128KW 174HP AXE;BPC 2003-2006
compatible for VW Transporter 2.5 TDI 2461cc 96KW 130HP AXD;BNZ 2003-2006
compatible for VW Transporter 2.0 BiTDI 1968cc 132KW 180HP CFCA 2009-2020
compatible for VW Transporter 2.0 TDI 1968cc 103KW 140HP CAAC;CCHA 2009-2015
compatible for VW Transporter 2.5 TDI 2461cc 128KW 174HP AXE;BPC 2009-2015
compatible for VW Transporter 2.5 TDI 2461cc 96KW 130HP AXD;BNZ 2009-2015

OE/Part number

7E2422055K,7E2422055J,7E2422055M,7E2422055F,7E2422061JX,7E2422061HX,7E2422061HX,7E2422061H,7E2422061H,7E2422061F,7H2422061K,7E2422061

Specification

Steering Wheel Position:RHD
Come with inner tie rod ends:YES
Outer Tie Rods：NO
Distance Between Mounting Holes (IN):14.57"
Input Shaft Diameter (IN)：0.68"
Input Shaft Length (IN)：1.77"
Number of Mounting Holes：4
Rack Length (IN)：45.07"
Thread Length (IN)：1.2"
Return Port Thread Size:M18*1.5
Pressure Port Thread Size：M16*1.5
Total Turns Lock To Lock :3.27

Package included

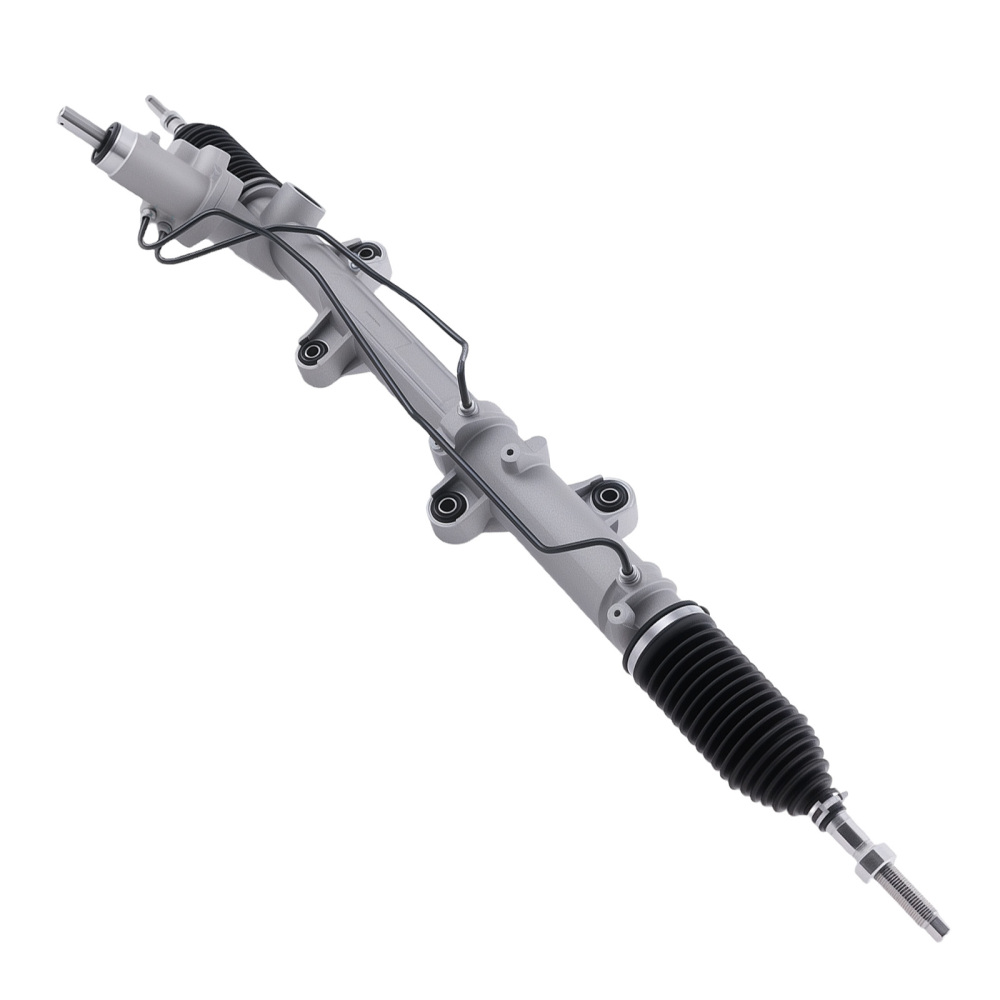

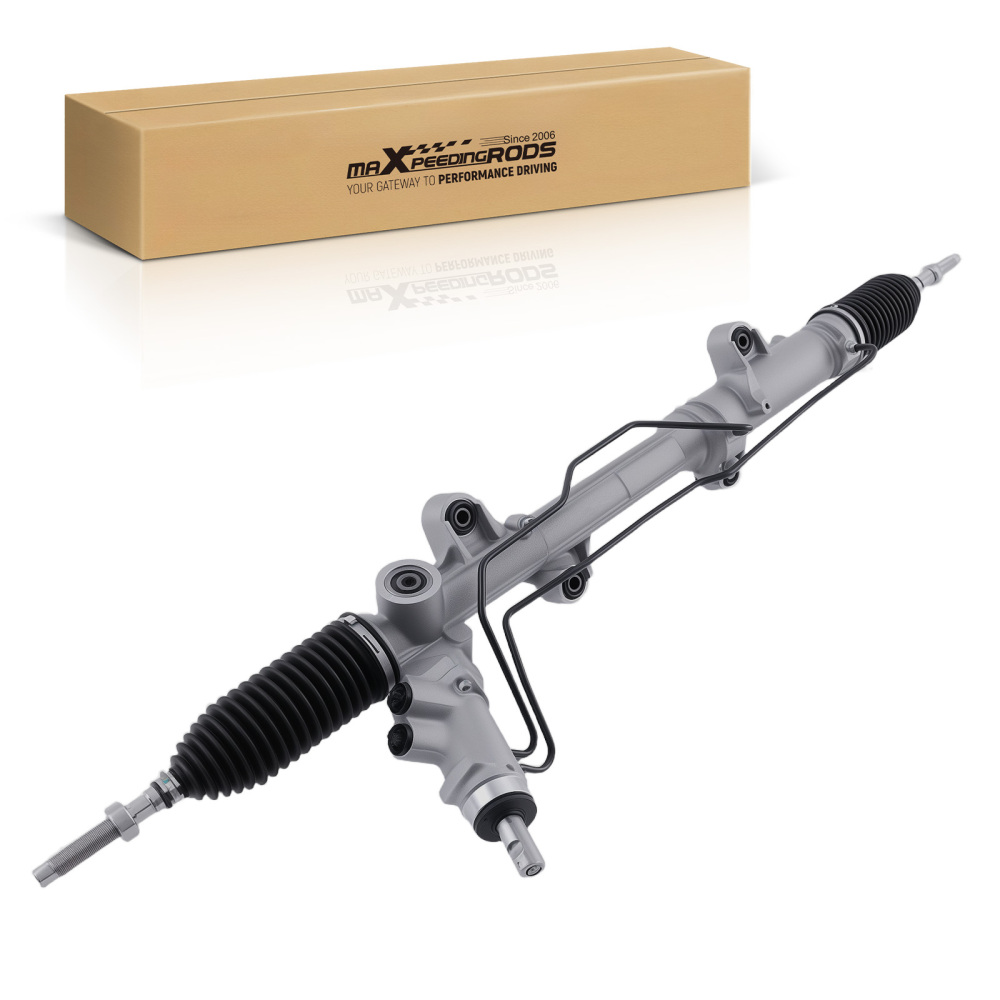

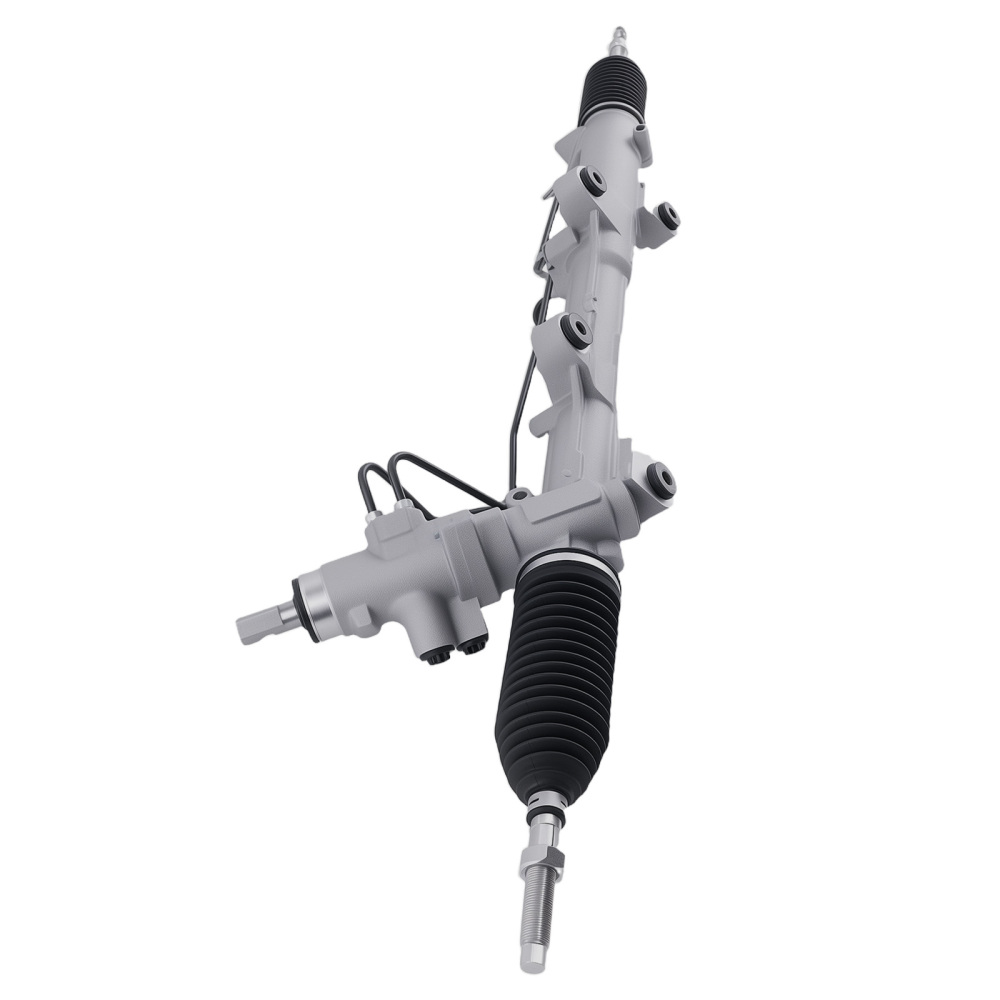

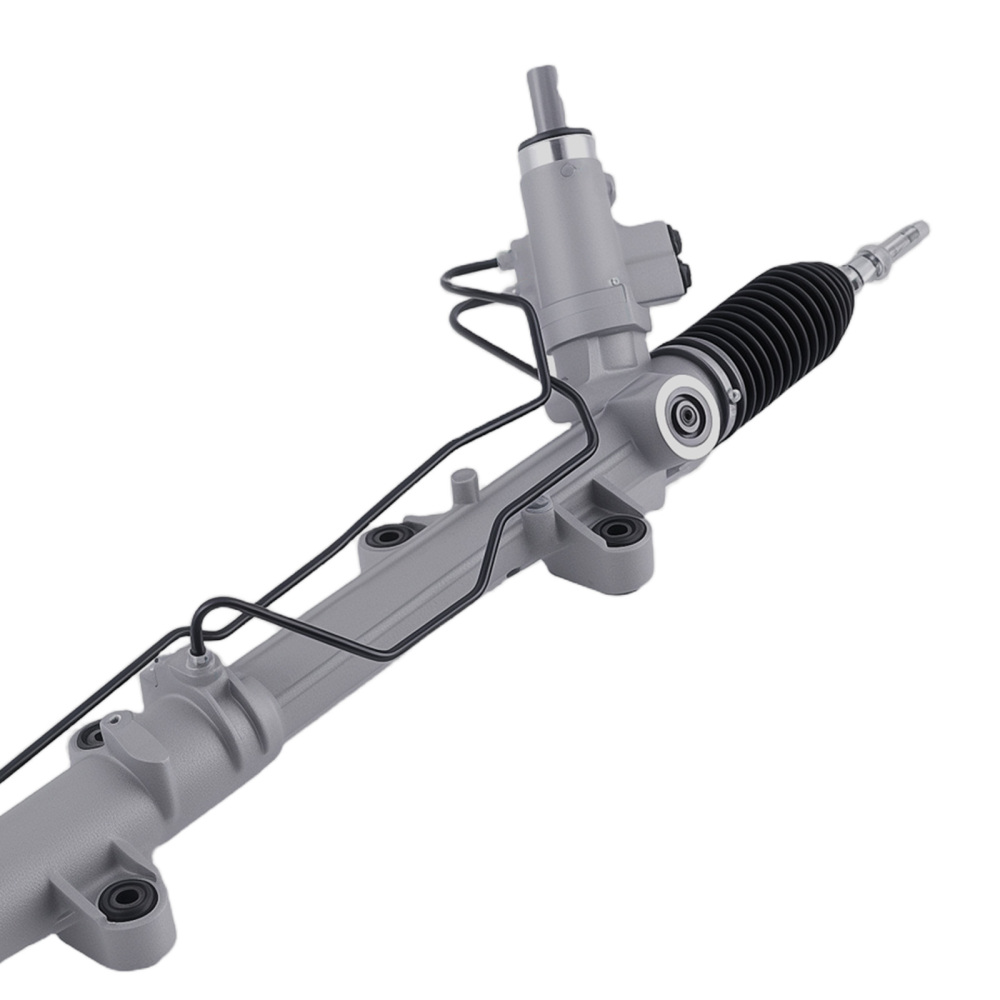

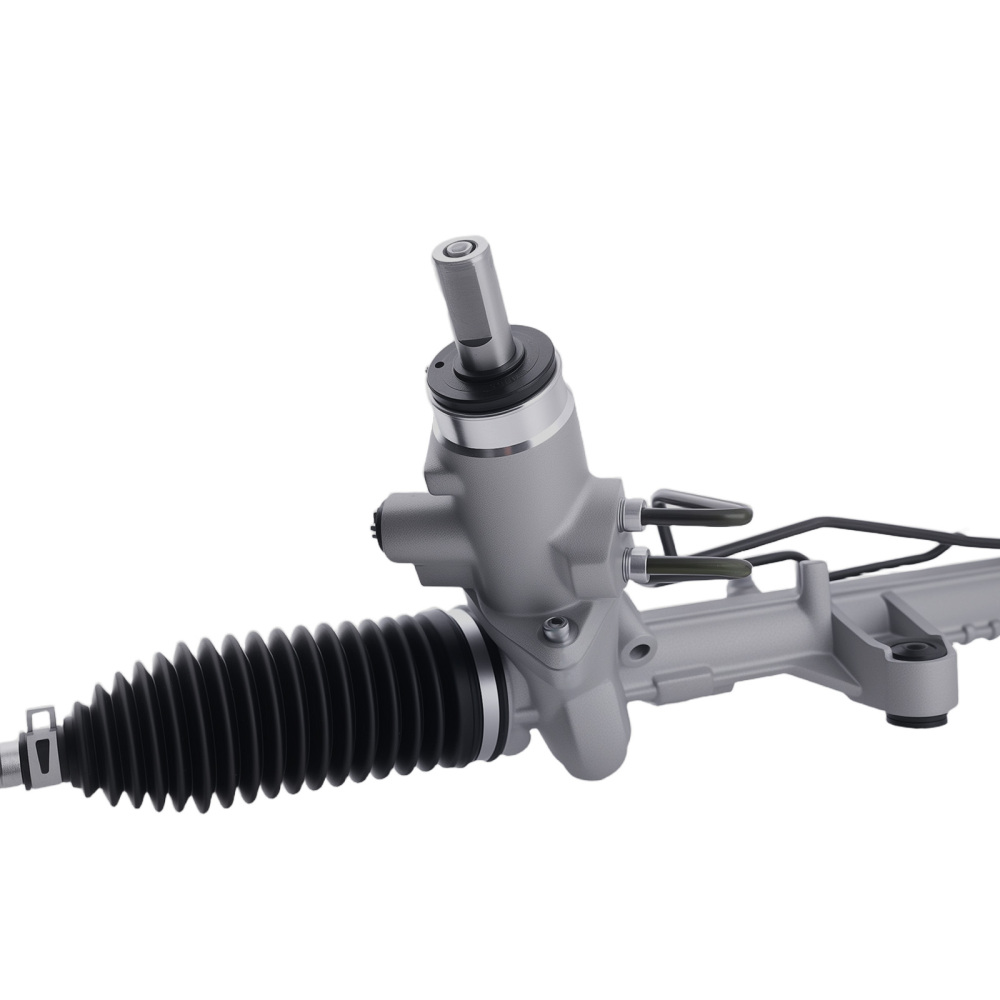

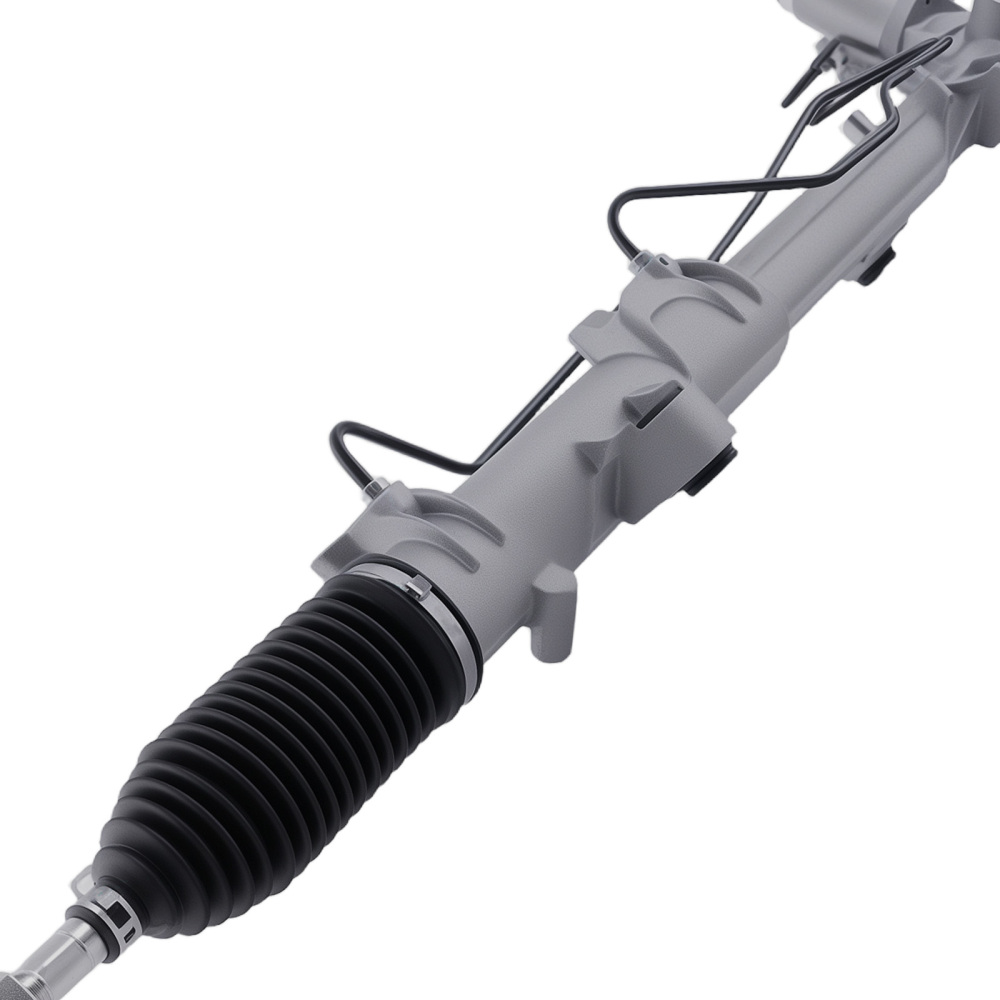

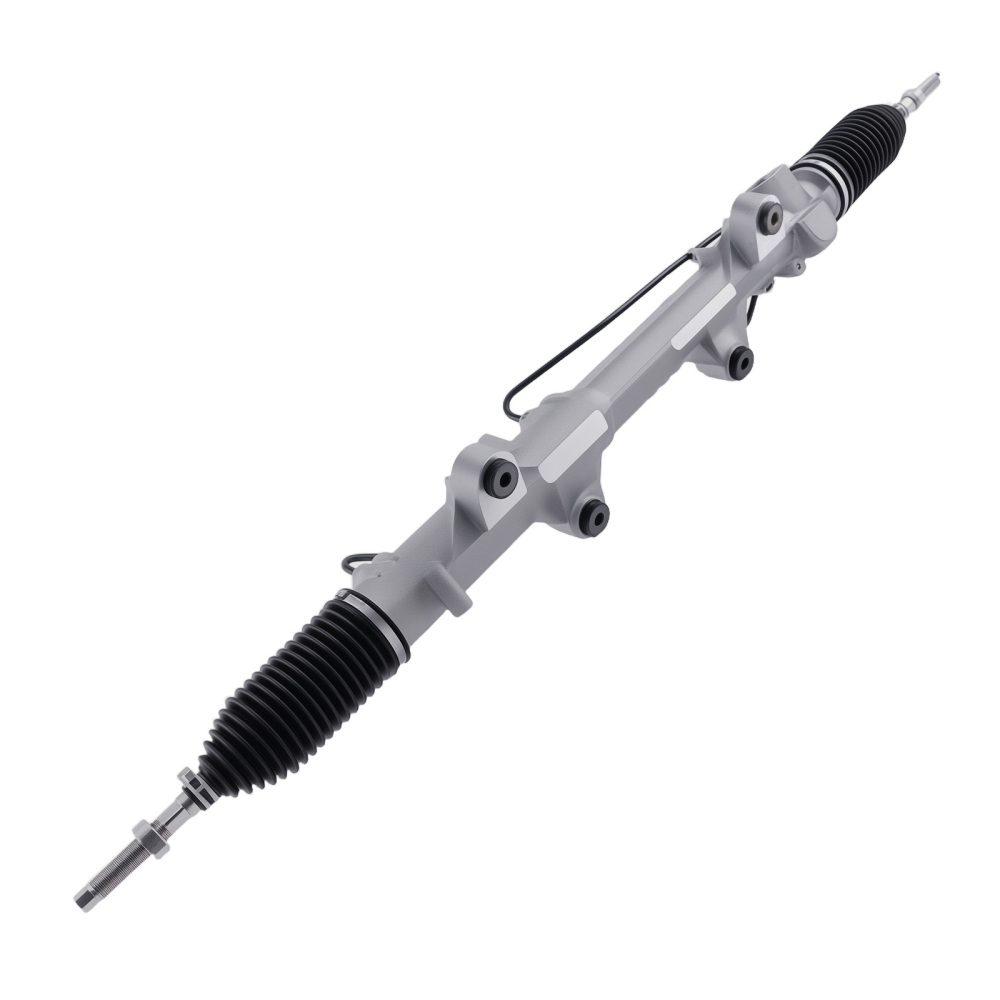

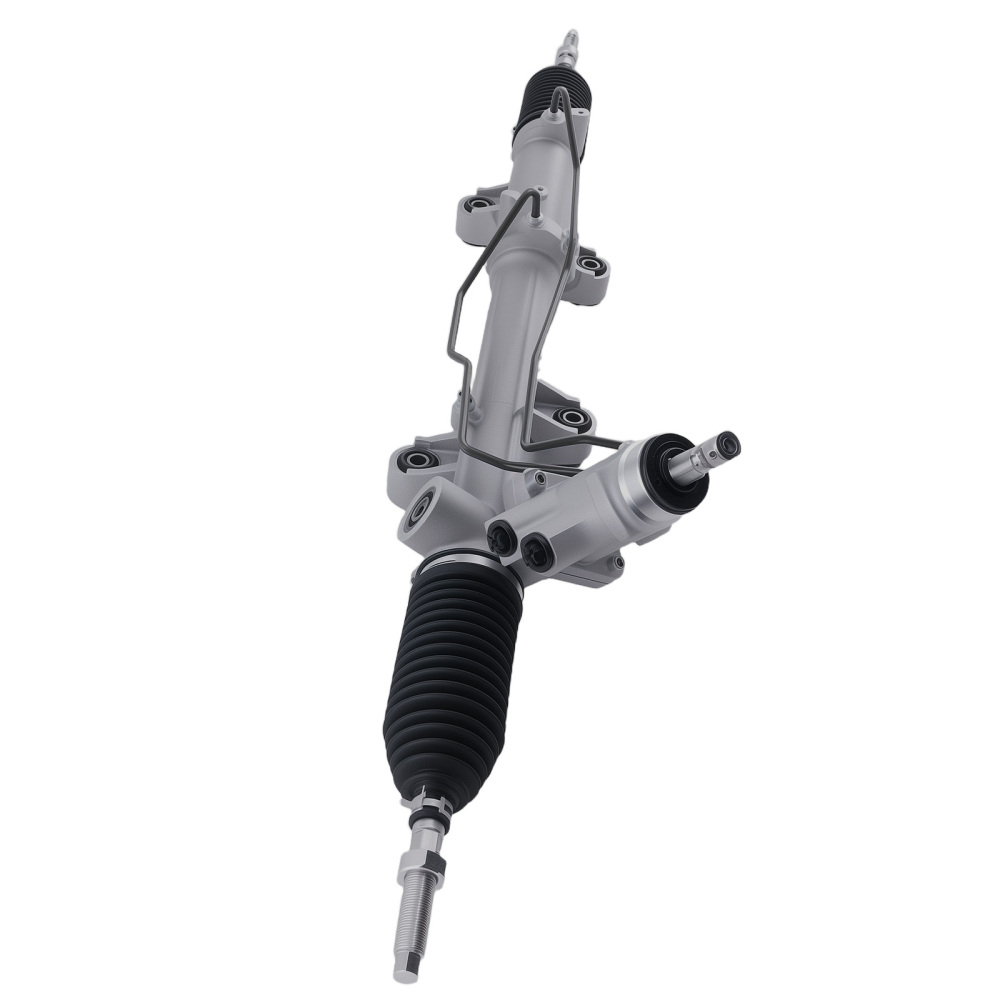

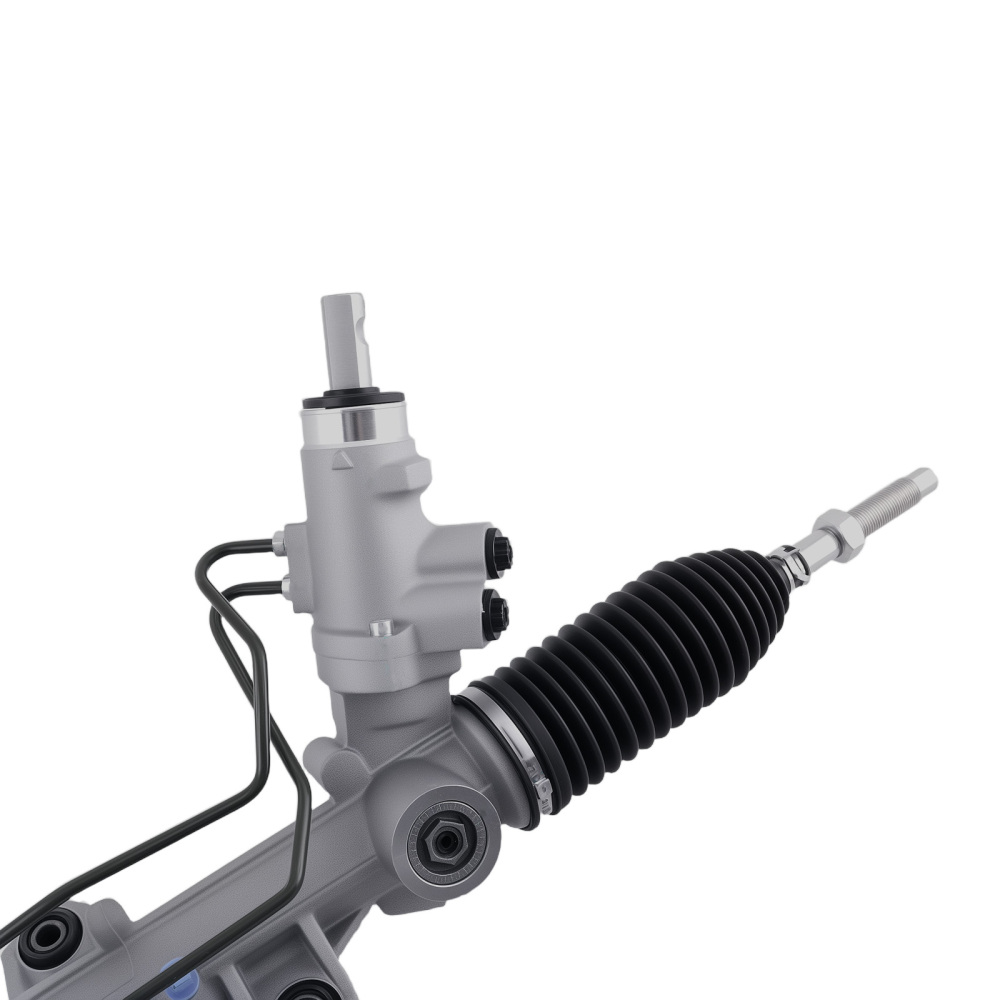

1× Power Steering Rack and Pinion Assembly (Showing as the picture)

Note

1.To avoid operating errors, we recommend professional installation.
2.If you are not sure about the compatibility, or you are looking for other car parts, just contact us. We are happy to offer any help. Bellow information will help:
VIN(Vehicle Identification Number), detailed car model, part number and photos of the parts.
