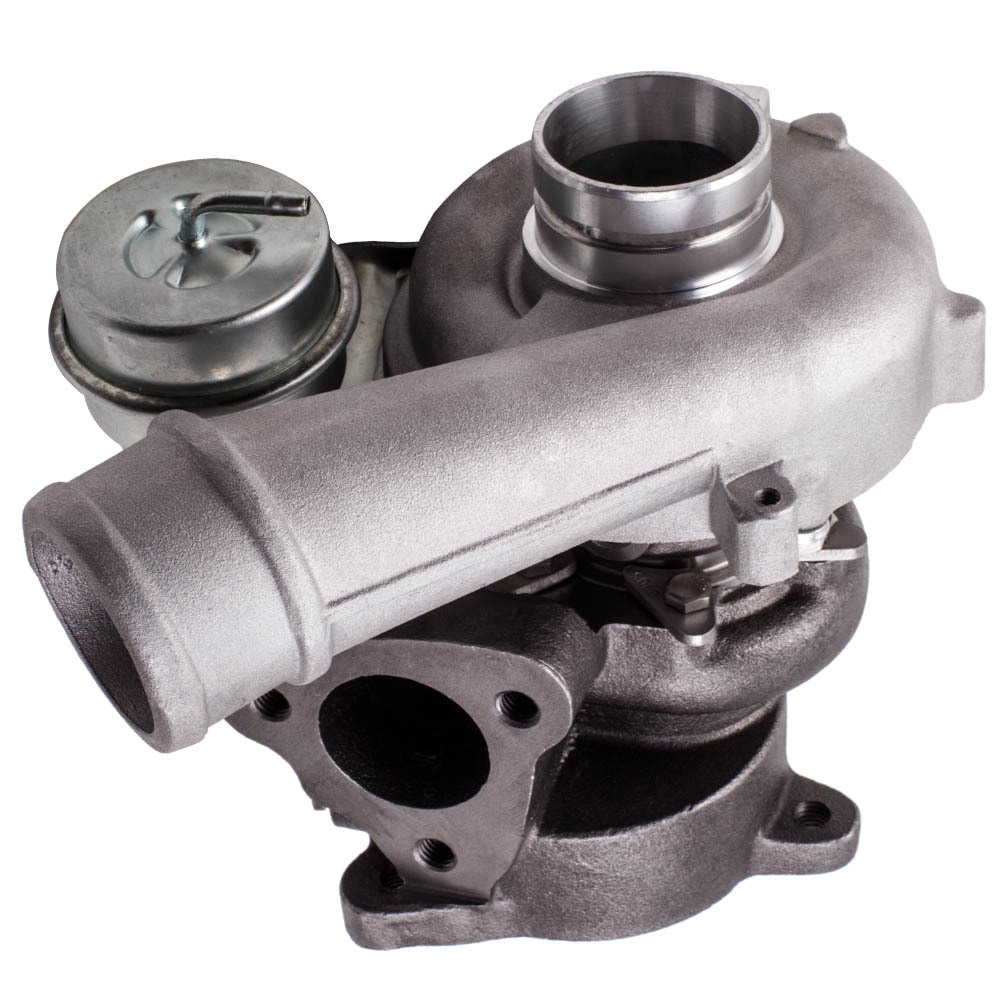

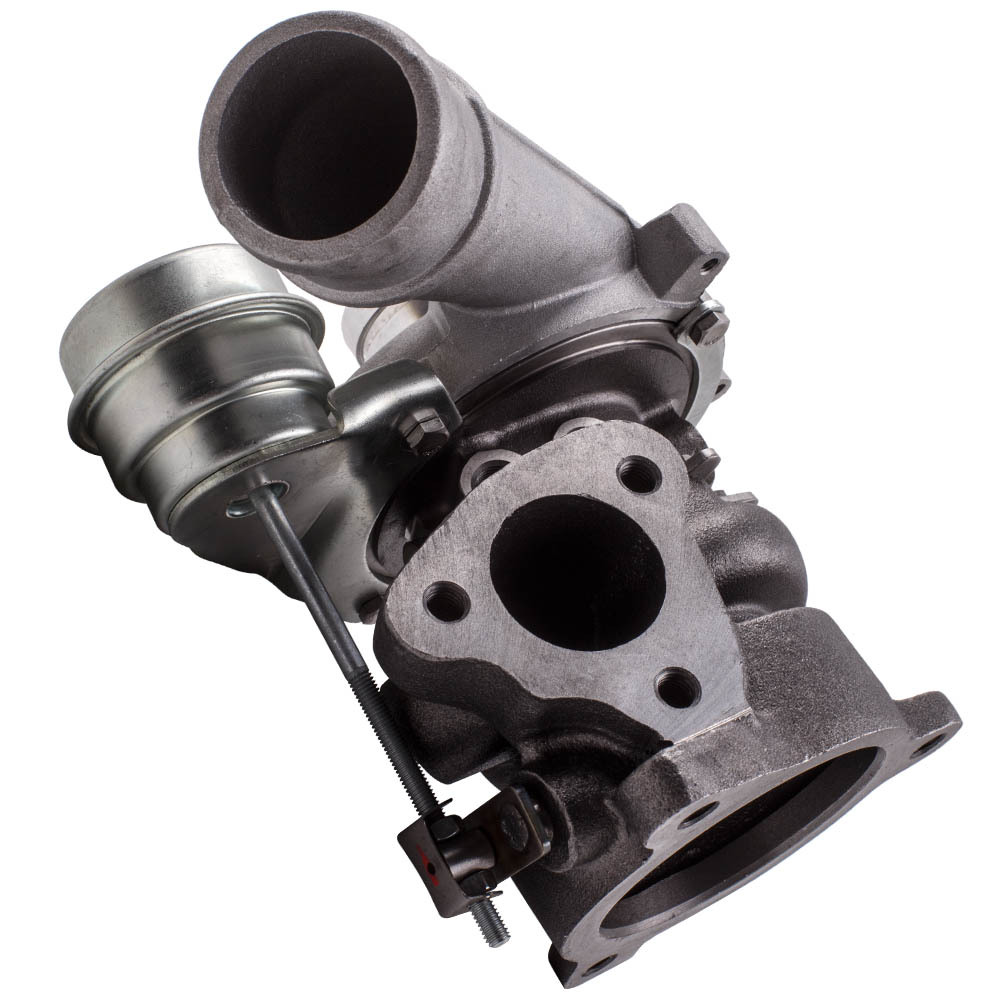

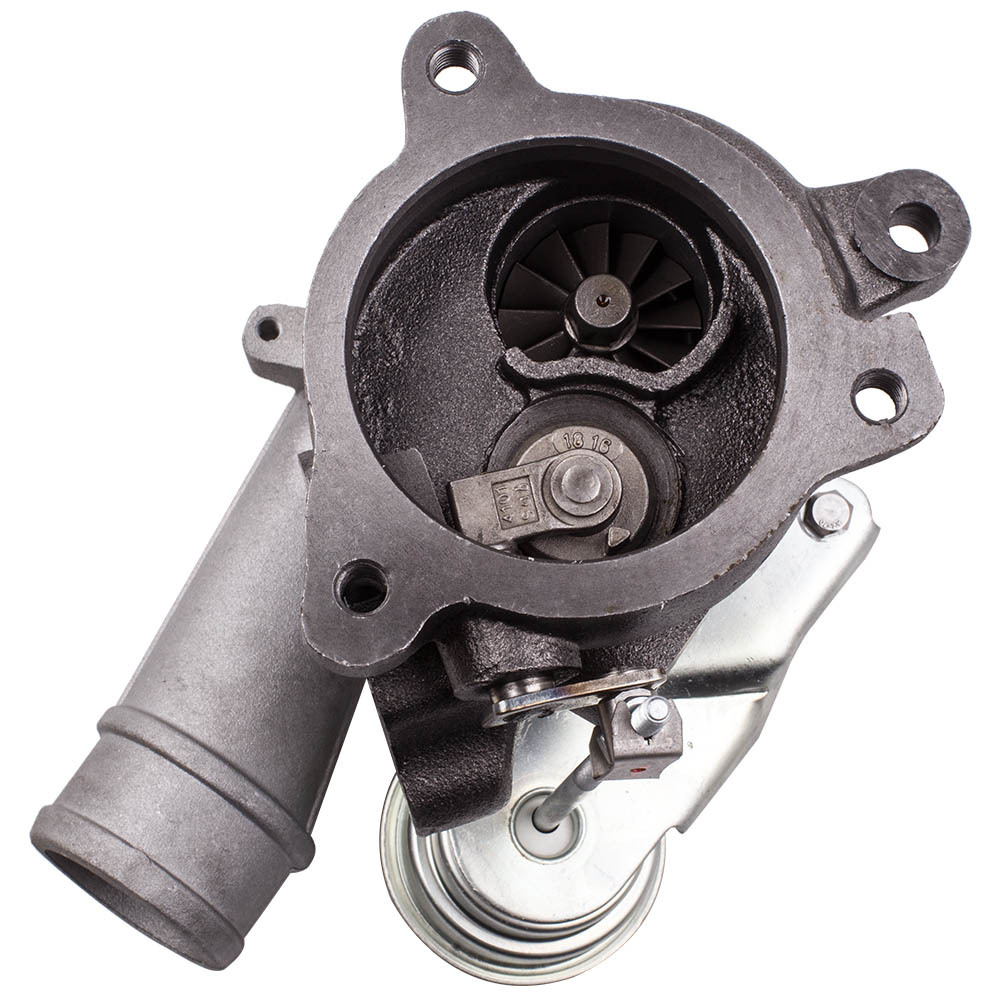

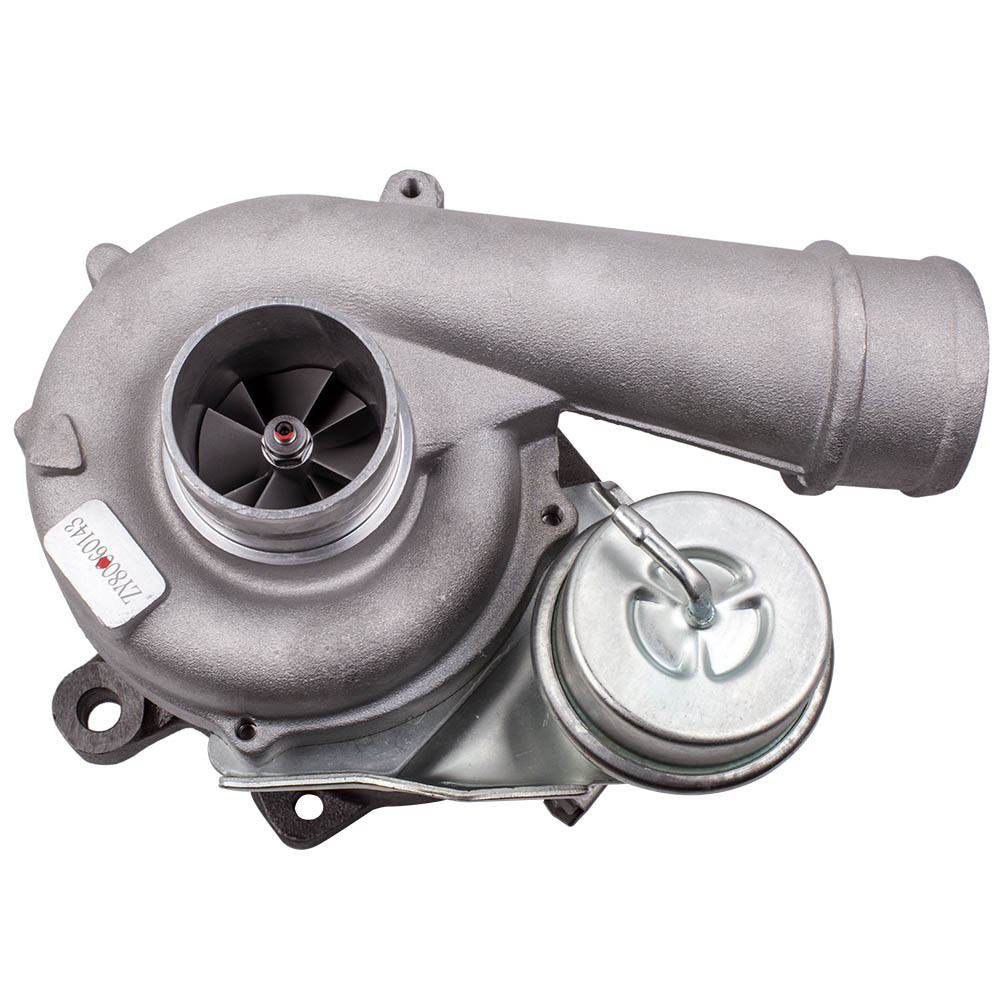

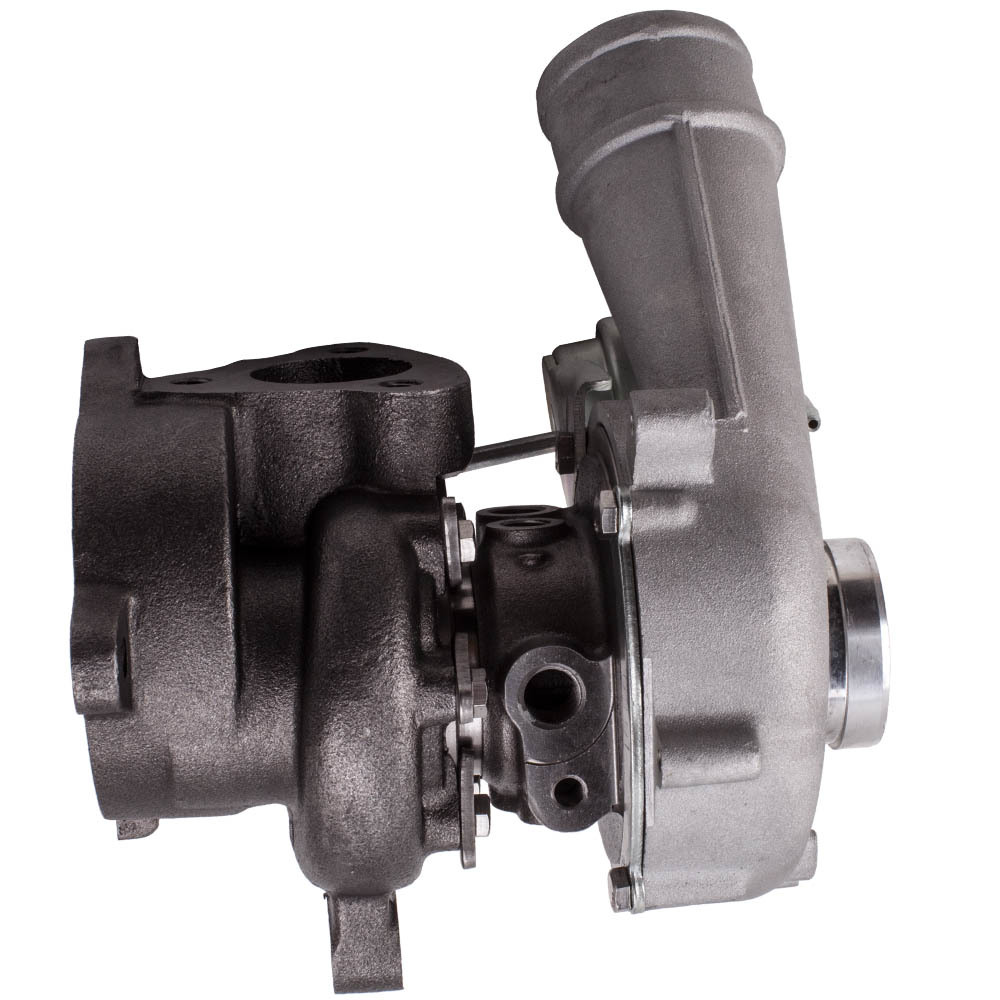

Compatible for Audi S3 1.8L 1.8 L TT Quattro K04 023 53049700023 Turbocharger Turbo

lncl. 20% VAT
  • * OEM-Quality. Direct Replacement
  • * Ductile Iron QT450-10 - High temperature resistance (up to 700℃)
  • * K418 Alloy - Stable & High Oxidation & Temperature Resistance(up to 900℃)
  • * Cast Aluminium Blade - Good Air Tightness & Corrosion Resistance
Item Number 3002032708
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
GGT0423
GGT0423
1
OEM-quality and size with little modification
2
Turbine housing uses cast iron withstand temperatures up to 700℃
3
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃
4
Cast aluminium blades with good gas tightness and corrosion resistance

Introduction

Looking to boost your car's power? Is your car's original turbocharger not performing well, or does it need replaced? Maxpeedingrods stocks all the best OEM-quality turbochargers, turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price

Application

Compatible for Audi A3 (8L1), S3 quattro, 03.1999, 04.2002, 154 kw, 210 PS, AMK
Compatible for Audi A3 (8L1), S3 quattro, 10.2001, 05.2003, 165 kw, 224 PS, BAM
Compatible for Audi TT (8N3), 1.8 T quattro, 10.1998, 06.2006, 165kw, 224 PS, BAM
Compatible for Audi TT (8N3), 1.8 T quattro, 03.2005, 06.2006, 177 kw, 240 PS, BFV
Compatible for Audi TT Roadster (8N9), 1.8 T quattro, 10.1999, 06.2006, 165 kw, 224 PS, BAM
Compatible for Seat LEON (1M1), 1.8 T Cupra R, 02.2002, 06.2006, 154 kw, 209 PS, AMK
Compatible for Seat LEON (1M1), 1.8 T Cupra R, 07.2003, 06.2006, 165 kw, 225 PS, BAM

Turbo Model

K04-2275ECD5.82KCAXH,K04

Engine Code

BAM, BAM BFV,AMK

Turbo Part Number & OEM Number

53049880023 , 5304-988-0023 , 5304 988 0023
53049700023 , 5304-970-0023 , 5304-970-0023
06A145704Q , 06A 145 704Q , 06A 145 704 Q
06A145704QX , 06A 145 704QX , 06A 145 704 QX
06A145704QV , 06A 145 704QV , 06A 145 704 QV
HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Cooling Type:Water Cooling
Bearing Type: Floating Bearing
Hosepower: Up to 237HP
Package size: 26 x 24 x 23 cm
Weight: 6500 g
Condition: New
Warranty: one year warranty for any manufacturing defect
Accessories: You will get exactly as shown in the picture above

Feature

*Product Material
1. Turbine housing :Ductile iron qt450-10- temperature resistant up to 700℃
2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing:ZL104 aluminum with lightweight
4. Compressor wheel/blades:Cast aluminium blades – superior air tightness & corrosion resistance
*Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. Quality assurance
4. High-Speed oil seal ring
5. Strict quality inspection
6. Precision clearance *All necessary gaskets included for ease of installation

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
