Air Suspension Kit W/ Compressor compatible for Iveco Daily 35C 40C 55C 1985-2024 7800KG

Air Suspension Spring Bag + 12V Compressor Kit compatible for Iveco Daily 35c 40c 45c 50c 55C 1999-2024

Application

Compatible for Iveco Daily 35c 40c 45c 50c 55C 1999-2024

Compatible for Iveco Daily 30-8 / 49-12 1985-1999

Body type: Panel van, tipper, motorhome, camper, box van.

Notice: for RWD

Chassis type: All standard type of chassis

Specification

Condition: Brand New

Chassis Type: All standard type Chassis

Placement on Vehicle: Rear left and right

Max loading：7800 Kg

Package Length, width and height: 710*510*210 mm

Package Wight: 26.7 kg

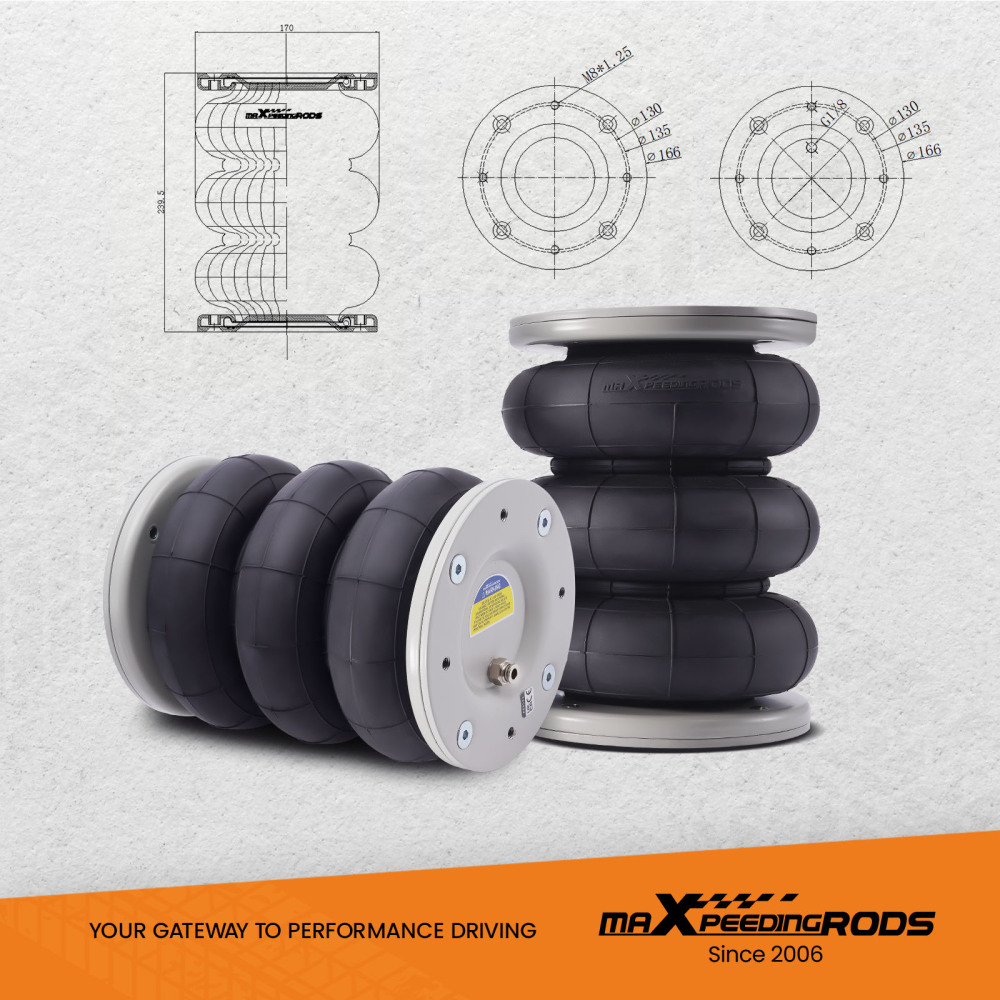

Air spring：

Design height: 239.5 mm

Stroke:  280 mm

Max. Extended: 320 mm

Min. Compressed:  40 mm

Air pump：

Power:  120W

Output Voltage:  12V

Maximum current:  10A

Maximum Working Voltage: 10bar（1MPa ）

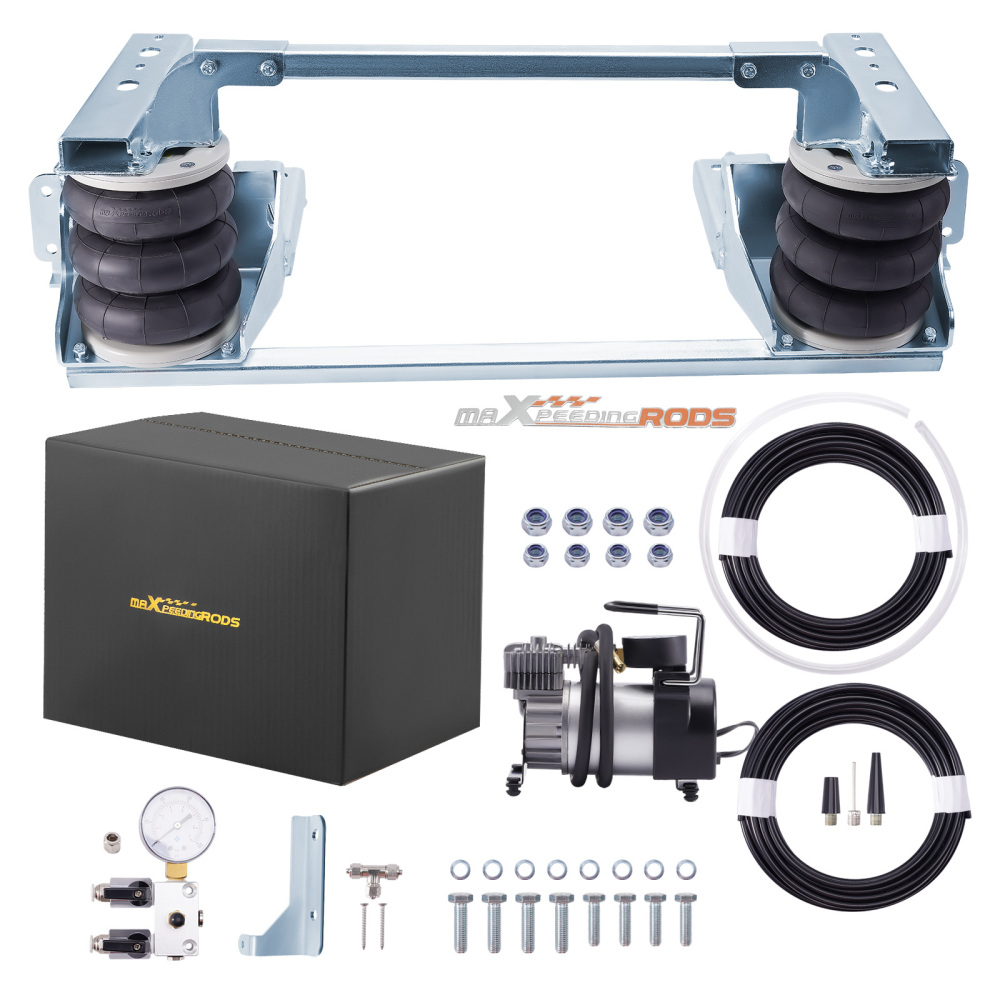

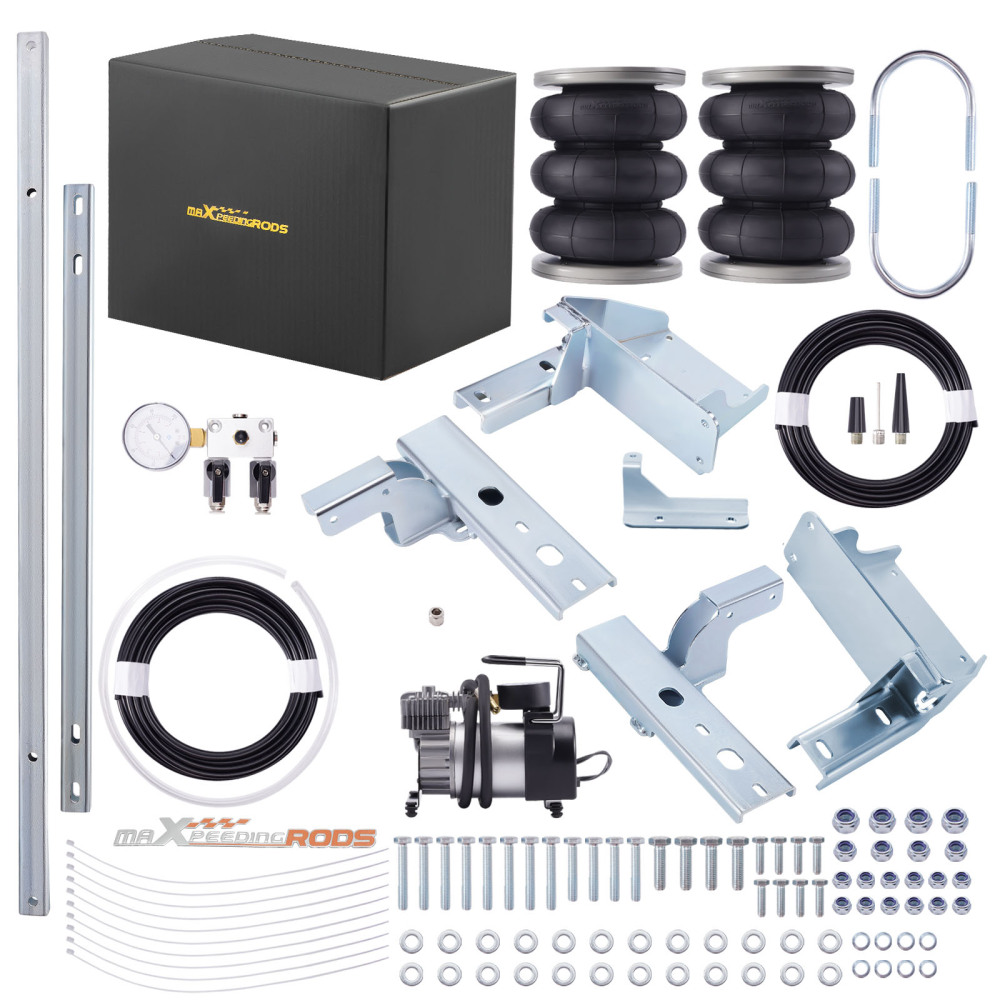

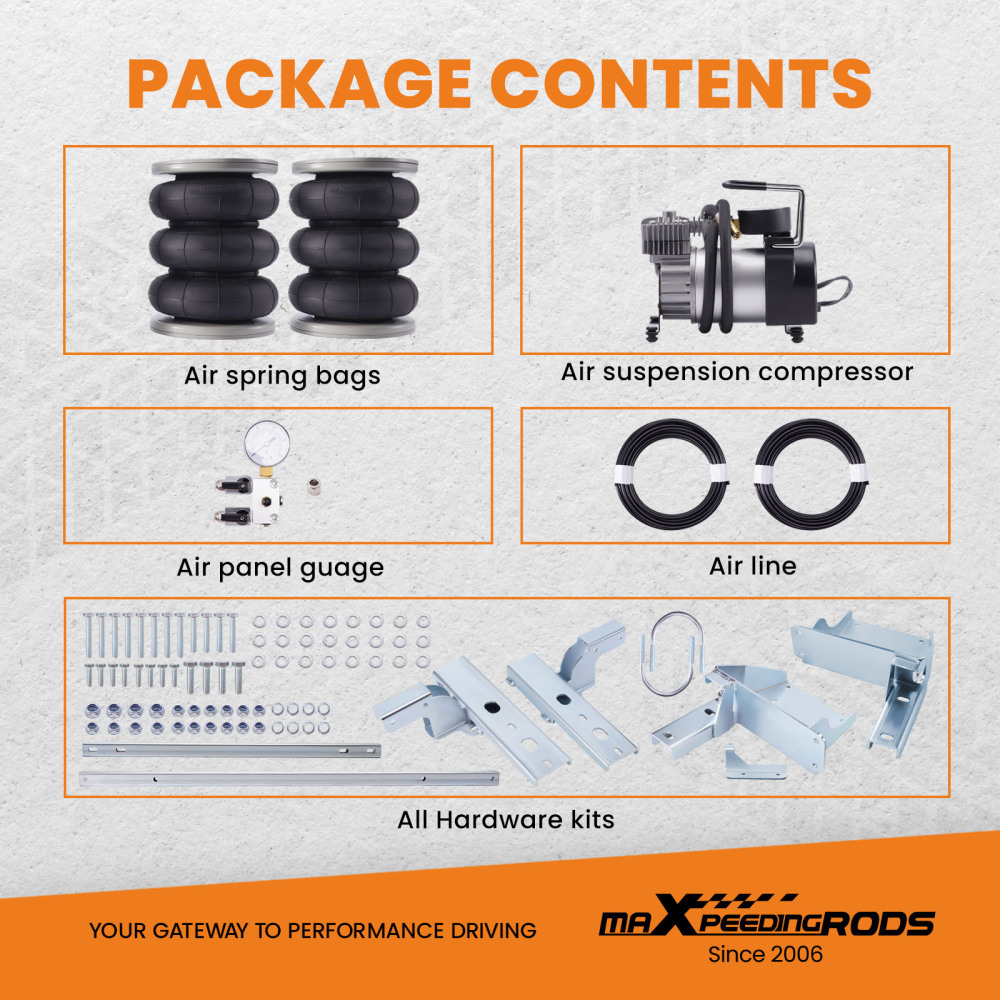

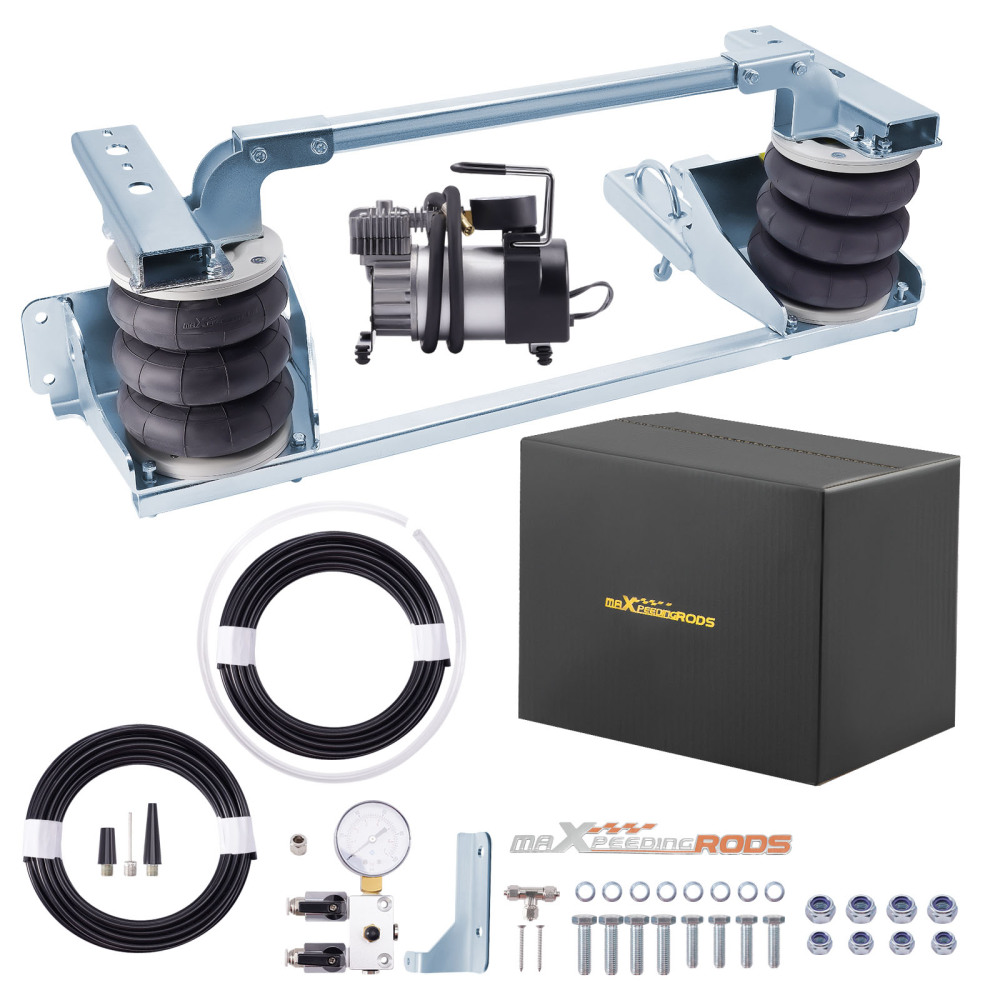

Package includes（as the picture shows）:

2x Natural Rubber & Hi-tensile steel Air spring bag

4x Galvanised Heavy duty mounting bracket

1x  12V Air suspension compressor

1x Panel guage

2x Crossbar

1x Air line 20m

Mounting bolts and gaskets

Feature

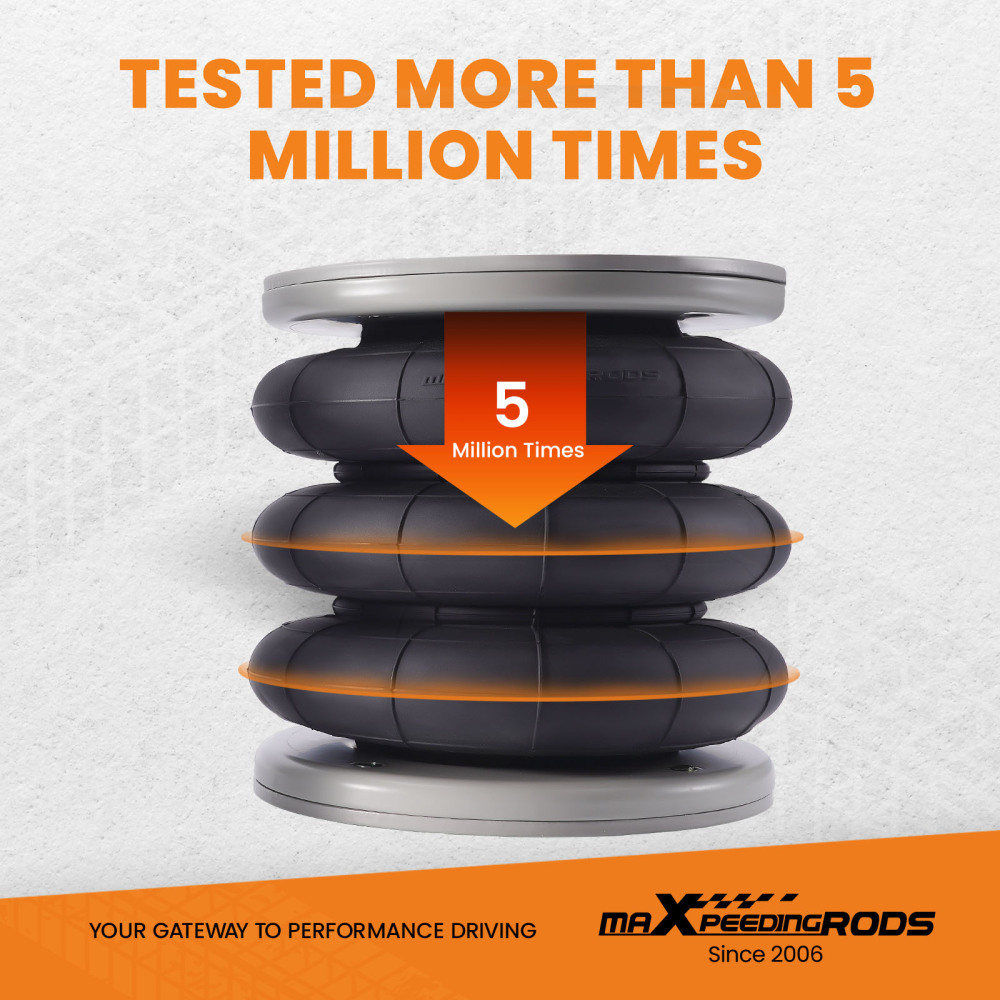

1. Stress Test Over 5,000,000 Times：Durable and Safe

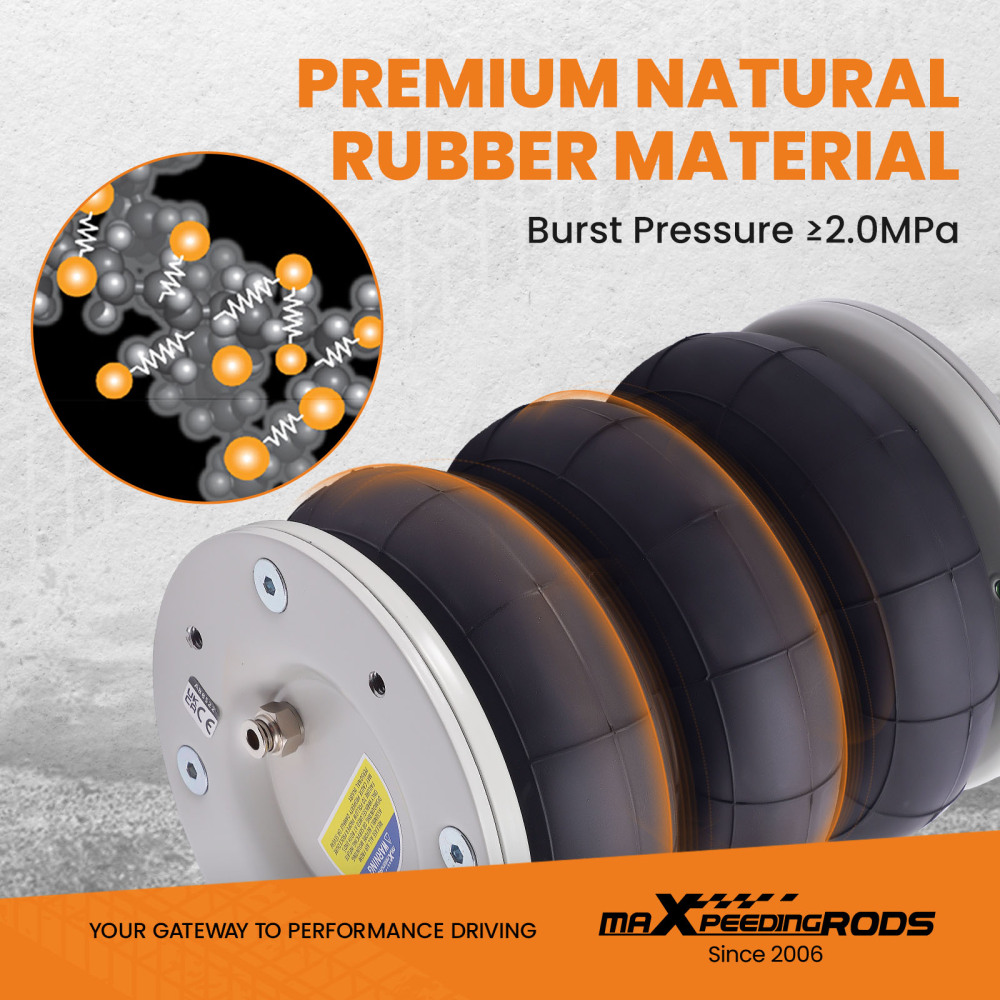

2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

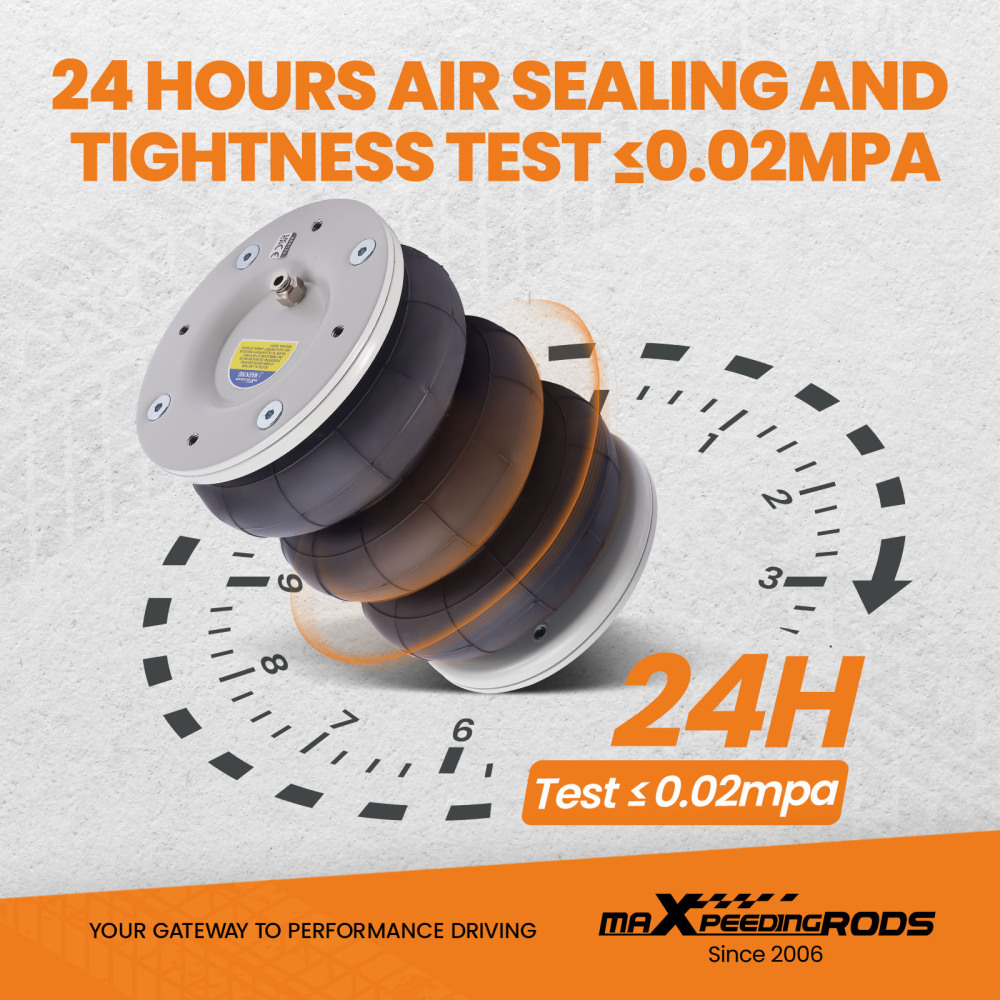

3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee

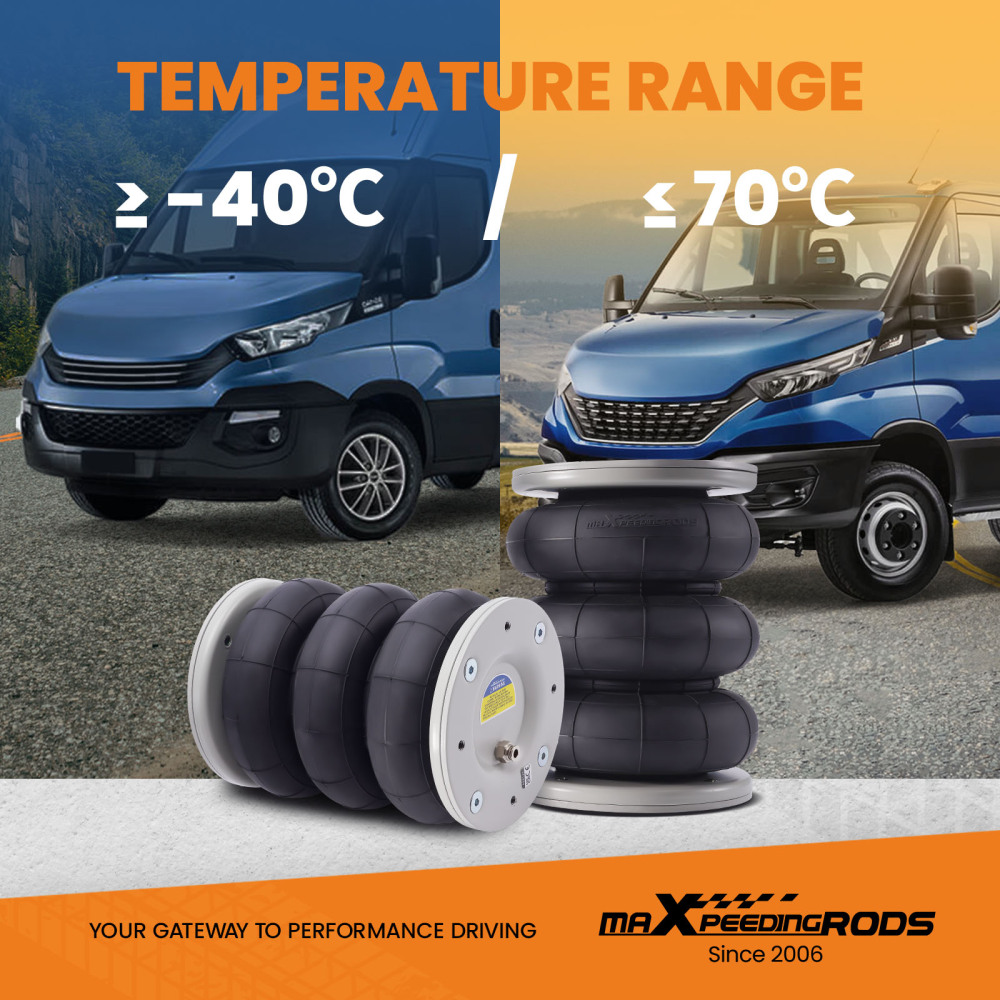

4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
5. Use high-quality steel with high load-bearing capacity and long life.
6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability

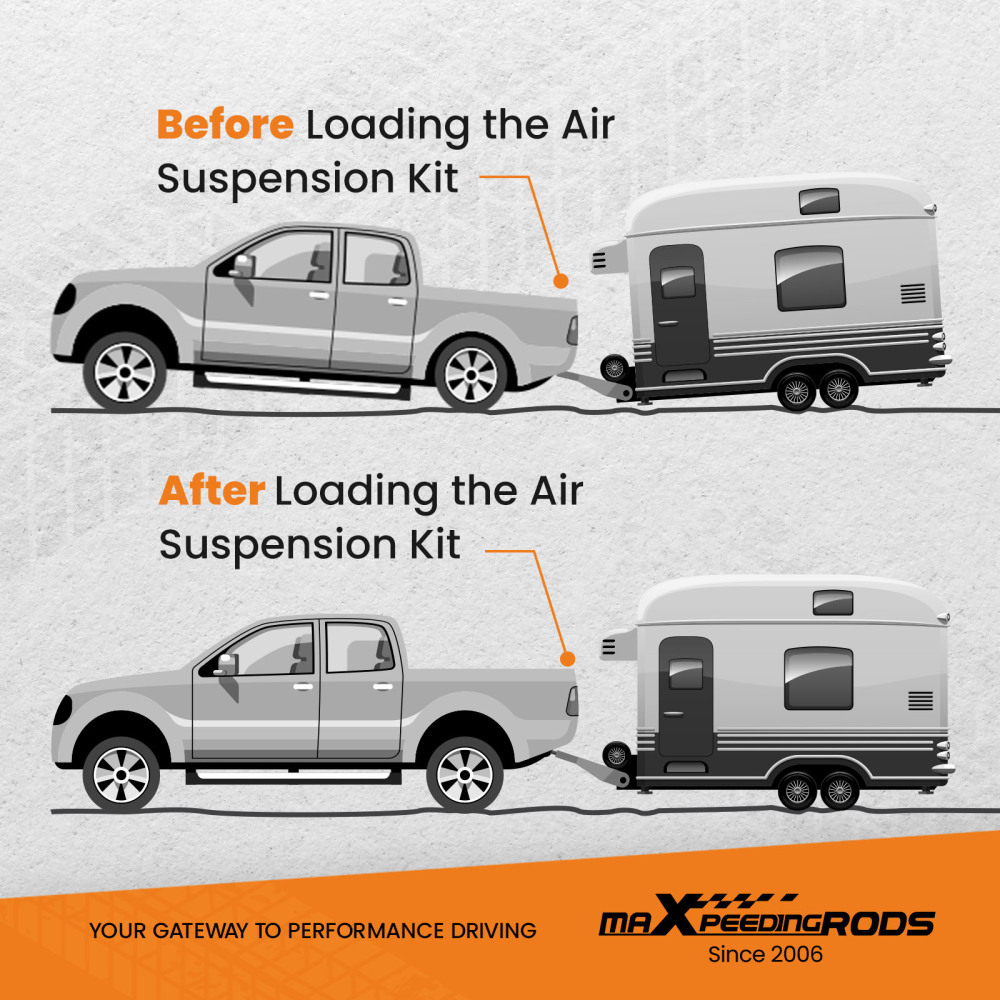

8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.

Notice

- These air suspension kit are aftermarket ones. They will replace the original one.

- Professional installation is recommended.

- Contact us please for whatever we can help.
