Rear Air Suspension Kit W/ Compressor compatible for Iveco Daily 35S S L 2014-2024 5280KG

Application

Compatible for Iveco Daily S & L Single Rear-Wheel Drive 2014-onwards

Specification

Condition: Brand New
Chassis Type: All standard type Chassis
Placement on Vehicle: Rear left and right
Max loading：5280 Kg
Air spring---
Design height: 220 mm
Stroke: 155 mm
Max. Extended: 260 mm
Min. Compressed: 105 mm
Air pump---
Power: 150W
Output Voltage: 12V
Maximum Working Voltage: 10bar（1MPa ）

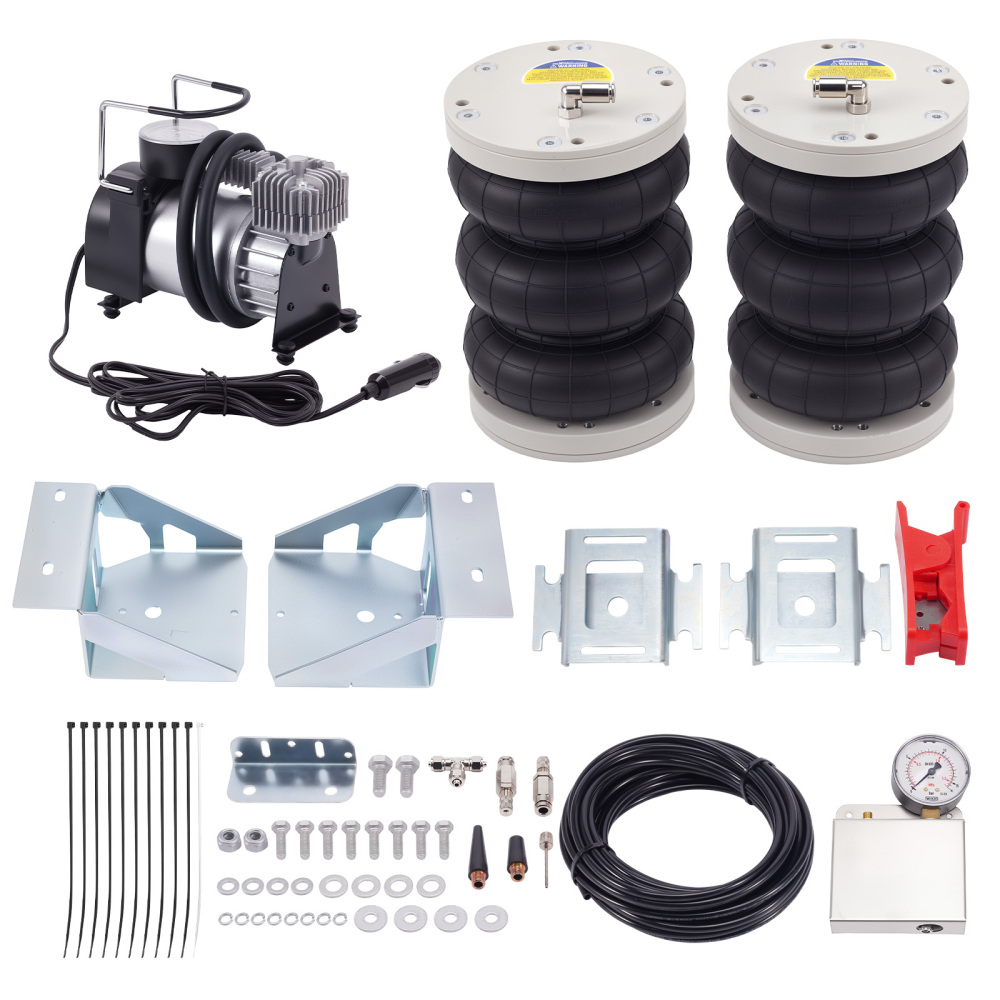

Package includes（as the picture shows）:

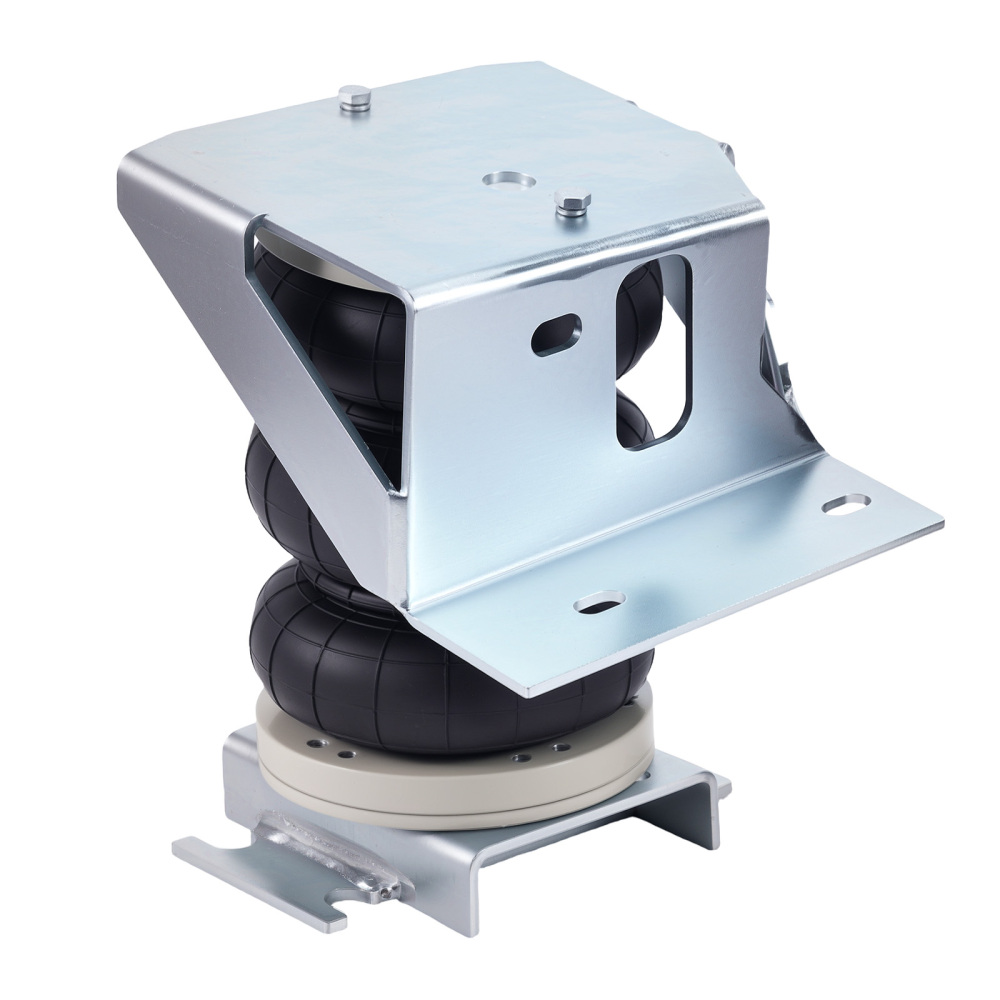

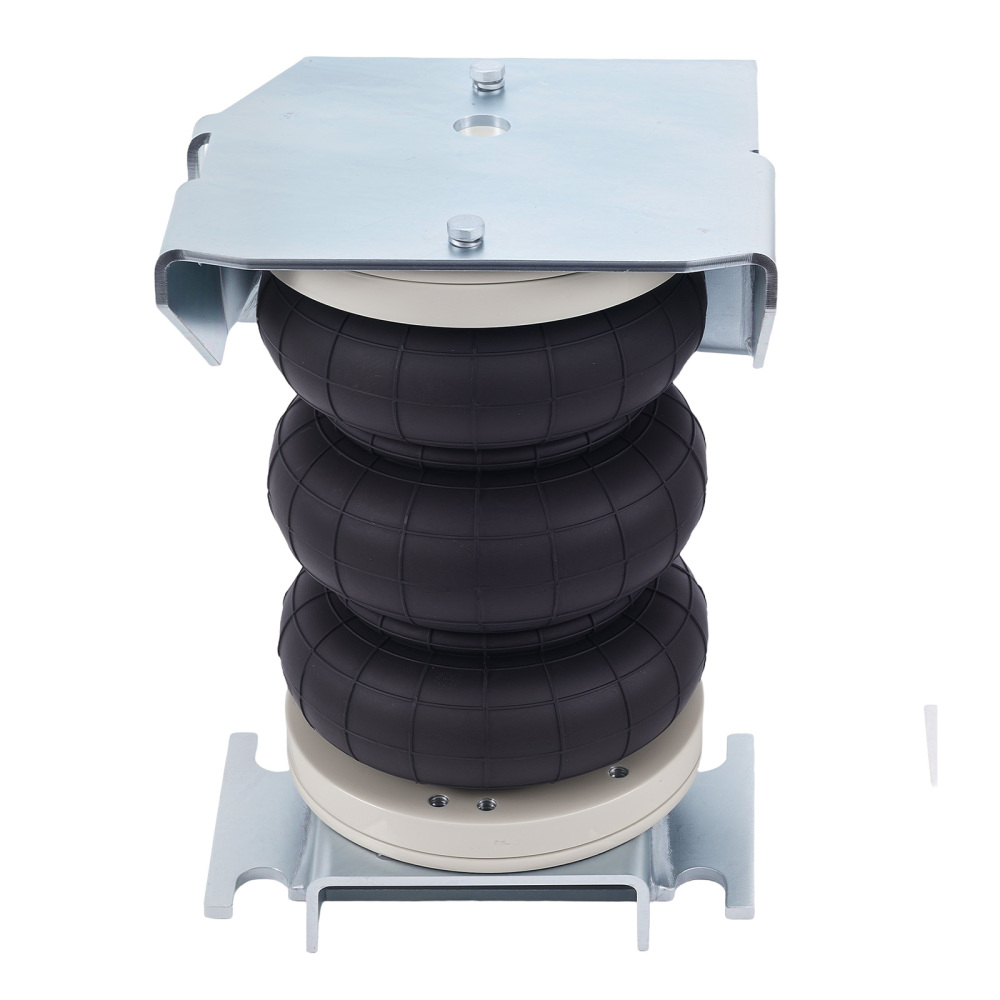

2x Air spring

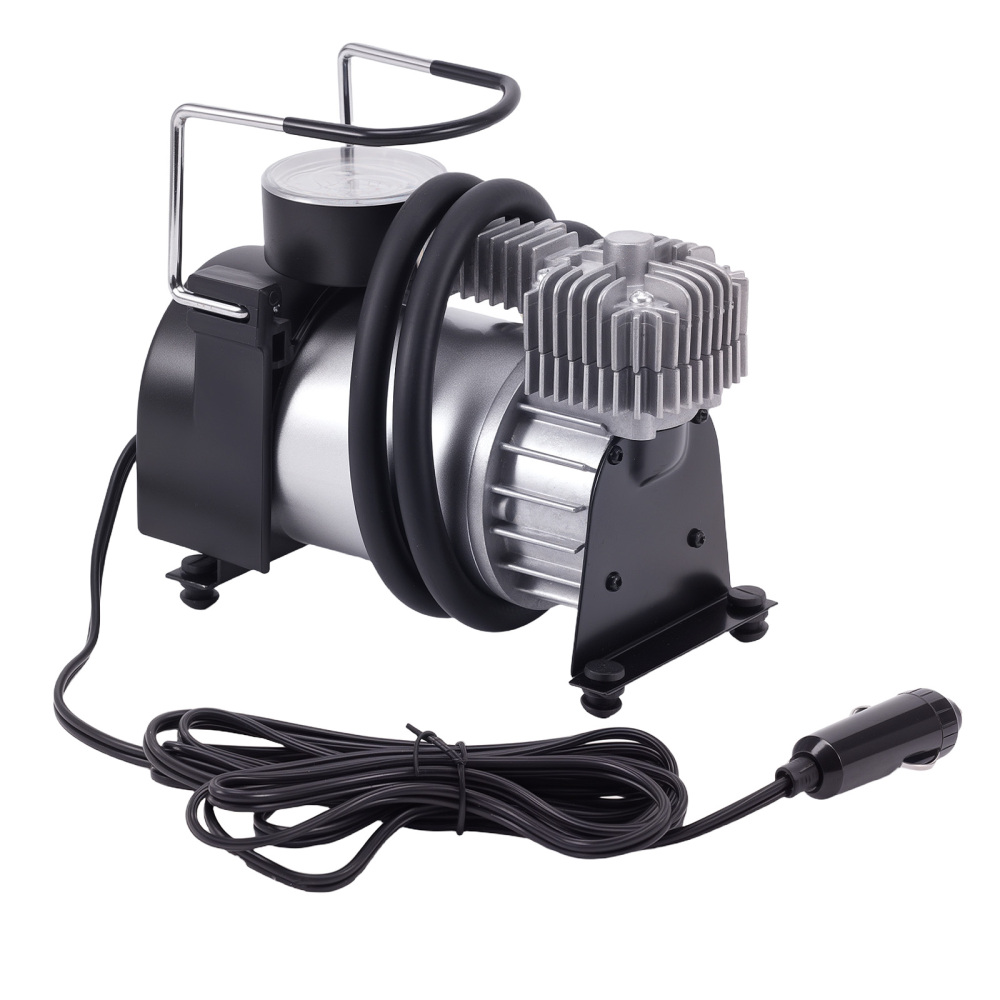

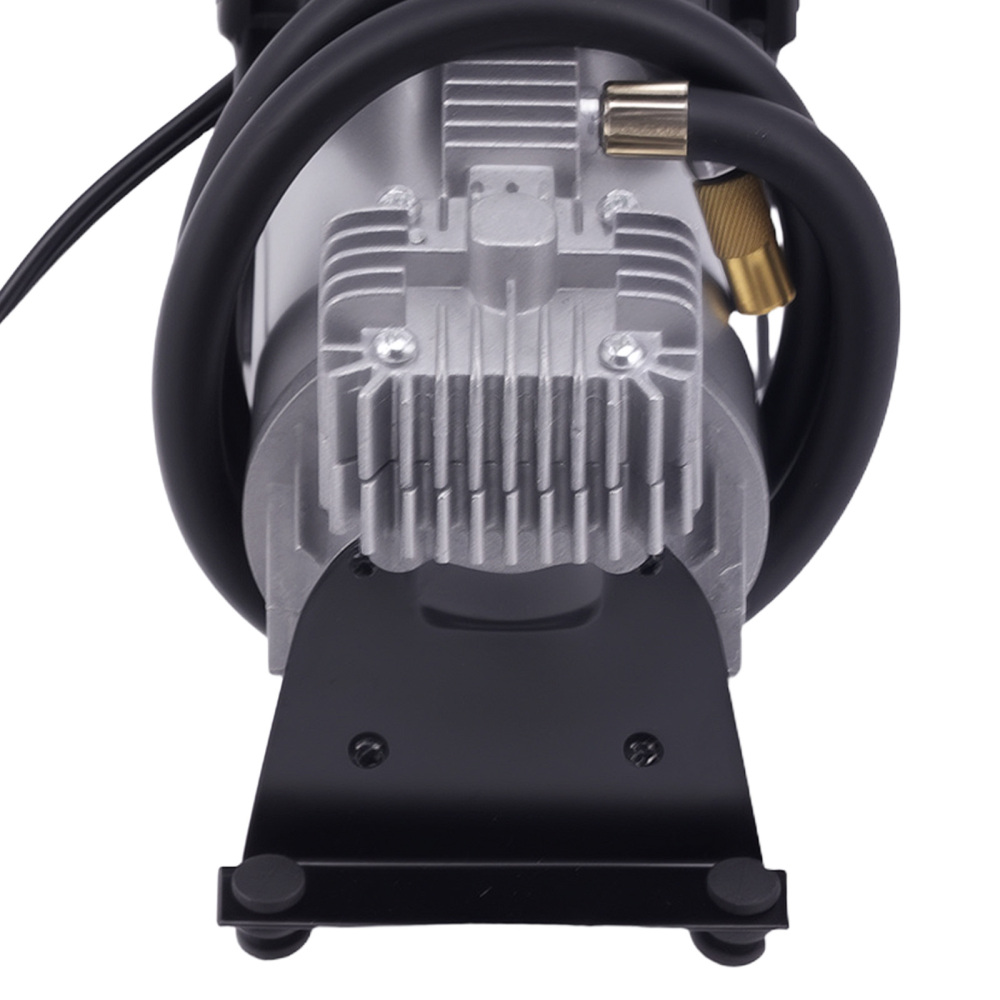

1x Air suspension compressor
1x Panel guage

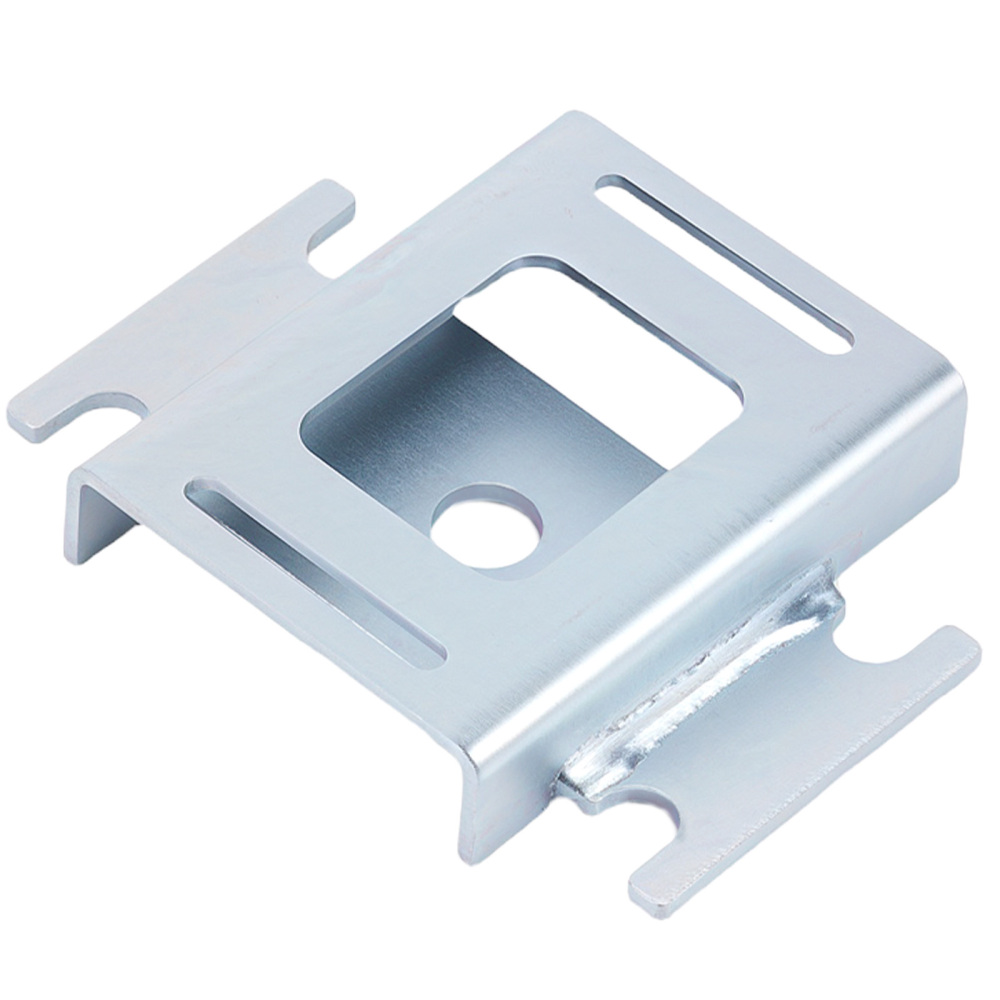

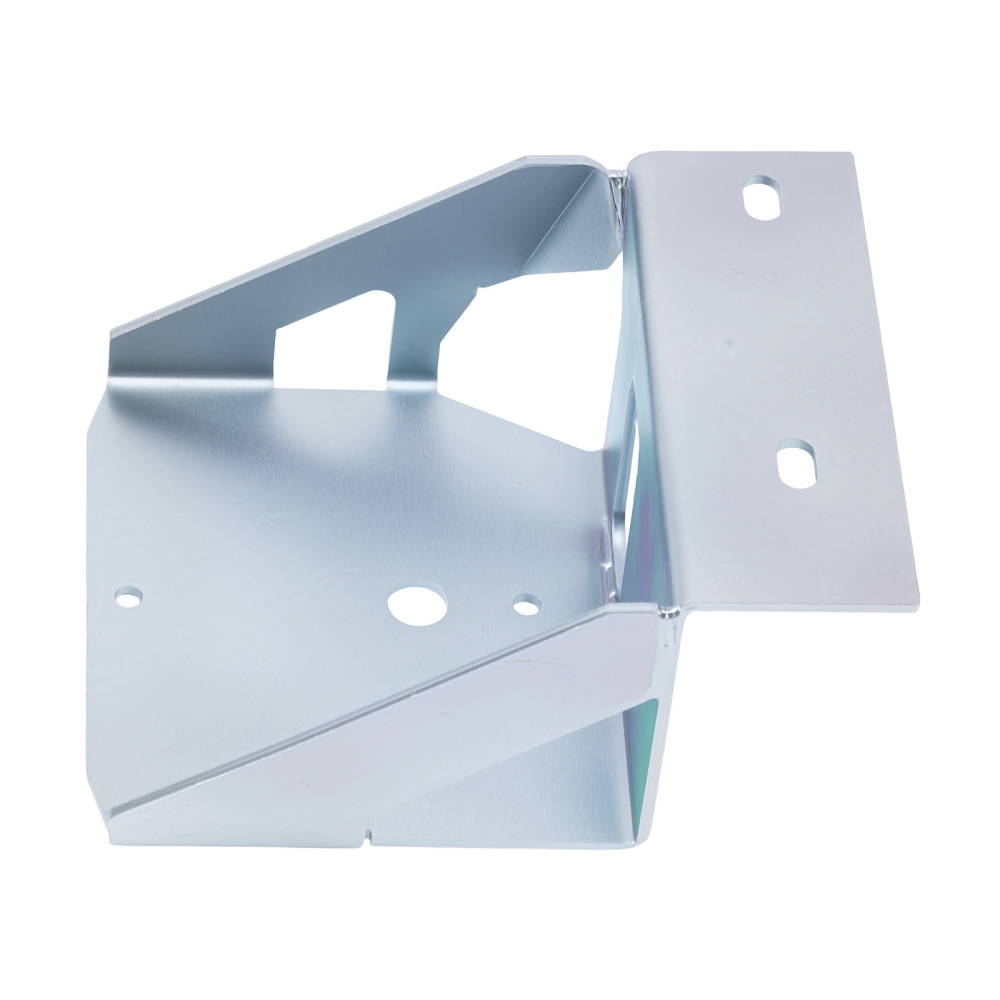

4x Mounting bracket
1x Air line 10m
Mounting bolts and Air fittings

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5. 4-Layer reinforcement construction: Enhances air spring load support.
6、Use high-quality steel with high load-bearing capacity and long life.
7、Excellent and practical bolt-on installation.
8、Safe carrying capacity and stability
9、Restore the original ride height and improve ride quality
10、Ensure our driving comfort and reduce tire wear.
11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
