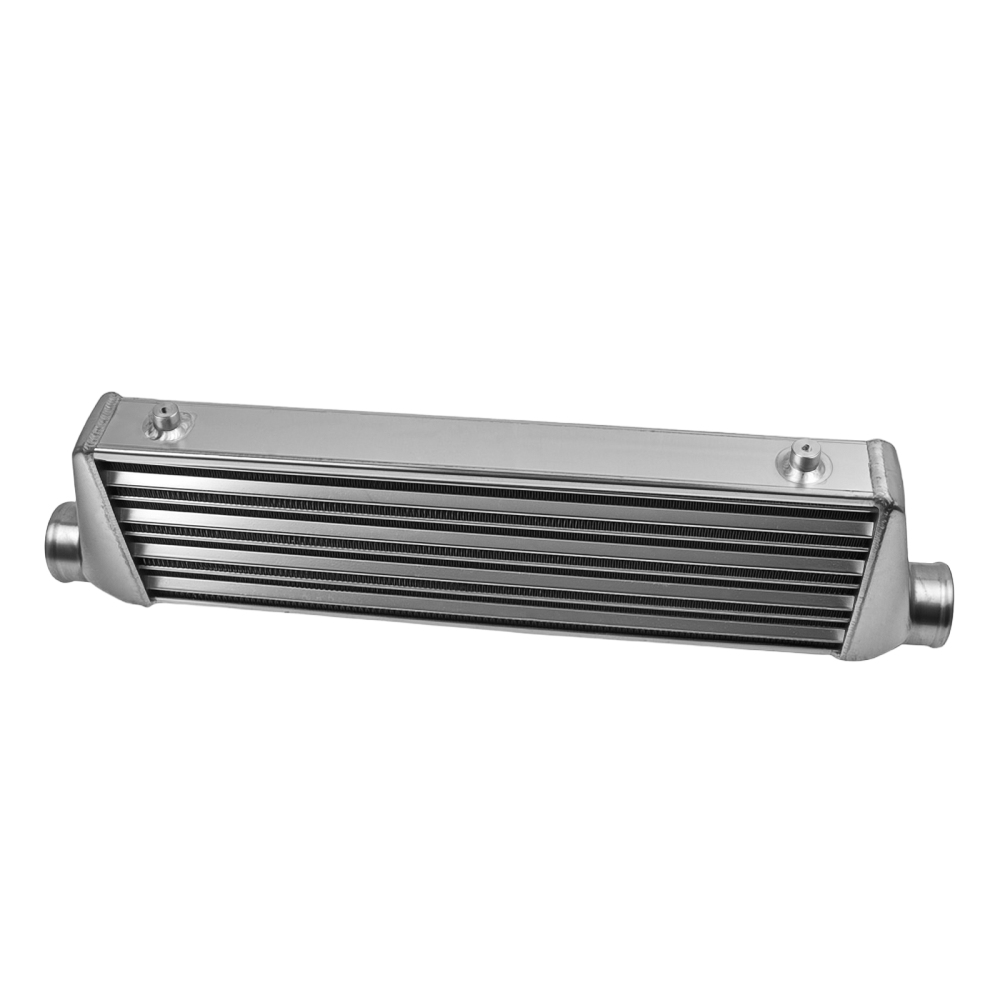

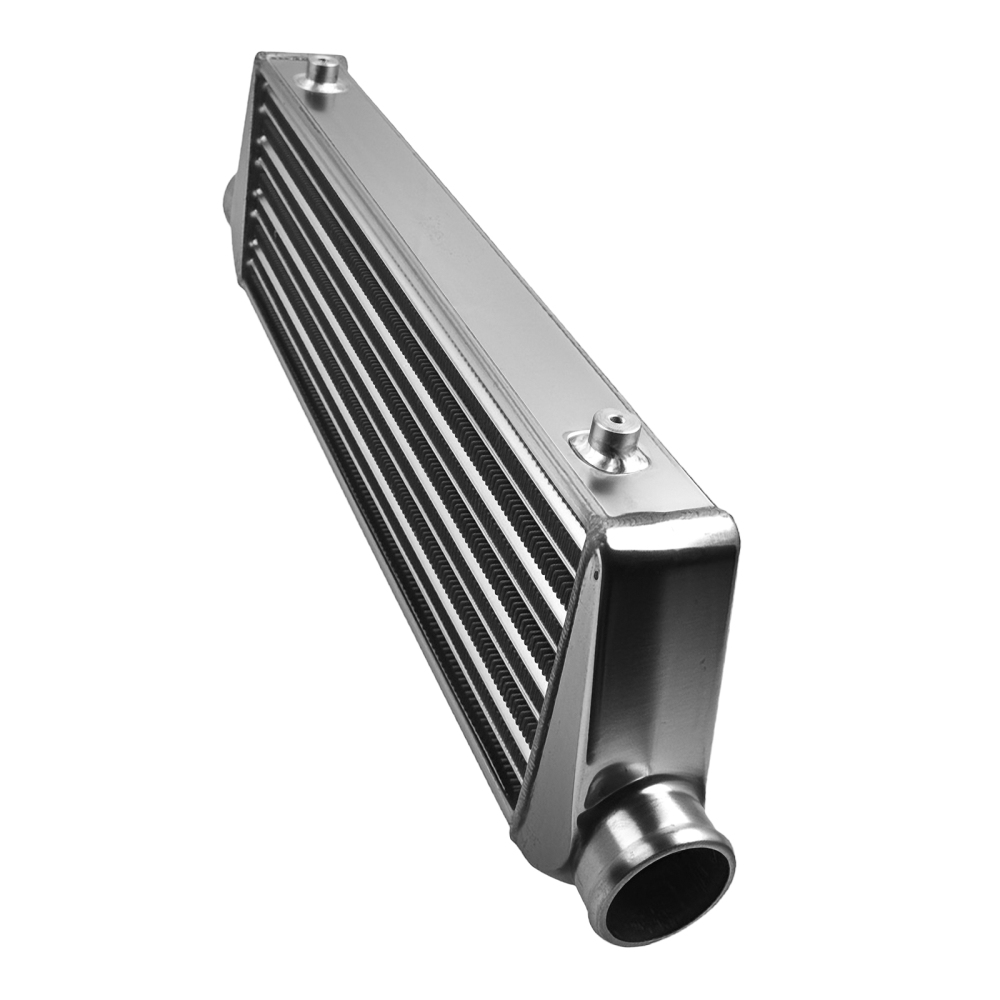

Universal Aluminum Front Mount Tube Turbo Intercooler 550mmx175mmx64mm Core

Product Code: ZLQ-27-7-25
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Description

Intercooler exchange device used on turbocharged and supercharged internal combustion engines to improve their volumetric efficiency by increasing intake air charge density through nearly isobaric cooling, which removes the heat of compression that occurs in any gas when its pressure is raised or its unit mass per unit volume is increased.

Application

IUniversal (Please take correct measurements to make sure it will fit in the location)

INTERCOOLER OVERALL SIZE: 27"x7"x2.5";

Specification

Condition: 100% Brand New
Inlet / outlet size: 2.5"
Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)
Core size :  21''x 7''x 2.25''
Weight: 3.160kg
Compress Air Flow Rate <350Cubic Feet/Min,Rated up to 500 Max HP
Pressure drop:  2~5psi at 35psi,  0.2~0.5psi at 15psi
Material:  Aluminum, Light weight designed
Core design:  Tube & Fin
Quantity:  1 piece
Warranty:  2 years

Feature

1. 100% brand new condition never used.
2. Tube & Fin Design
3. Light weight designed. Made of Aluminum.(Increase 10-20 HP).
4. Constructed with T6061 aluminum and precision TIG welded.
5. Extremely strong one-piece cast aluminum end tanks withstand high boost pressures.
5.  PSi Drop under 0.2. Other Intercooler usually drop 10Psi Some are More.
6. Max PSi is 30 Up to 400HP

Notice

1. Universally Fits Any Vehicle and Turbo Project

2. Please measure the area where the intercooler is planned to mount on to see if the dimension of this item fits the allotted space.

3. Modification might be Required for Some Vehicles

4. Professional installation is highly recommended
