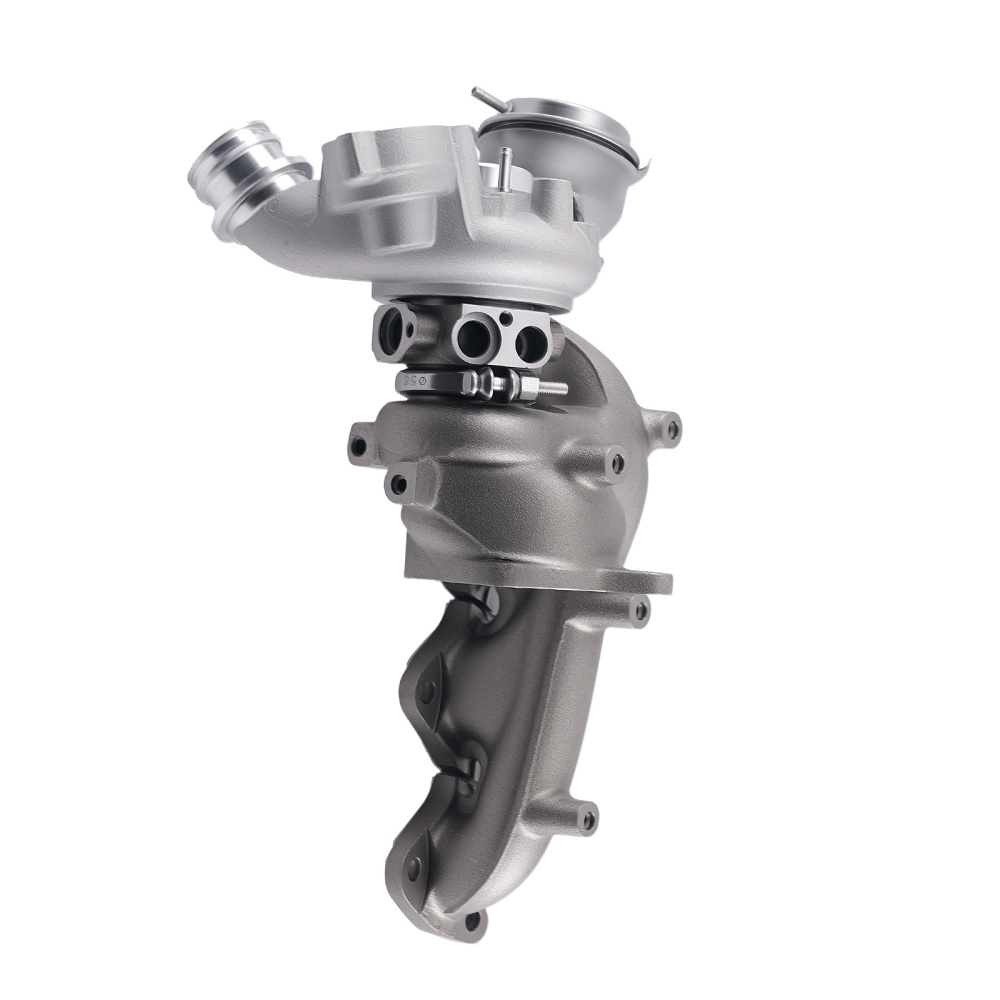

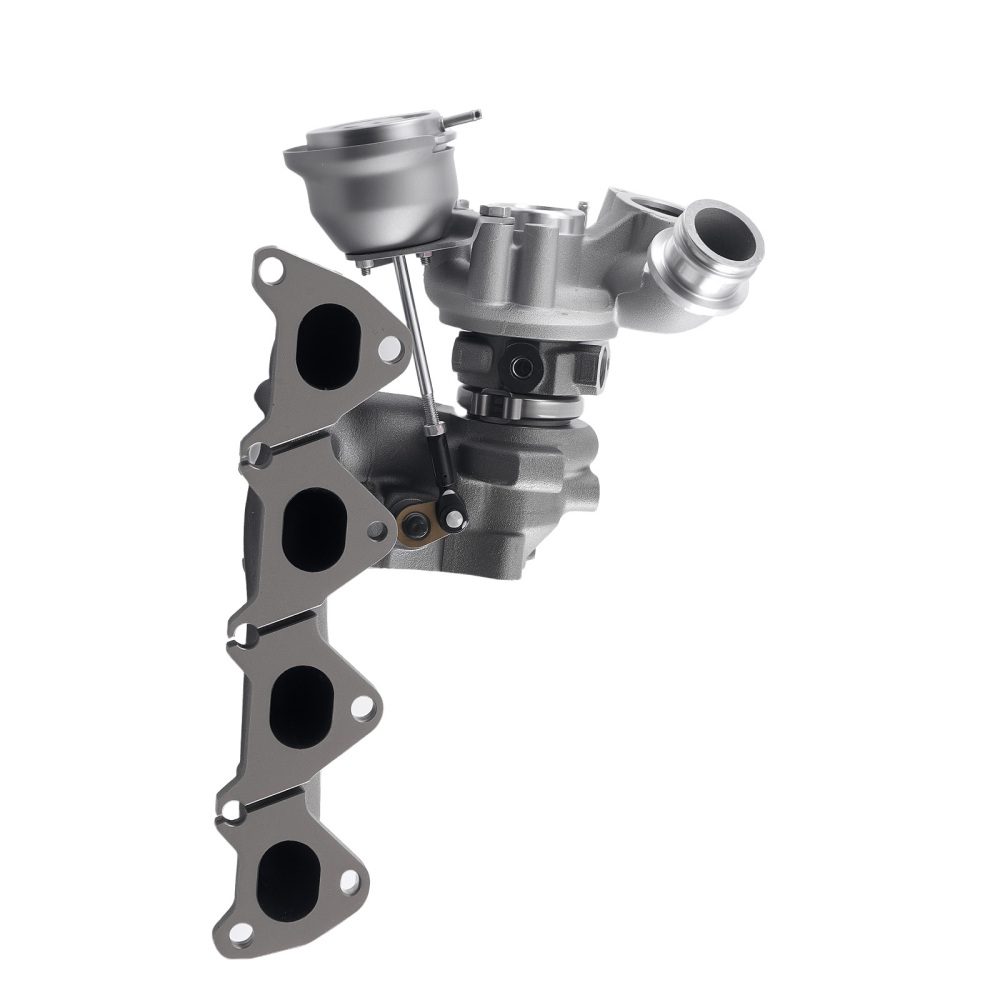

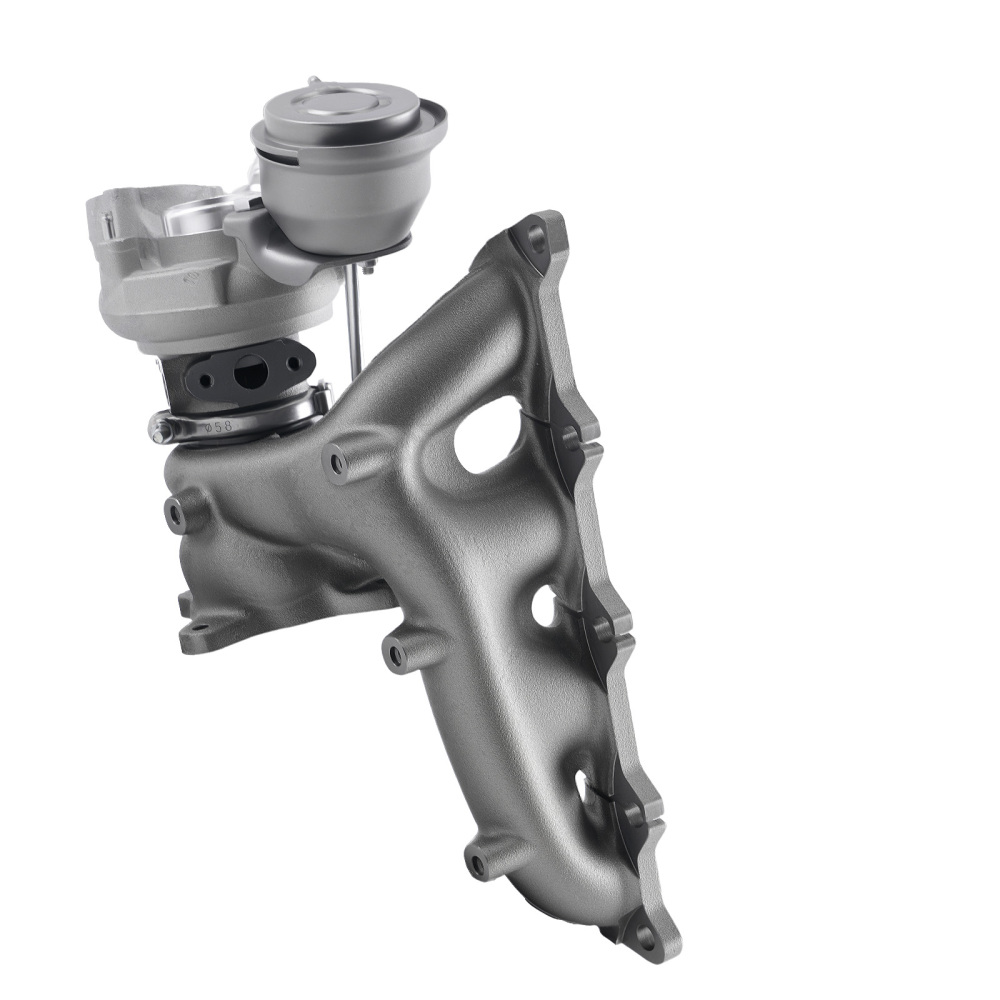

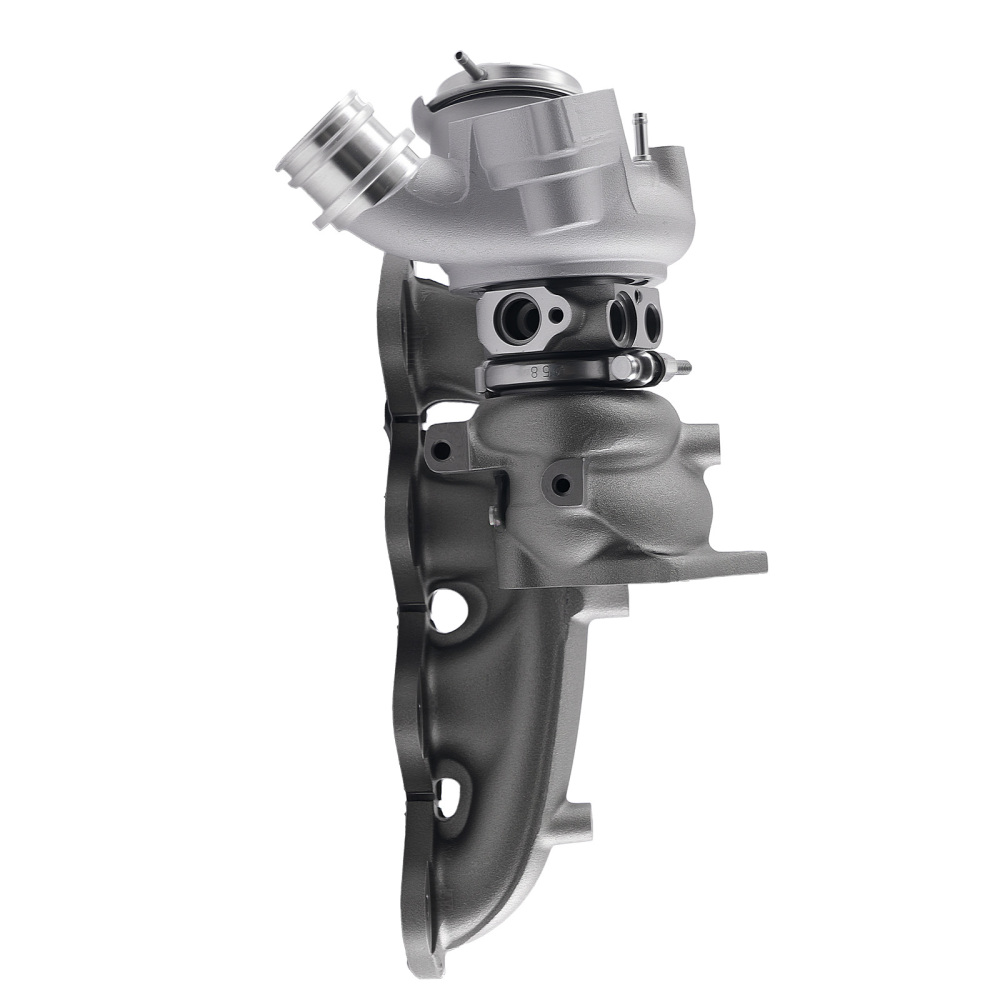

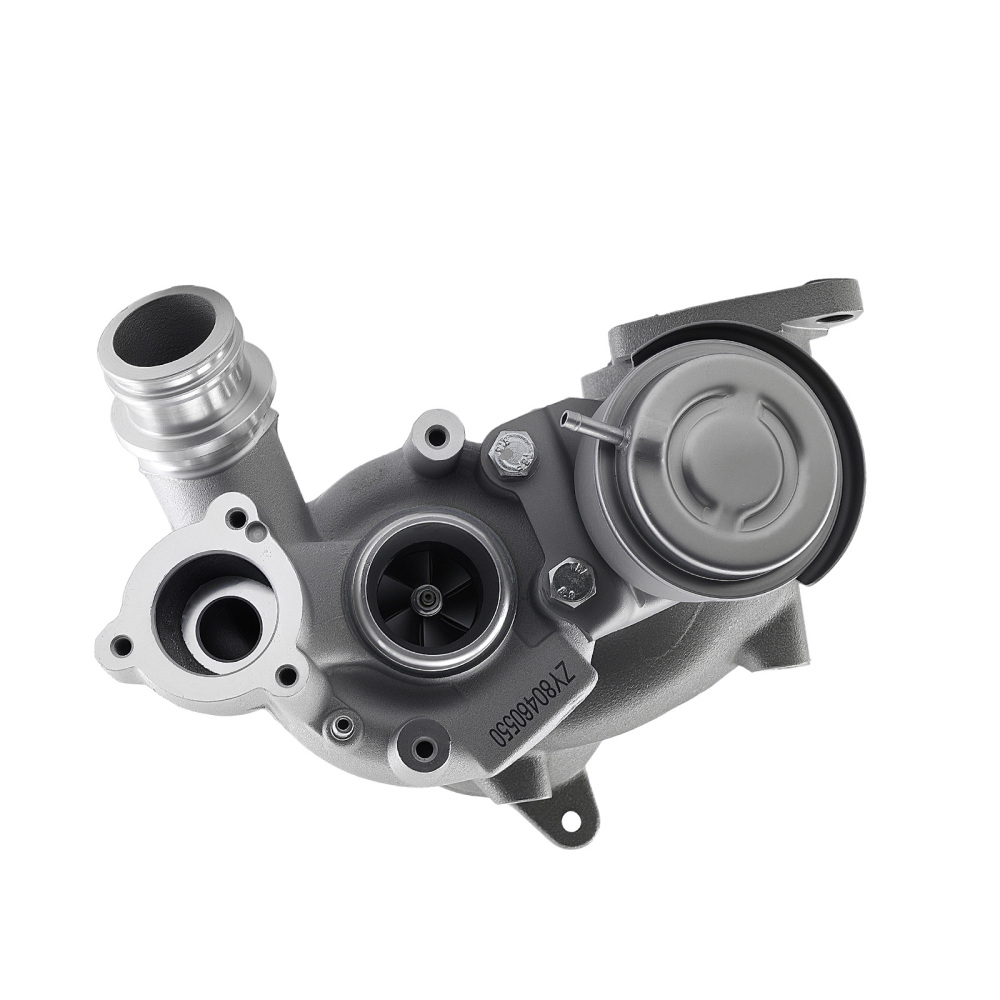

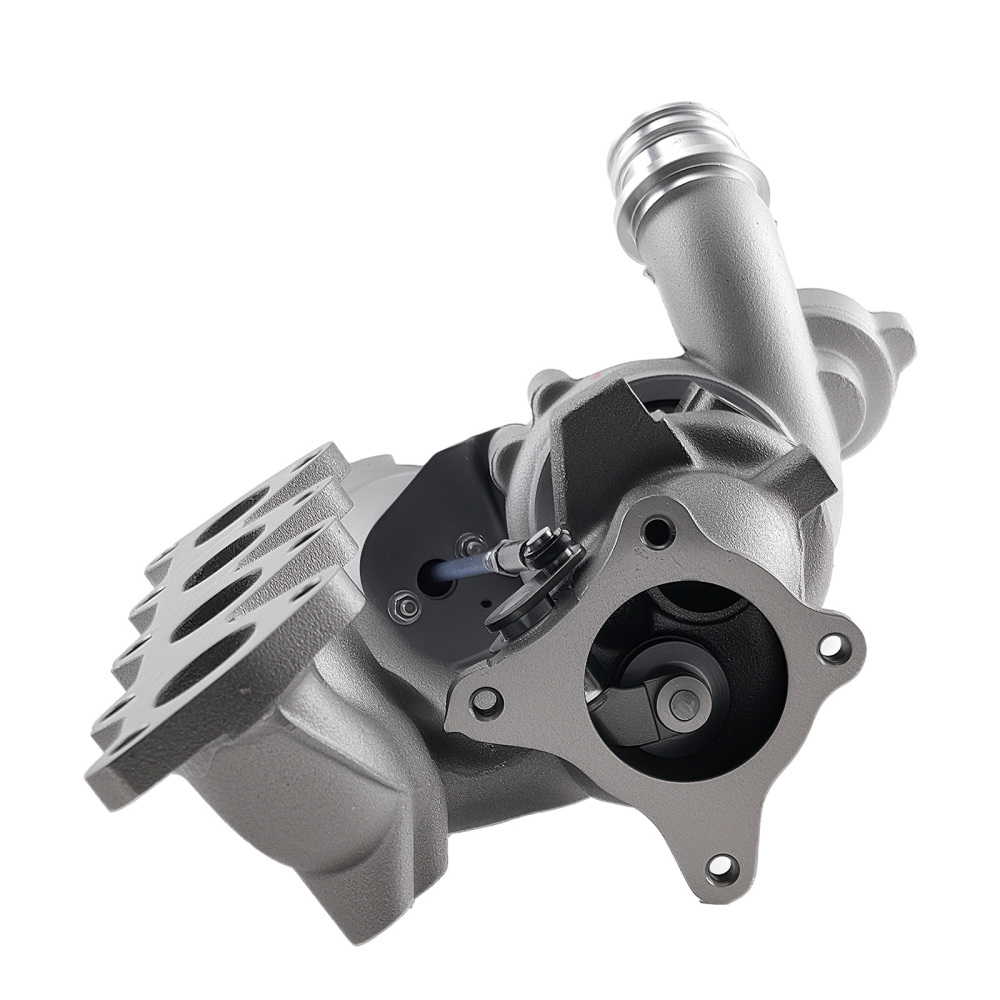

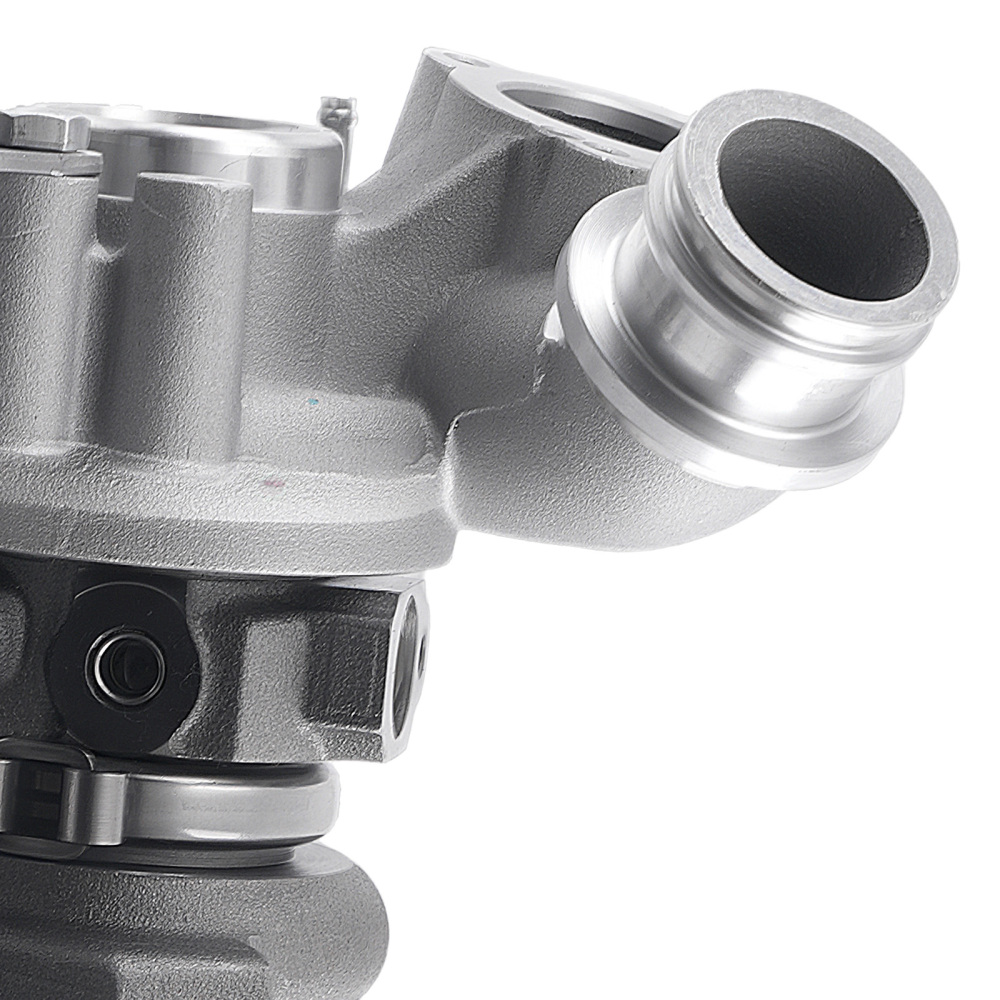

Turbocharger compatible for Audi A1 A3 1.4 TFSI 90KW CAXA CNVA 2007-2015 03C145701R

Application

Compatible for Audi A1 (8X1, 8XK) 1.4 TFSI 90KW CAXA, CNVA 2010-2015
compatible for Audi A1 (8XA, 8XF) 1.4 TFSI 90KW CAXA, CNVA 2011-2015
compatible for Audi A3 (8P1) 1.4 TFSI 92KW CAXC, CMSA 2007-2012
compatible for Audi A3 (8P7) 1.4 TFSI 92KW CAXC 2011-2013
compatible for Audi A3 (8PA) 1.4 TFSI 92KW CAXC, CMSA 2007-2013
compatible for Seat Altea (5P1) 1.4 TSI 92KW CAXC 2007-2022
compatible for Seat Altea XL (5P5, 5P8) 1.4 TSI 92KW CAXC 2007-2022
compatible for Seat Leon (1P1) 1.4 TSI 92KW CAXC 2007-2012
compatible for Seat Toledo III (1M2, 5P2) 1.4 TSI 92KW CAXC 2007-2009
compatible for Seat Toledo IV (KG3) 1.4 TSI 90KW CAXA 2012-2015
compatible for Skoda Octavia II (1Z3) 1.4 TSI 90KW CAXA 2008-2013
compatible for Skoda Octavia II (1Z5) 1.4 TSI 90KW CAXA 2008-2013
compatible for Skoda Rapid (NH1) 1.4 TSI 90KW CAXA 2012-2015
compatible for Skoda Rapid (NH3, NK3, NK6) 1.4 TSI 90KW CAXA 2012-2015
compatible for Skoda Superb II (3T4) 1.4 TSI 92KW CAXC 2008-2015
compatible for Skoda Superb II (3T5) 1.4 TSI 92KW CAXC 2009-2015
compatible for Skoda Yeti (5L) 1.4 TSI 90KW CAXA 2010-2015
compatible for VW Eos (1F7, 1F8) 1.4 TSI 90KW CAXA 2007-2015
compatible for VW Golf V (1K1) 1.4 TSI 90KW CAXA 2007-2008
compatible for VW Golf V (1K5) 1.4 TSI 90KW CAXA 2007-2009
compatible for VW Golf VI (517) 1.4 TSI 90KW CAXA 2011-2016
compatible for VW Golf VI (5K1) 1.4 TSI 90KW CAXA 2008-2012
compatible for VW Golf VI (AJ5) 1.4 TSI 90KW CAXA 2009-2013
compatible for VW Golf Plus (521) 1.4 TSi 90KW CAXA 2009-2014
compatible for VW Golf Plus V (521, 5M1) 1.4 TSI 90KW CAXA 2007-2013
compatible for VW Golf Van VI (AJ5) 1.4 TSi 90KW CAXA 2009-2014
compatible for VW Jetta III (1K2) 1.4 TSI 90KW CAXA 2007-2010
compatible for VW Jetta IV (162, 163, AV2, AV3) 1.4 TSI 90KW CAXA, CMSB 2011-2022
compatible for VW Passat B6 (3C2) 1.4 TSI 90KW CAXA 2007-2010
compatible for VW Passat B6 (3C5) 1.4 TSI 90KW CAXA 2007-2010
compatible for VW Passat B7 (362) 1.4 TSI 90KW CAXA 2010-2014
compatible for VW Passat B7 (365) 1.4 TSI 90KW CAXA 2010-2014
compatible for VW Scirocco (137) 1.4 TSi 90KW CAXA 2008-2014
compatible for VW Scirocco III (137, 138) 1.4 TSI 90KW CAXA, CMSB 2008-2017
compatible for VW Tiguan (5N_) 1.4 TSI 90KW CAXA 2010-2018
compatible for VW Tiguan (5N_) 1.4 TSI 90KW CAXA 2010-2011

OE/Part number

03C145701C, 03C145701CV, 03C145701CX, 03C145701F, 03C145701FV, 03C145701FX, 03C145701J, 03C145701JV, 03C145701JX, 03C145701N, 03C145701NV, 03C145701NX, 03C145701R, 03C145701RV, 03C145701RX, 03C145702A, 03C145702AV, 03C145702AX, 03C145702C, 03C145702CV, 03C145702CX, 03C145702L, 03C145702LV, 03C145702LX, 03C145702V, 49373-01001, 49373-01002, 49373-01003, 49373-01004, 49373-01005, 4937301001, 4937301002, 4937301003, 4937301004, 4937301005

Specification

Turbo Model: TD025M2-07T
Engine Code: CAXA, CAXC, CNVA, CNVB
Finish: Matte
Condition: 100% Brand New

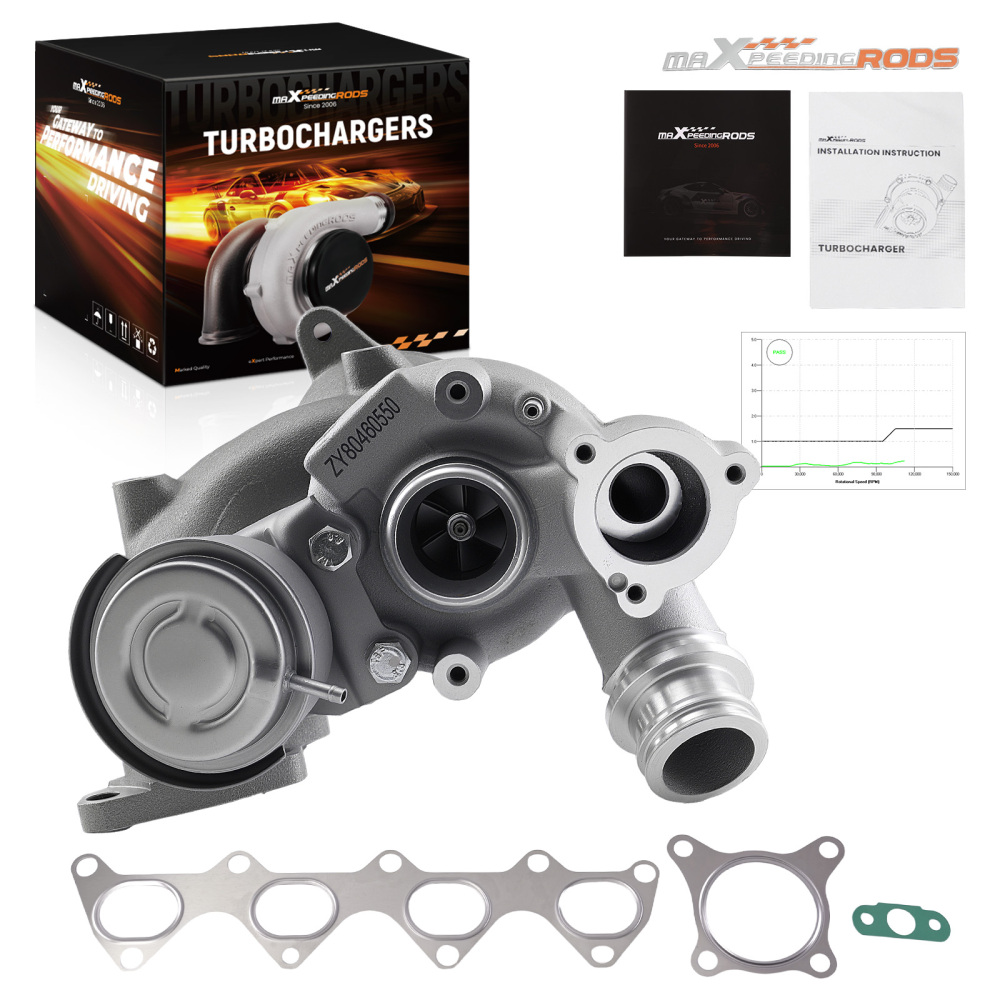

Accessories: You will get what you can see in the pictures exactly

Feature

* Product Material

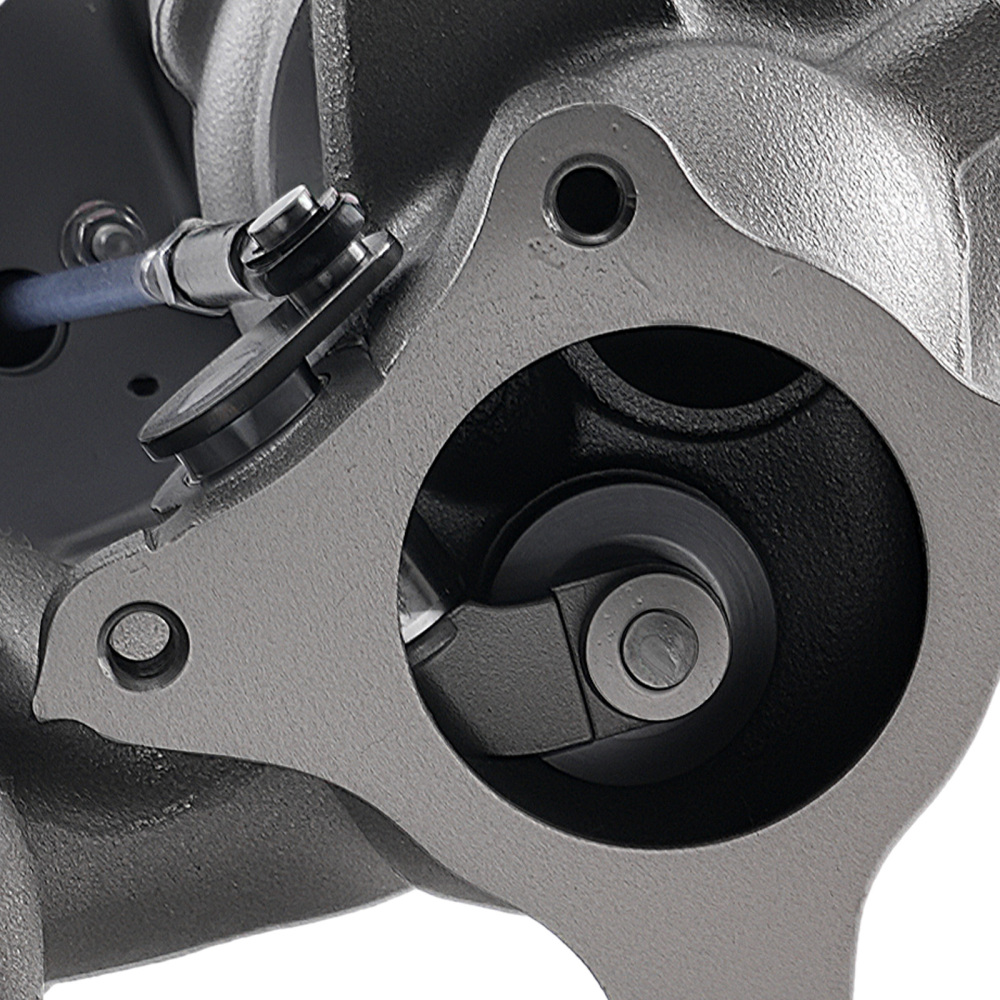

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight

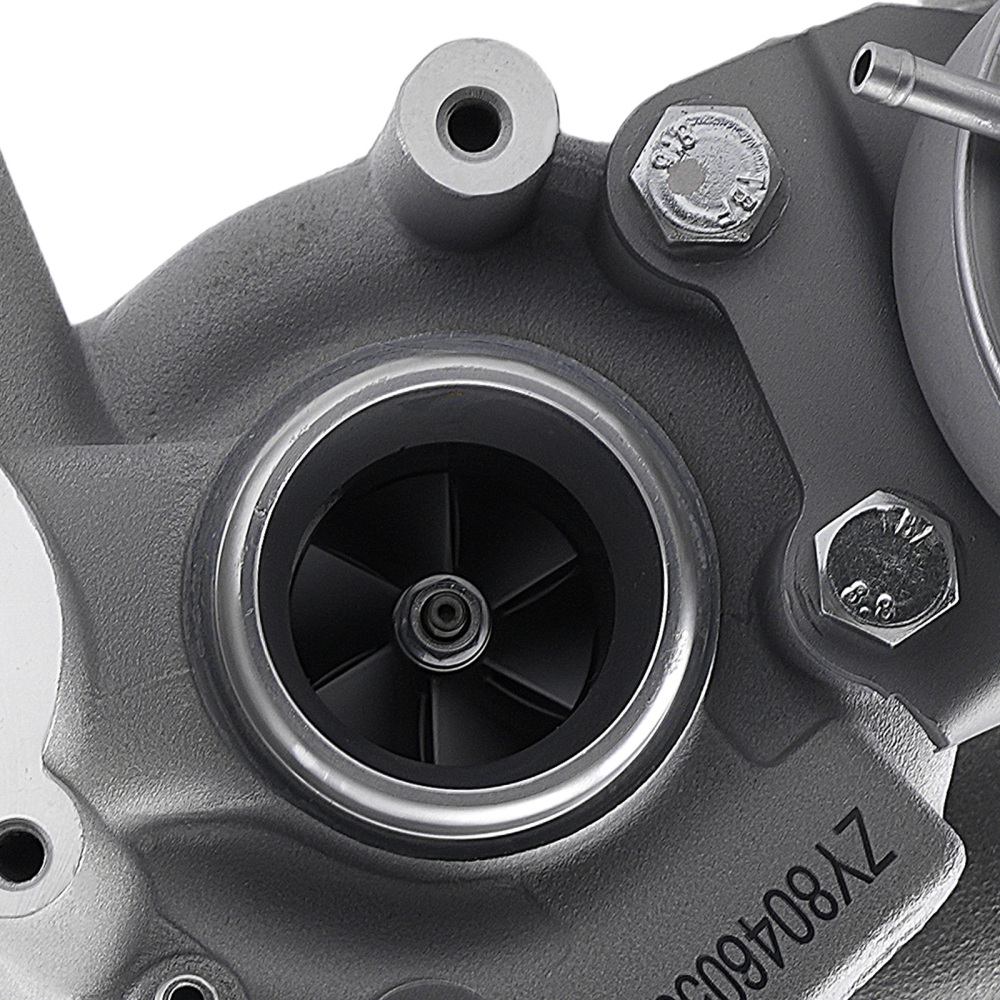

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
