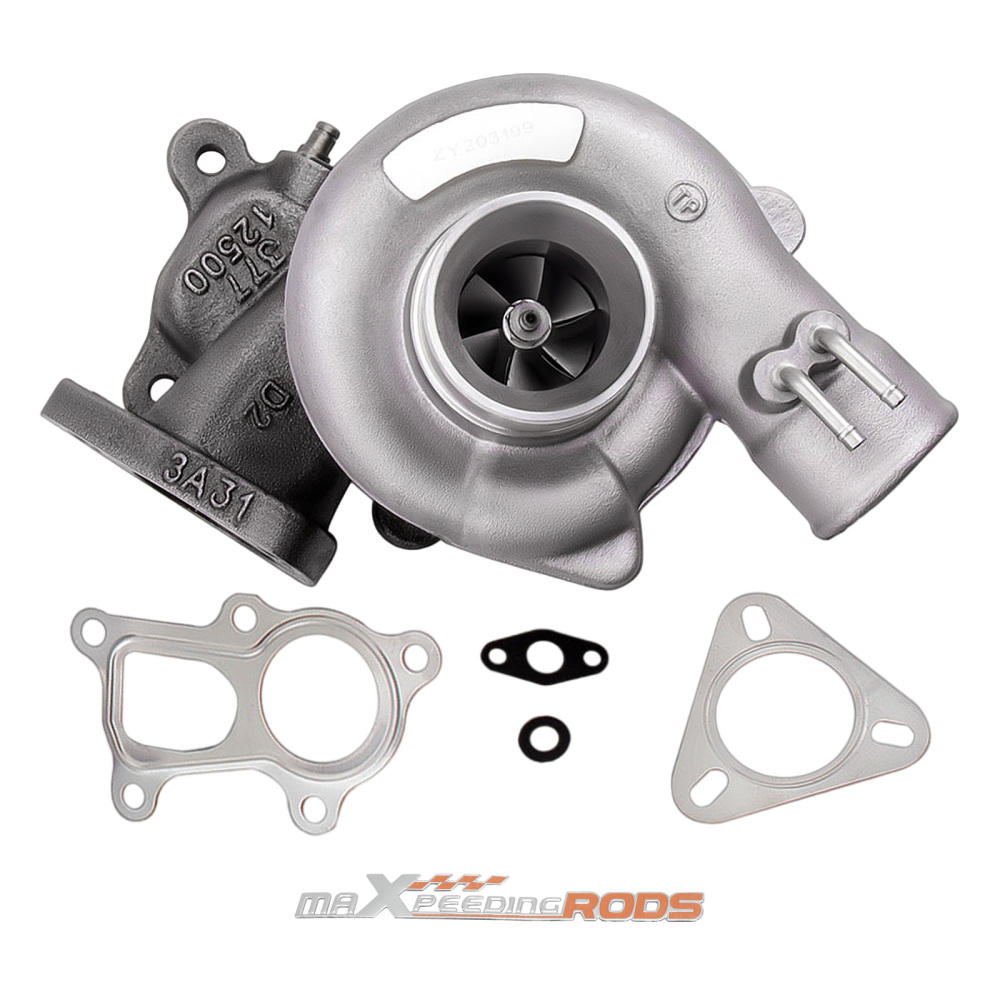

Compatible for Mitsubishi Triton L200 2.5L 4D56 TD04-10T TF035 Water Turbo Turbocharger

lncl. 20% VAT
  • * OEM-Quality. Direct Replacement
  • * Ductile Iron QT450-10 - High temperature resistance (up to 700℃)
  • * K418 Alloy - Stable & High Oxidation & Temperature Resistance(up to 900℃)
  • * Cast Aluminium Blade - Good Air Tightness & Corrosion Resistance
Item Number 3002032356
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
OEM-quality and size with little modification
Turbine housing uses cast iron withstand temperatures up to 700℃
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃
Cast aluminium blades with good gas tightness and corrosion resistance


Compatible for Mitsubishi Pajero, Shogun:
Compatible for Hyundai Gallopper 2.5 TDI Engine D4BH (4D56 TCI) 1996-
Compatible for Mitsubishi Gallopper TCI Engine D4BH (4D56 TCI) 1996-
Compatible for Mitsubishi L200 2,5L TD 4x4 Engine: 4D56 (Turbo) 1996-1998
Compatible for Mitsubishi Pajero II 2.5L TD 1993-
*Notice:The flange of turbine outlet is 5-bolts,not 3-bolts.
Please be sure to check your engine code is 4D56/D4BH before purchasing.

OE/Part number

4917702512, 49177-02512,
4917702513, 49177-02513,
4913504020, 49135-04020,
4913504021, 49135-04021,
4917707612, 49177-07612,
282004A200, 28200-4A200,
2820042540, 28200-42540,
MD194845, MR355225,
*This turbo goes with oil and water-cooling bearing housing that would fit original oil-cooled turbo with OE/PN number below, but need to close water hole:
49177-02500, 4917702500,
49177-02501, 4917702501,
49177-02510, 4917702510,
49177-02511, 4917702511,
MD187208, MD170563,
MD187211, MD155984,


Exhaust Inlet Flange:3 Bolt
Exhaust Outlet Flange:5 Bolt
Turbo Model: TD04-11G-4
Engine Code: 4D56, D4BH
Cooling Type: Water+Oil Cooling
Bearing Type: Floating Bearing
Thrust bearings: 270 Degrees
Horsepower: 73KW/ 98HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above
Package Size:27*24*22cm
Package Weight:5100g

Package included

2xFlange gaskets
2xOil/Water port gaskets


* Product Material
1. Turbine housing :Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing:ZL104 aluminum with lightweight
4. Compressor wheel/blades:Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer


* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Warranty: one year warranty for any manufacturing defect
