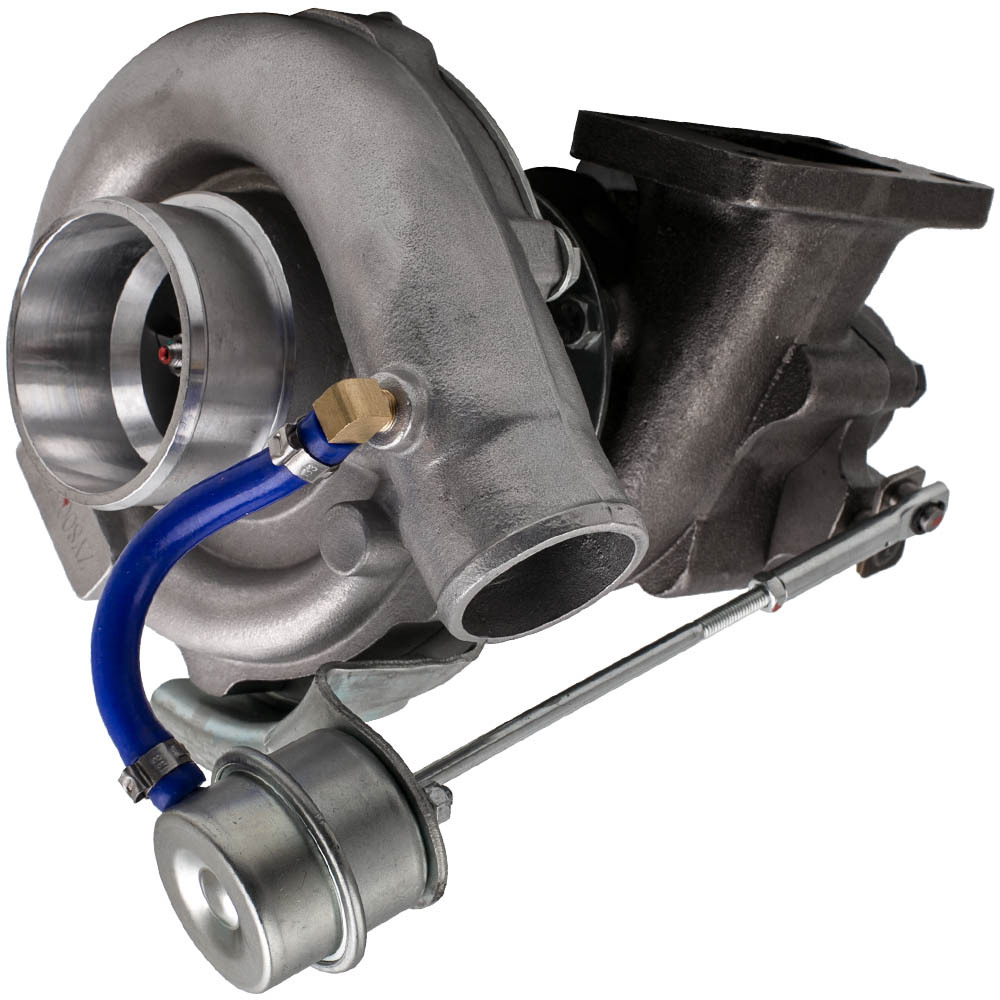

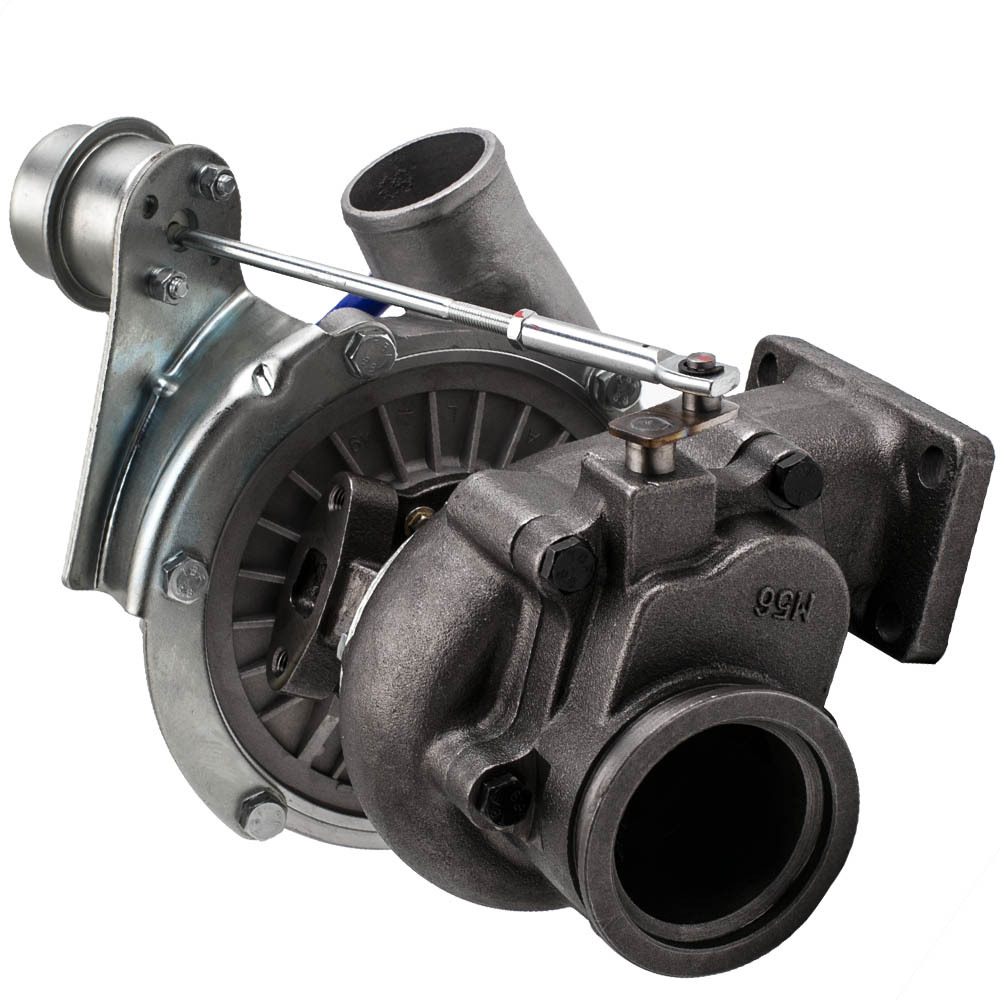

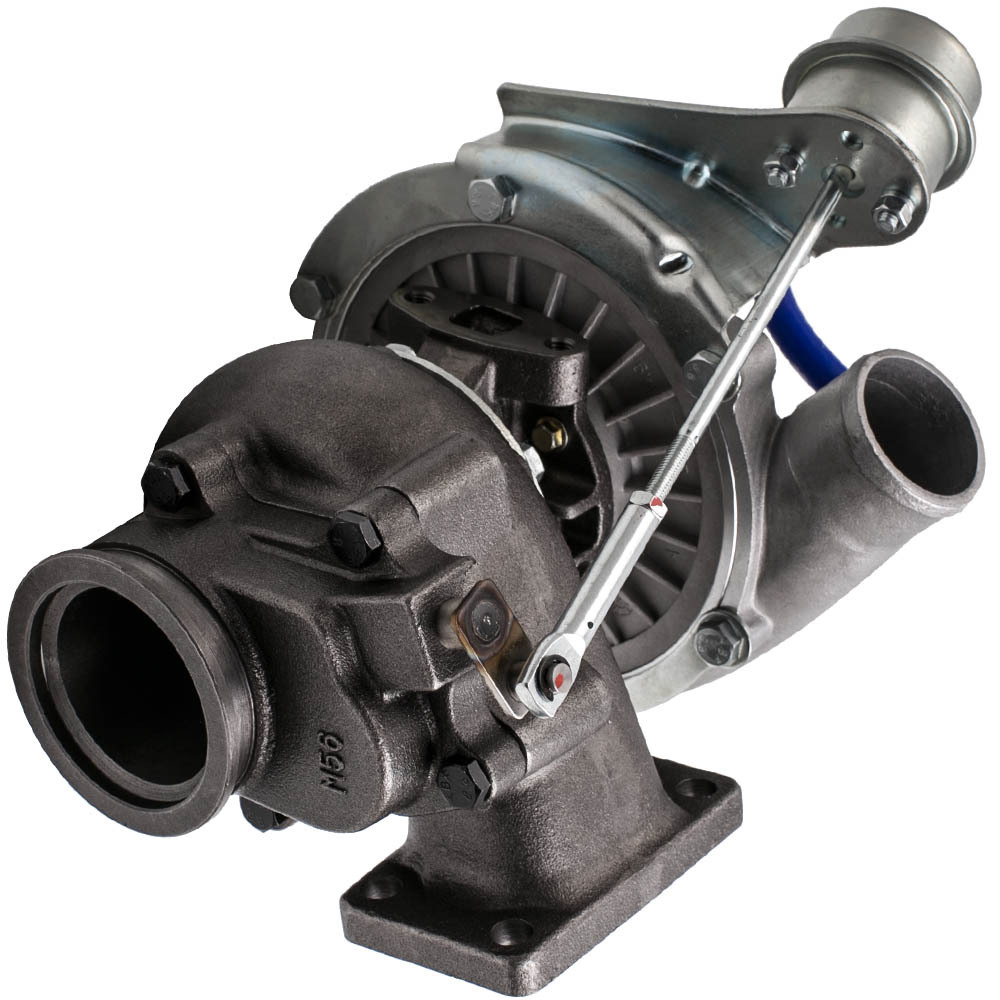

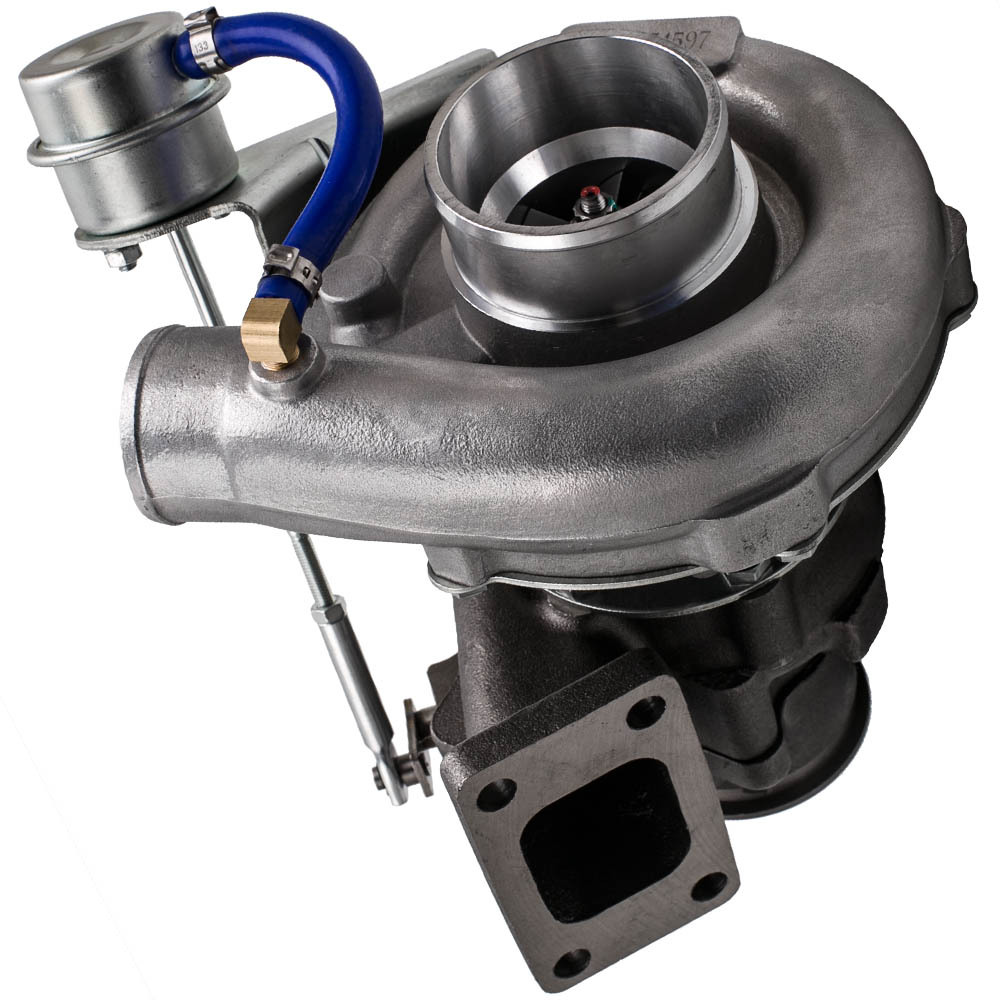

T04e T3/t4 Turbo Turbocharger Compressor V-band+boost Controller 1-30 Psi Adjust

Application

Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines

Specification

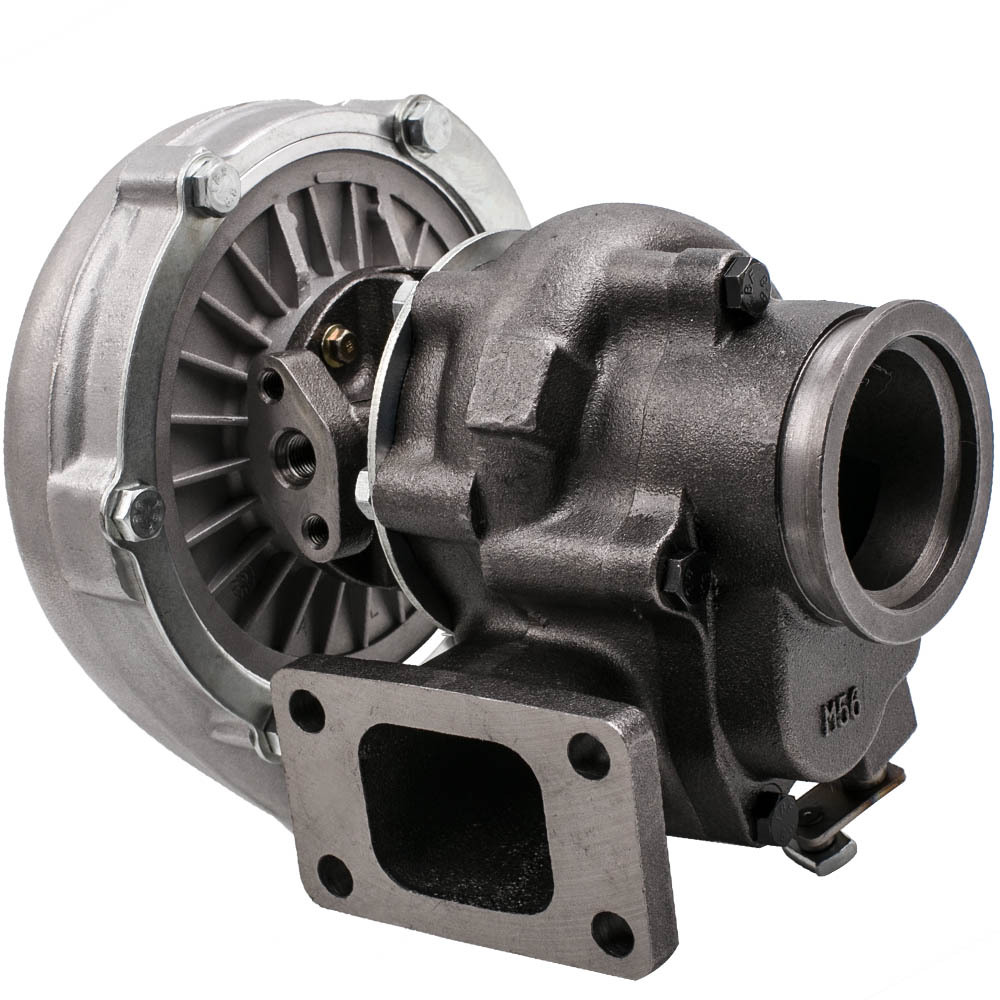

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP
Compressor:
Trim: 48.1
Inducer Diameter:52.7 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine:

Trim:74.2
Inducer Diameter:64.8 mm
Exducer Diameter:55.8 mm
A/R:0.63

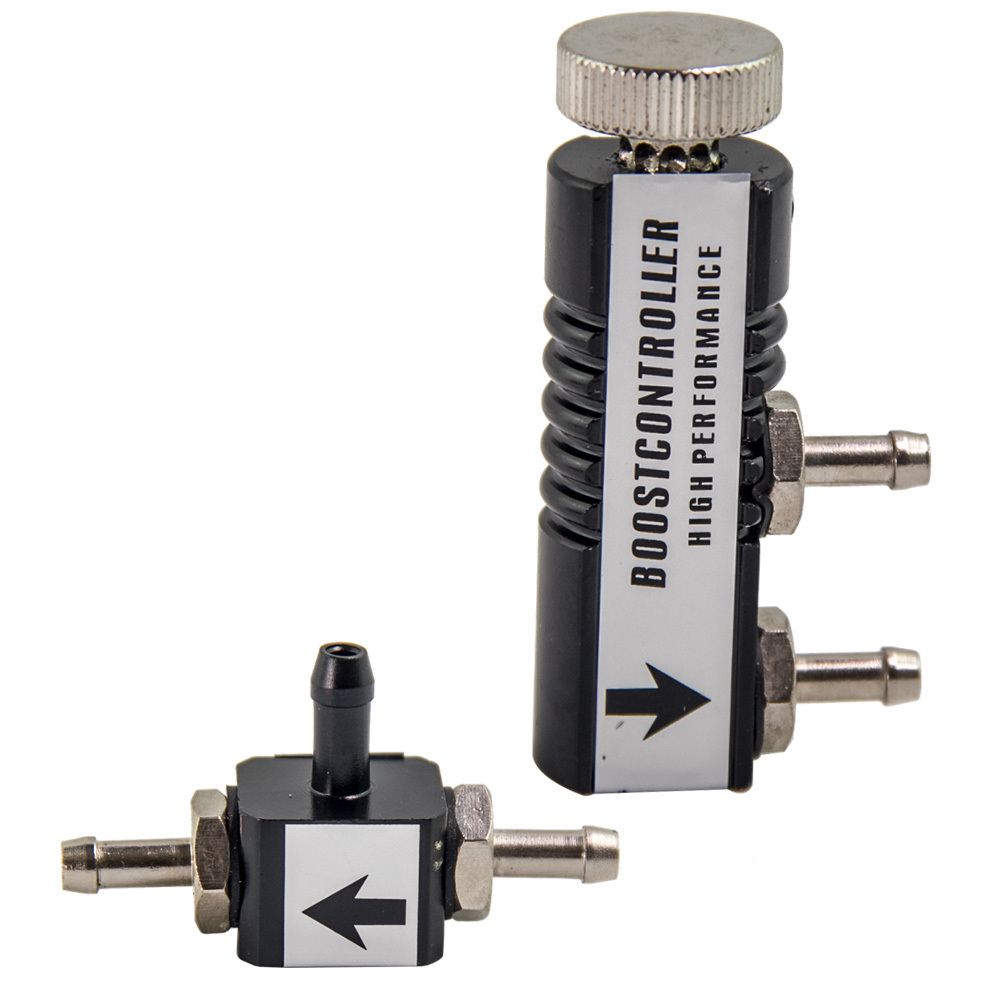

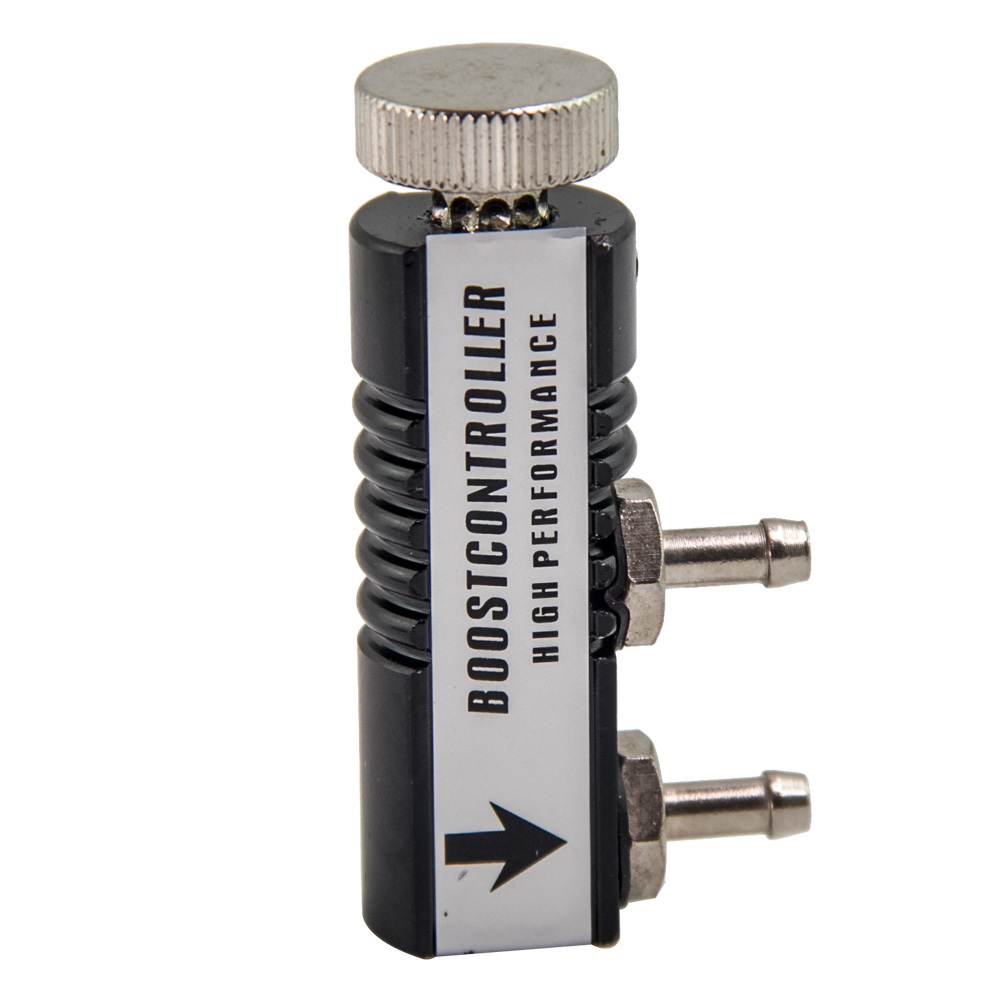

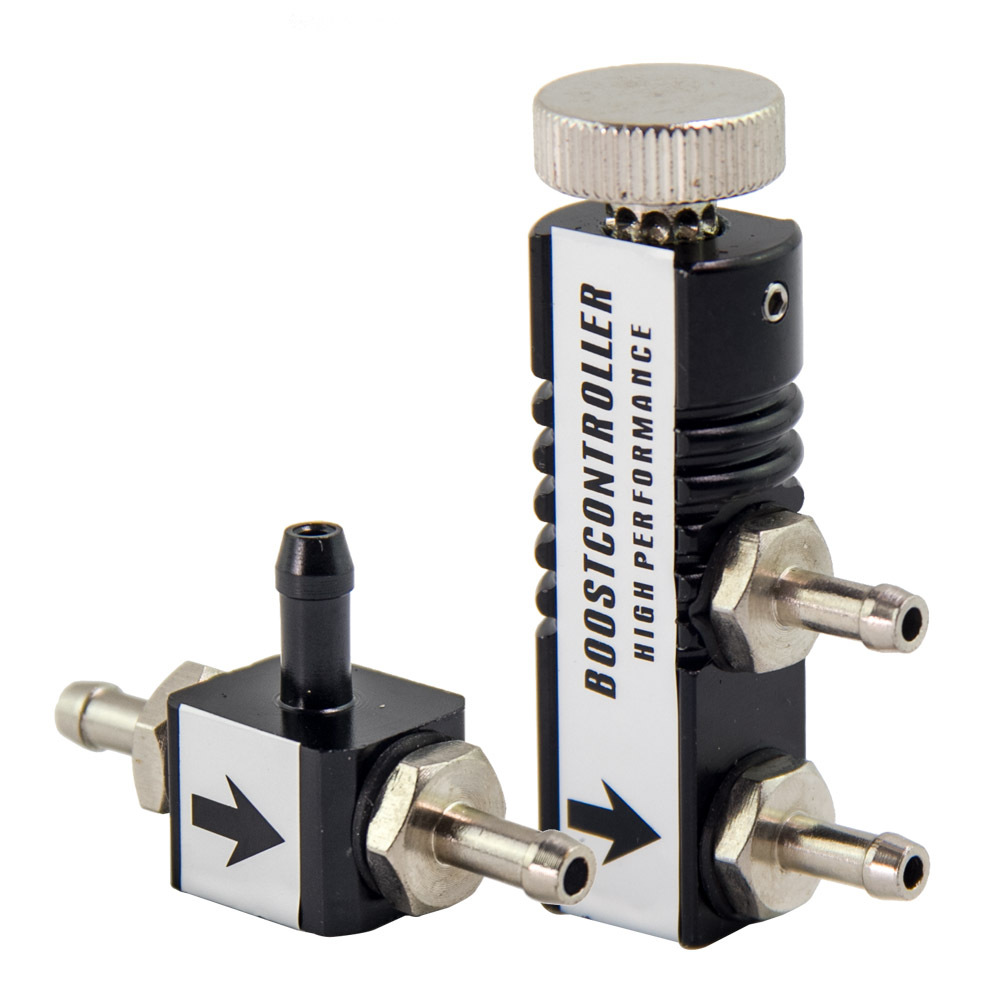

Turbo Boost Controller
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25

Allows adjustable boost psi settings, light weight design to be mount under the hood. Hardware is included

Adjustable boost knob increases horsepower and torque, depends on boost level.

Universal fitment and great for all Turbo applications

CNC Machined Aluminum Body

1-30 PSI Adjustable

Condition: New
Bearing Type: Floating Bearing
Warranty: one year for any manufacture defects

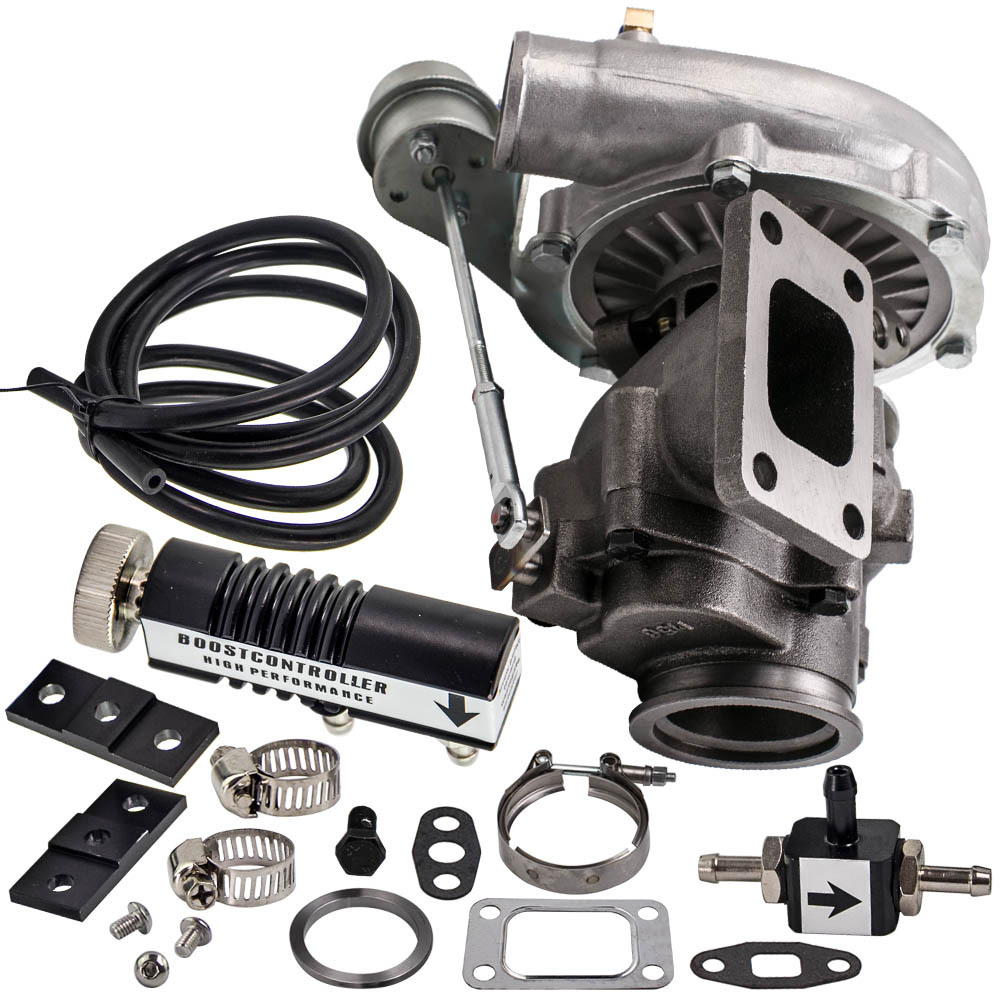

Accessories: You will get exactly as shown in the picture above

Note

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
