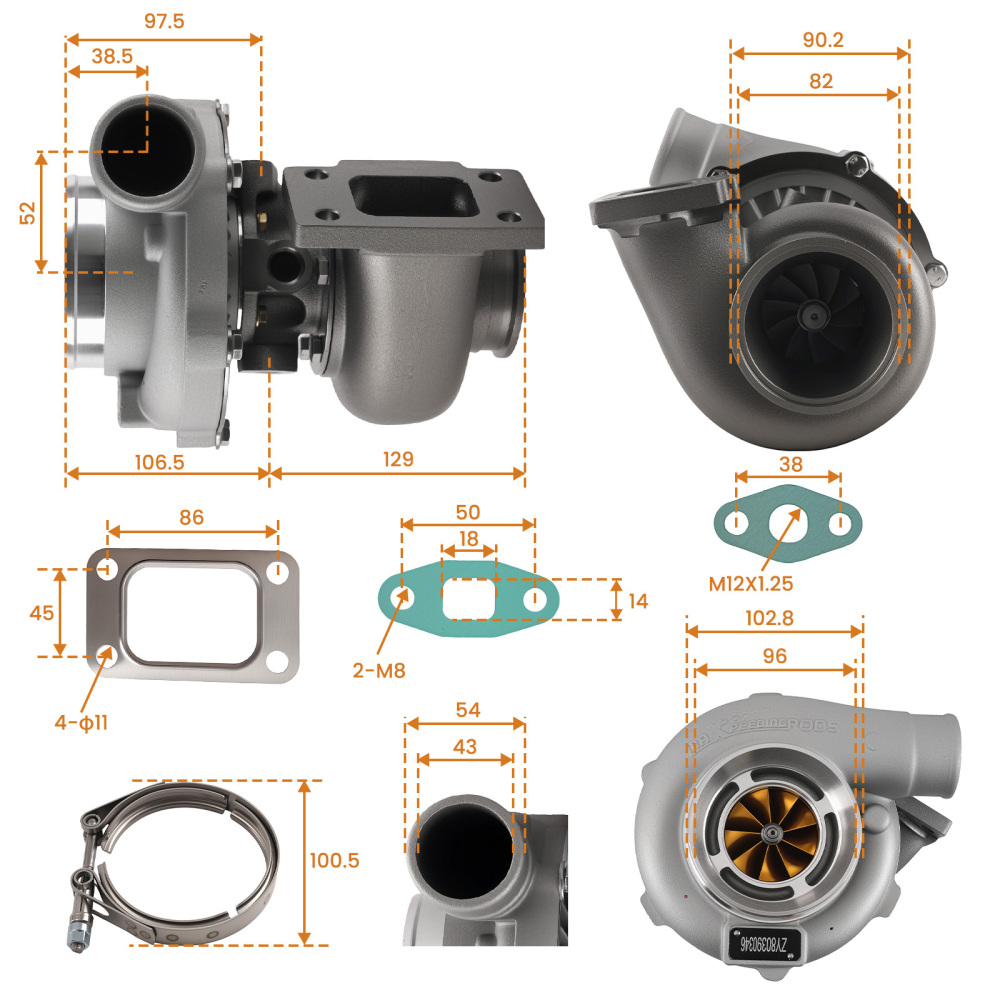

Universal Billet Turbocharger Gt3037 T3 Flange For 4/6 Cyl 2.5l-3.0l Engines

Application

Perfect for all 4/ 6 cyl 2.5L-3.0L engines

Specification

Exhaust Inlet Flange: Standard T3 Flange

Exhaust Outlet Flange: V-Band

Compressor Wheel: Billet Compressor Wheel

Turbine Side:

Turbine Trim: 74.2

Turbine Inducer Diameter:64.8mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.82

Compressor Side:

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76mm

Compressor A/R:0.6

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Water: M18*1.5

 Turbine Outlet Inner Diameter: 74.14mm

Turbine Outlet Outer Diameter: 82.05mm

Horse Power: Capable of Boosting Horse Power up to 500BHP

Cooling Type: Water + Oil Cooled

Wastegate：Without Wastegate

Bearing: Journal Bearing

Thrust bearing: 270 Degrees

Turbo Type: Individual

Condition: 100% Brand New

Accessories: You will get exactly as shown in the picture above

Package Size:30 x 28 x 24cm

Package Weight: 8750g

Package included

1x Turbocharger

1x Flange gasket

4x Oil/Water port gaskets

1x V-Band flange adapter ring & Clamp

1x Oil restrictor

1x Manual

1x Brochure

1x Sticker

Feature

*Product Material
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Appearance upgrade
（1）Turbine outlet V-BAND: Easy installation
（2）New compressor wheel design

*Product
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

*Product

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

ebay站点新增参数

Universal Fitment: Yes

Finish:Matte
