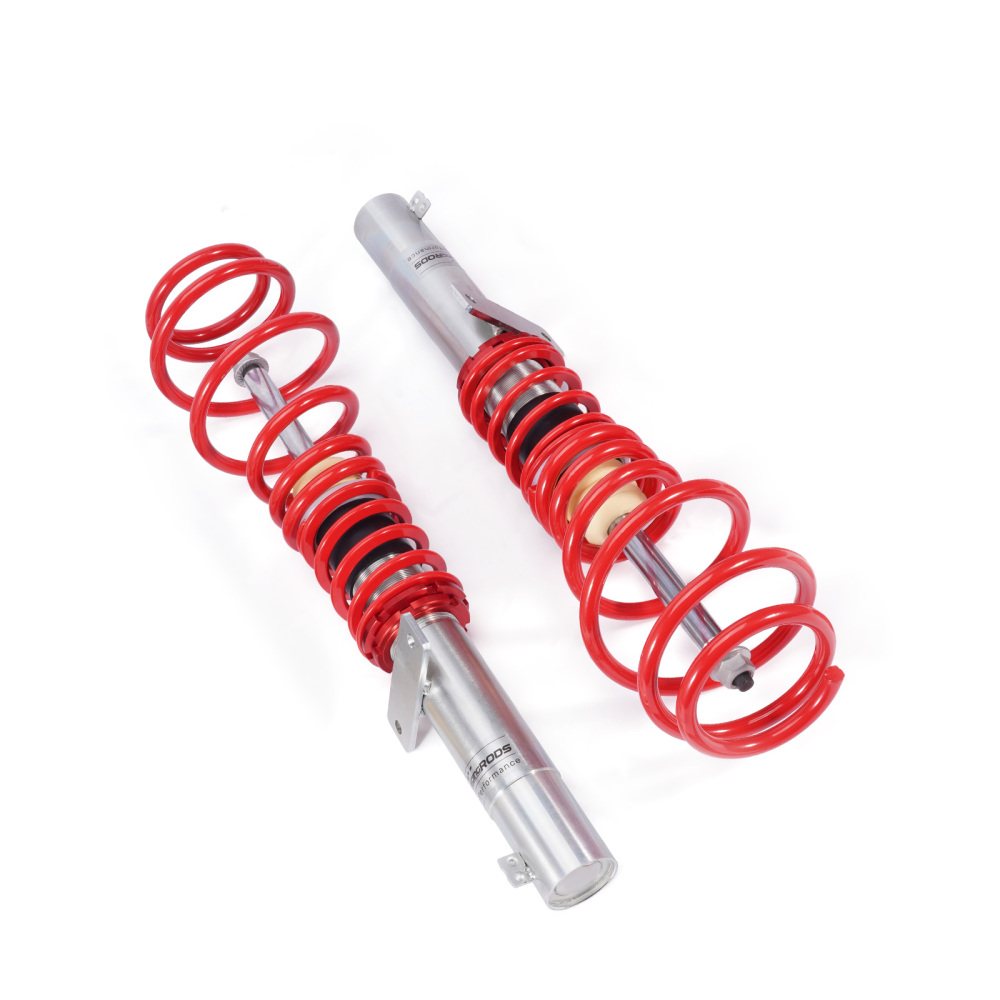

Street Coilovers Kit compatible for Seat Ibiza Mk5 KJ 1.0 1.5 TSi 1.6TDi 2017-

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops

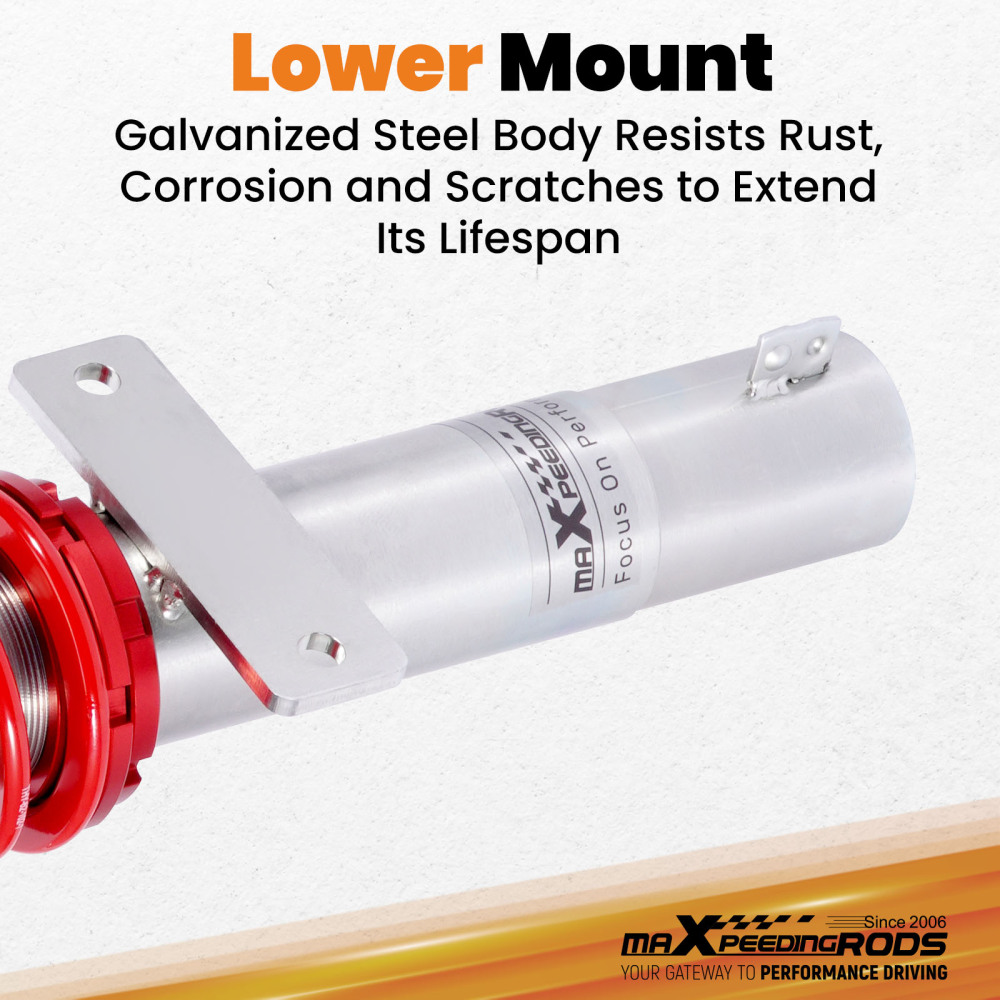

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Introduction

maXpeedingrods' maXpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for Audi A1 (Mk2, GB) Sportback 25 TFSI (1.0), 30 TFSI (1.0), 35 TFSI (1.5), 40 TFSI (2.0) 2018+
Compatible for Skoda Fabia (Mk4, PJ) 1.0 TSI, 1.5 TSI 2021+
Compatible for SEAT Ibiza (Mk5, KJ) Facelift 1.0 MPI, 1.0 TSI 2021+
Compatible for SEAT Ibiza (Mk5, KJ) Pre-facelift 1.0 MPI, 1.0 TSI, 1.5 TSI, 1.6 TDI 2017-2021)
Compatible for Volkswagen Polo (Mk6, AW) Facelift 1.0 TSI, GTI 201+
Compatible for Volkswagen Polo (Mk6, AW) Pre-facelift 1.0 TSI, 1.5 TSI, 1.6 TDI, GTI 2017-2021
compatible for Skoda Scala (NW) 1.0 TSI, 1.5 TSI 2019+

Specification

Top mounts: Front and rear OE top mounts required

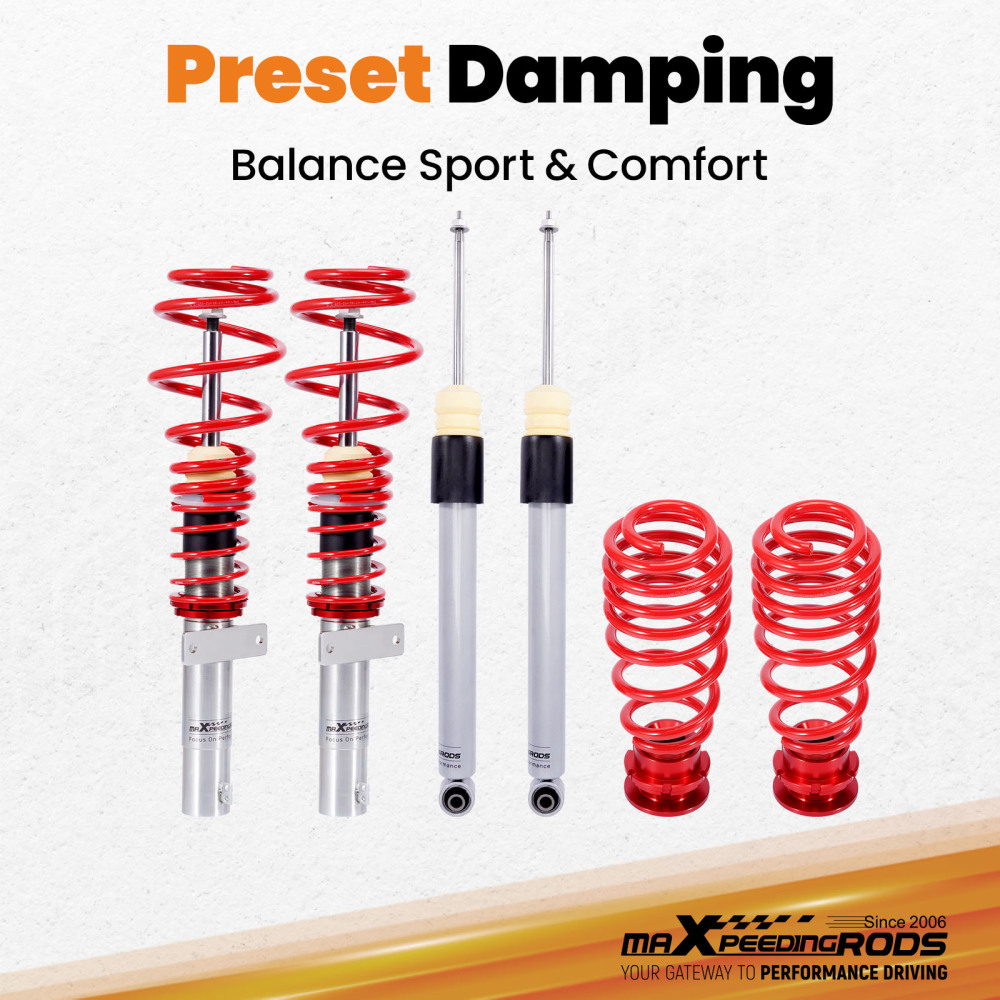

Damping adjustable: Not available
Camber adjustable: Not available

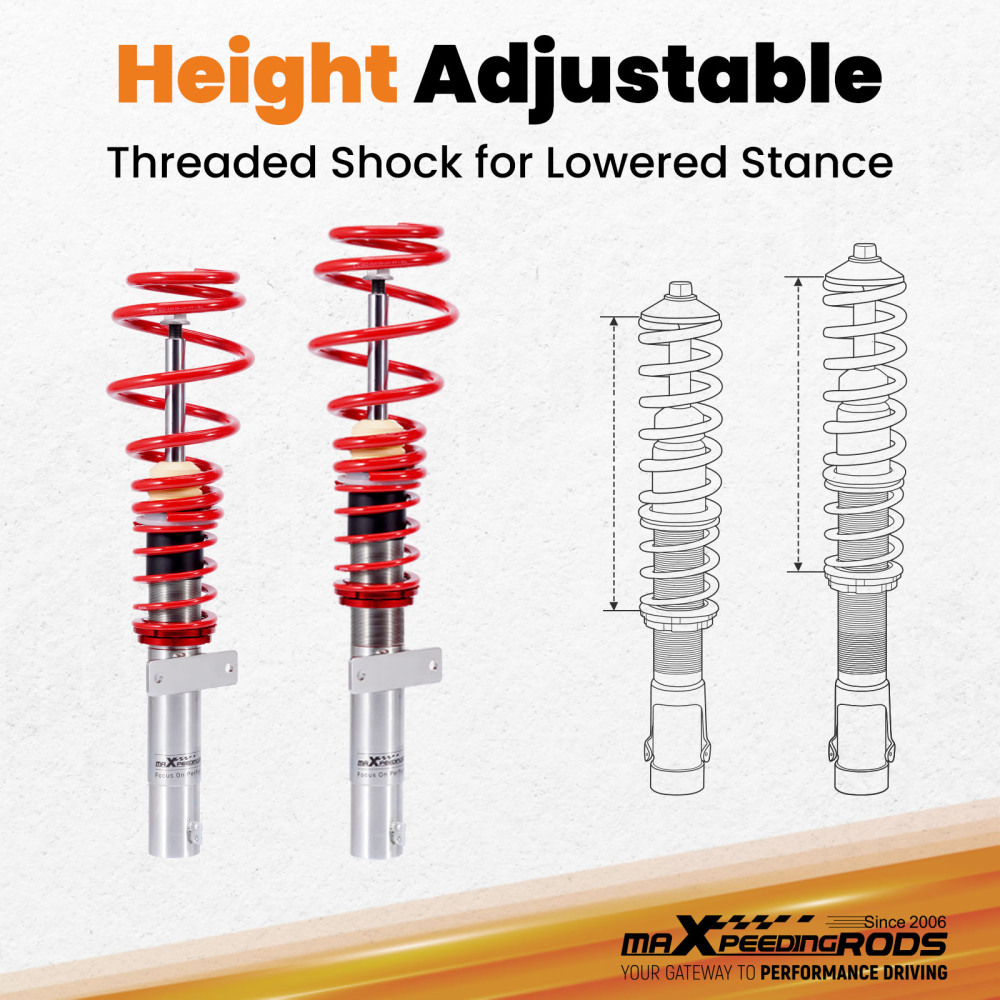

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

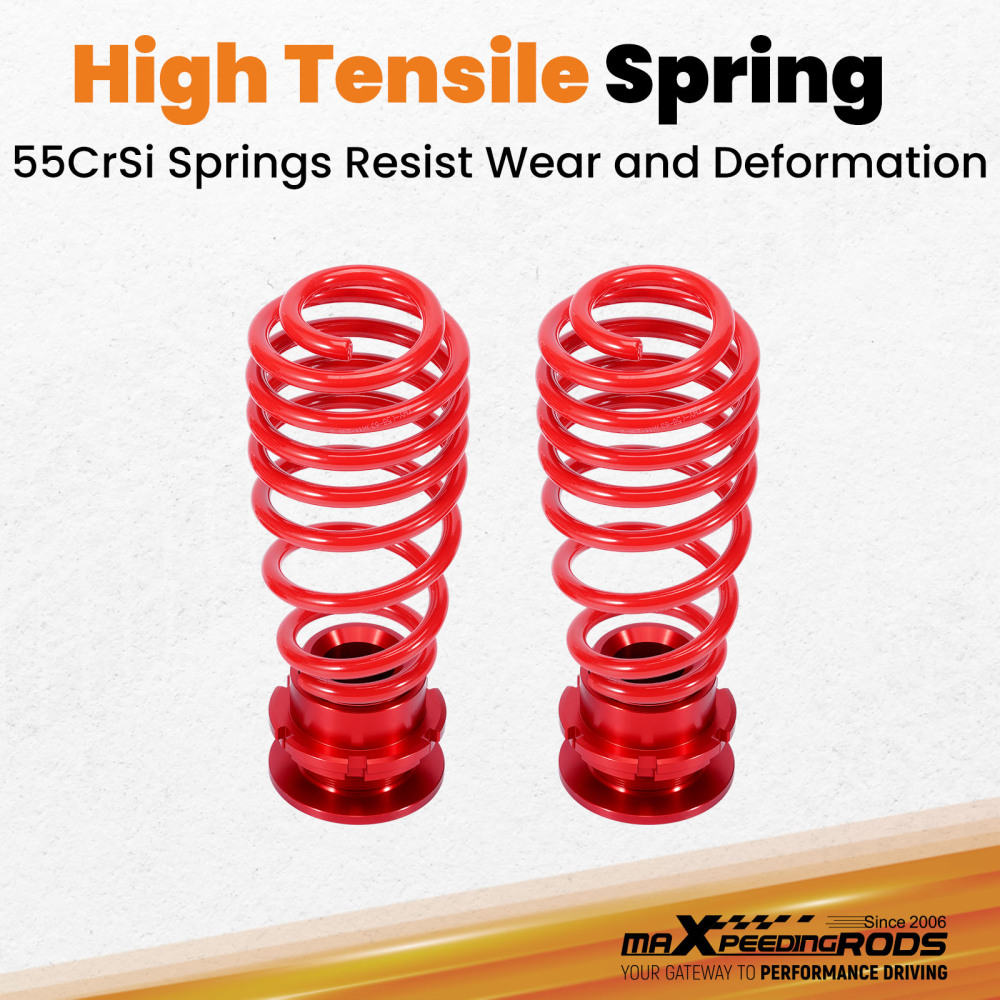

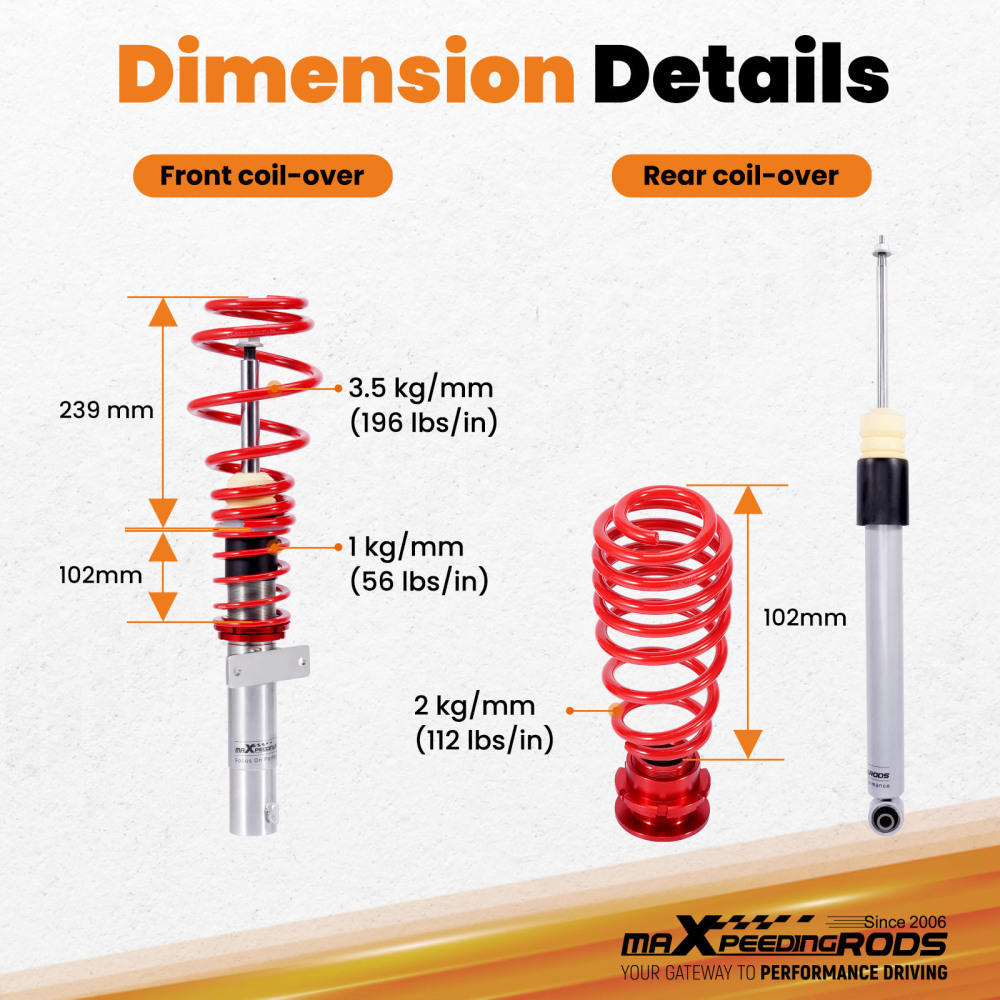

Spring Rate Front: 3.5 kg/mm（196 lbs/in)
Spring Rate Rear: 2 kg/mm (112 lbs/in)
Front spring inner diameter: 64-117-83 mm
Rear spring inner diameter: 58-63 mm
Spring length Front: 239 mm
Spring length Rear: 230 mm
Help spring rate Front: 1 kg/mm (56 lbs/in)
Help spring length Front: 102 mm
Spring Preload advised: 7-10 mm
Color: Silver body with red spring

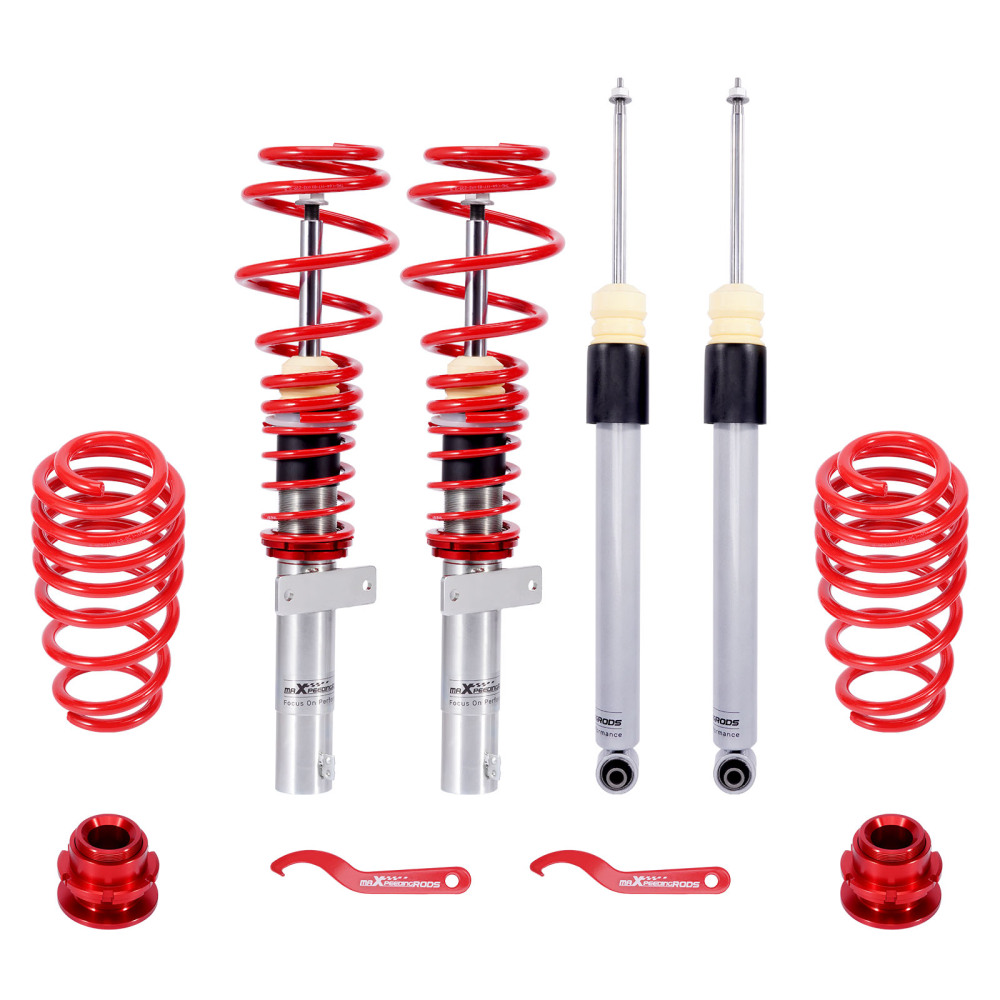

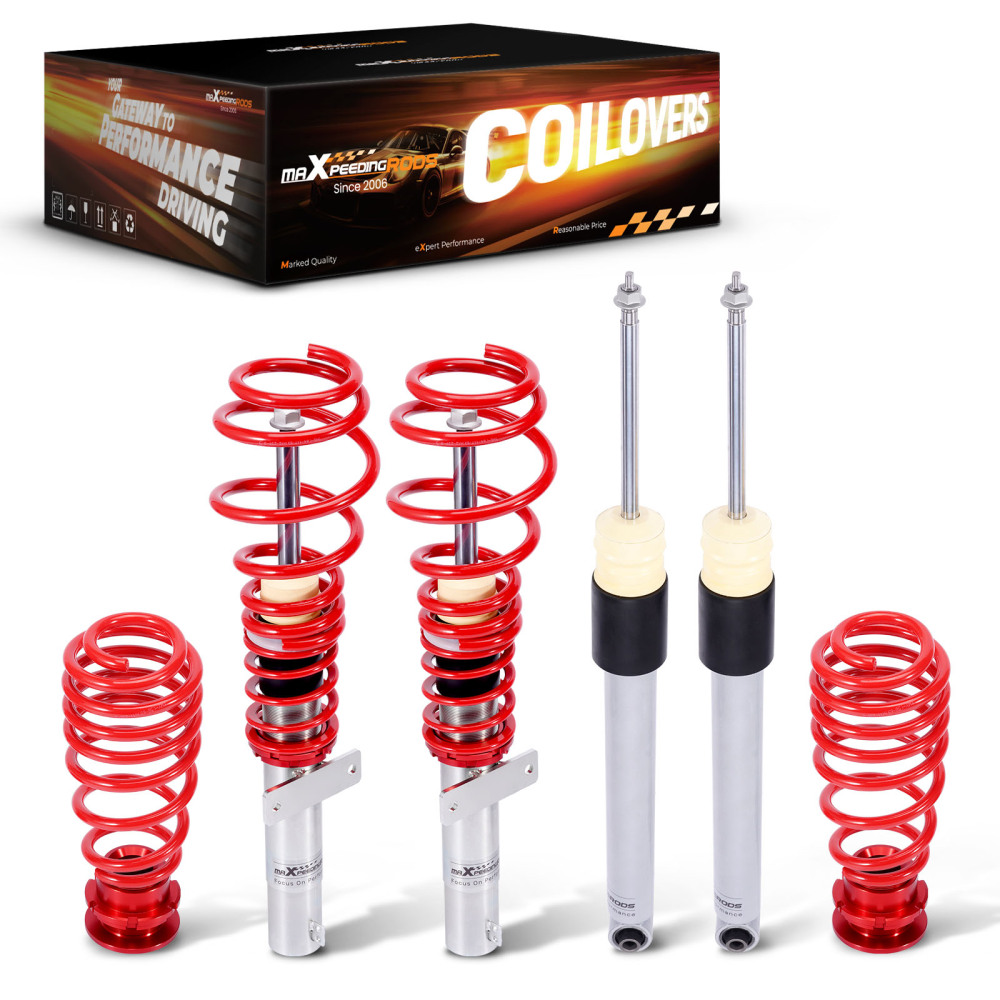

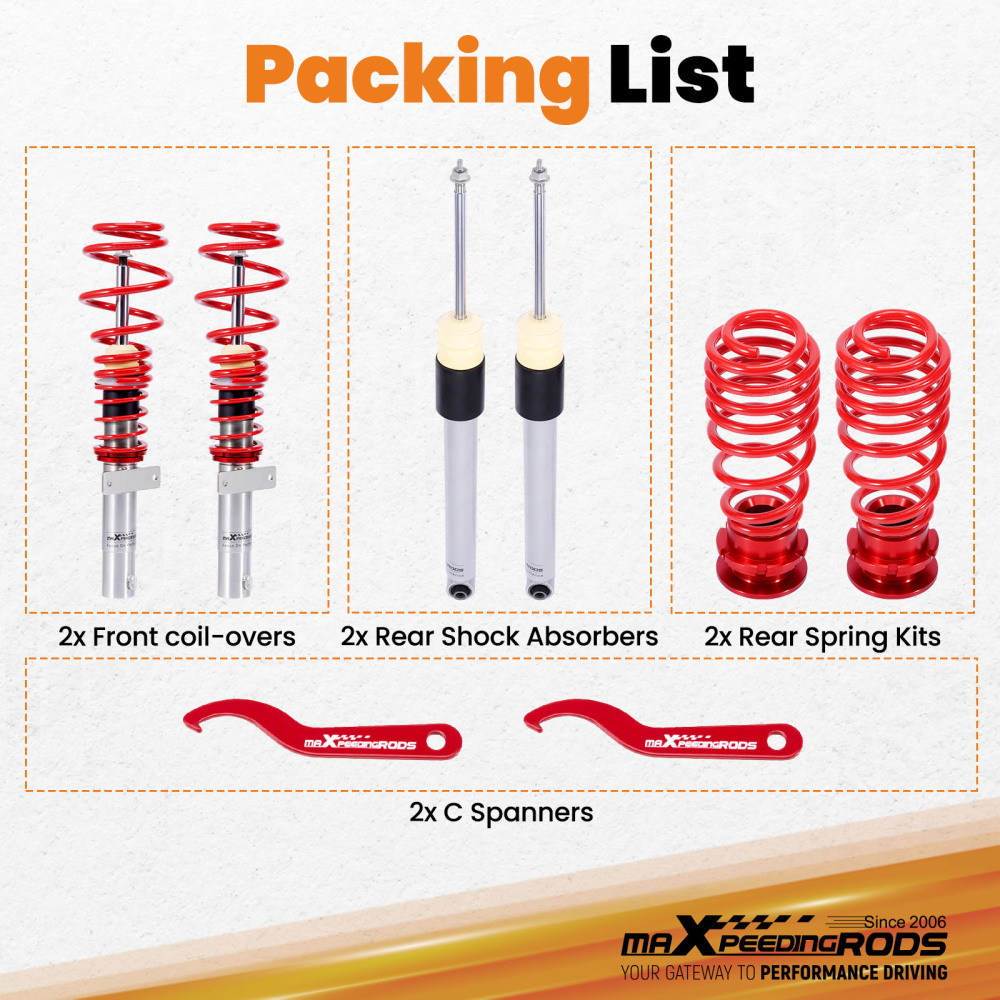

Package included

Package included：

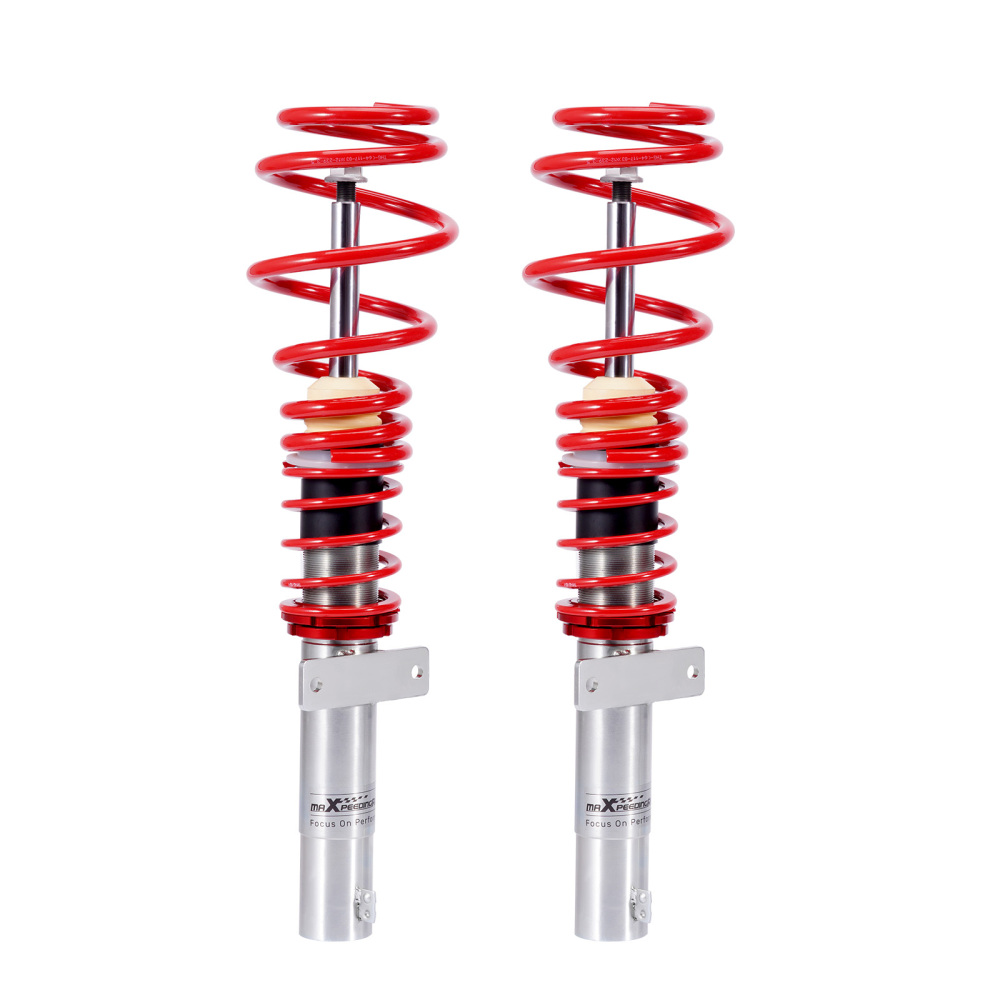

2x Front coil-overs

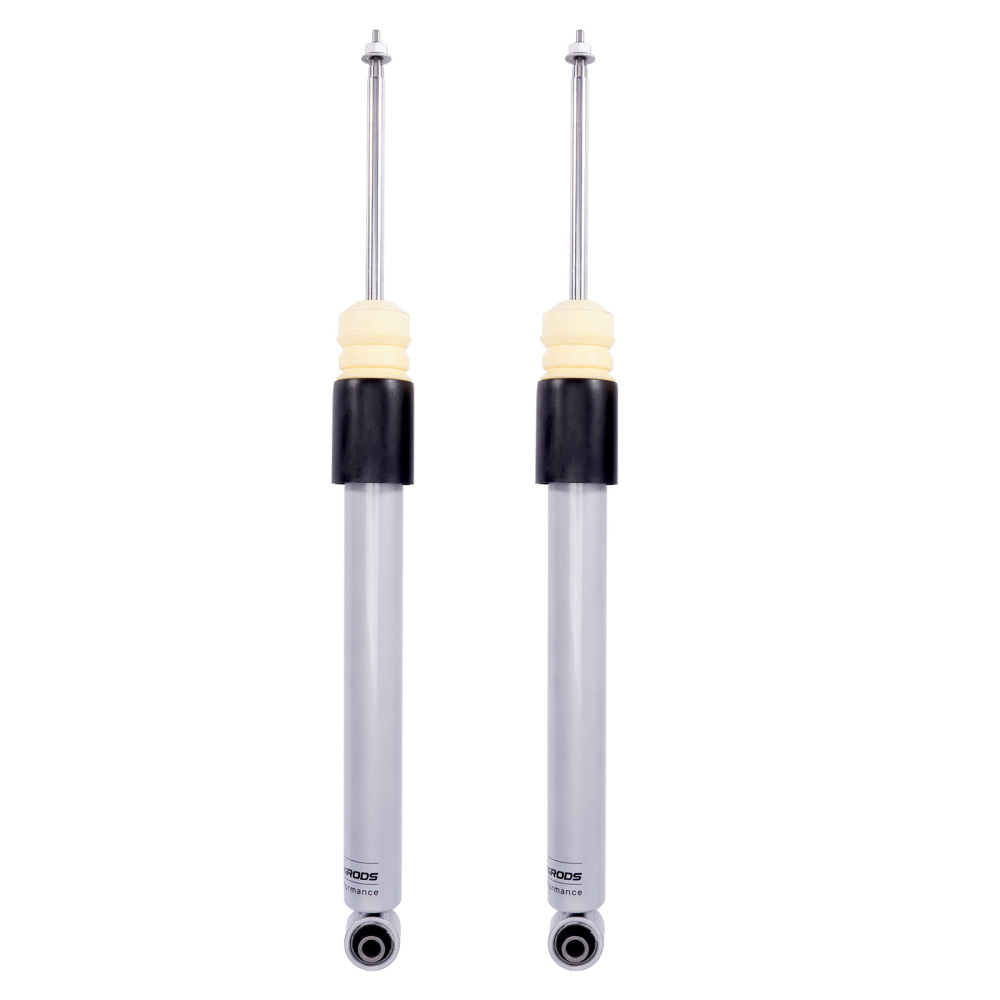

2x Rear coil-overs
2x C spanners
