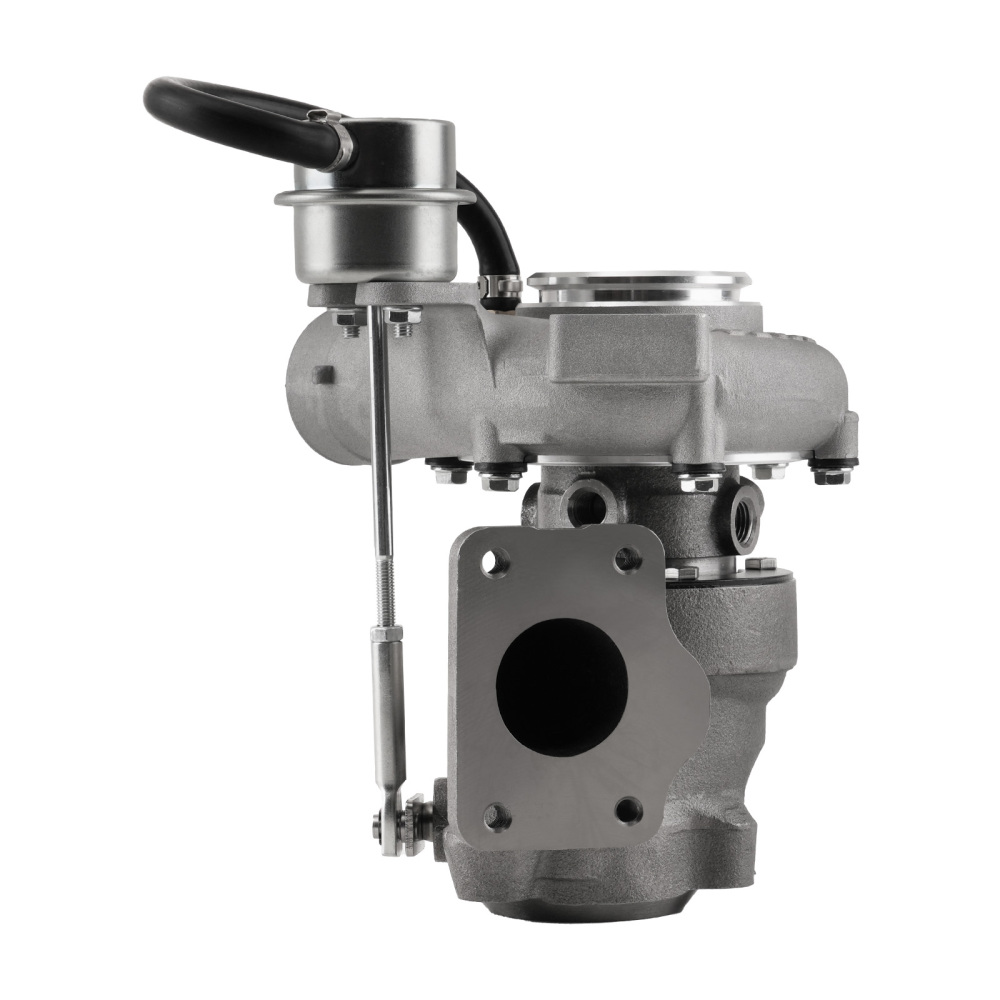

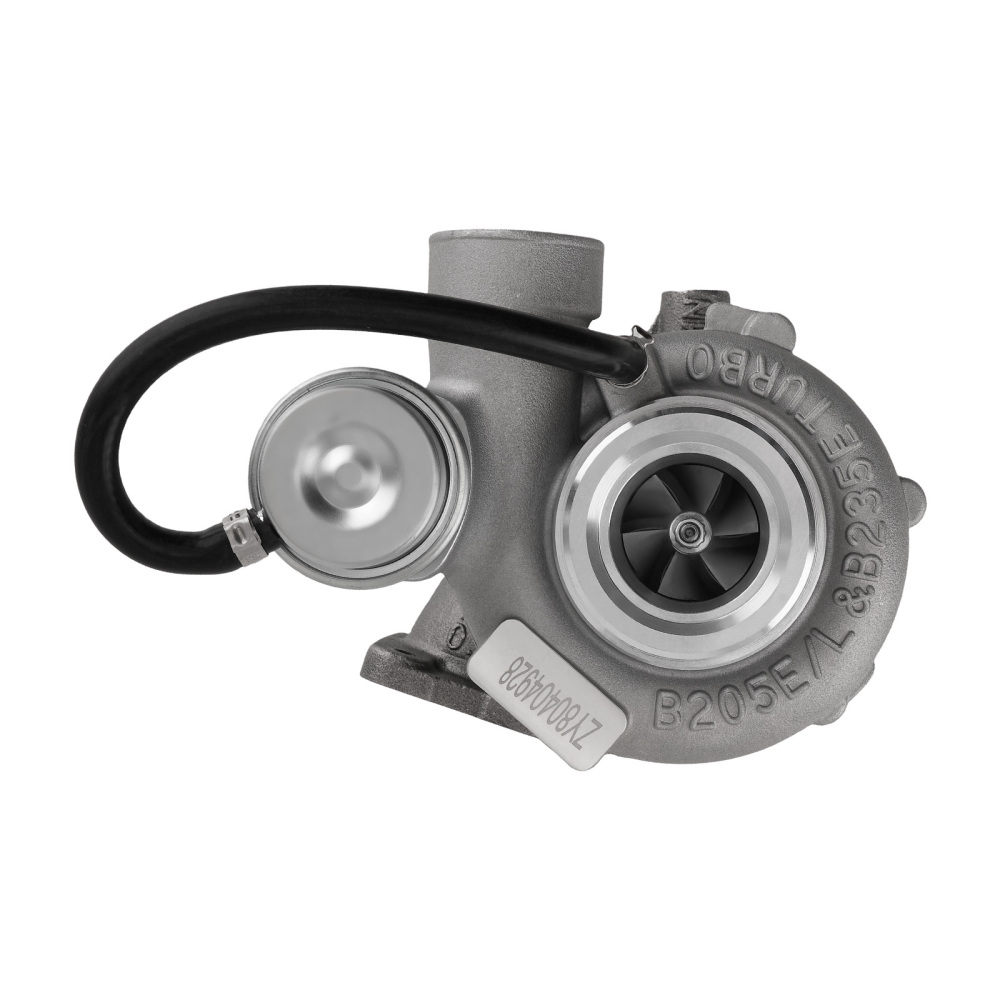

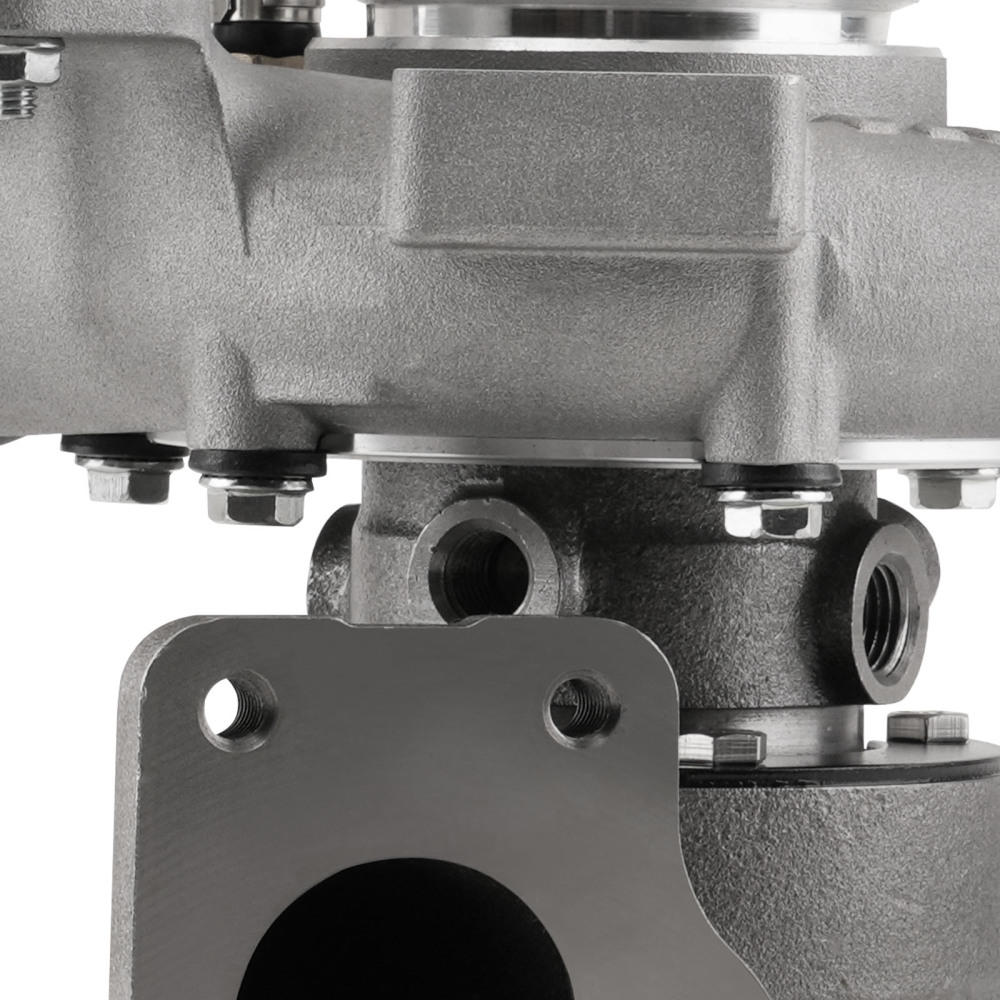

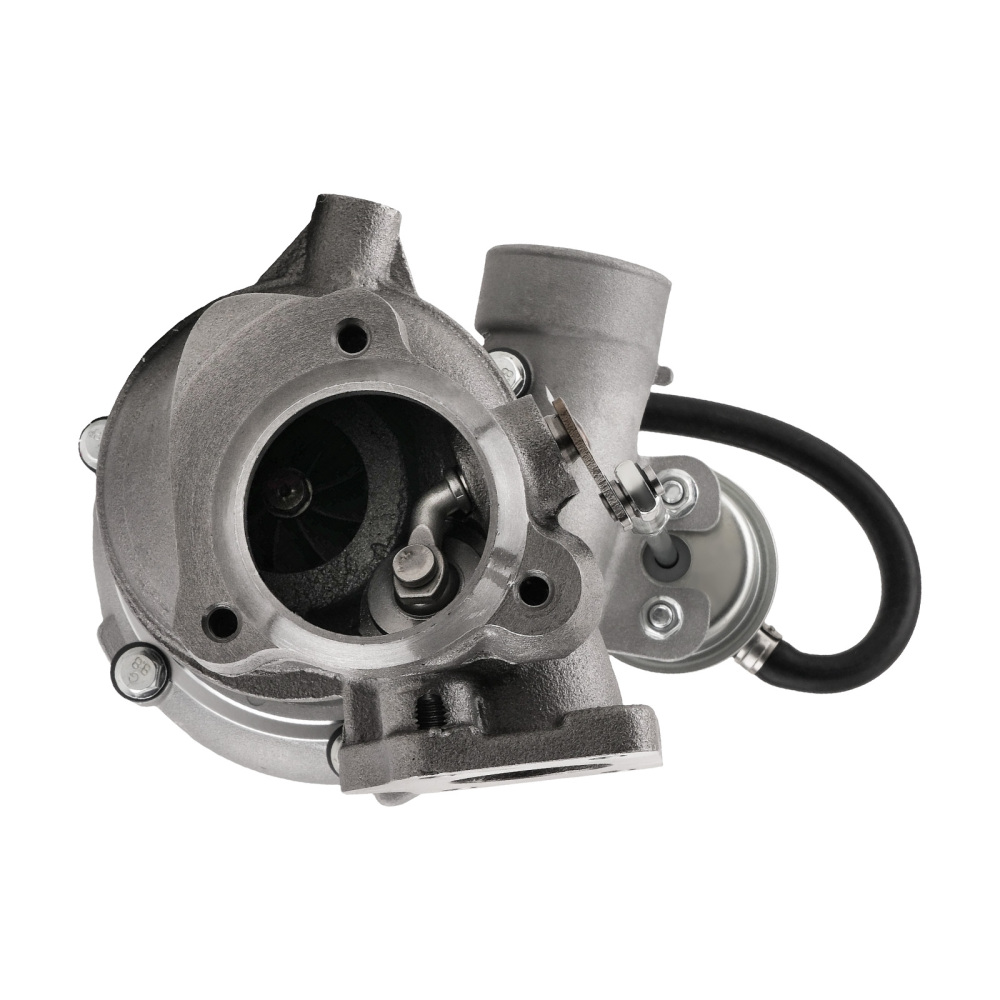

Turbocharger compatible for SAAB 9-3 9-5 B205E B235E for GT1752S 452204 Turbo Turbolader

lncl. 20% VAT
  • * OEM-Quality. Direct Replacement
  • * Ductile Iron QT450-10 - High temperature resistance (up to 700℃)
  • * K418 Alloy - Stable & High Oxidation & Temperature Resistance(up to 900℃)
  • * Cast Aluminium Blade - Good Air Tightness & Corrosion Resistance
Item Number 3002907239
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
452204-0005
452204-0005
1
OEM-quality and size with little modification
2

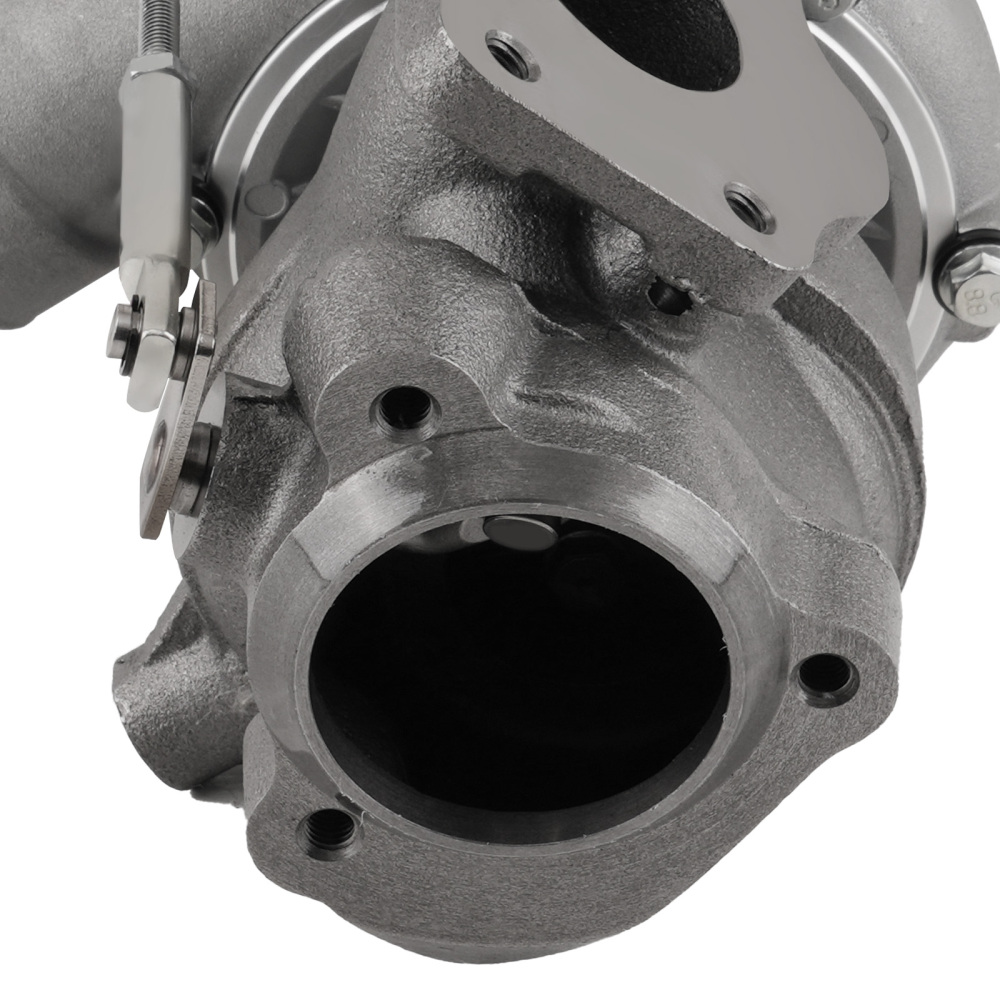

Turbine housing uses cast iron withstand temperatures up to 700℃
3
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃
4
Cast aluminium blades with good gas tightness and corrosion resistance

Introduction

Looking to boost your car's horsepower? Is your car's original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance, and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price.

Application

Compatible for Saab 9-3 I 2.0L T Engine B205E 150 PS /110 kW 2000-2003
Compatible for Saab 9-5 2.0L T Engine B205E 150 PS /110 kW 1998-2009
Compatible for Saab 9-5 2.3L T Engine B235E 170 PS /125 kW 1998–2001
Note:
Don't Compatible for SAAB 9-3/ 9-5 2.0L with B204(L/E/R), L850, B207R,B205R,B253R engine.
Don't Compatible for SAAB 9-5 3.0L with B308E, B308 V6 Engine
Don't Compatible for SAAB 9-5 2.3L Sedan/Aero/Viggen with B253R engine

Turbo Part Number & OEM Number

452204-0001,452204-0003,452204-0004,452204-0005,452204-0007,
452204-5001S.452204-5003S.452204-5004S.452204-5005S,.452204-5007S,
452204-1,452204-3,452204-4,452204-5,452204-7,
4522040001, 4522040003, 4522040004, 4522040005,4522040007,
4522041, 4522043, 4522044 ,4522045, 4522047
5955703,9172123,55560913,9198631,4611349,9180290
Don't fit for 49189-01800,49189-01820,49189-01830,9172180,55559825, 49177-06501,708899-0001 ,452194-0001

Specification

Turbo Model: For GT1752S (not for TD04 , GT1549 , GT20, GT2052 model)
Engine: B235E, B205E
Compressor Wheel Diameter: 38.37/52mm
Turbine Wheel Diameter: 38.1/43.3 mm
coolant ports Diameter: 14mm
Cooling Type:Water Cooling
Bearing Type: Floating Bearing
Hosepower: 150PS/ 170PS
Turbo Type: Individual
Universal Fitment: no
Finish: Matte
Condition: New & Factory Balance
Accessories: You will get exactly as shown in the picture above

Features

* Turbine housing adopts ductile iron QT450-10 able to withstand temperatures up to 700℃.
* Steel Turbine Wheel constructed from K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃.
* Cast aluminium blades with good air tightness and corrosion resistance
* OEM-quality and size with little modification

Notice

*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.
*Professional installation is highly recommended.
*Please check the hole size , the hole size of the different versions of turbo is slightly different, and it may need modification.
