Rear Air Suspension Shock Strut compatible for Mercedes GL GLE W166 X166 ML320 GL350 W/ ADS

Application:

Compatible for Mercedes-Benz M / GLE Class W166 2012-2019
Compatible for Mercedes-Benz GL / GLS Class X166 2013-2019

tip: for Adaptive Damping System, Not for AMG

Details:

Compatible for Mercedes-Benz M-Class ML 350 RWD W166 2012-2015
Compatible for Mercedes-Benz M-Class ML 350 CDI 4-matic AWD W166 2012-2014
Compatible for Mercedes-Benz M-Class ML 350 BlueTEC 4-matic AWD W166 2012-2015
Compatible for Mercedes-Benz M-Class ML 250 CDi BlueEFFICIENCY 4-matic AWD W166 2013-2015
Compatible for Mercedes-Benz M-Class ML 250 CDI / BlueTEC 4-matic AWD W166 2012-2015
Compatible for Mercedes-Benz GLS 500 4-matic AWD X166 2015-2019
Compatible for Mercedes-Benz GLS 400 4-matic AWD X166 2015-2019
Compatible for Mercedes-Benz GLS 350 d 4-matic AWD X166 2015-2019
Compatible for Mercedes-Benz GLS 320 4-matic AWD X166 2017-2019
Compatible for Mercedes-Benz GLE 500 e 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GLE 400 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GLE 350 RWD W166 2015-2018
Compatible for Mercedes-Benz GLE 350 Flexfuel 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GLE 350 d 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GLE 350 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GLE 320 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GLE 250 d RWD W166 2015-2018
Compatible for Mercedes-Benz GLE 250 d 4-matic AWD W166 2015-2018
Compatible for Mercedes-Benz GL-Class GL 500 4-matic AWD X166 2012-2015
Compatible for Mercedes-Benz GL-Class GL 450 4-matic AWD X166 2012-2015
Compatible for Mercedes-Benz GL-Class GL 400 4-matic AWD X166 2013-2015
Compatible for Mercedes-Benz GL-Class GL 350 CDI / BlueTec 4-matic AWD X166 2012-2015

Reference OE/OEM Number:

1663200930, 166 320 09 30, A1663200930, A166 320 09 30,
1663201930, 166 320 19 30, A1663201930, A 166 320 19 30,
1663260500, 166 326 05 00, A1663260500, A 166 326 05 00,
1663200130, 166 320 01 30, A1663200130, A 166 320 01 30

Specification:

Condition: Brand New

Fitment Type: Direct Replacement

Quantity: 1x Shock Absorber

Placement on Vehicle: Rear left or right

Greasable or Sealed: Sealed

Length, width and height (in/cm): 27.5*5.8*3.9inch / 70*14.8*10cm

Wight: 10.75lbs / 4.88kg

Stroke: 78mm

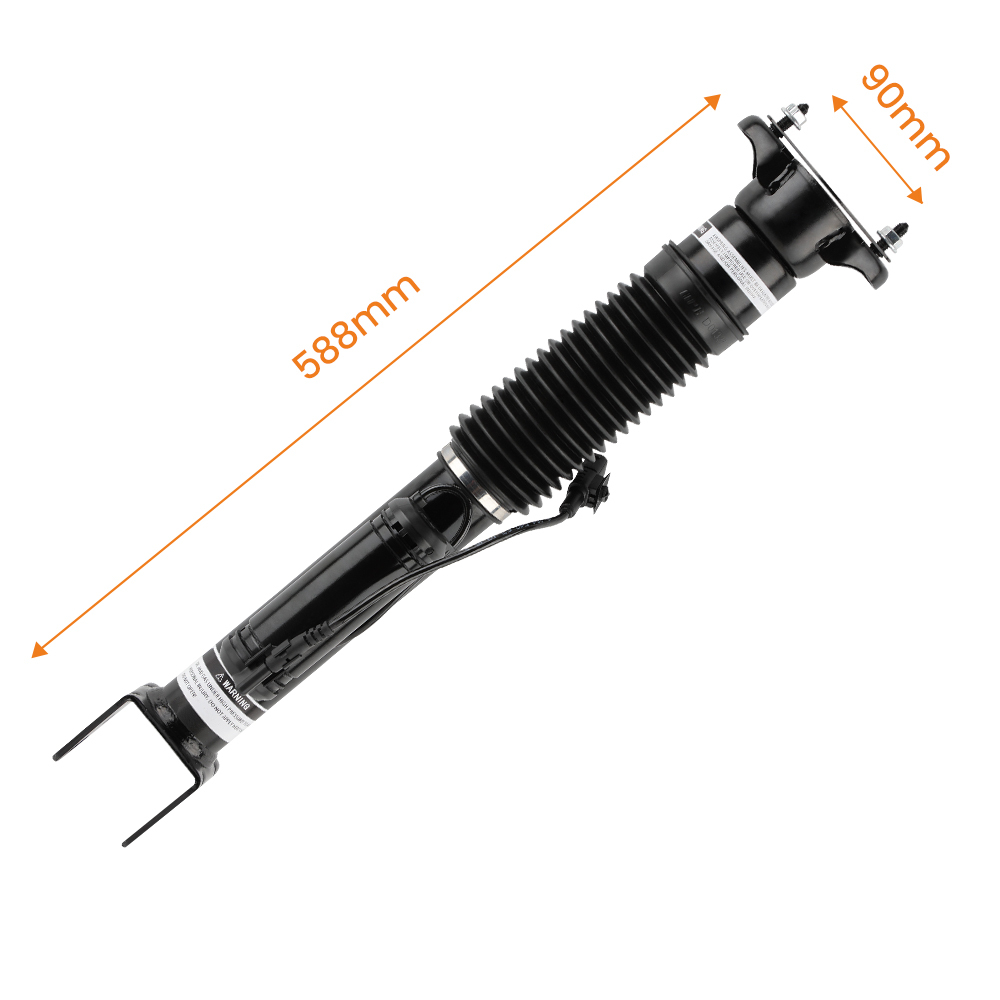

Top pitch: 90mm

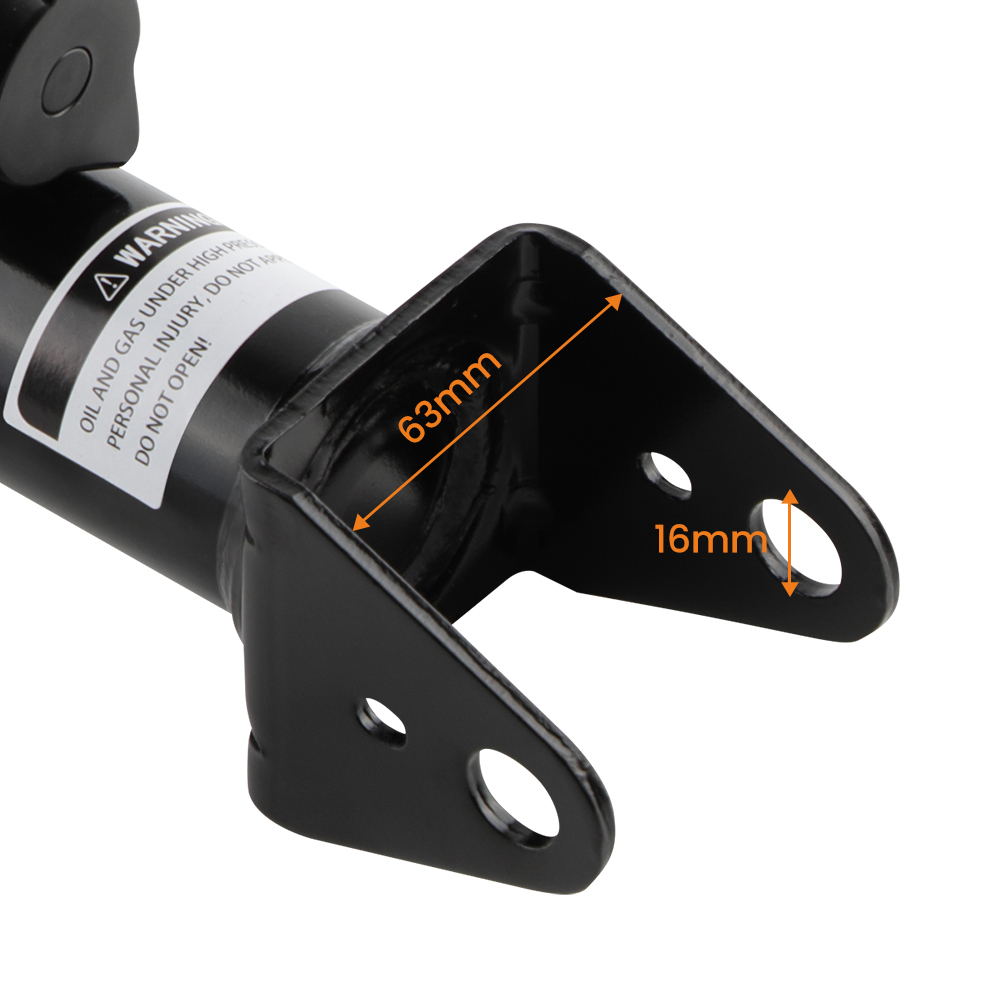

Mounting fork: 63mm

Mounting hole diameter: 16mm

Operating Pressure : ≤2.0Mpa

Temperature range：≤+70° , ≥-40°

Features:

1. 100% Air Tightiness testing
2. 24 hours air tightness test ≤0.02MPa
3. Anti-corrosion and provide a more consistent wear surface
4. Built to strict quality control standards
5. CNC Machined Components
6. Designed for Comfort Suspension
7. Direct replacement for OEM strut without modification
8. Easy to install
9. Eliminating abnormal sound
10. Gives the driver more control of ride
11. Good heat dissipation
12. It has a high compressive strength and good sound insulation to ensure our driving comfort and safety
13. Restore the original ride height and improve ride quality
14. Test more than 5,000,000 times
15. Sturdy & Durable Material

Notice:

These air suspension are aftermarket ones. They will replace the original air shock.

Please double confirm the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

Contact us please for whatever we can help.
