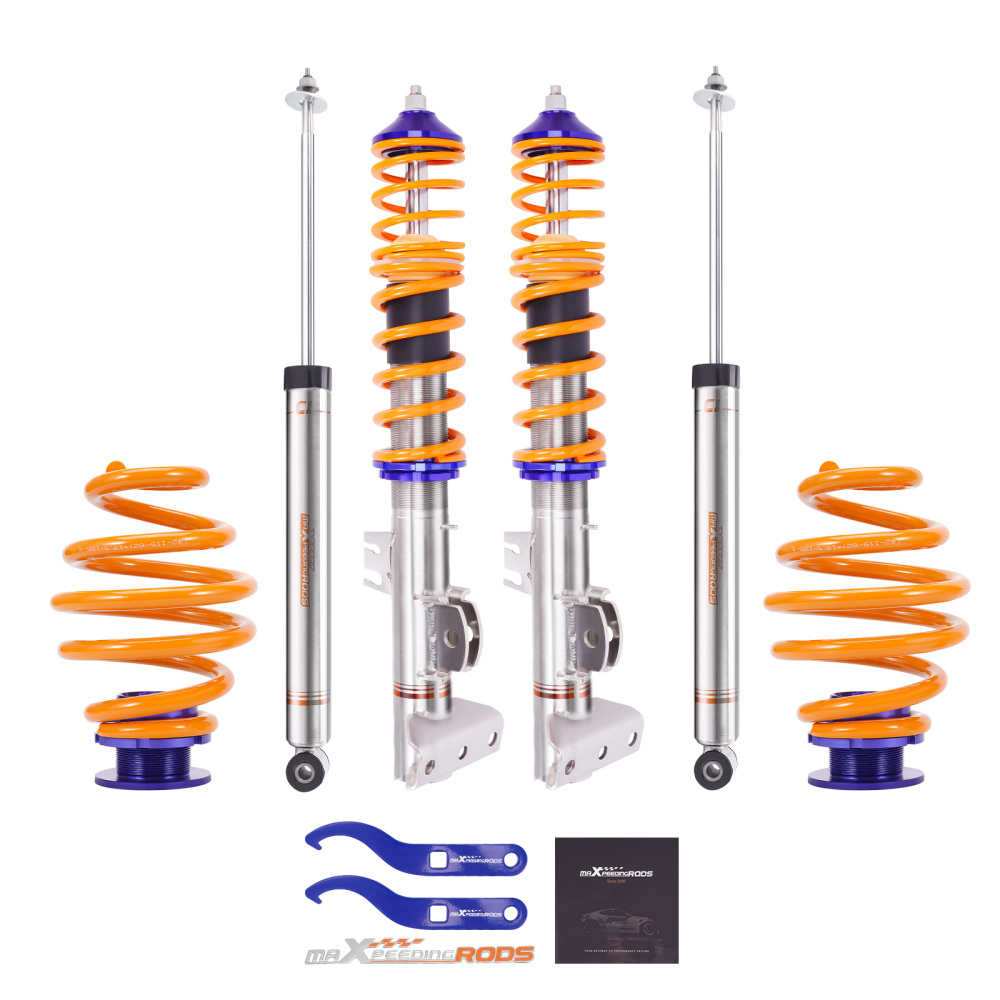

MaXpeedingrods Comfort 1 Coilovers Struts For BMW 3 Series E36 Coupe Sedan 91-99

Introduction

The maXpeedingrods C1 series is designed for those who want to lower their vehicle without sacrificing daily driving comfort. Enjoy improved handling and a smoother ride. Featuring adjustable height and a preset for optimal damping, this series enables you to reduce ride height while maintaining overall comfort.

Application

Compatible for BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)
Compatible for BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 325i; 328i; 328is; (09/1991-04/1999)
Compatible for BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)
Compatible for BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)

Specification

Front and Rear Top Mounts: OE top mounts required
Damping Adjustable: Not available
Height Adjustable: Available, lowering 40-80 mm depending on the vehicle models
Main spring rate front: 7 kg/mm (392 lbs/in)
Main spring rate rear: 6 kg/mm (336 lbs/in)
Main spring length front: 168 mm
Main spring length rear: 185 mm
Helper spring rate front:1 kg/mm (56 lbs/in)
Helper spring length front:102 mm
Front spring inner diameter: 62 mm
Rear spring inner diameter: 42-62 mm

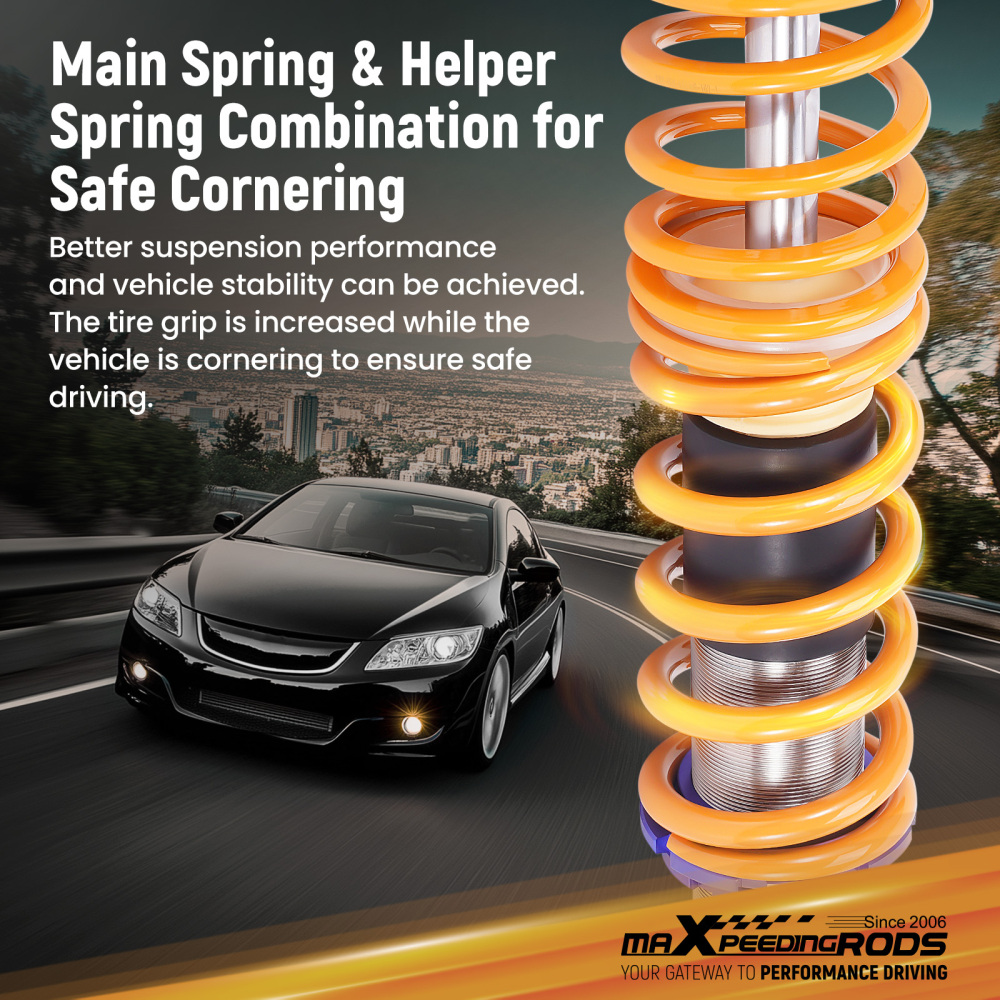

Spring Type Front: Linear spring & Helper spring
Spring Type Rear: Progressive spring
Spring Material: 55CrSi steel
Shock Body Material: Stainless steel
Color: Silver body with golden spring

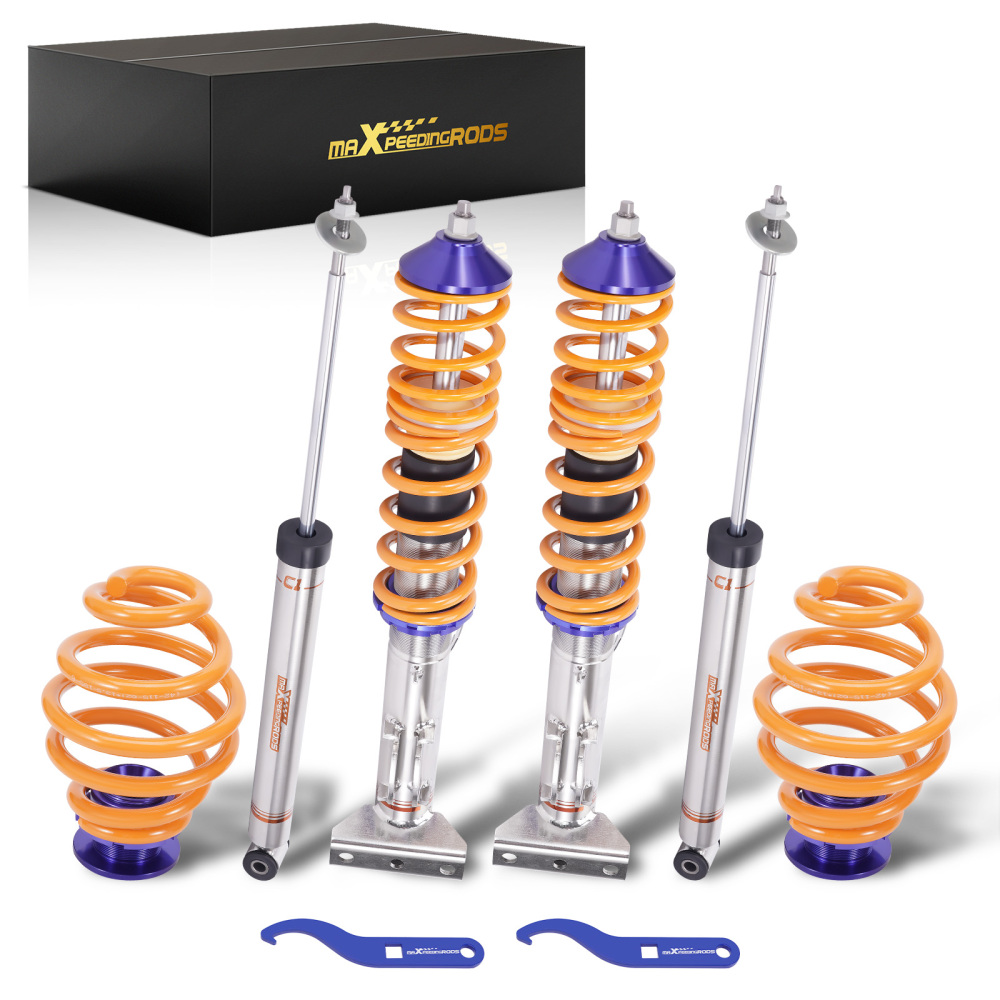

Package included

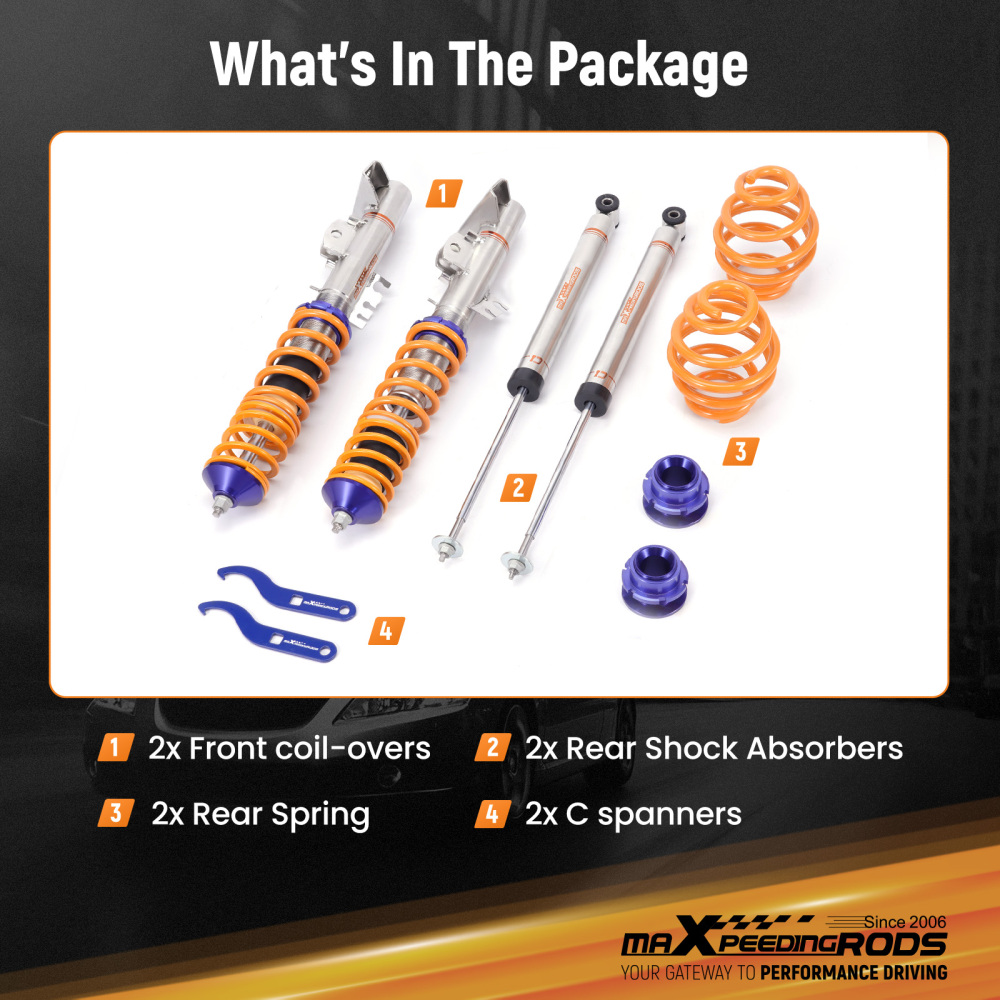

Package included：
2 x Front coil-overs
2 x Rear coil-overs
2 x C spanners

Dimension

Package Size: 71*51*21 cm
Weight: 23400 g

Feature

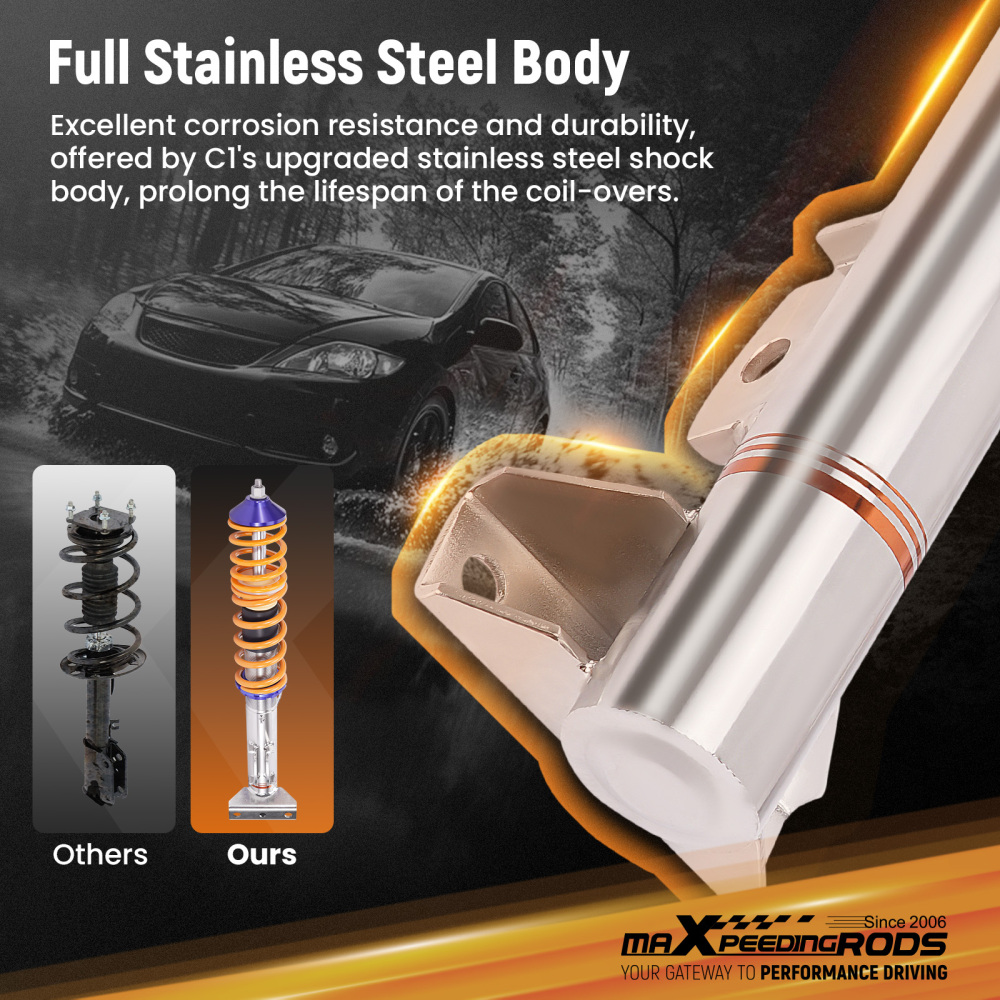

1. The stainless steel shock body offers excellent corrosion resistance and durability, prolonging the lifespan of the coil-overs.

2. The factory preset damping and newly designed damping valve will optimize comfort, handling, and performance.

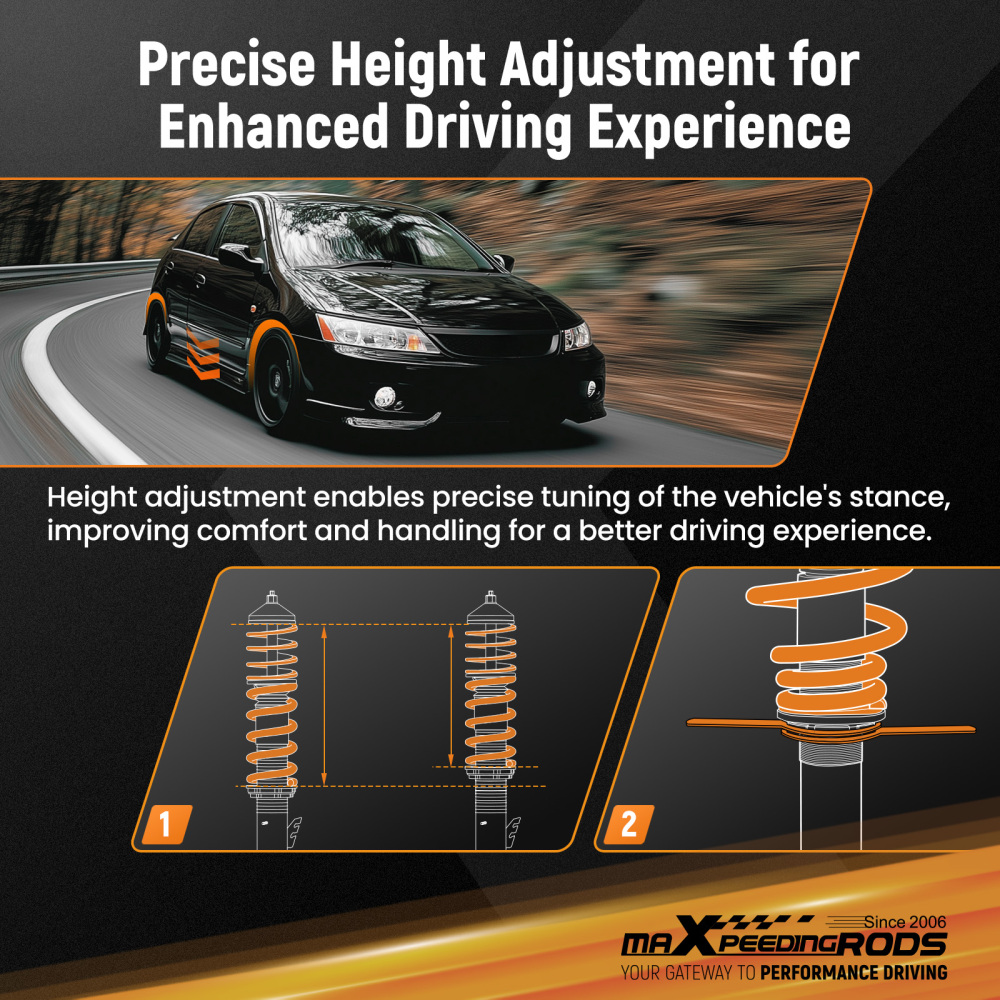

3. Height adjustment enables precise tuning of the vehicle's stance, improving comfort and handling for a better driving experience.

4. High-strength variable stiffness springs balance comfort and support, improving handling and stability during cornering.

5. High Viscosity Index Damping Oil delivers reliable damping performance and minimizes viscosity fluctuations across a range of temperatures.

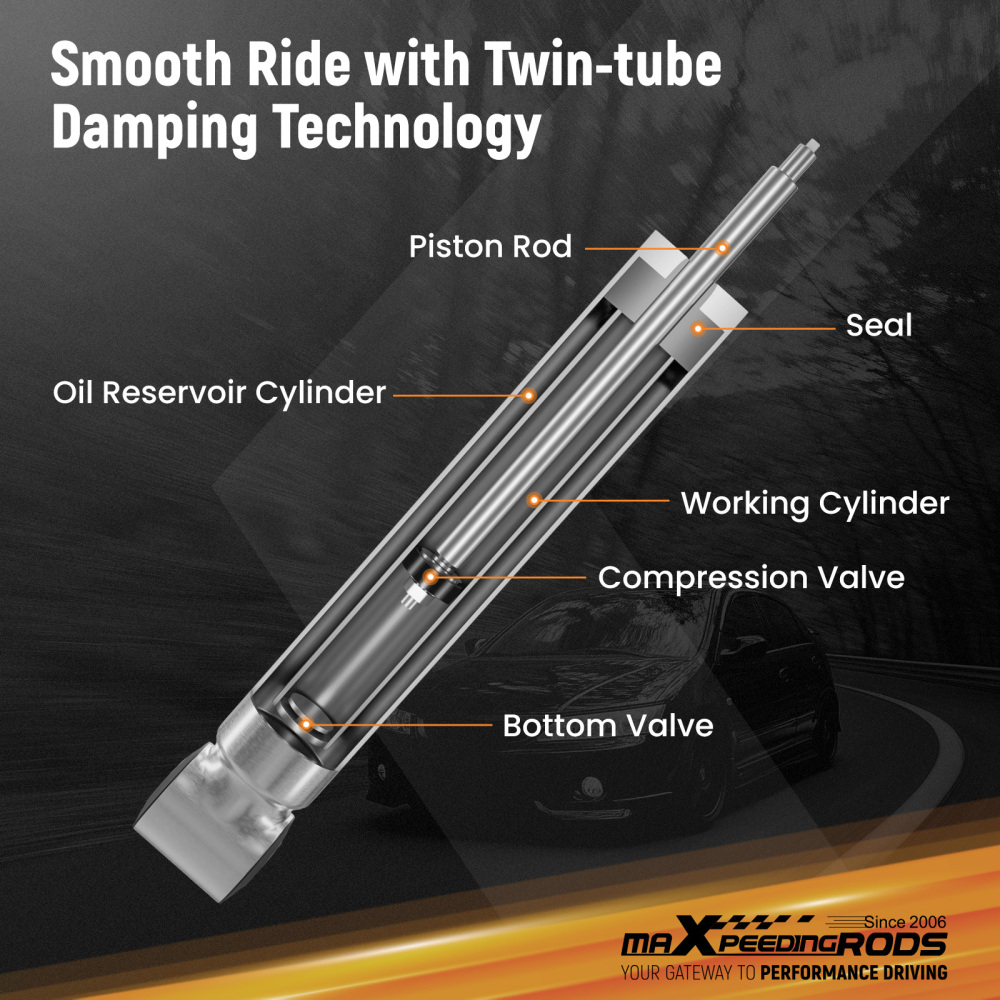

6. Twin-tube damping technology offers outstanding comfort and stability, ensuring a smooth ride across different road conditions.

7. The 45# reinforced steel piston rod offers high strength, durability, and wear resistance for enhanced stability.

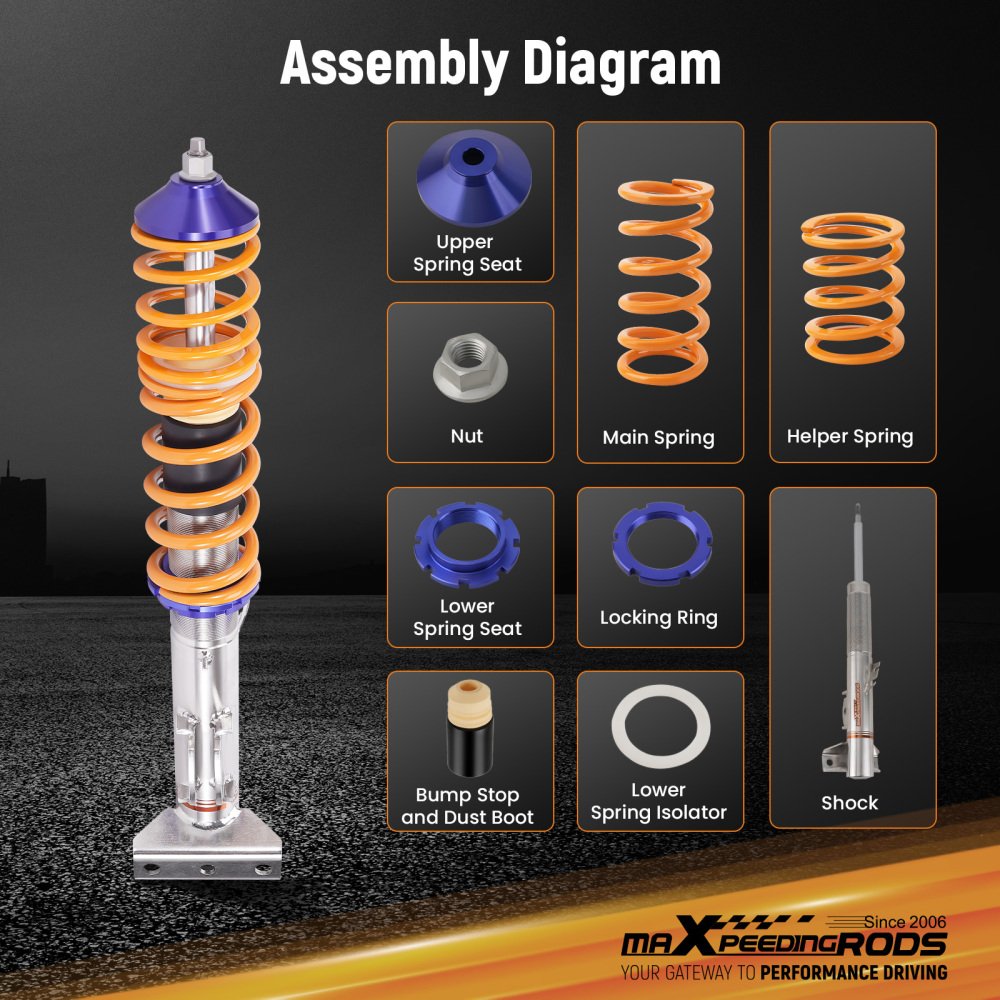

8. Anodized AL6061 aluminum spring seats and locking rings are lightweight, corrosion-resistant, and strong.

9. The extended dust cover protects the damper from dust intrusion and prolongs the damping system's service life.

10. High-quality sealing materials effectively prevent damper oil leakage, thus enhancing operational efficiency and reliability.

11. The rubber buffer provides excellent elasticity and shock absorption for a comfortable ride.
