MaXpeedingrods Coilovers 24 Way Damper Kit for MERCEDES S-CLASS W220 S430 S500

Introduction

MaXpeedingrods-SLC is based on MXR-SNA coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

This conversion kit converts air springs to coil springs and electronic dampers to passive dampers, which can help you get rid of issues caused by Automatic Height Control like air leaking from the system, a clogged or weak compressor pump, and the height control sensors. Any one of these faults can leave your compatible for Mercedes-Benz lowered all the way to the bump stops, raised to the maximum height, or even leaning to one side.

Application

Compatible for Mercede-Benz S-Class W220 2000-2006 With Airmatic Suspension without 4Matic
compatible for Mercedes-Benz S Class S430 2000-2006
compatible for Mercedes-Benz S Class S500 2000-2006
(Not correct for models with ABC (Active Body Control) or 4MATIC (All Wheel Drive))

OE/Part number

Reference OE/OEM Number: 2203202438, 220 320 24 38
Interchange Part Number: 220 320 24 38,220 320 2438,220 320 5113,2203202438 , 220320243860,220320243880,220320243888,2203205113,220320511360,220320511380,220320511388 , A2203202438 , A220320243860 , A220320243880 , A220320243888 , A2203205113 , A220320511360 , A220320511380 , A220320511388

Specification

Damping adjustable: Available, 24 ways damping force
Height adjustable: Yes, lowering 1-3 inches depending on the vehicle models

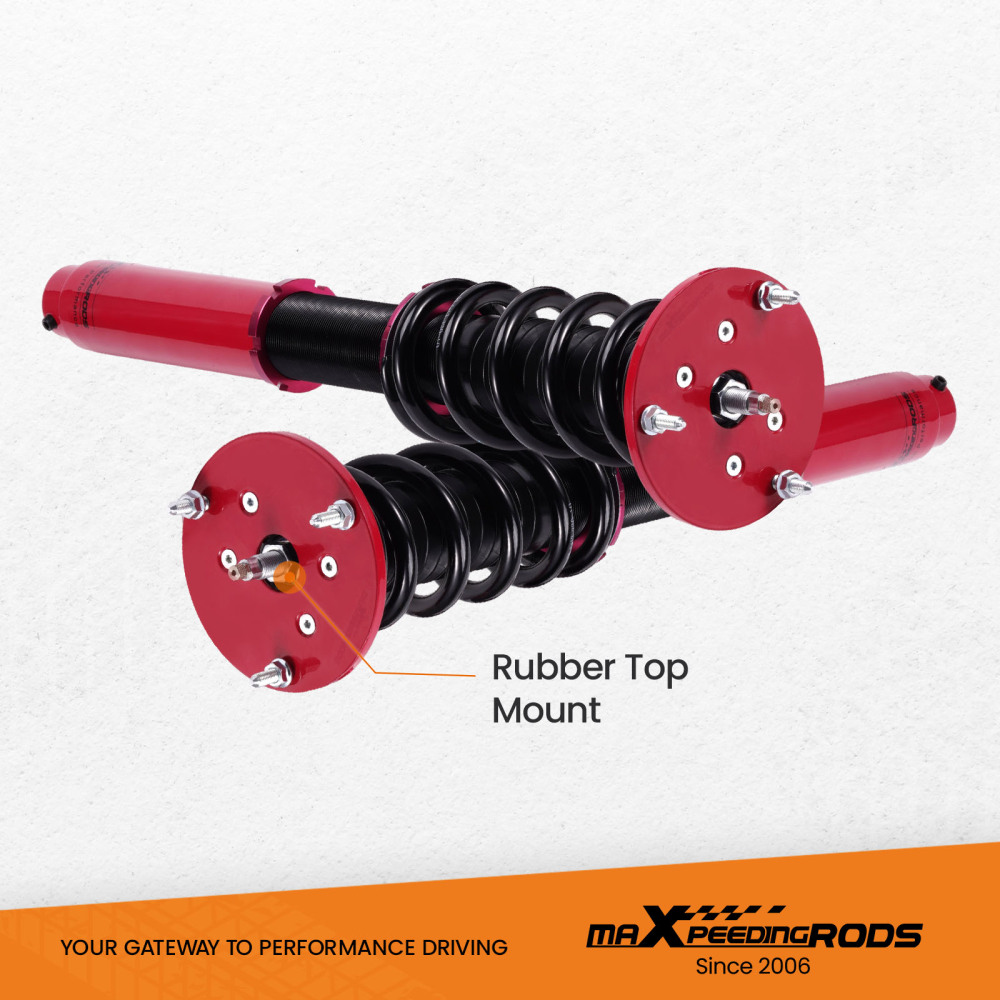

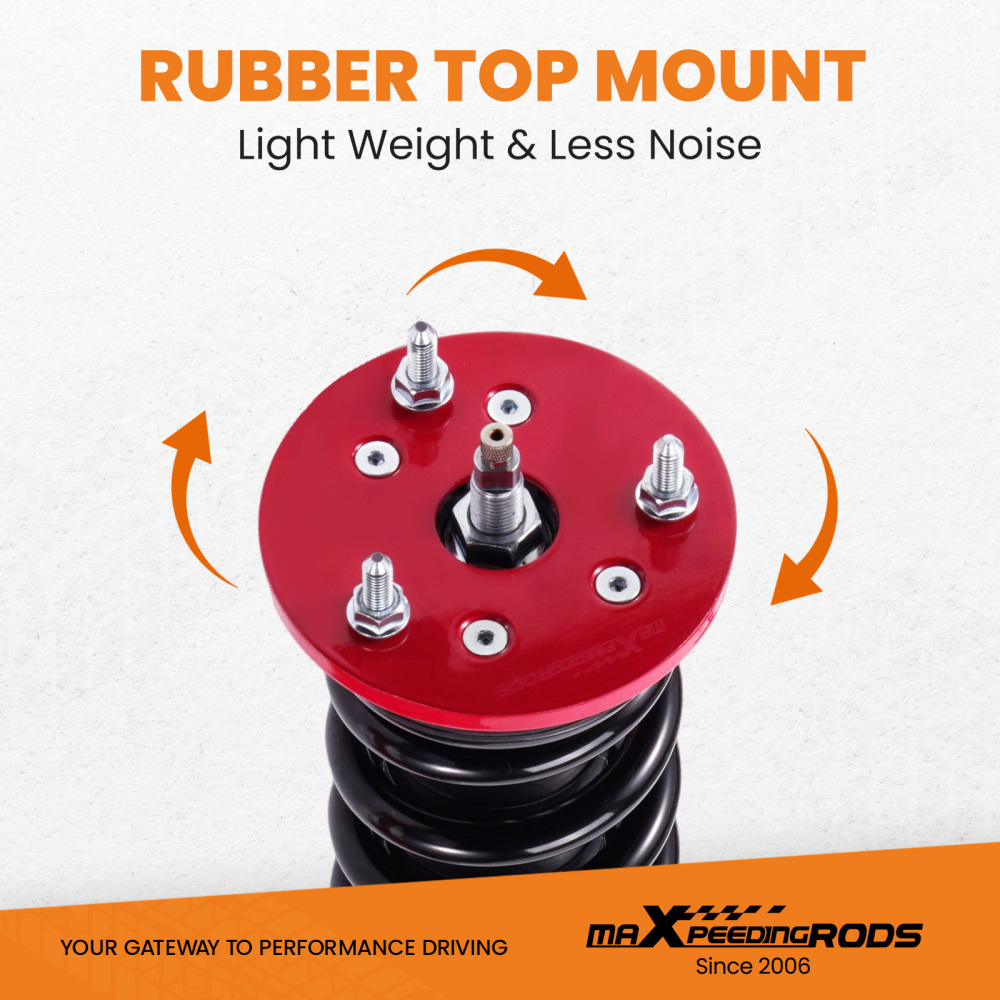

Top Mount: rubber structure
Spring Rate Front: 10kg/mm(560lbs/in)
Spring Rate Rear: 8kg/mm(448lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 70.5mm
Spring length Front: 230mm
Spring length Rear: 230mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

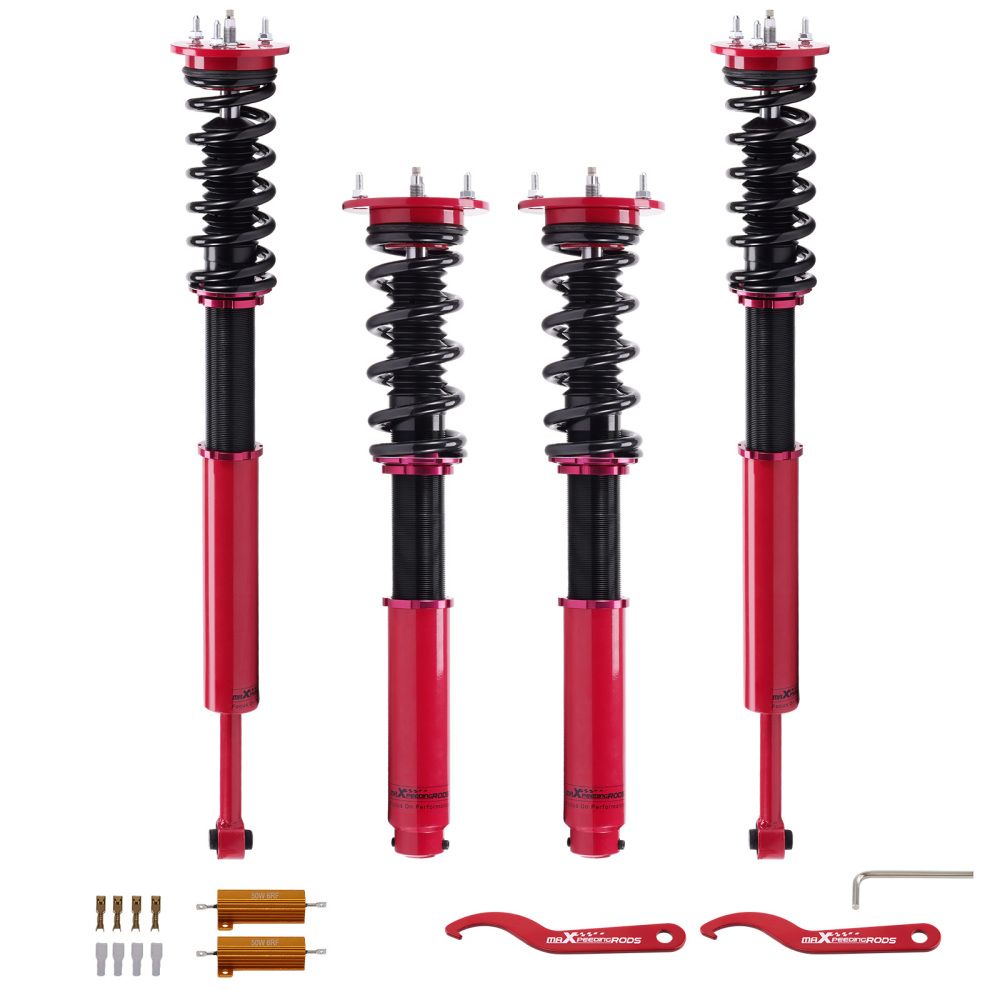

Package included

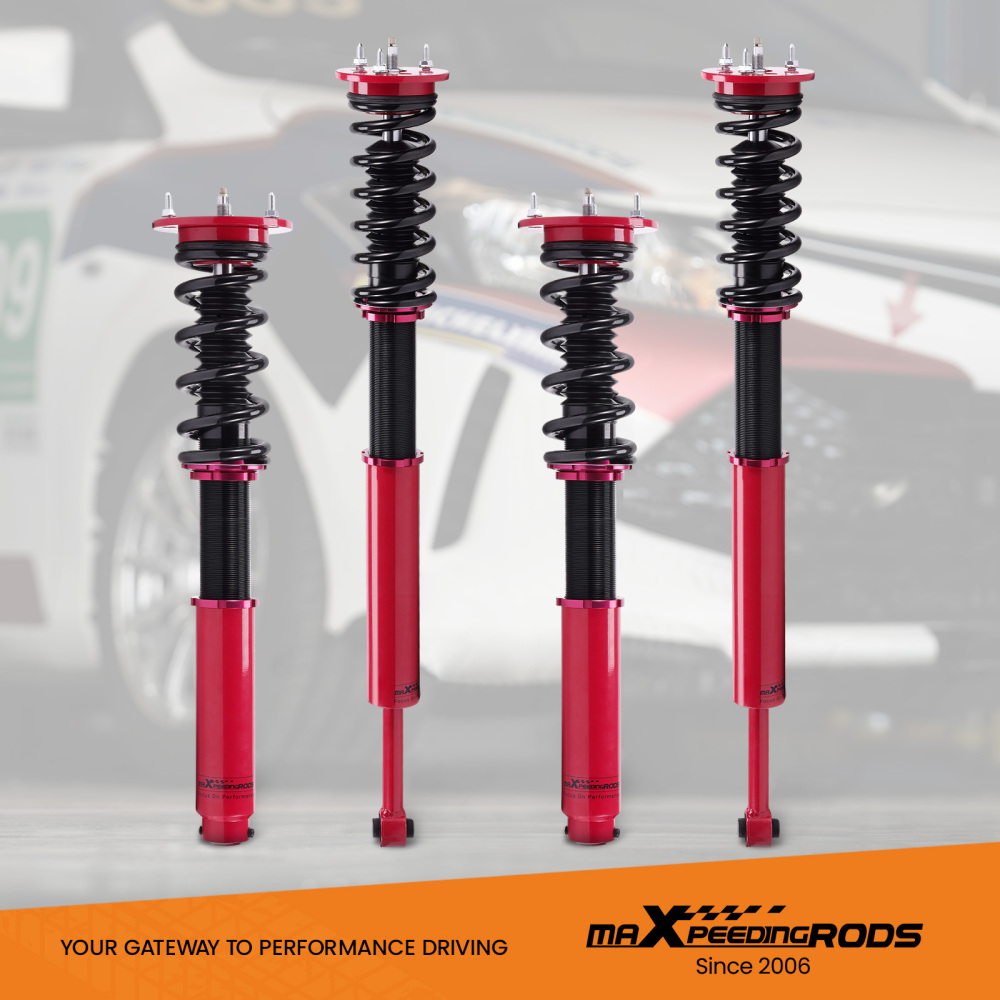

2x front coil-overs
2x rear coil-overs
1x Allen wrench
2x C spanners

Dimension

Size: 73*27*19.5 cm
Weight: 21.46 kg

Feature

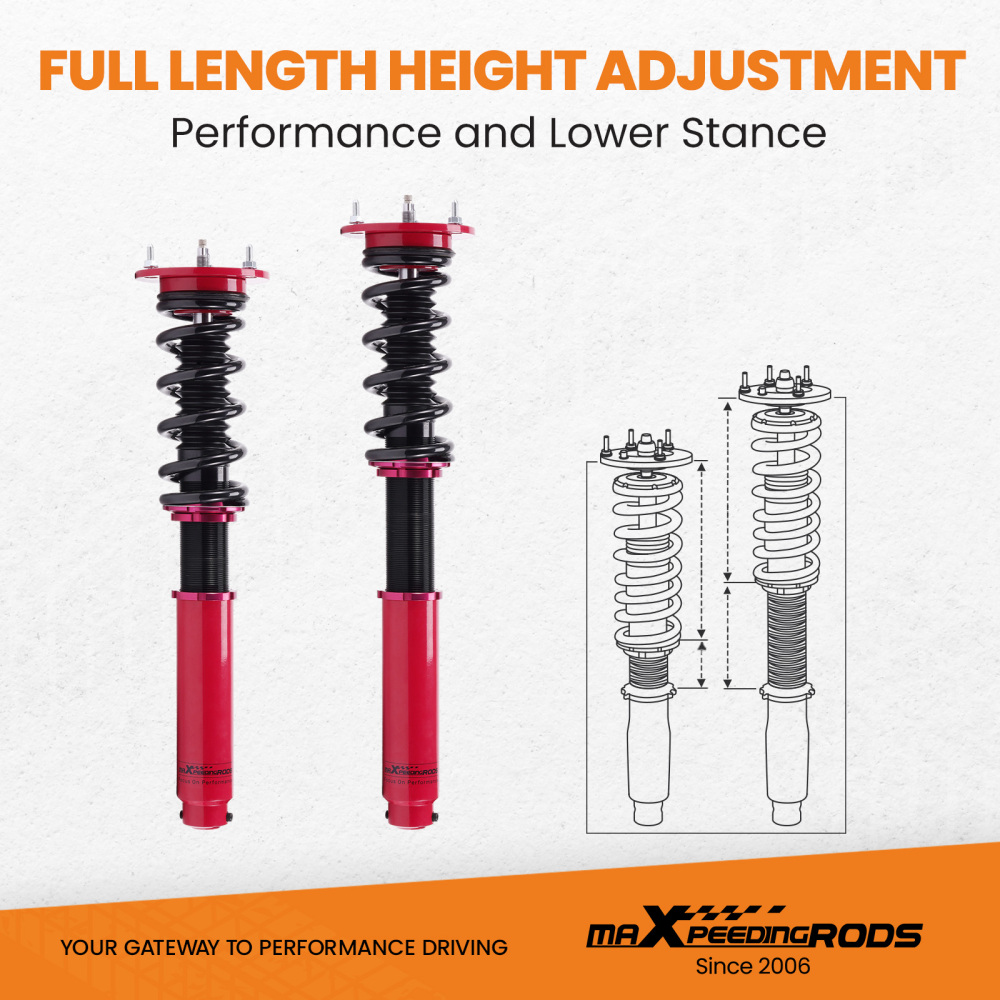

1. Lowered height adjustment from 1" - 3" (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

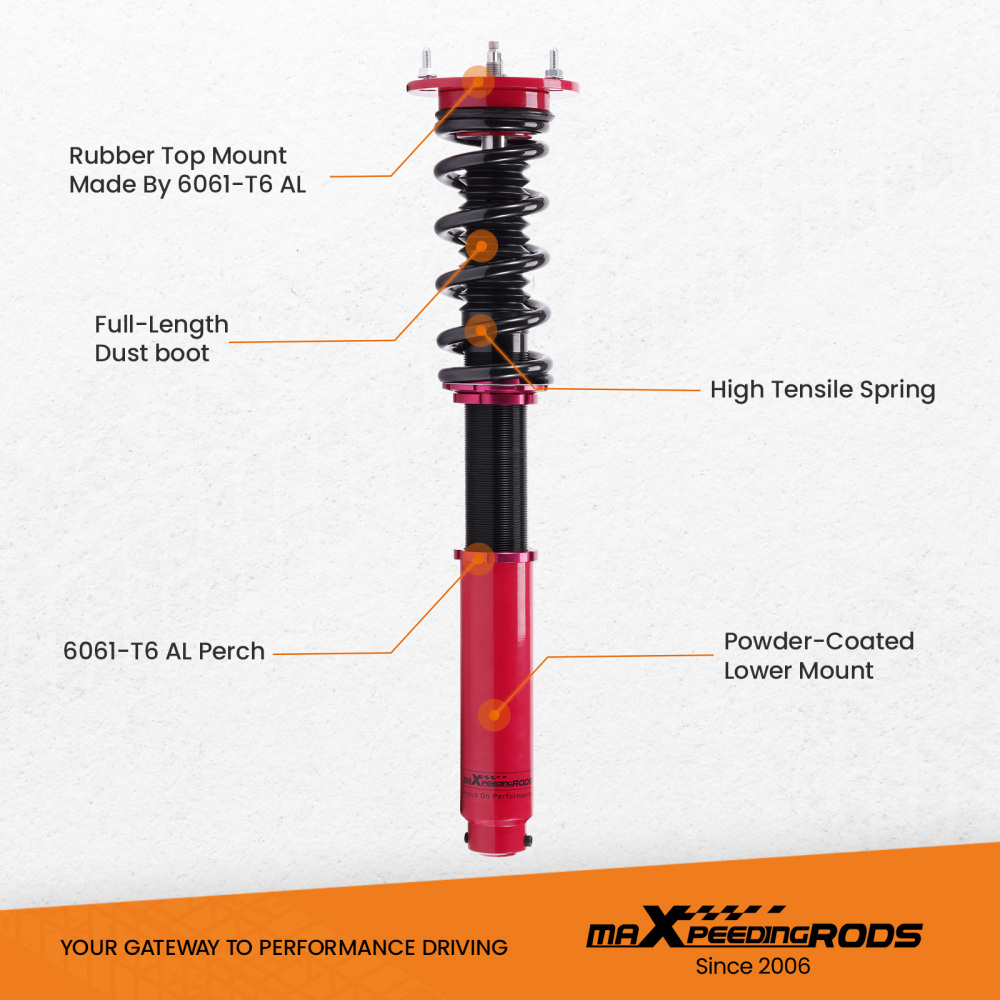

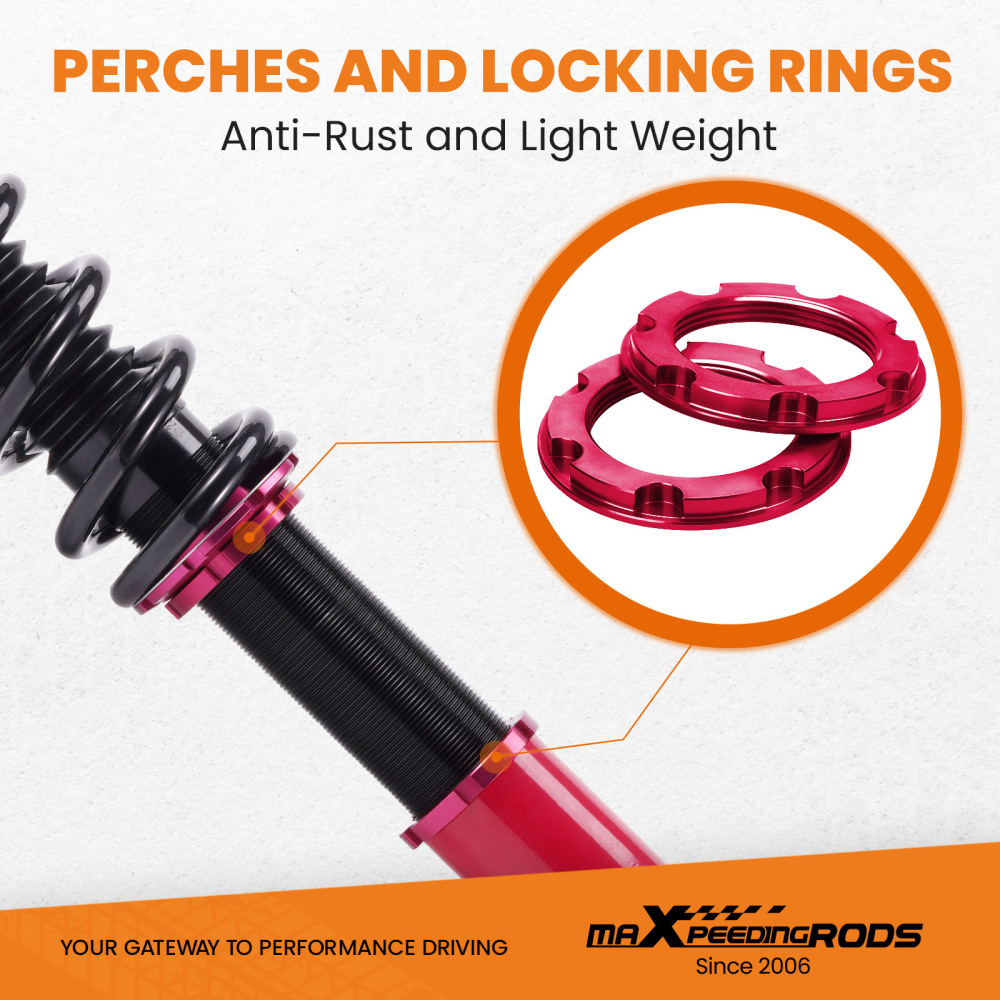

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

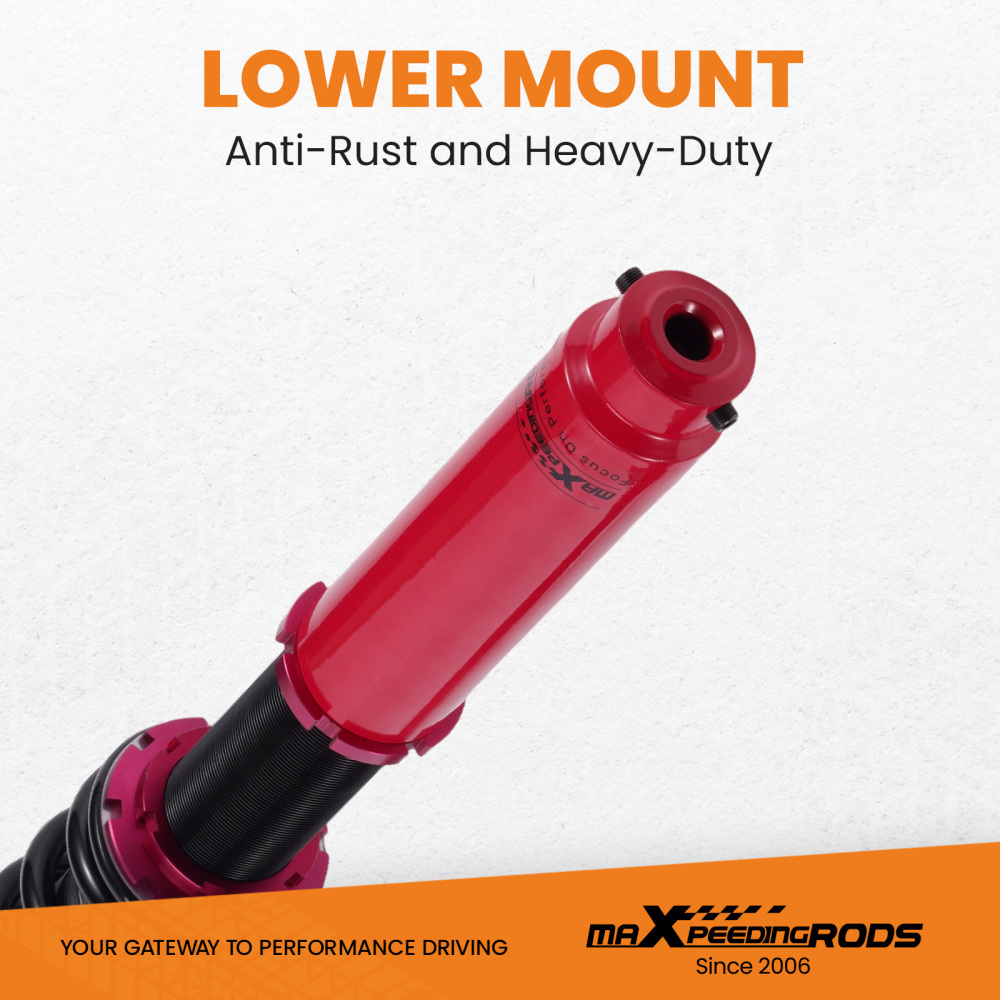

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

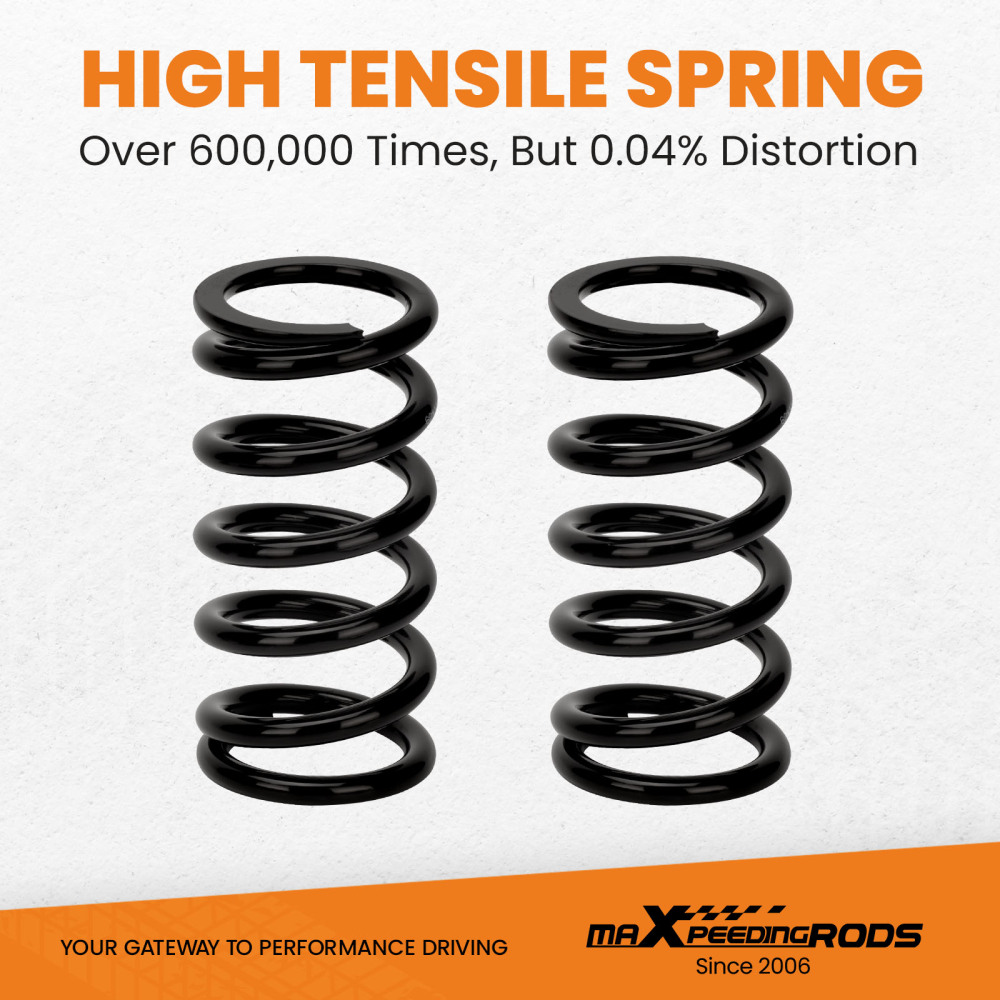

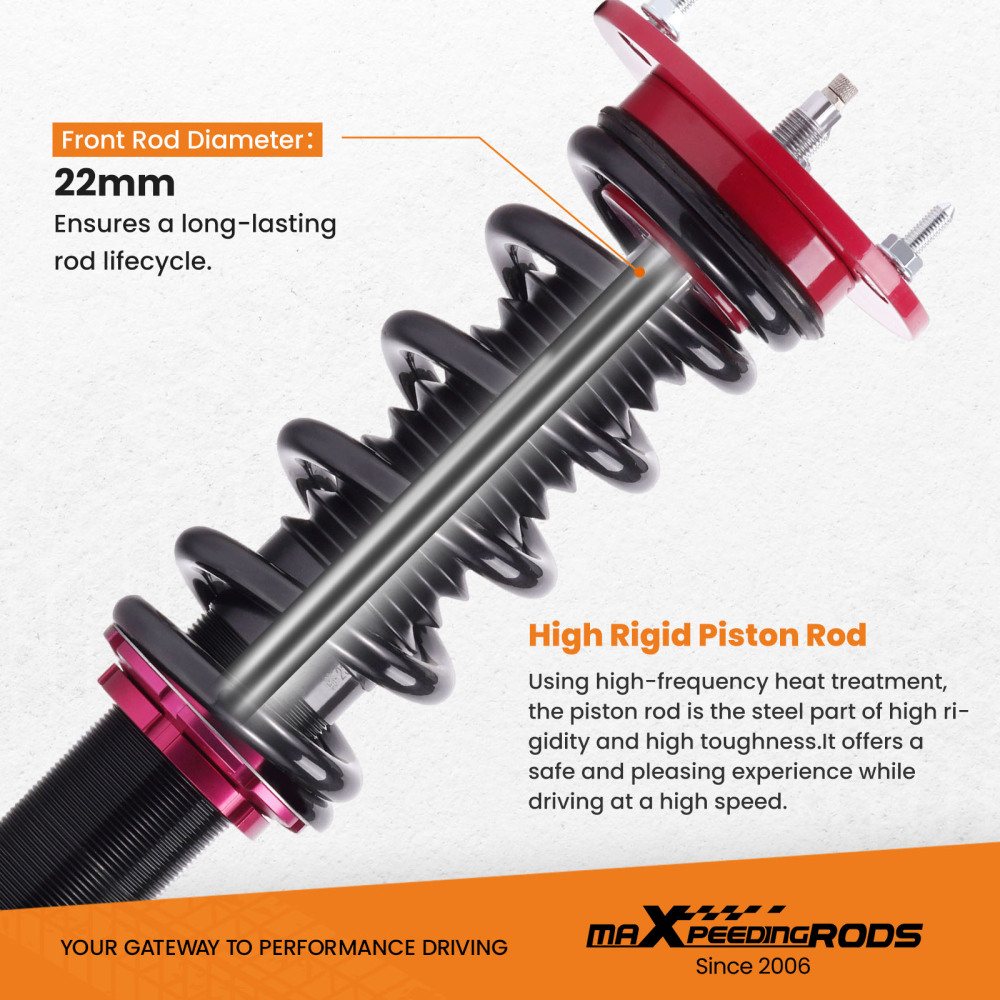

7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

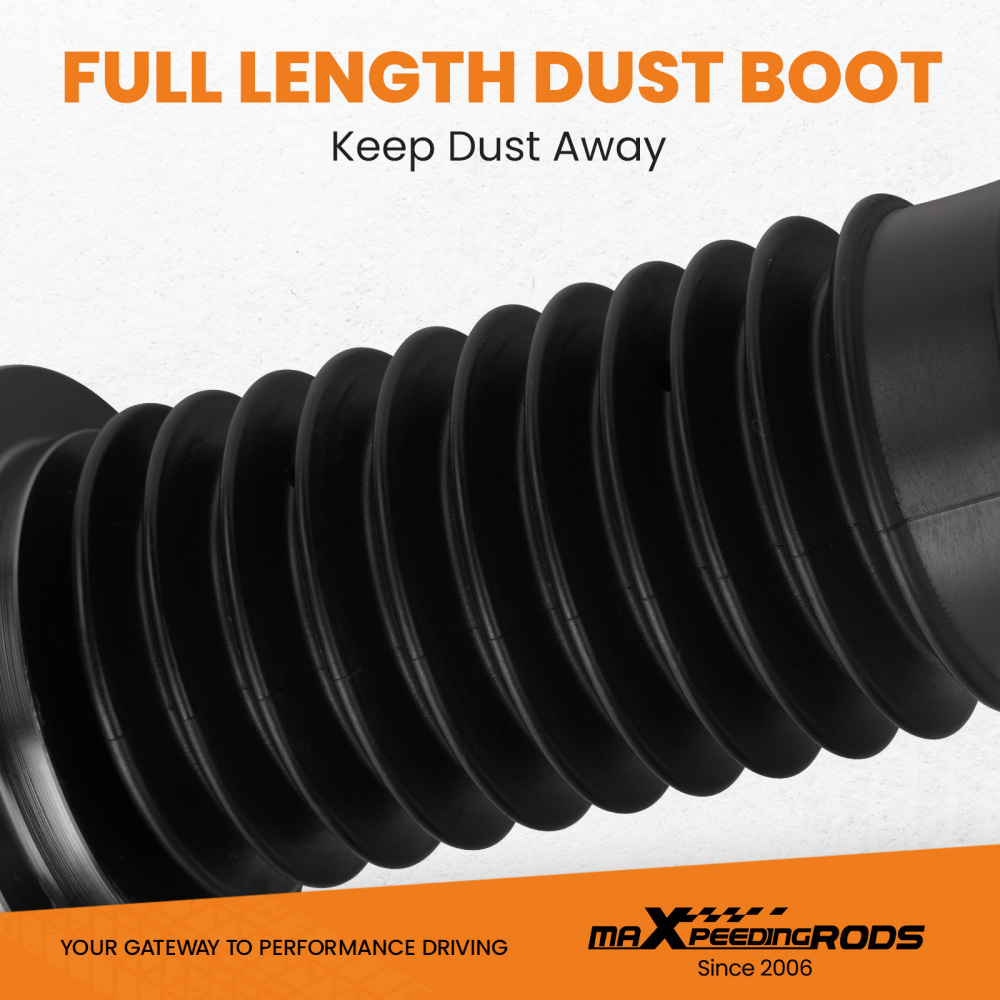

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
