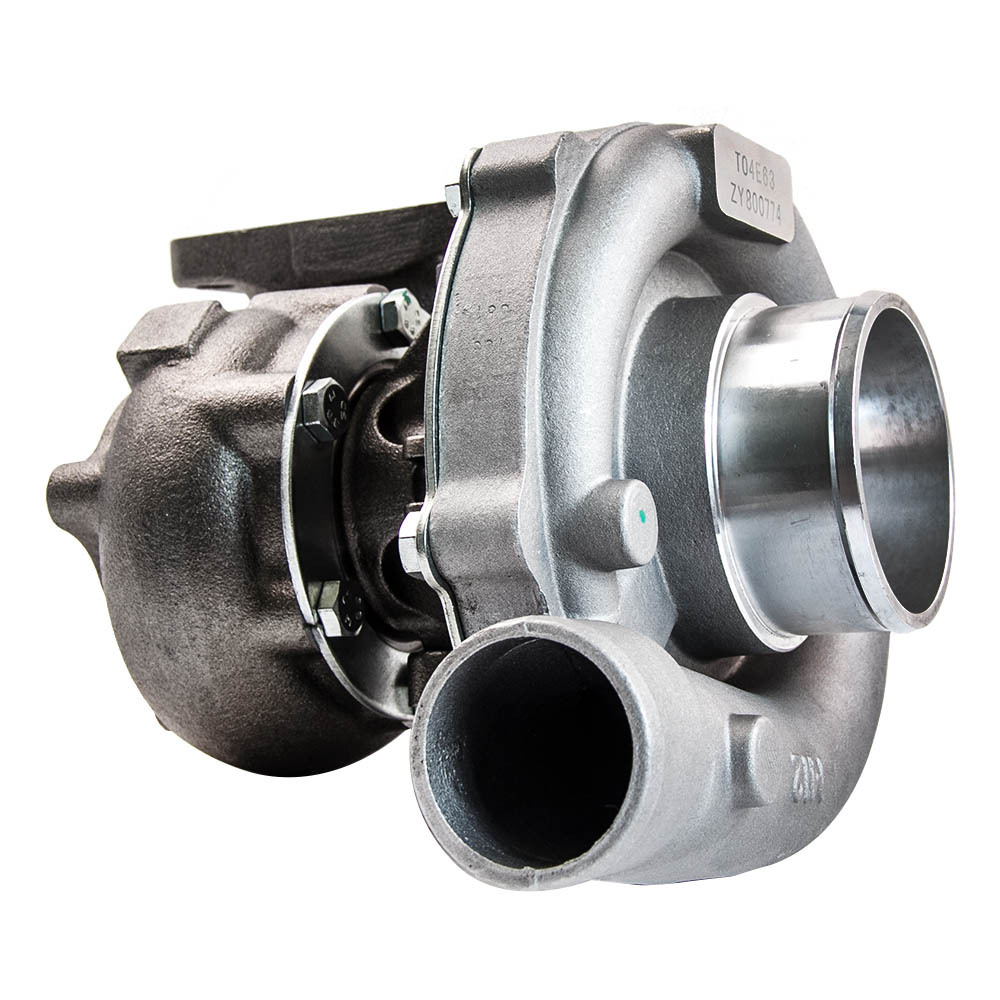

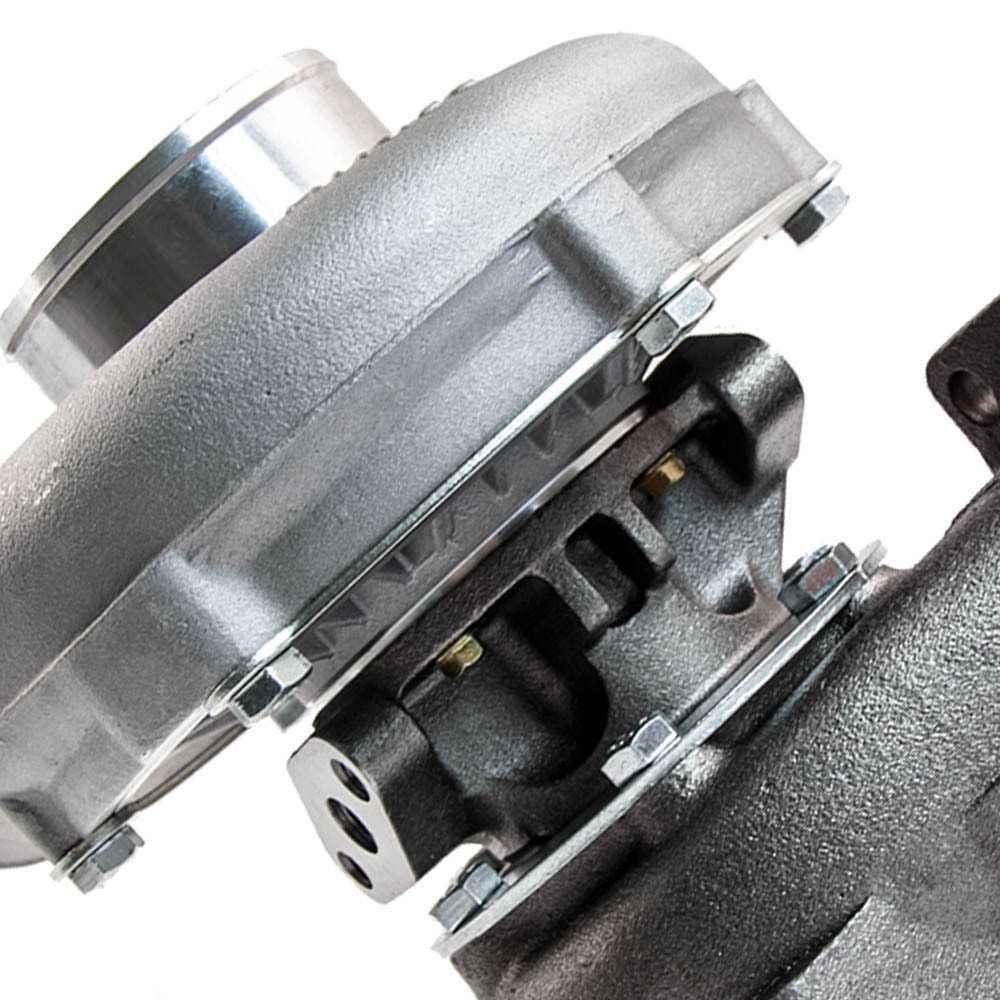

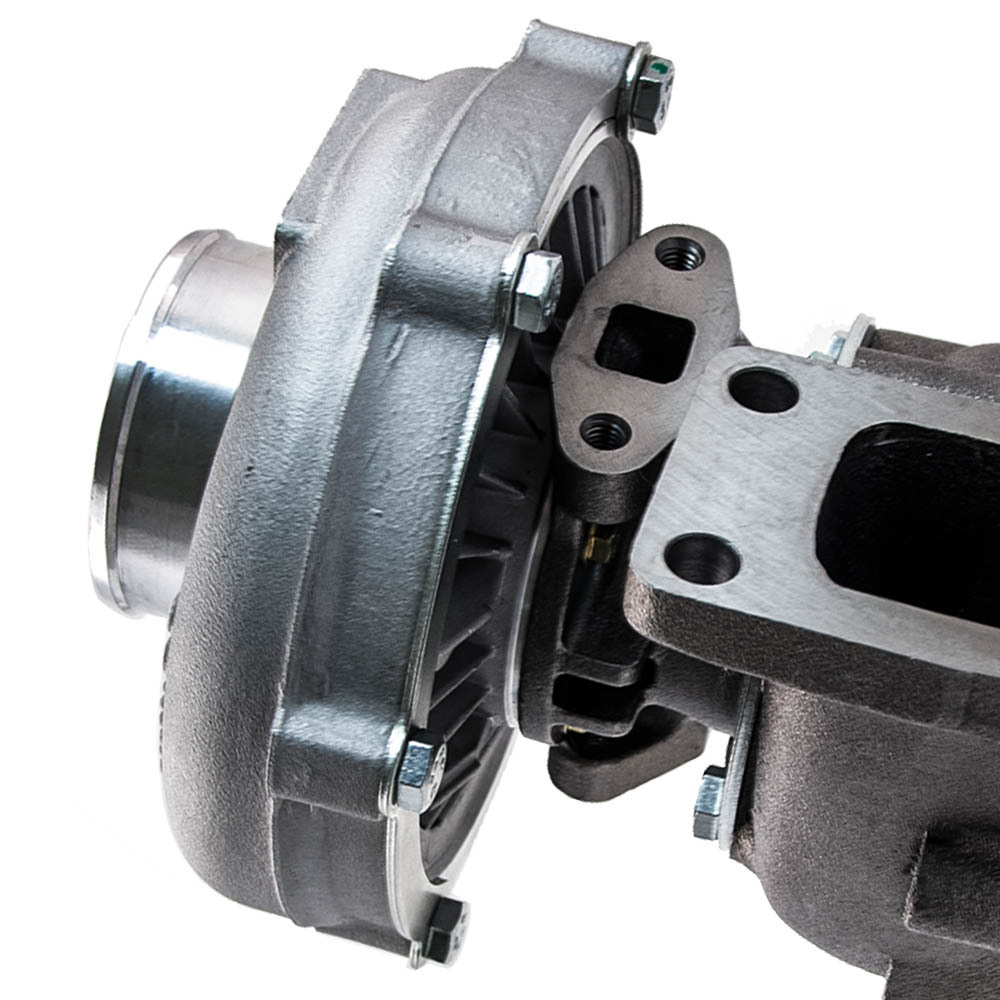

Hybrid T3/T4 T3T4 T04E .63 A/R Turbine 5 Bolt Flange Turbocharger w/ Downpipe

Application

Perfect for 1.6L-2.5L engines

Perfect for 3.2L-5.0L engines in a twin-turbo application, capable to 800HP

boost pressures 7-14.5psi

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

Oil Inlet: M12*1.25

Oil Outlet:2*M8*1.25

Cooling Type: Oil Cooled

Wastegate: External Wastegate

Horse Power: Boost Horse Power up to 300+HP

Compressor:

Trim: 44

A/R: .5

Inducer: 50.5

Exducer: 76

Turbine:

Trim: 73

A/R: .63

Inducer: 65.5

Exducer: 55.9

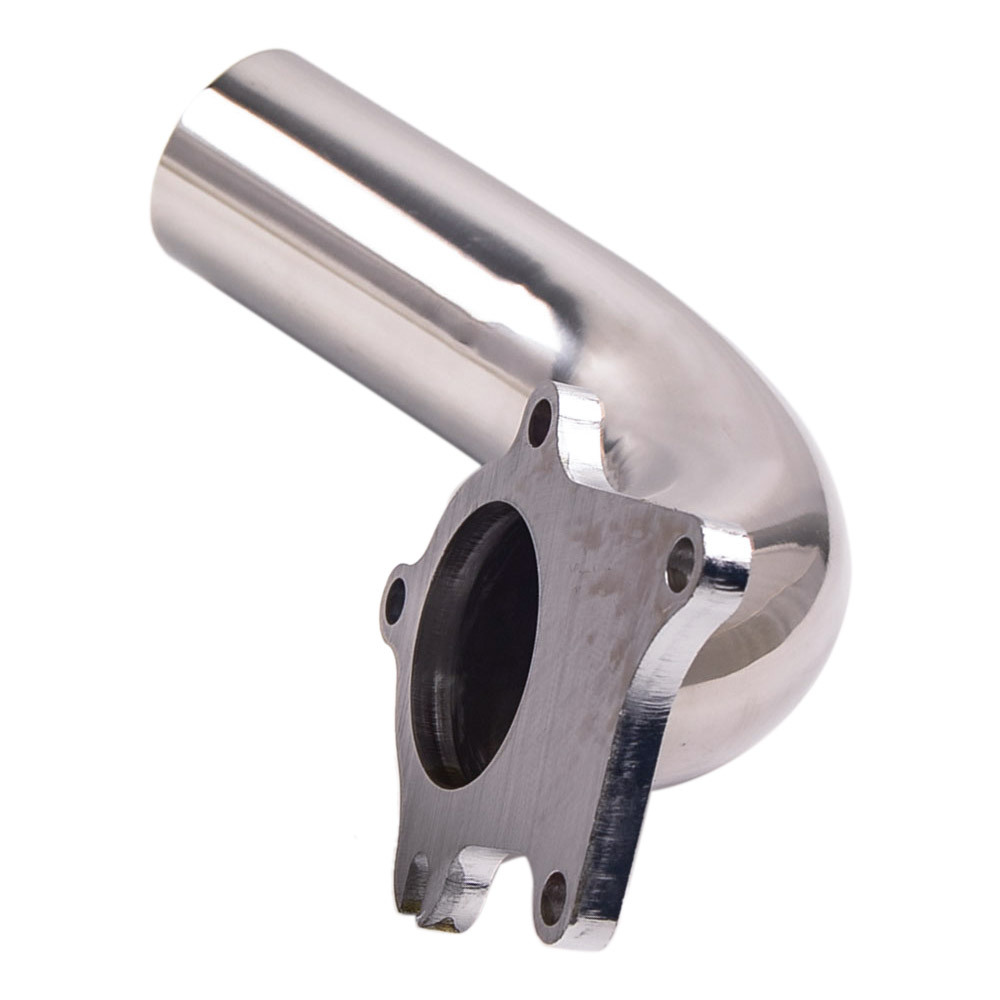

Specifics of Downpipe:

Made of High Quality T-304 Stainless Steel

Pipe Diameter: 64mm (2.5")

Increases Horsepower 10-15 HPS (approximately)

Condition: New

Bearing Type: Floating Bearing

Warranty: one year warranty for any manufacturing defect

Package Includes:

1 X T04E Turbocharger

1 X Set of Downpipe Kits

(You will get exactly as shown in the picture above)

Note

* Professional installation is highly recommended (No Instruction Included)

* This is universal application turbo, so modification might be required for some vehicles.

* For any needs please contact us
