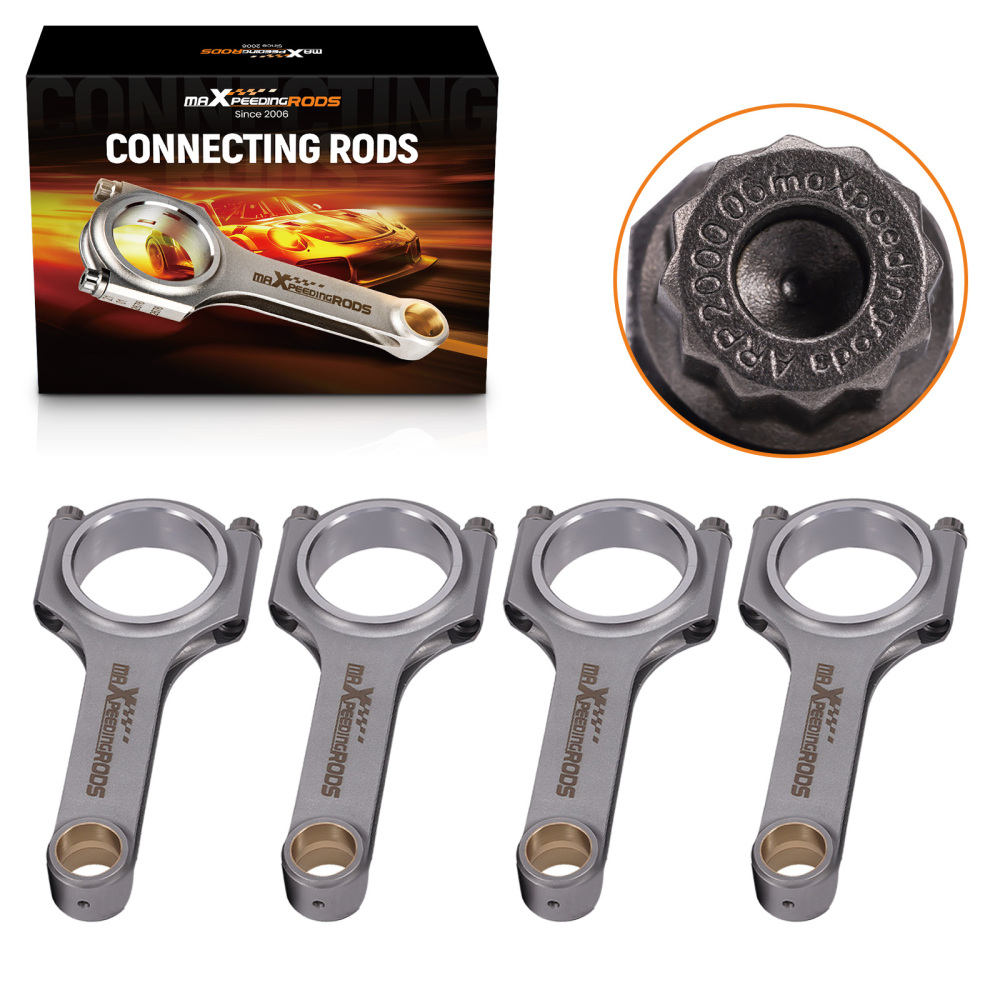

Compatible for VW AUDI Corrado compatible for Golf MK2 G60 GTI 1.8L 16V ARP 2000 Connecting Rod Conrods

Overview

The connecting rod, also known as the con rod, is the part of the piston engine that connects the piston to the crankshaft.The connecting rod and the crank convert the reciprocating motion of the piston to the rotation of the crankshaft.The connecting rod needs to transfer compression force and tension from the piston and rotate at both ends.
This connecting rod is guaranteed to compatible for VW AUDI Corrado compatible for Golf MK2 G60 GTI 1.8L 16V ARP 2000.This is a Newconnecting rod replacement and is the perfect OEM & aftermarket connecting rod.
The high strain of the connecting rod due to tension, pressure and torsion requires the connecting rod to be designed with high strength and low weight. With the high-quality product range from Maxpeedingrods, you are always on the safe side.

Application

Compatible for Volkswagen Golf A2 1.8L G60 I4
Compatible for AUDI G60 4cyl. GTI early & Corrado G60 1.8L

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 136mm
Big end diameter:50.6mm
Small end diameter: 22mm
Big end width: 24.87mm
Small end width: 24.87mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Please Carefully check the Size of the Rods in Specific and Description
- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
