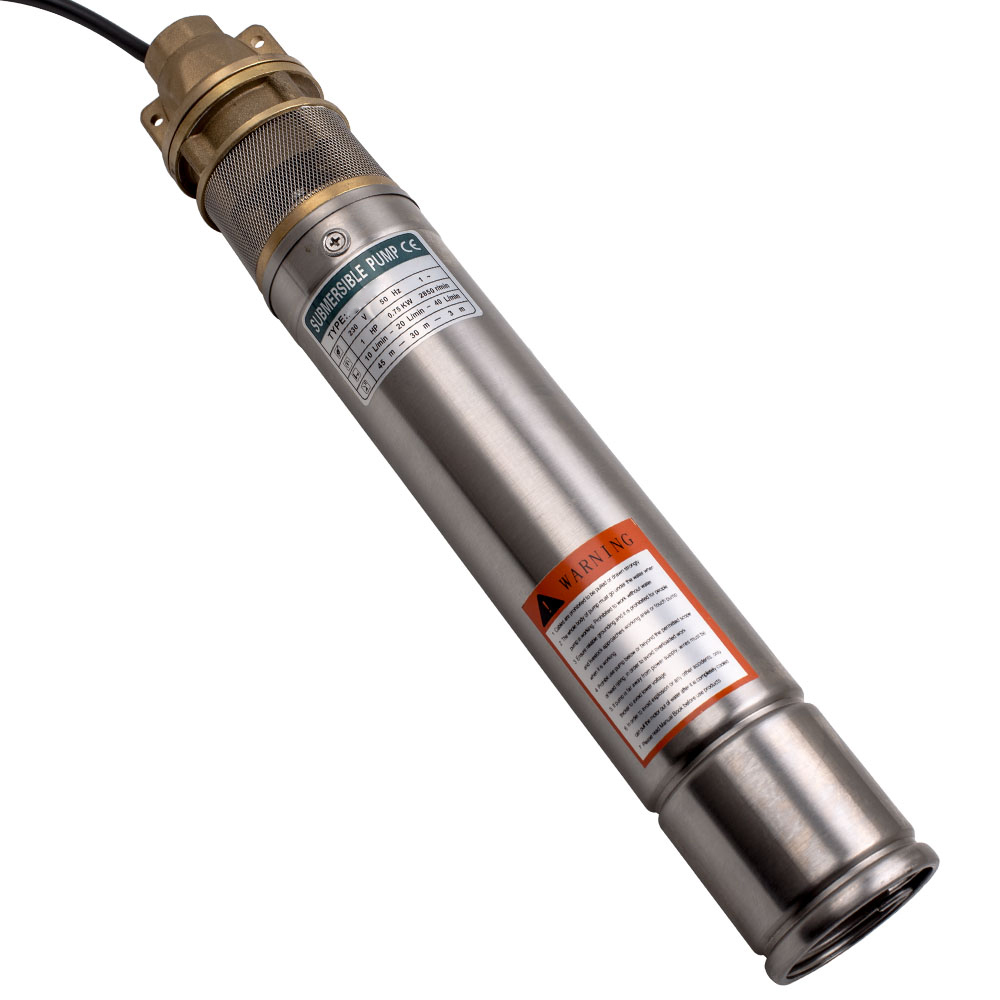

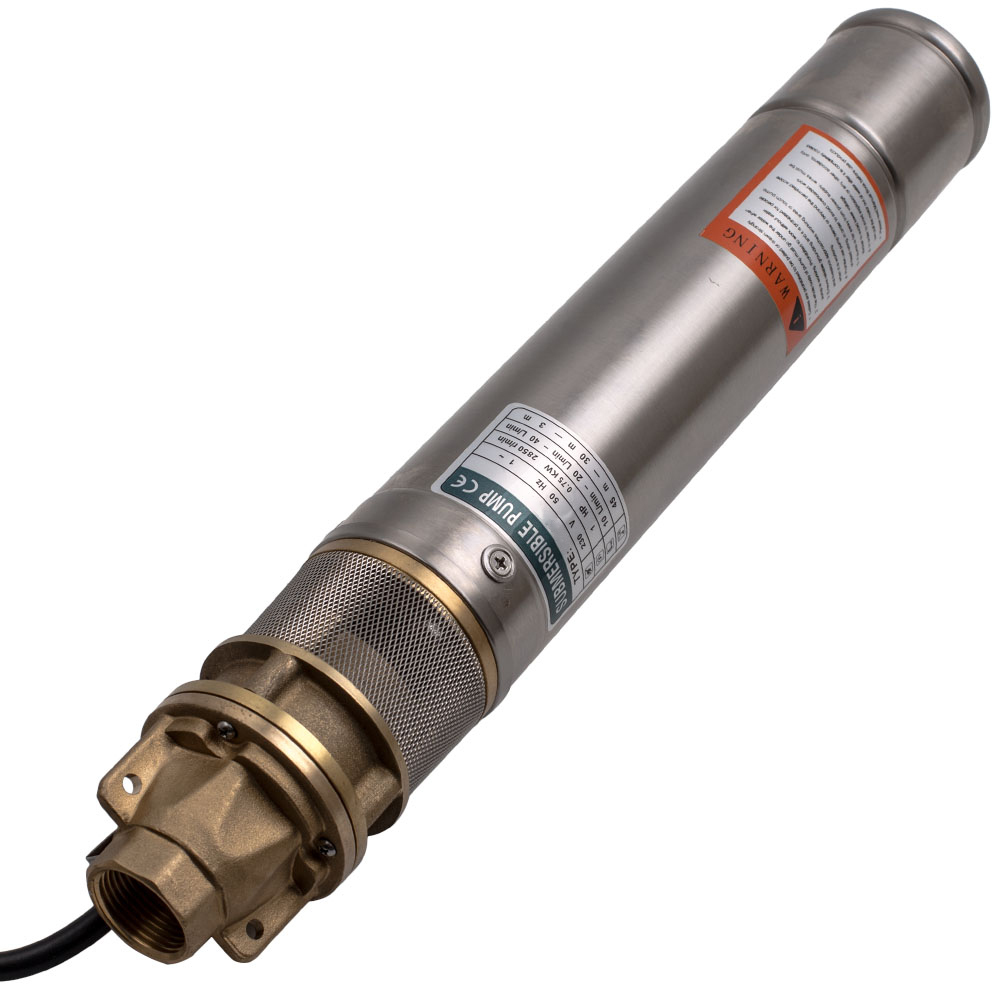

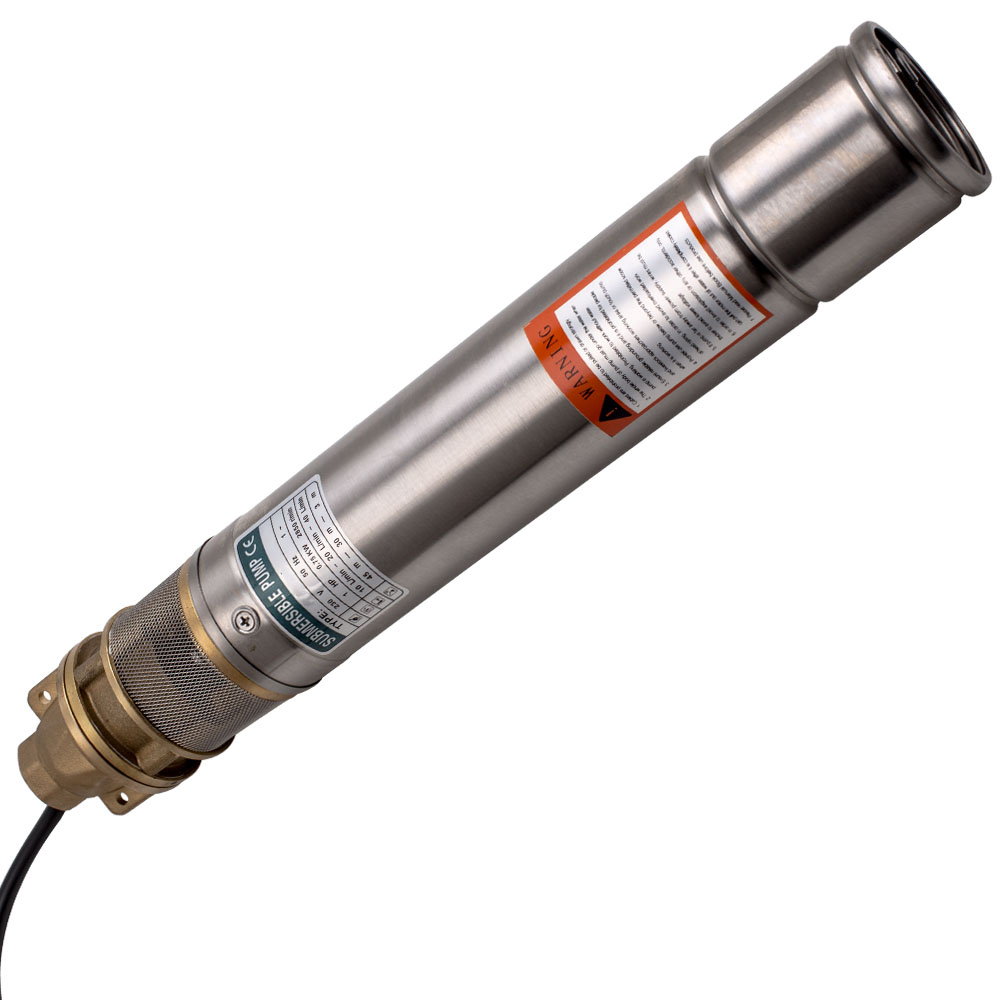

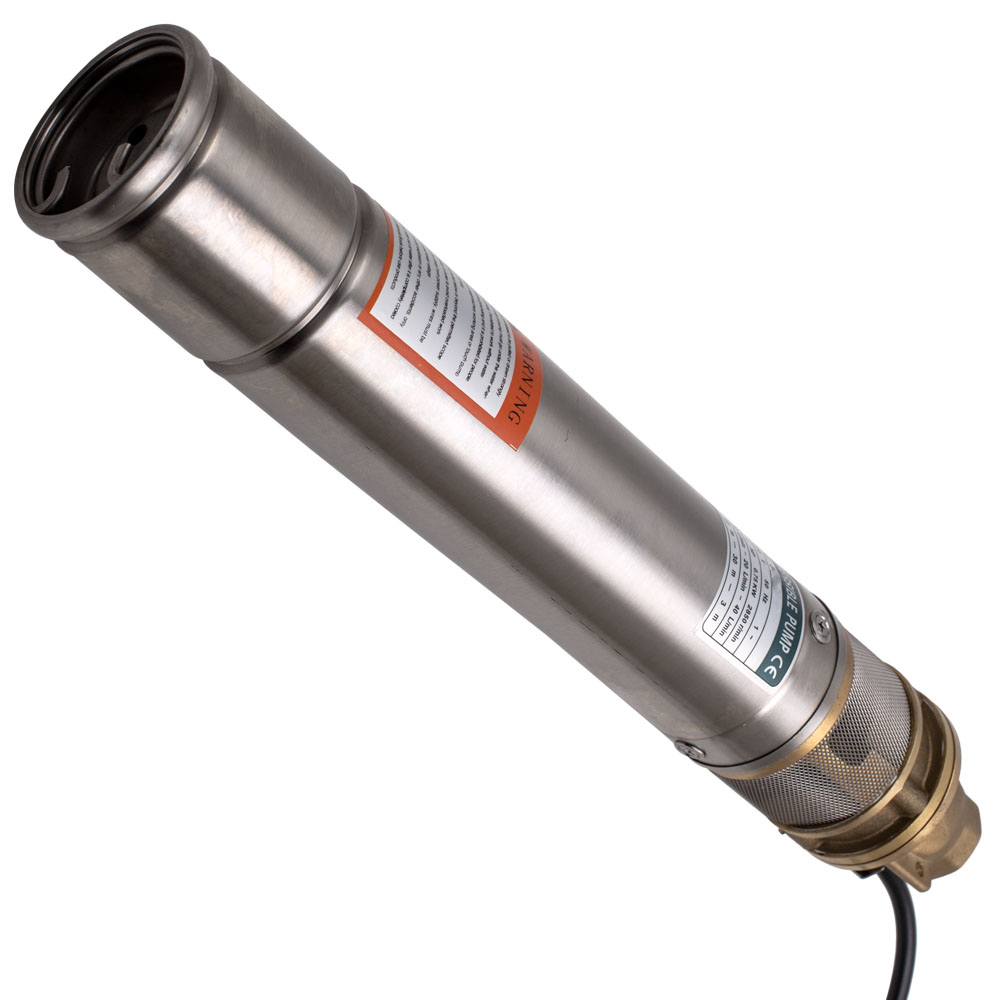

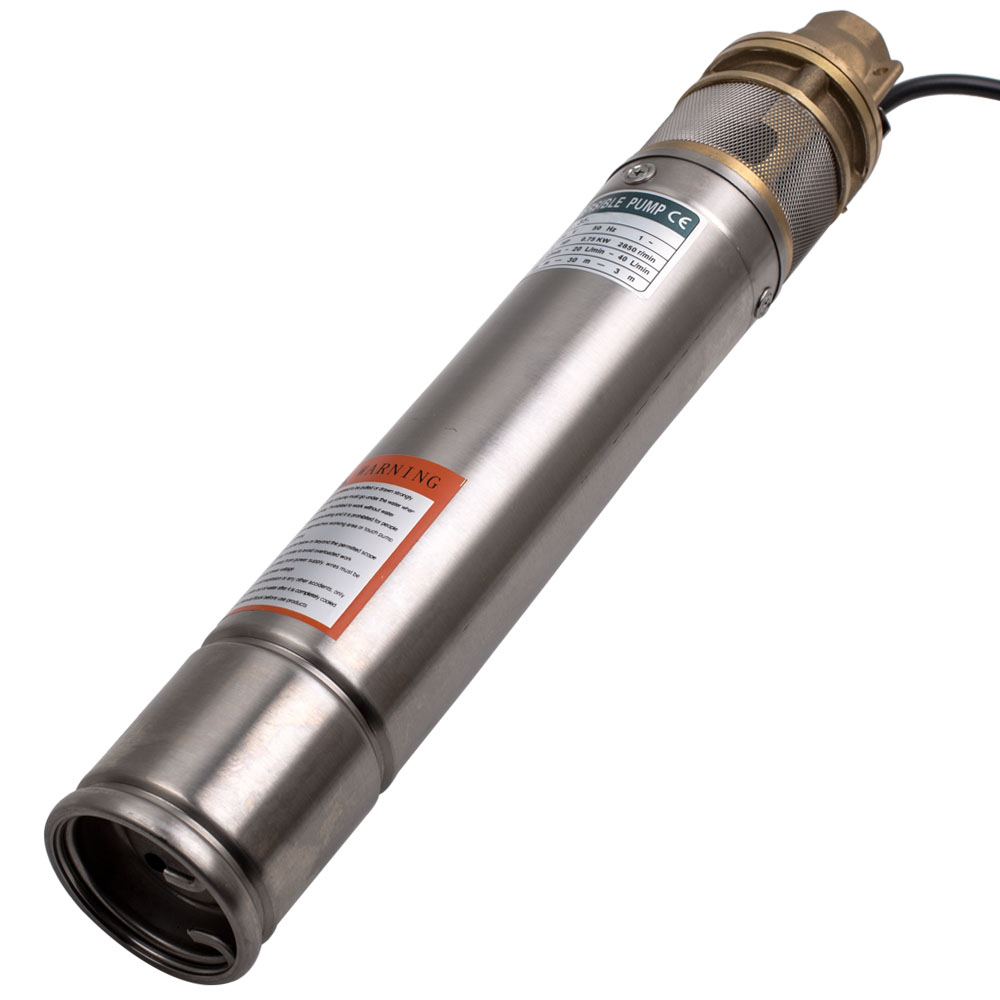

Fountain Submersible Pump Deep Well 4

lncl. 20% VAT
Item Number 3002034315
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Technical Data

- Power: 500w
- Voltage: 230 V/50 Hz
- Protection class: IP 68
- Maximum flow height: 80 m
- Max Pressure: 8 bar
- Maximum flow rate: 2800 L/h
- Flow rate: 2400l/h at 40 m conveyor height
- Average flow rate/flow rate: 1200l/60m
- Maximum water temperature: 35 °c
- Maximum Dive Depth: 30m
- Length: 59 cm
- Diameter: 94.5 mm
- Connection pressure side: 1 inch IG
- Number of screws: 1
- Including 2 fixing eyes
- Cable length: 15 m

Package Includes

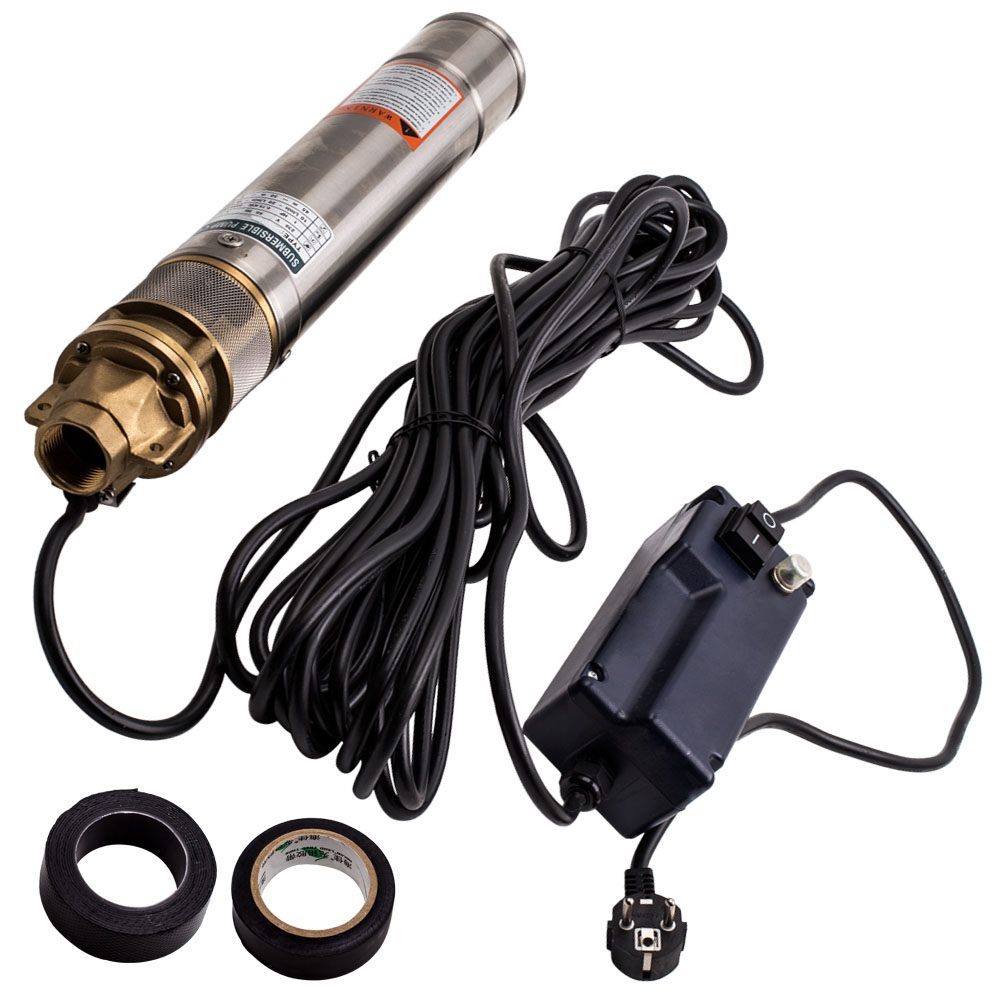

1 piece 4 "Well pump 500w-screw with 15-meter cable
1 Piece Motor Protection Switchbox

Note

Please feel free to contact us for whatever we can help.


Warranty: one year warranty for any manufacturing defect
