Coilovers compatible for BMW E36 3-series Compact 316i 318tds Adjustable Suspension

Introduction

maXpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatible for BMW 3er Coupe E36 Compact 1993-2000

Specification

Front top mount: OE
Rear top mount: OE
Damping adjustable: Not available
Camber adjustable: Not available

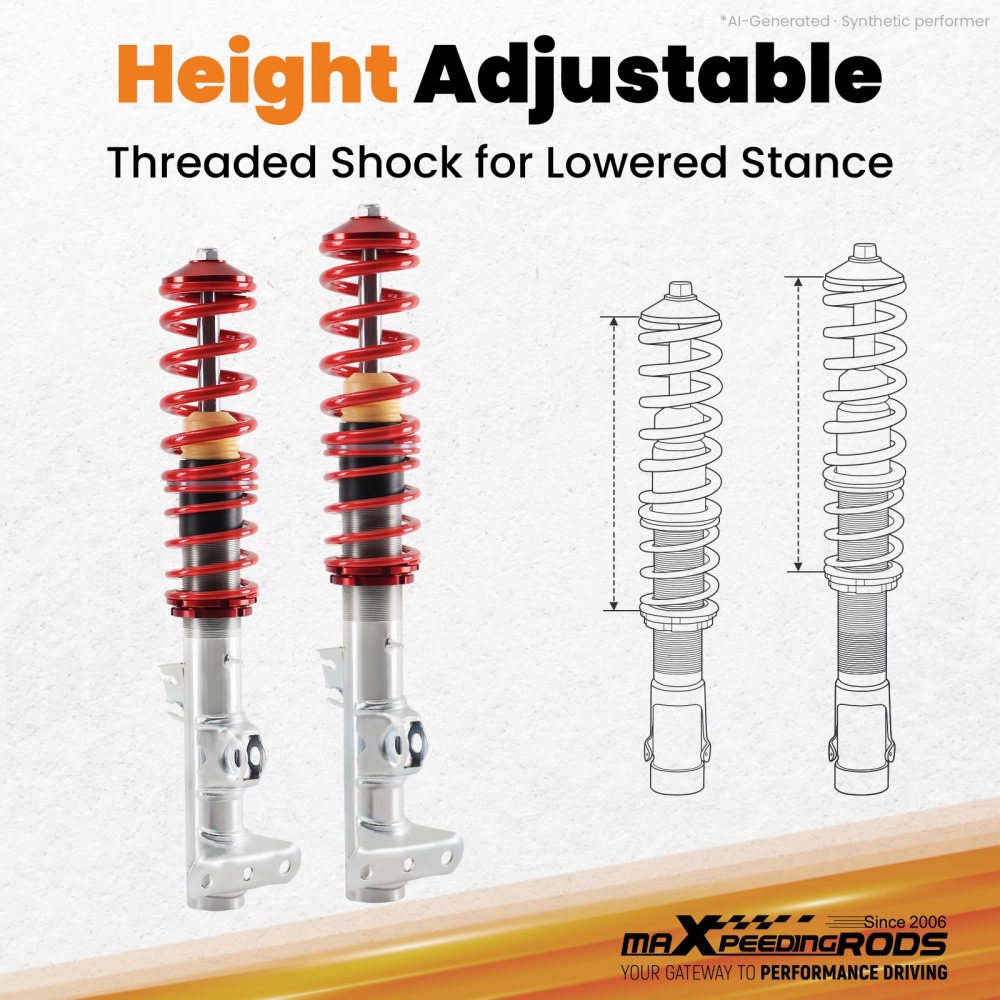

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

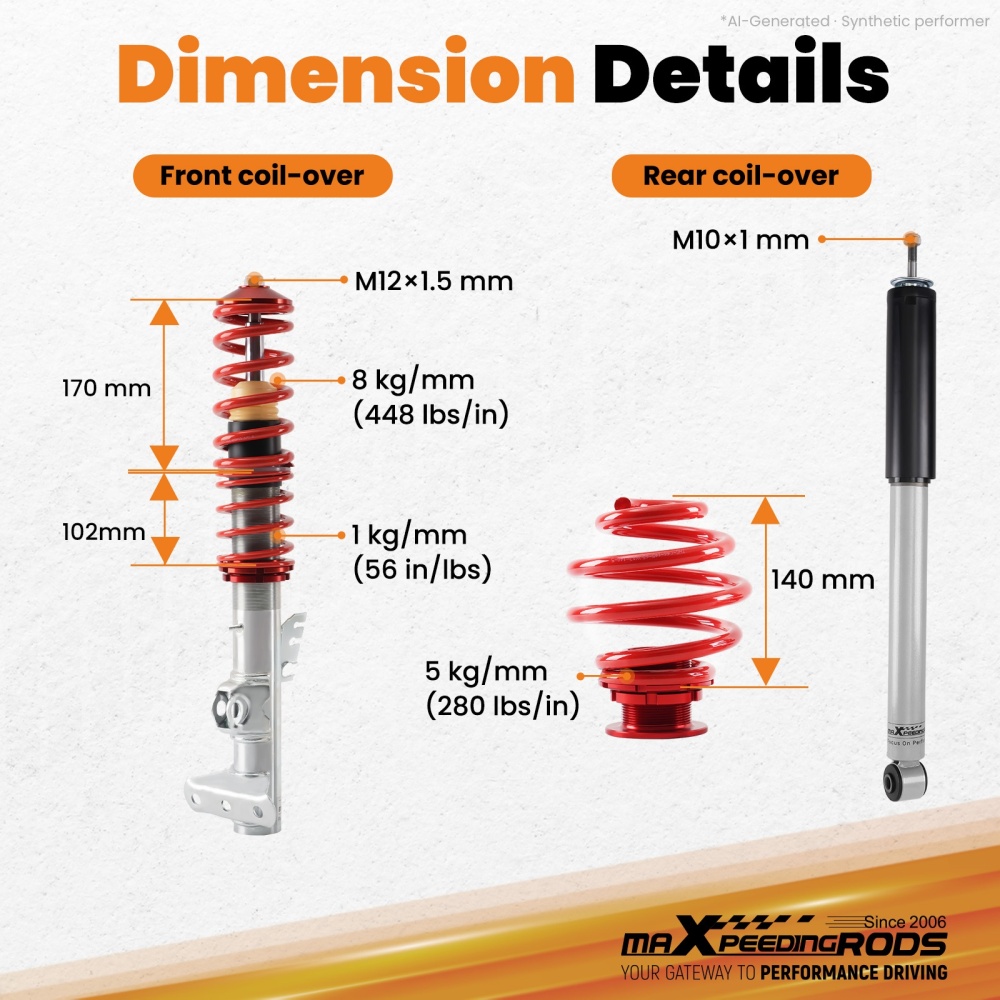

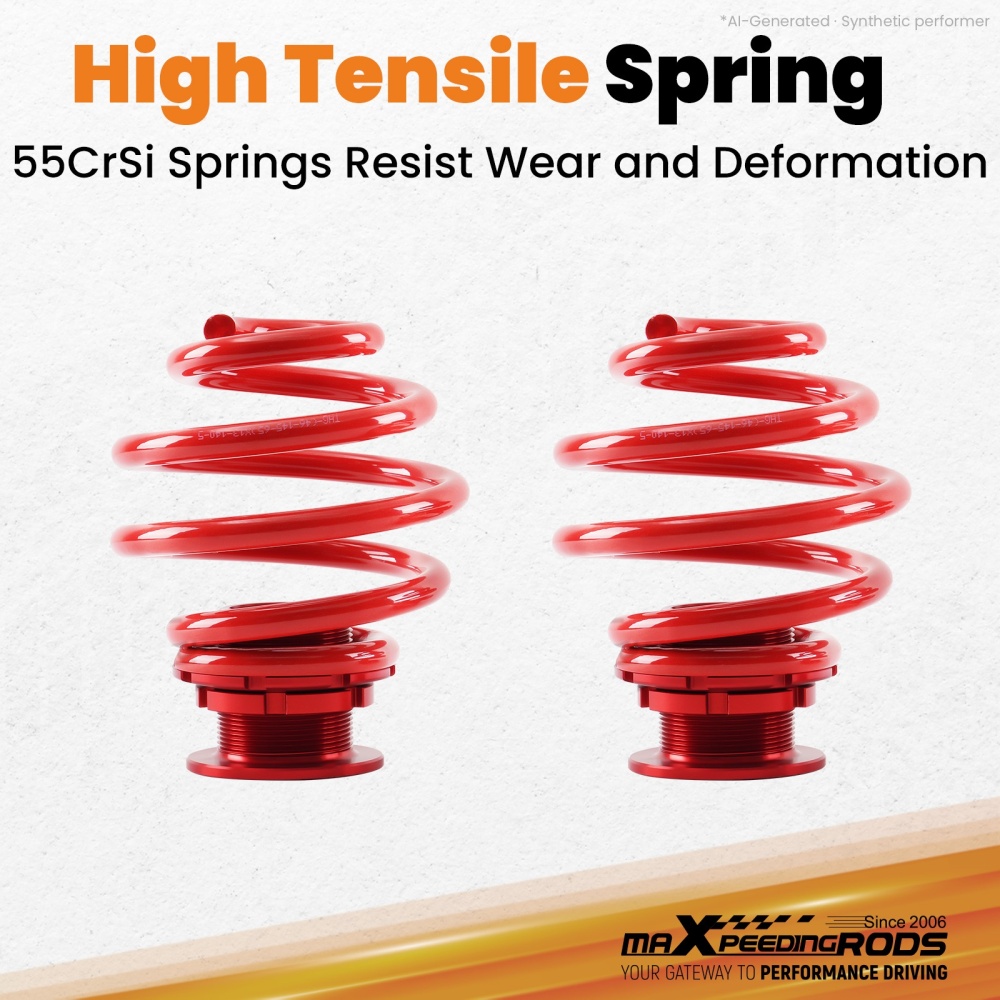

Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 46-145-65 mm
Spring length Front: 170 mm
Spring length Rear: 140 mm
Spring Preload advised: 7-10 mm

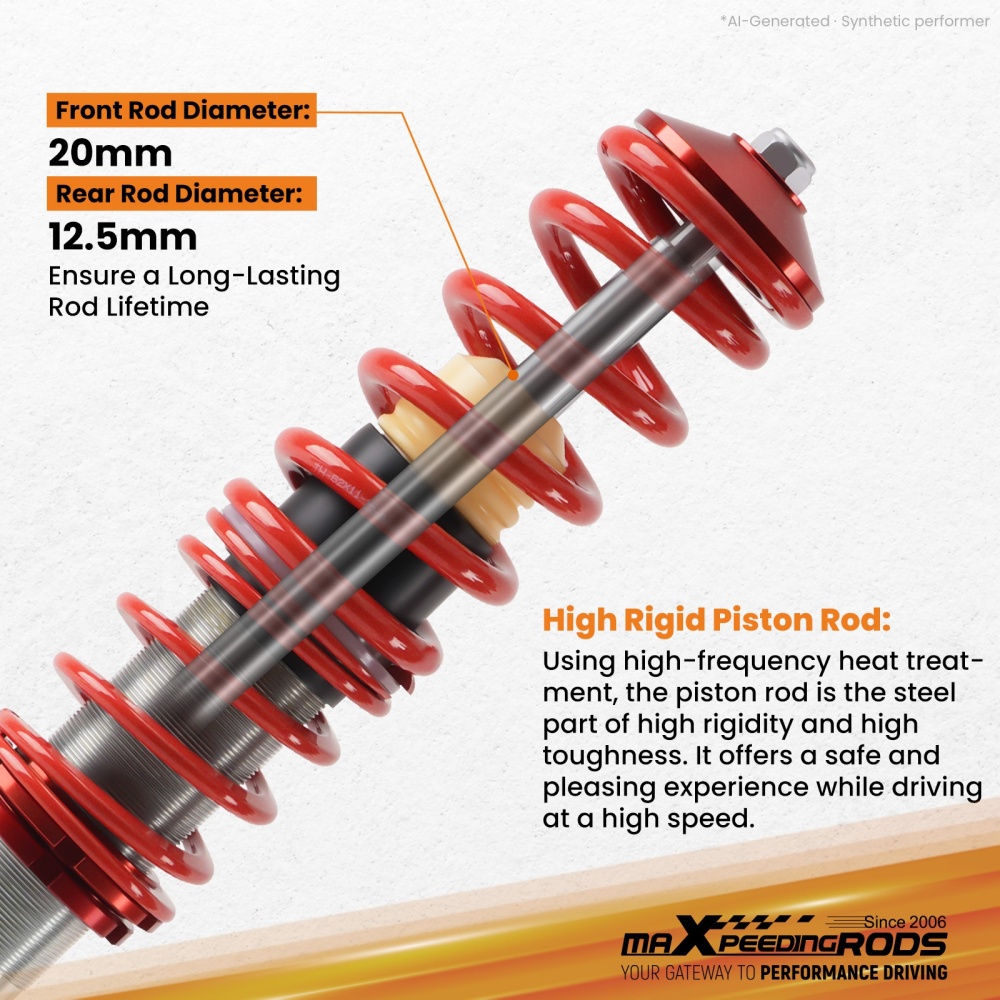

Damping rod diameter Front: Φ 20 mm
Damping rod diameter Rear: Φ 12.5 mm
Damping thread Front: M52×1.5 mm

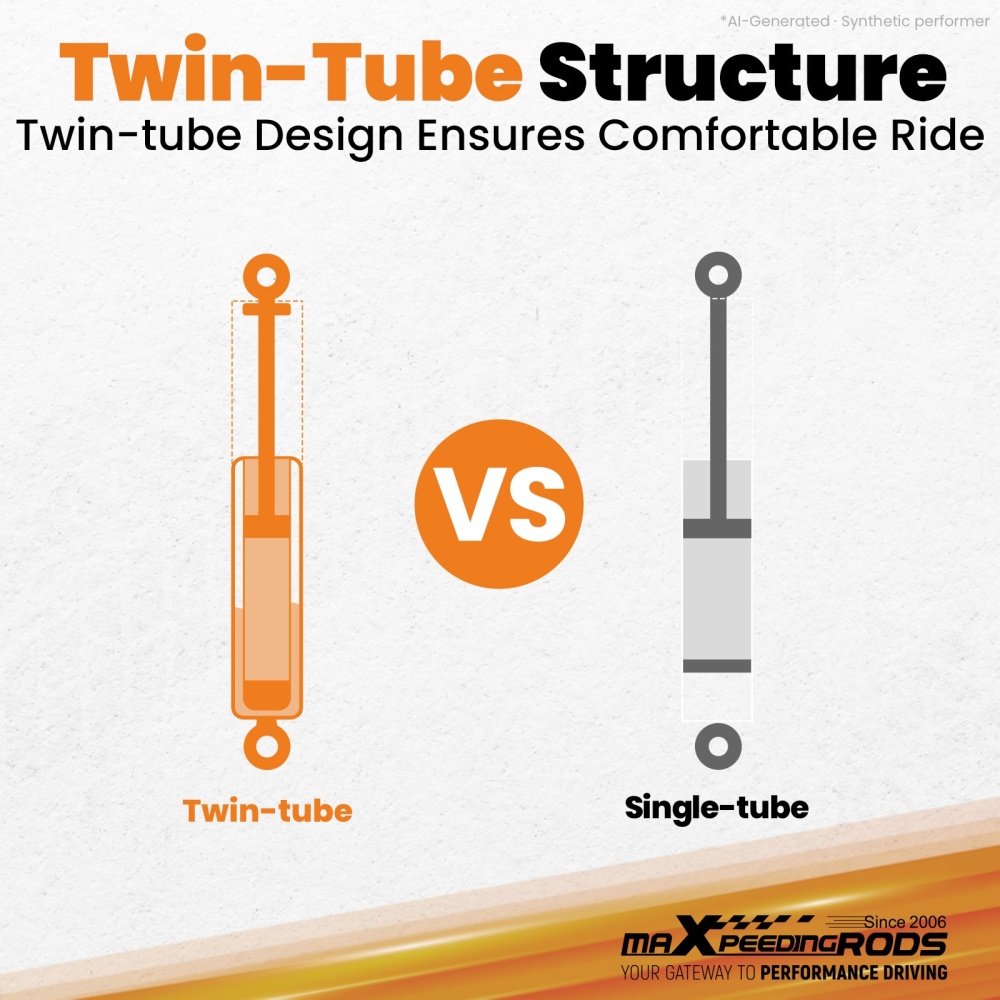

Twin -tube Diameter Front: 52 mm
Twin -tube Diameter Rear: 40 mm
Rod End Thread Front: M12×1.5 mm
Rod End Thread Rear: M10×1 mm
Color: Red body with red spring

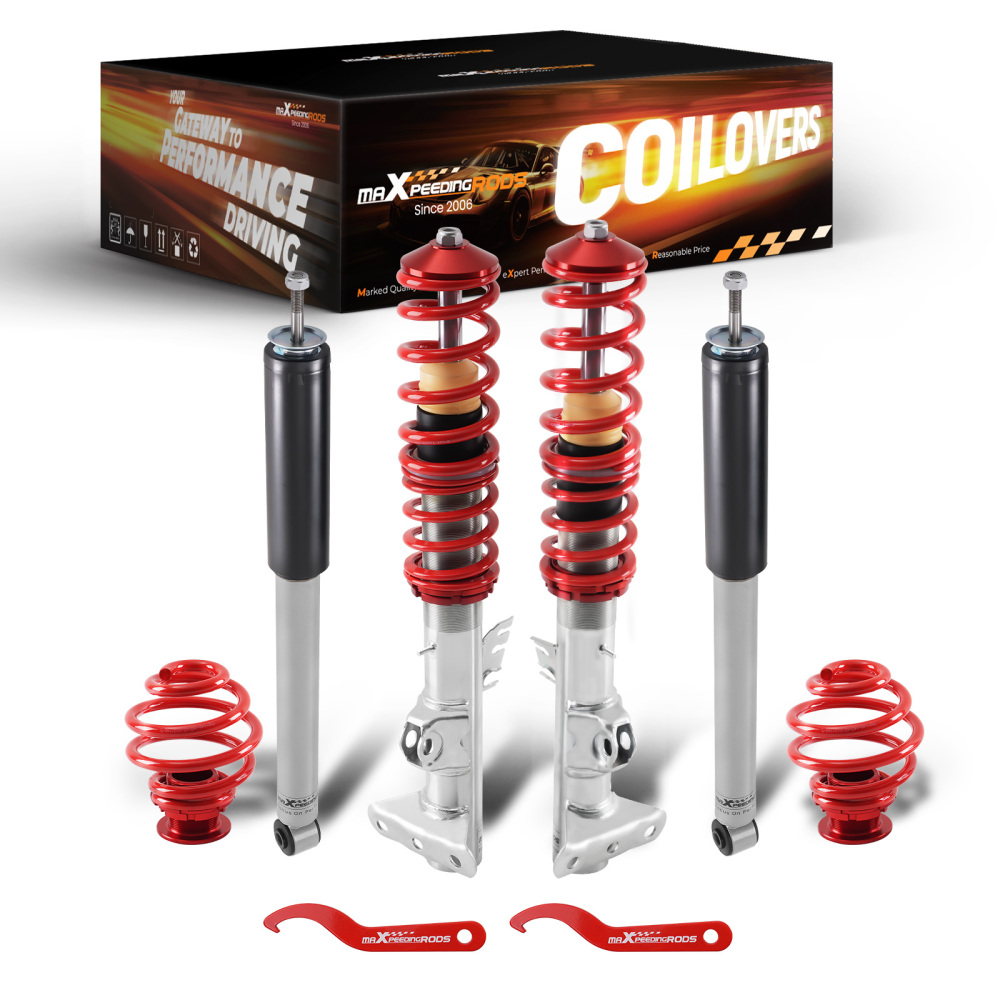

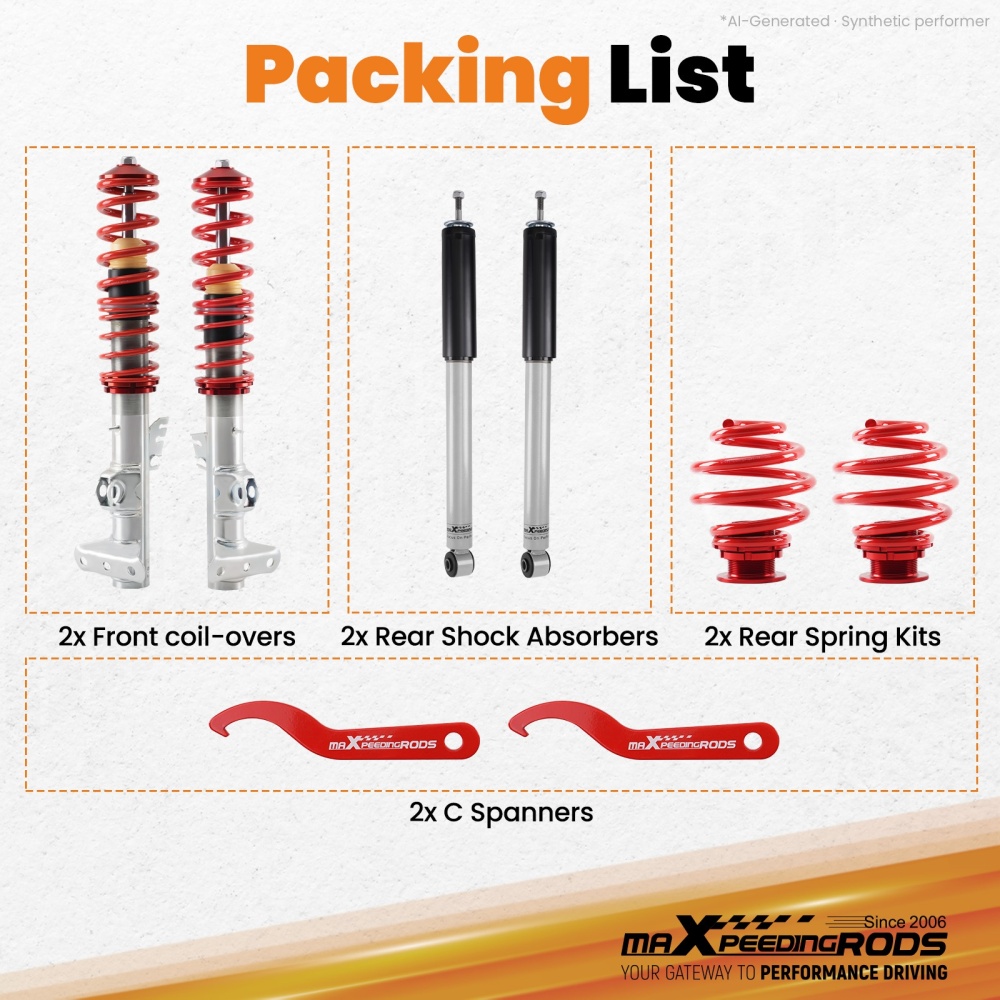

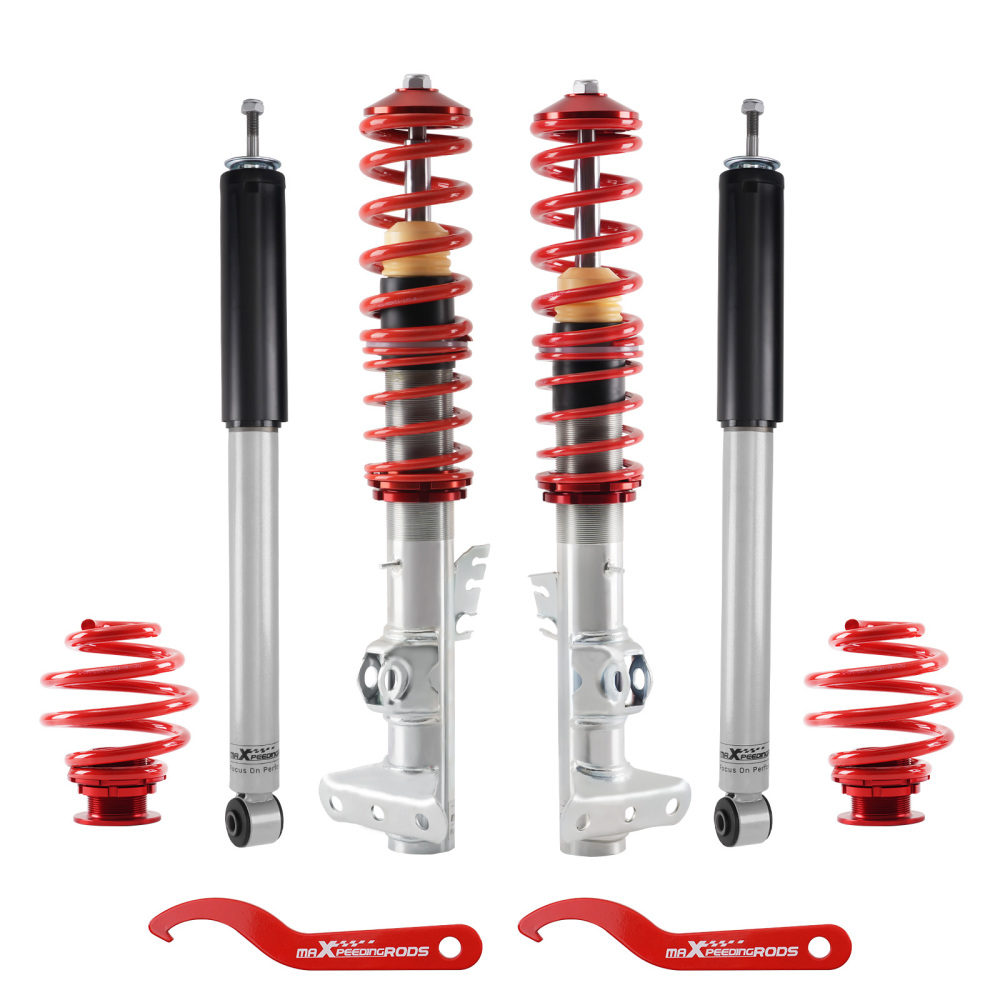

Package included

Package included：

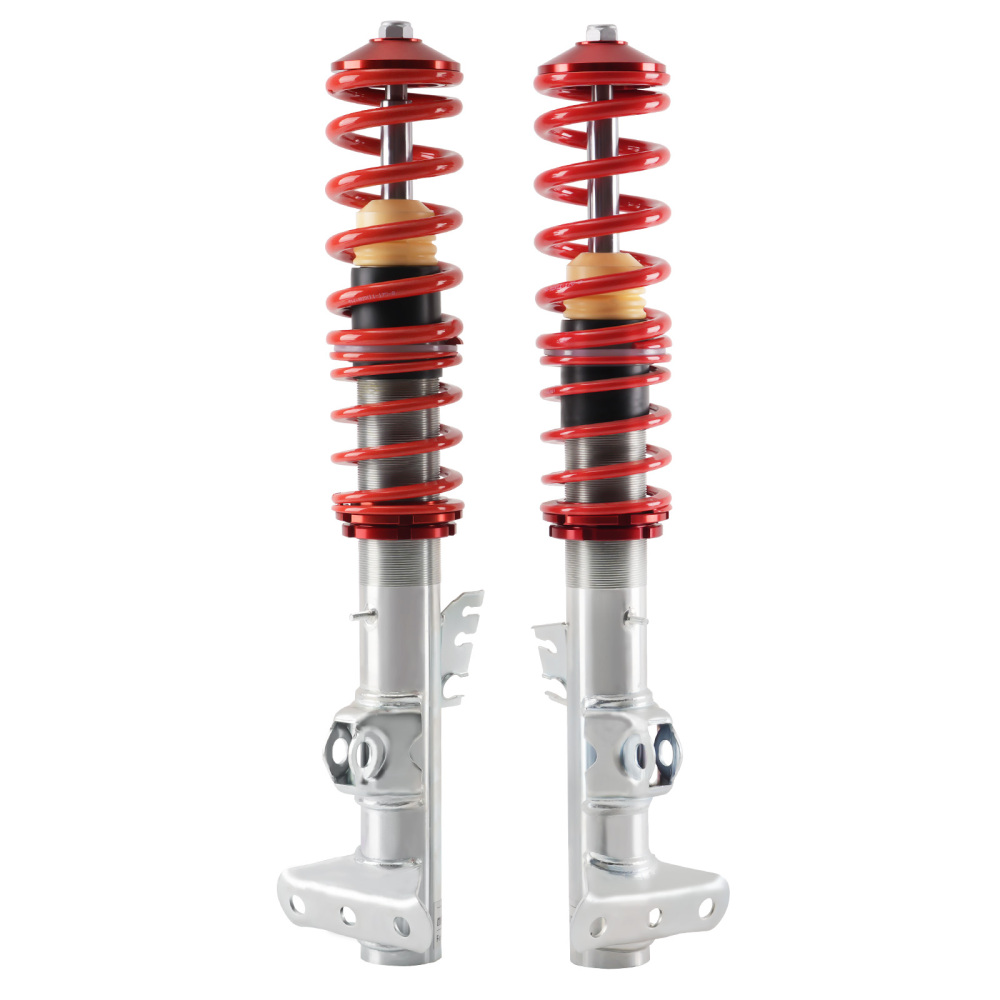

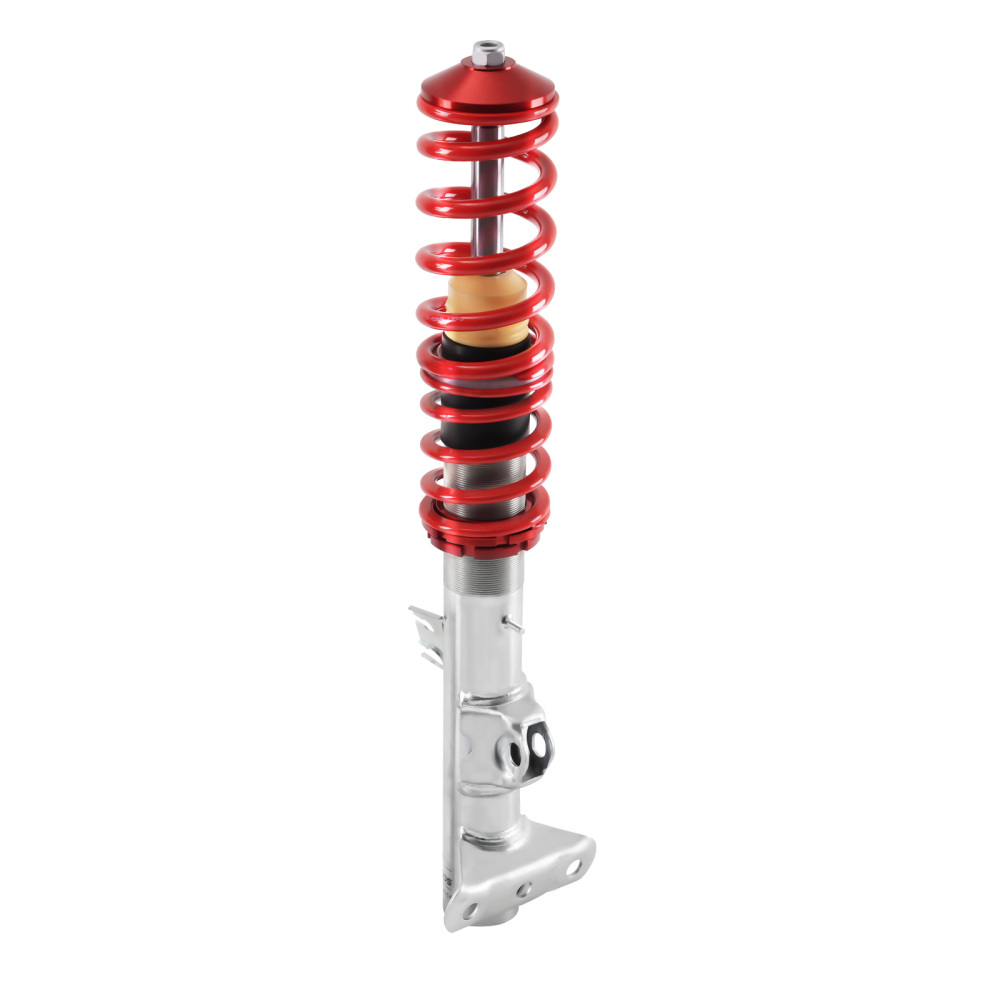

2x Front coil-overs

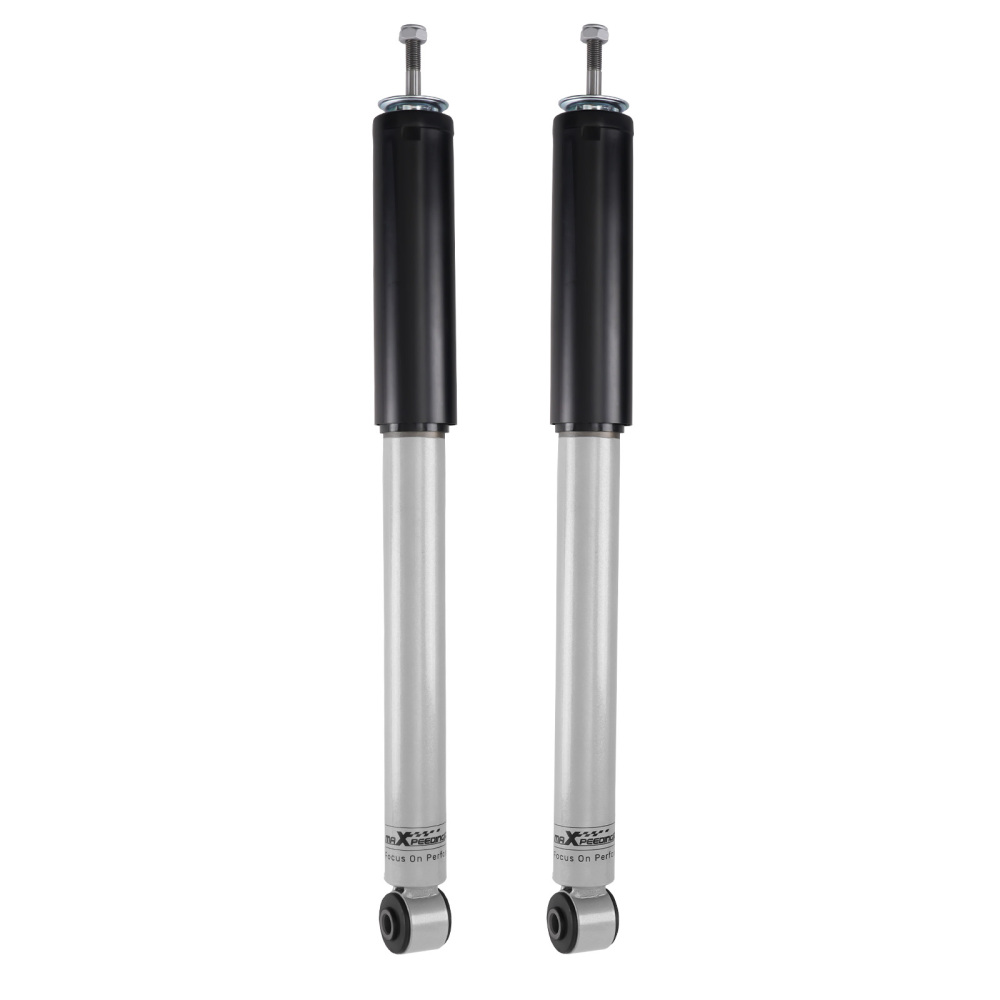

2x Rear coil-overs
2x C spanners

Dimension

Package size : 70*50*20 cm
Weight: 20950 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable

2. Dust boot, solid rubber bump stops

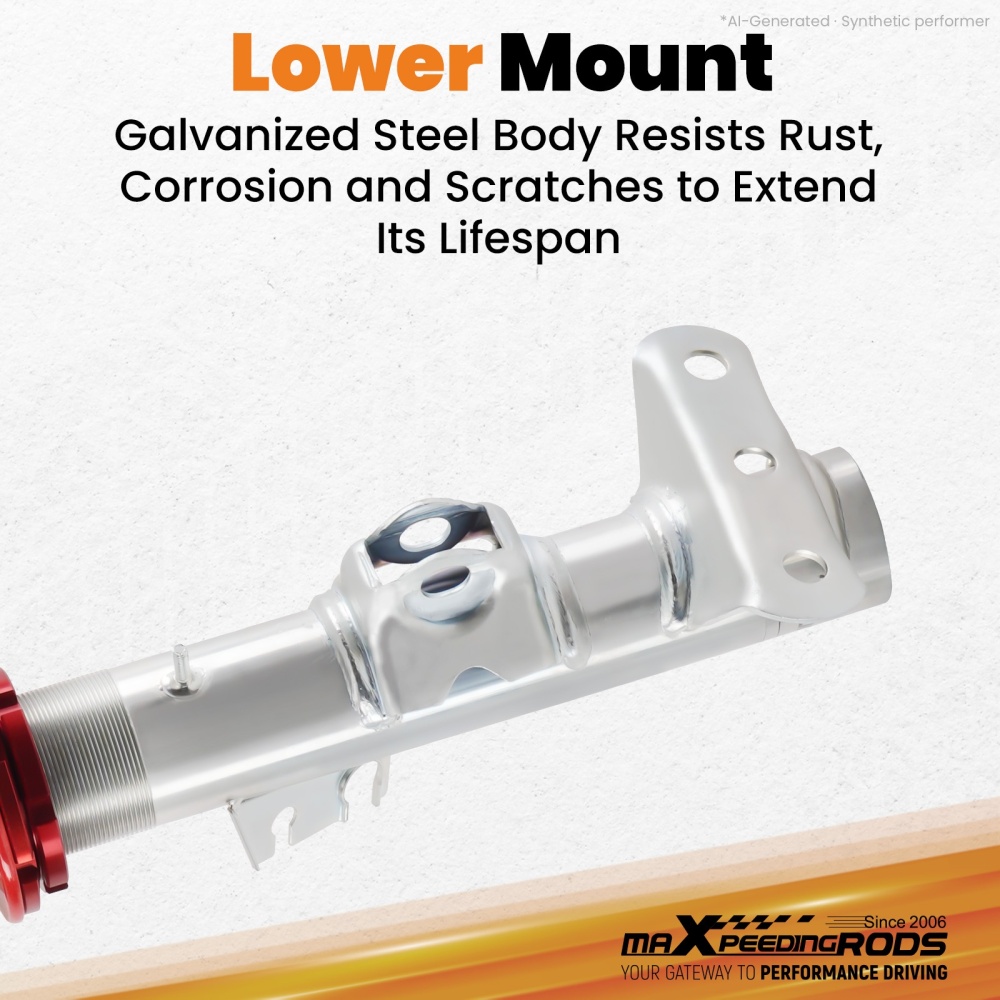

3. Aluminum components and steel lower mount brackets designed to balance weight and structural requirements.

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.
