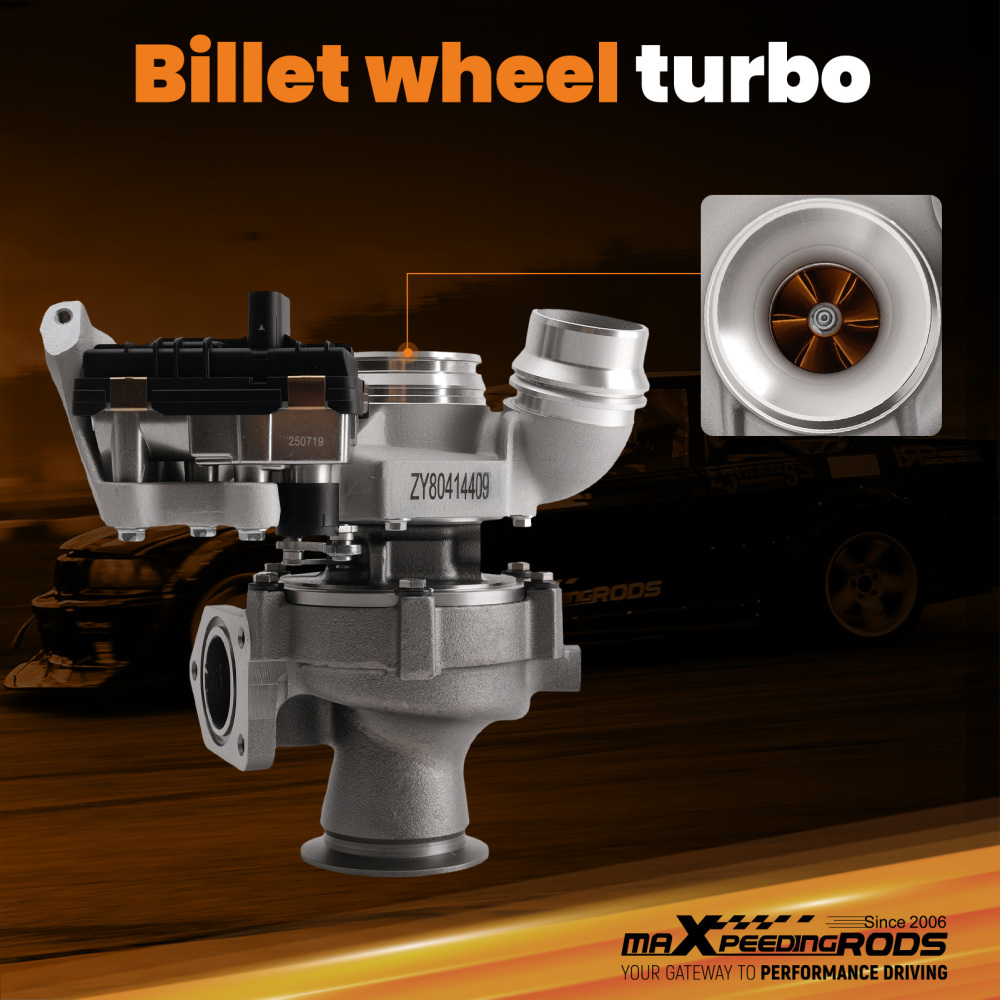

Billet Turbo Turbocharger for BMW 120d 220d 320d 520d X1 X3 11658515188 N47D20

Application

Compatible for BMW X3 2.0 d (F25) 135kw N47D20 2010-,
compatible for BMW X3 2.0 d (F25) 135kw N47D20 2010-,
compatible for BMW X1 20d (E84) 135kw N47D20 2012-,
compatible for BMW 520 d (F10 / F11) 135kw N47D20 2010-,
compatible for BMW 520 d (F07 / F10 / F11) 135kw N47D20 2010-,
compatible for BMW 420 d (F32/F33/F36) 135kw N47D20 11.2012-03.2015,
compatible for BMW 320 d (F30/F31/F34) 135kw N47D20 07. 2011-02.2016,
compatible for BMW 320 d (F30/F31/F34) 120kw N47D20 07.2011-02.2016,
compatible for BMW 320 d (E90N/E91N/E92N/E93N) 135kw N47D20 09.2010-,
compatible for BMW 320 d (E90N/E91N/E92N/E93N) 135kw N47D20 09.2010-,
compatible for BMW 320 d (E90N/E91N/E92N/E93N) 120kw N47D20 09.2010-,
compatible for BMW 320 d (E90N/E91N/E92N/E93N) 120kw N47D20 09.2010-,
compatible for BMW 220 d (F22) 135kw N47D20 10.2012-10.2014,
compatible for BMW 120 d (F20/F21) 135kw N47D20 07.2010-01.2015,

OE/Part number

49135-09600, 49135-09610, 49335-00500, 49335-00510,
49335-00511, 49335-00512, 49335-00520,49335-00521,
49335-00530, 49335-00531, 49335-00550, 49335-00560,
49335-00561, 49335-00570, 49335-00580, 49335-00581,
49335-00582, 49335-00583, 49335-00584, 49335-00585,
49335-00600, 49335-00601, 49335-00610, 49335-00611,
49335-00620, 49335-00621, 49335-00631, 49335-00635,
49335-00636, 49335-00640, 49335-00642, 11658506721,
11658512465, 11658513298, 11658515188, 11658517452,
11658517453, 11658519475, 11658519476, 11658519477,

Specification

Engine Code: N47, N47D20
Turbo modle: TF035
Cooling Type: Oil Cooling
Bearing Type: Floating Bearing
Universal Fitment: No
Finish: Matte
Actuator Type: Electronic actuator
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 27*23*29cm
Package Weight: 7880g

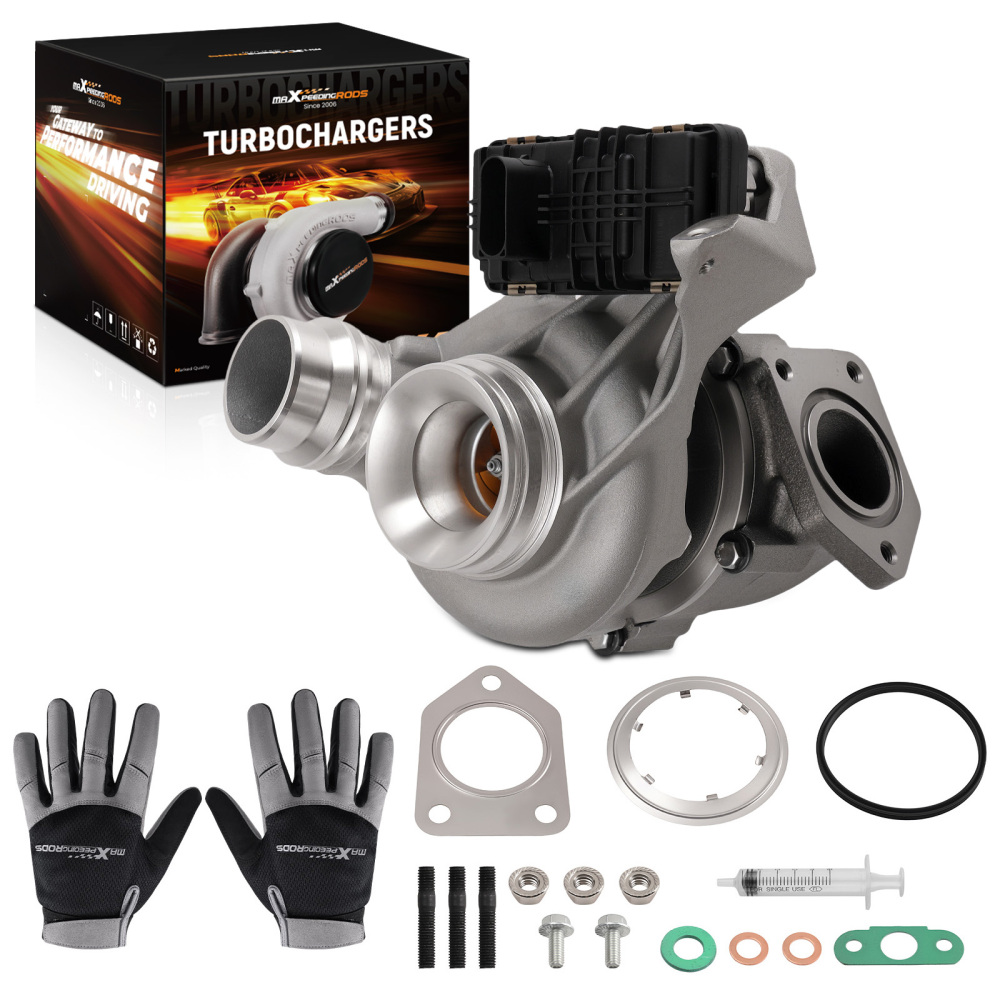

Package included

1x Turbocharger
2x Oil Gaskets
1x Flange Gasket
1x Manual
1x Brochure
1x Sticker

Feature

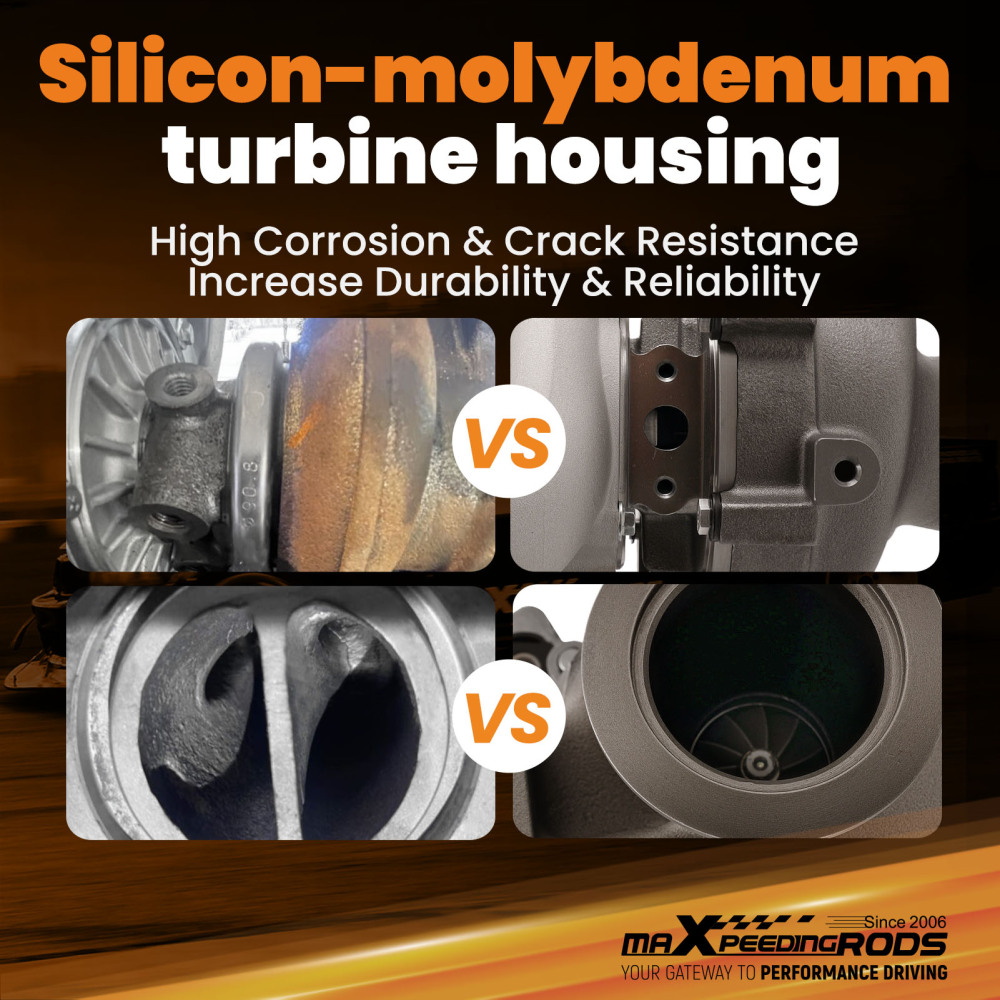

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

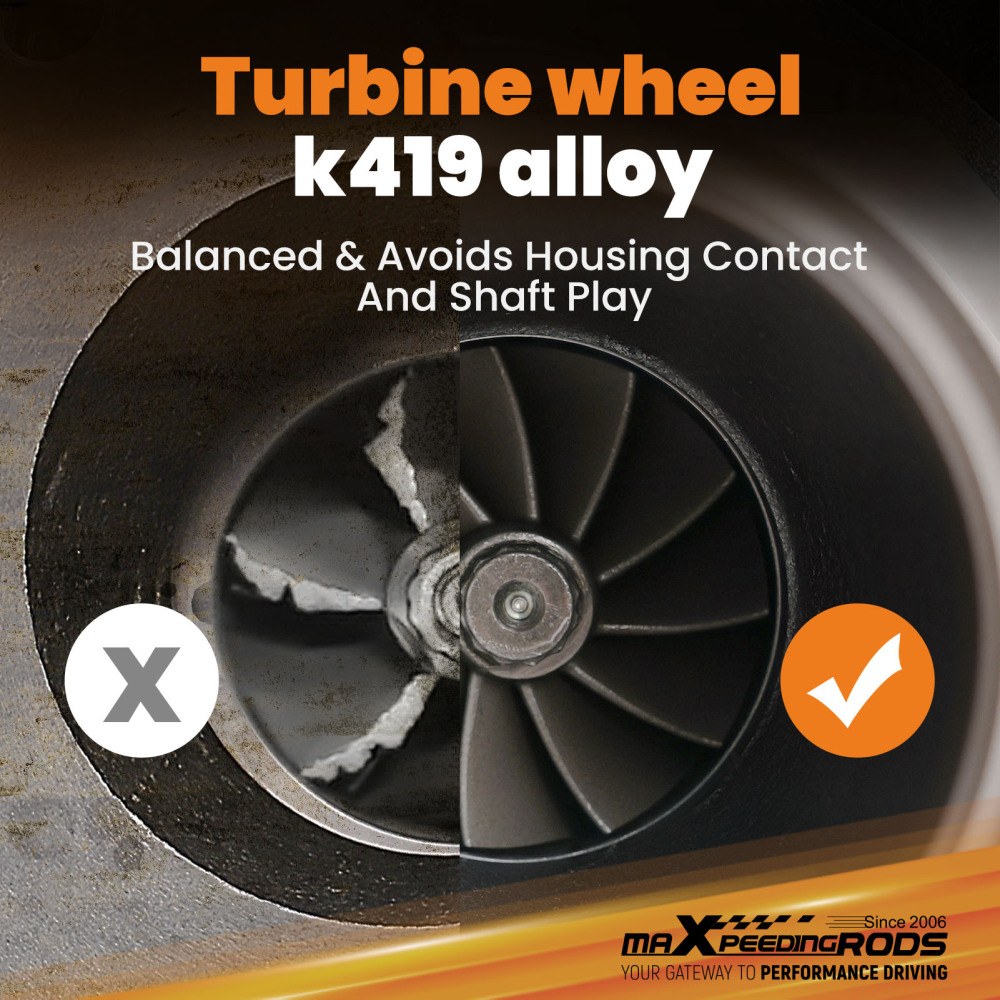

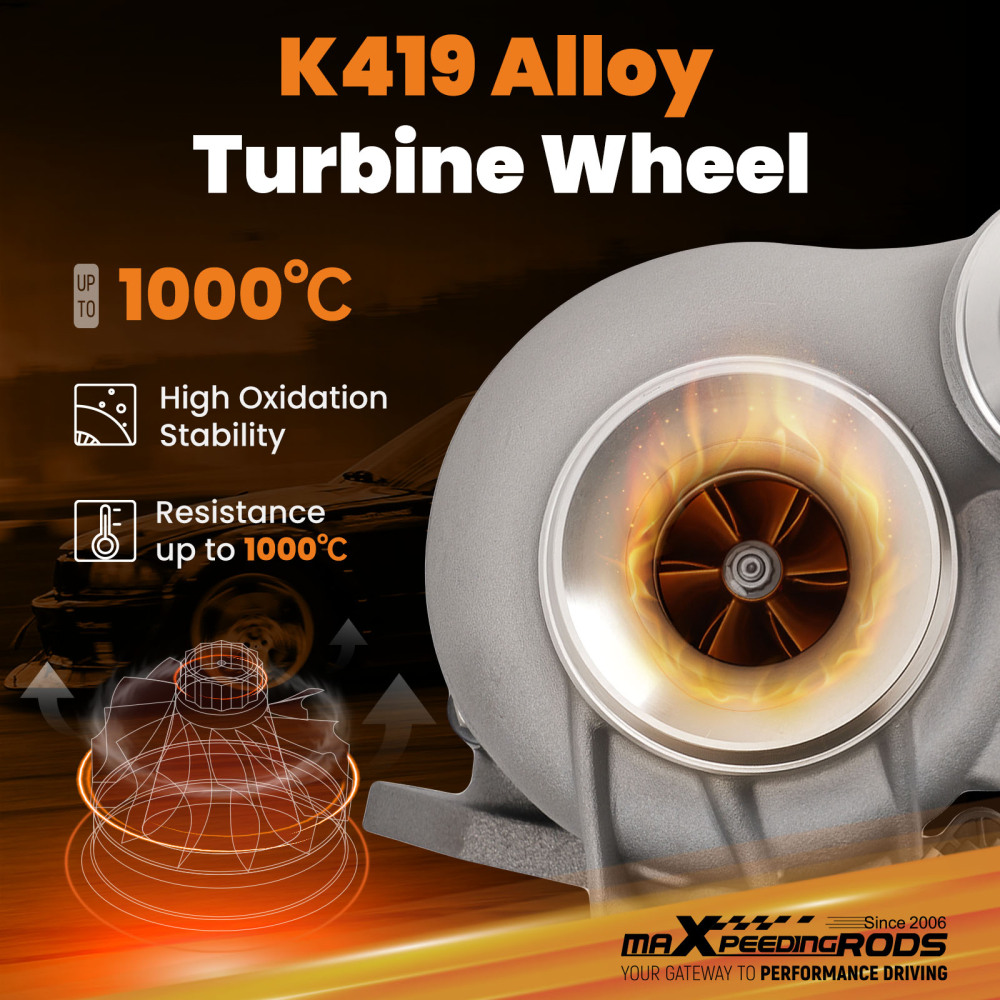

2. Turbine Wheel: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

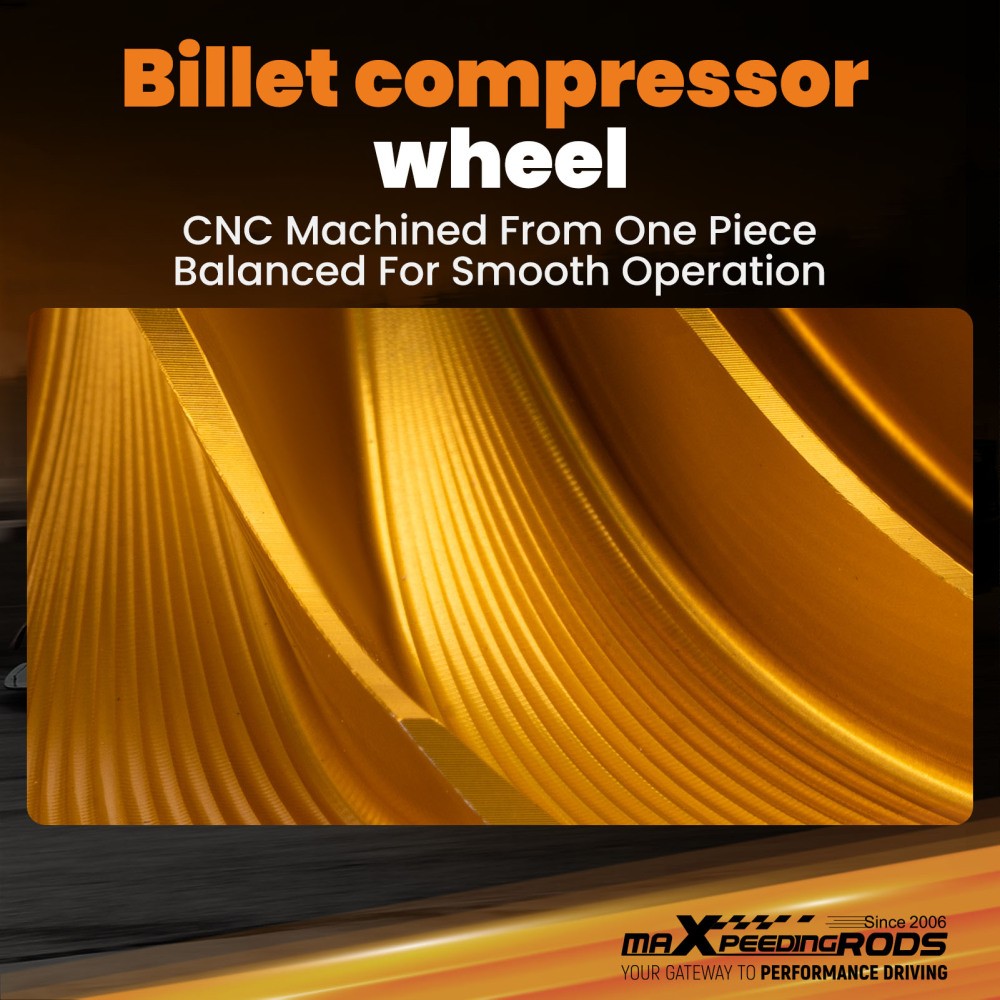

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

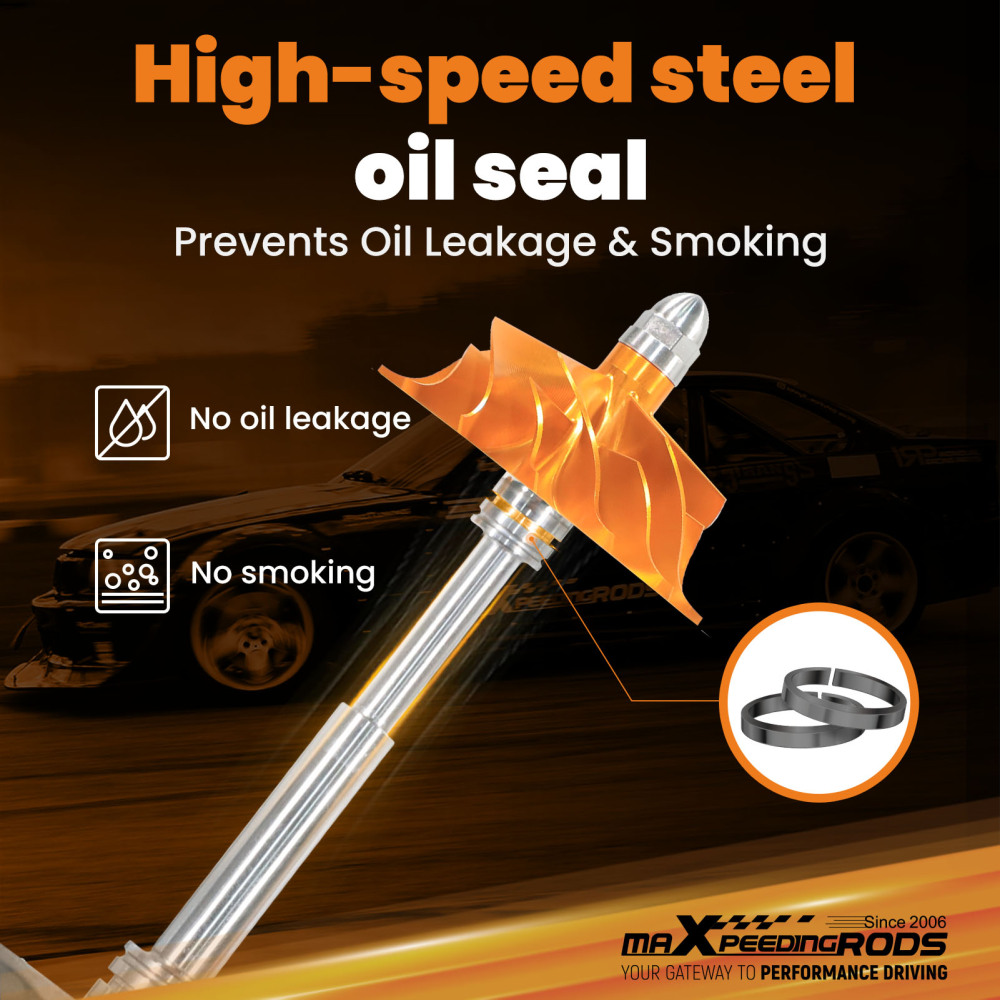

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
