Automatic Water Stained Glass Grinder DIY Desktop Grinding Machine 220V

This New Design Machine widely used for glass processing arts and decoration.

It come with small size and portable and suitable for grinding glass,ceramics and other hard and brittle material.

Features:

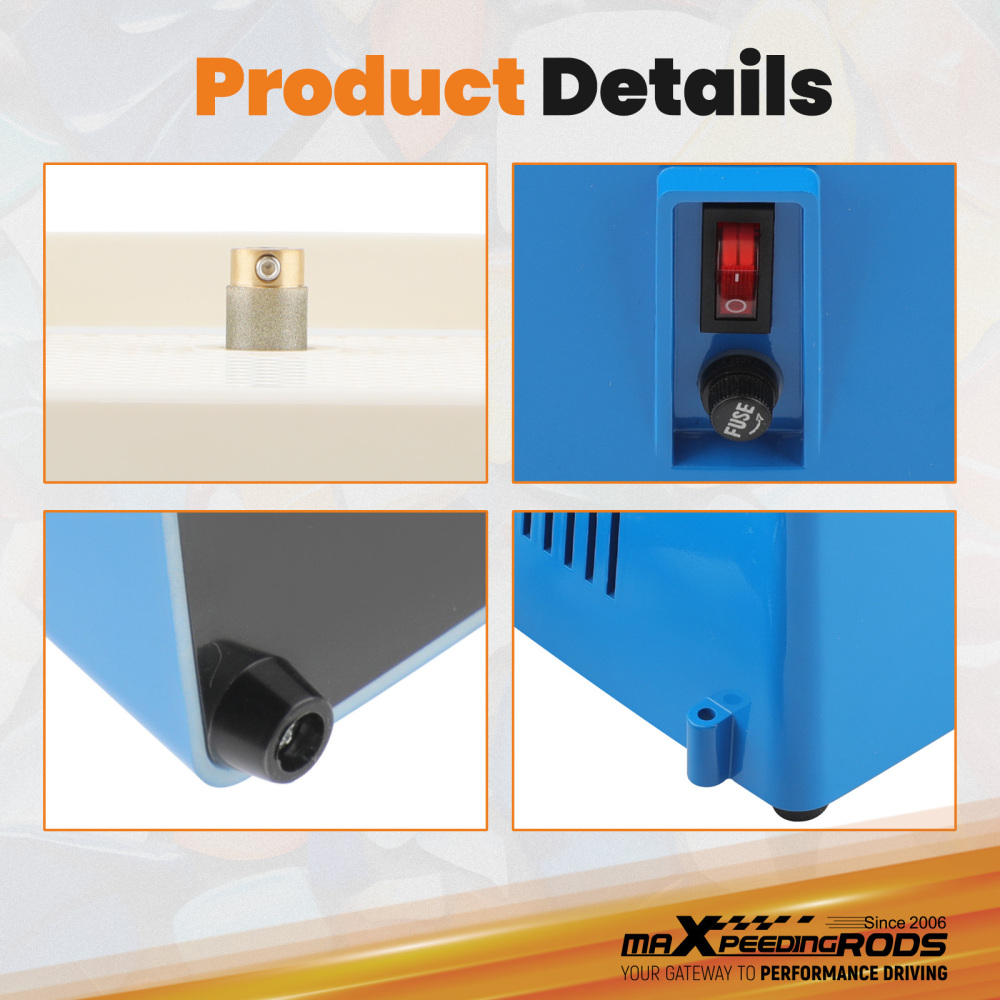

Dents switch design, avoid the leakage

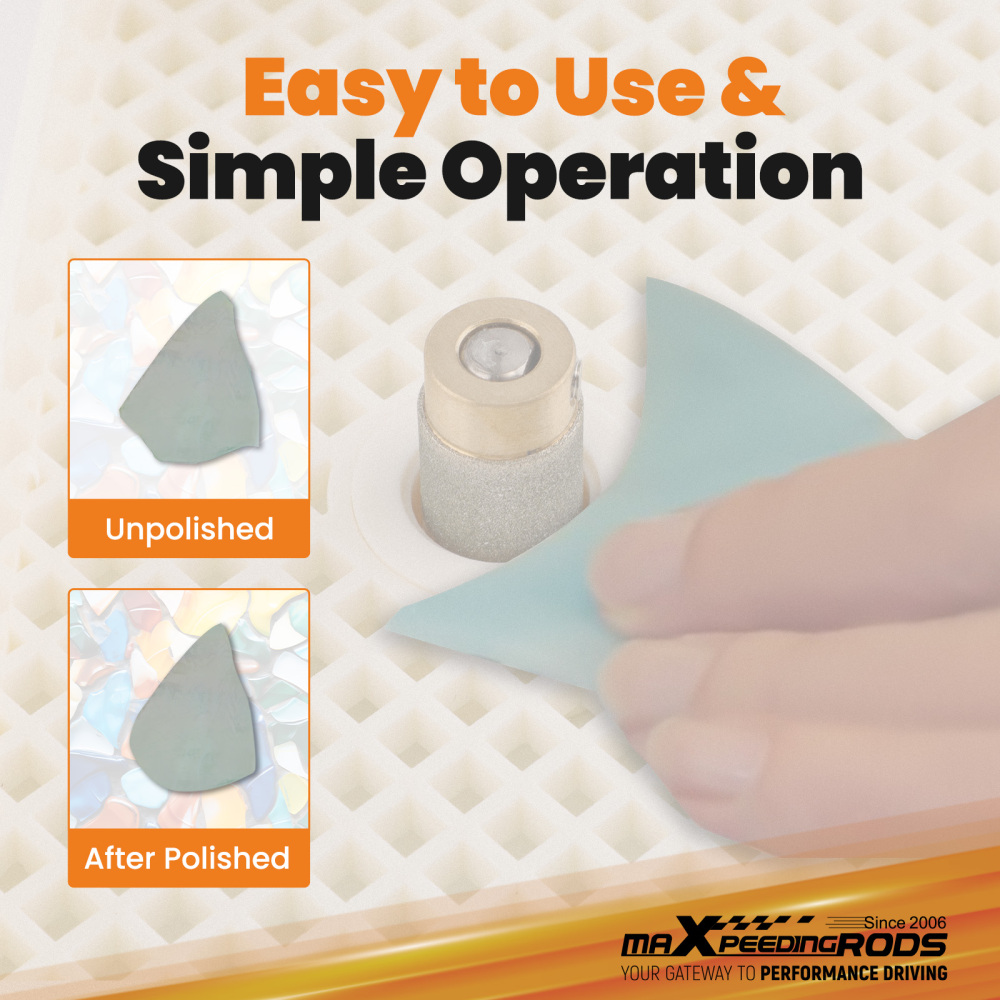

Easy operation,automatic stained, stable and reliable performance

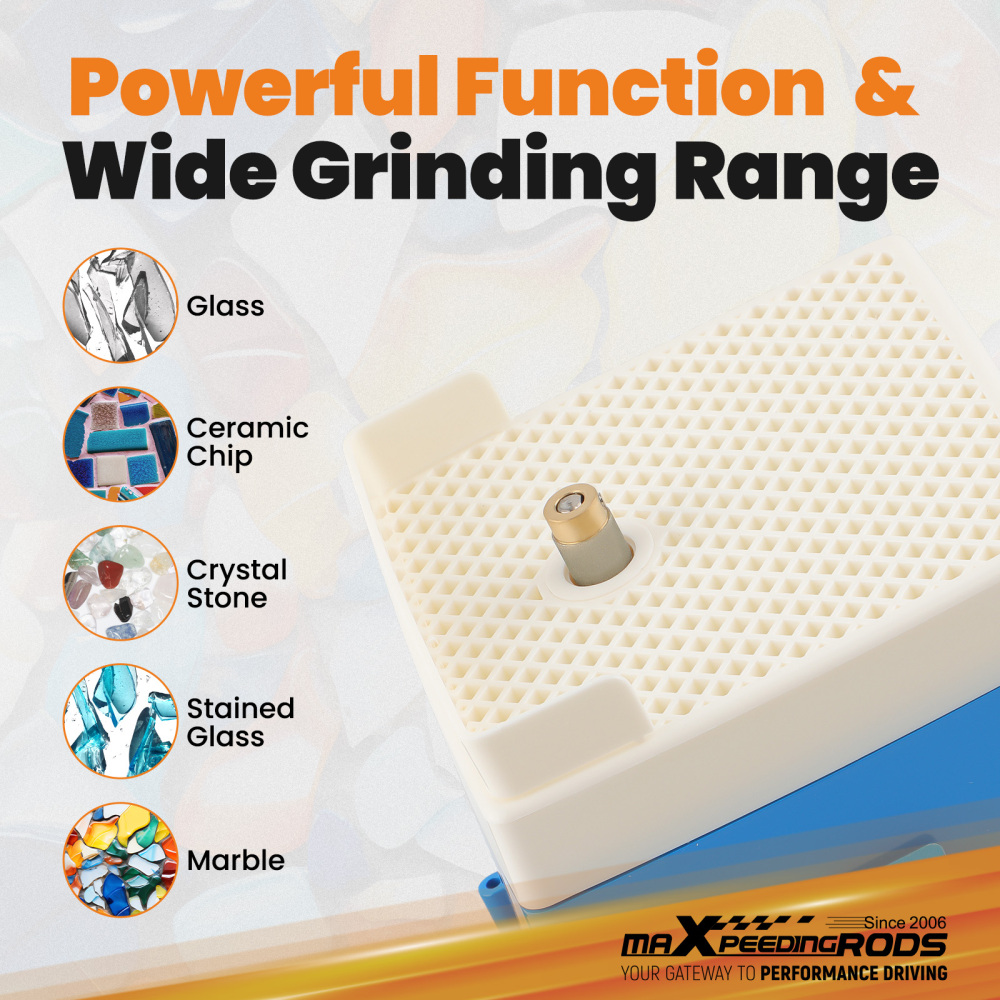

For hard brittle materials such as glass, ceramics and so on.

Grinding variety of geometric shapes: plane, curve, rounded corners, slope, etc.

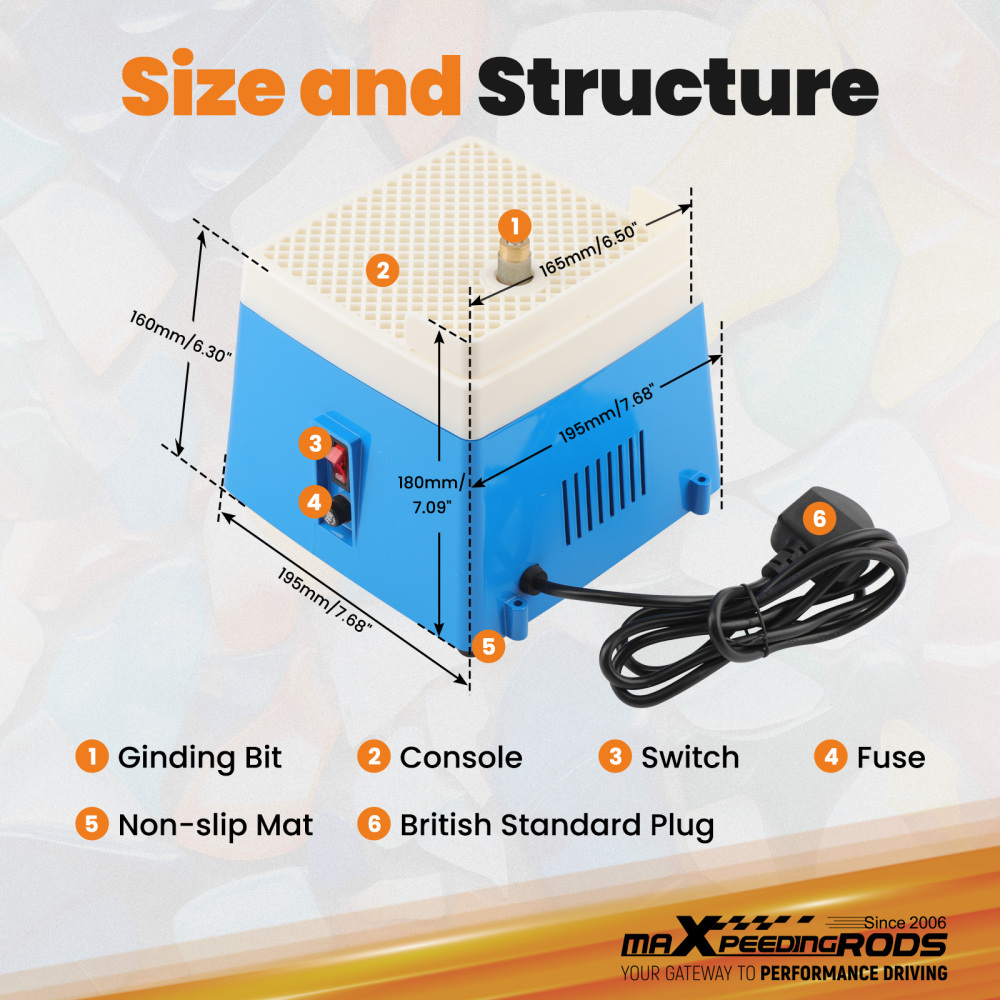

Specification:

Voltage: 220VAC

Working table size: 165x165 mm

Machine size: 195x195x160 mm

Machine weight: 2.35kg

Color: Blue

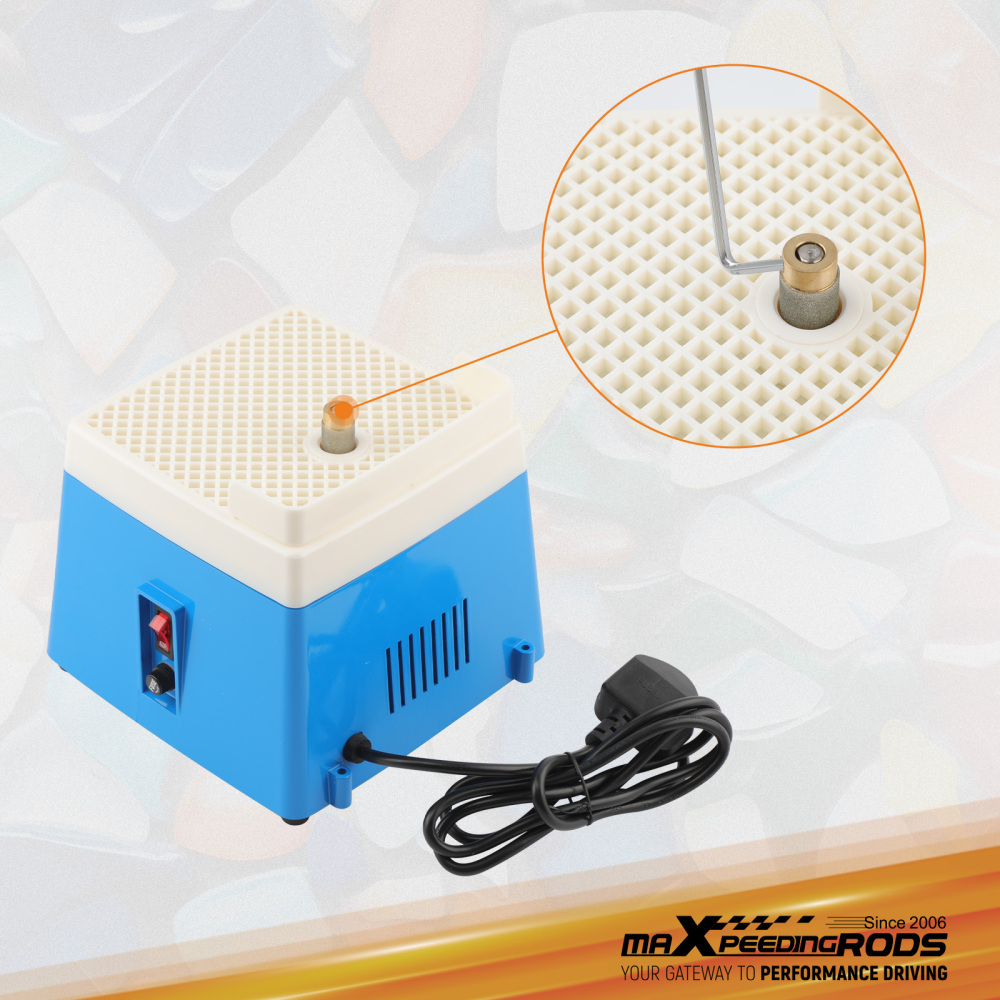

Grinding wheel installation:

1. Before installation of grinding wheel, topped with lubricant, engine shaft grinding wheels need to apply a layer of lubricant inside.

2. The grinding wheel mounted to the engine shaft, the fixed screw position higher than the engine shaft. The position of the grinding

wheel on the axle must be at least 1/8" diamond part above the operating table.

3. Fixed grinding wheel on the shaft with hexagonal wrench clockwisely.

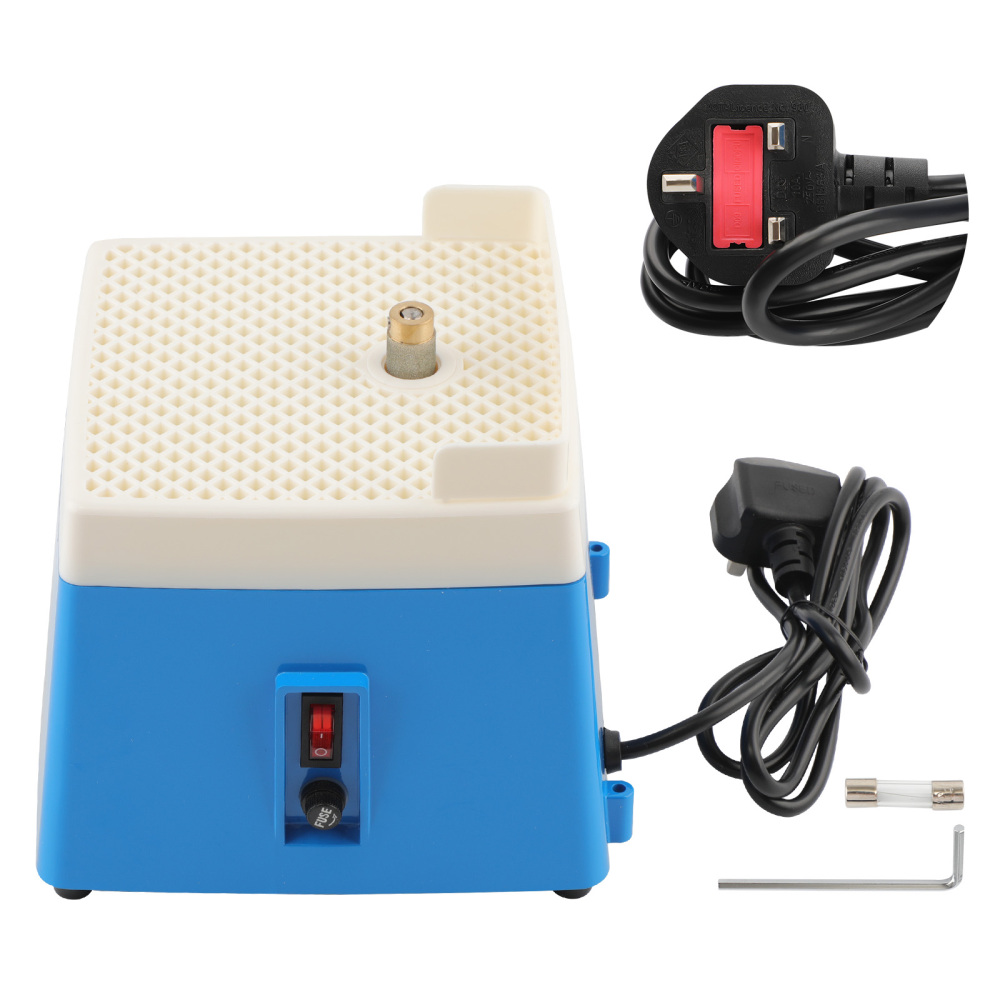

Package Included:

1 x Glass Grinder

NOTE:

• This machine can’t grind without water.
• Small strength can protect grinding machine better than Strong strength , Too much strength will reduce the service life of the grinding wheel.
• To prolong the service life of machine, cleaning and add lubricant to the engine shaft, 25 hours for each use, remove all the grinding wheel and the fixed screw.
• If the grinding wheel not be used for a week or longer,it need to grind down on stage to prevent the direct axis stick on.
• Don't grinding metal.  Grinding metal will damage the grinding wheel and result in can not grinding glass any more.
