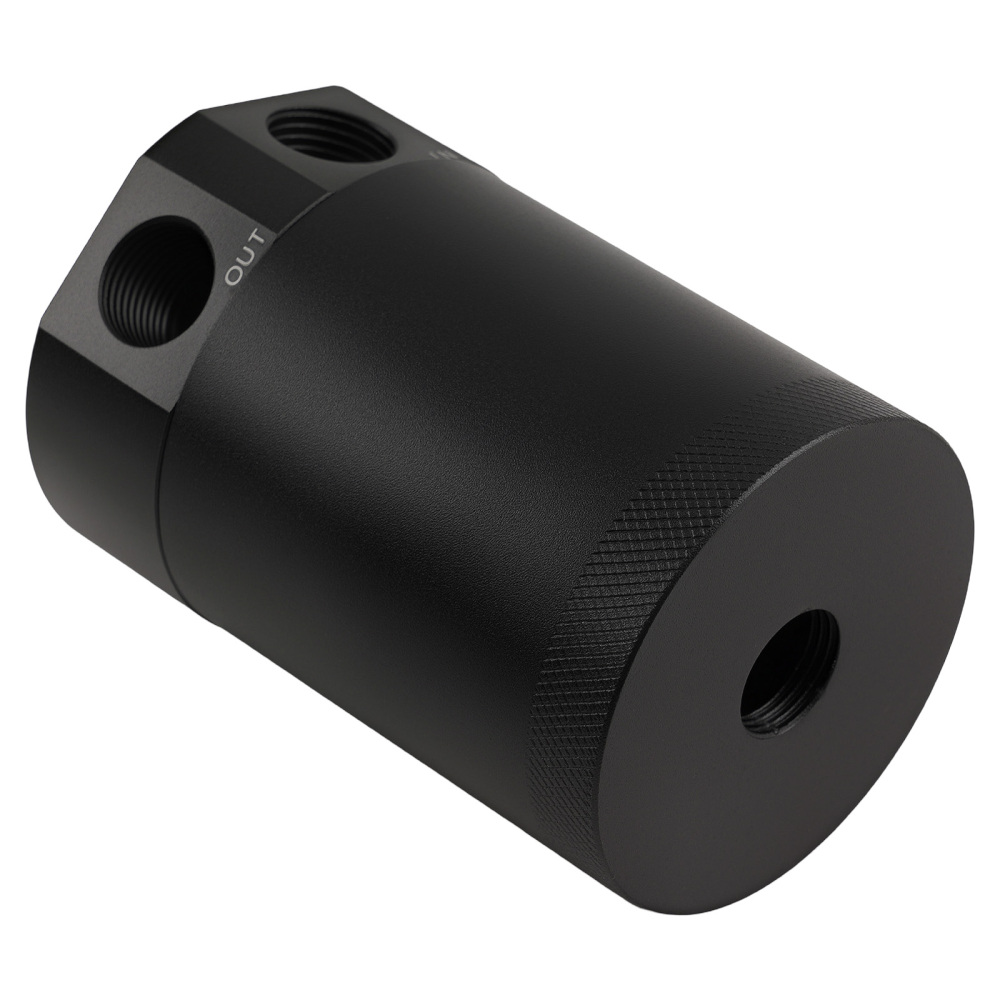

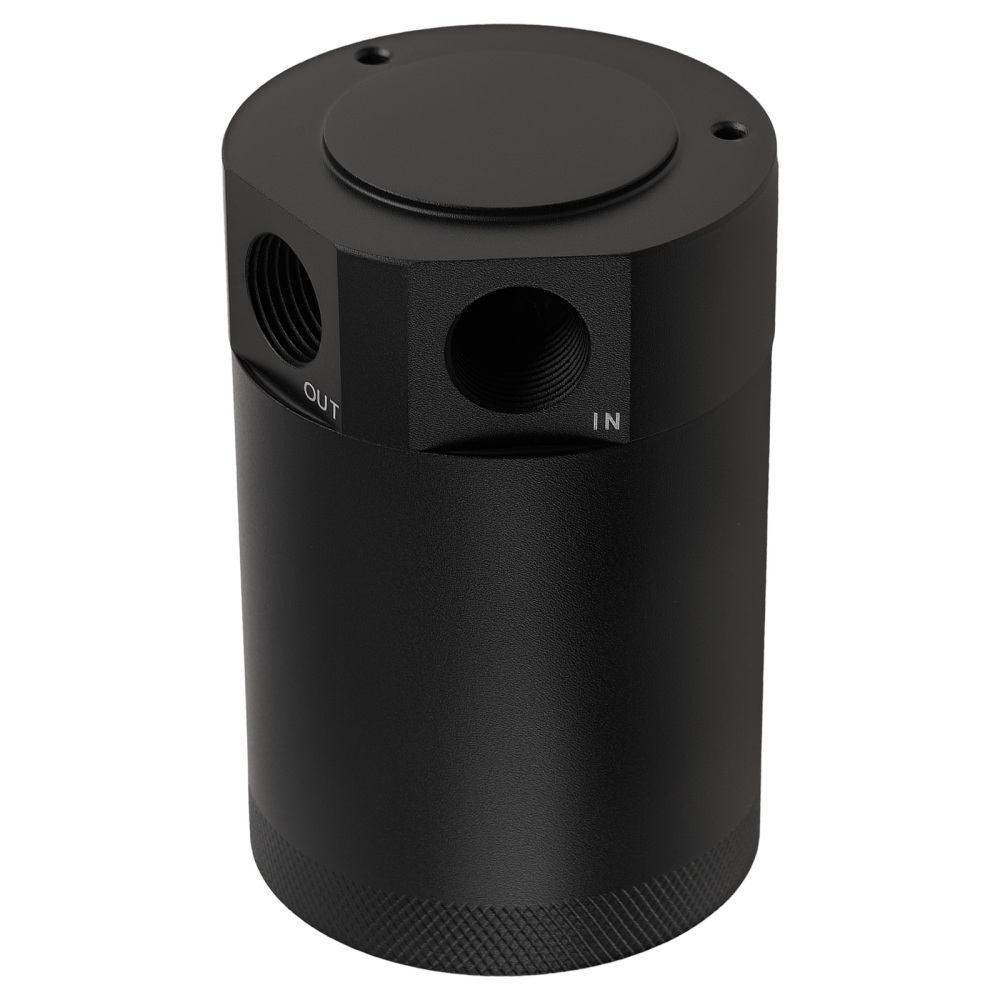

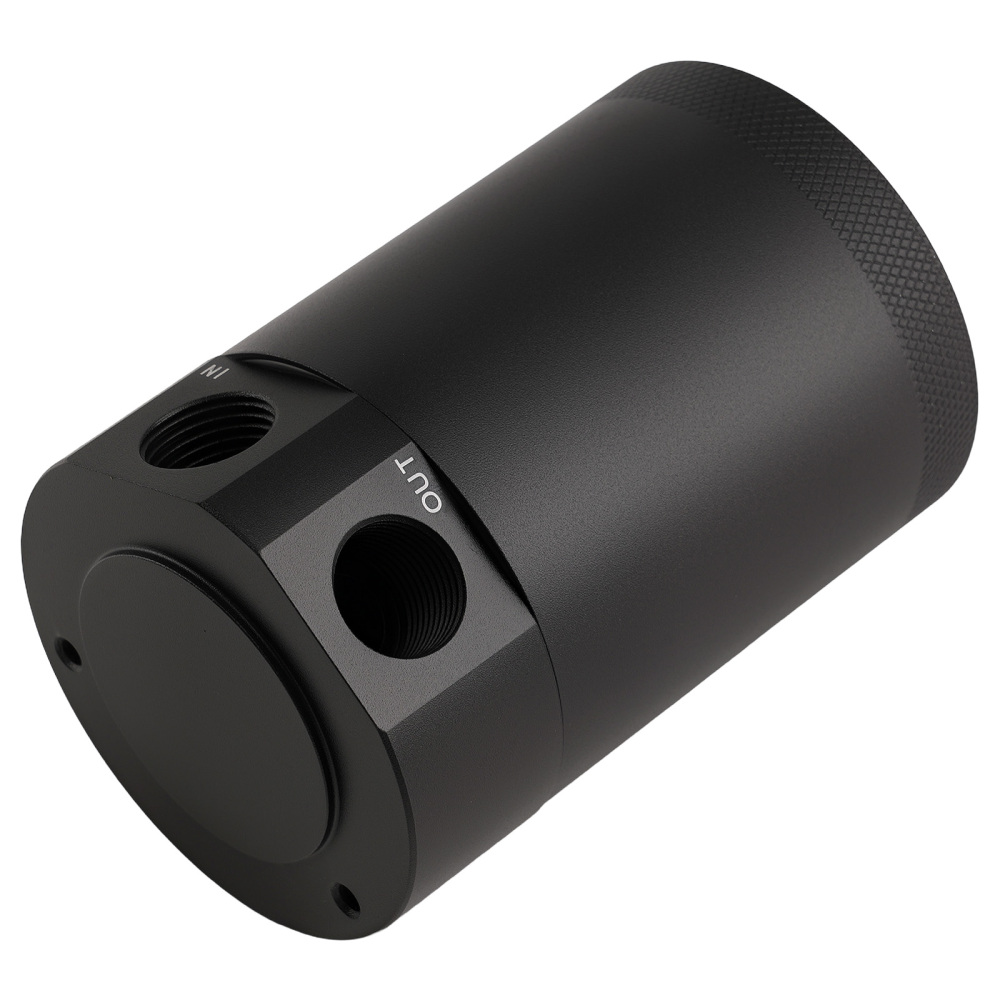

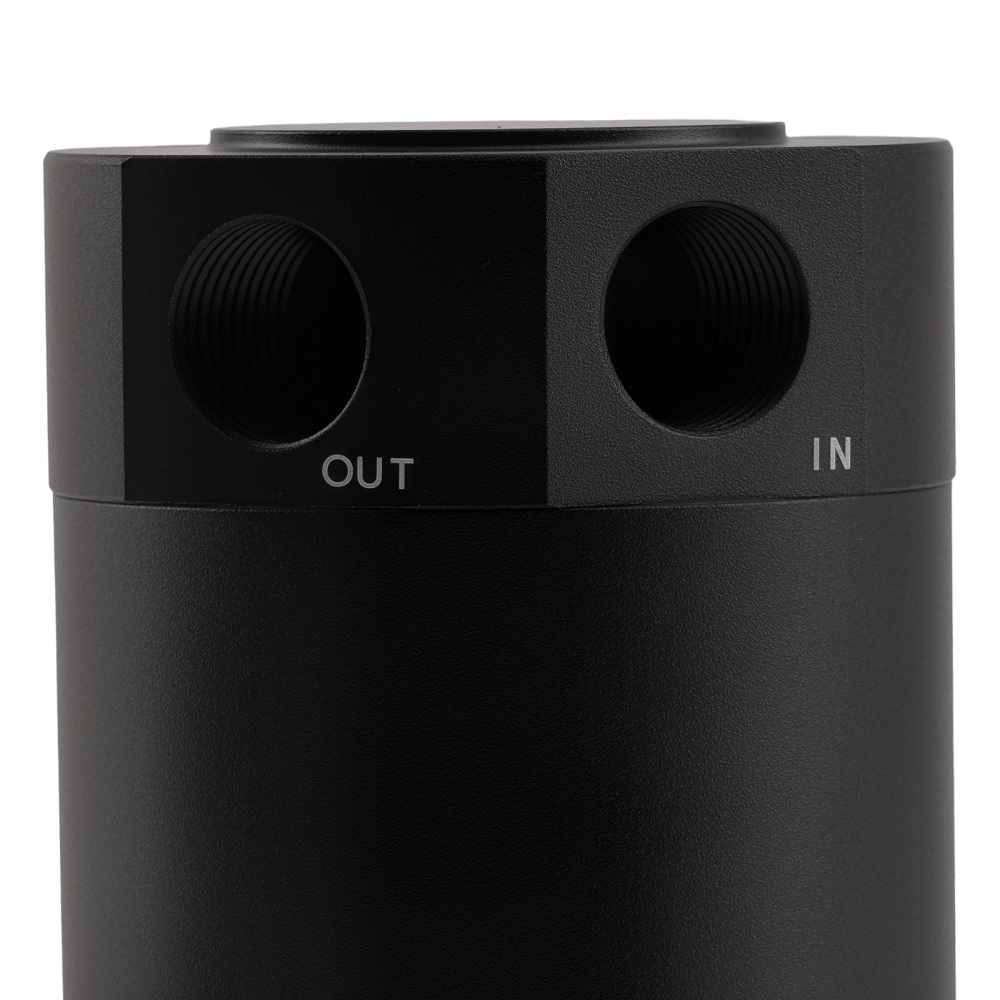

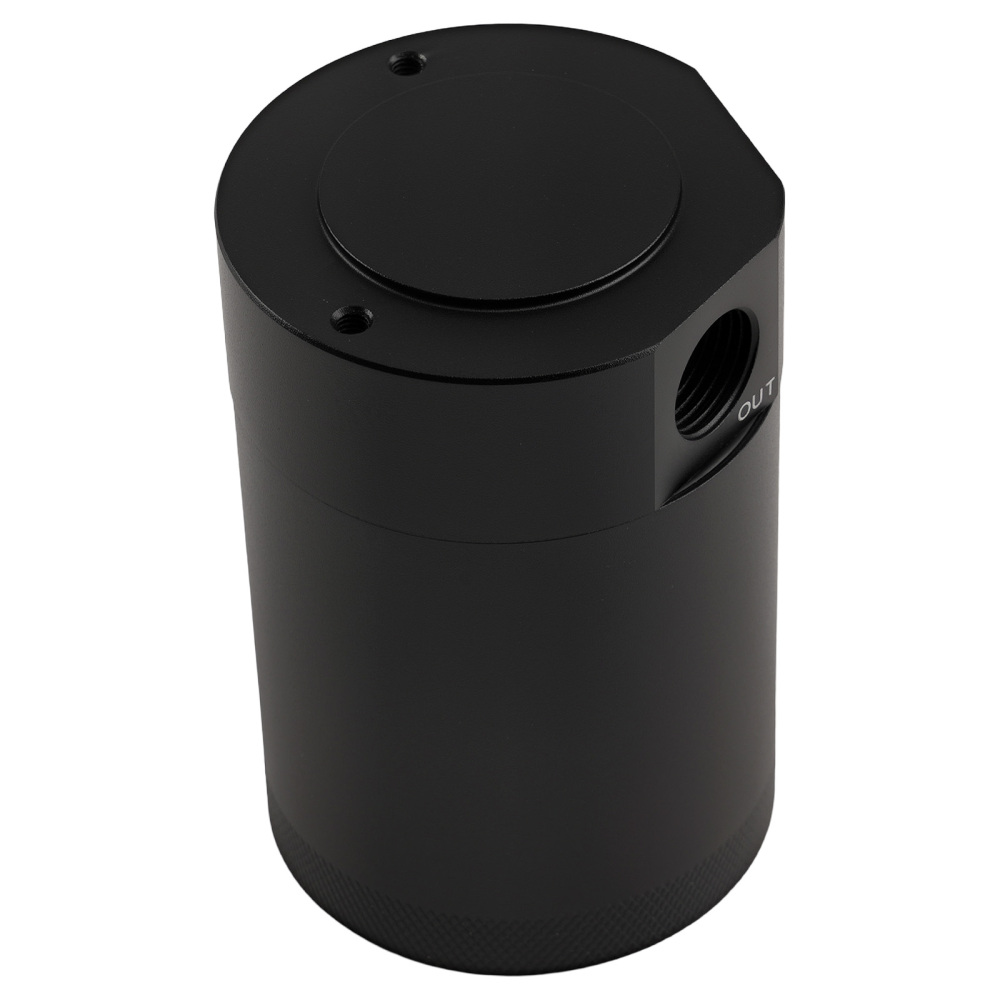

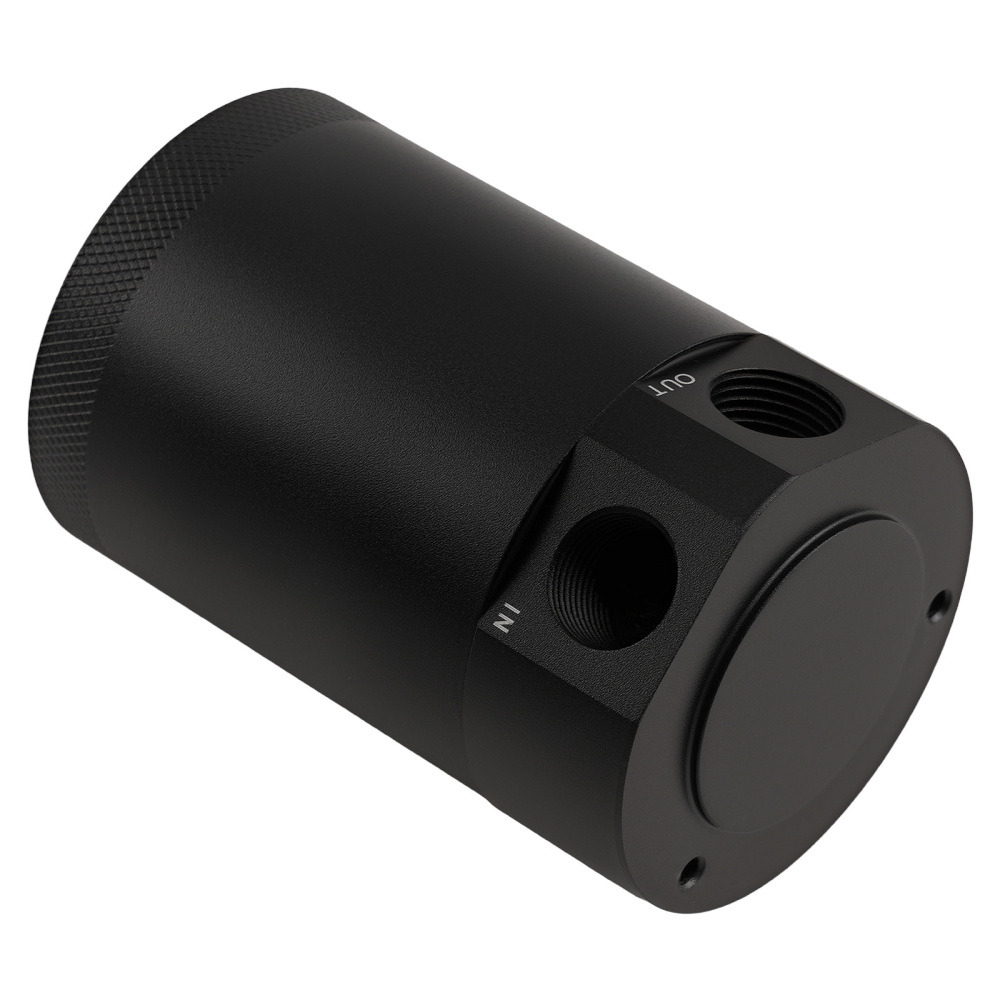

Aluminum Universal Baffled 2 Port Oil Catch Can Tank Air Oil Separator Bottle

Product description

-The Oil Catch Can is used to separate oil particles from the air for PCV-/CCV systems, which has normally just been returned to your inlet.
-The internal air deflection allows the air to circulate longer and ensures that all the oil sinks to the bottom of the can and only clean air gets to the inlet through the 50-micron bronze filter.
-An internal baffle prevents the collected oil from splashing around during races.
-This oil trap tank has three connectors, two inlets and one outlet for easy installation on CCV and PCV systems.


Specification:

Application: Universal

Total size: 3.80"x 2.50" x 2.50" (⌀ 63.5 mm, height 95 mm)

Oil capacity: 2 liquid ounces (approx. 60 ml) /2floz

Inlet Size & Outlet Size: M16 x 1.5

Threaded Connector Size: ID: 6.9mm, OD: 9.6mm

Thread Size: 3/8NPT

Oil Capacity: 2fl oz

Material: 6061 Aluminium

Product features

-Separates oil particles from PCV/CCV air using 50 micron bronze filter.

-100% billet 6061 aluminum sealed can.

-Safe for pressurized applications.

-Defends intercooler, intake system, and essential components from oil blow-by.

-Helps maintain proper octane levels to reduce potential detonation.

-Features one inlet and one outlet.

-Filter and can are both fully serviceable.

-Internal air diverter turbulates air longer to improve oil separation.

-Includes 2 plastic barbed 1/2 inch hose fittings.

-Universal mounting bracket for different configurations.

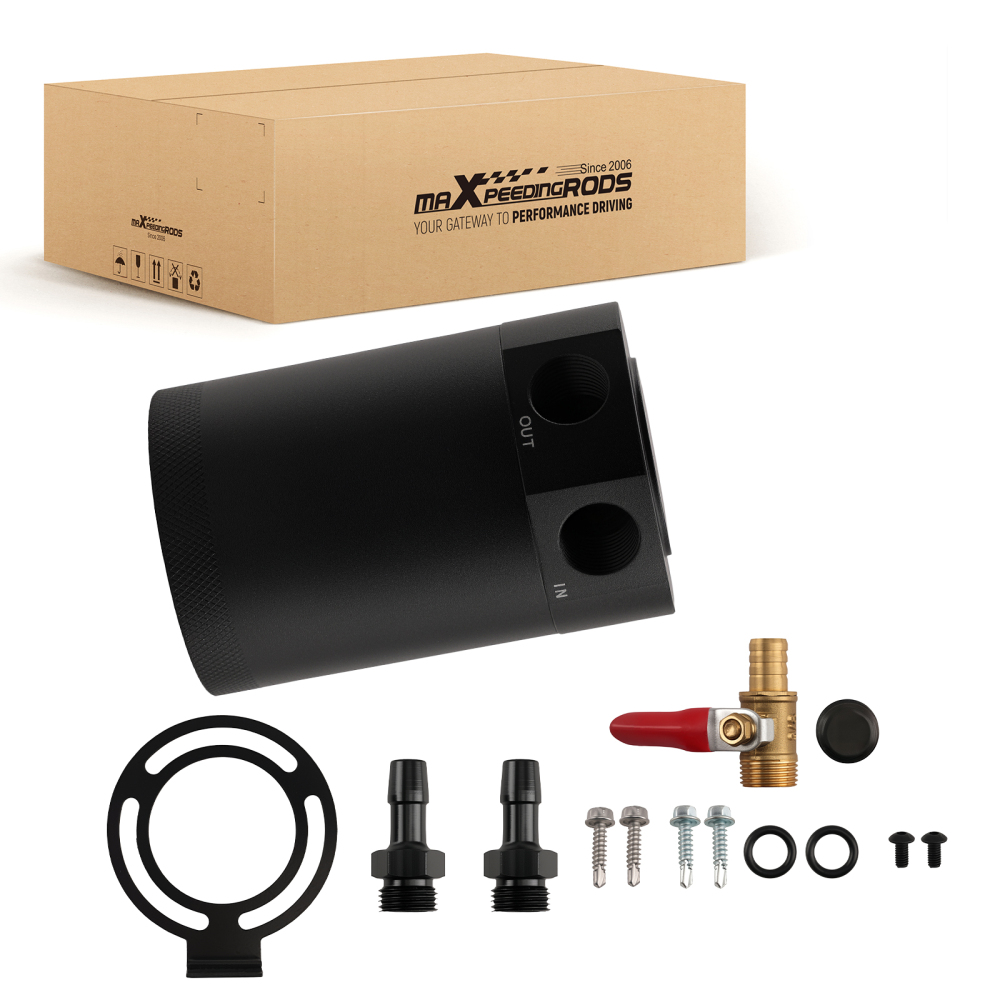

Package Included:

(As shown in the pictures)

Notes

-Professional installation is highly recommended (no instructions included)
-If you have any questions, feel free to contact us.
