Air Spring Bag Suspension Kit W/ Compressor compatible for Fiat Ducato 1994-2023 4000kg

Application

Compatible for Compatible for Fiat Ducato 1994-2024

Compatible for Compatible for Citroen Relay 1994-2024 Compatible for Compatible for Peugeot Boxer 1994-2024 Compatible for Compatible for Citroen Jumper 1994-2024 fit for singal rear wheel or twin rear wheel, Compatible for FWD or RWD. BODY TYPE: Panel van, tipper, motorhome, camper, box van (excluding alco type torsion bars chassis).

Specification

Condition: Brand New

Chassis Type: All standard type Chassis

Placement on Vehicle: Rear left and right

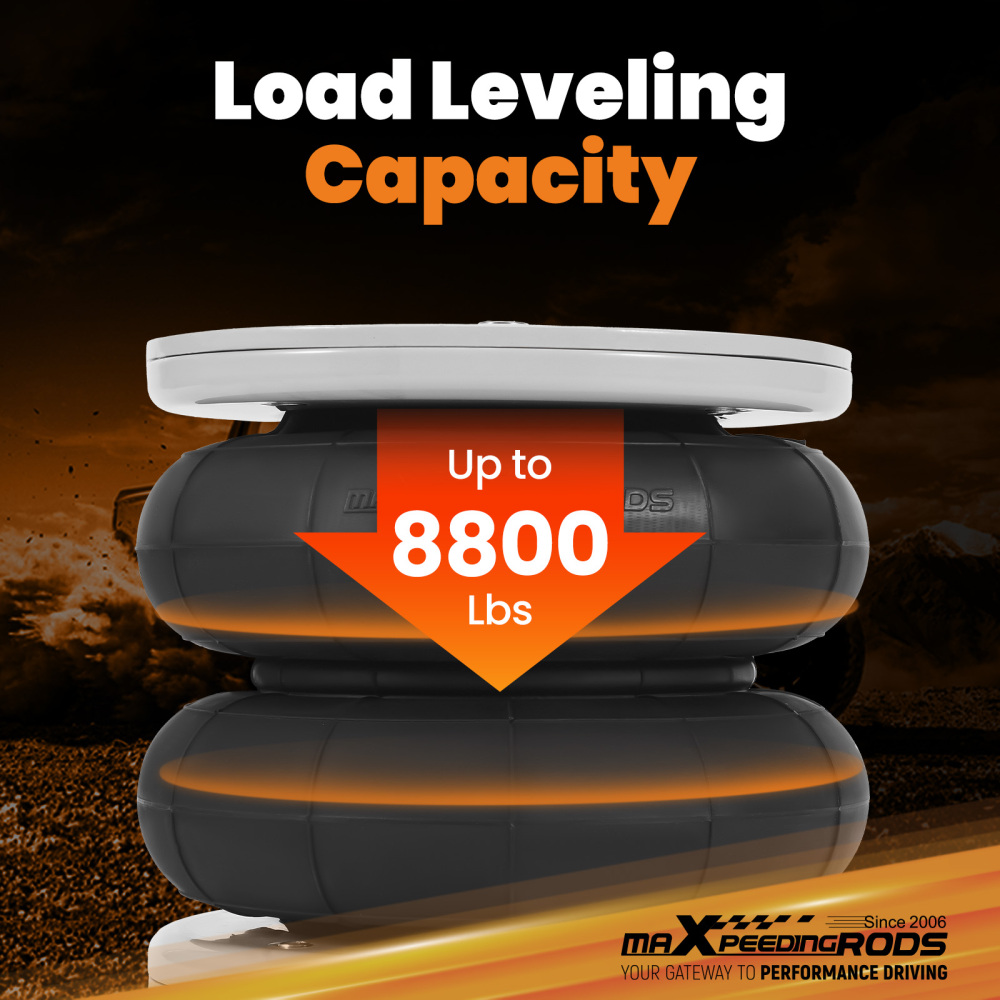

Max loading：4000 Kg

Package Length, width and height: 42*37*27 cm

Package Wight: 12.4 kg

Air spring：

Design height: 172 mm

Stroke:  140 mm

Max. Extended: 230 mm

Min. Compressed:  90 mm

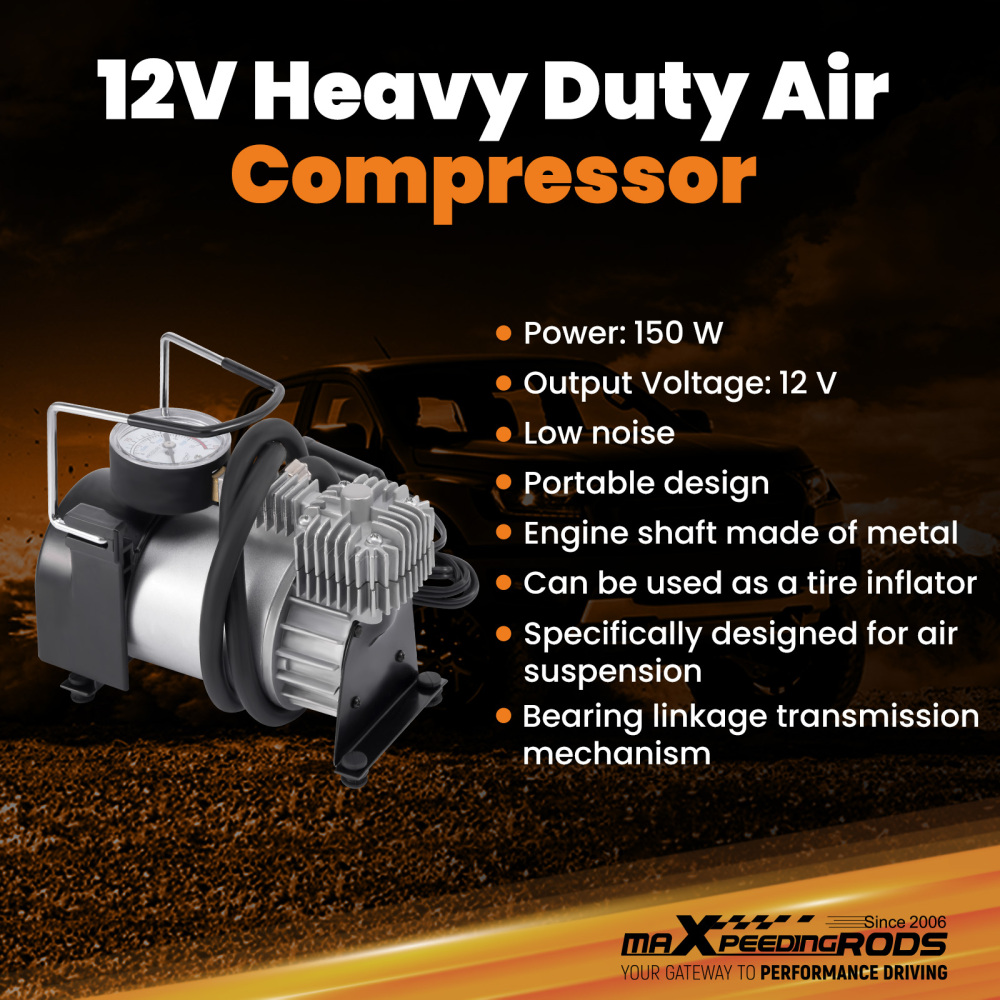

Air pump：

Power:  120W

Output Voltage:  12V

Maximum current:  10A

Maximum Working Voltage: 10bar（1MPa ）


Feature

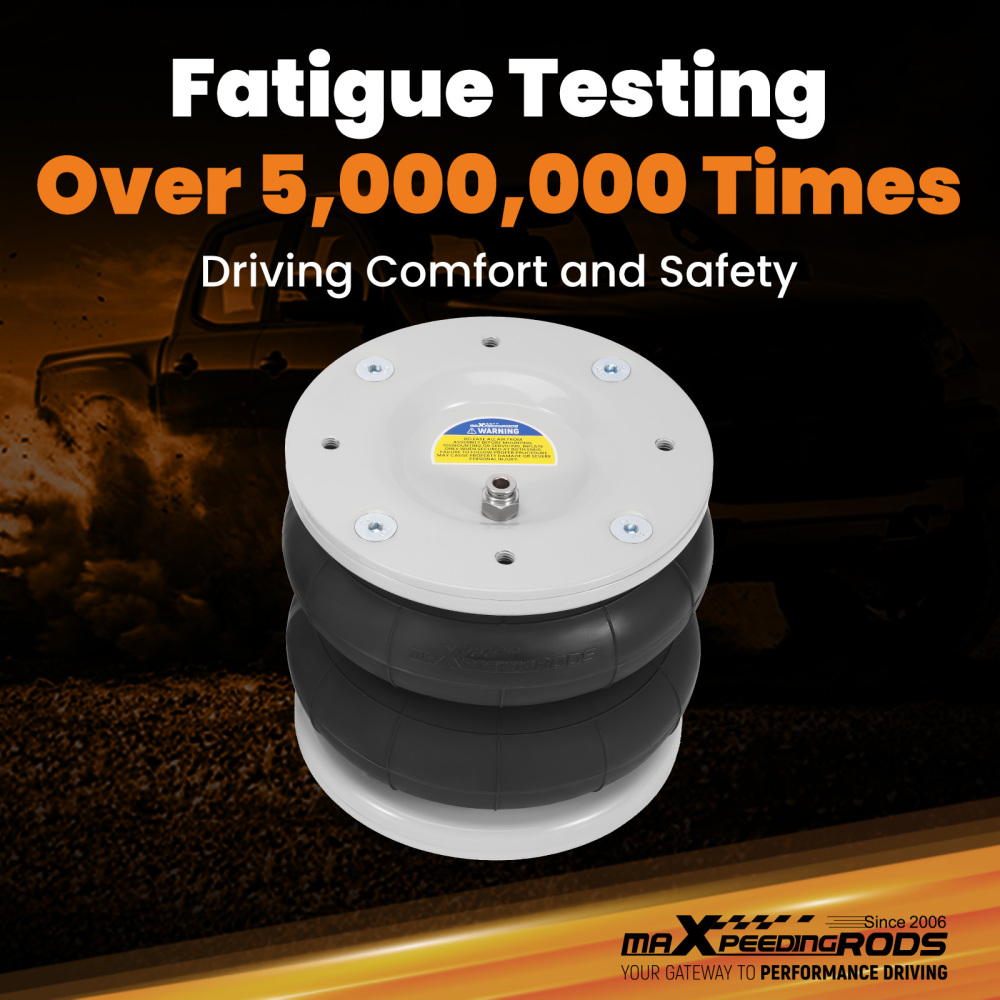

1. Stress Test Over 5,000,000 Times：Durable and Safe

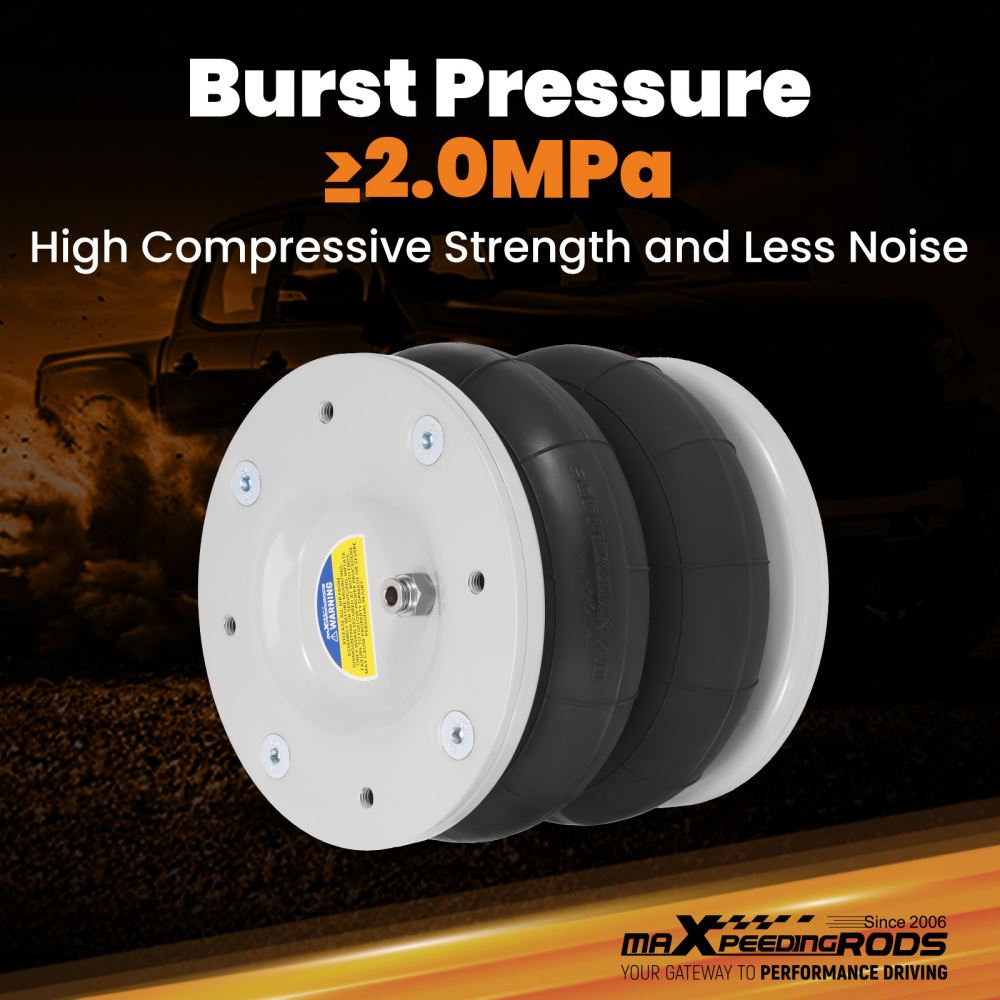

2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

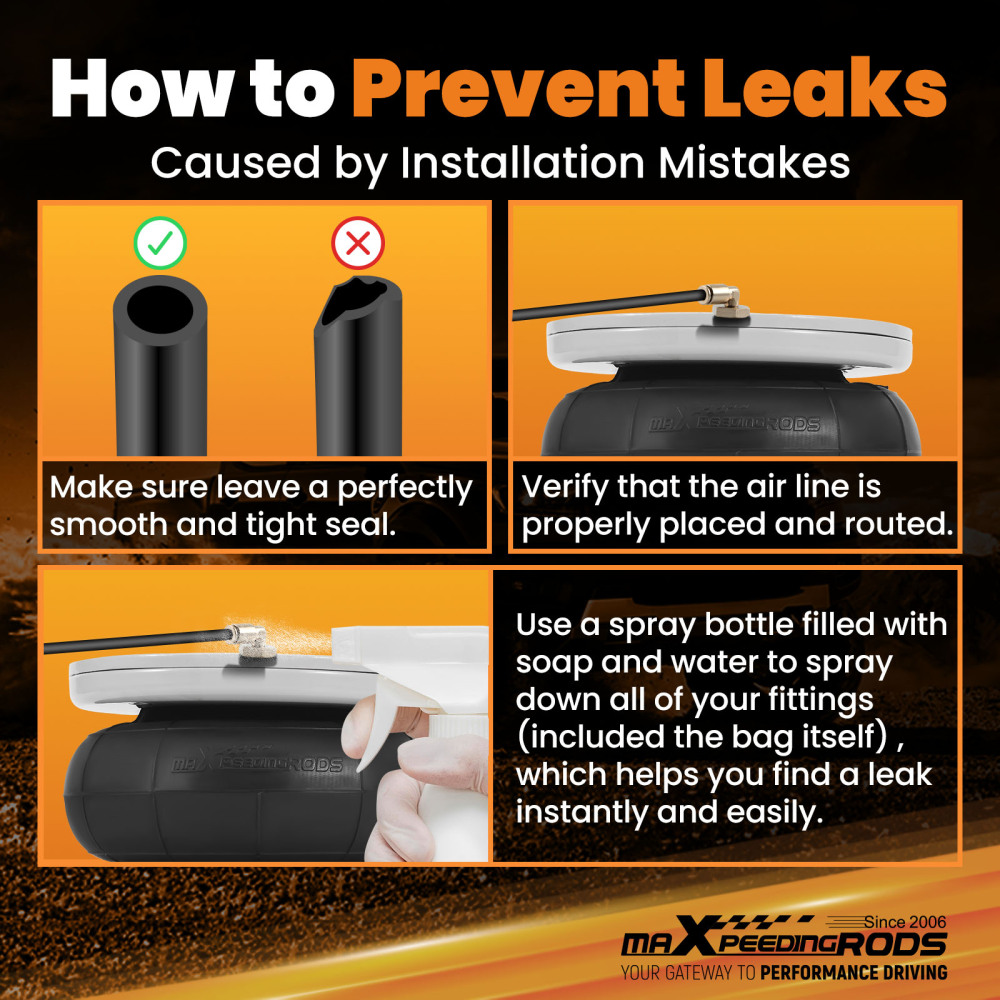

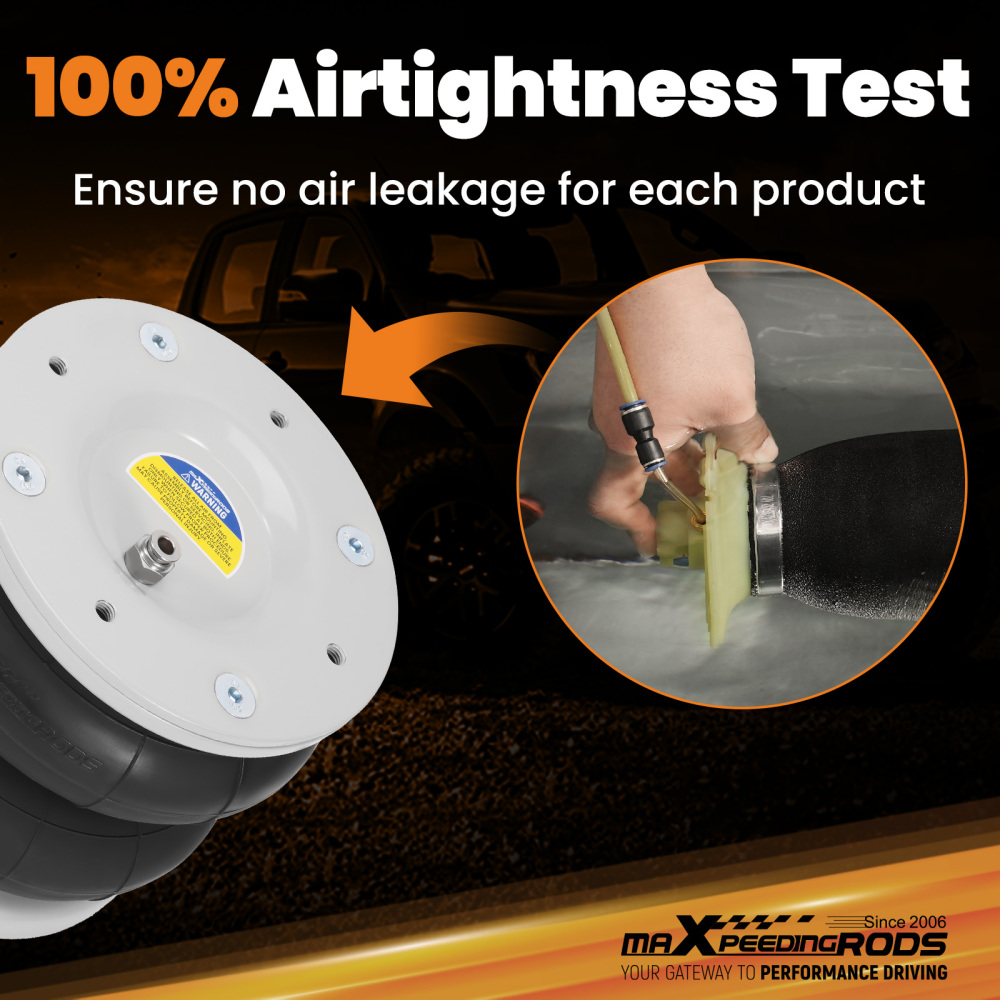

3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee

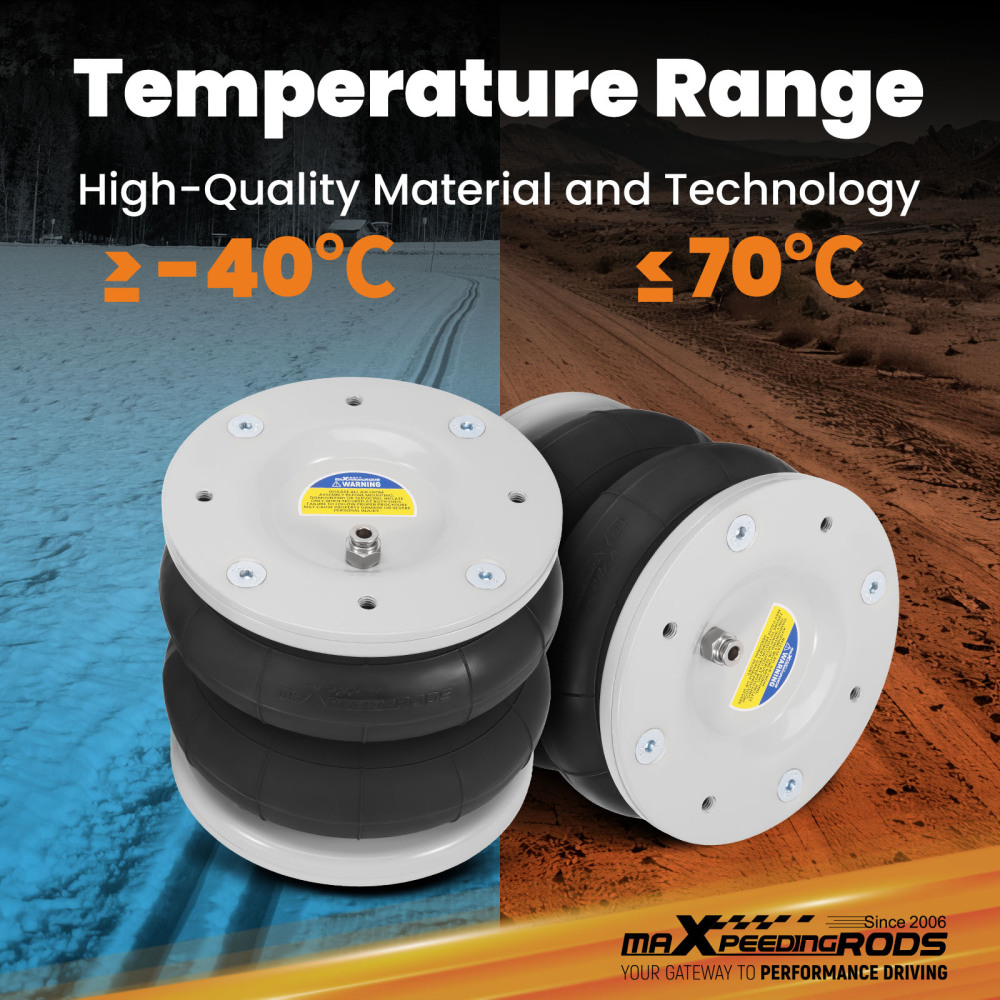

4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material

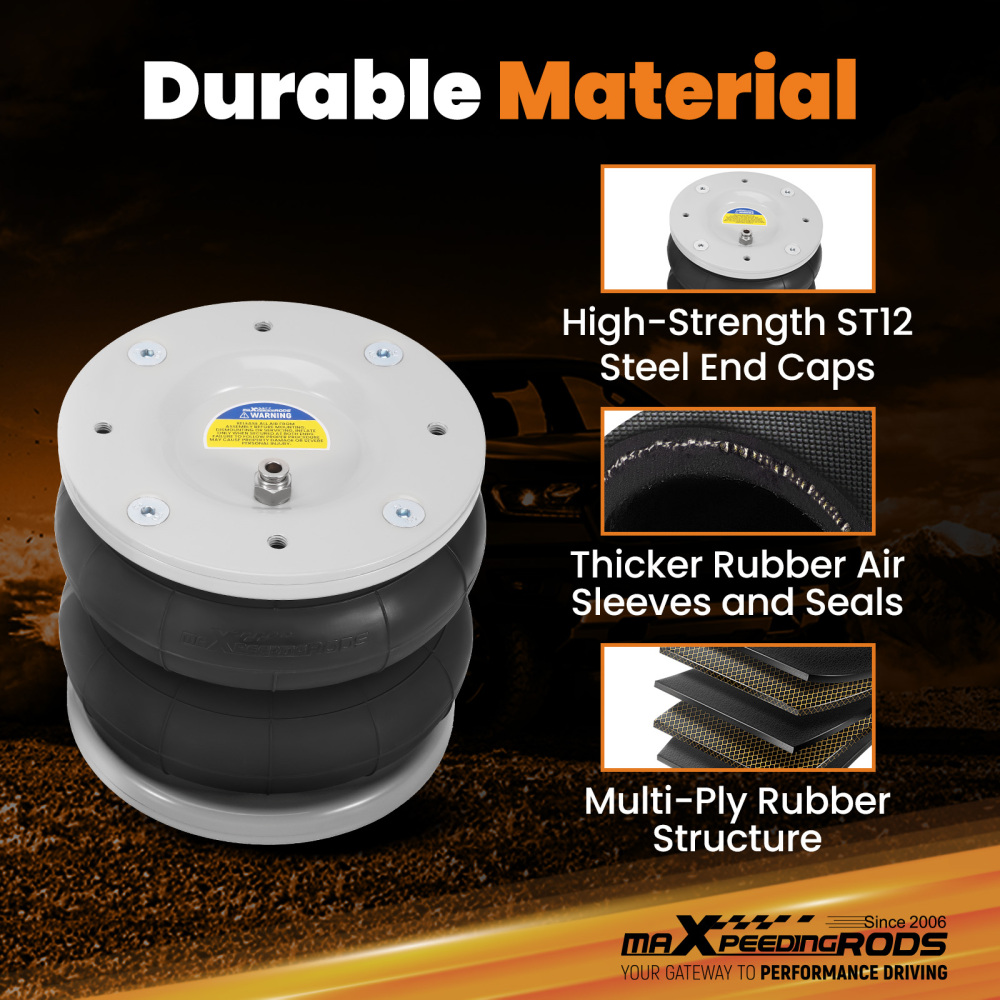

5. Use high-quality steel with high load-bearing capacity and long life.

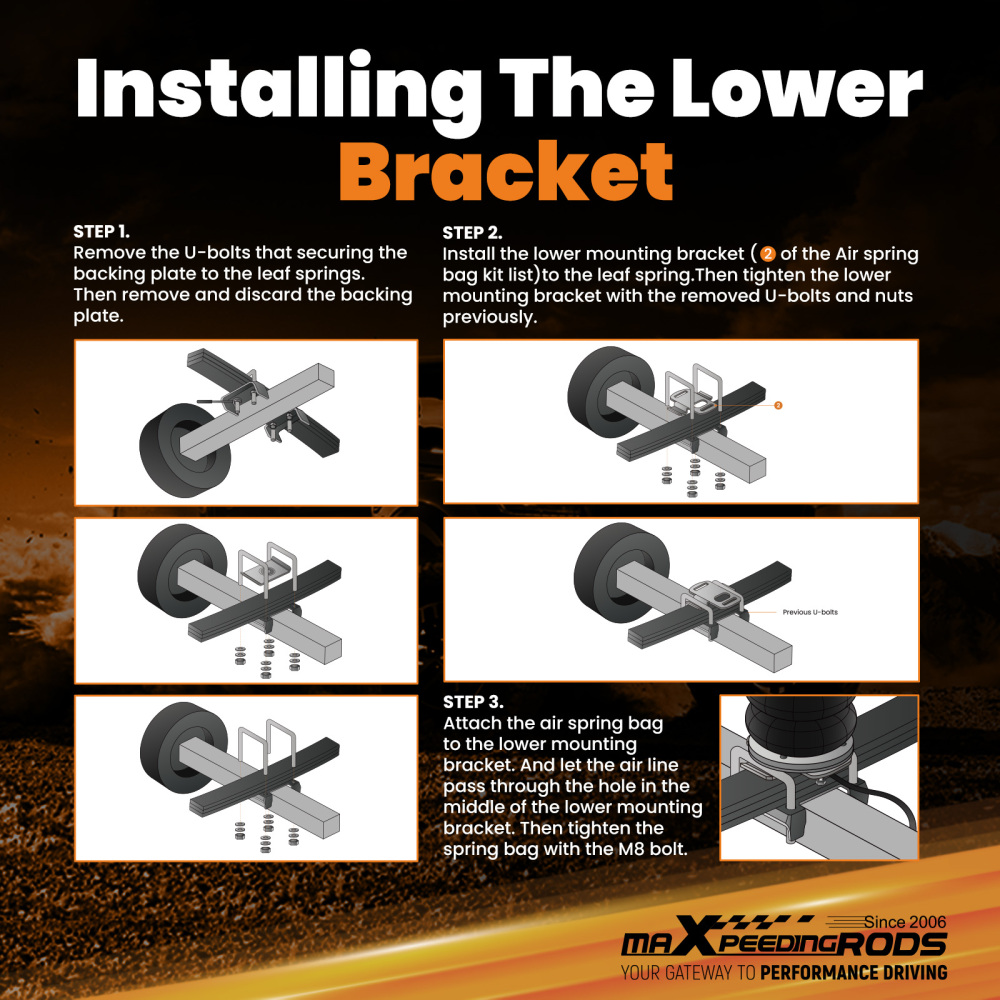

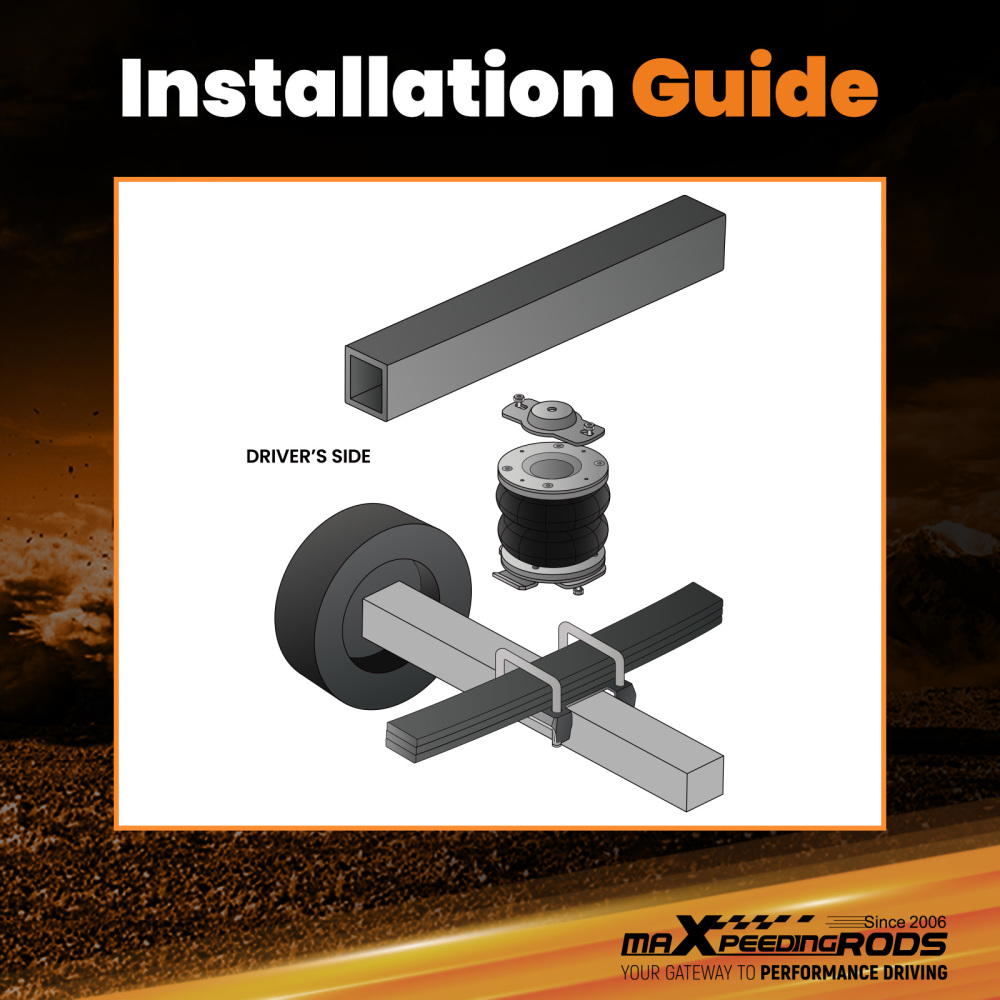

6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability
8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.

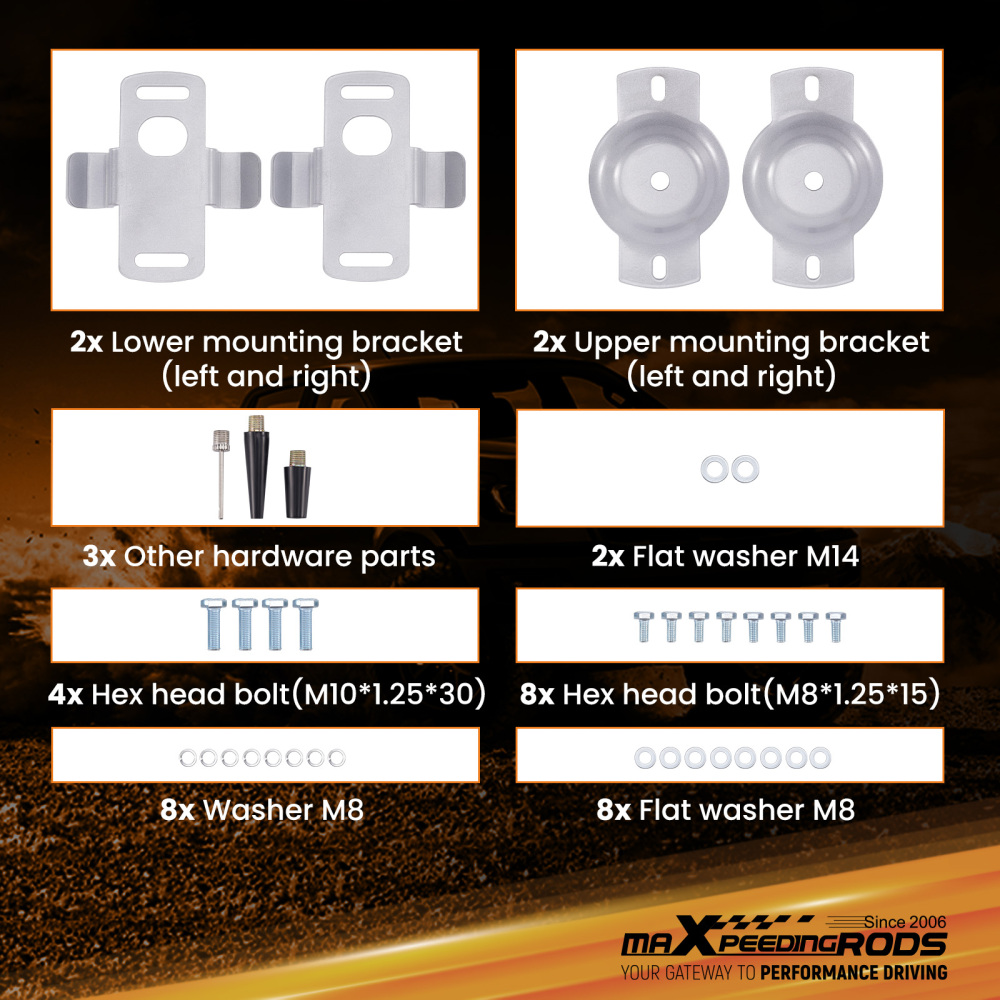

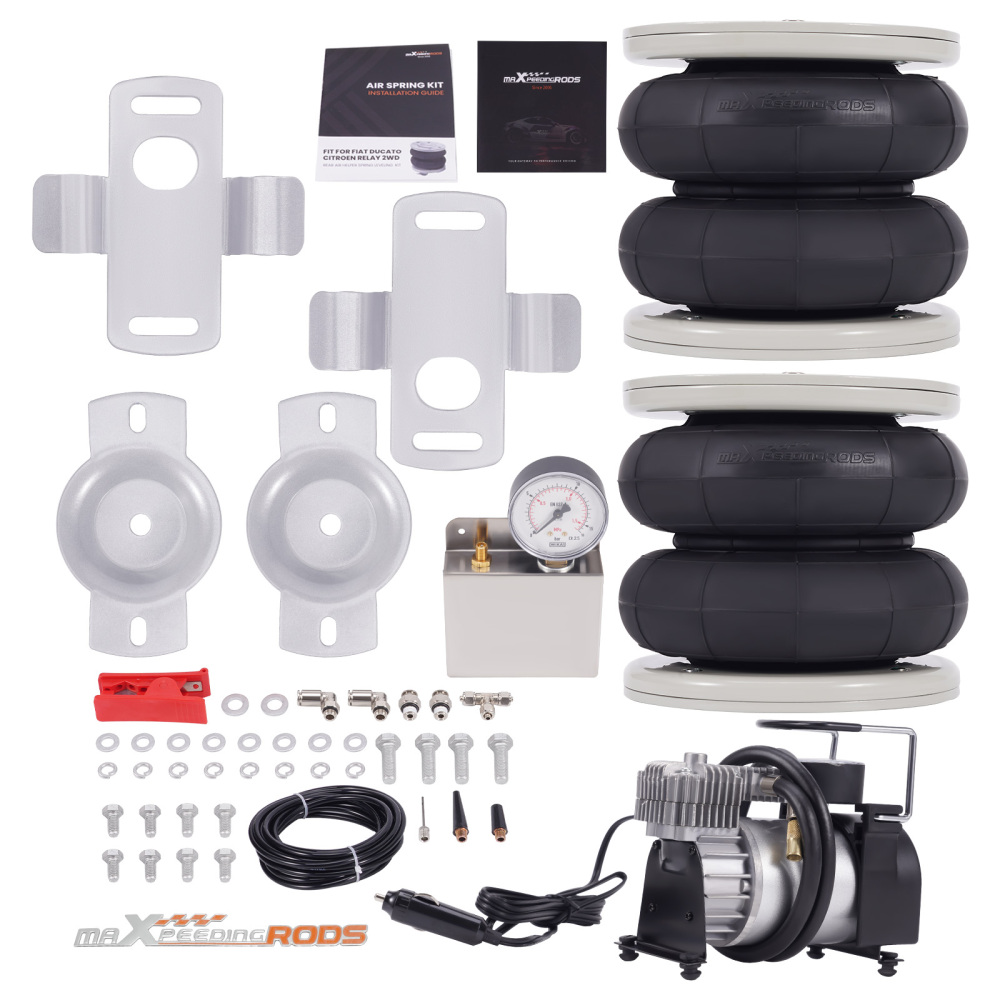

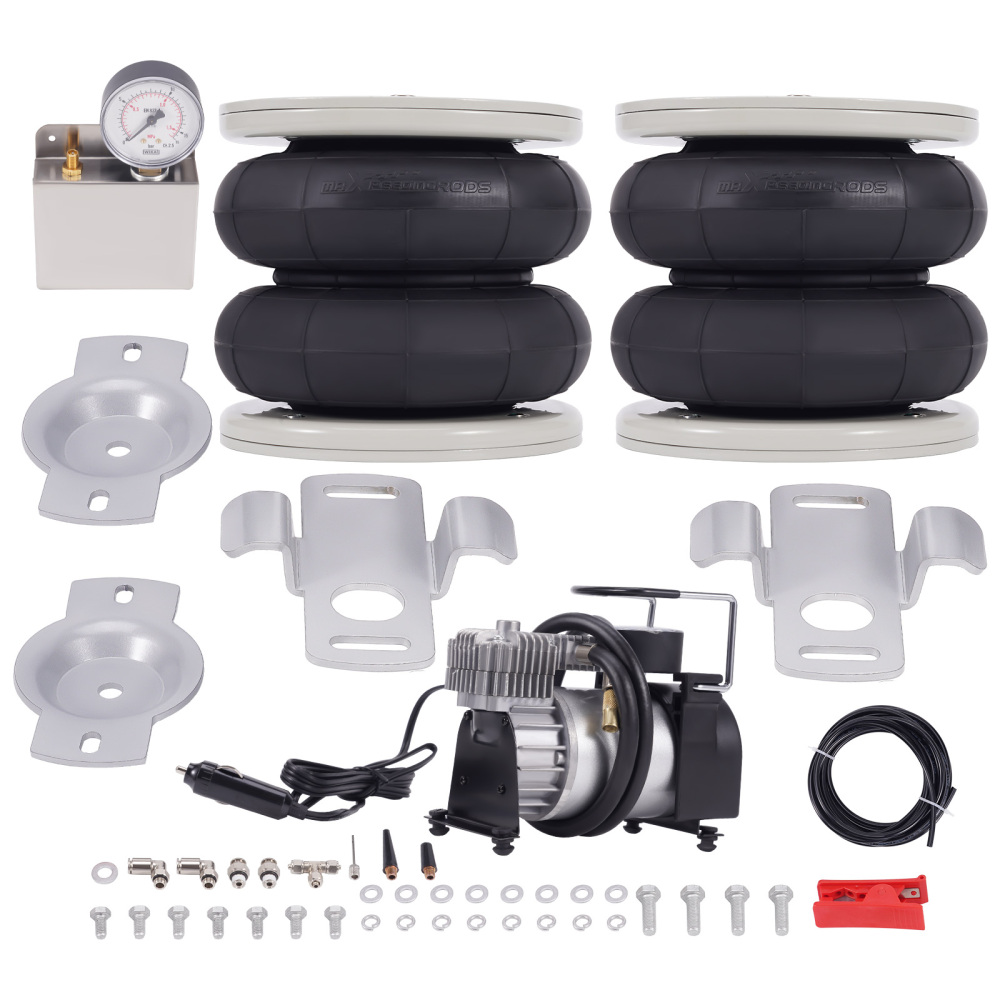

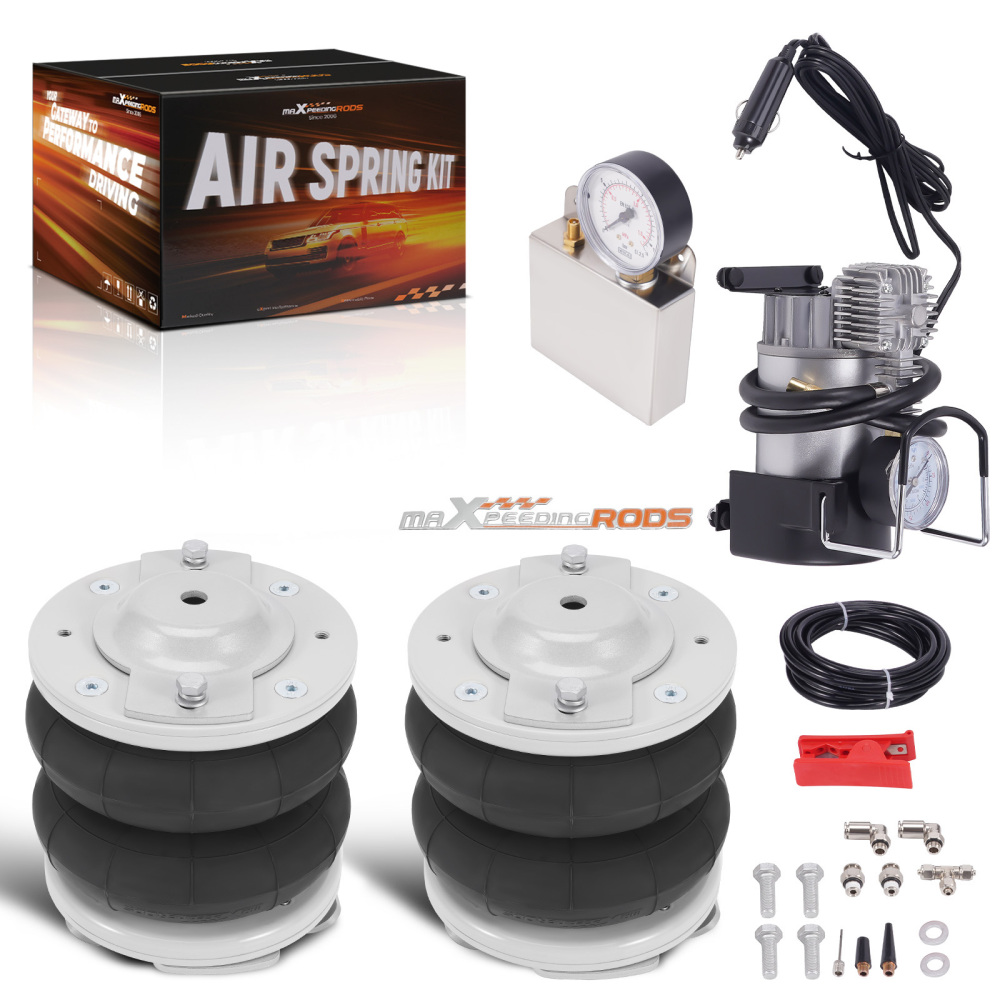

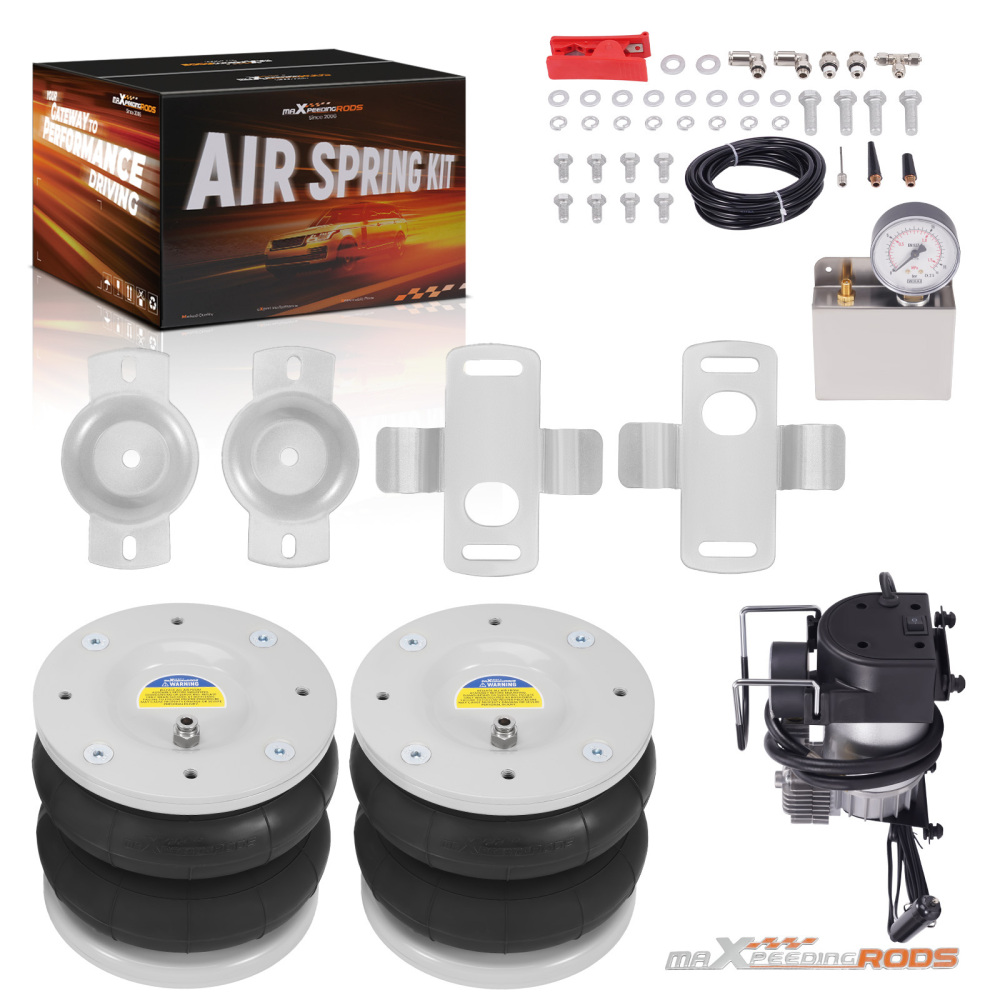

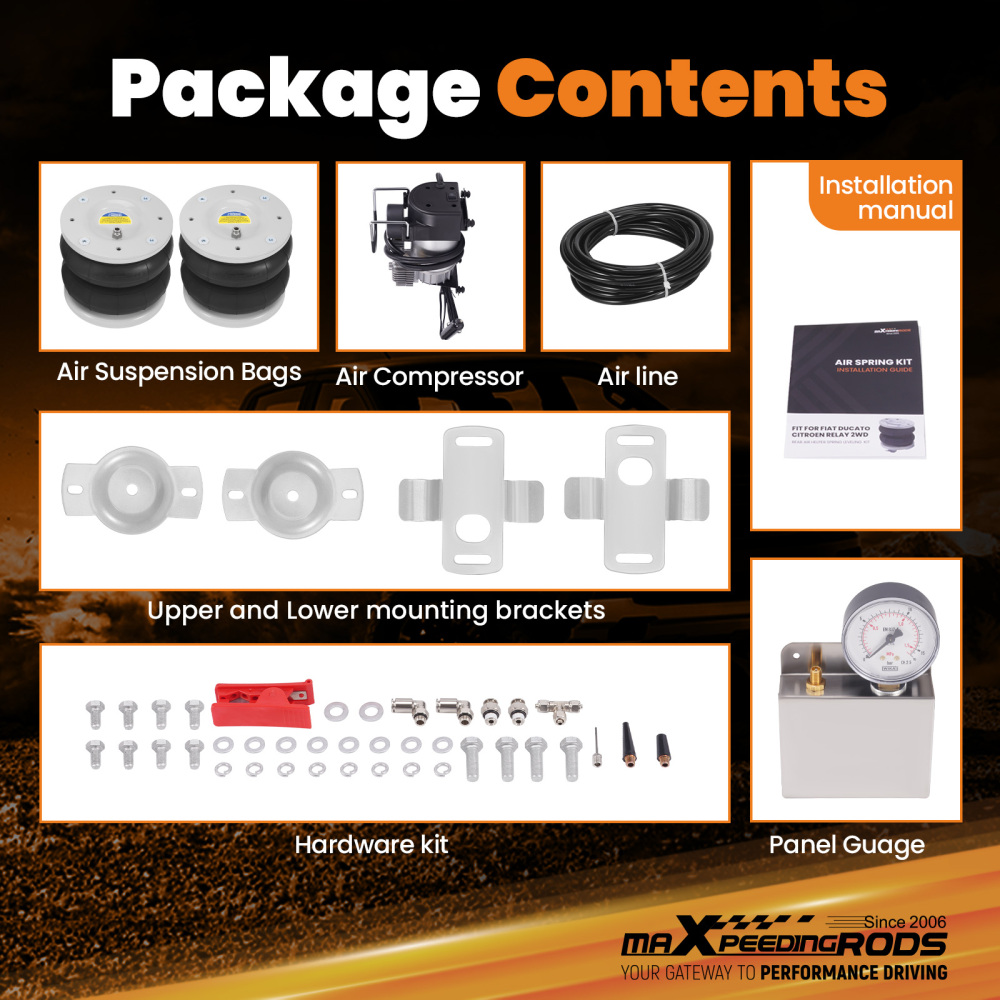

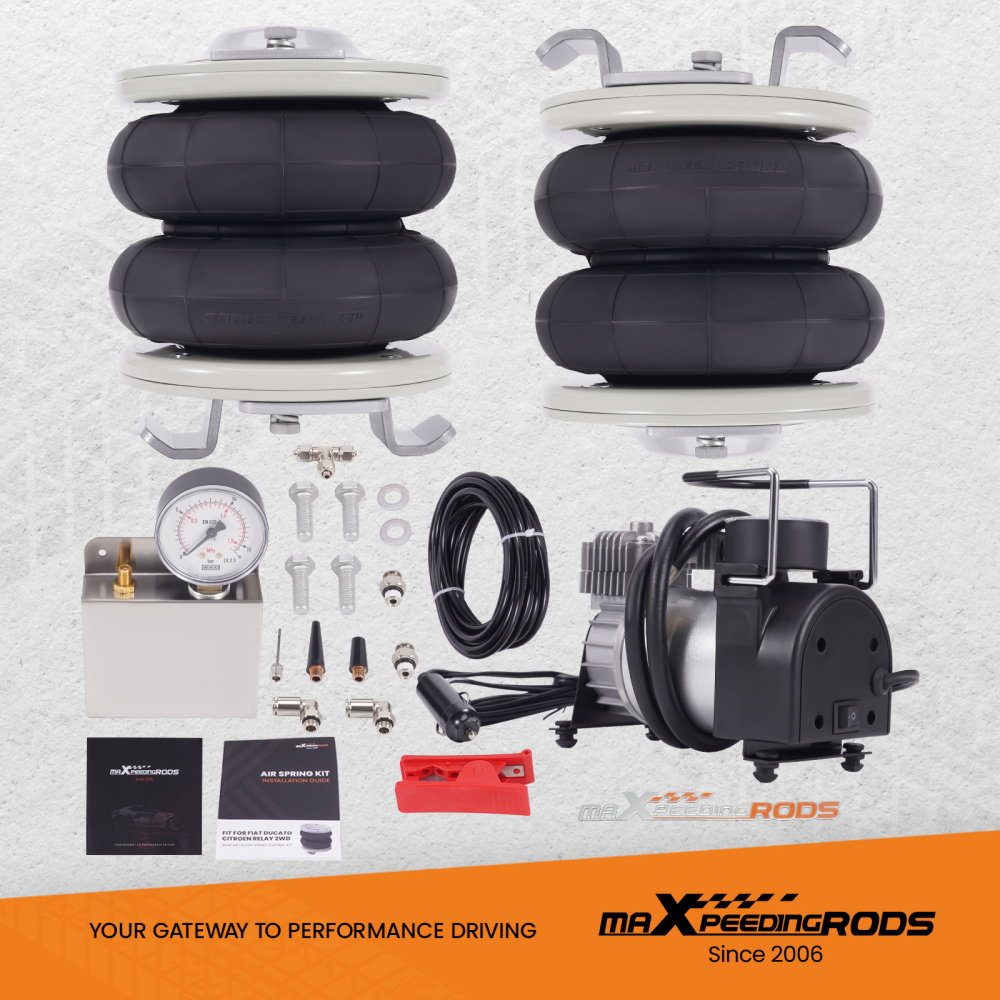

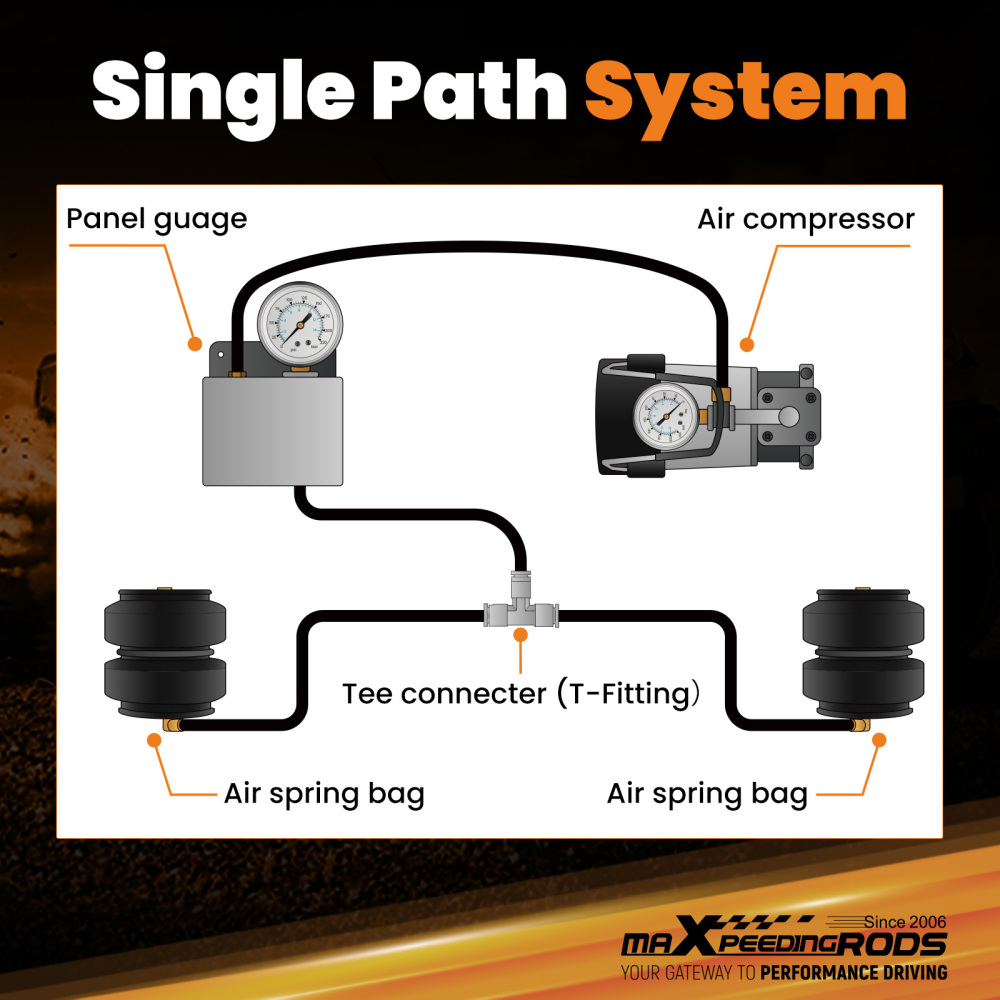

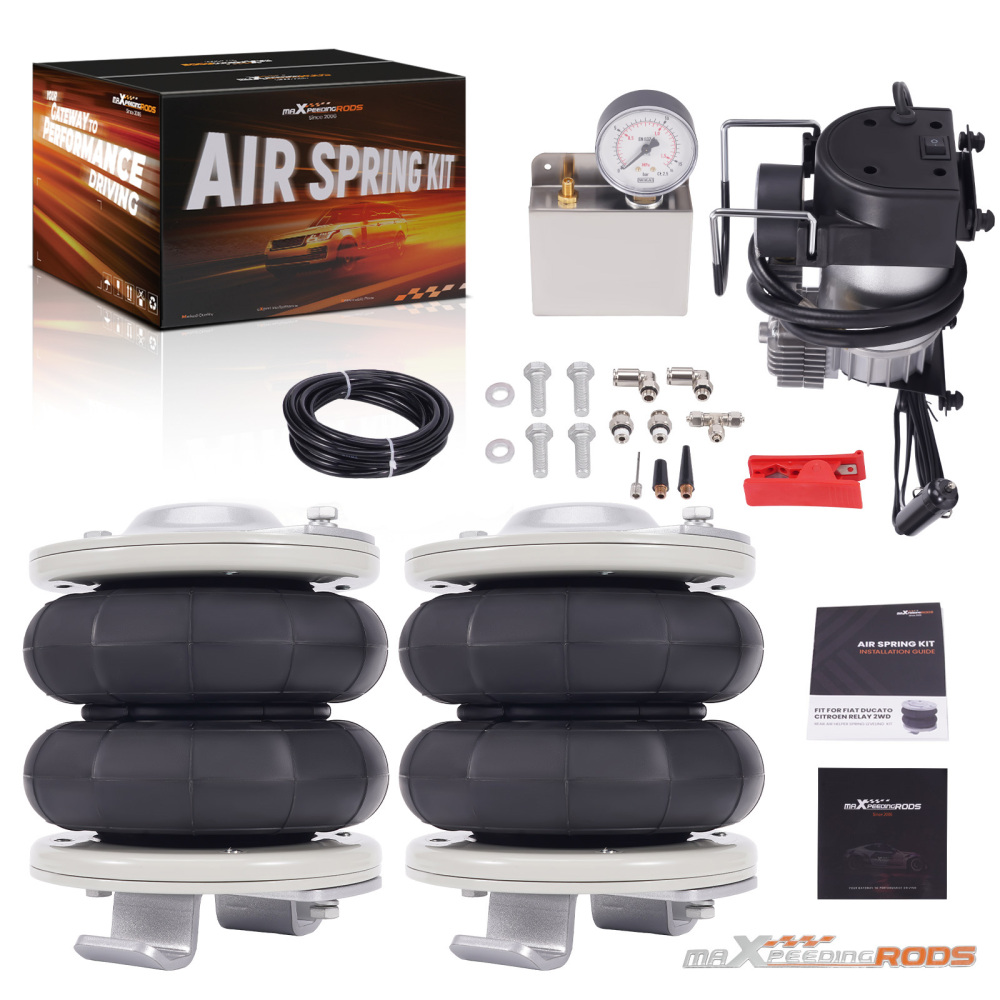

Package includes:

2x Natural Rubber & Hi-tensile steel Air spring bag

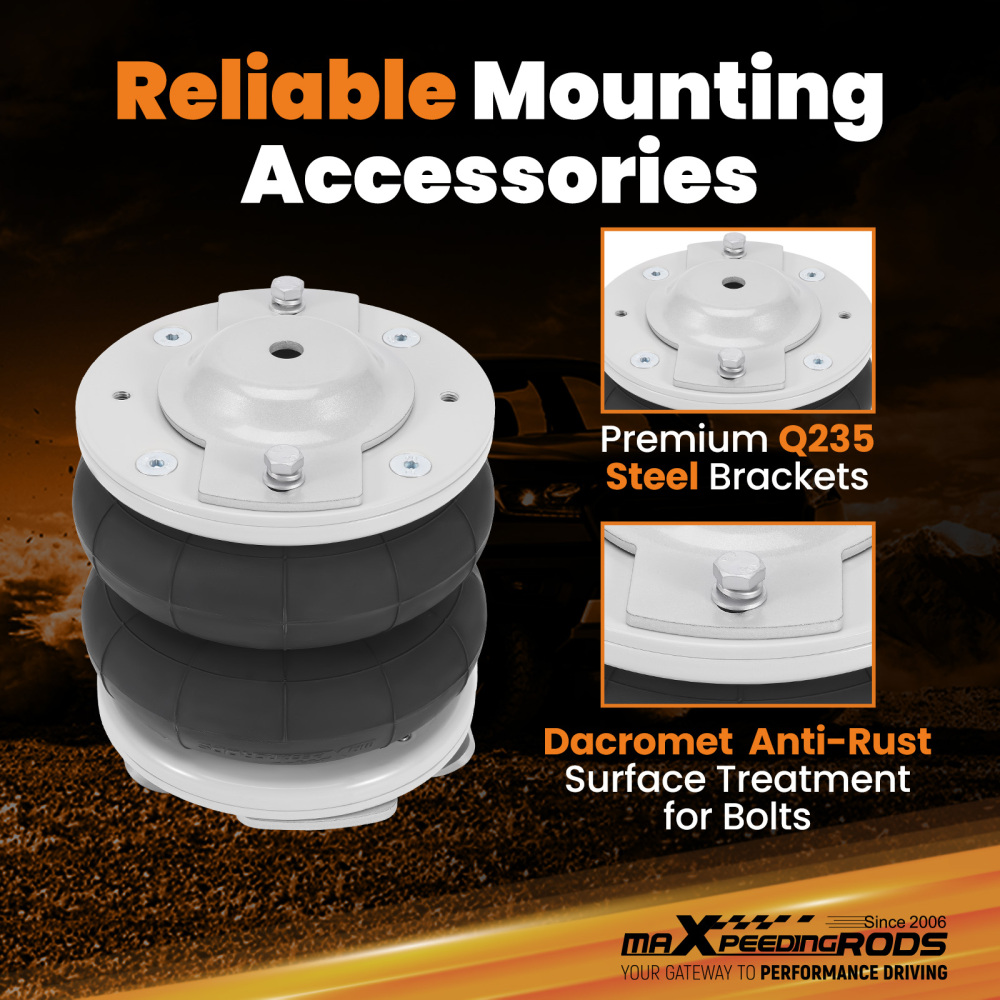

4x Galvanised Heavy duty mounting bracket

1x  12V Air suspension compressor

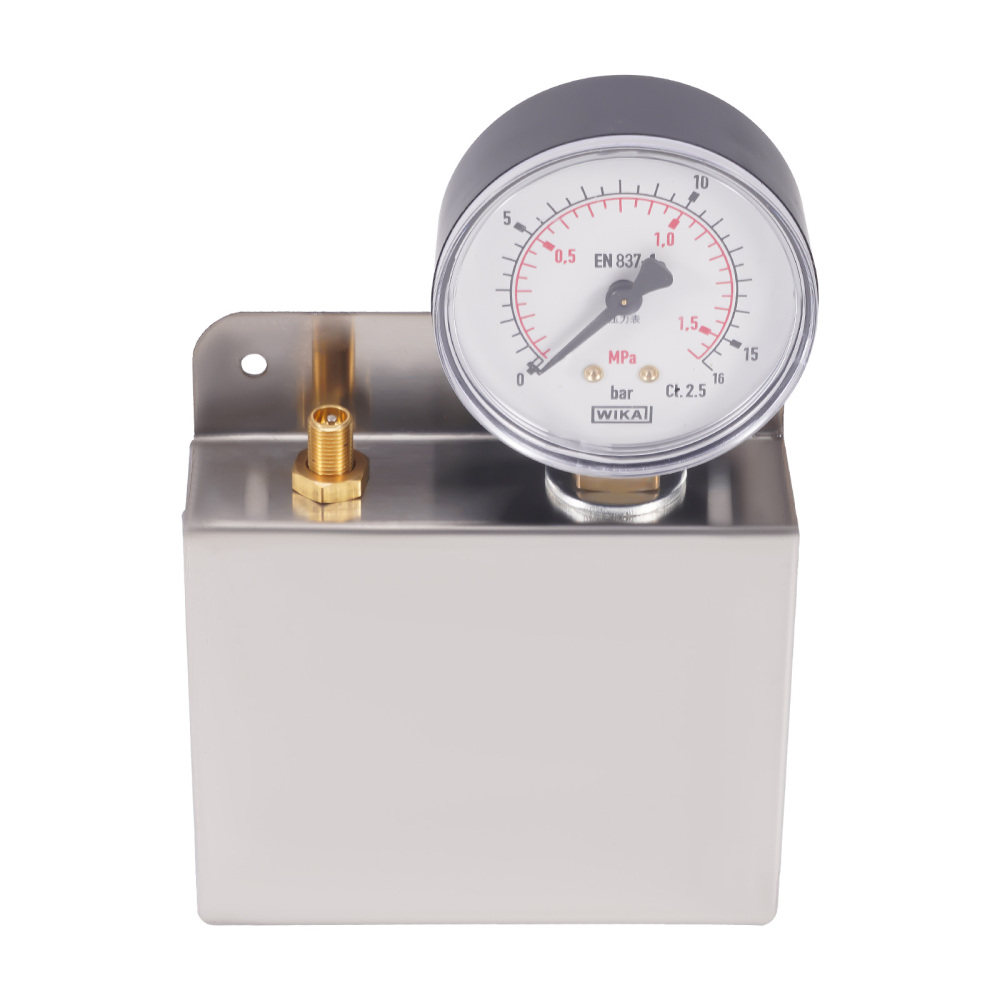

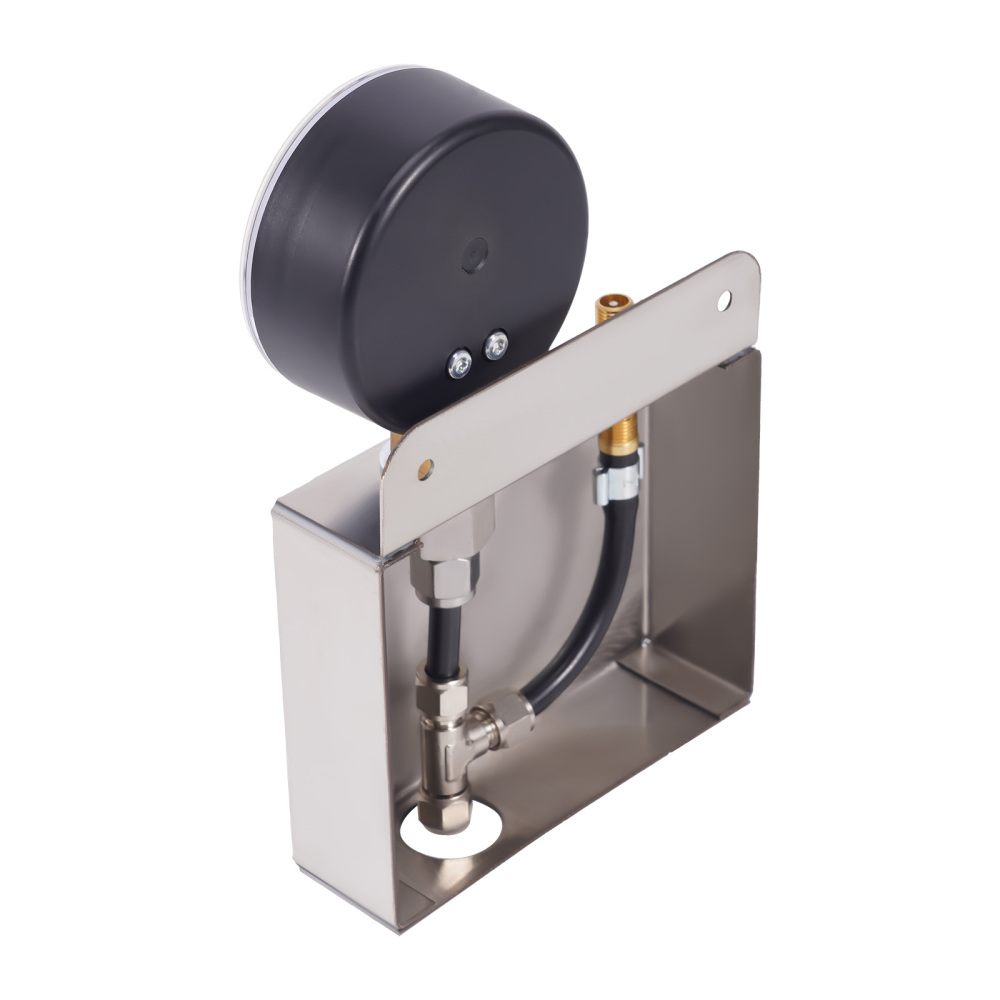

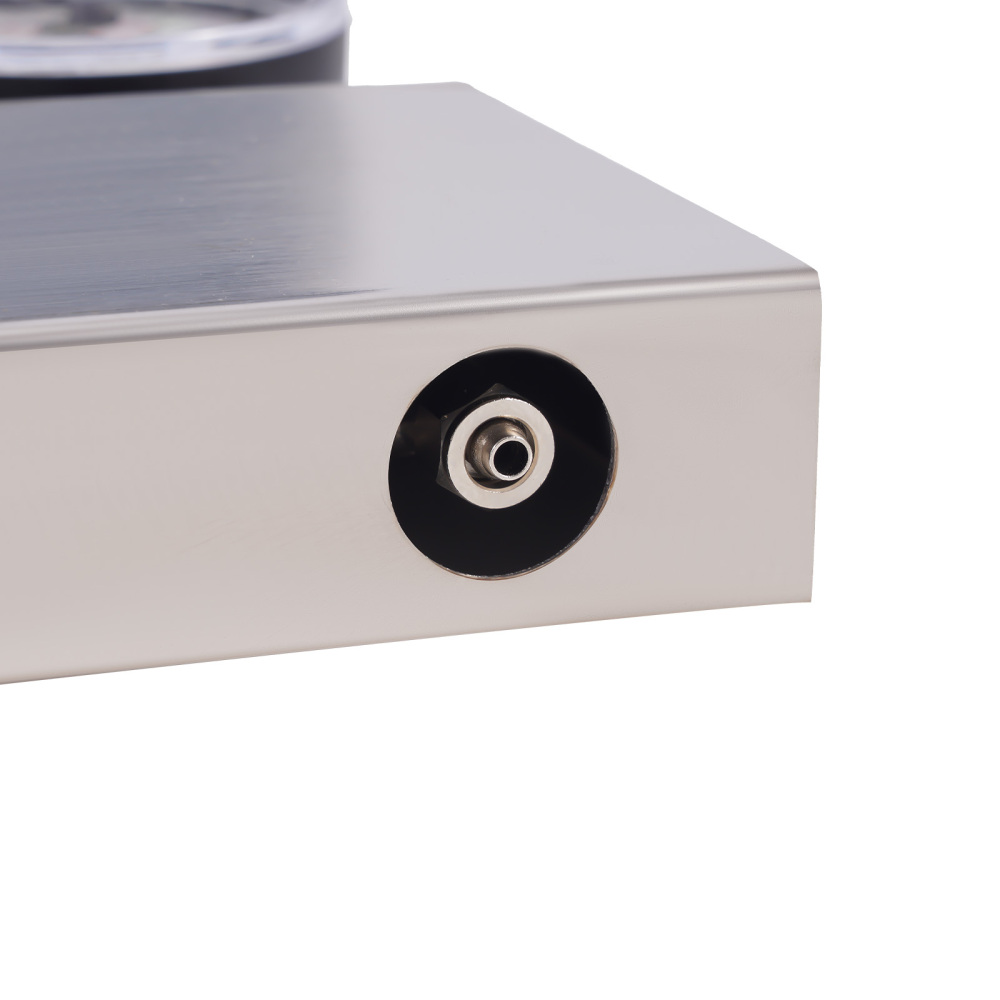

1x Barometer

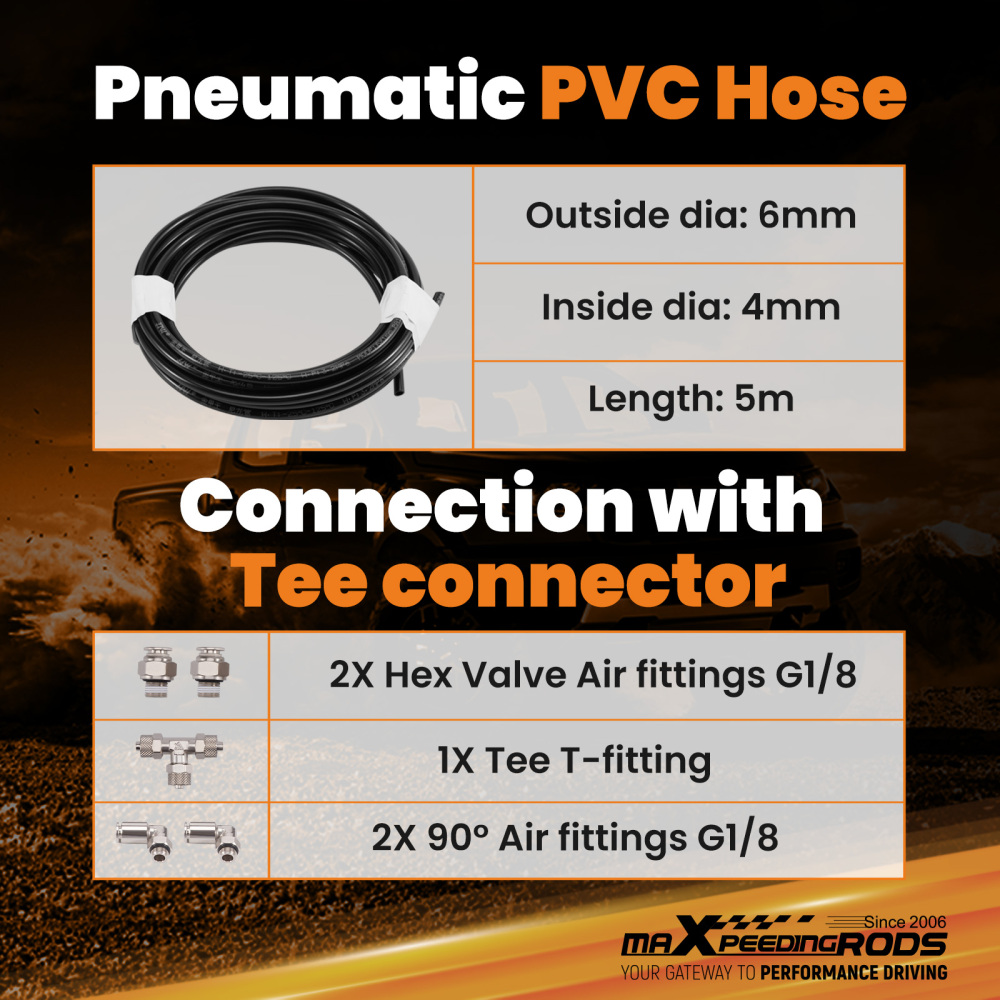

4x Air fiting

1x Air line 5m

1x Installation box

Mounting bolts and gaskets

Notice

- These air suspension kit are aftermarket ones. They will replace the original one.

- Professional installation is recommended.

- Contact us please for whatever we can help.
