Diesel Heater 12V 5KW LCD Monitor 2KW-8KW diesel heater for Van Car Trucks Bus Silencers

Introduction

Stay warm in the miserable winter storm with Maxpeedingrods Air Heaters,only need 12V power supply working in extreme temperature. Our Air Heaters are smooth, automatic room temperature control with temperature pre-set facility. It's suitable for longer periods of operation with low fuel and power consumption.

Specification

Application

Compatible for Motorhomes, Campervans, Caravans (also known as Travel Trailers and Camper Trailers), Fifth-wheel Trailers, Popup Campers and Truck Campers, Small Truck, Big Truck, Light Truck, Heavy Truck, Pickup, Van,Bus,Car,SUV, Boat, Forklift, Electric Tricycle, Engineering Vehicle, Yacht and so on.

Feature

1. WIDE RANGE OF APPLICATIONS

The air diesel heater can be used for truck, boat, car trailer, motorhomes, touring car, camper vans, caravans, and all kinds of other diesel vehicles.

2. EASY TO OPERATE

Easy to install , remove and maintain. The vehicle can be preheated by the remote control to eliminate the frost on the windows. At the same time, the remote control can adjust the oil volume, temperature, and wind speed. The heater is equipped with a complete set of assembly parts for easy installation.

3. DURABLE ALUMINUM BODY

The combustion chamber, the base and the heat-dissipating scale are all sand-blasted aluminum parts. It is integrally formed, with the heat dissipation fast and uniform.

4. FAST HEATING & LOW EMISSIONS

Volatile technology, the ceramic igniter heats the fuel to evaporate into a gas and burn it quickly and fully. Low emission, low fuel and power consumption, suitable for long running time.

5. ENERGY SAVING

The optimized frequency conversion ECU can accurately control the injection frequency of the oil pump and the intake air amount to extend the service life of the heater.

6. REDUCED NOISE

Effectively reduce noise through blower speed control, the speed of the fan is controlled linearly with the increasing power, and the metering oil pump adopts an improved low frequency pulse with low vibration.

7. KEEP CONSTANT TEMPERATURE

The intelligent overheating sensor can prevent the heater from running dry, and the LCD dynamic display will clearly show the running state of the machine.

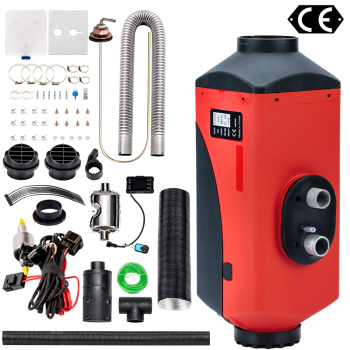

Package included

1 x Parking Heater

1 x Fuel Tank

1 x Air Outlet Pipe (aluminium foil)

1 x Intake Pipe (aluminium foil)

1 x Exhaust Pipe (stainless steel)

1 x LCD Switch

1 x Remote Controller（Batteries Included）

1 x Silencer

1 x Power Harness

2 x Wind Head

1 x Tee Connector

1 x Oil Pump

1 x Oil Pipe

1 x Fuel Extractor/Fuel Tank Sender Stand Pipe

1 x Oil Filter

1 x Air Filter

1 x Fixed Plate

1 x Oil Pump Clamp

1 x Fixed Accessories Set as Picture Shows

1 x Manual

Note

* For safety, please stay away from flammable materials.

* Keep dry to avoid damage accessories.

* Exhaust gas contains CO, exhaust pipes must be installed outdoors or outside your vehicle.

* Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.

* Professional installation is highly recommended.

Install & Use Attention

1. Ensure that the air wheel can be rotated freely and smoothly. If not, you have to adjust the gap of it with a tool, please refer to the video.

2. The heater should be directly connected to the power supply to ensure that the power supply current is above 20A, and the voltage is 11.5~12.8V.

3. Ensure that the intake/exhaust pipes are with good ventilation, and don't bend to much. At least 10cm(0.79inch) in front of the air inlet.

4. Matching the remote controller when you use the heater for the first time.  And after the initial installation, the heater should be started with the Fuel pumping mode to remove the air lock from the fuel pipes.

5. The protective film on the LCD screen should be removed before using.

6. The distance between the fuel pump and the heater is about 1.5m for split air heater.

7. Please use diesel with good quality.

8. EXhaust pipes must be installed outdoors or outside your vehicle.

9. When installing the heater ( for split unit), Don't reverse the direction of the oil pump.

10. The heater must be installed horizontally with the exhaust outlet vertically downward.

11. When starting the heater for the first time,  as there is no diesel in the oil pipe, the heater will automatically shut down,  please repeat to start the heater after shutting down.

12. When you turn off the heater, it will continue to run until the heat dissipation is complete. Do not force to disconnect the power supply, otherwise the heater will be damaged.

13. The fuel pump will start pumping fuel in about 1.5 minutes.
