T3 T4 T70 T66 T04E Turbocharger Turbo Oil Feed Return Drain Line fitting kit SPT

lncl. 20% VAT
Item Number 3002031750
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Application

Quantity : 1 unit T3/T04e (V-BAND) TURBOCHARGER + 1 unit exhaust inlet Manifold + 1 set oil inlet oil return lines kits
Turbo Suitable for:
Perfect for all 4 or 6 CYL, 2.0L-3.5L engines
Cooling Type: Oil Cooled Wastegate Internal
Horse Power: Horse Power Boost up to 420HP
Manifold Suitable for:
Compatible for Nissan Safari / Compatible for Patrol 4.2L TD42
for TB42, TB45, TD45, this manifold may also fit; as far as we know, the port configurations are the same. Please double check the dimensions with us before buying.
Oilline Suitable for:
for T3, T3 / T4, T4, T70, T66, etc. Oil Cooled Turbochargers

Specification

Compressor
Compressor Trim: 44
Compressor Inducer Diamter: 50.5 mm
Compressor Exducer Diamter: 76 mm
Compressor A/R: 0.5
Turbocharger Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Turbine Trim:73
Turbine Inducer Diamter: 65.5 mm
Turbine Exducer Diamter: 55.9 mm
Turbine A/R: 0.63
Manifold Specifics:
Turbo Flange : T3 flange
Mount Type: top mount / high mount
External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

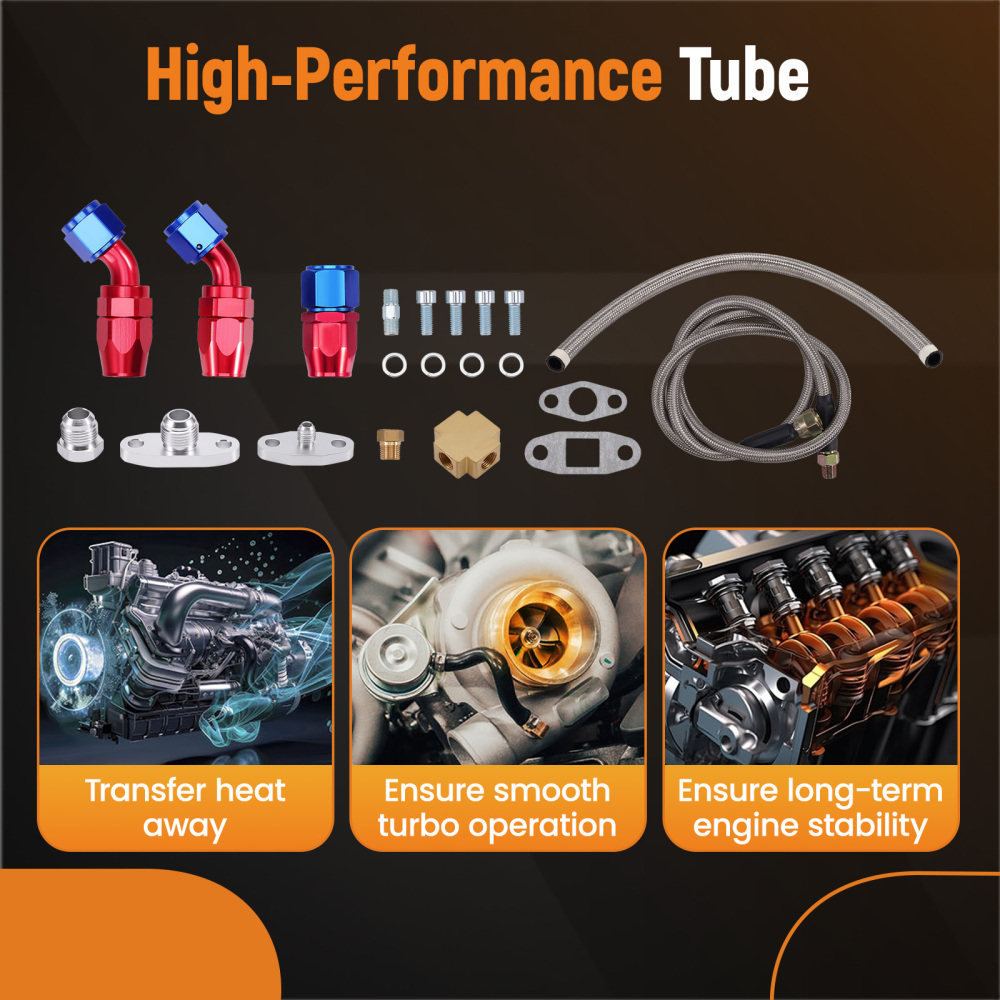

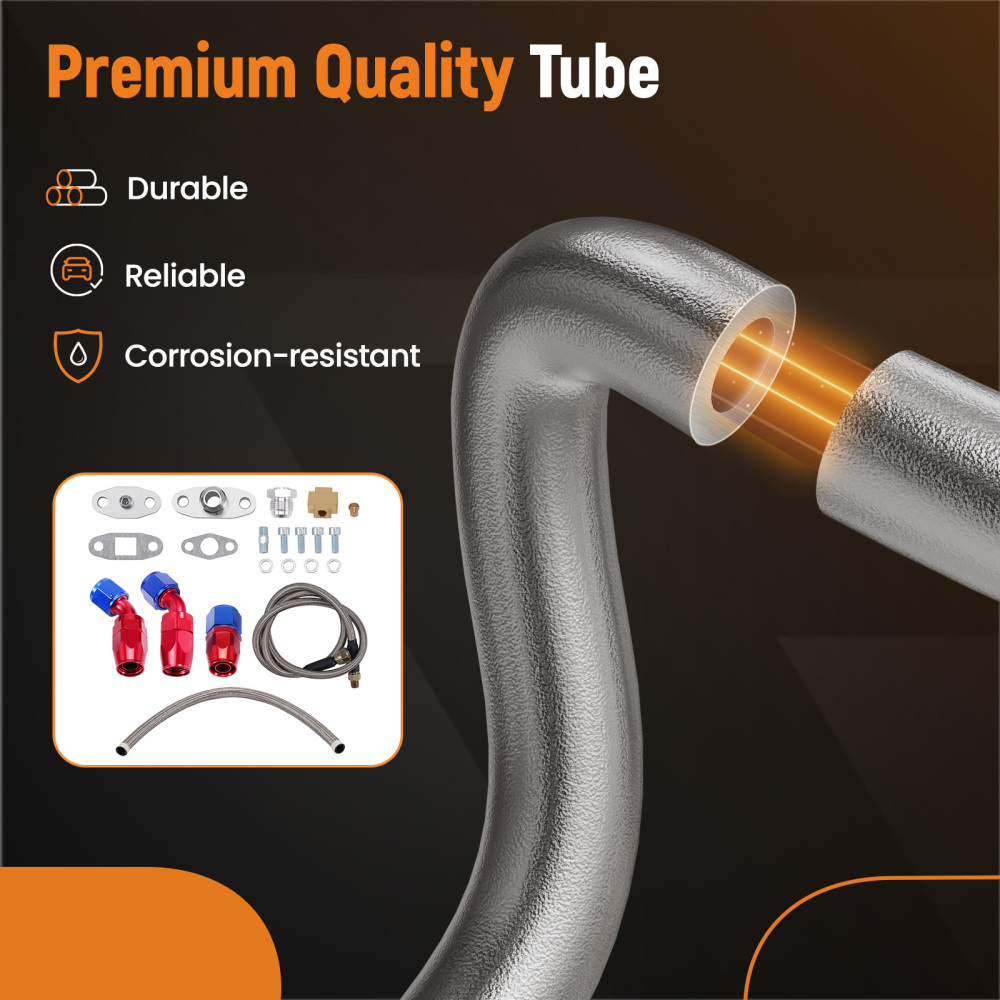

Oil Line Specifics:

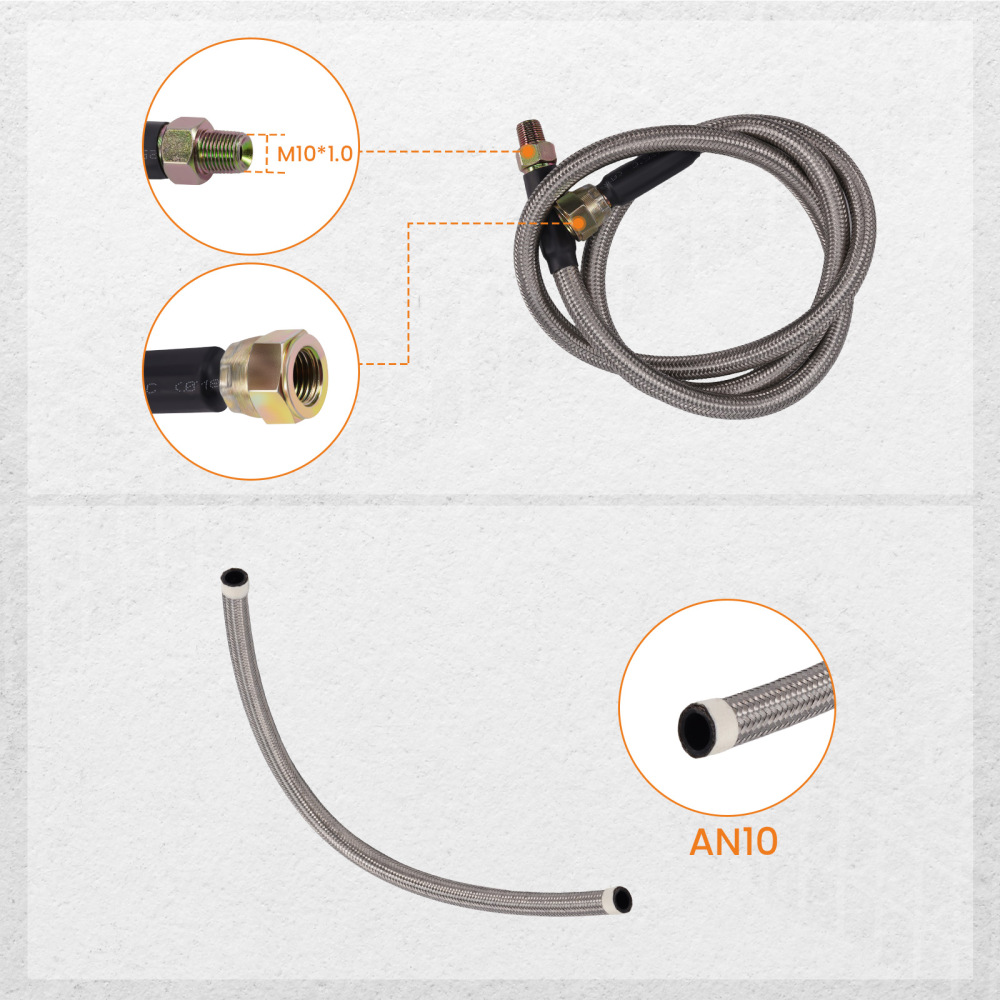

Oil return line length: 550mm
Oil return line inner diameter: ¢21
Oil feed line length: 1000mm
Oil feed line inner diameter: ¢14

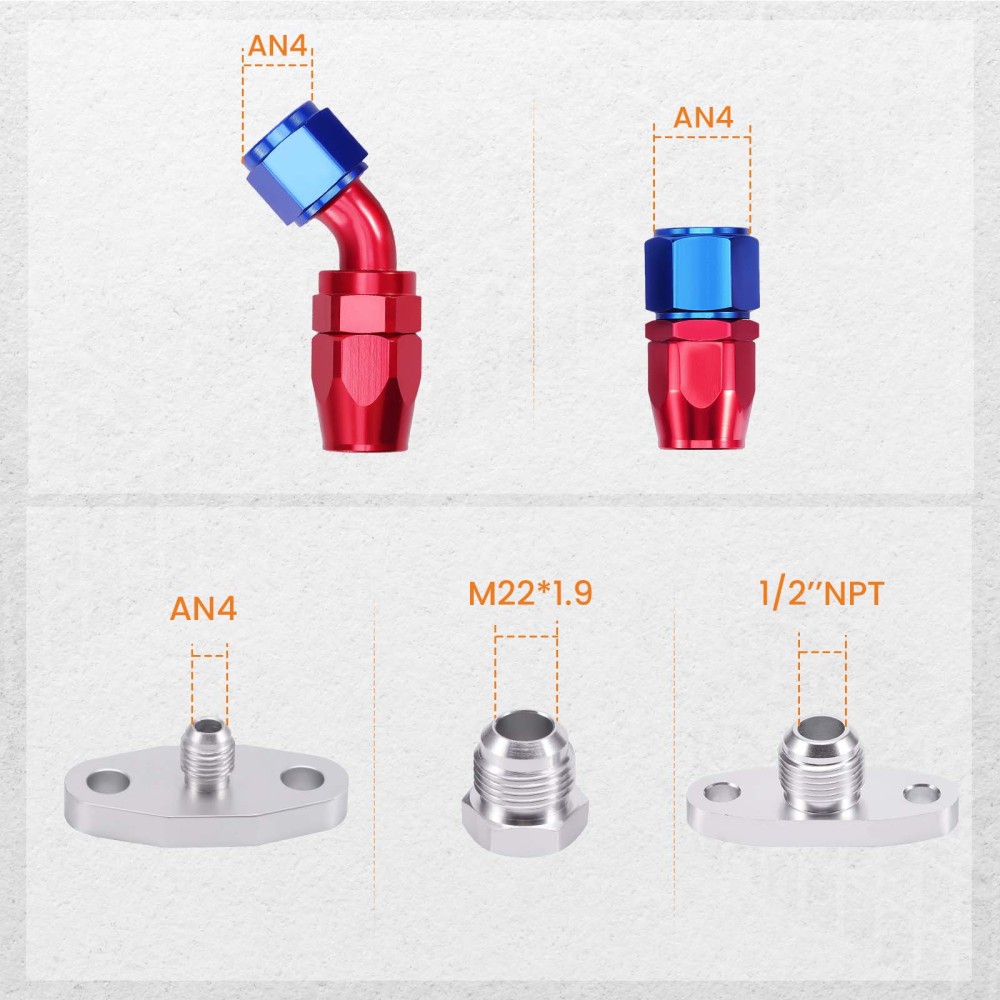

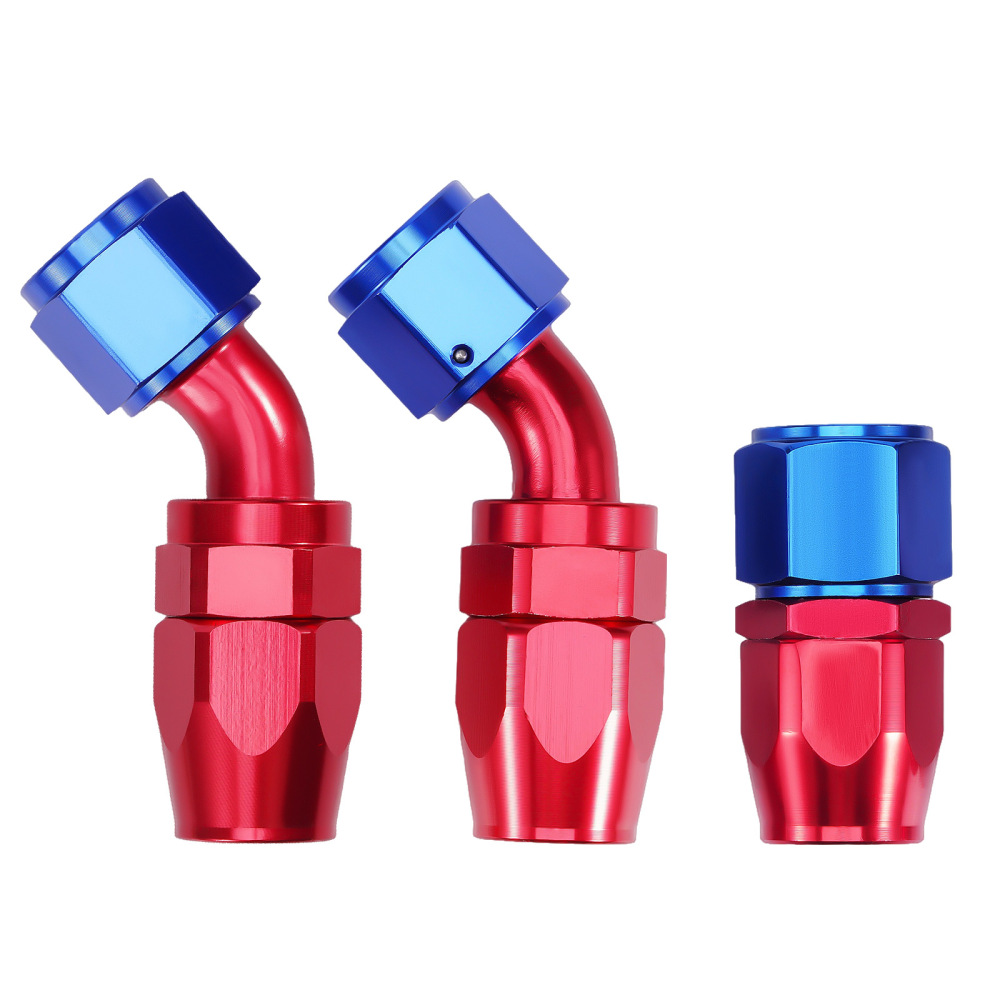

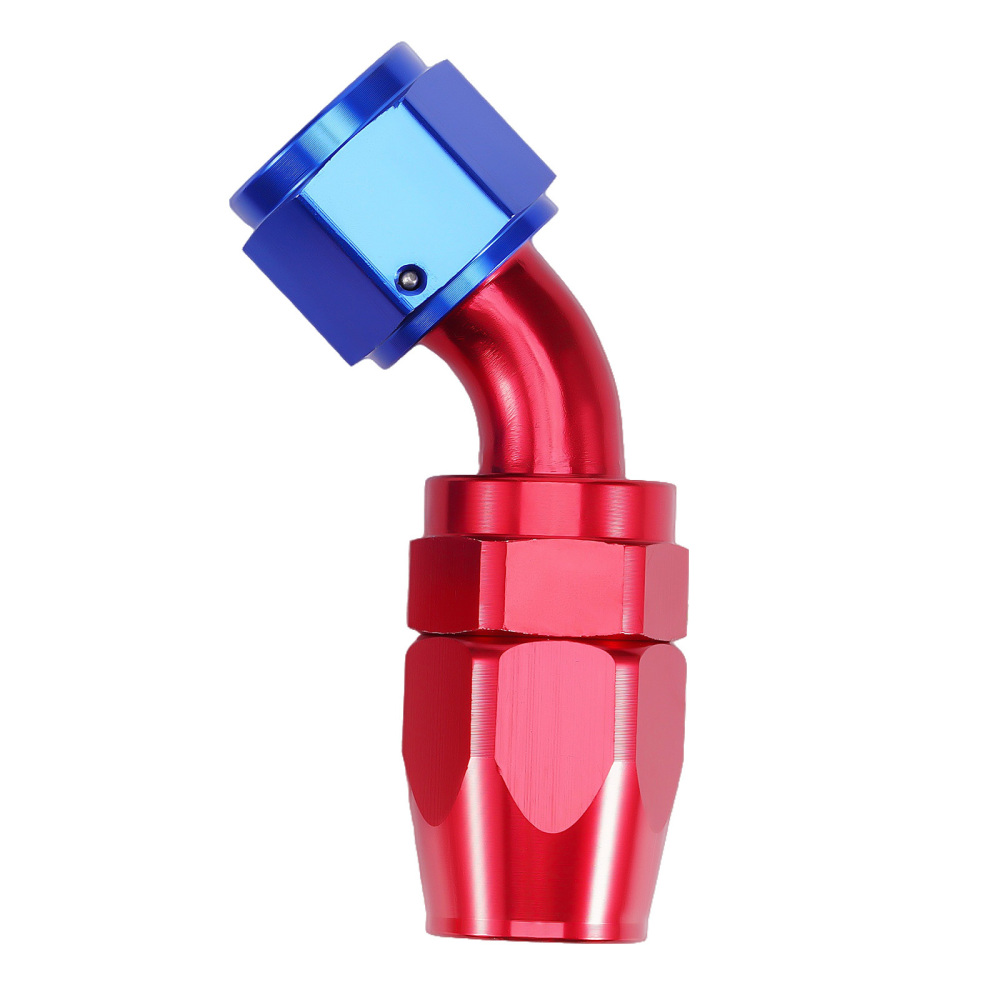

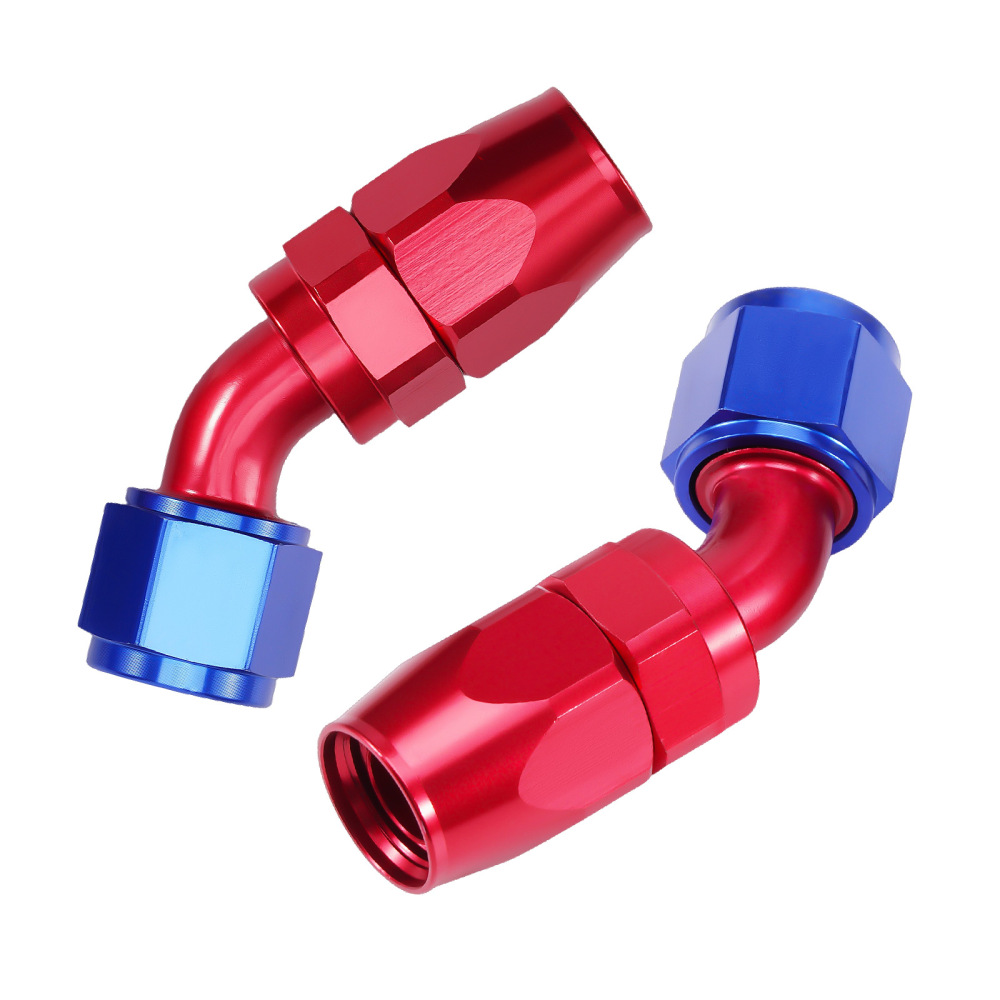

Hose end fitting: 10 AN
Material: High Strength Steel with Aluminum Material

Features

- New
- Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.
- Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag
- Manufactured from high quality cast iron for durable usage
- Continuous tests under extreme conditions to withstand high temperature
- Special surface treatment to resist corrosion.
- Accurate dimensions with exquisite workmanship
- Tubes sized and shaped to match cylinder-head exhaust port

Note

This is a universal kit. Not all the component parts will be directly bolt on your car.
You may still need some accessaries of your OEM oil line kit.
* No instruction will be included; professional installation and alignment is suggested.
* For any needs please contact us.


Warranty: one year warranty for any manufacturing defect
