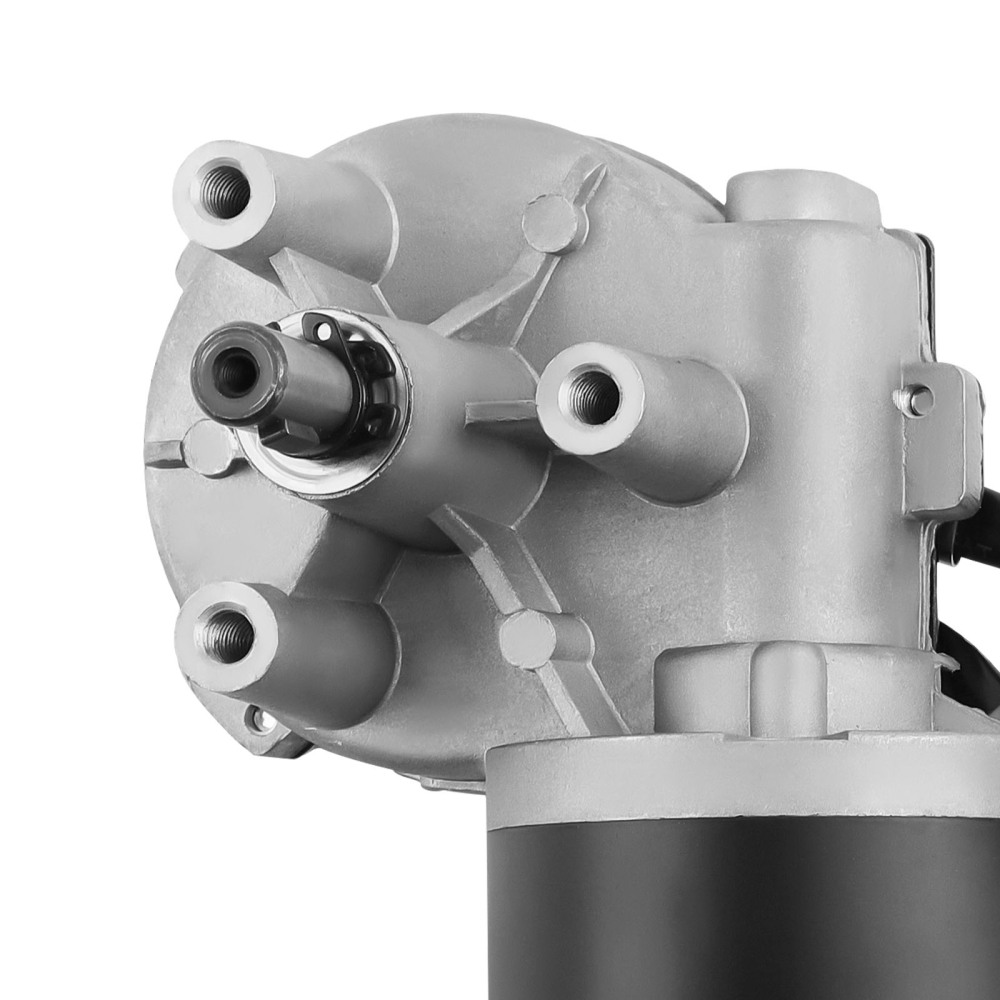

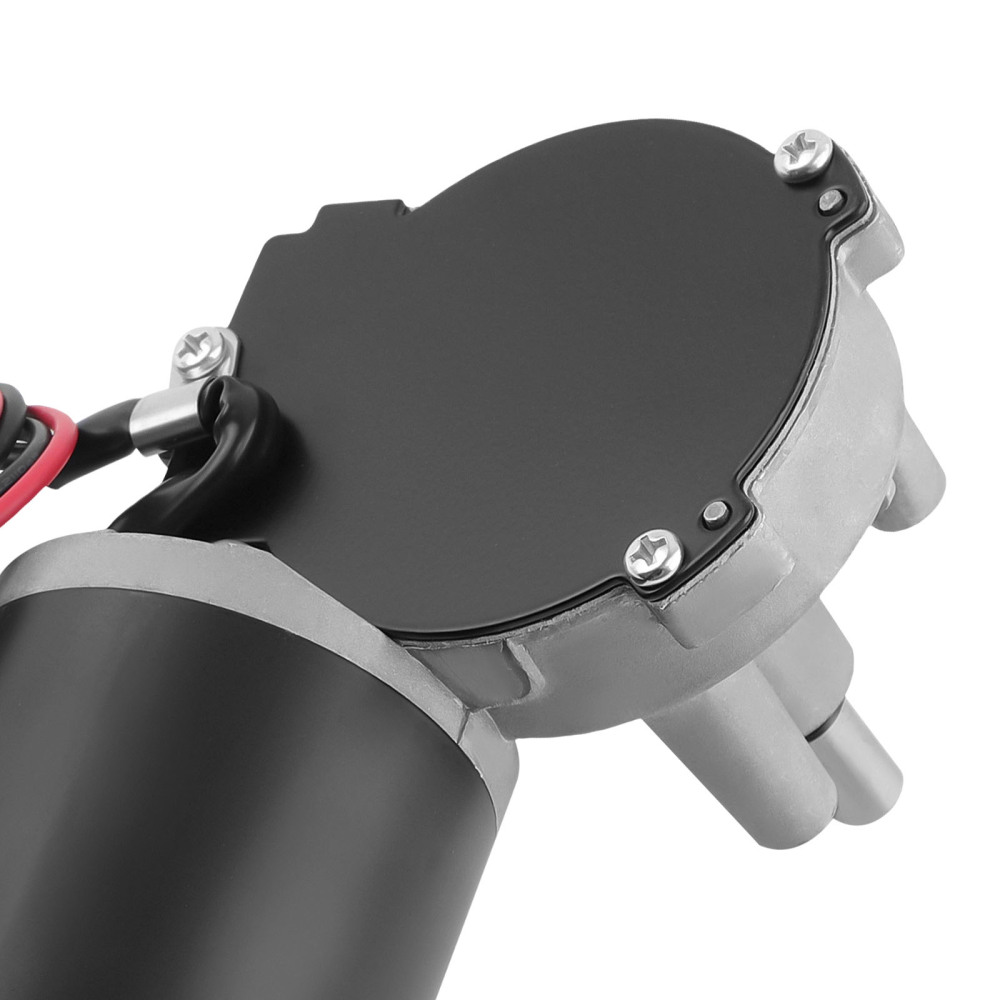

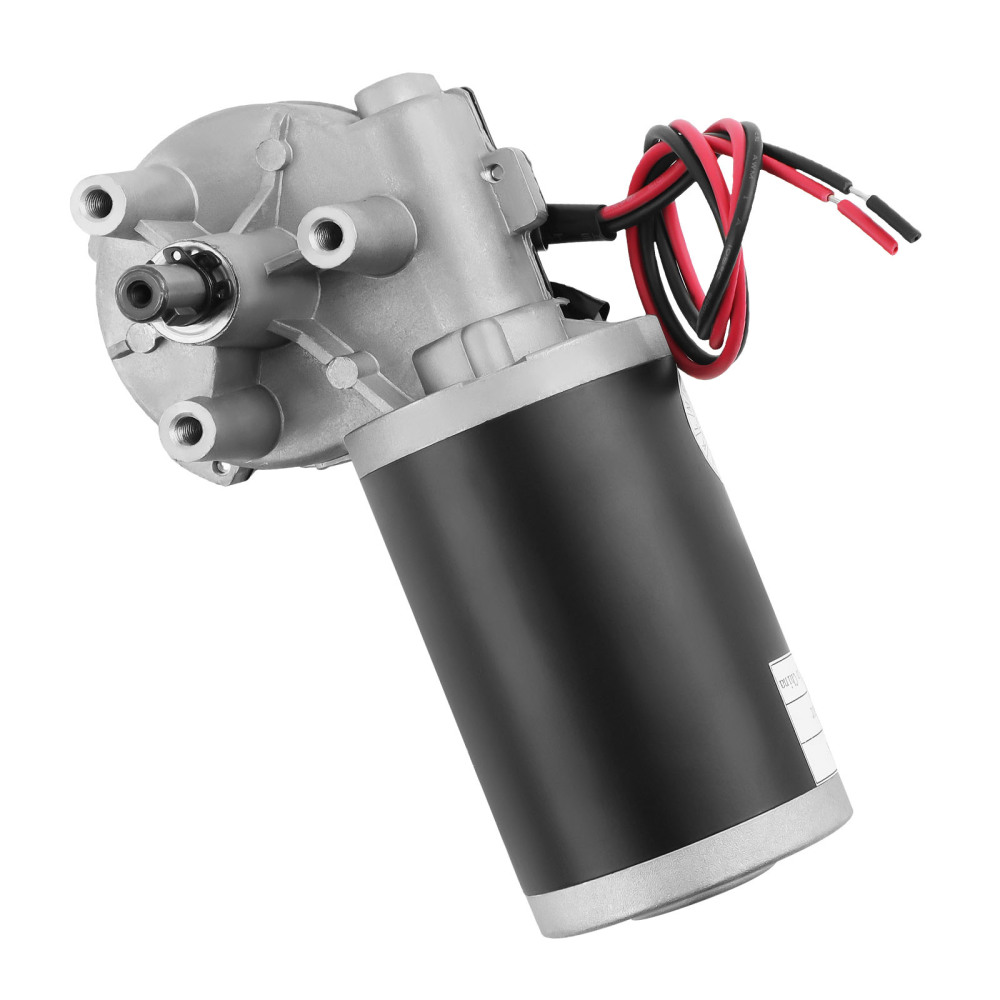

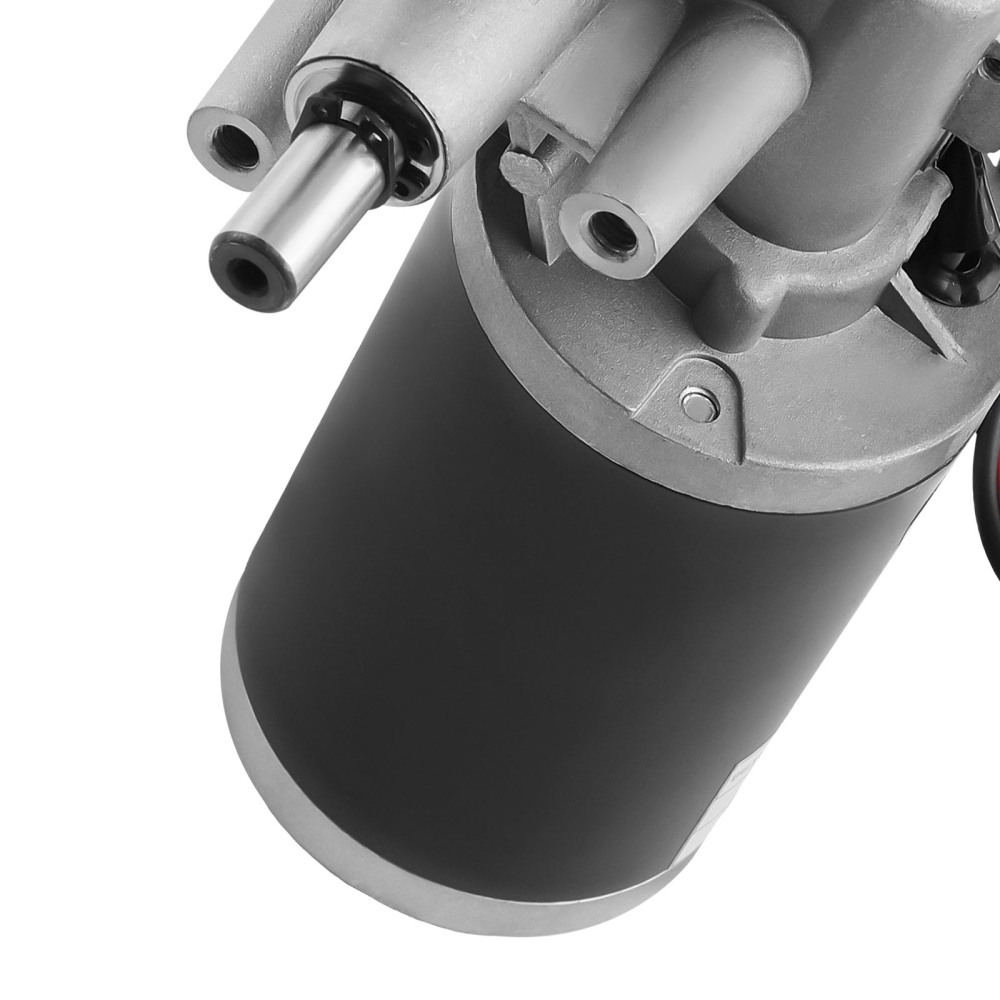

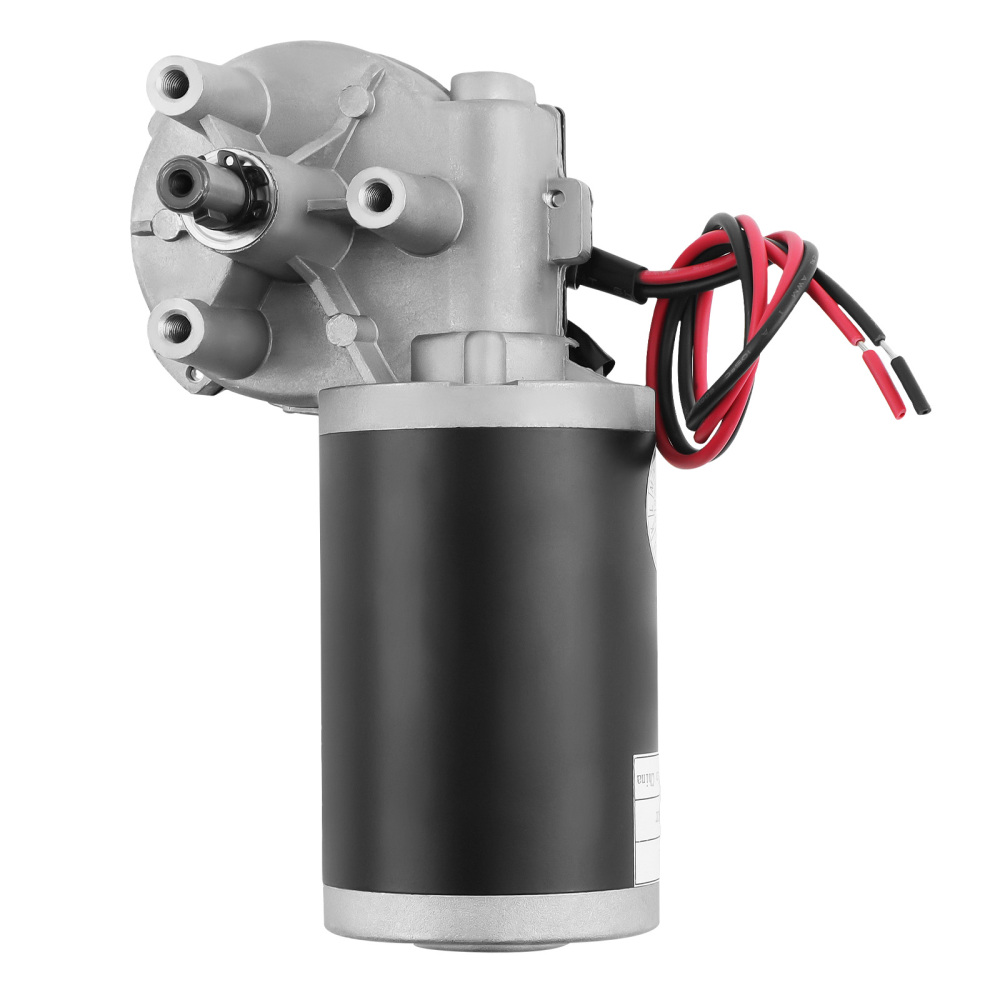

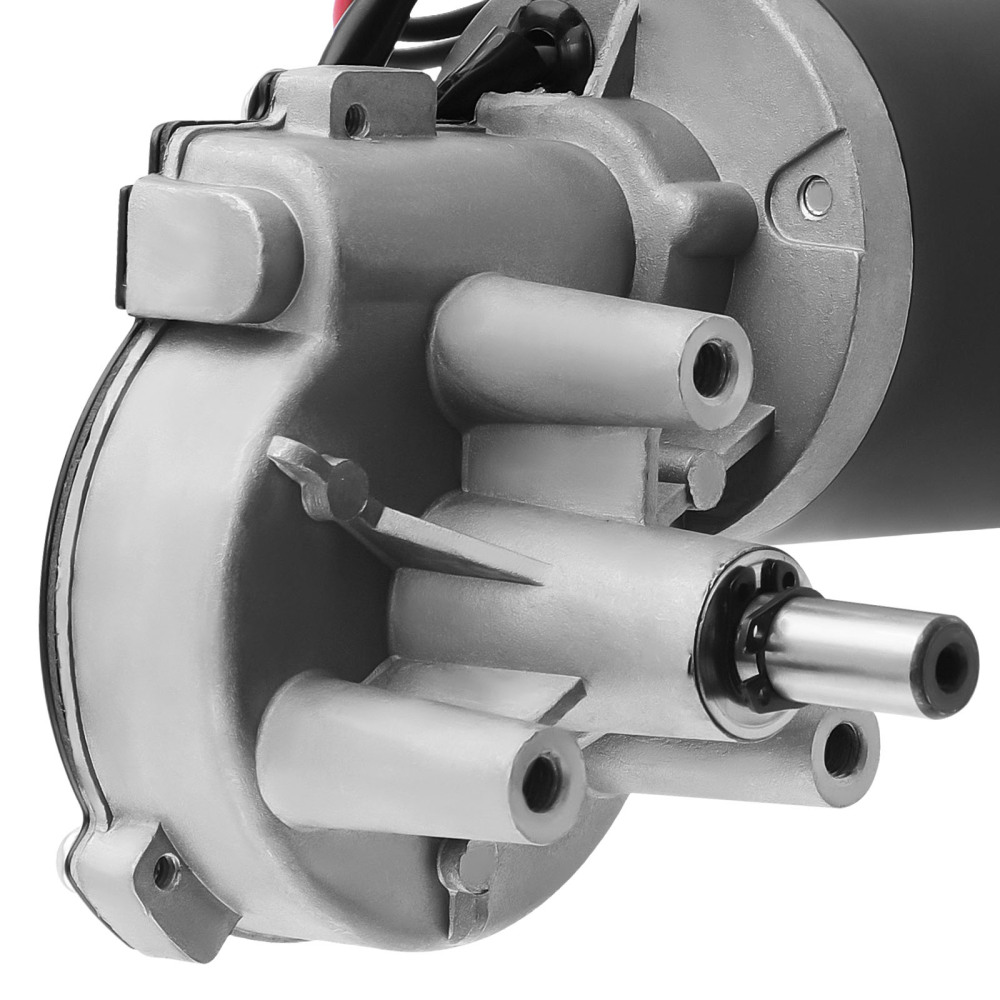

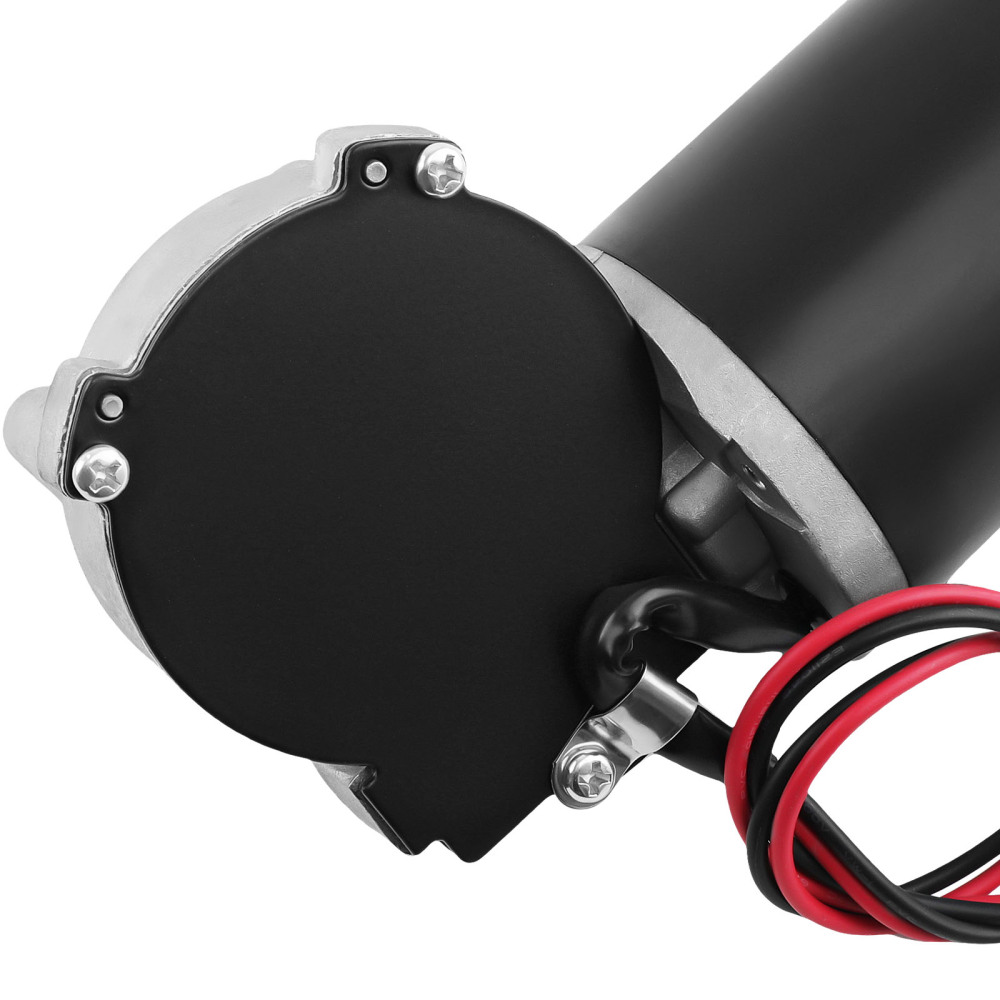

For 0-260U/min High Torque Reversible Electric Gear Motor Box Gear Motor DC 24V

lncl. 20% VAT
Item Number 3002033985
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G


- Voltage: 24v DC
- Shaft: 10mm in diameter, 18 mm long,
- Nominal speed approx.: 220 rev./min. (at 24v)
- Nominal power: 45 W
- Motor diameter: Ø63mm
- max torque: 30Nm
- Motor connection: (cable; Black/red)
- Package Include: 1 piece, DC gear motor


- Motor features: 1.low noise, high efficiency, small size, large torque 2.Due to Low voltage, DC motor is safer 3.DC motor with long service life of carbon brush.
- Running quiet Universal DC worm geared motor with high torque and low losses.
- Easy adaptation to the application by 10mm slot shaft possible.
- Controllable gear motor for 1-30 volt DC
- Usable for both directions of rotation by reversal
- Shaft with 10 mm diameter,
- Incl. control cable, stable 3-hole mounting

Warranty: one year warranty for any manufacturing defect
