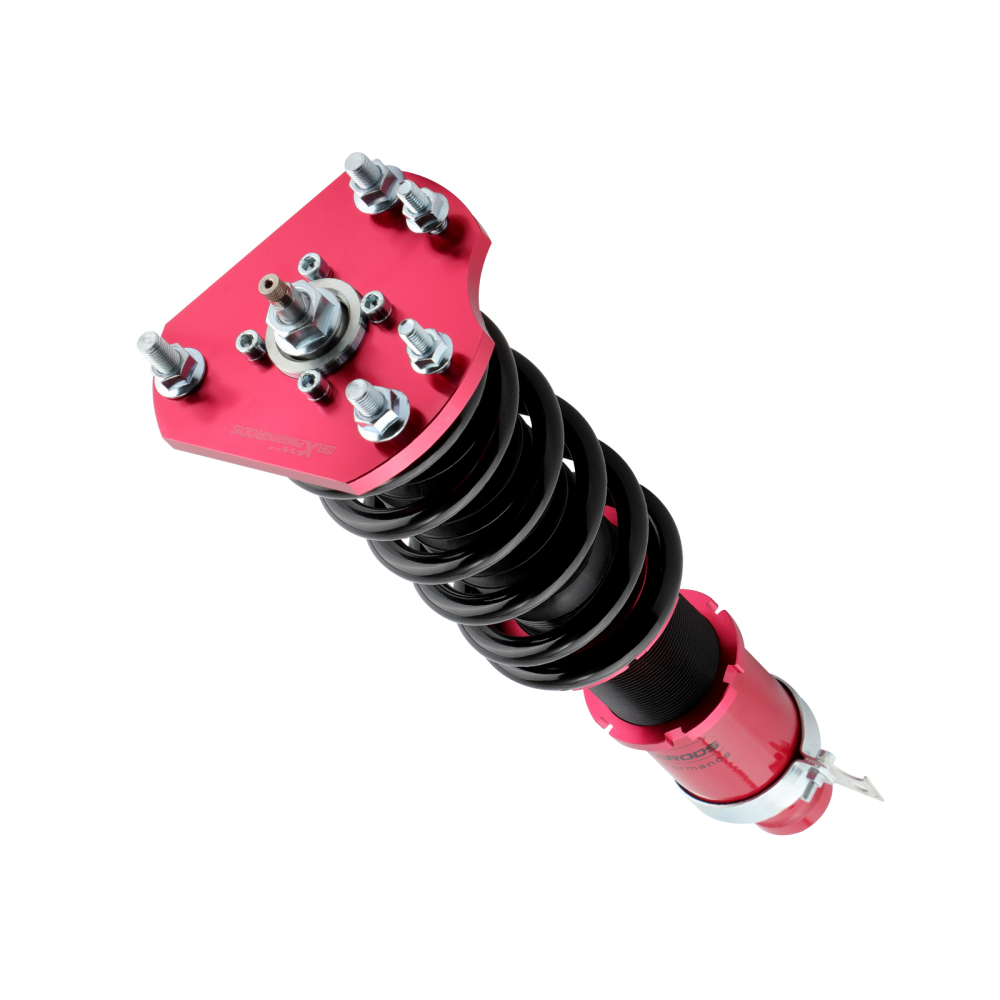

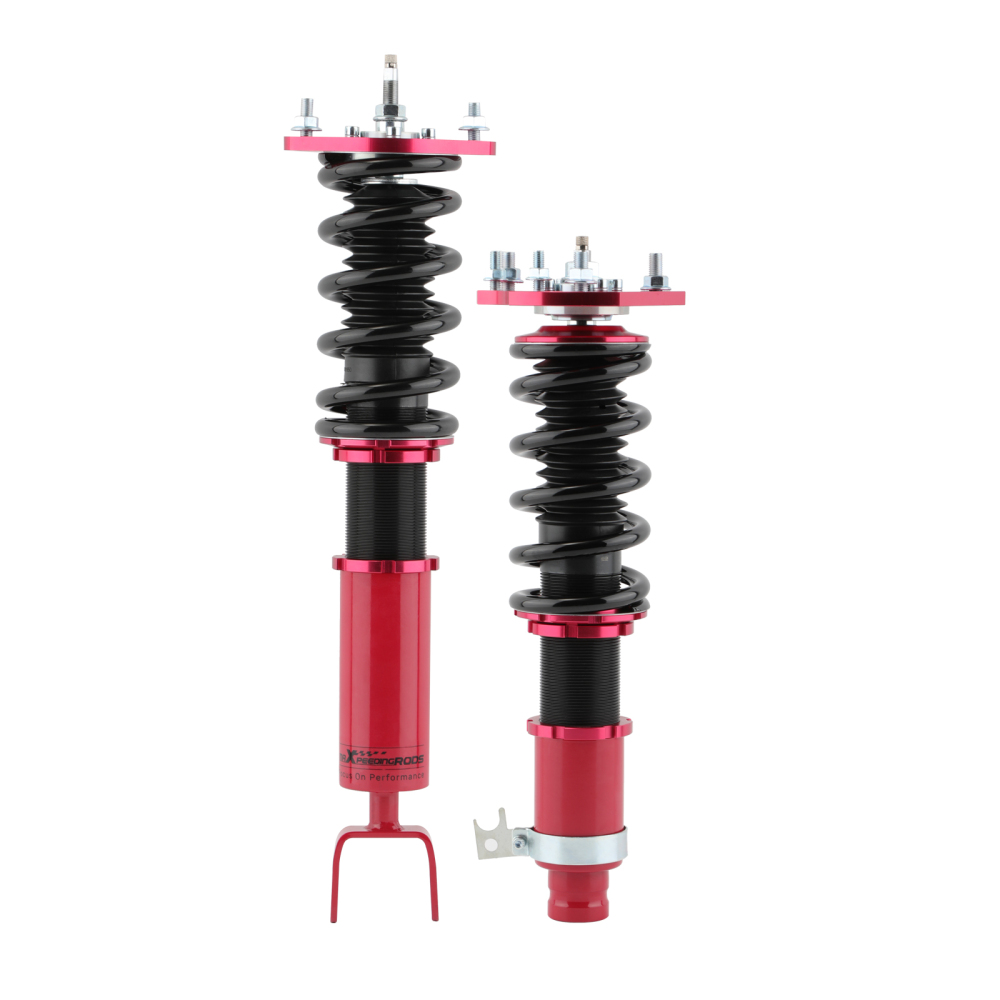

Compatible for Honda Prelude Full Damper Adjustable Coil Spring Strut Coilovers 1992 - 2001

lncl. 20% VAT
Item Number 3002101978
Stock In Stock
Color

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
Introduction
MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob on the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.  You will experience better ride quality in all road conditions.

Application
Compatible For HONDA PRELUDE BB1-BB9 1992-2001
Note:
This coil-over is perfectly suitable with TYPE S, SiR, and S SPEC which has strut tower bar mounting points.
It can also be used directly for some USDM Preludes which have reserved factory mounting points.
For some models without mounting points, you can remove the 2 additional studs.

Specification
Top mounts: pillow ball top mounts
Damping: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 180mm
Spring length Rear: 200mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-465mm
Coilover overall length Rear: 550mm-645mm
Shock type: Twin tube
Spring preload: 7-10 mm
Color: red
Warranty: one year warranty for any manufacturing defect

Package included

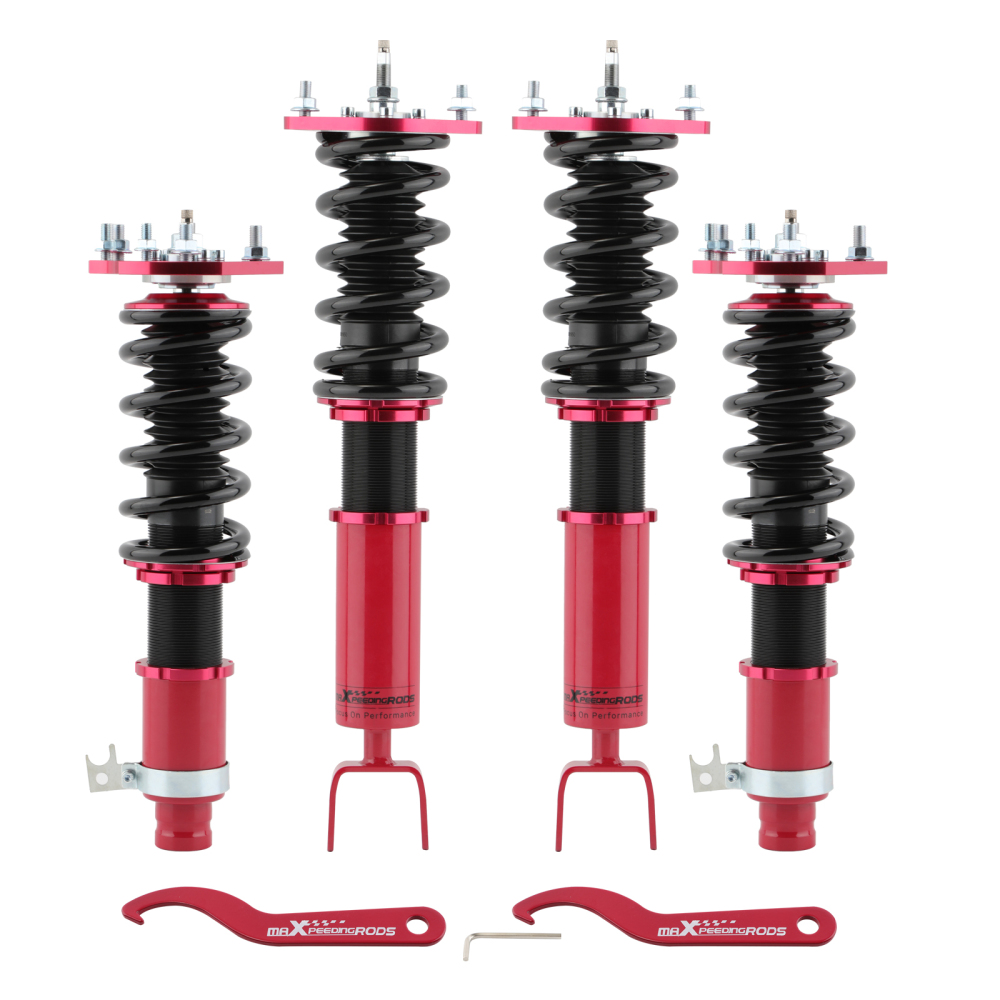

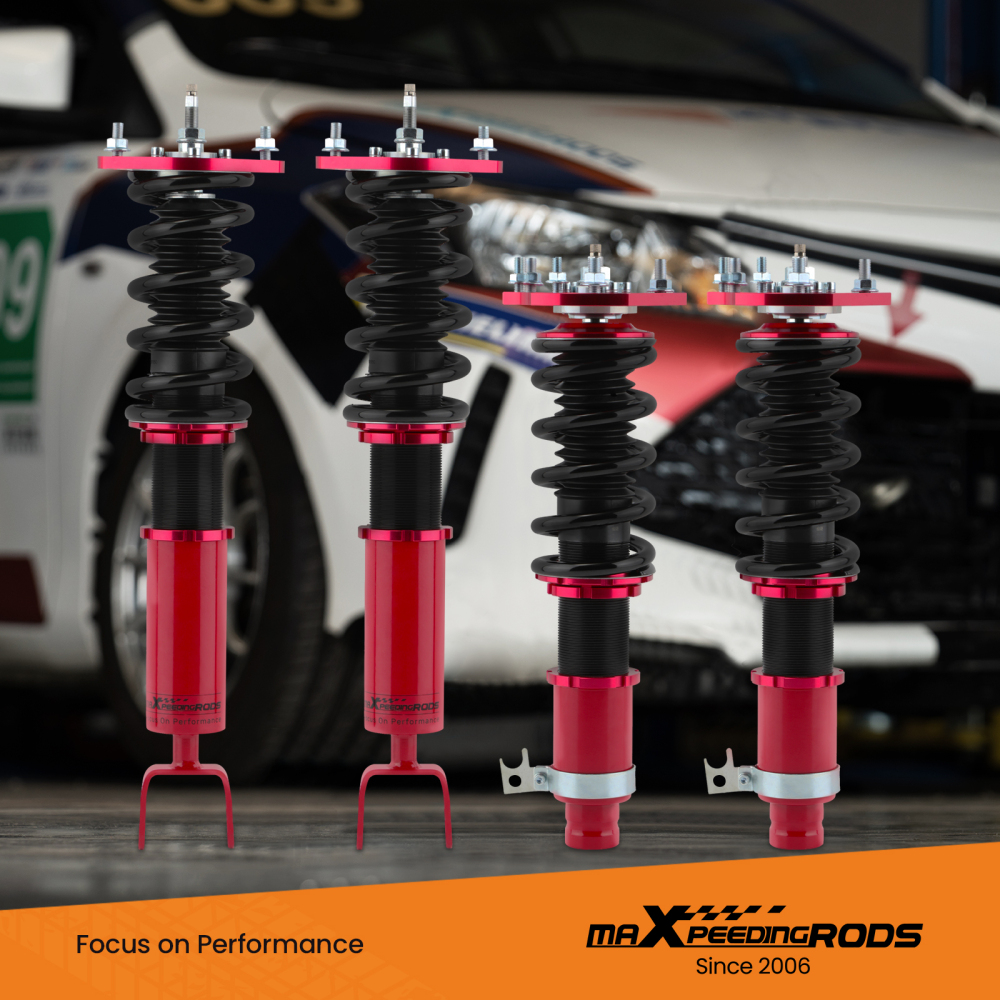

complete coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension
weight: 23860g
size: 63*51*21 cm

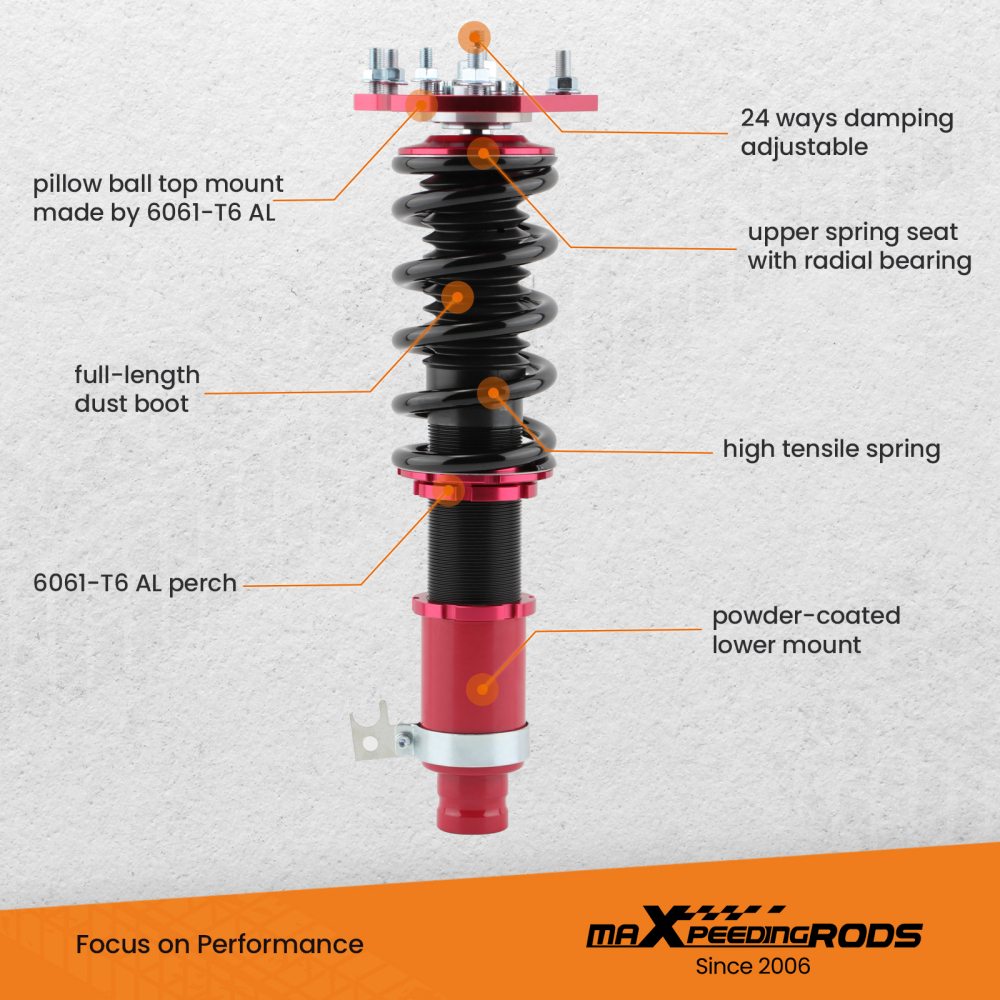

Feature

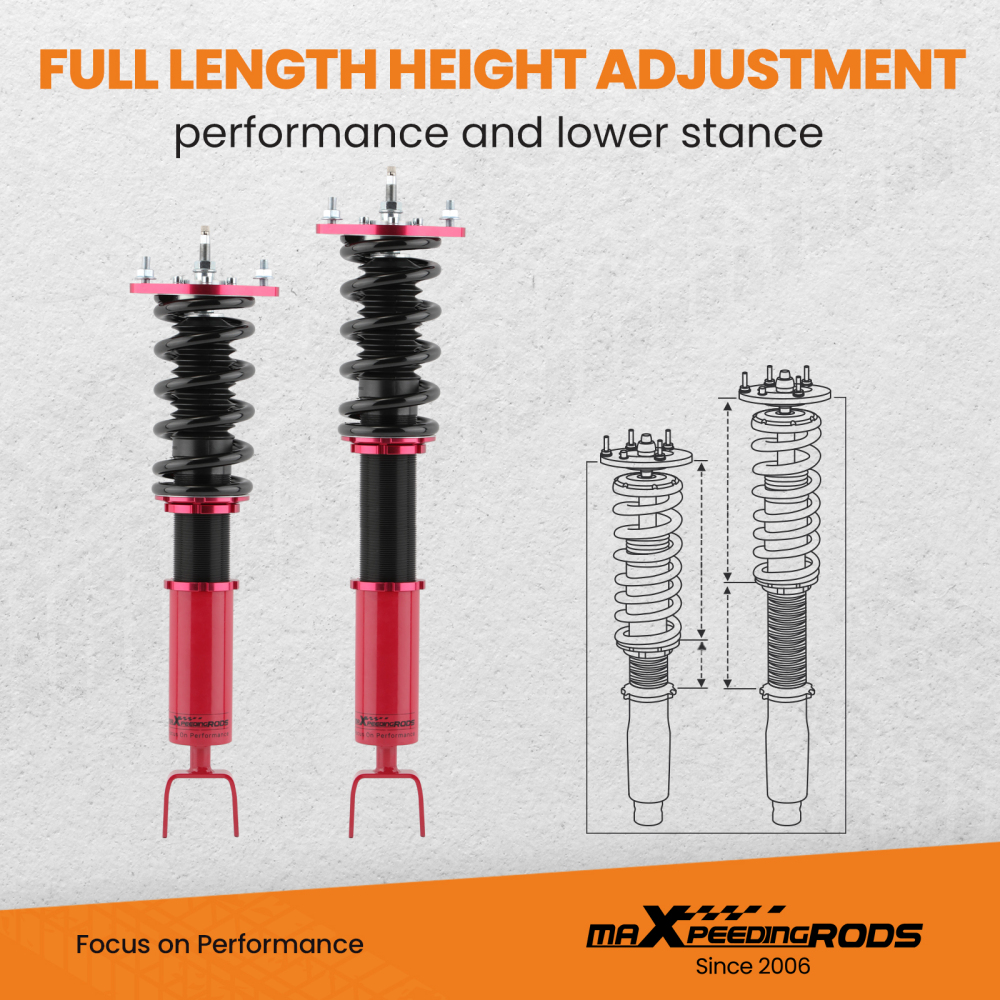

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

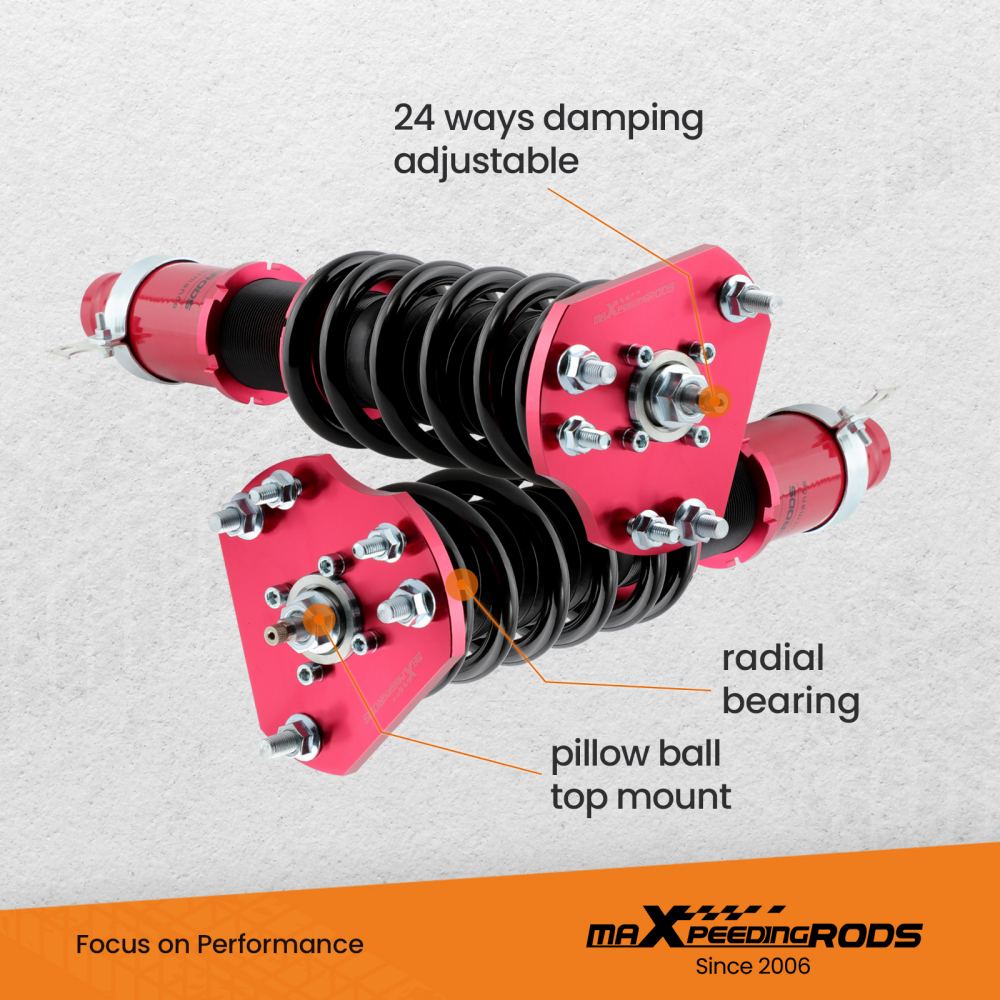

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Separate height adjustment does not affect damper stroke.

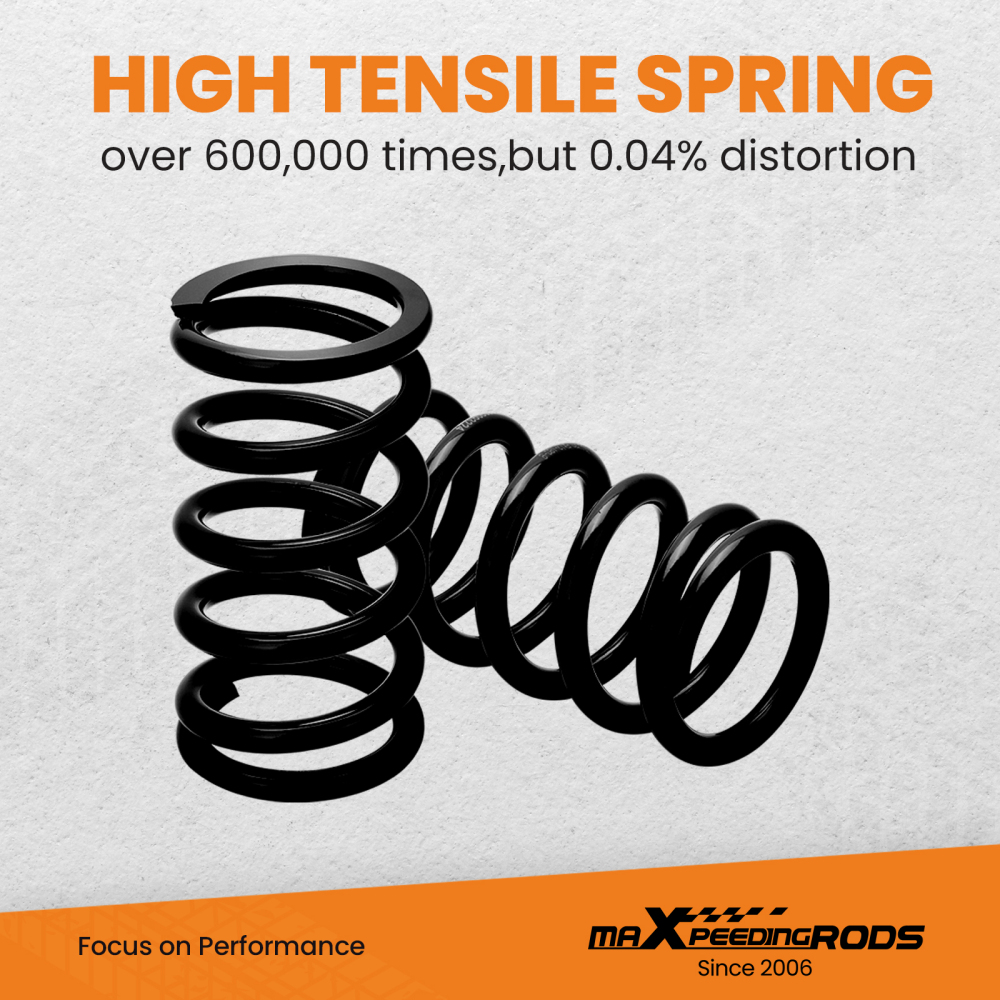

5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included.

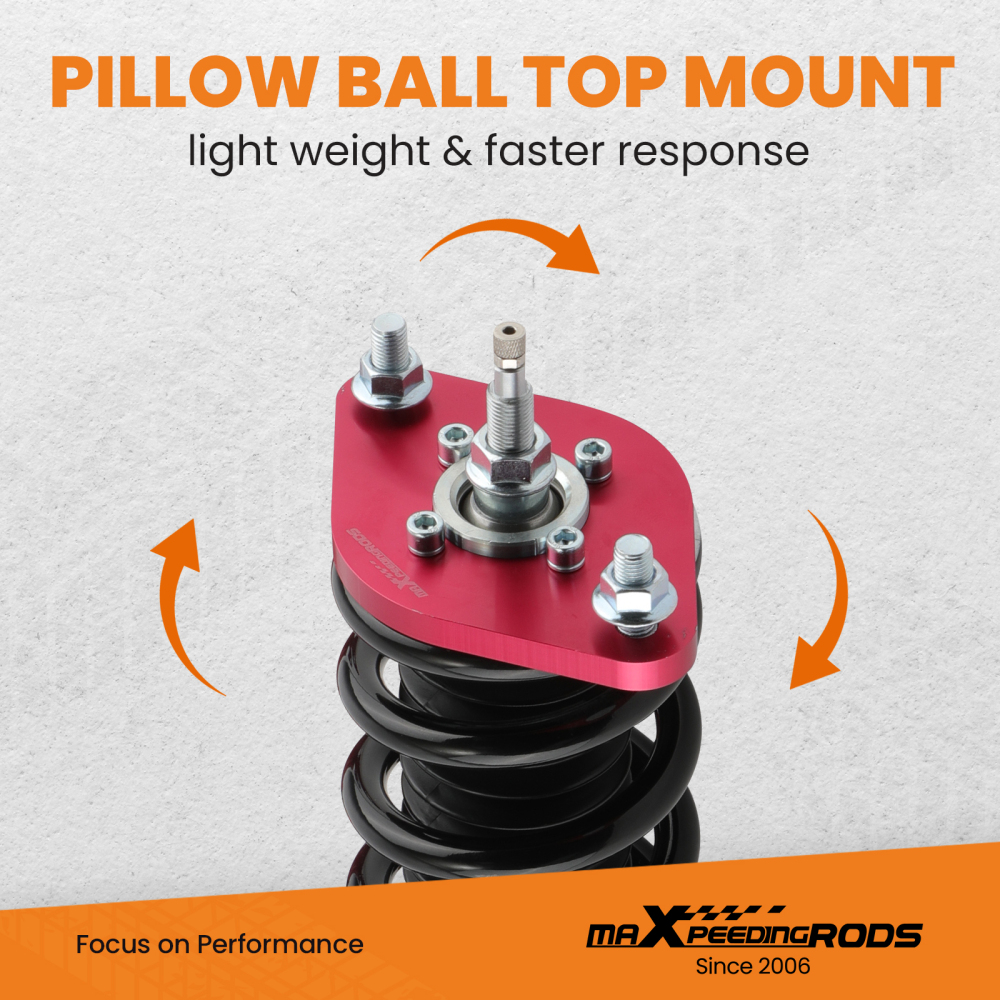

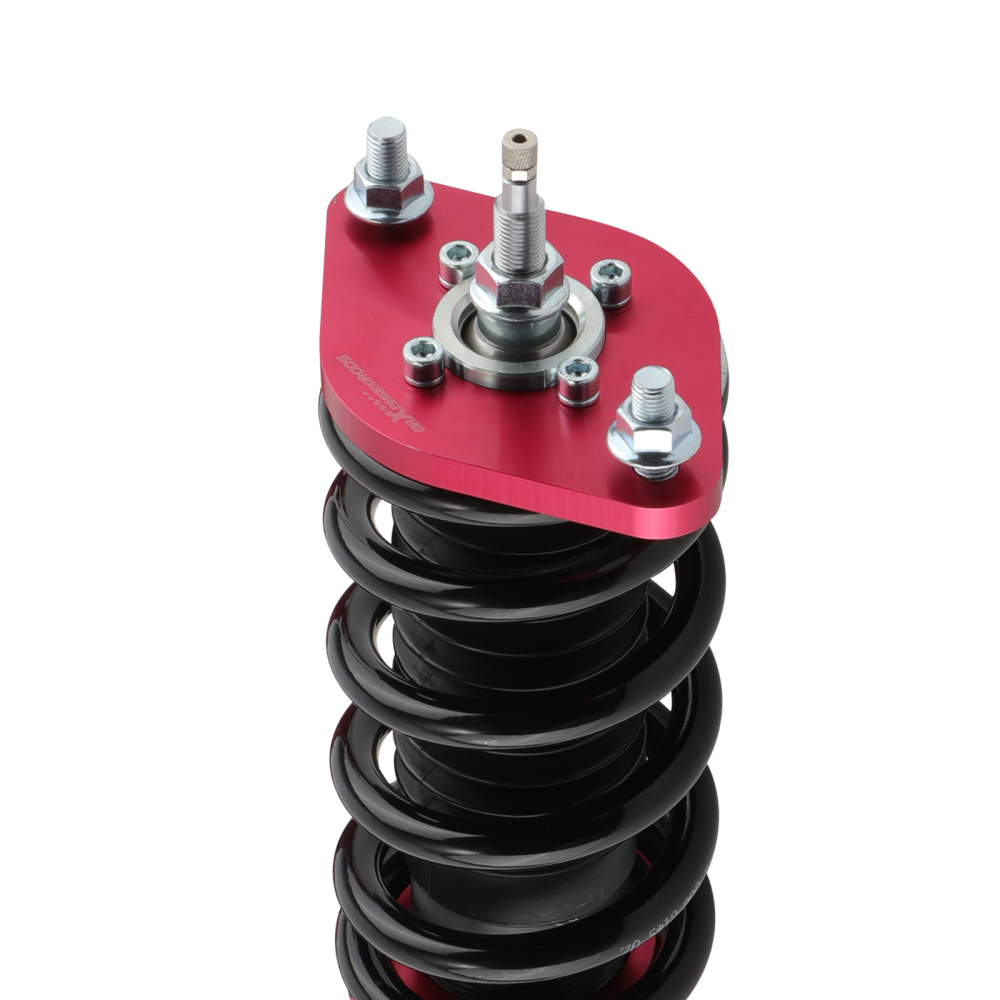

7. Pillow ball top mount - It improves the steering feel and response.

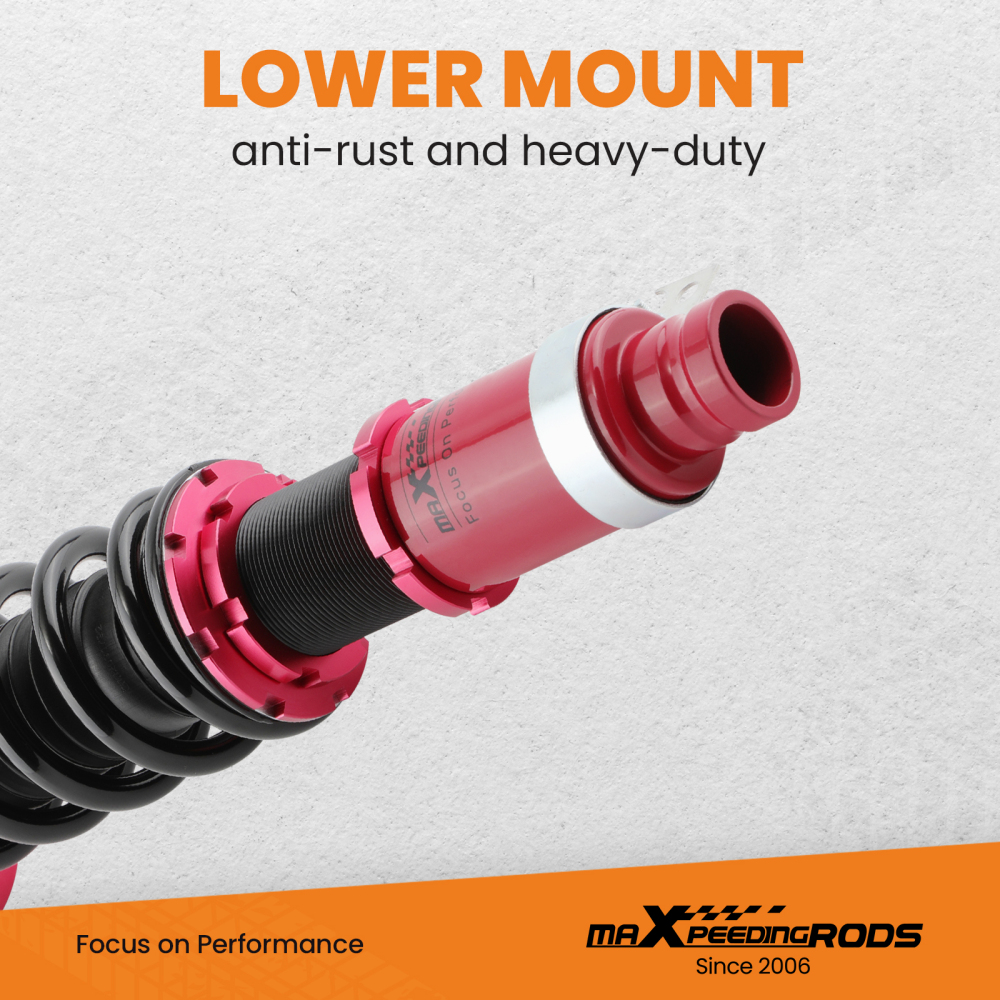

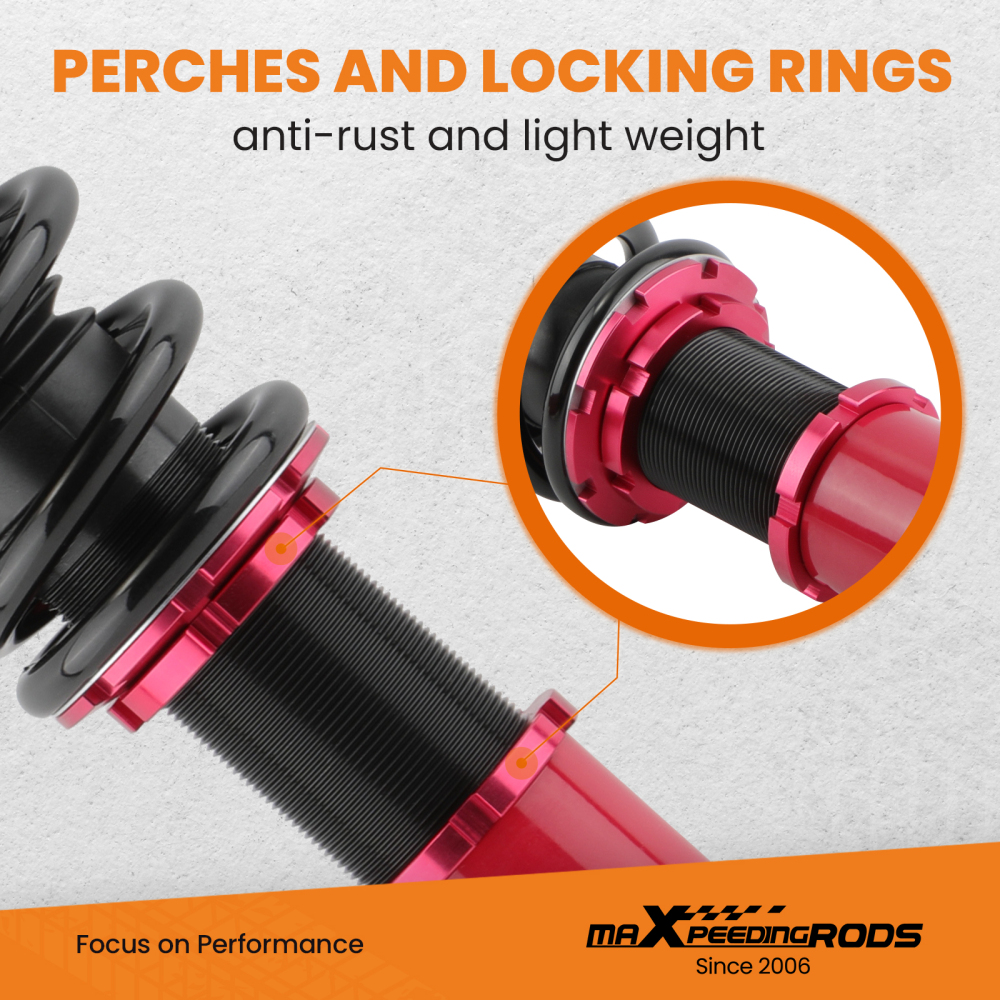

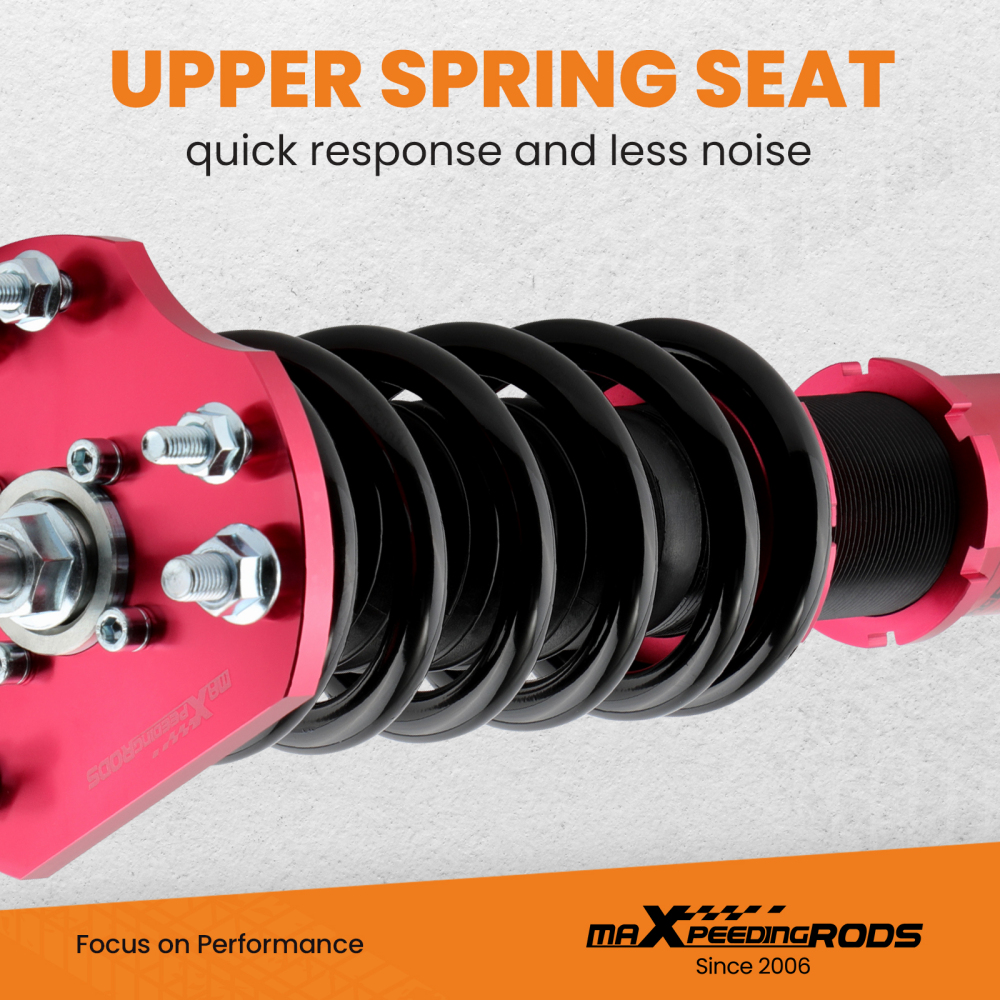

8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9. Full rebuildable.
