Compatible for Lexus LS460 RWD USF40 Adjustable Height Shocks Complete Lowering kit Coilovers 2007 - 2016

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Lexus LS460/460L(USF40,USF41)2007-2016 RWD
Note: Will not Fit AWD or Model with air suspension

Specification

Top mounts: rubber top mounts
Damping: non-adjustable
Spring rate Front: 12 kg/mm (672 lbs/in)
Spring rate Rear: 8kg/mm (448 lbs/in)
Spring length Front: 230mm
Spring length Rear: 230mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 570mm-680mm
Coilover overall length Rear: 570mm-690mm
Shock type: Twin tube
Spring preload: 7-10 mm
Color: gold

Package included

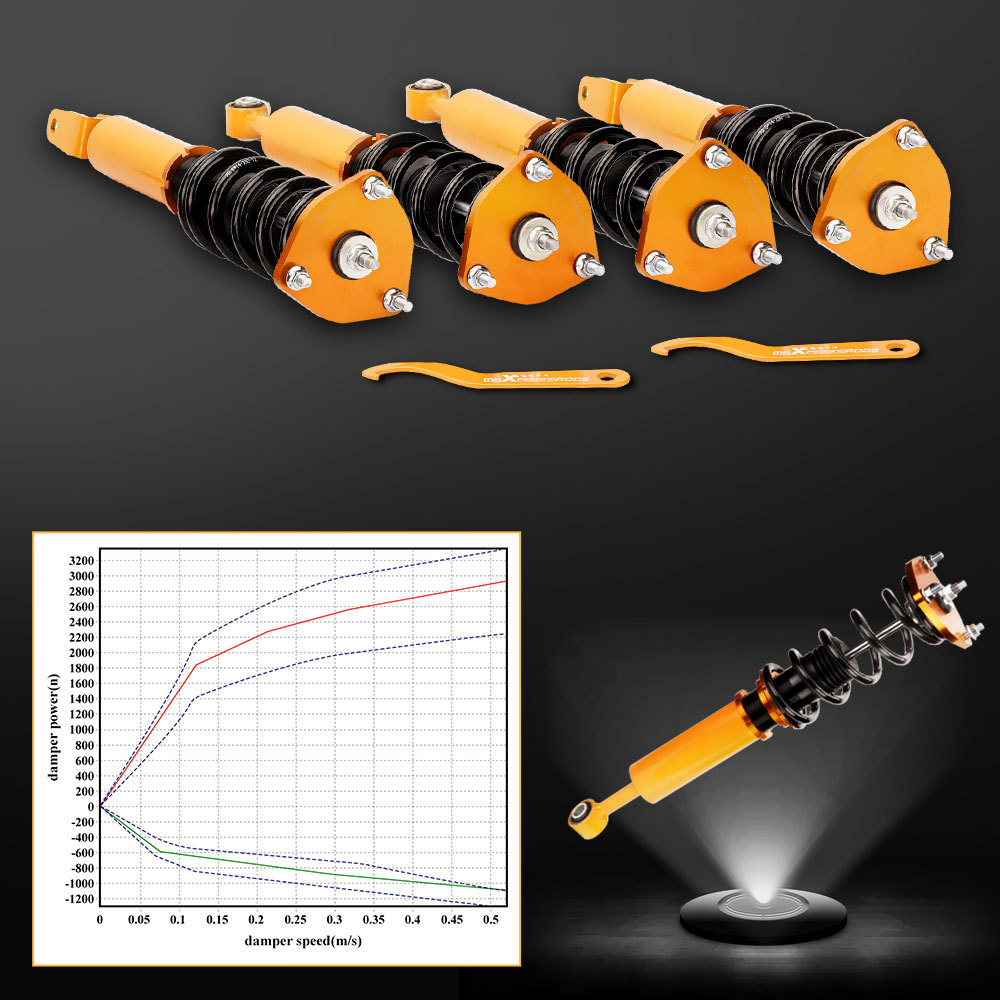

complete coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 26580g
size: 71*51*21 cm

Feature

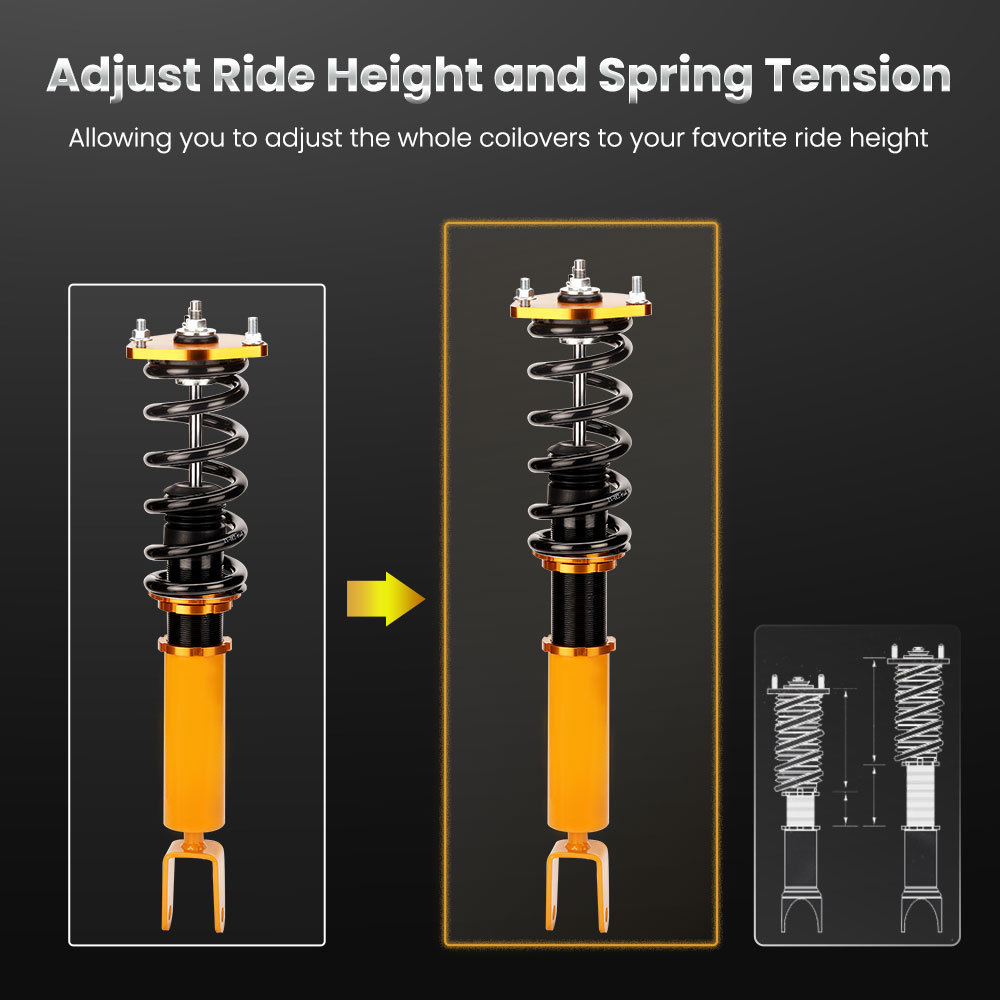

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

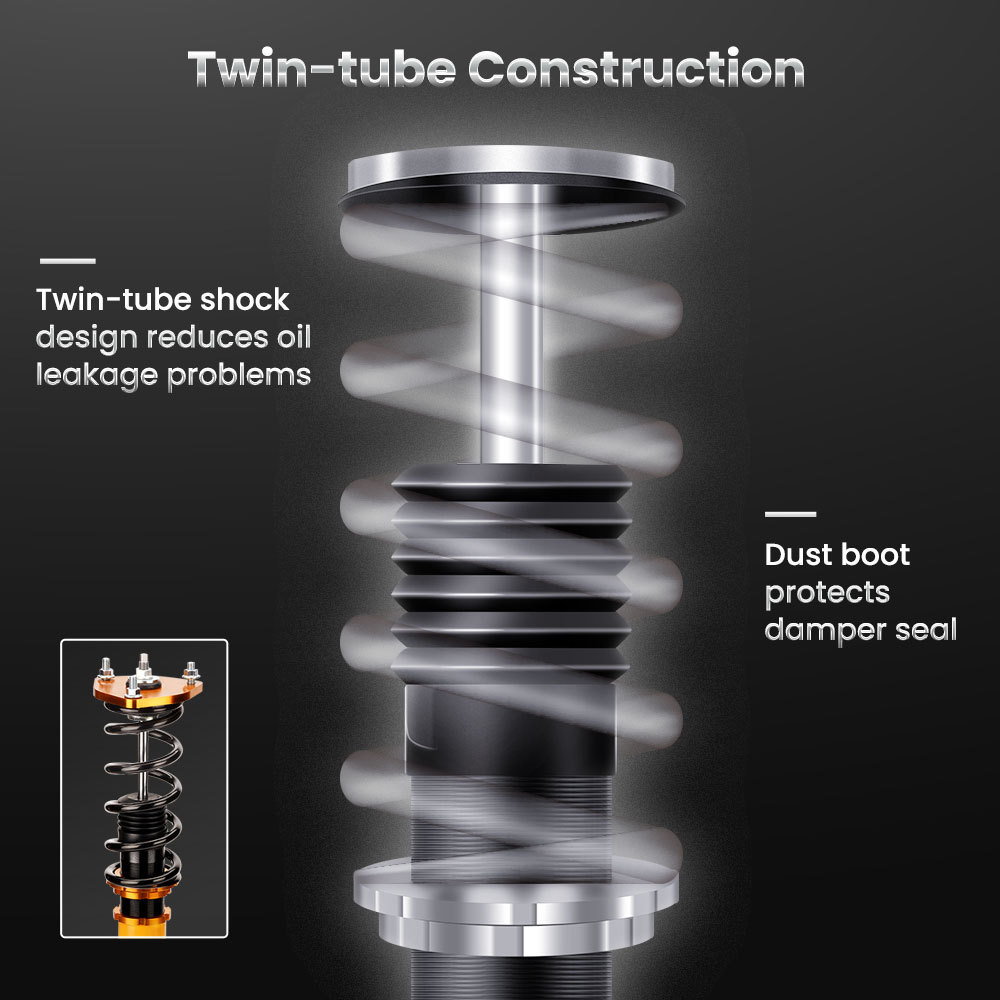

2. Twin-Tube structure allows sufficient stroke within the shock absorber
3. Separate height adjustment does not affect damper stroke

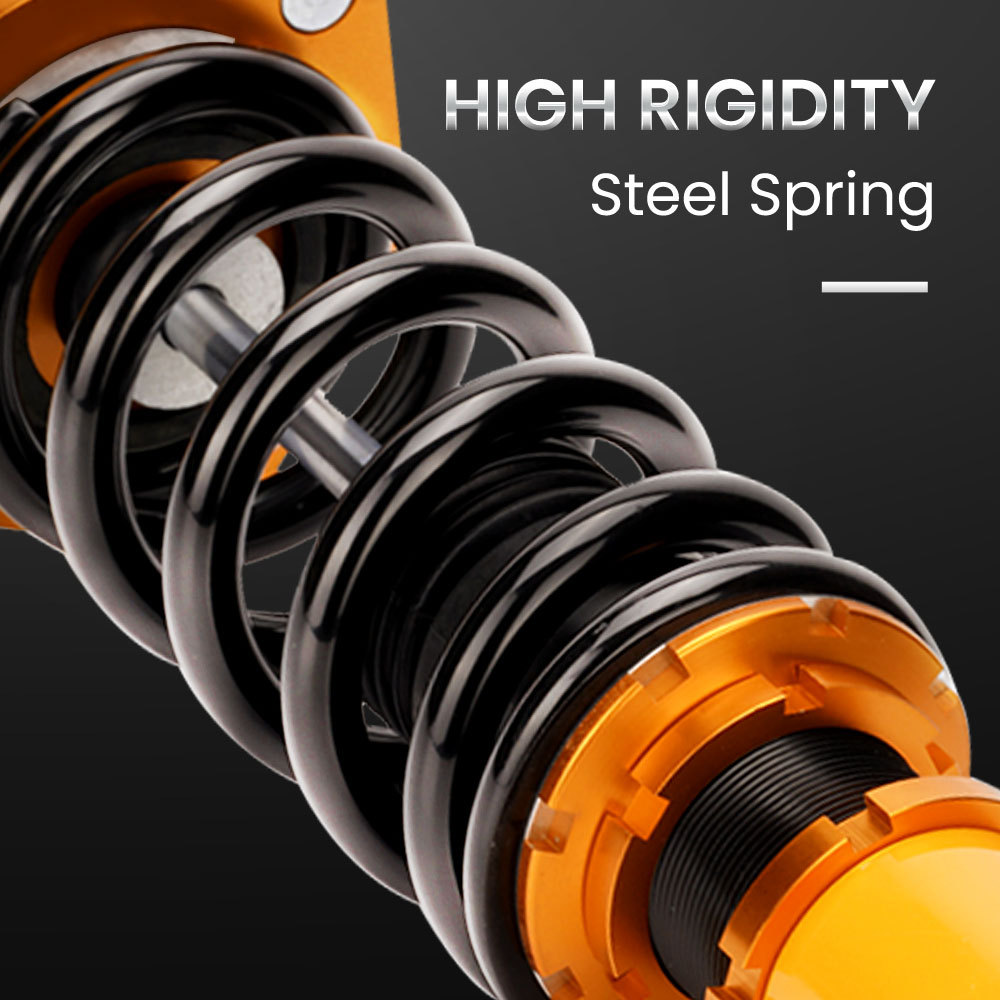

4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
5. Height Adjustment tools included

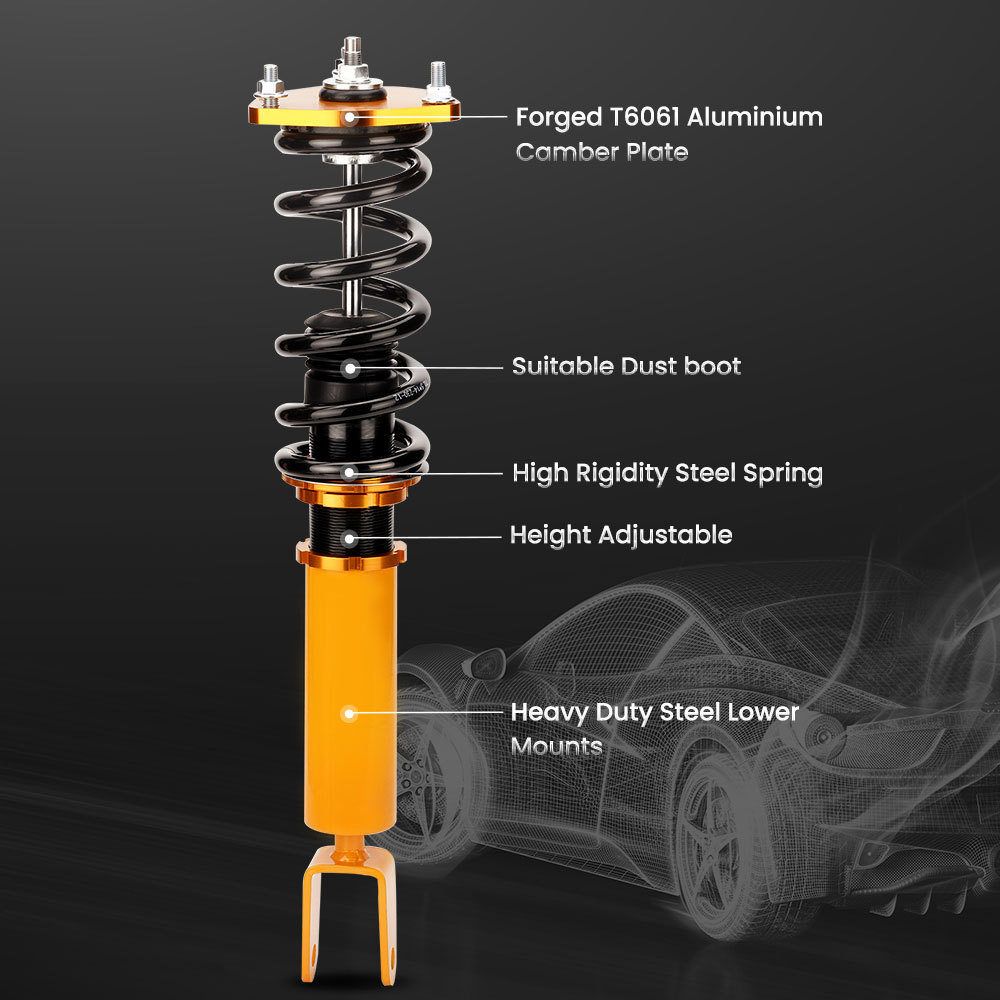

6. Camber plate top mounts help to eliminate the need for a separate camber kit
7. Pillow ball top mount - It improves the steering feel and response

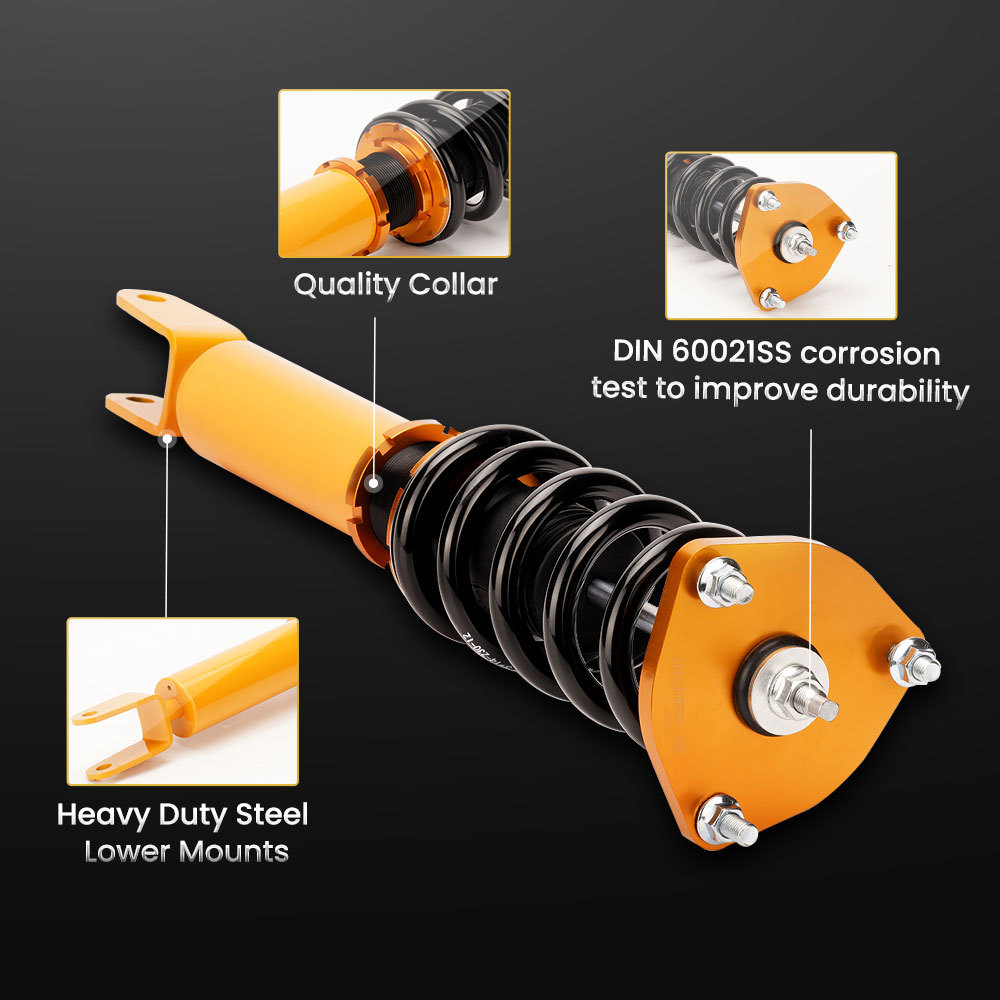

8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9. Full rebuildable
