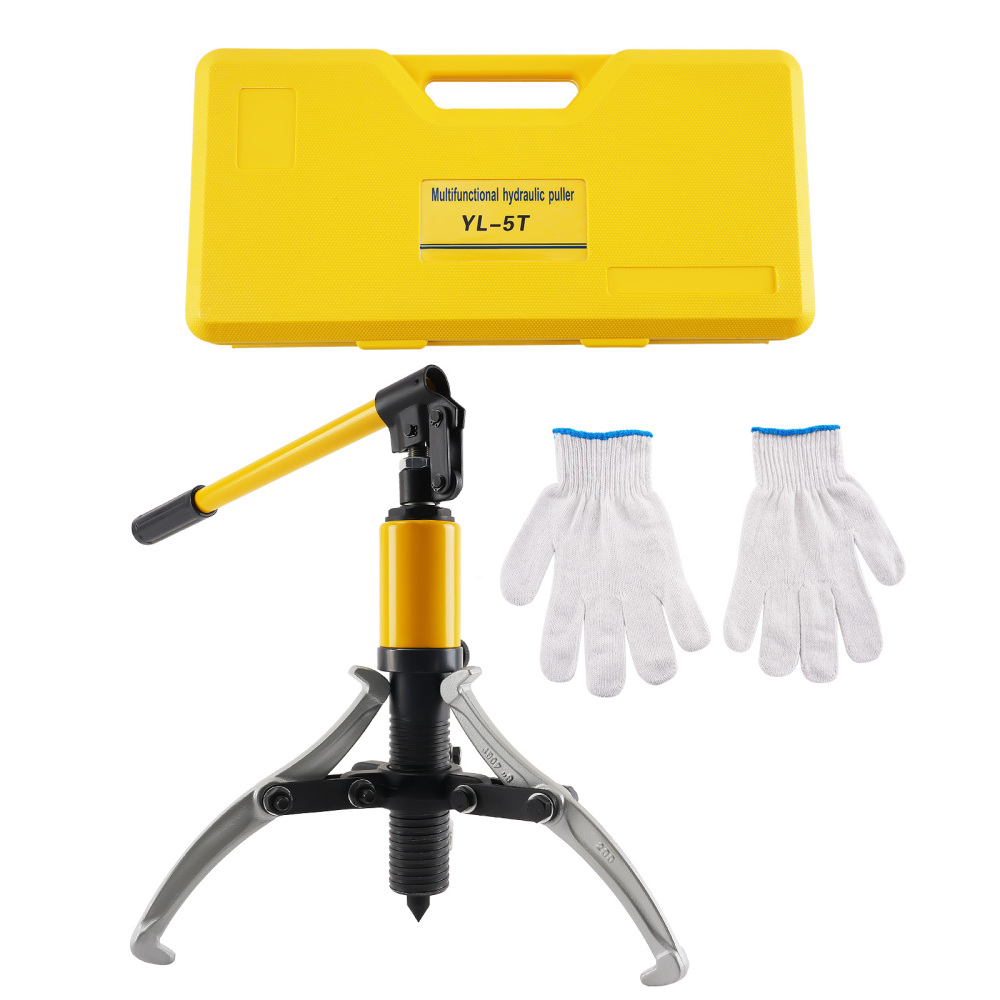

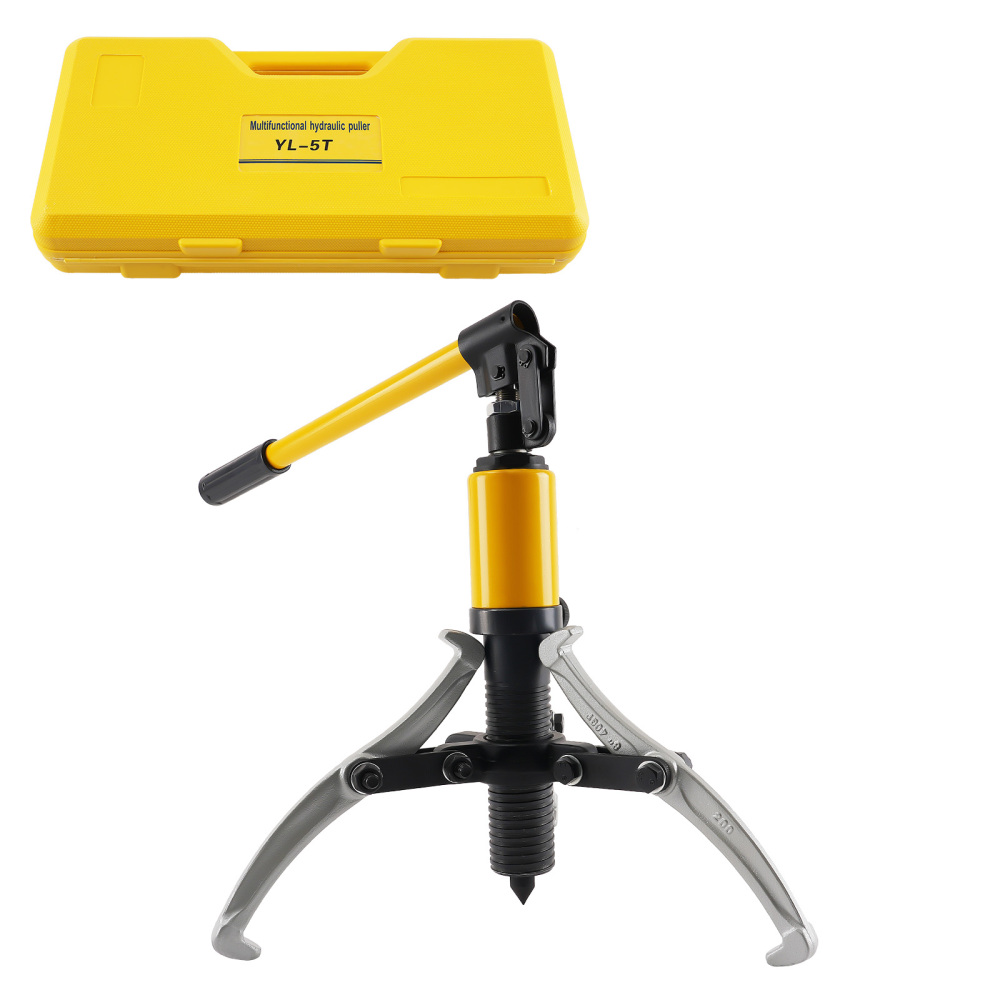

5 Ton Hydraulic Gear, Bearing, Wheel Bearing Puller 2-3 Reversible Jaw

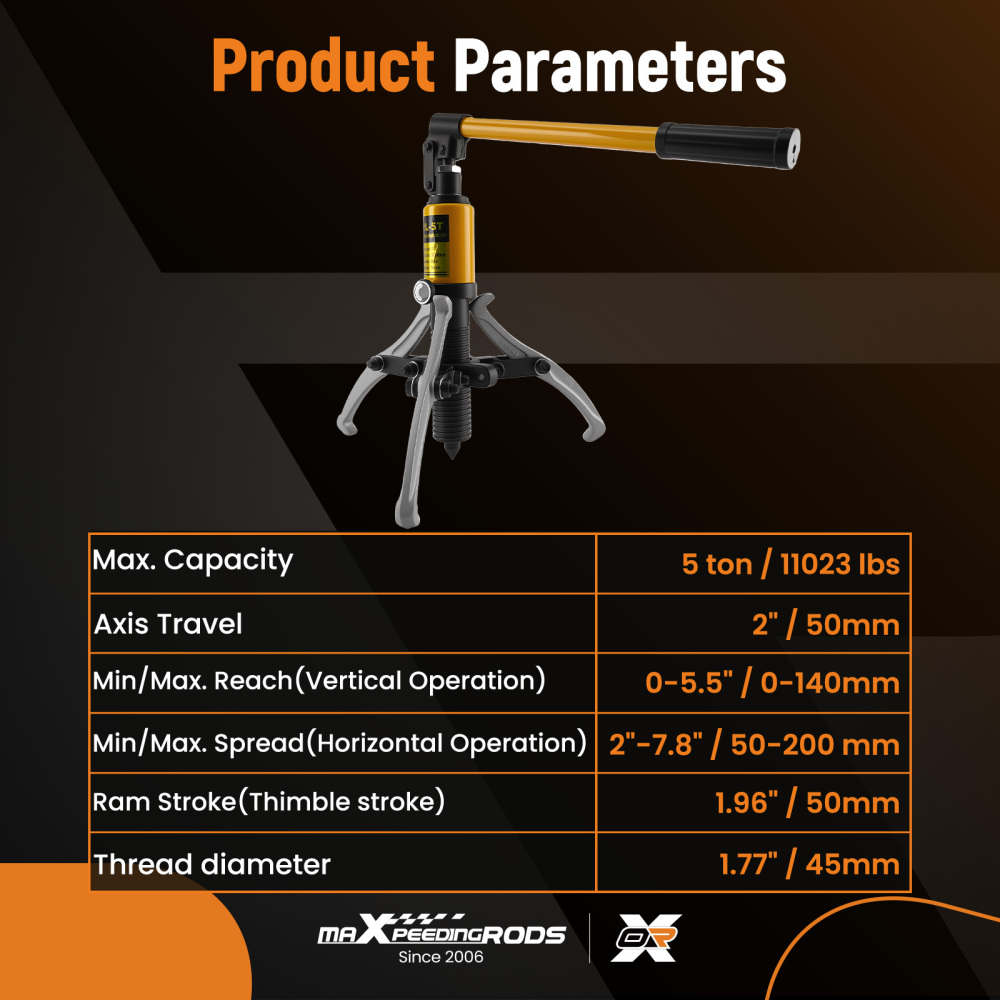

Specification

Max. Capacity: 5 ton / 11023 lbs
Axis Travel: 2" / 50mm
Min/Max. Reach(Vertical Operation): 0-5.5" / 0-140mm
Min/Max. Spread(Horizontal Operation): 2"-7.8" / 50-200 mm
compatible for Ram Stroke(Thimble stroke): 1.96" / 50mm
Thread diameter: 1.77" / 45mm
Jaws: 2 or 3 Changeable
Type: Hydraulic Gear Puller
Material:45 Carbon Steel

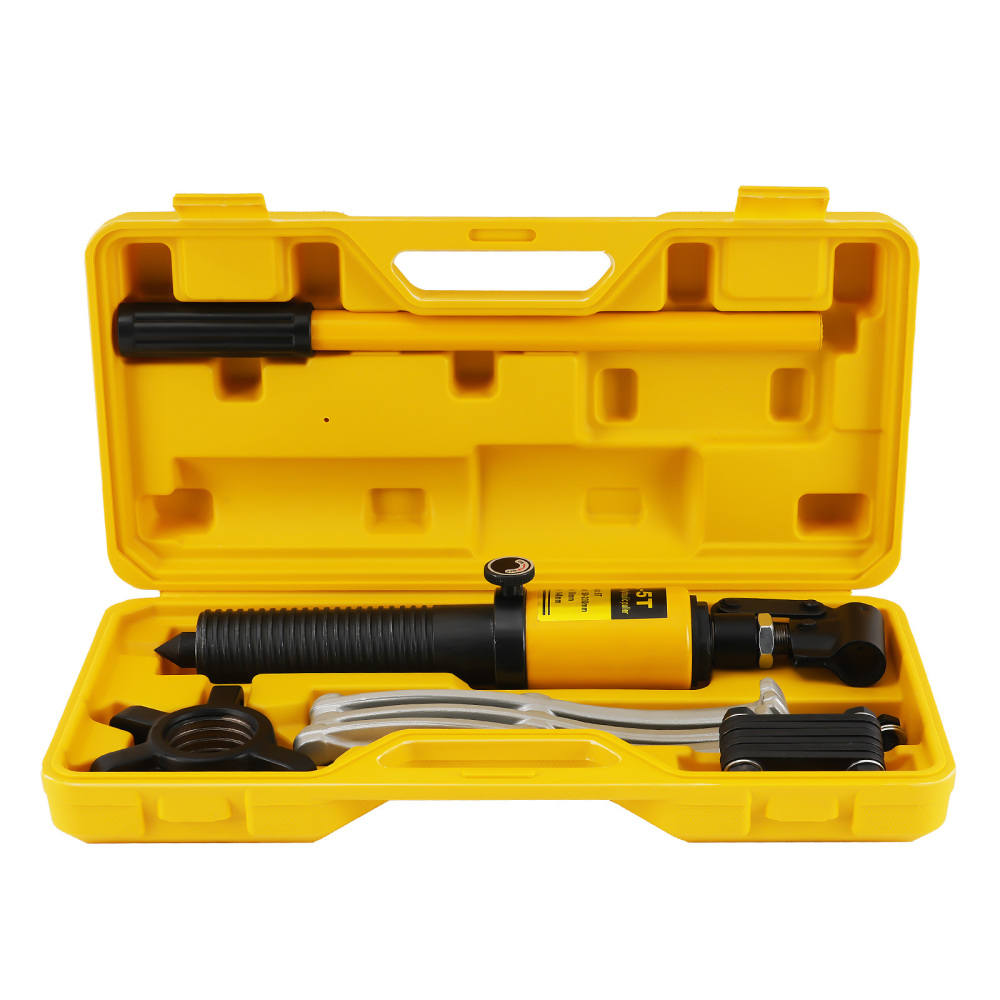

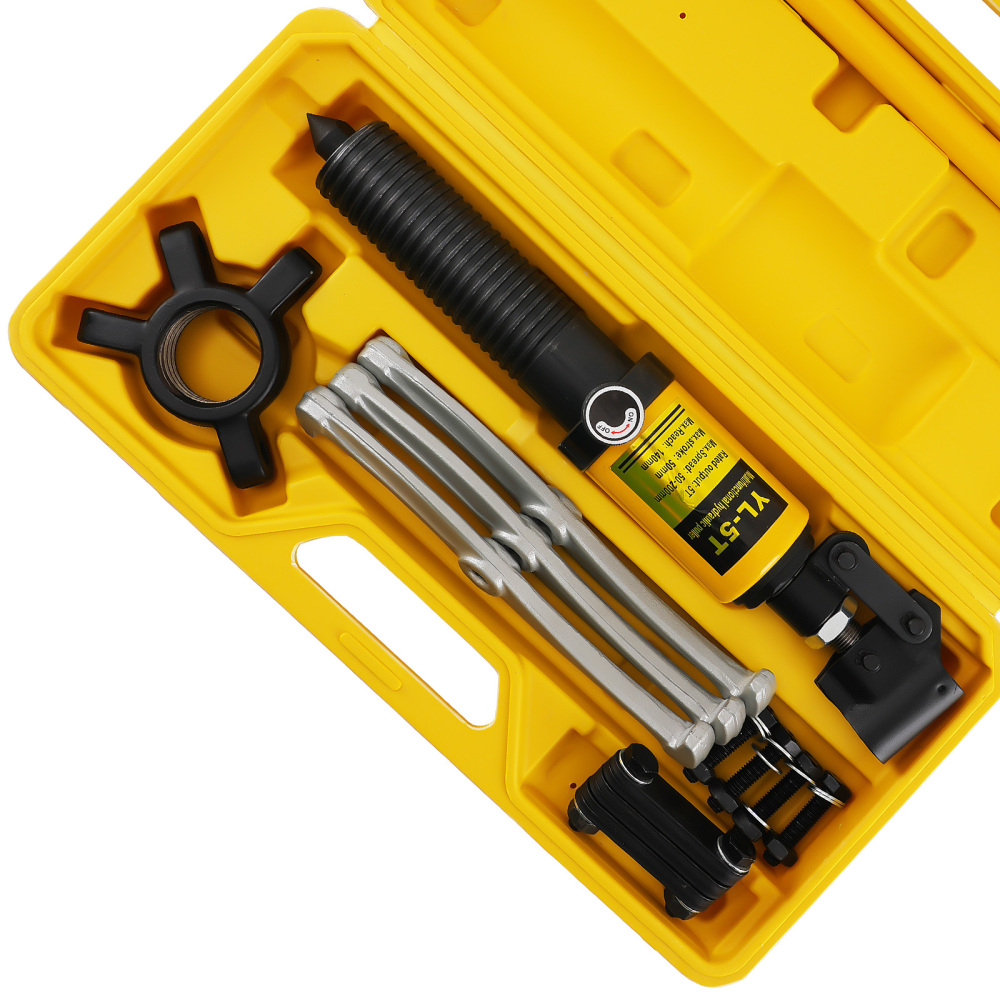

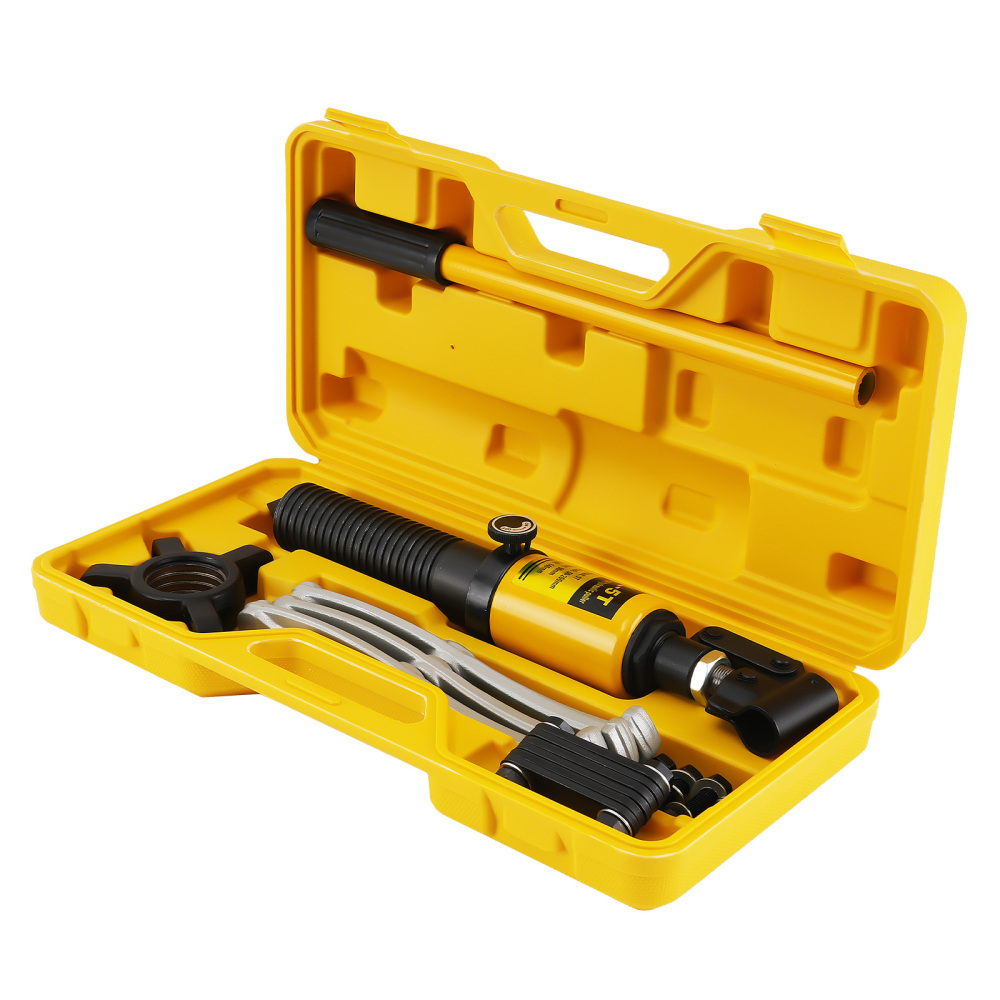

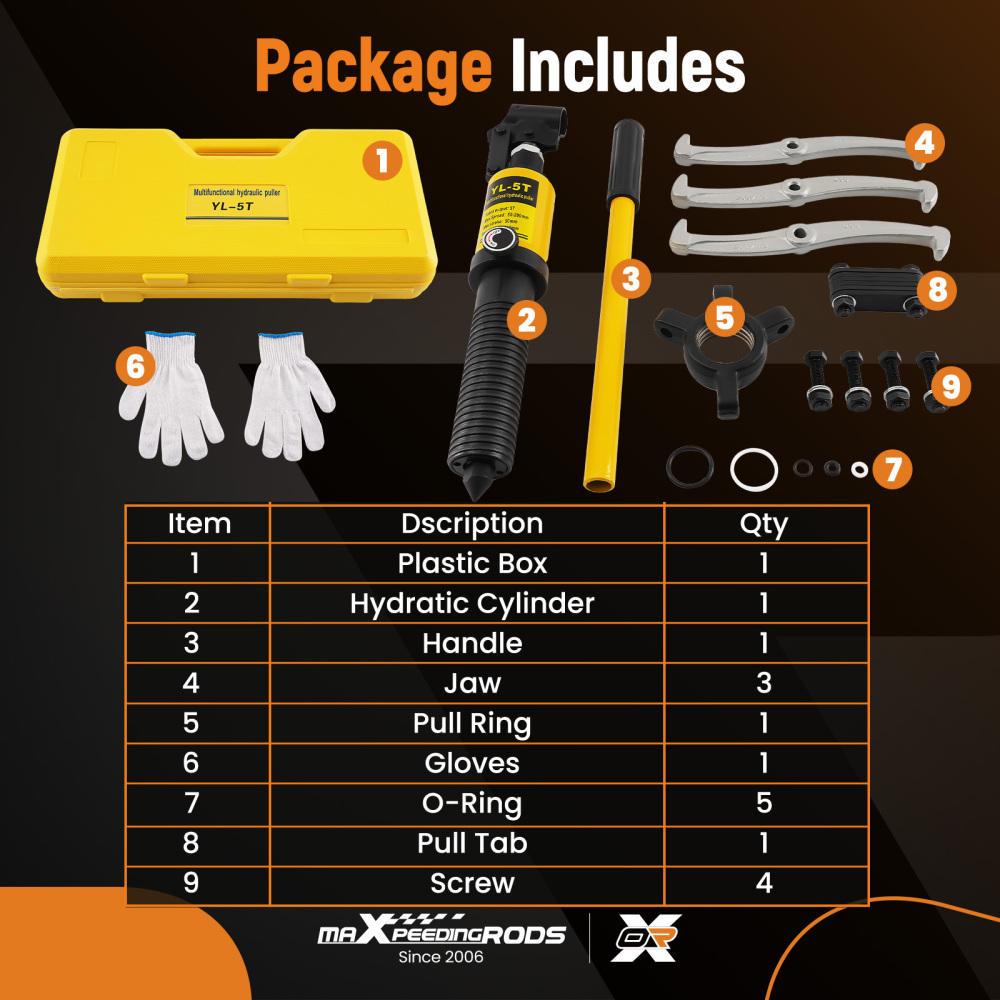

Package included

1 x Hydraulic Puller
1 x Handle

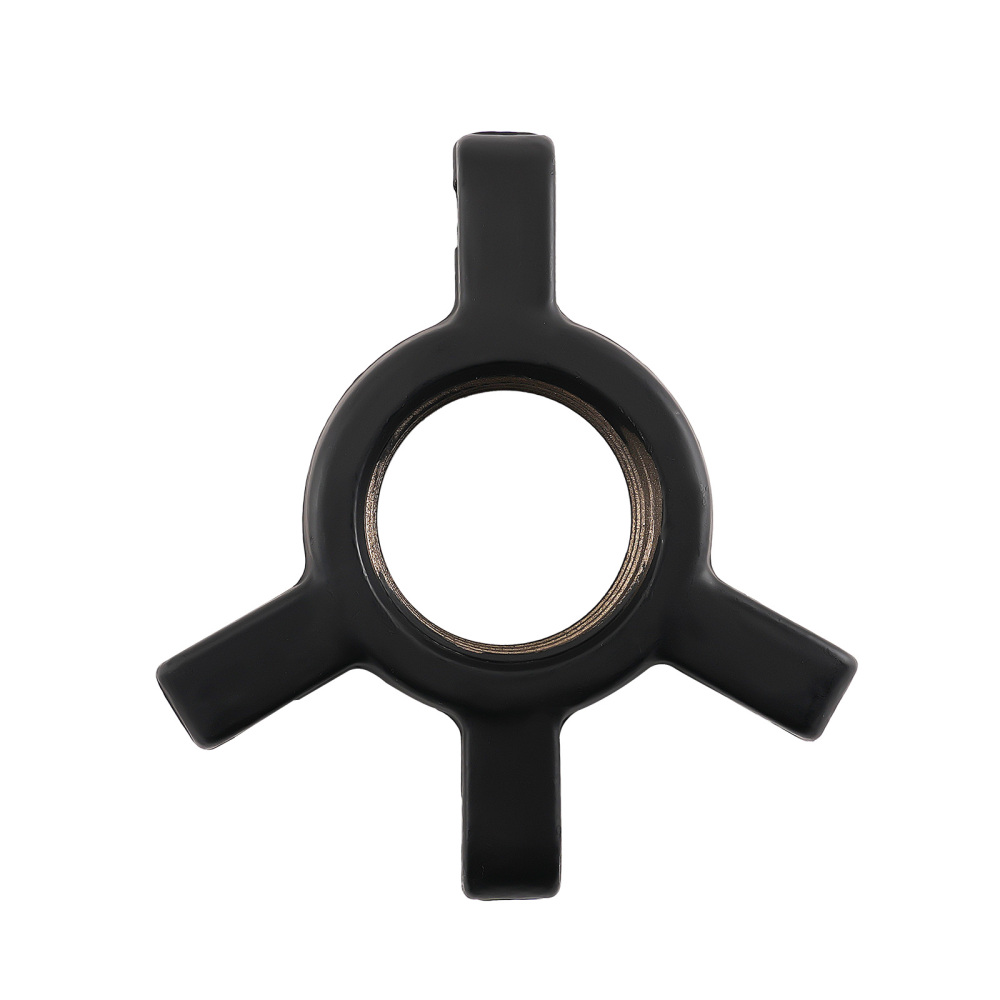

1 x 2/3 Leg Puller Yoke

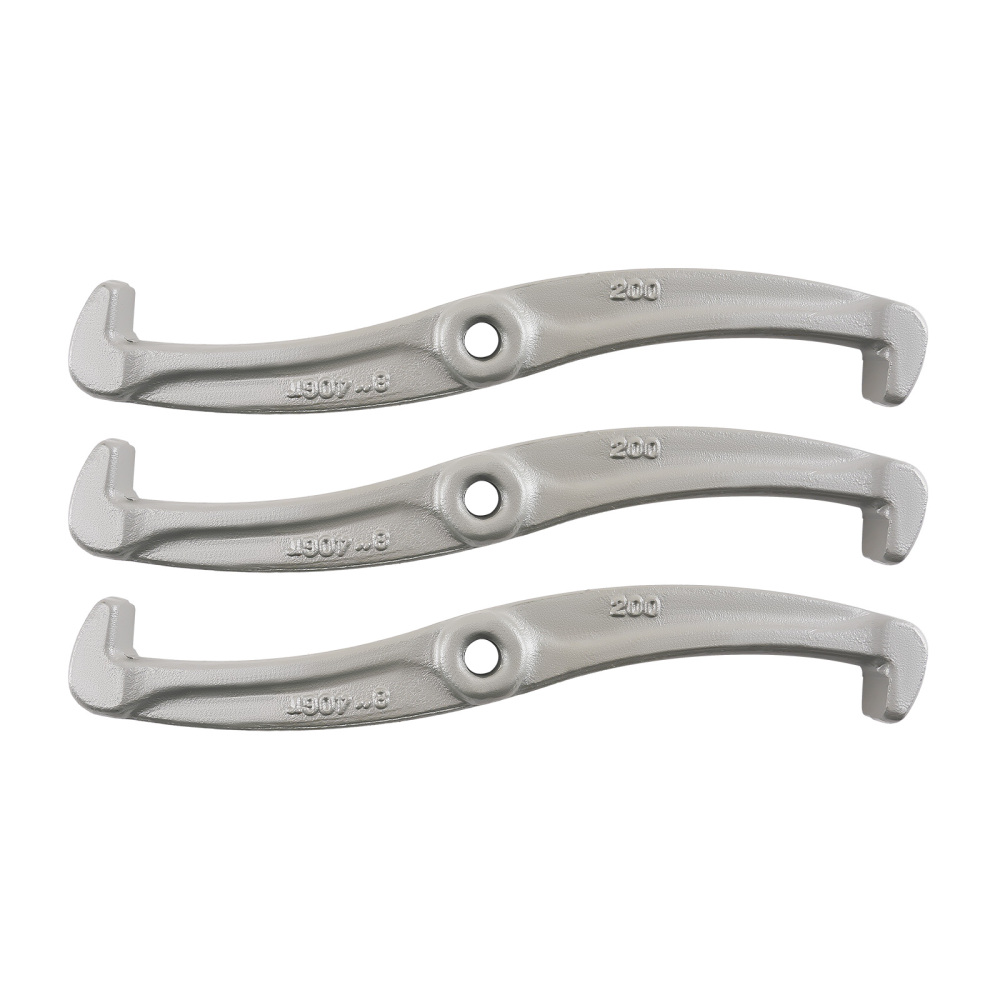

3 x Jaws

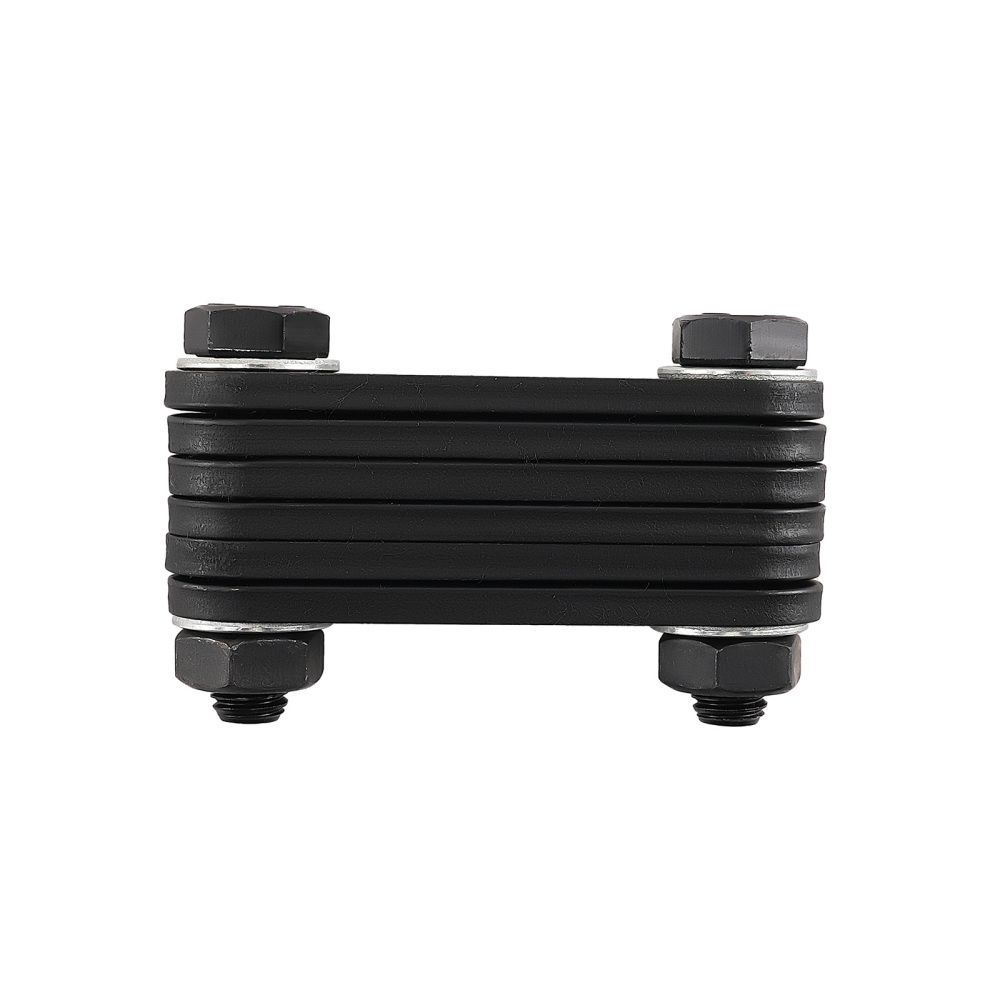

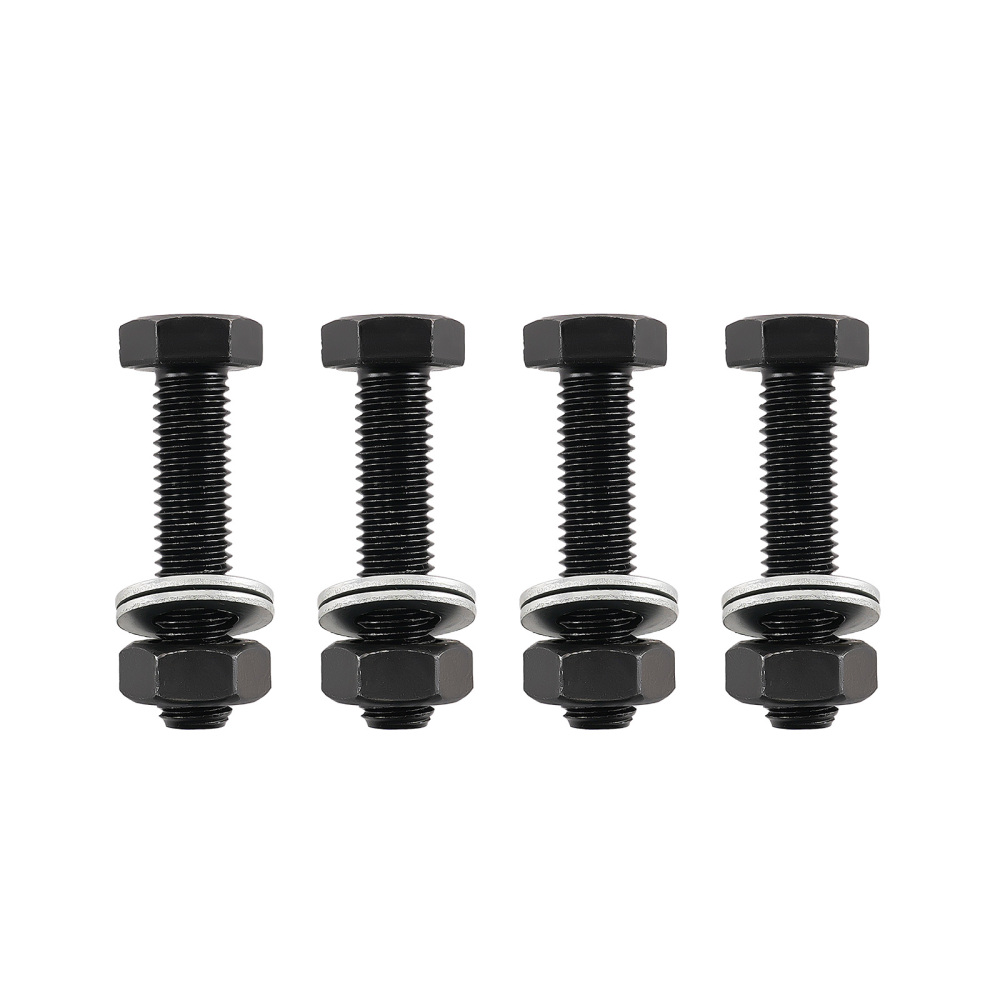

6 x Link Plates & Screw Sets

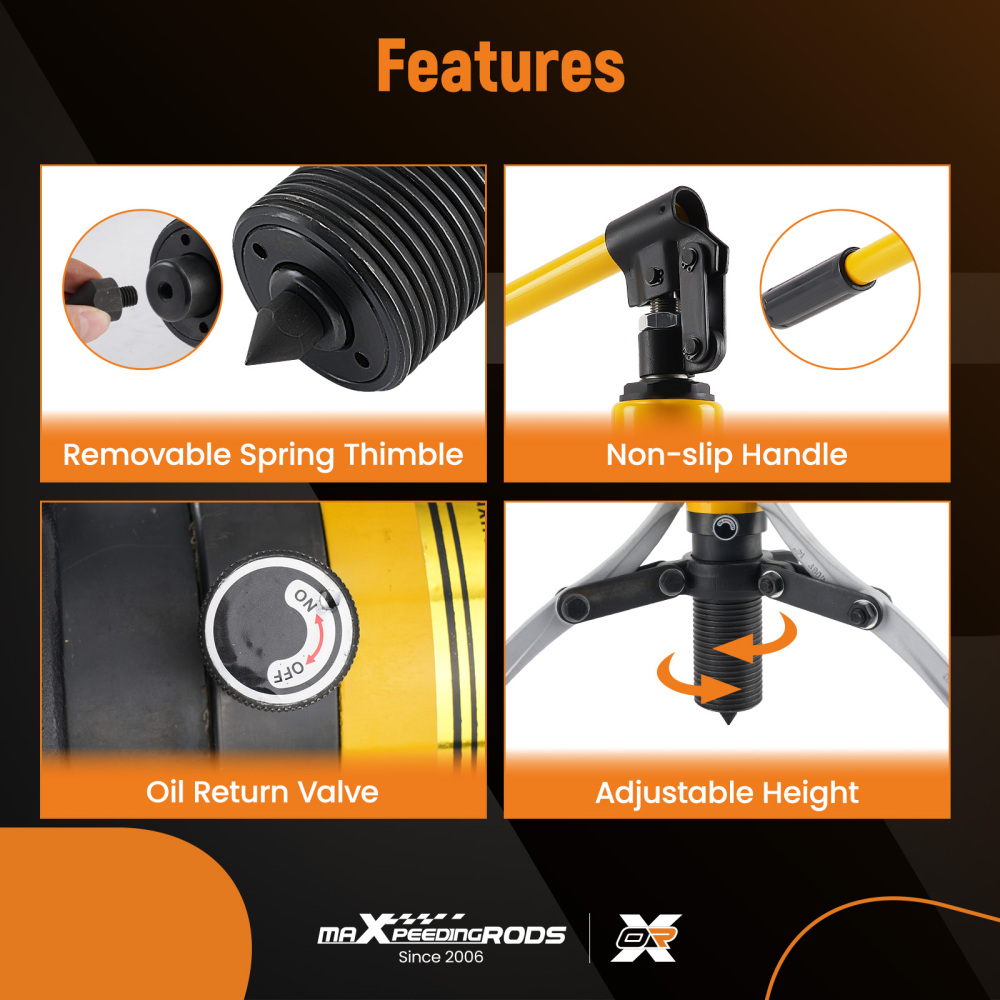

Feature

1. 5T Pulling Capacity: The 5T hydraulic claw puller delivers efficient disassembly of large machine components with its 8-inch (228.6 mm) maximum pull size. Ideal for machine repair, bearing and gear extraction, pulley removal, railway and ship maintenance, mining equipment servicing, and other heavy-duty applications.

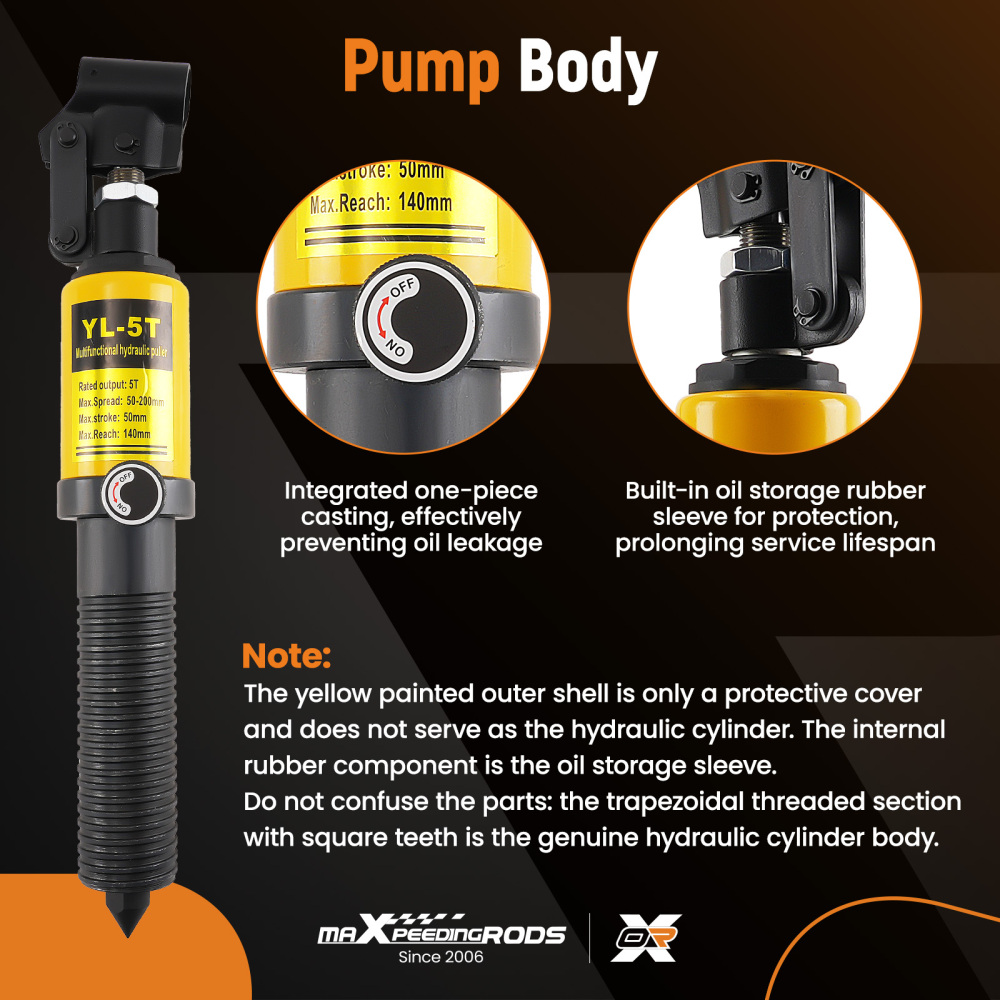

2. Leak-Proof Design: Featuring an integrally cast oil cylinder and oil cover to prevent cracking and leakage. The thickened pump body with clearly visible surface threads provides high torque resistance and a 2-inch (50 mm) maximum stroke, enabling closer positioning to targets for shorter, more efficient pulling operations.
3. Horizontal/Vertical Operation: Supports both horizontal and vertical pulling orientations for flexible access to components in various positions. Includes an extended handle for improved leverage and reduced operator effort.

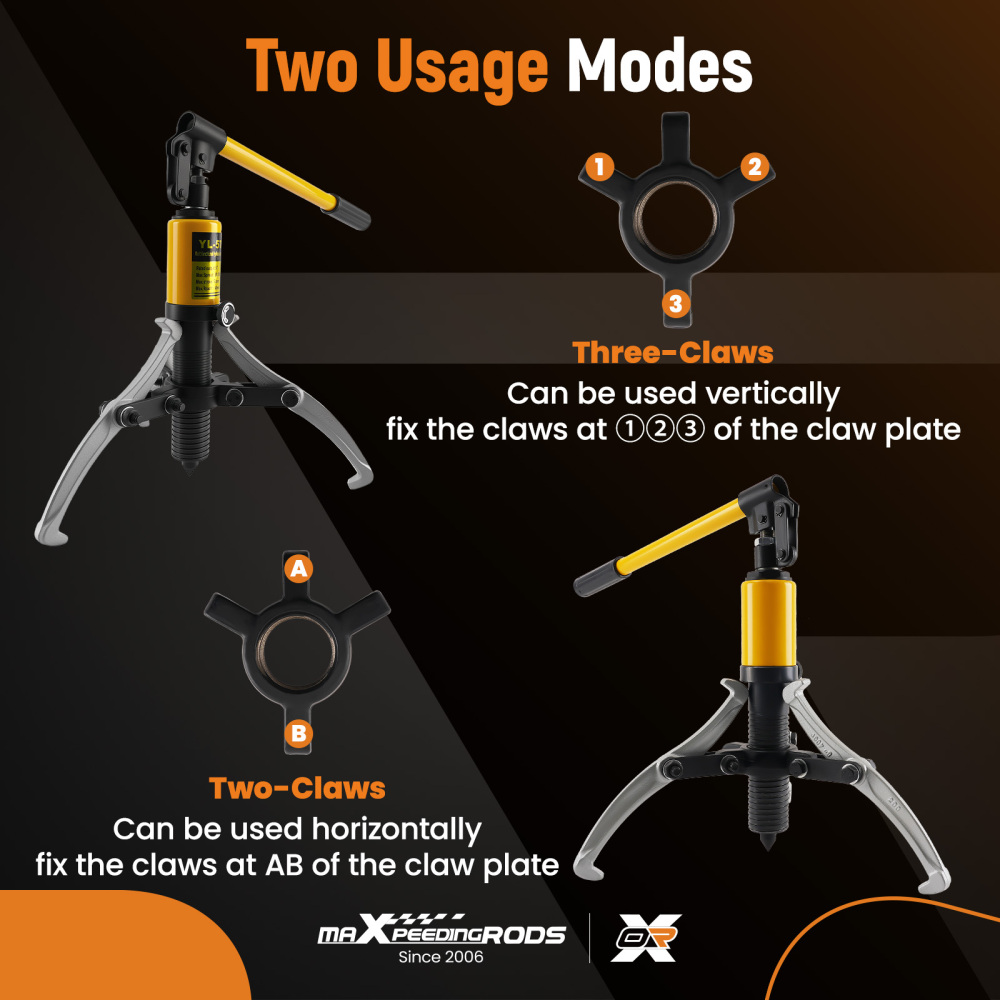

4. Convertible Jaw Configuration: Enables quick conversion between two-jaw and three-jaw configurations. The two-jaw setup delivers concentrated pulling force for rapid removal of small bearings and gears (install diagonally for operational stability). The three-jaw configuration creates triangular force distribution for uniform tensioning, ideal for securely handling heavy, large components during disassembly.

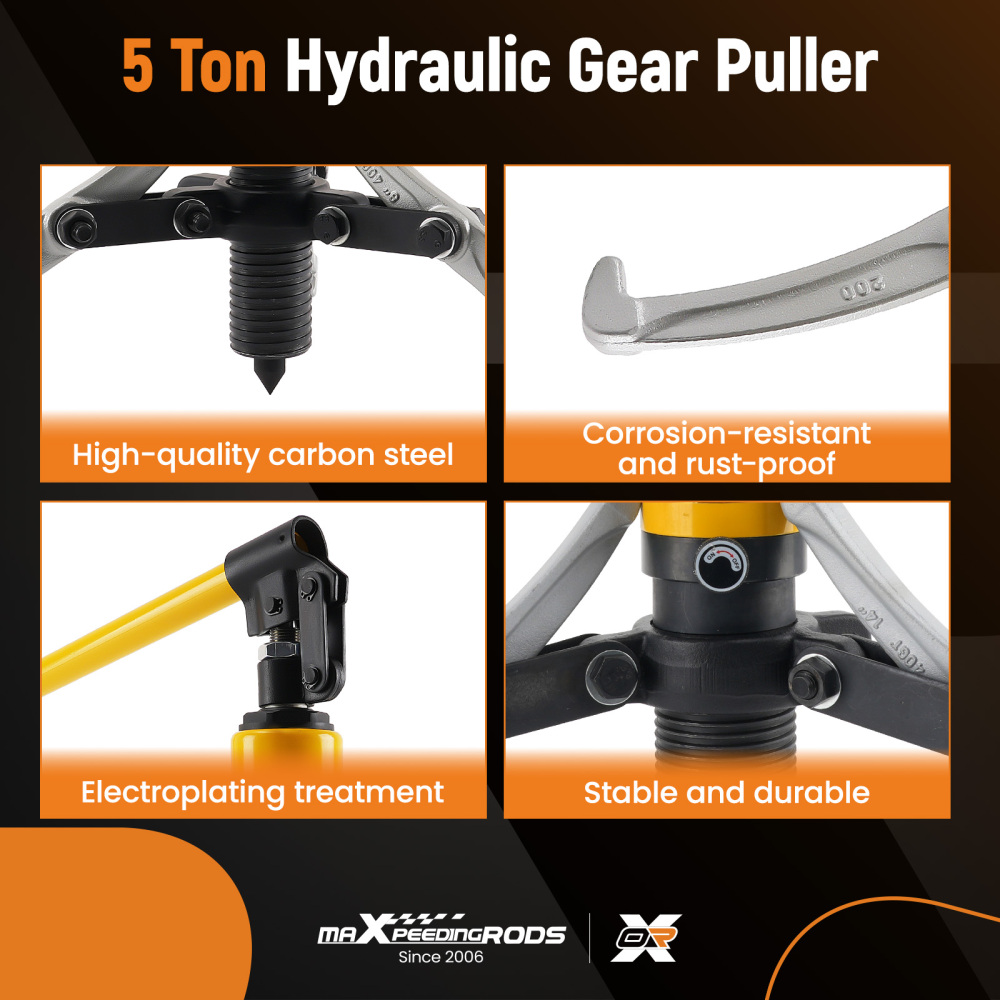

5. Industrial-Grade Construction: Pump body forged with high-temperature quenching maintains structural integrity through extended use, resisting deformation and bending. Precision-machined jaws provide enhanced gripping power. Complete puller fabricated from industrial-grade steel with premium anti-corrosion coating for rust protection.
