Application:

Universal：

Compatible for Motorhomes, Campervans, Caravans (also known as Travel Trailers and Camper Trailers), Fifth-wheel Trailers, Popup Campers and Truck Campers, Small Truck, Big Truck, Light Truck, Heavy Truck, Pickup, Van, Bus, Car, SUV, Boat, Forklift, Electric Tricycle, Engineering Vehicle, Yacht and so on.

Specifications:
Fuel Type: Diesel Only
Material: Metal & Plastic
Switch Type: LCD Switch / Remote controller
Heater Power: 8KW
Rated Voltage: 12V/24V
Fuel Consumption(L/H): 0.16-0.62L/H
Working Temperature of the Heater: -40℃~+40℃

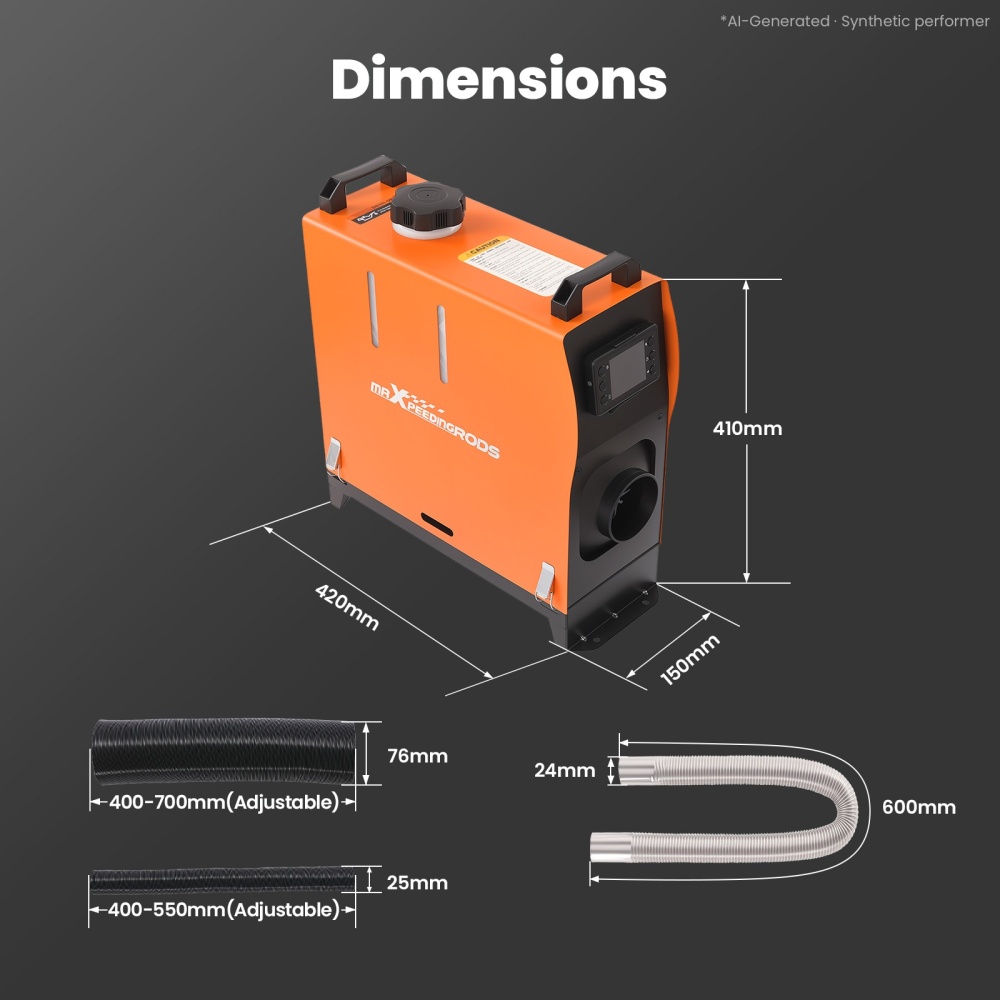

Item Size: 42×15×41cm
Fuel Tank: 28×14.5×16.5cm, 4L
Weight(KG):9.7 KG

1. WIDE RANGE OF APPLICATIONS

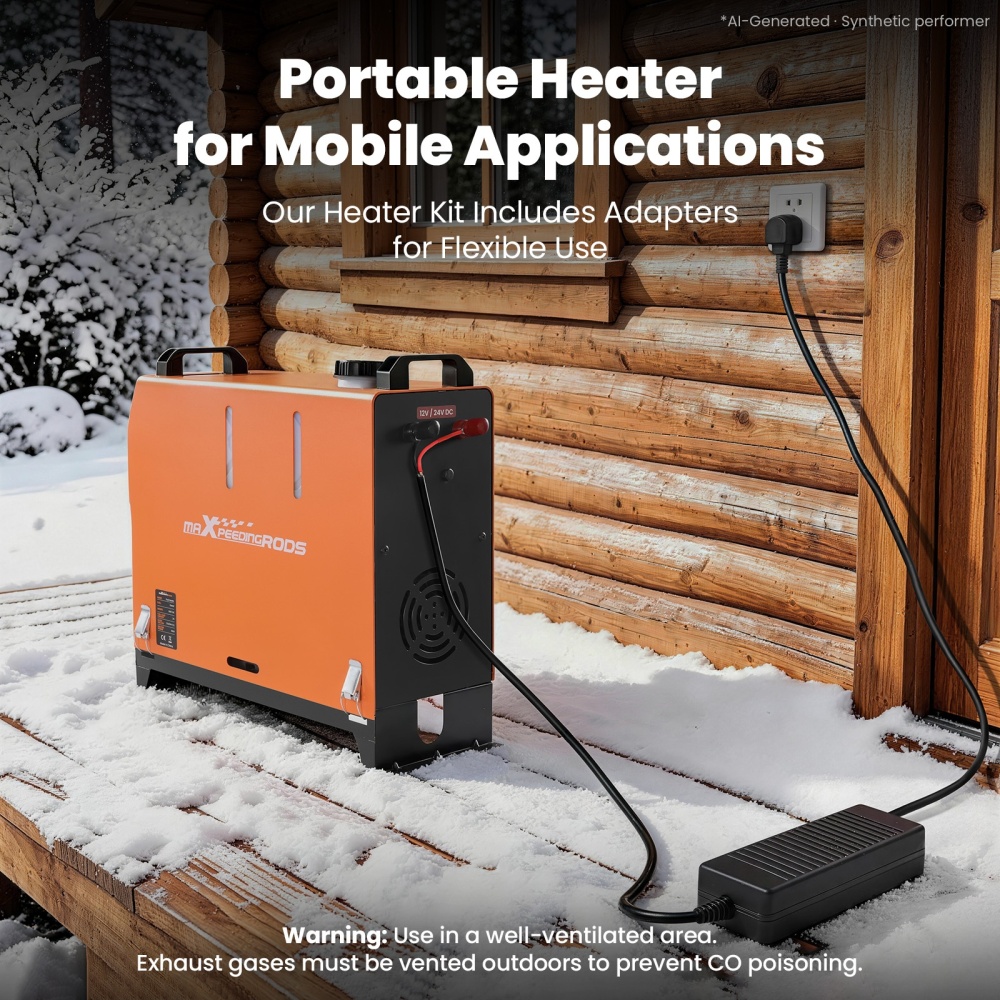

The air diesel heater can be used for truck, boat, car trailer, motorhomes, touring car, camper vans, caravans, and all kinds of other diesel vehicles. The diesel air heater is also suitable for indoor use, such as for warehouse, factory, etc.
2. EASY TO OPERATE

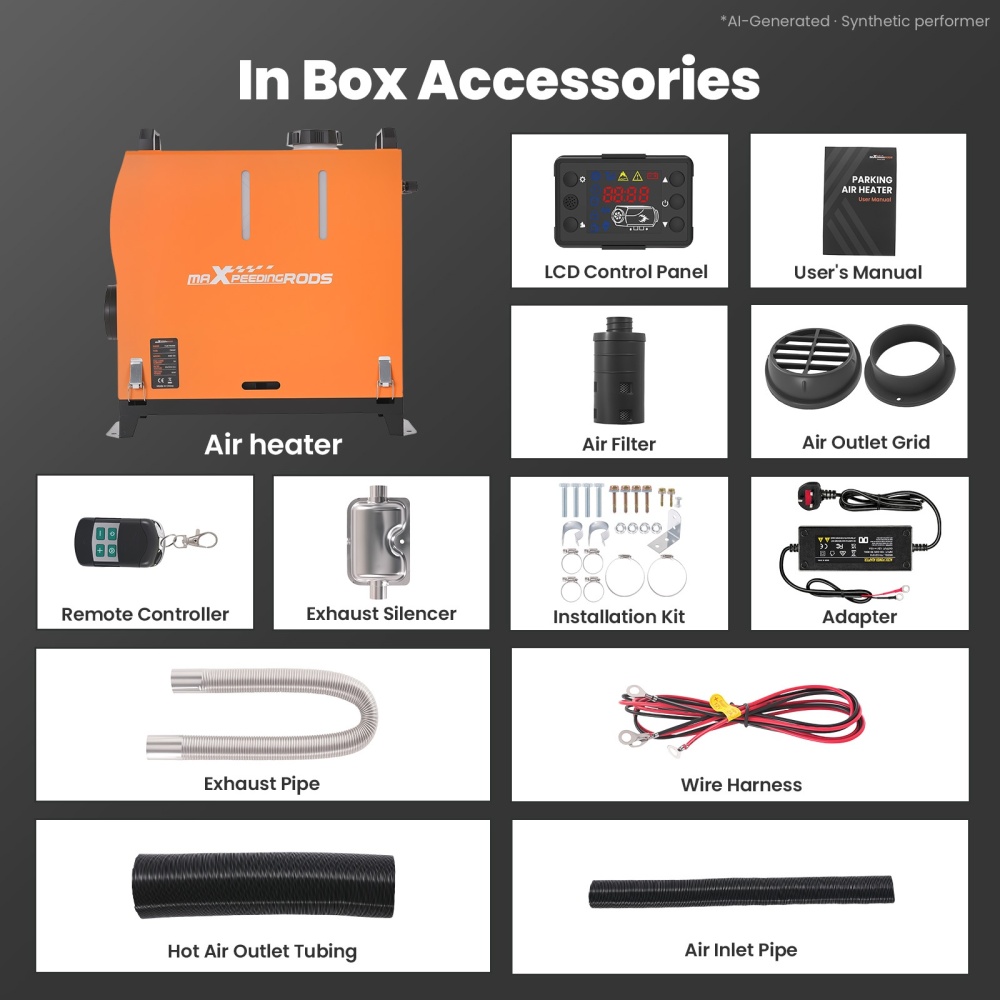

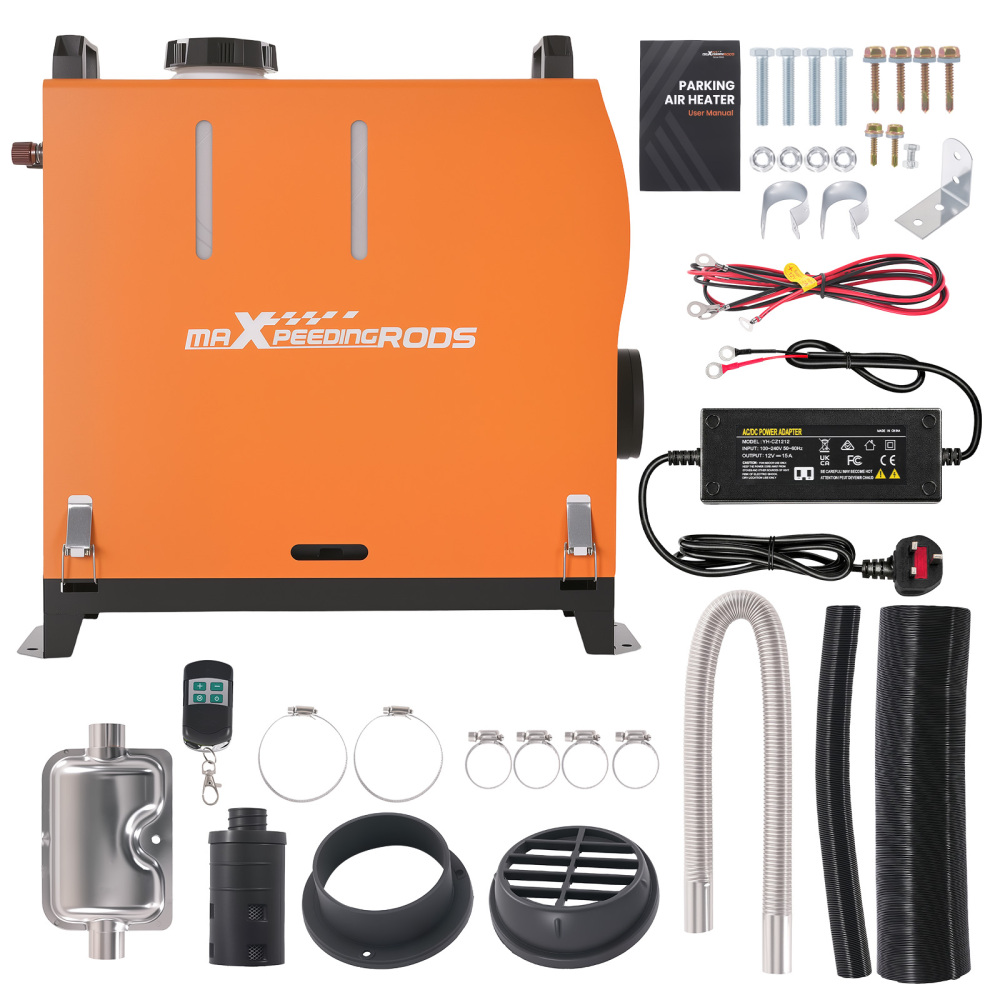

Easy to install , remove and maintain. The vehicle can be preheated by the remote control to eliminate the frost on the windows. At the same time, the remote control can adjust the oil volume, temperature, and wind speed. The heater is equipped with a complete set of assembly parts for easy installation.
3. DURABLE ALUMINUM BODY
The combustion chamber, the base and the heat-dissipating scale are all sand-blasted aluminum parts. It is integrally formed, with the heat dissipation fast and uniform.

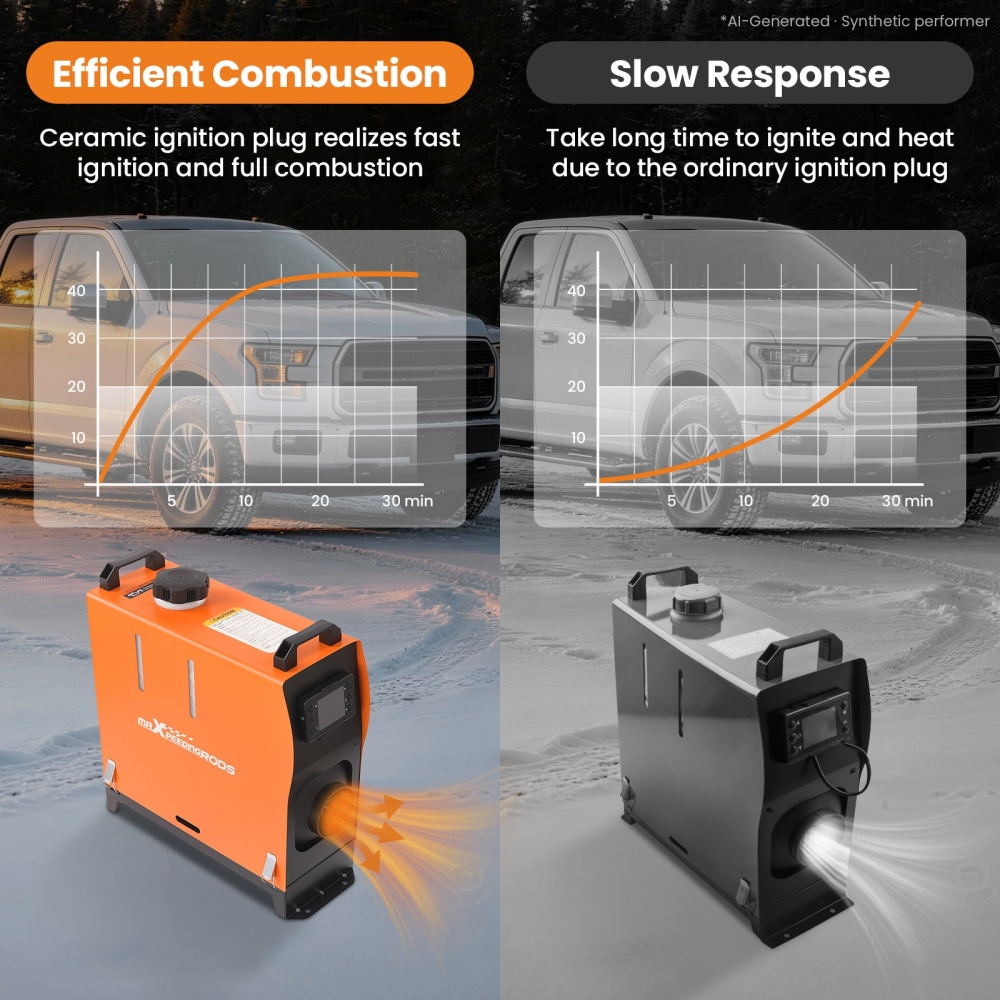

4. FAST HEATING
Volatile technology, the ceramic igniter heats the fuel to evaporate into a gas and burn it quickly and fully. Low emission, low fuel and power consumption, suitable for long running time.
5. LONGER HEATER LIFE
The optimized frequency conversion ECU can accurately control the injection frequency of the oil pump and the intake air amount to extend the service life of the heater.
6. REDUCED NOISE
Effectively reduce noise through blower speed control, the speed of the fan is controlled linearly with the increasing power, and the metering oil pump adopts an improved low frequency compatible for pulse with low vibration.
7. KEEP CONSTANT TEMPERATURE

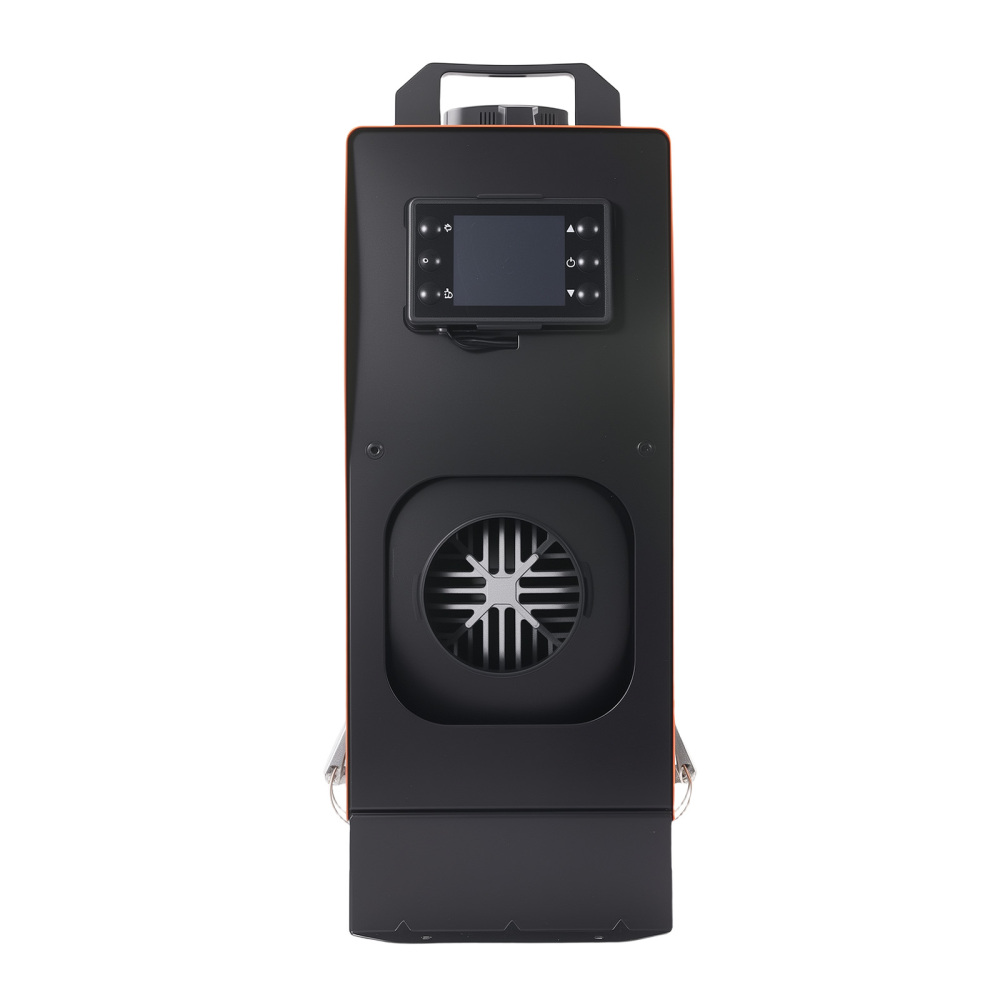

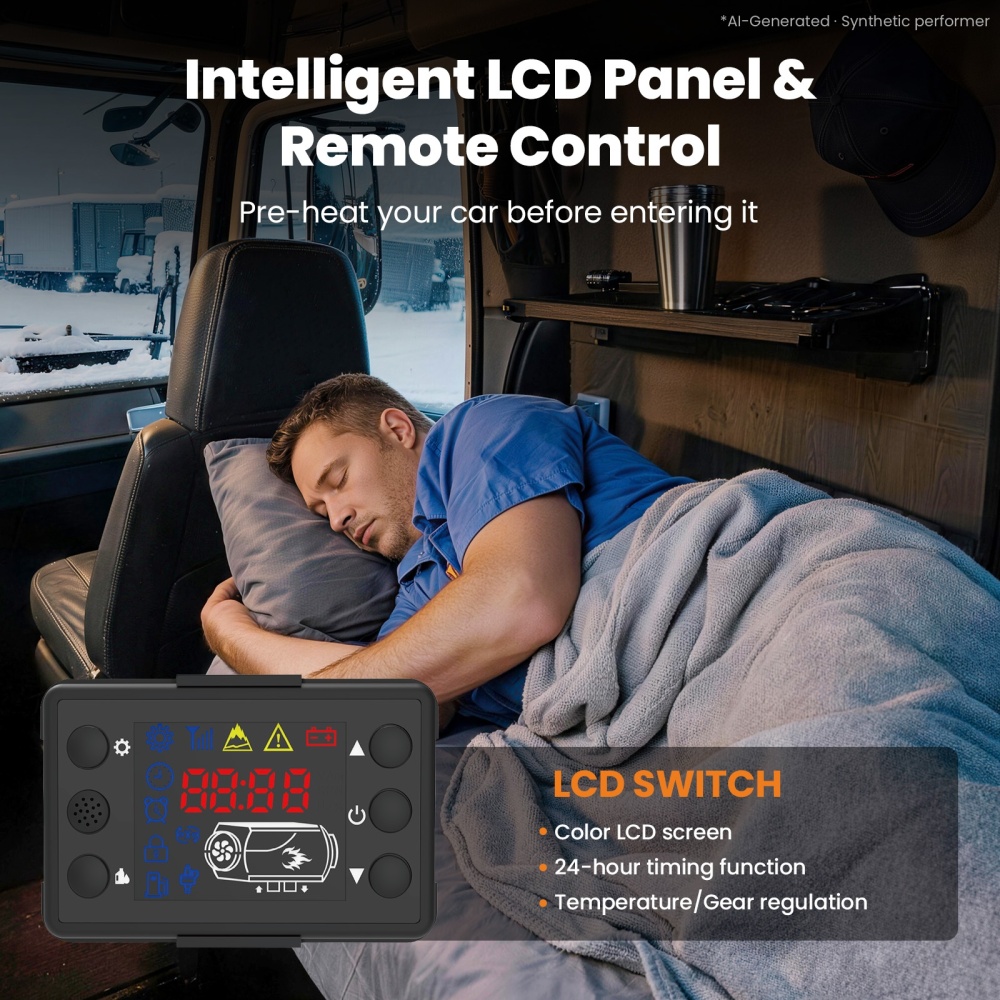

The intelligent overheating sensor can prevent the heater from running dry, and the LCD dynamic display will clearly show the running state of the machine.
8. All into one unit, saving space and easy to move.

Note:

* For safety, please stay away from flammable materials.
* Keep dry to avoid damage accessories.
* Exhaust gas contains CO, exhaust pipes must be installed outdoors or outside your vehicle.
* Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.
* Professional installation is highly recommended.

Install & Use Attention:

1. Ensure that the intake/exhaust pipes are with good ventilation, and don't bend to much. At least 10cm(0.79inch) in front of the air inlet.
2. Matching the remote controller when you use the heater for the first time.  And after the initial installation, the heater should be started with the Fuel pumping mode to remove the air lock from the fuel pipes.
3. The protective film on the LCD screen should be removed before using.( you just need to slightly tear off the upper layer of film, the film below can not be torn off, otherwise there will be dust into the switch, resulting in switch damage.)
4. Please use diesel with good quality.
5. EXhaust pipes must be installed outdoors or outside your vehicle.
6. When starting the heater for the first time,  as there is no diesel in the oil pipe, the heater will automatically shut down,  please repeat to start the heater after shutting down.
7. When you turn off the heater, it will continue to run until the heat dissipation is complete. Do not force to disconnect the power supply, otherwise the heater will be damaged.
