12 PCS Turbo Kit for D Series for D15Z1 D16Z6 D16Y7 D16Y5 D16Y8 D15B8 D15B7

Introduction

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for.

Application

For 92-95 compatible for Honda Civic VX 1.5L SOHC VTEC-E I-4 92HP D15Z1
For 96-00 compatible for Honda Civic DX/LX 1.6L SOHC I-4 106HP D16Y7
For 96-00 compatible for Honda Civic HX 1.6L SOHC VTEC-E I-4 115HP D16Y5
For 96-00 compatible for Honda Civic EX 1.6L SOHC VTEC I-4 127HP D16Y8
For 92-95 compatible for Honda Civic CX 1.5L SOHC I-4 70HP D15B8
For 92-95 compatible for Honda Civic DX/LX 1.5L SOHC I-4 102HP D15B7
For 92-95 compatible for Honda Civic EX/Si 1.6L SOHC VTEC I-4 125HP D16Z6
For 88-91 compatible for Honda CRX DX 1.5L SOHC I-4 92HP D15B2
For 88-91 compatible for Honda CRX HF 1.5L SOHC I-4 70HP D15B6
For 88-91 compatible for Honda CRX Si 1.6L SOHC I-4 108HP D16A6
For 93-95 compatible for Honda Del Sol S 1.5L SOHC I-4 102HP D15B7
For 93-1997 compatible for Honda Del Sol Si 1.6L SOHC VTEC I-4 125HP D16Z6
For 96-1997 compatible for Honda Del Sol S 1.6L SOHC I-4 106HP D16Y7

Specification

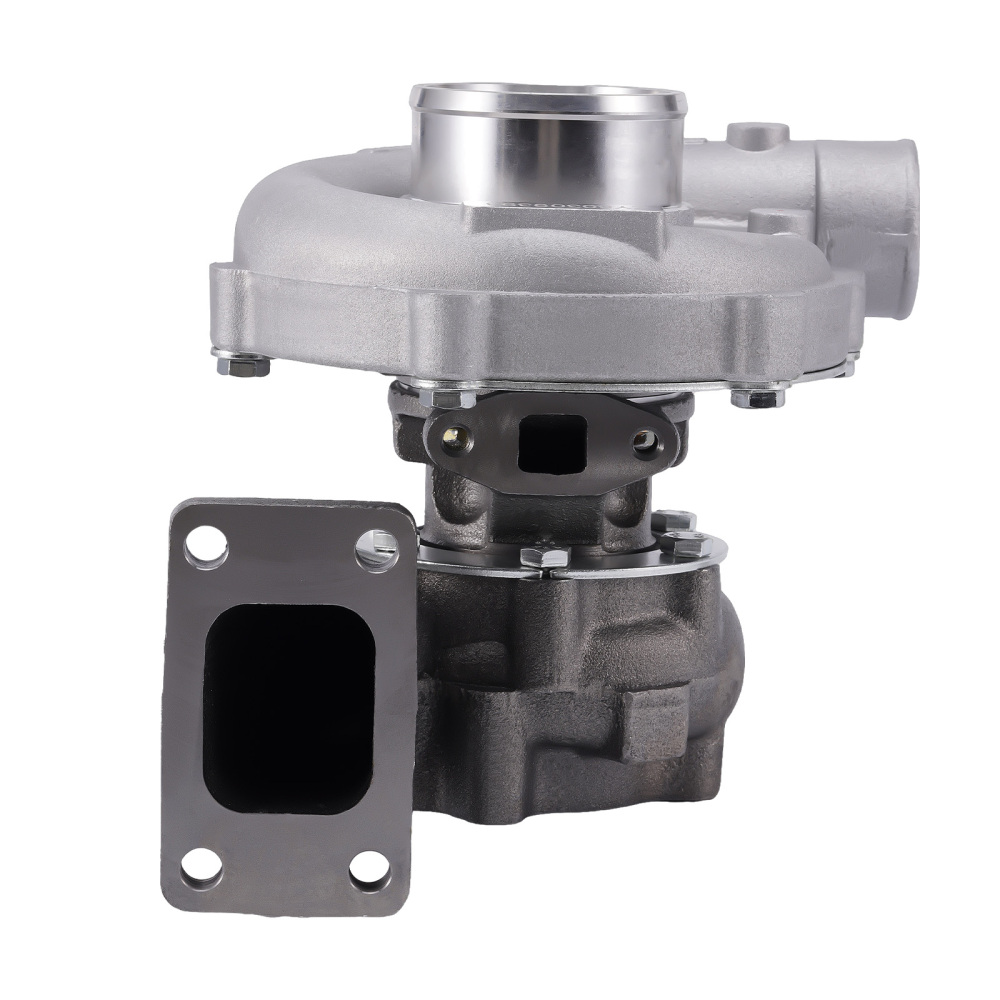

1 x T3/T4 Turbo Charger:
Compressor Inlet Diameter: 72mm(2.8")
Compressor Outlet Diameter: 53mm（2"）
Oil Inlet: 1/8 NPT
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (pipe) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing
Turbocharger Overall size: 270*220*220
1xmanifold：T3 flange 35mm or 38mm wastegate flange Cast Iron
1x Turbo pipe: 2.5" t3/t4 5-bolt stainless steel TIG welded pipe.
1 x intercooler piping kit:
intercooler:
Inlet size is 2.5 inch.
core size: 21*7*2.5.
Overall Size 27'' x 7'' x 2.5'' inch.
Support up to 350 hp for this small intercooler size - tube and fin style .
intercooler piping:
2.25" Alumnium Prenbent Mandrel Bends Piping
Comes with High Pressure Silicone Hoses and T-blot clamps
1 x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.
1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
1 x Turbo Boost Gauge: 2" (52mm) Turbo Boost Meter Gauge. Red LED Illuminated Needles. Comes with All the Wiring Necessary for Installation. All Accessories are Included for Installation.
1 x Turbo Boost Controller: Up To 30 PSi Boost
1x Oil catch can
1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan. The kit provides a anodized look, and gives a best cooling performance on your turbo and long lasting life.
Material: Stainless Steel Braided

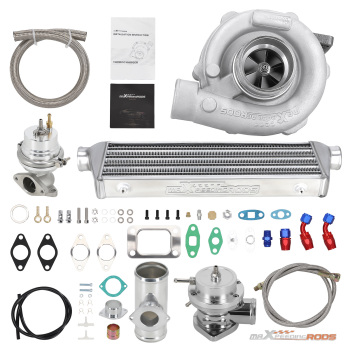

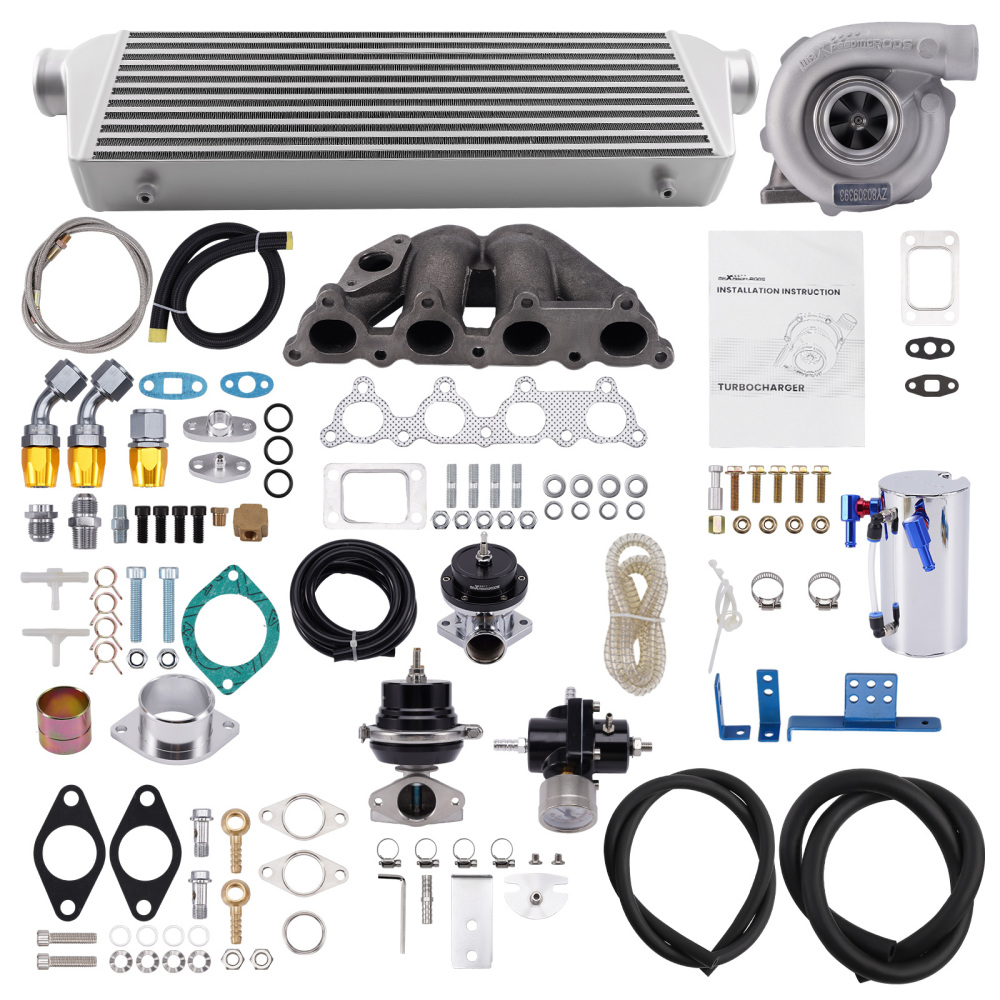

Package included

1x T3/T4 Turbocharger
1x Manifold
1x pipe
1x Turbo Intercooler Piping Kit
1x Oil Feed / Return Line
1x 35/38mm Wastegate
1x Type-S Blow Off Valve
1x Tubo Boost Controller
1x Oil catch can
1x Turbo Boost Gauge

Feature

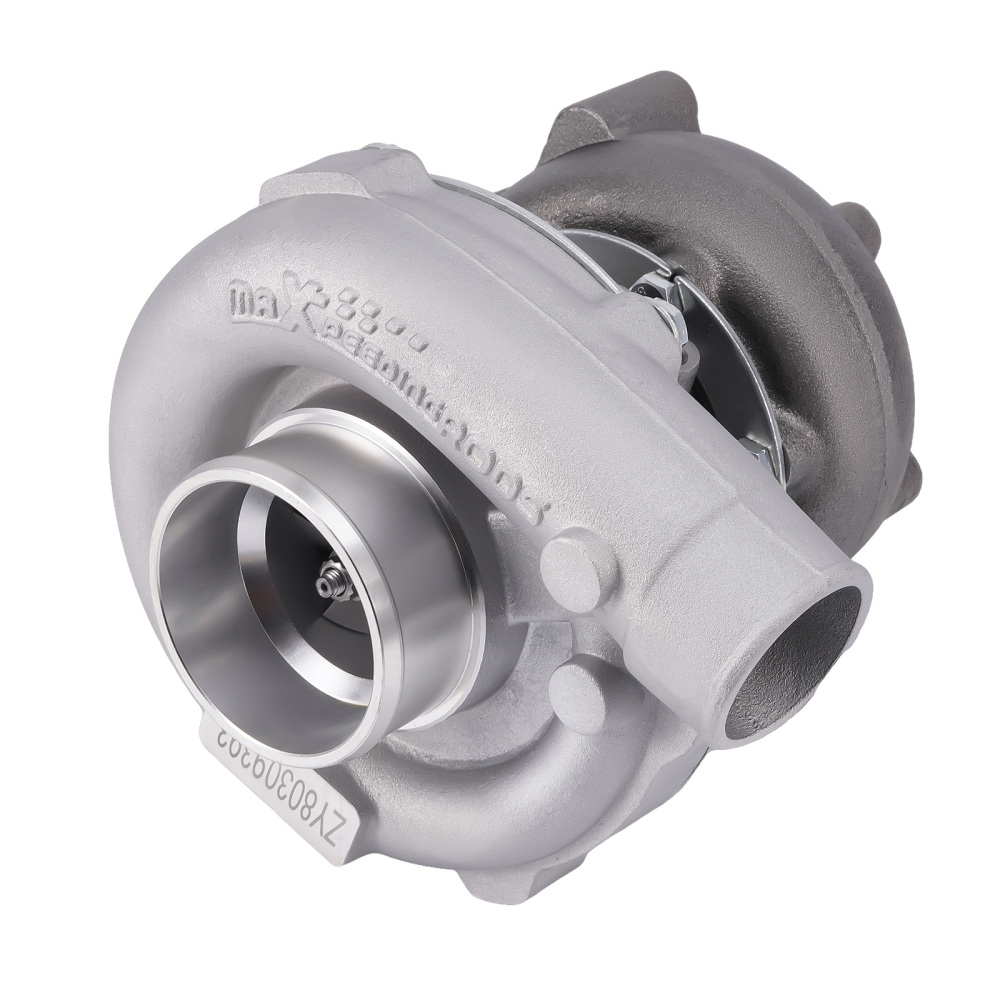

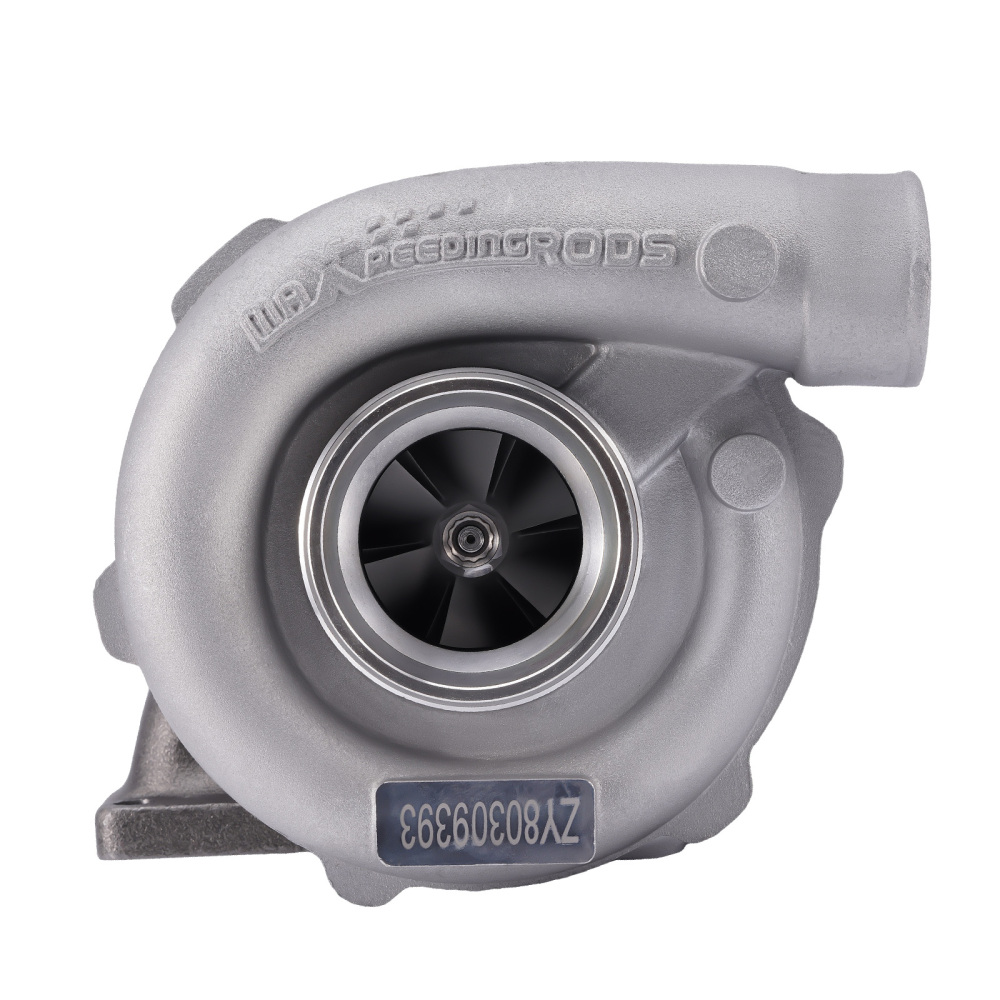

1.Turbo charger:
* Capable of Boosting Horse Power up to 400+ HP
* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃
* Cast aluminium blades with good gas tightness and corrosion resistance.

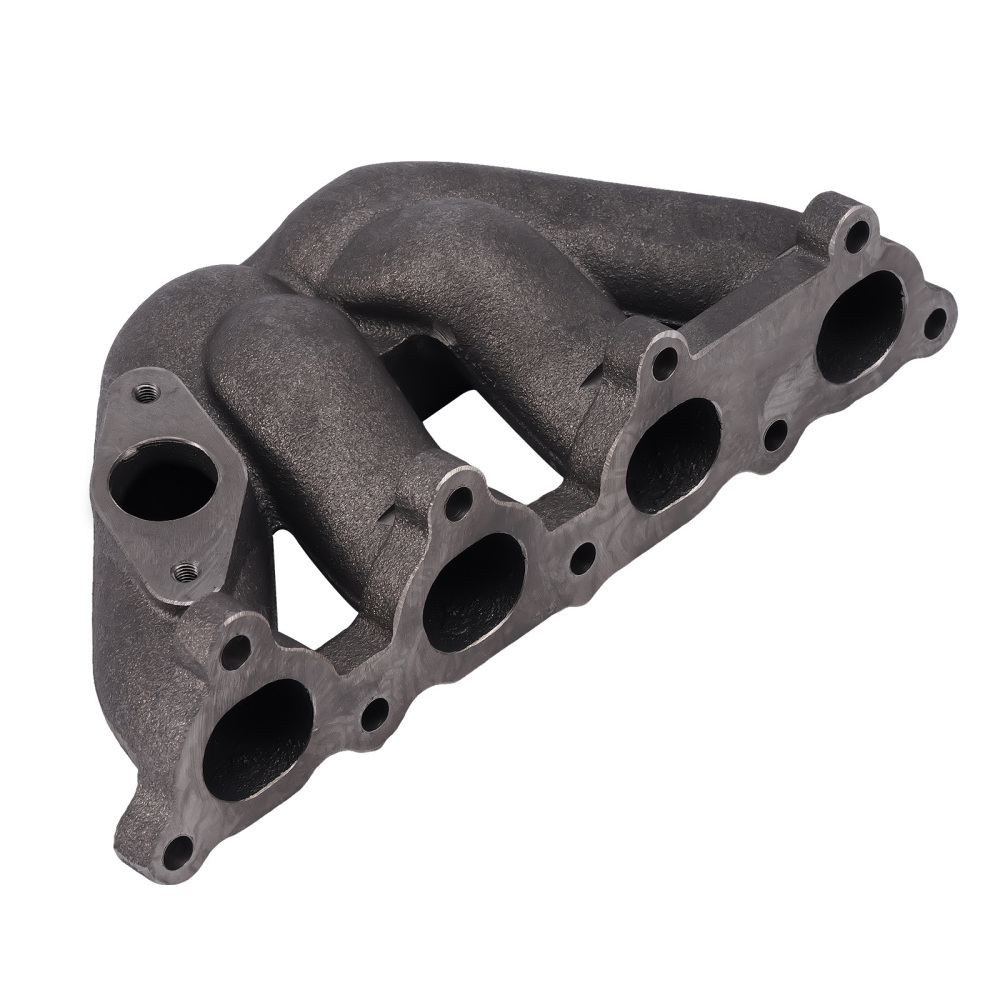

2.Manifold
*Direct replacement
*Replaces original manifolds that are cracked from thermal expansion and contraction
3.pipe
*Made of high quality T-304 stainless steel with computerized mandrel-bends
i.e. Maximizing smoothest exhaust airflow
TIG welded CNC machine flange for strength and durability
Increase engine output and efficiency. Gain 10 - 15 HPs (approximately)
O2 Sensor Bungs insertion, bolt(s) and metal gasket(s) included
4. Intercooler piping kit

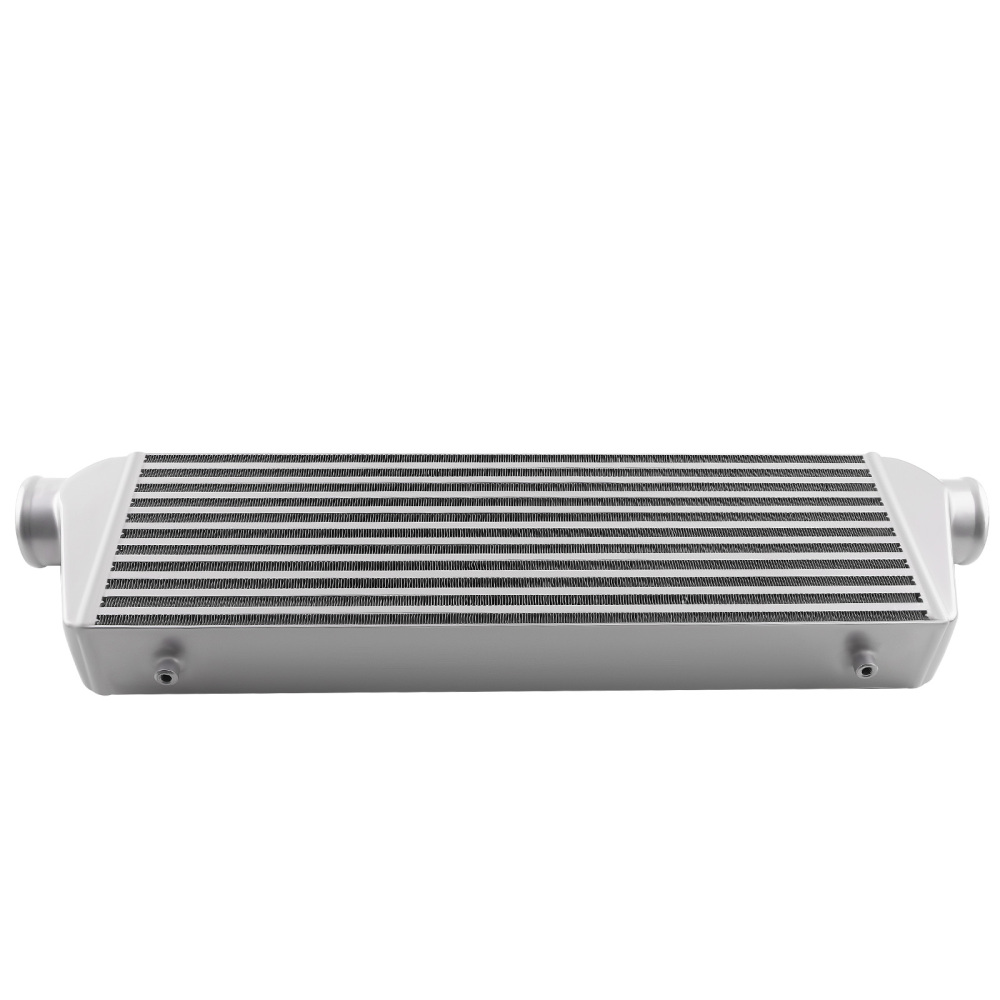

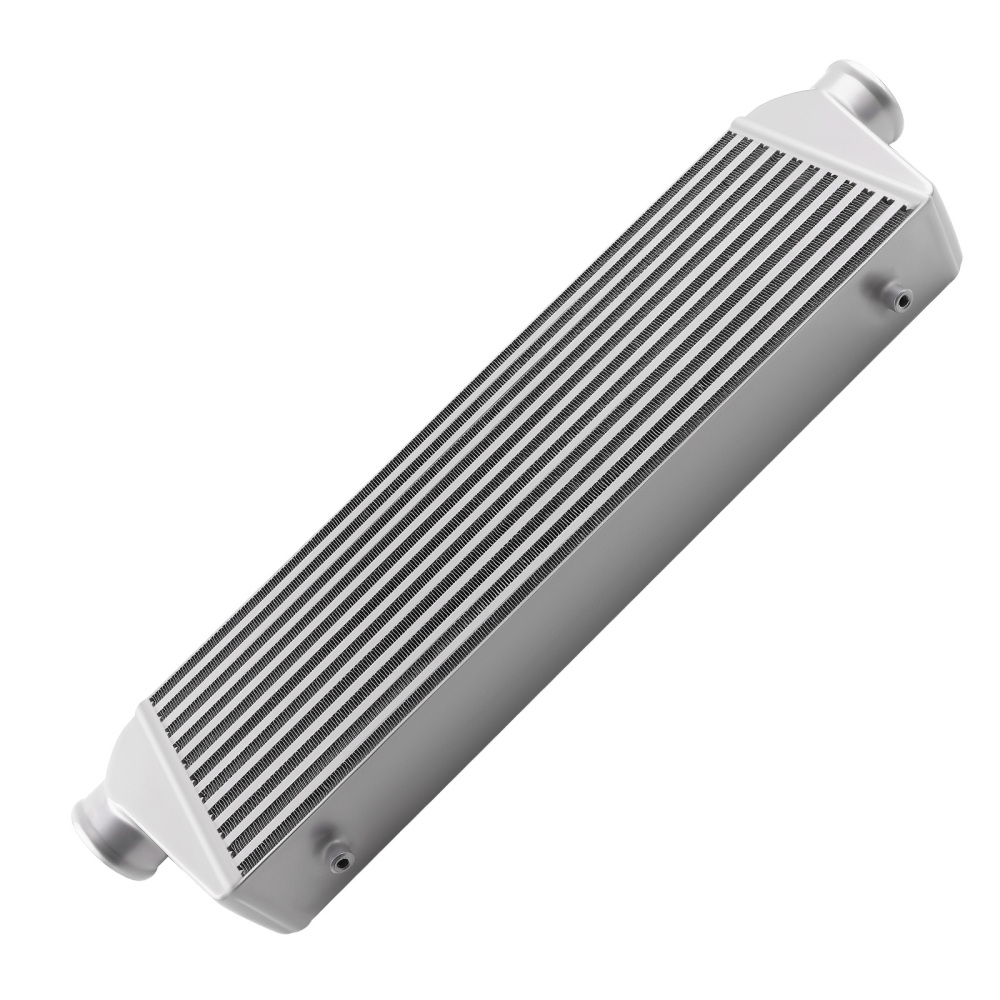

intercooler
* core size:21*7*2.5 cools down the turbocharged air efficiently
* Lightweight aluminum racing intercooler，
* Strong TIG welds will support high PSI levels
Intercooler piping
* Made of 6061 aluminum
* Lightweight yet strong aluminum piping
5.Boost controller
* Can be setup to adjust boost PSI on the fly
* Can be adjusted for any PSI level desired
* Control your boost with a precise click
* Includes complete install kit
* Anodized aluminum finish
* CNC machined design
* High pressure silicone couplers and T-bolt clamps
6. Turbo Oil returen /Feeding line kit
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the turbo charger to the oil pan.
* The kit provides a anodized look
* gives a best cooling performance on your turbo and long lasting life.
7.Blow Off Valve Kit
* CNC Billet Aluminum Type RS Style Blow off Valve
* Easy Mount Piping Set Included For Bolt-On.
* Including all necessary hardwares.
* easily adjustable to prevent both permature boost leakage and compressor surge.
* Fast response One For Low And High Boost Pressure.
* Performance design produces a powerful and aggressive sound
* Quality design will not leak under high boost conditions
* Flanges can be installed at user discretion
8. 38MM Wastegate
* Most reliable wastegates For competition vehicles.
* accurate boost control
* high quality appearance features Dual port design
* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.
9. Oil catch can
* Made with High Quality Aluminum for Enhanced Strength and Durability
10.Turbo Boost Gauge
* Red LED Illuminated Needles.
* Comes with All the Wiring Necessary for Installation.
* All Accessories are Included for Installation.
* Accurately monitor boost pressures from the turbo system
* Back lit for use at night time

Note

* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
