Compatible for Audi A4 A6 1.8T AEB/ ANB 53049880015 K04-015 K03 Upgrade Turbo Turbocharger

lncl. 20% VAT
  • * Fitment: Compatible for Audi, compatible for Volkswagen,etc
  • * Horse Power: Capable of boosting horse power up to 250HP
  • * Turbine Housing Material: Ductile Iron QT450-10; temperature resistant up to 700℃
  • * Turbine Impeller Material: K418 Alloy; high oxidation resistance & stability (resistance up to 900℃)
  • * Cast Aluminium Blades: Great airtight seal, airflow, light weight, and corrosion resistant
  • * Excellent Design: Durable floating bearing structure & high-precision blade dynamic balance
  • * 100% Balancing Test: This turbocharger you will receive has been balanced using the VSR machine technology
Item Number item_number
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
k0415
k0415
1
OEM-quality and direct replacement turbochargers which increase the users car's power output
2
Ductile Iron QT450-10, the material used for the exhaust housing, is temperature resistant up to 700℃
3
K418 Alloy, the material used for the exhaust impeller, has high oxidation resistance & stability (resistance up to 900℃)
4
The cast aluminium blades are great airtight seal, airflow, light weight, and corrosion resistant

Overview

Has your factory turbocharger failed? Are you looking to increase the power in your A4? If so Maxpeedingrods K04 turbocharger is perfect for you. The K04 installs in the factory turbocharger location and uses all factory plumbing include intake, downpipe, exhaust manifold, and oil/coolant lines. Installation is straight forward, simply remove the factory turbocharger and the K04 drops right in.
The K04 turbocharger features a larger compressor and turbine wheel which provides for increased horsepower and torque over factory. Flows more volume and sustains higher boost pressures than the standard K03

Application

Compatible for AUDI A4 1.8T AEB/ANB/APU/AWT20v/AVJ 95 - 99
Compatible for AUDI A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 99 -
Compatible for AUDI A4 Upgrade 1.8T   95 -
Compatible for AUDI A6 1.8T AEB/ANB/APU/AWT 97 - 99
Compatible for AUDI A6 Quattro 1.8T AEB/ANB/APU/AWT 99 -
Compatible for VW PASSAT 1.8T AEB/ANB/APU/AWT 99 -
Compatible for VW PASSAT 1.8T upgrade 99 -

OEM number

058145703L 058145703LX 058145703LV
058145703J 058145703JX 058145703JV
058145703E 058145703H 06A145703B
058145703N 058145703K 078145703B

Turbo part number

058145703L 058145703LX 058145703LV
058145703J 058145703JX 058145703JV
058145703E 058145703H 06A145703B
058145703N 058145703K 078145703B

Specification

Turbo model: K04, K04-0015
Engien code: AEB/ANB/APU/AWT20v/AVJ
Cooling Type:Water Cooling
Bearing Type: Floating Bearing
Hosepower: Up to 250HP
Thrust bearings: 270 Degrees
Condition: Brand New
Warranty: one year warranty for any manufacturing defect

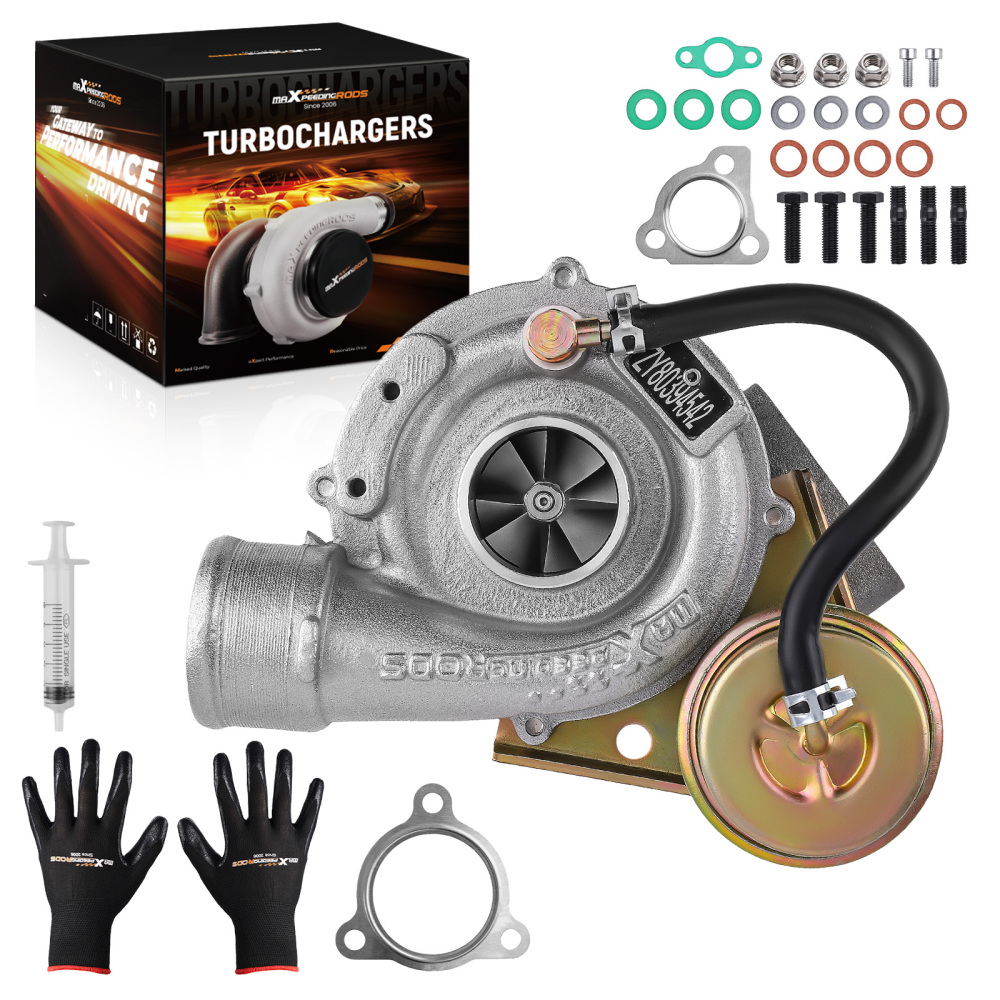

Accessories: You will get exactly as shown in the picture above

Features

1. 100% BALANCING TEST:This Turbocharger you will receive has been balanced using the VSR machine technology.

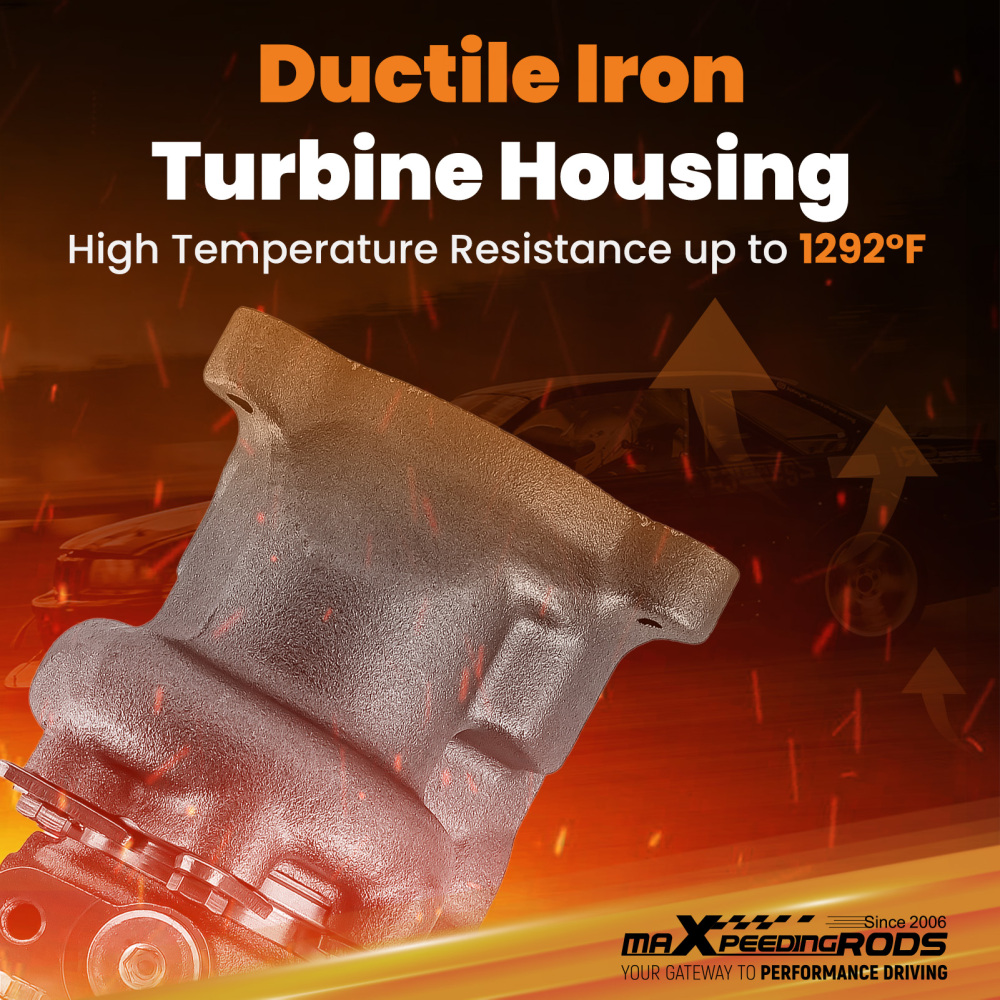

2.Turbine housing:Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.

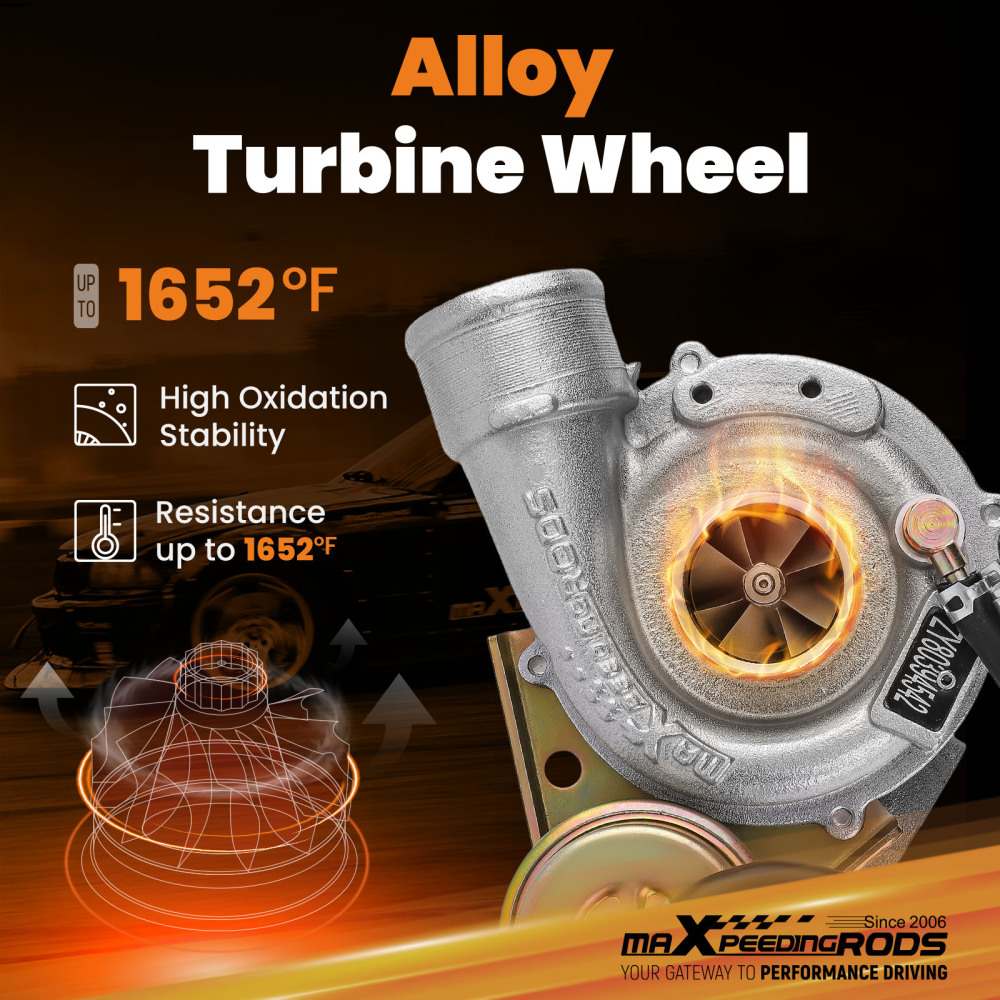

3. Steel Turbine Wheel:Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.

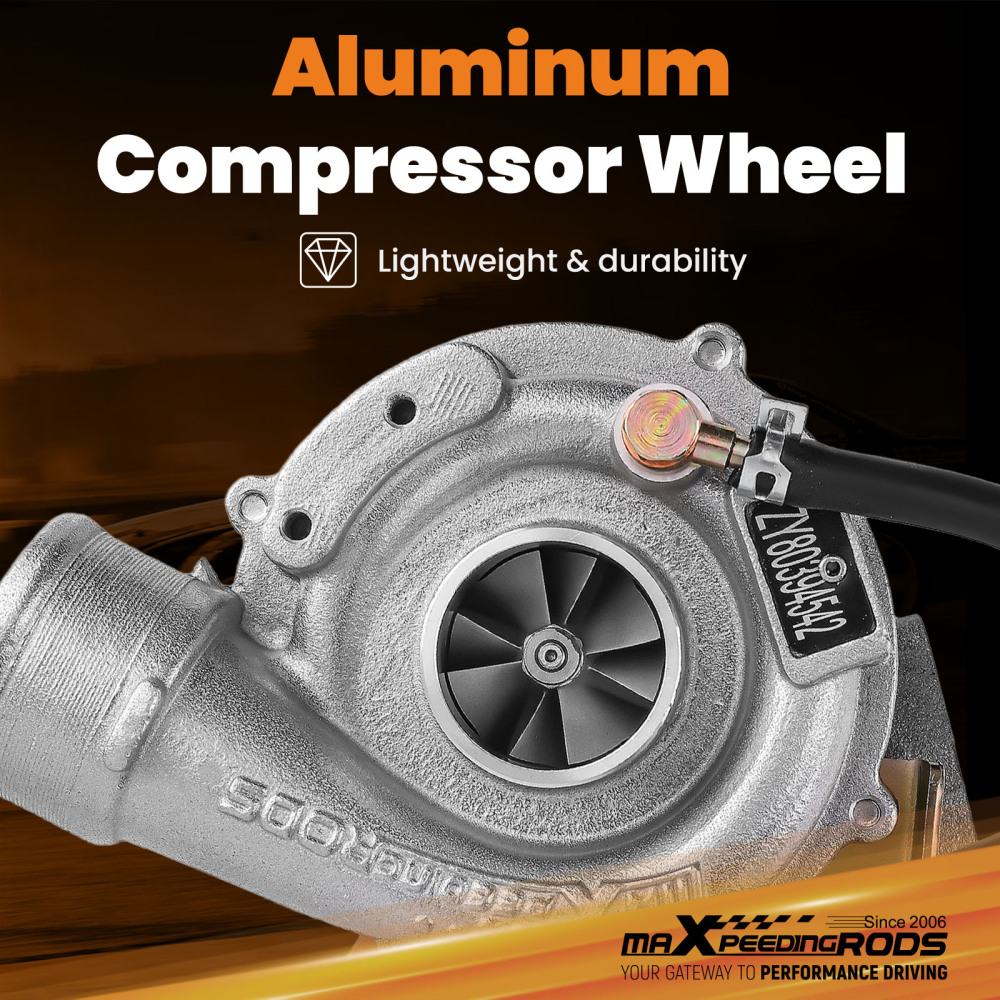

4. Compressor housing:ZL104 aluminum.
5. Compressor wheel/blades:
- Cast Aluminium with good gas tightness and corrosion resistance.

Note

*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the right one for your engine. If you are not sure about these information, Please feel free to contact us
*Professional installation is highly recommended (No Instruction Included)

Installation Suggestions

We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.
